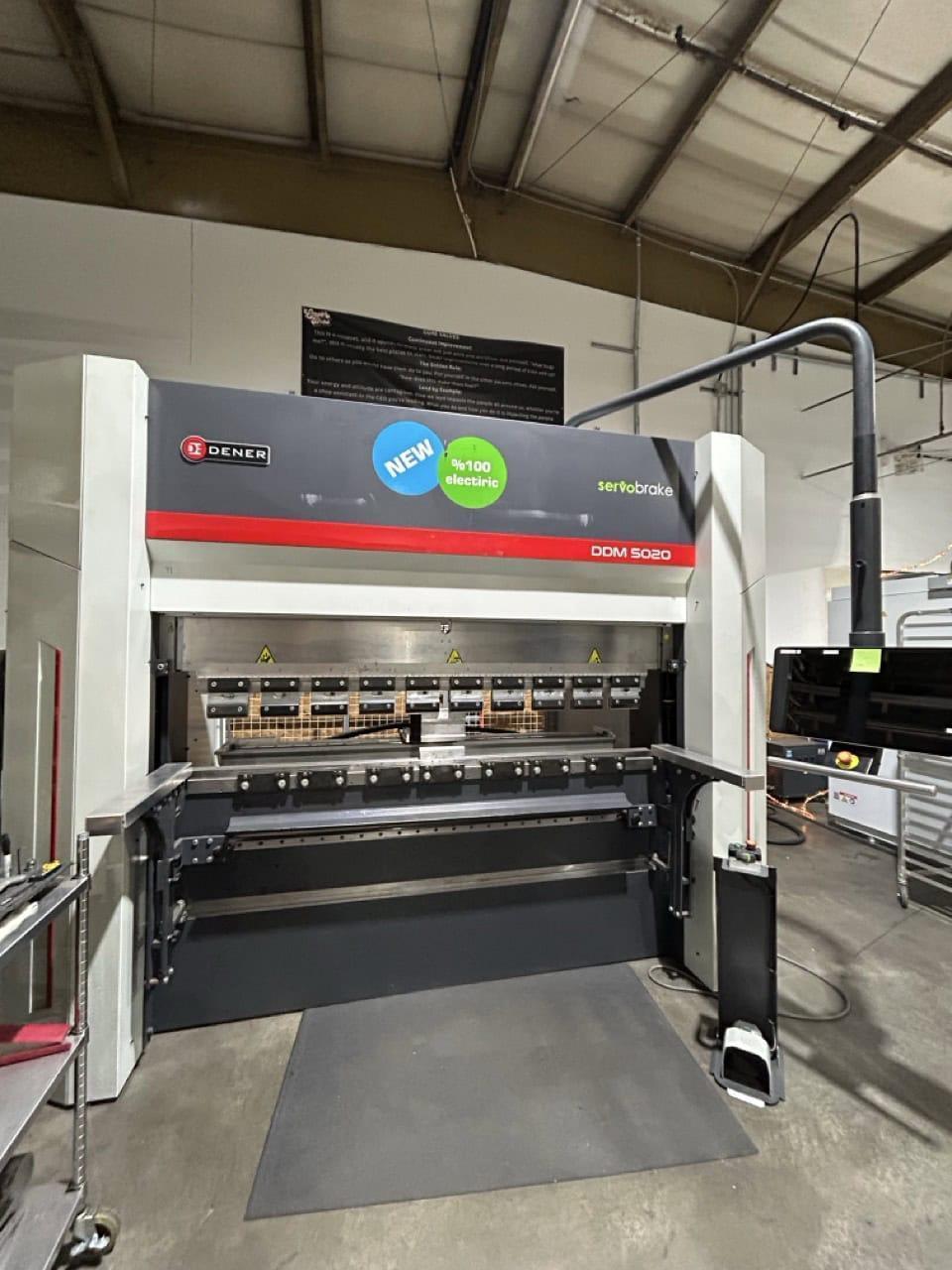

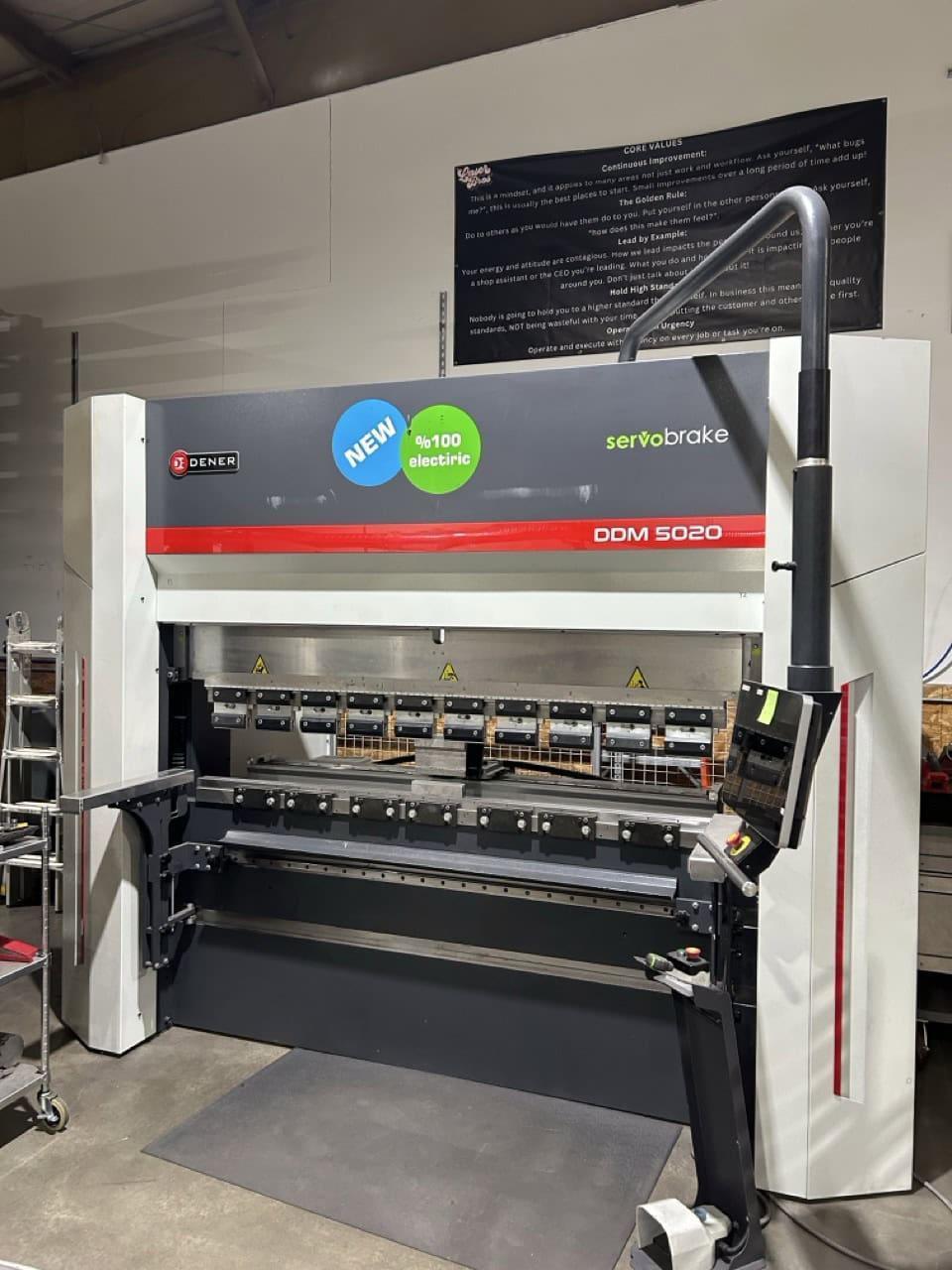

55 Ton x 6.5′ Dener 5020 Electric Press Brake, 2022

Dener 5020 (new in 2022)

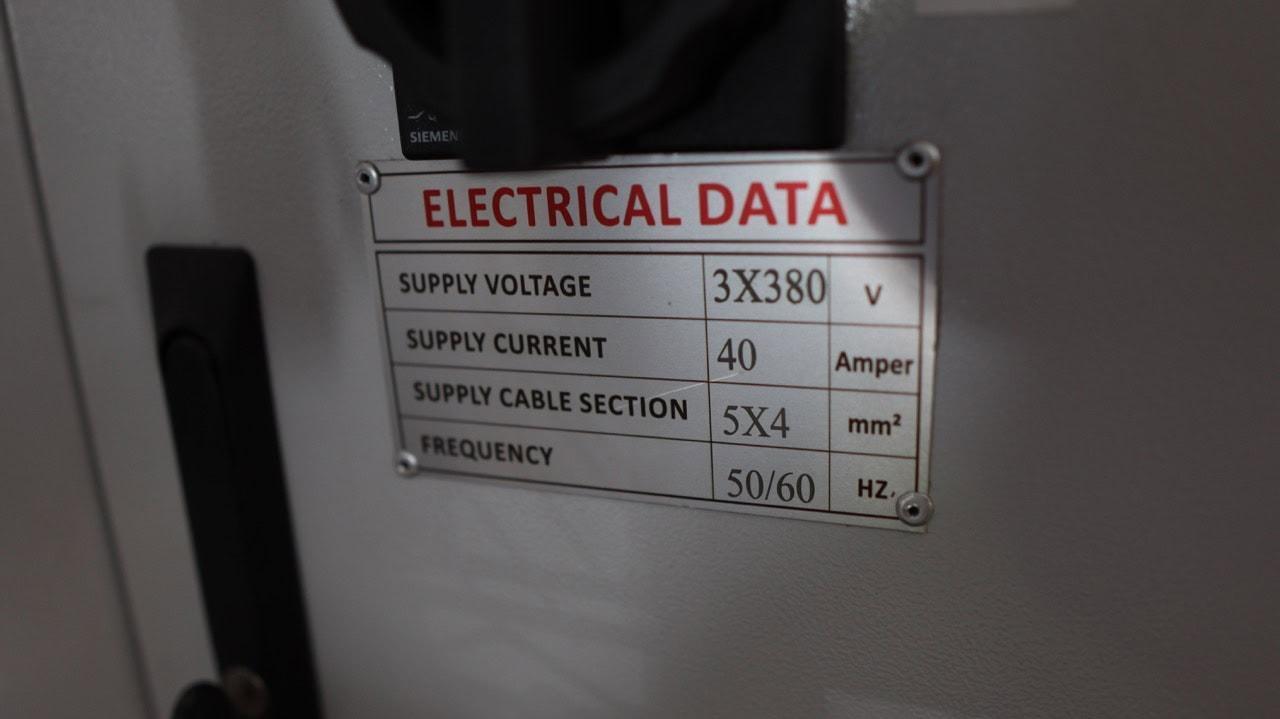

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Tonnage: 55 US Tons Bending length: 78.75″/ 2 meter bed Distance Between Housings: 61″ Stroke: 7.8″ Approaching Speed: 5.91″/sec Bending Speed: 0.79″ Return Speed; 5.91″/sec Number of Axis: 4 480-volt 3-phase

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Approx Weight: 10,693 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,CNC Control: ESA DSP safety light curtain

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Tooling style: American (top and bottom manual clamping)

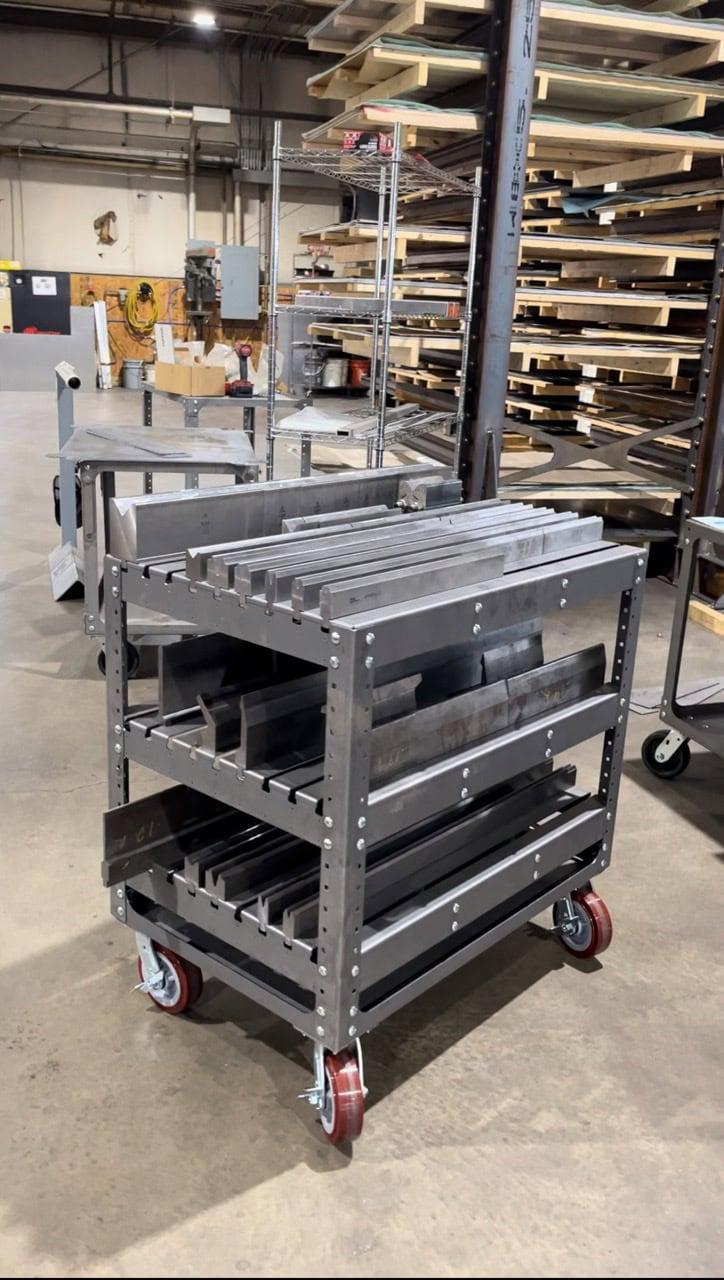

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,American style tooling with a cart:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,List of dies:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,54″ @ 0.25″ acute

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,72″ @ 0.375″ acute

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,72″ @ 0.50″ acute

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,72″ @ 0.625″ acute

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,72″ @ 0.875″ acute

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,72″ @ 1″ 88deg

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,36″ @ 2″ 88deg

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,12″ @ 1.5″ 88deg

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,List of Punches:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,90″ @ 0.032″ Radius arrow punch

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,36″ @ 0.040″ Radius Gooseneck punch

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,45″ @ 0.125″ Radius arrow punch

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,32″ @ 0.188″ Radius arrow punch

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,32″ @ 0.25″ Radius arrow punch

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,https://www.machinetools.com/en/for-sale/627585-dener-ddm-5020-press-brakes
