Dalian SJ130/31 Single Screw Granulation Line – 130mm, 160kW, Full Water Ring System, Complete Line

Brand
Not specified
Model
SJ130/31
Stock #
997575
Year
2017
Condition
Not specified

Location

Michigan
Equipment Overview

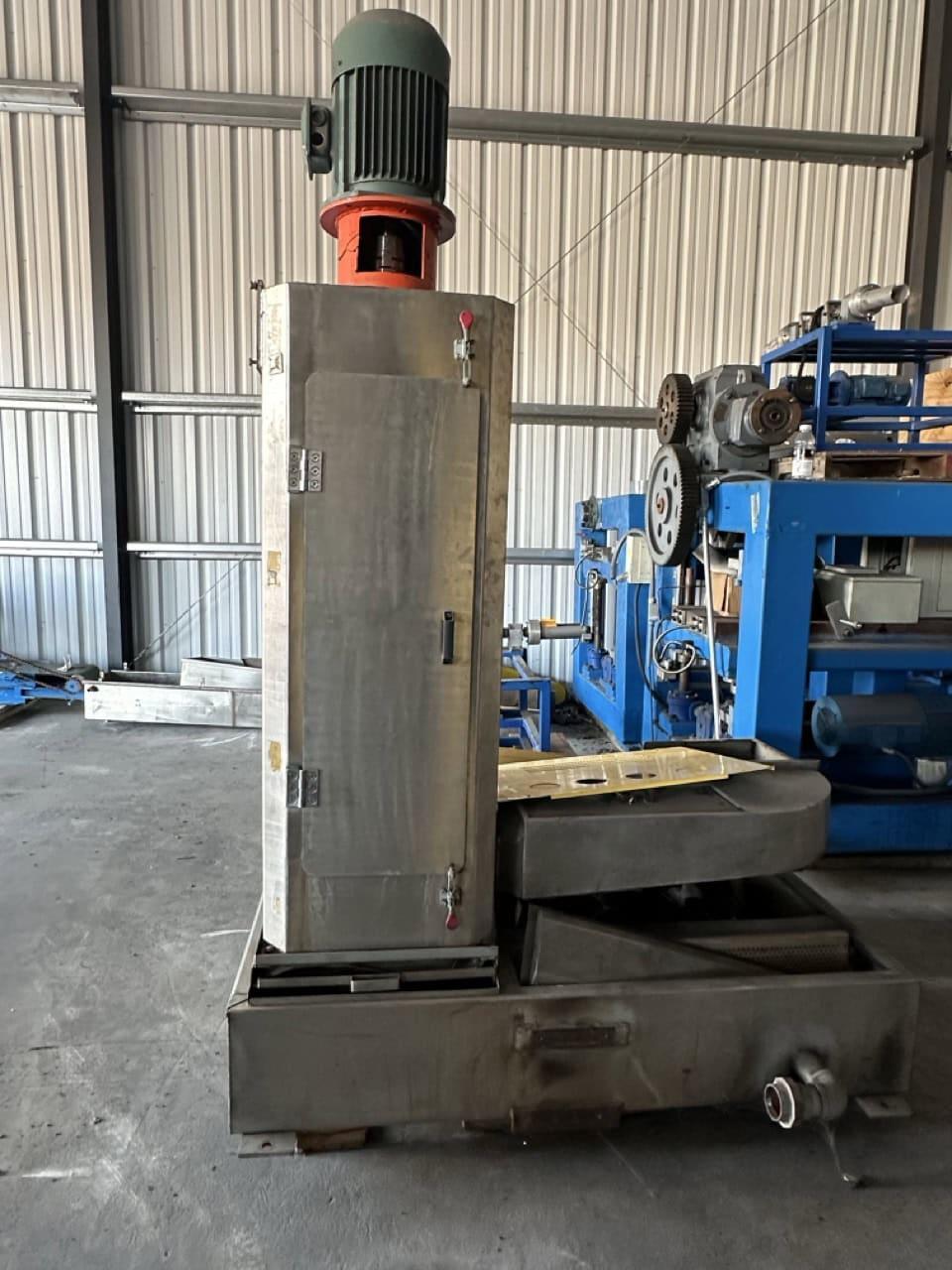

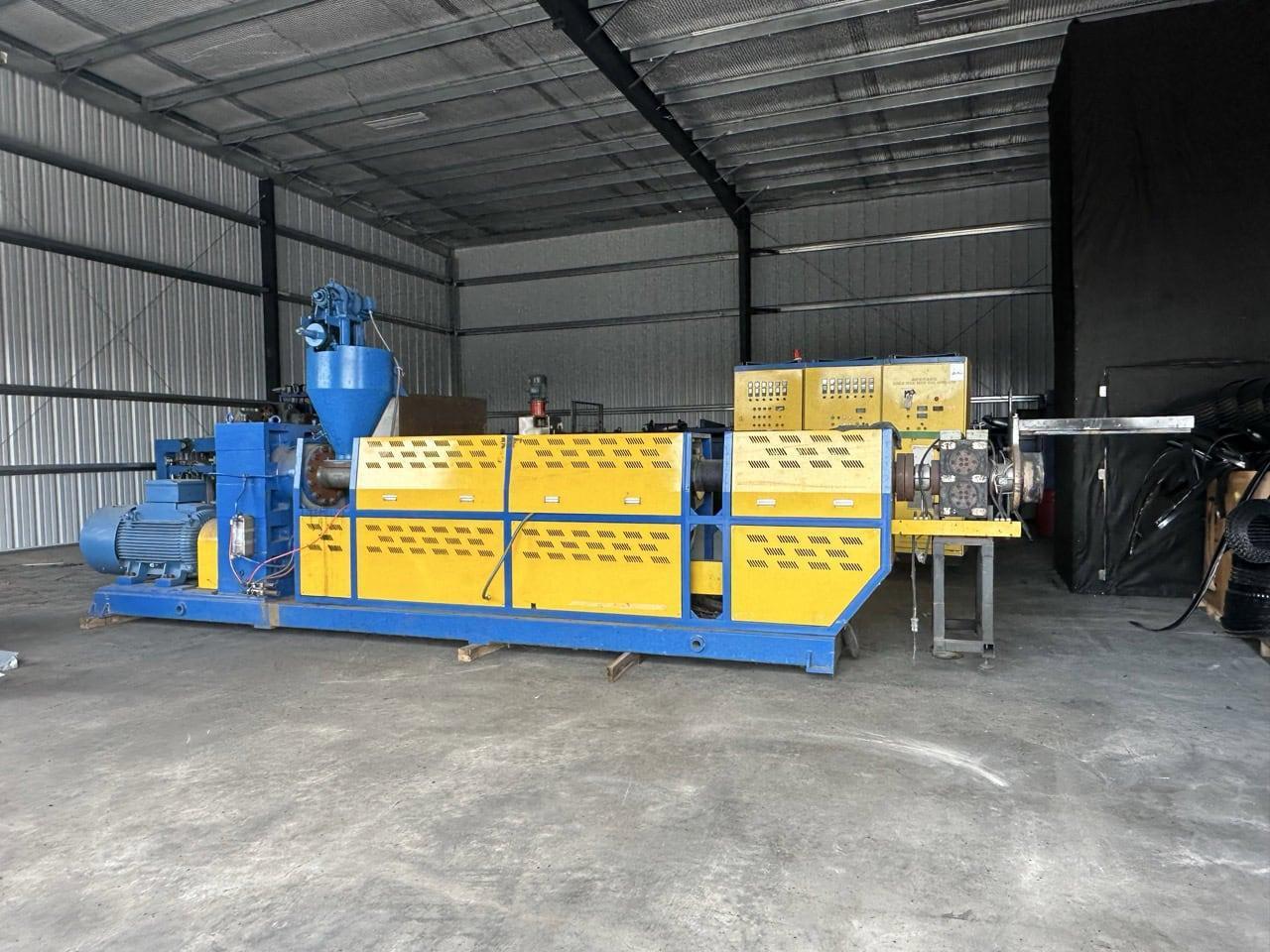

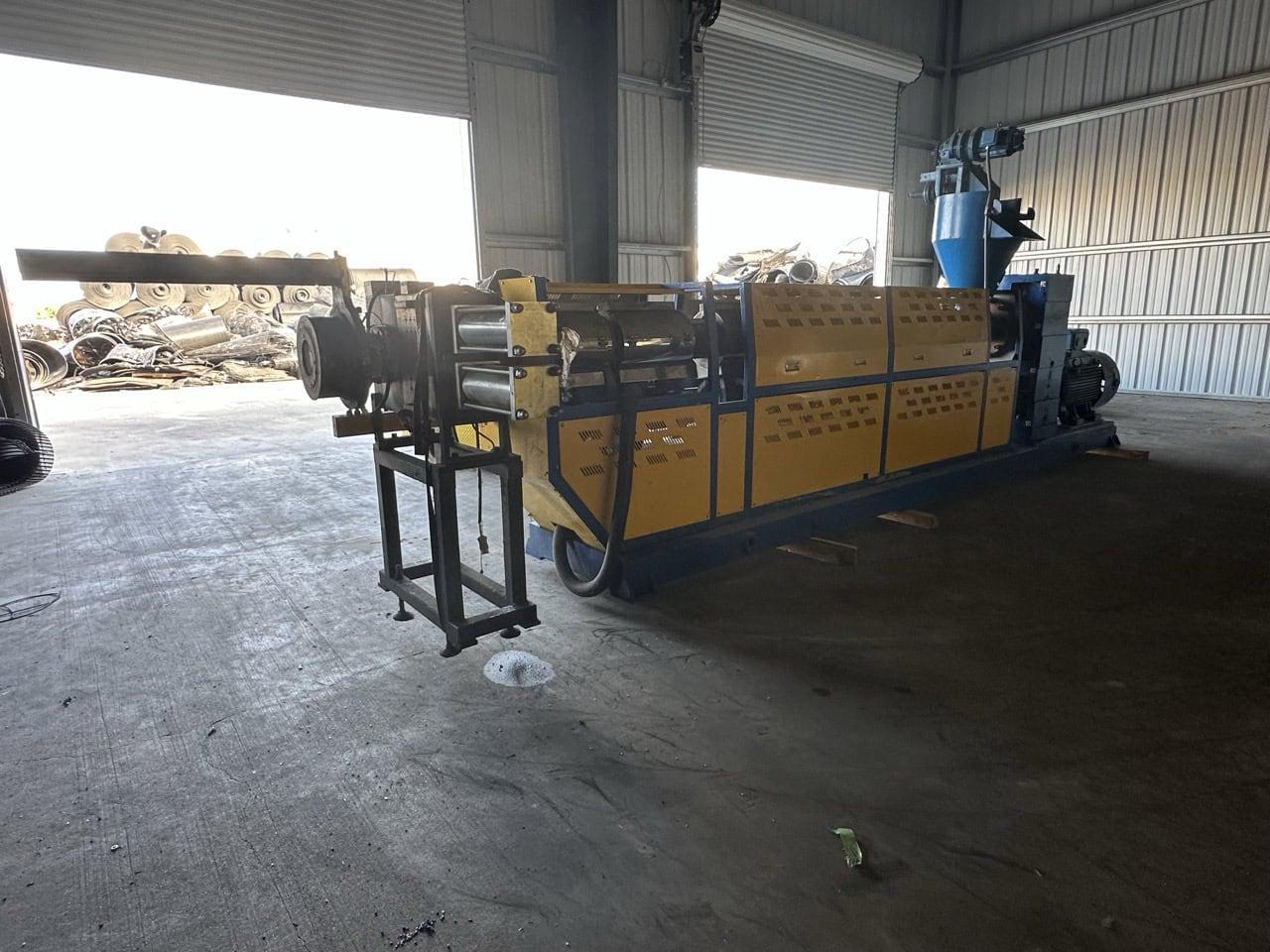

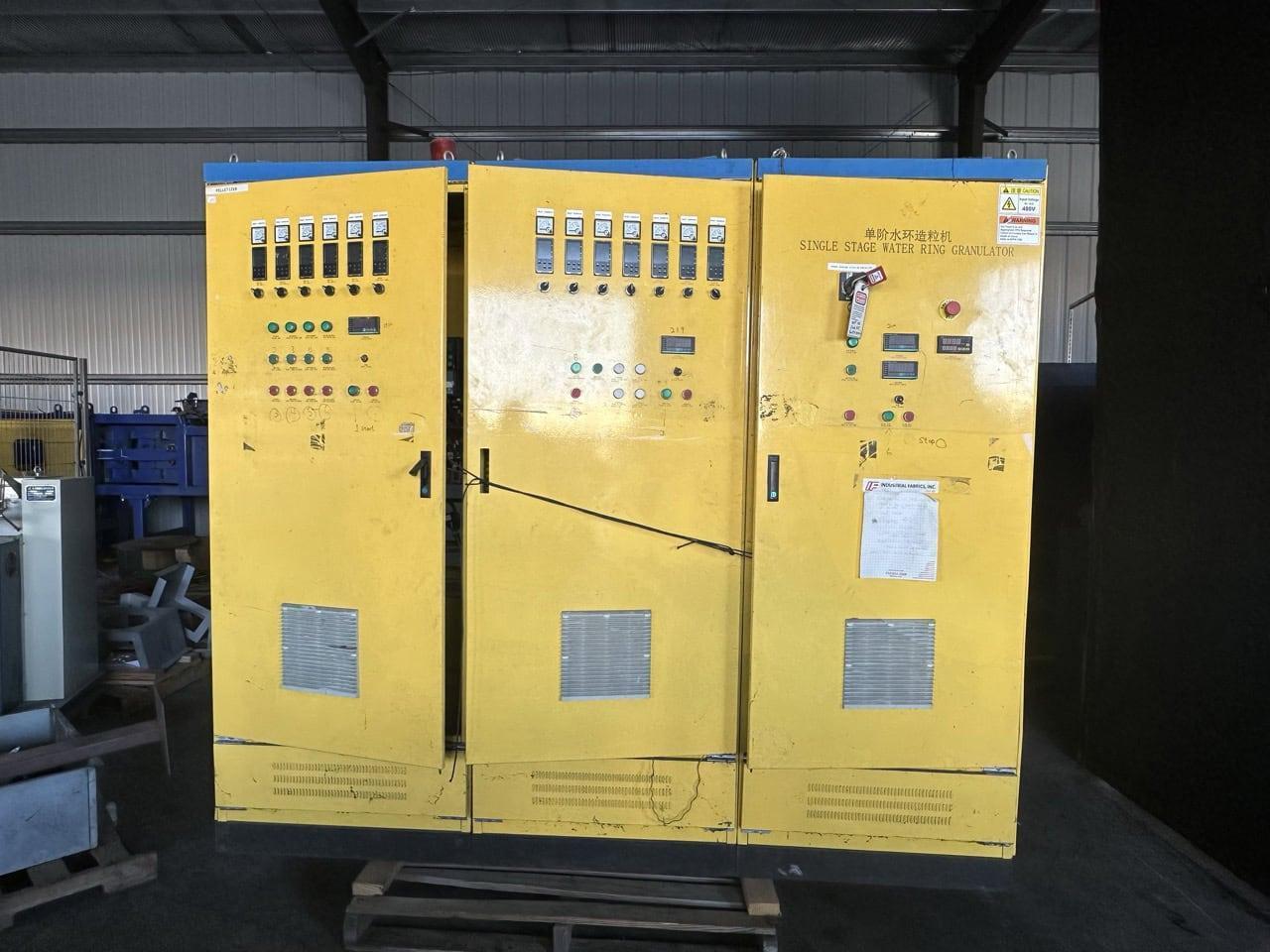

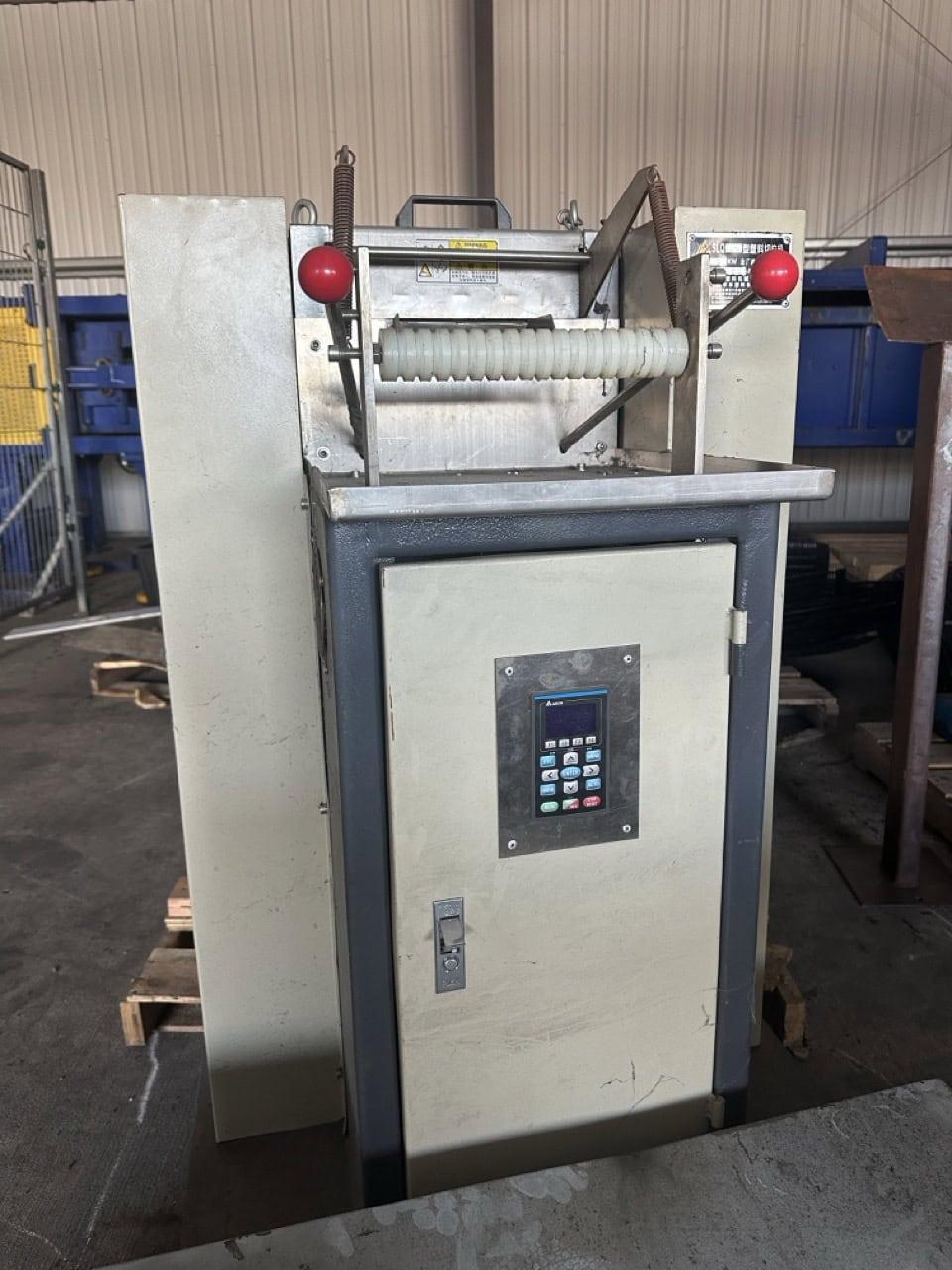

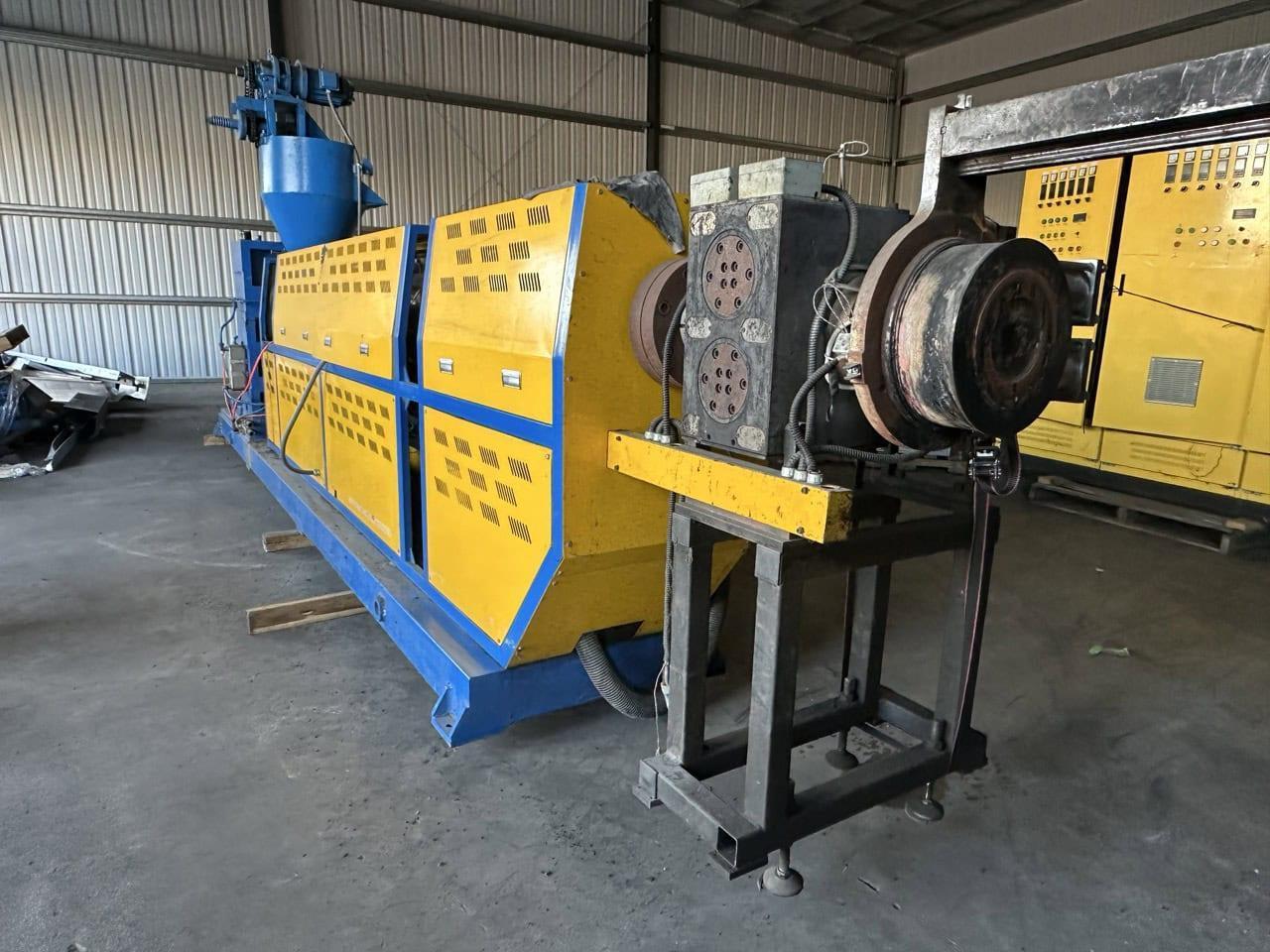

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,This is a complete plastic pelletizing system designed for recycling and reprocessing PE/PP and similar thermoplastics. The main unit is a 130mm twin-screw extruder with air-cooled ceramic barrel heating, driven by a 160kW WEG AC motor. Included is a full-sized control cabinet, water-ring cutter assembly, feed conveyor, vertical centrifugal dryer, and shaker screener. Ideal for operations targeting 250–500 kg/hr pellet output.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Key Features and Specifications

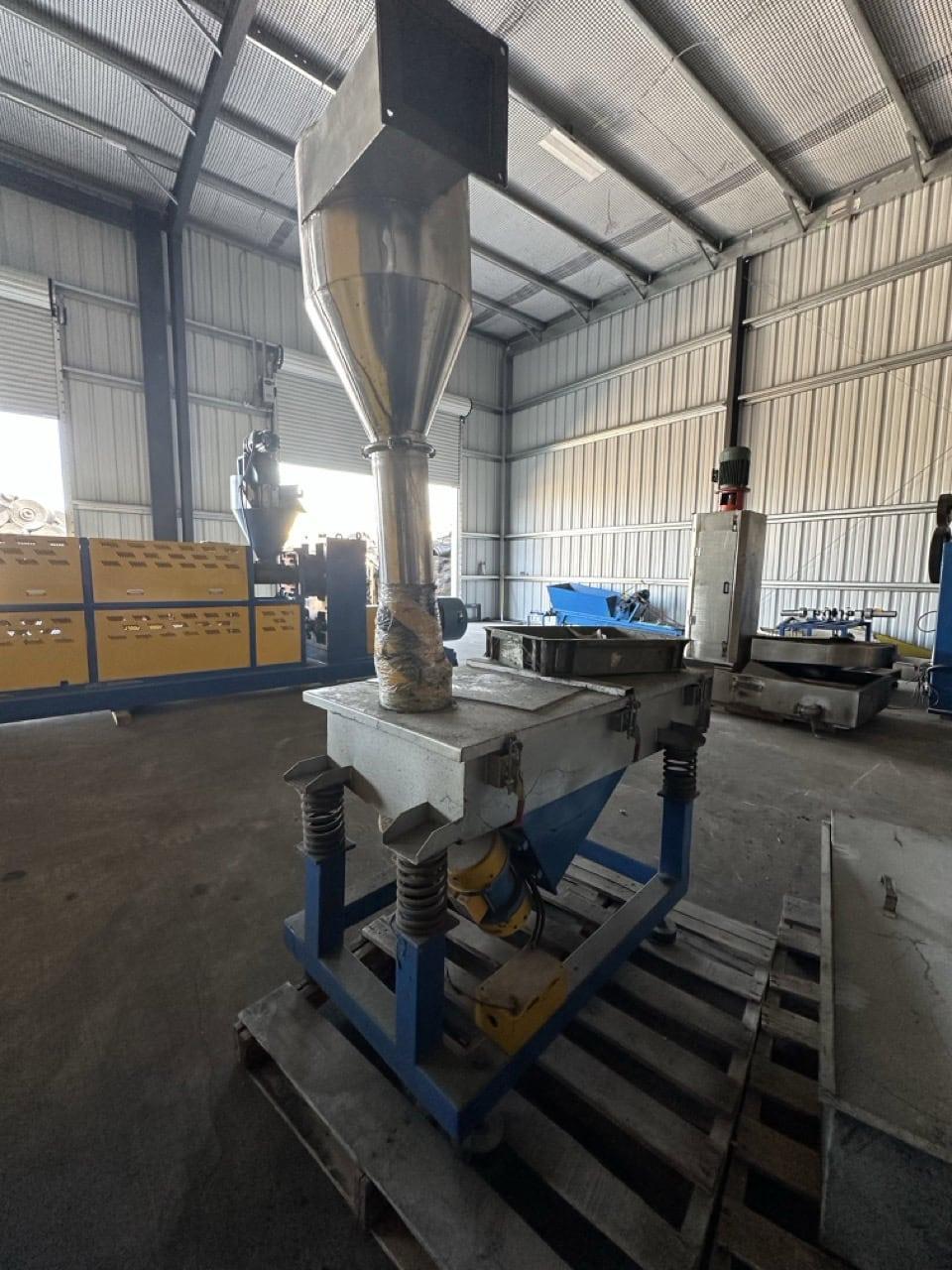

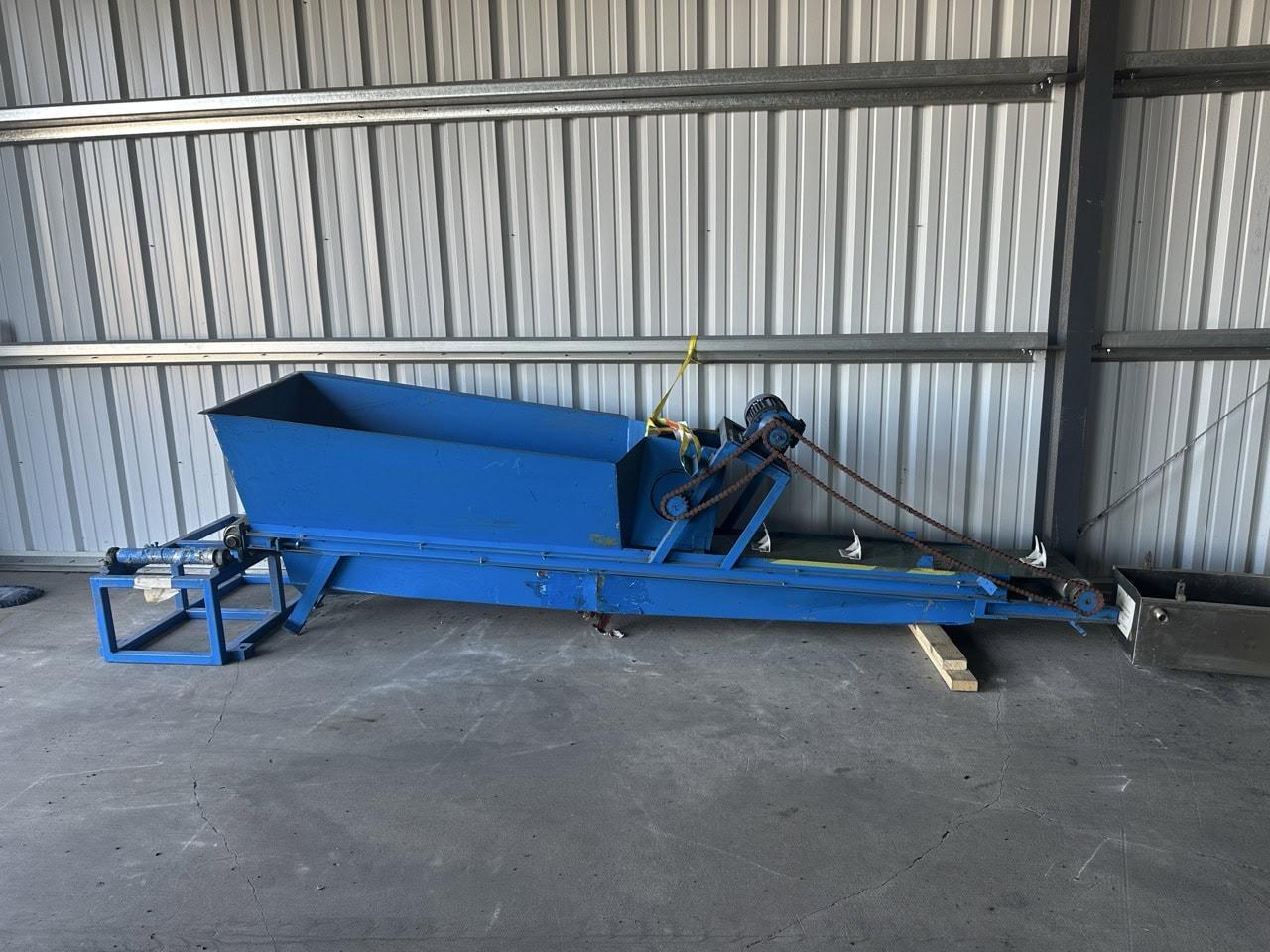

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Screw diameter: 130mm – Draw ratio: 31:1 – Compression ratio: ~2.5 – Speed: 0–110 RPM – Motor: 160kW WEG, 1500 RPM – Heating: Ceramic (5 zones × 10kW), Air cooled – Barrel/Screw Material: 38CrMoAlA – Granulator: Single-stage water ring cutter – Dryer: Inline vertical centrifugal – Feed: Hopper w/ chain conveyor – Screening: Shaker table with cyclone – Controls: Dual-door panel, analog/digital with Delta VFD

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
