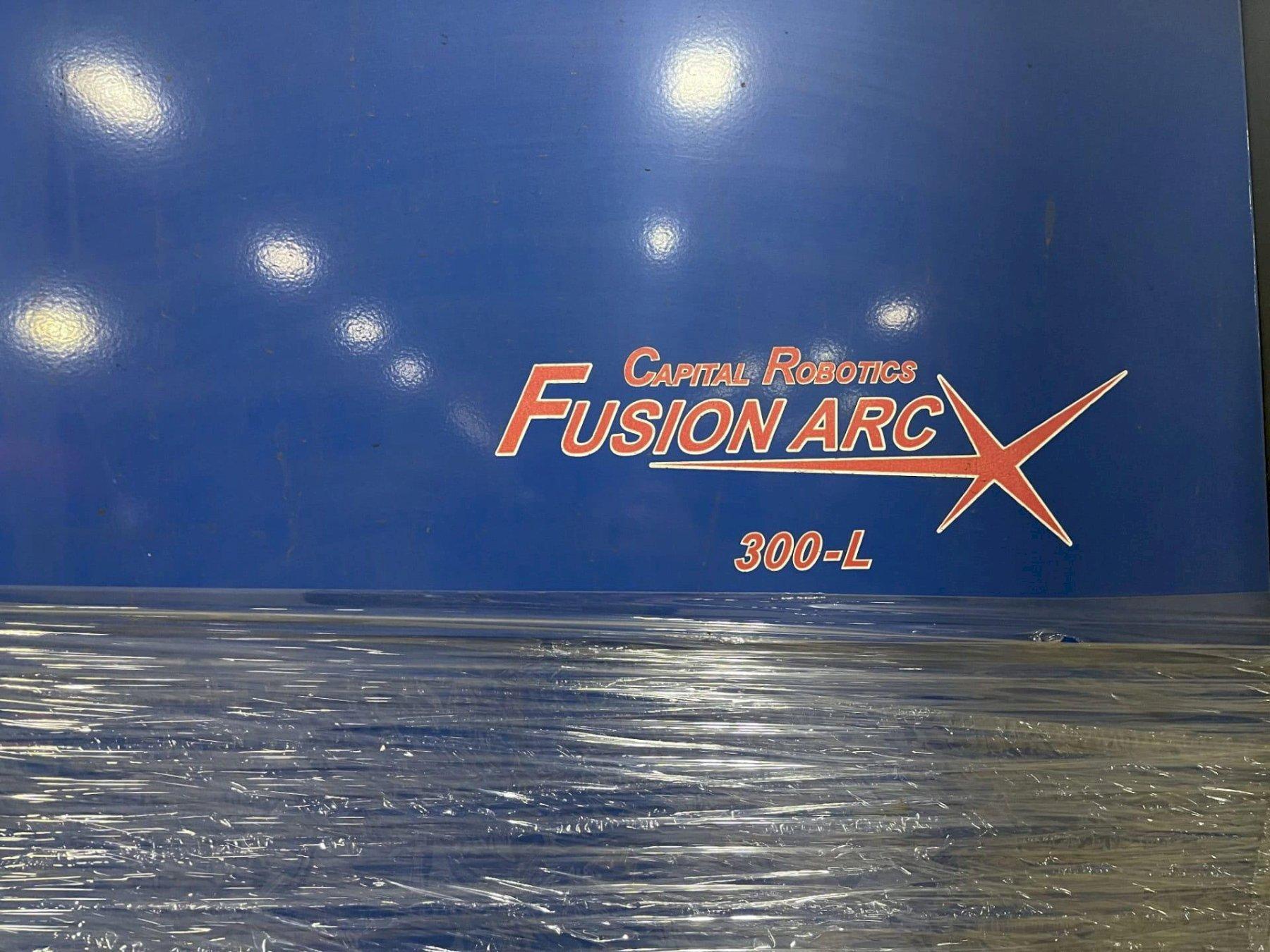

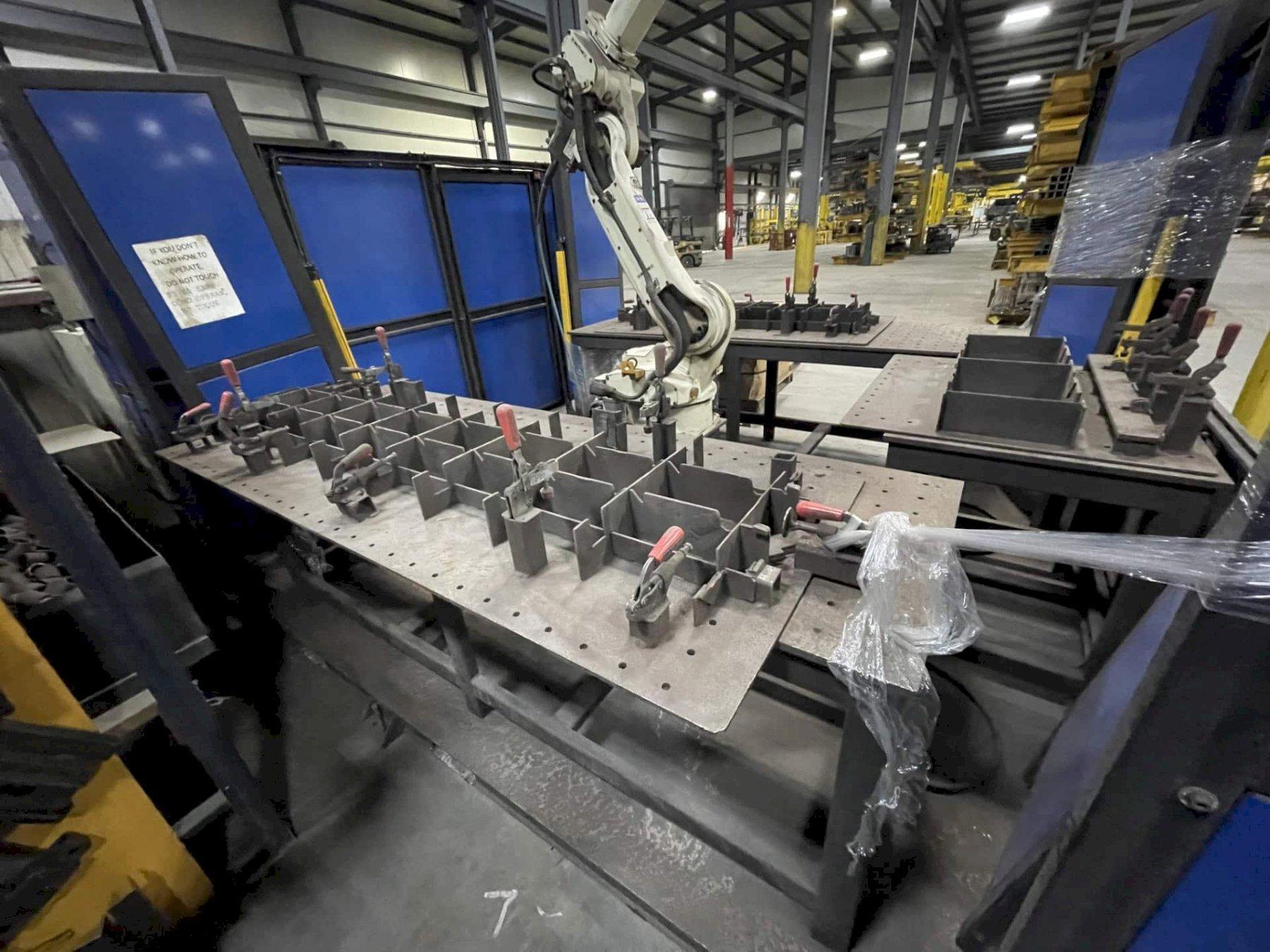

Capital Robotics FusionArc 300L 3-Station Weld Cell, 2018 – Daihen OTC FD-B6L 6-Axis Robot

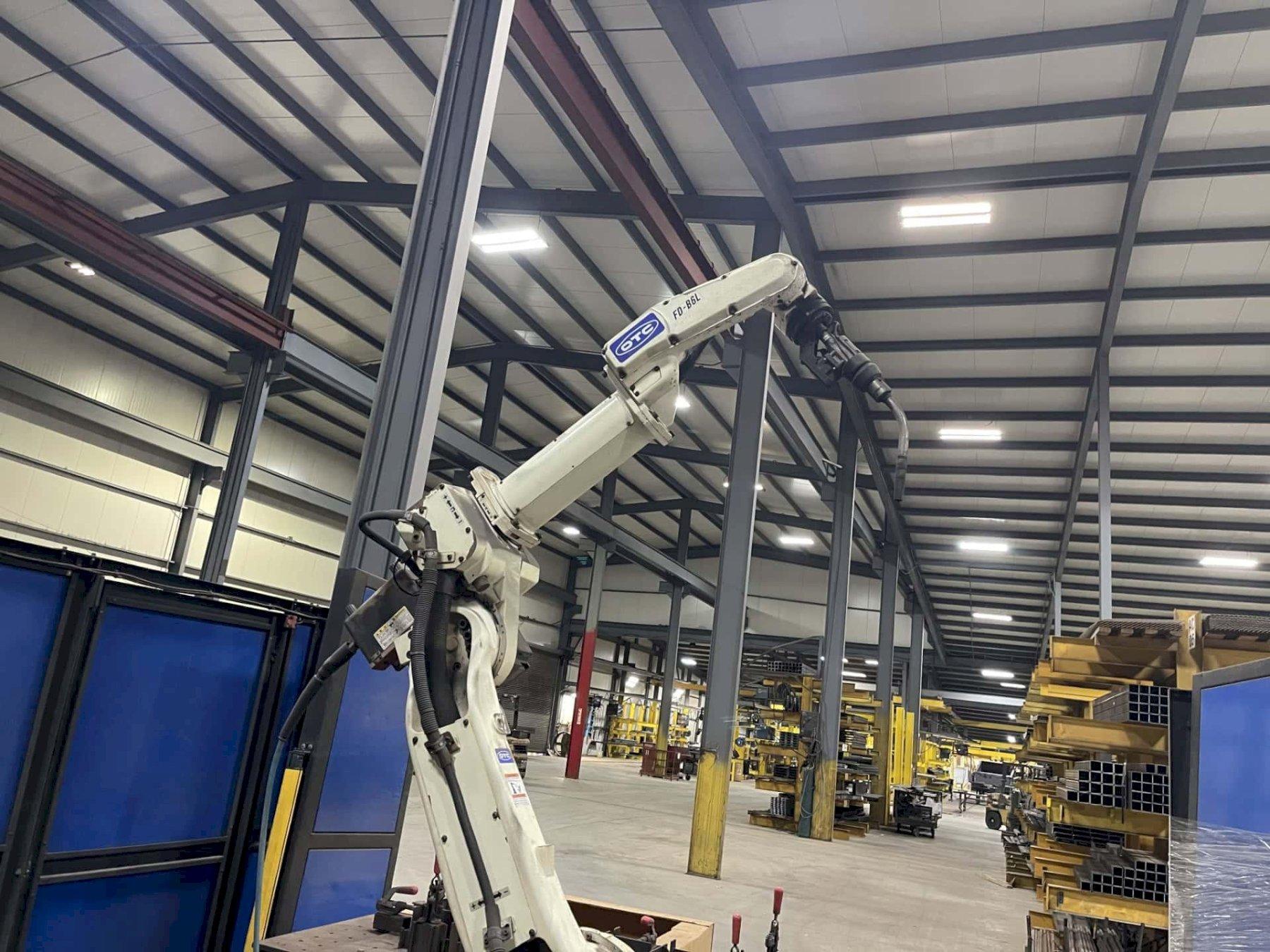

Robot Number of Axes: 6 Maximum Payload: 13.23 lbs Reach: 79.06 inches Positional Repeatability: ±0.003 inches Weight: Approximately 612.87 lbs Mounting Options: Floor, Wall, Ceiling

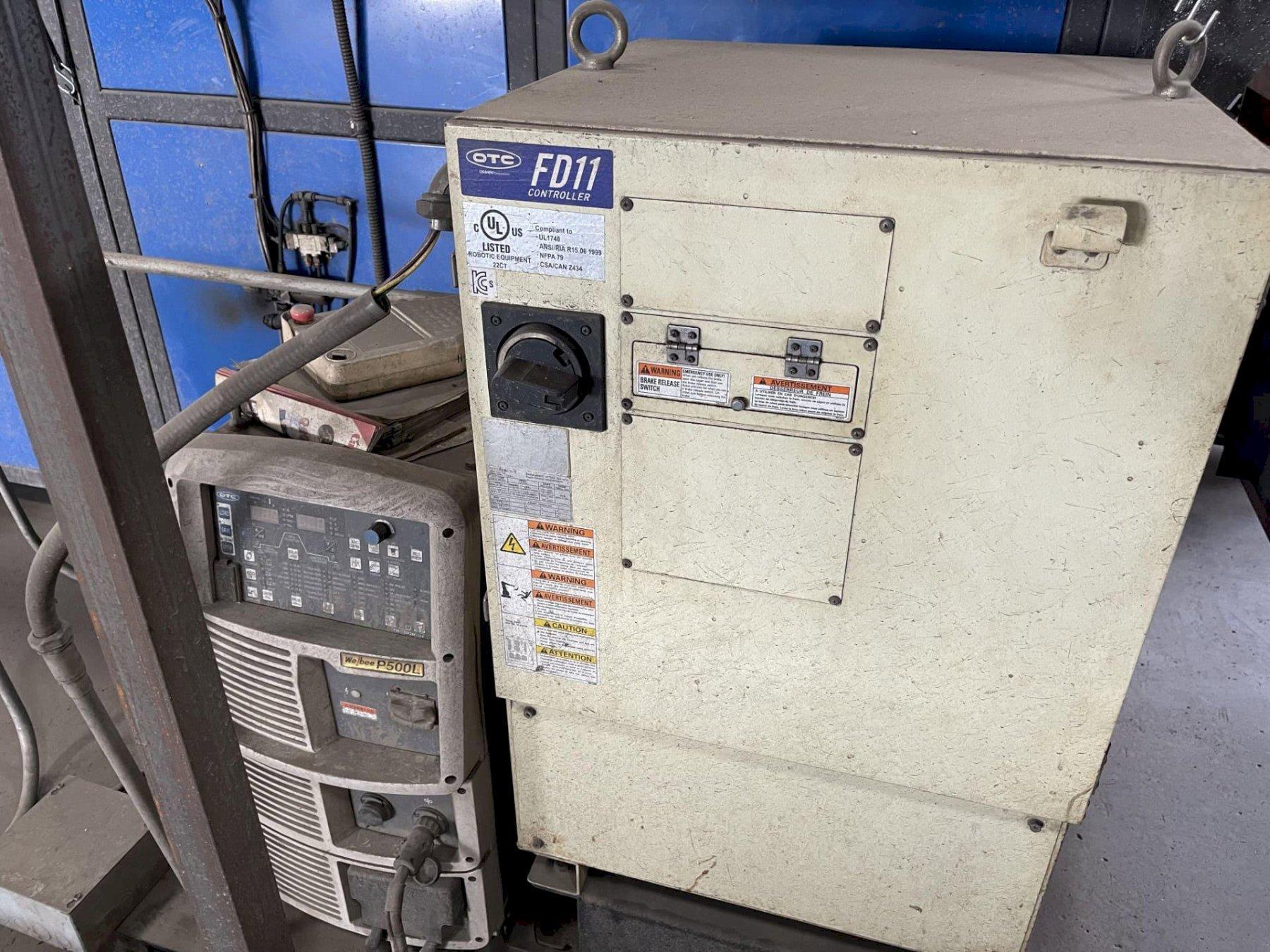

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Welding Power Source Rated Output: 500A (DC) / 400A (Pulse) Output Adjustment Range: 30-500A (DC) / 30-400A (Pulse) Rated Load Voltage: 39.0V (DC) / 34.0V (Pulse) Rated Input Power: 25.2kVA, 24.1kW Rated Input Current: 31.6A Rated Duty Cycle: 60% (DC) / 80% (Pulse) Mass: approximately 158.7 lbs Dimensions: approximately 15.6 in x 28.0 in x 31.9 in Welding Process: CO2/MAG/MIG (with pulse)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Daihen OTC FD-B6L 6-Axis Robotic Welding Manipulator Daihen OTC Welbee WB-P500L Power Source Light Curtains Pneumatic Air Door

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
