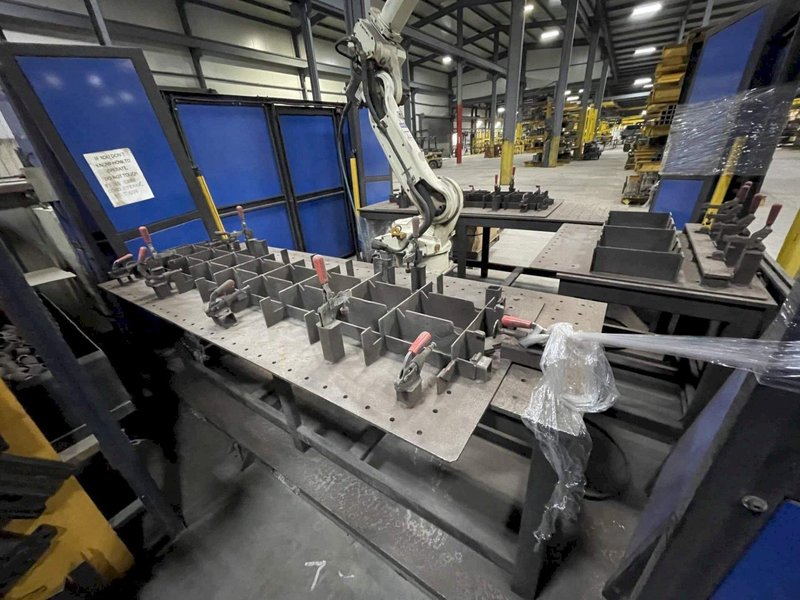

Capital Robotics FusionArc 300L 3-Station Weld Cell, 2018 – Daihen OTC FD-B6L 6-Axis Robot

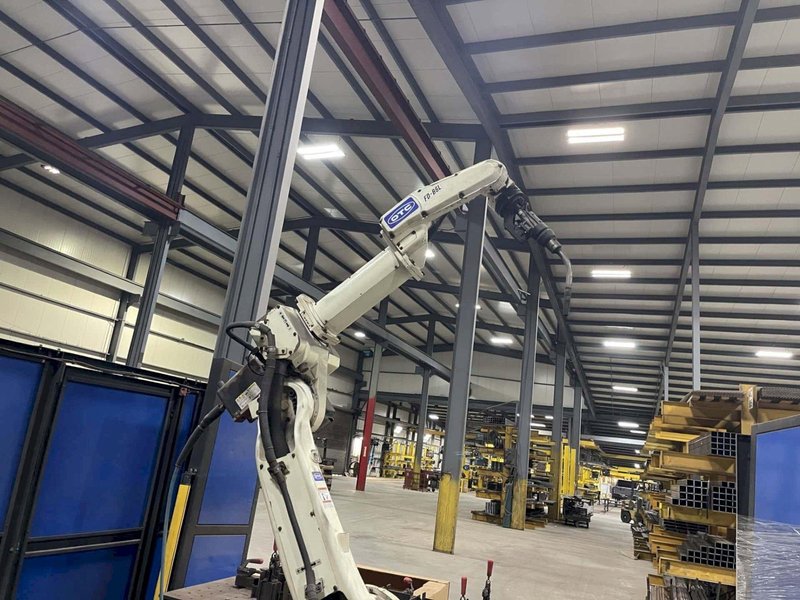

Robot Number Of Axes: 6 Working Range (R): 2008 mm (79″) Max Payload Capacity: 6 Kg (13.2 Lbs) Additional Payload (Axis 3): 20 Kg (44 Lbs) Protection Class (Base & Lower Arm J1–J4): IP54 Equivalent Protection Class (Upper Arm J5–J6): IP65 Equivalent Installation Type: Floor, Wall, Ceiling Weight: 278 Kg (613 Lbs) Ambient Temperature: 0–45 °C Humidity: 20–80 % RH (No Condensation) Axis 1 Range: ±170° (+/–50° Note 2) Axis 1 Max Speed: 225°/s (175°/s With Limitation) Axis 2 Range: –155° To +100° Axis 2 Max Speed: 205°/s Axis 3 Range: –170° To +190° Axis 3 Max Speed: 220°/s Axis 4 Range: ±155° (+/–170° Note 4) Axis 4 Max Speed: 430°/s Axis 4 Wrist Load Inertia: 0.28 Kg·m² Axis 5 Range: –45° To +225° Axis 5 Max Speed: 430°/s Axis 5 Wrist Load Inertia: 0.28 Kg·m² Axis 6 Range: ±205° (+/–360° Note 4,5) Axis 6 Max Speed: 630°/s Axis 6 Wrist Load Inertia: 0.06 Kg·m²

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Welding Power Source Rated Output: 500A (DC) / 400A (Pulse) Output Adjustment Range: 30-500A (DC) / 30-400A (Pulse) Rated Load Voltage: 39.0V (DC) / 34.0V (Pulse) Rated Input Power: 25.2kVA, 24.1kW Rated Input Current: 31.6A Rated Duty Cycle: 60% (DC) / 80% (Pulse) Mass: approximately 158.7 lbs Dimensions: approximately 15.6 in x 28.0 in x 31.9 in Welding Process: CO2/MAG/MIG (with pulse)

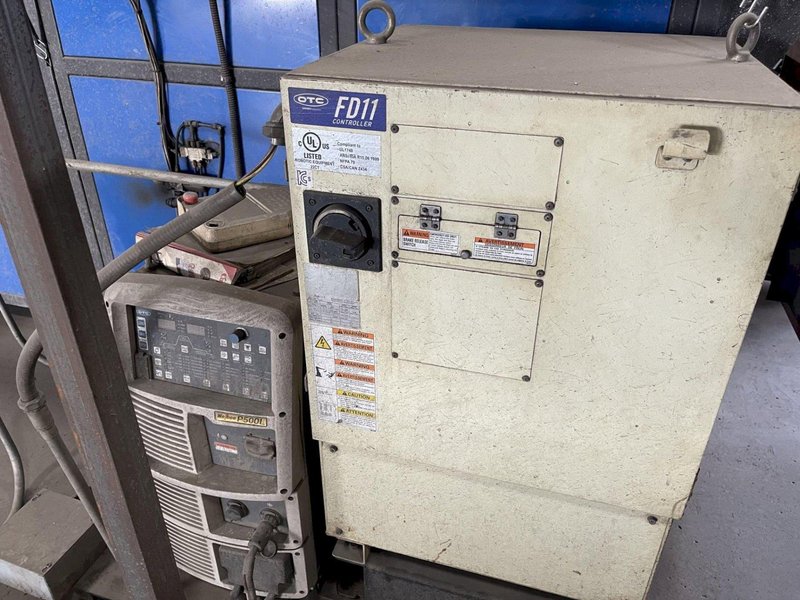

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Daihen OTC FD-B6L 6-Axis Robotic Welding Manipulator Daihen OTC Welbee WB-P500L Power Source Light Curtains Pneumatic Air Door

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
