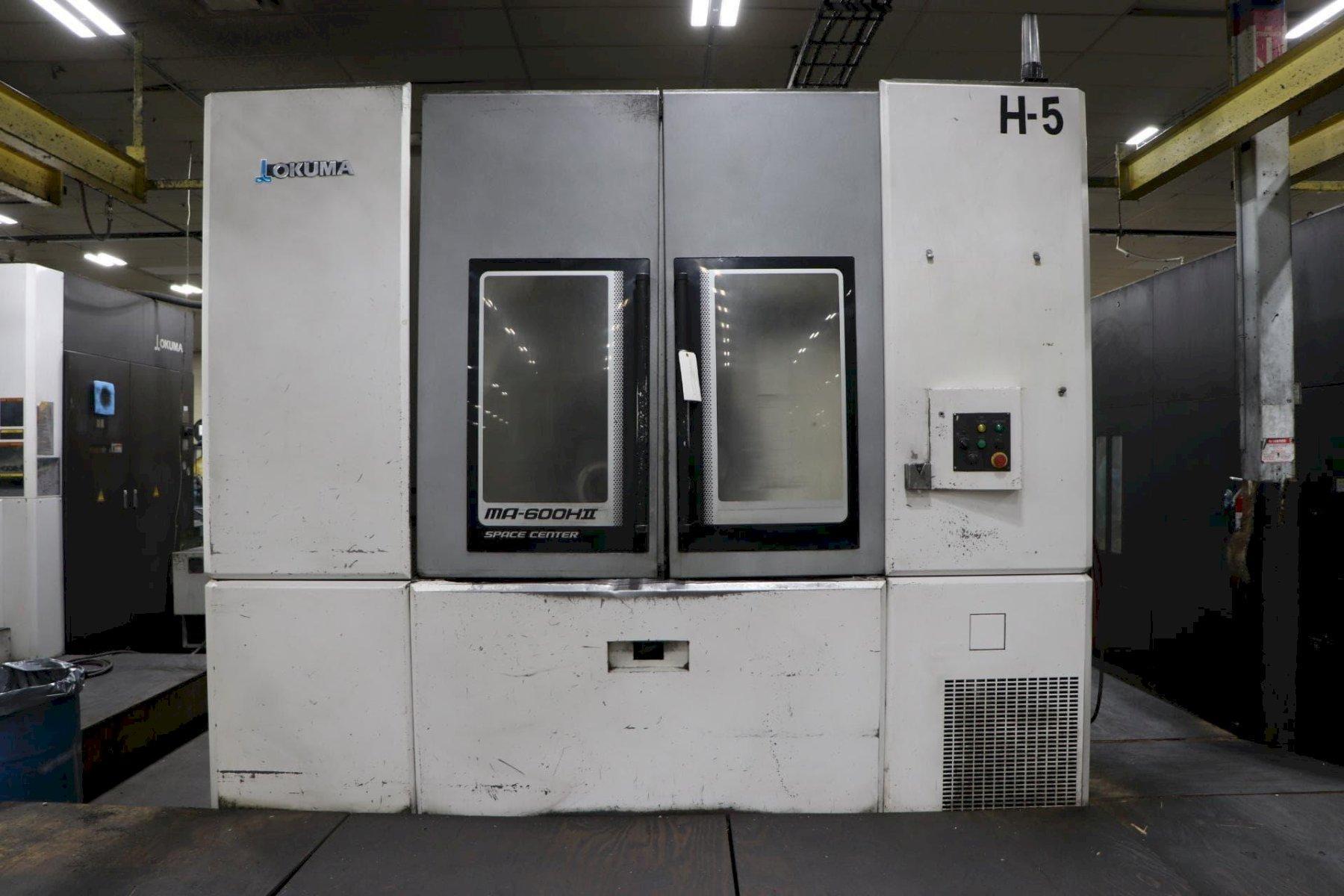

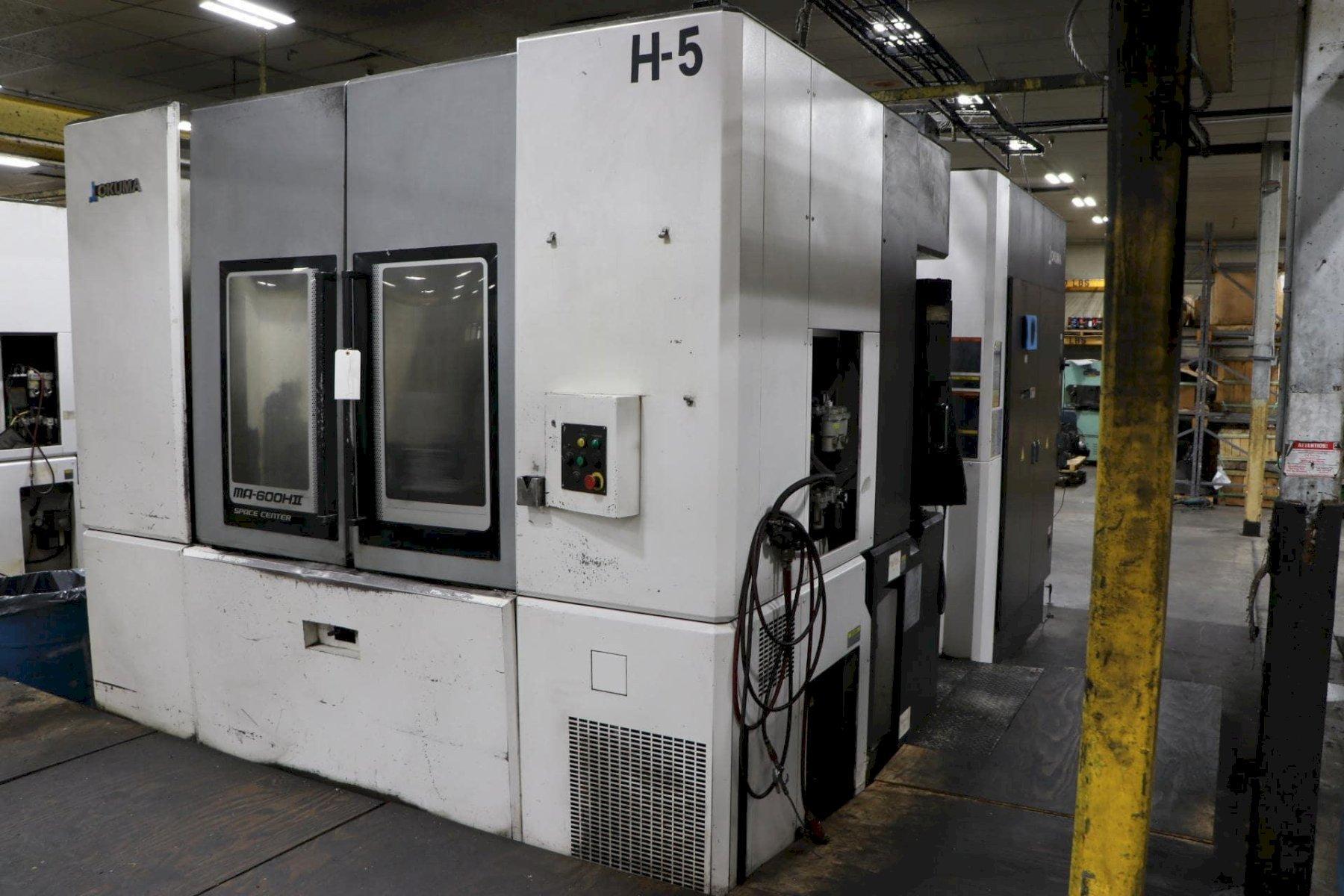

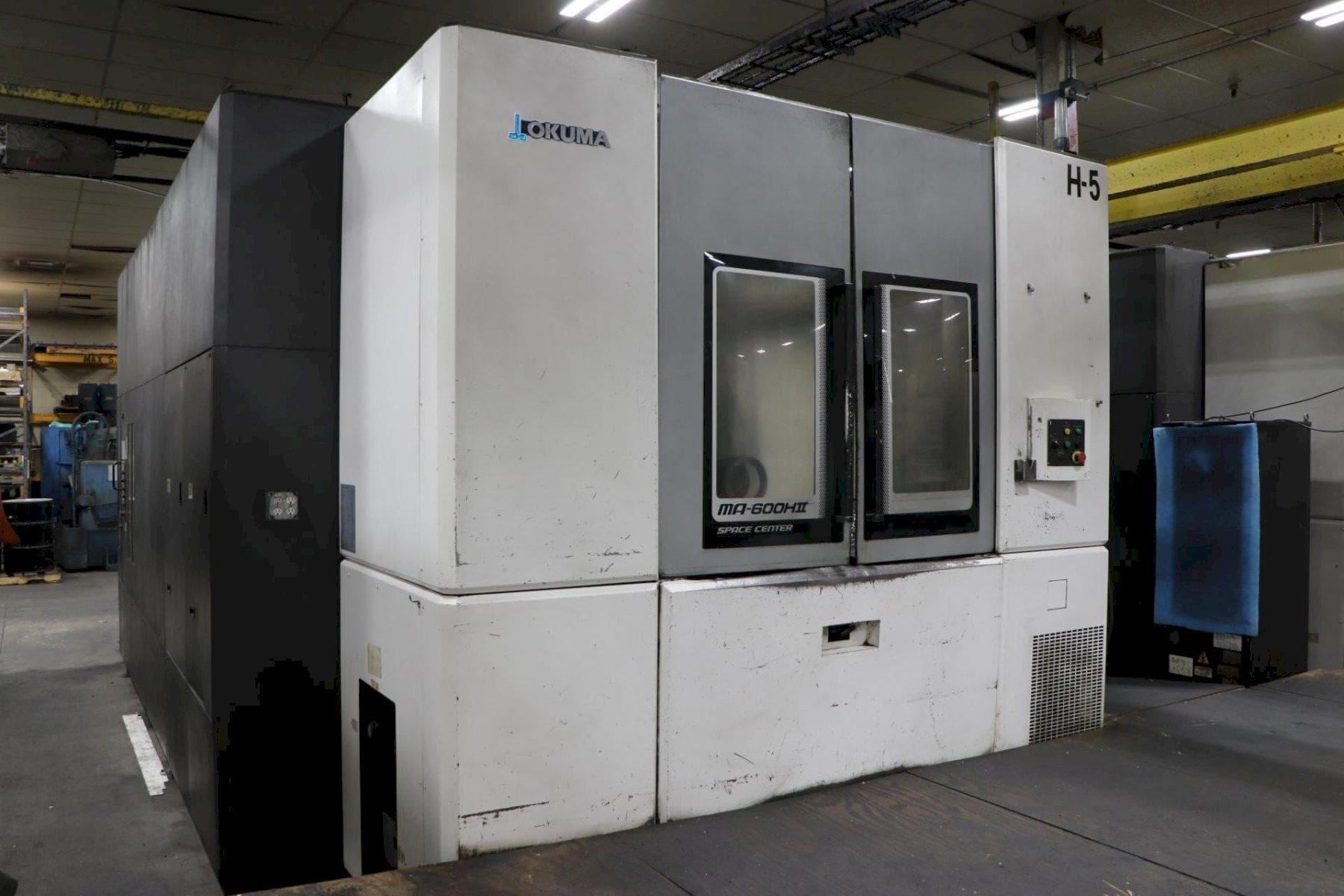

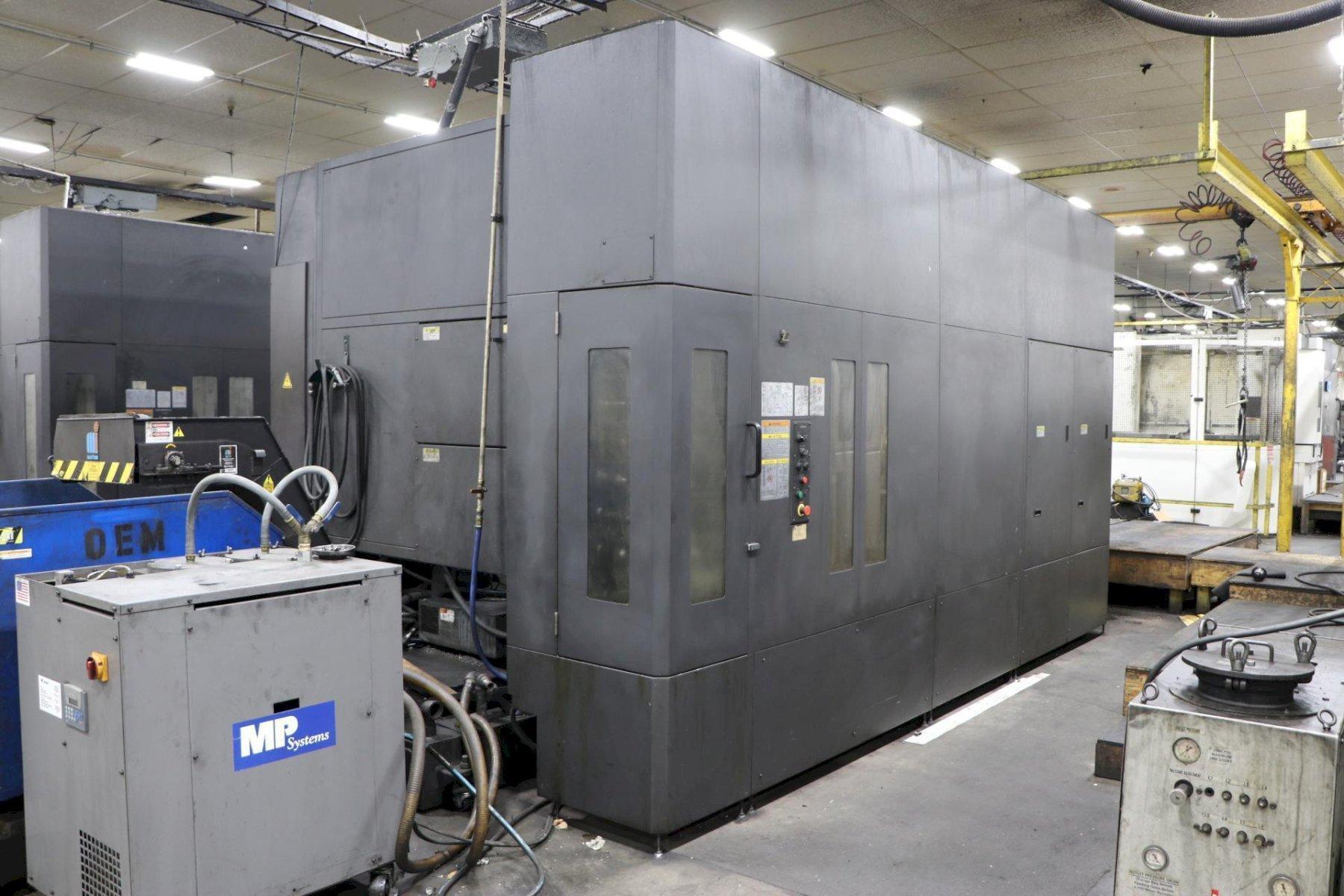

Okuma MA-600HII CNC Horizontal Machining Center, 2013 – Chip Conveyor

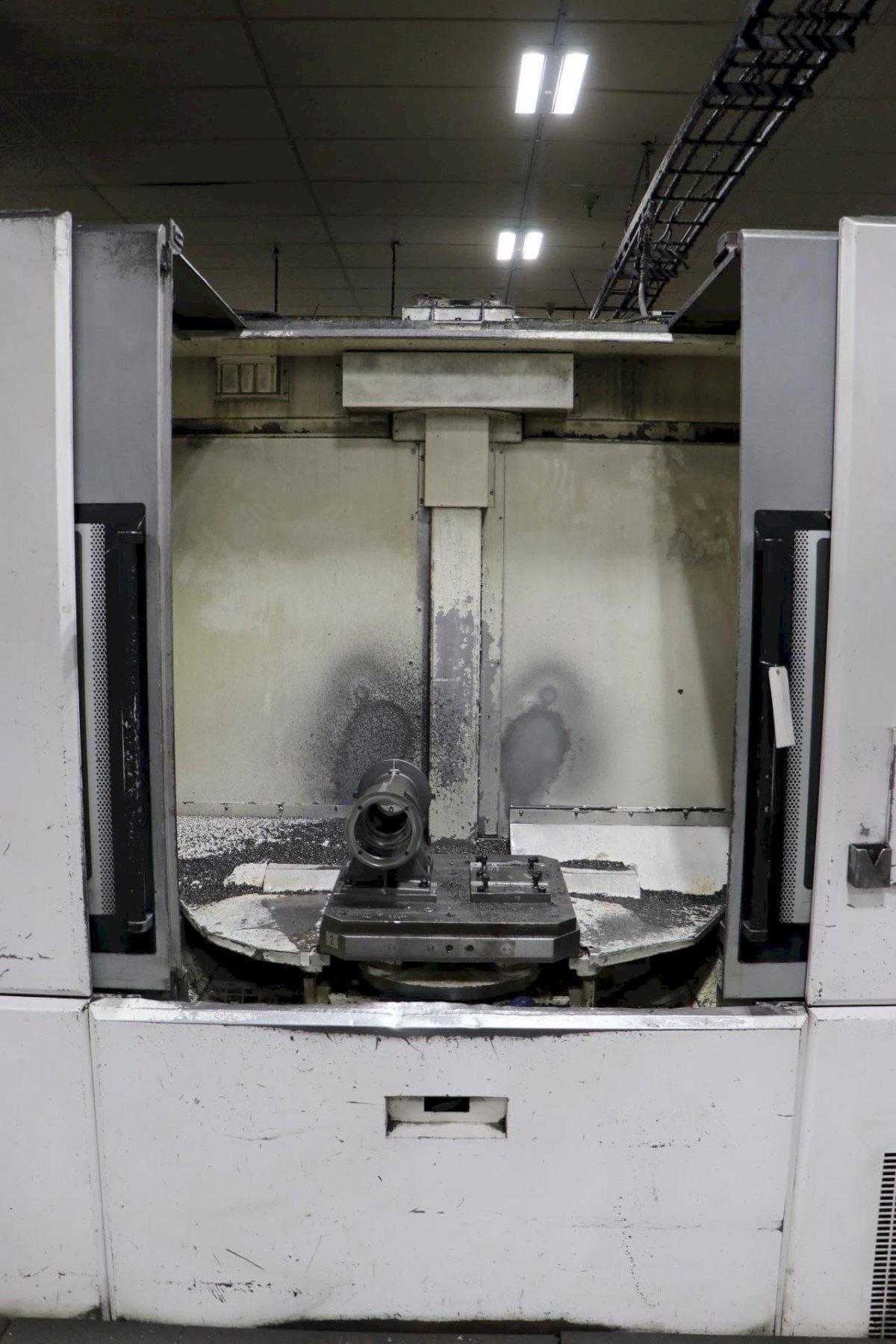

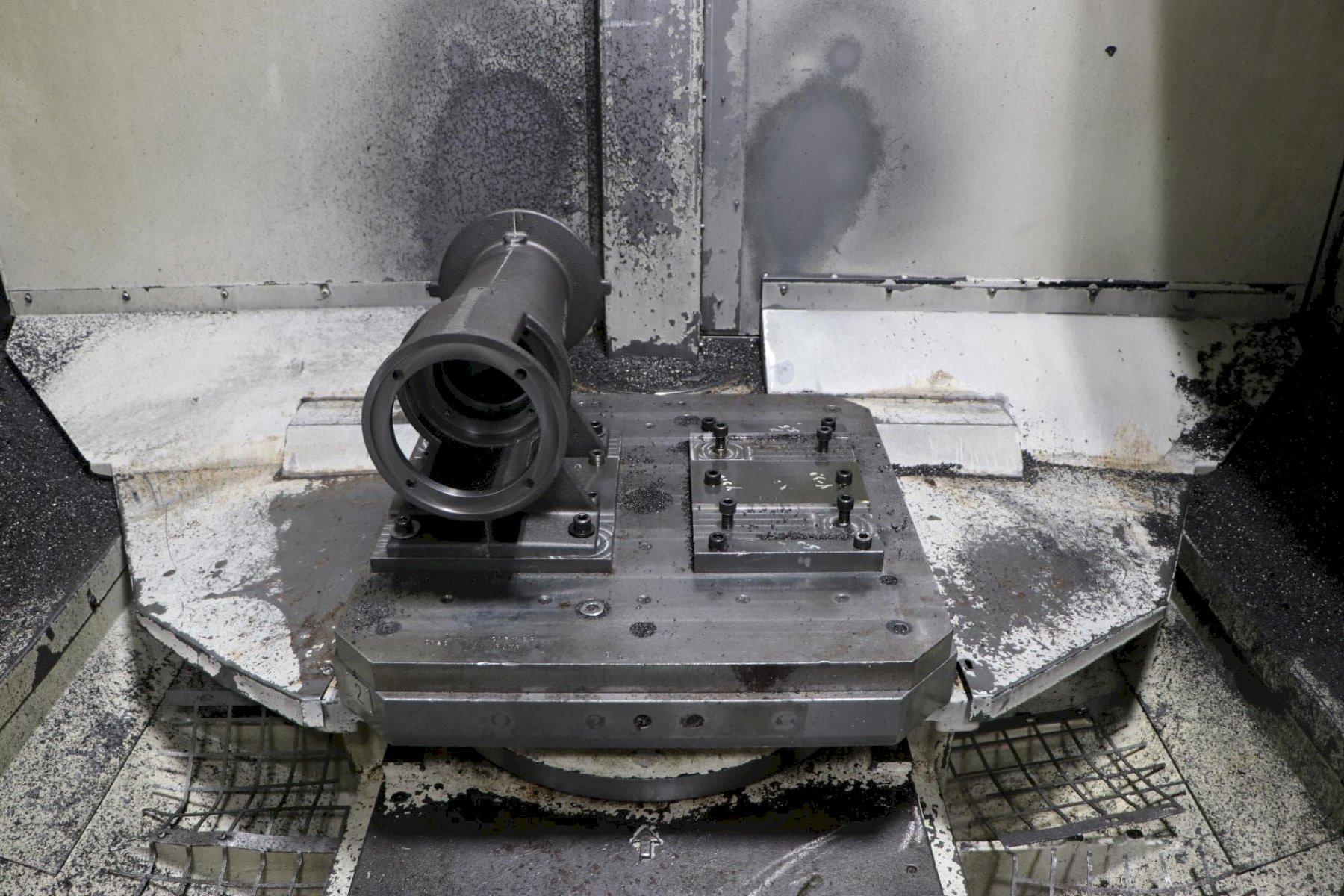

Rotary Pallet Size: 24″ X 24″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Max Machining Volume: 41.34″ x 35.43″ x 38.58″ Axis Travel (X/Y/Z): X: 41.34″ Y: 35.43″ Z: 38.58″ Rapid Traverse: 2,362 ipm Maximum Workpiece Weight: 2640 lbs

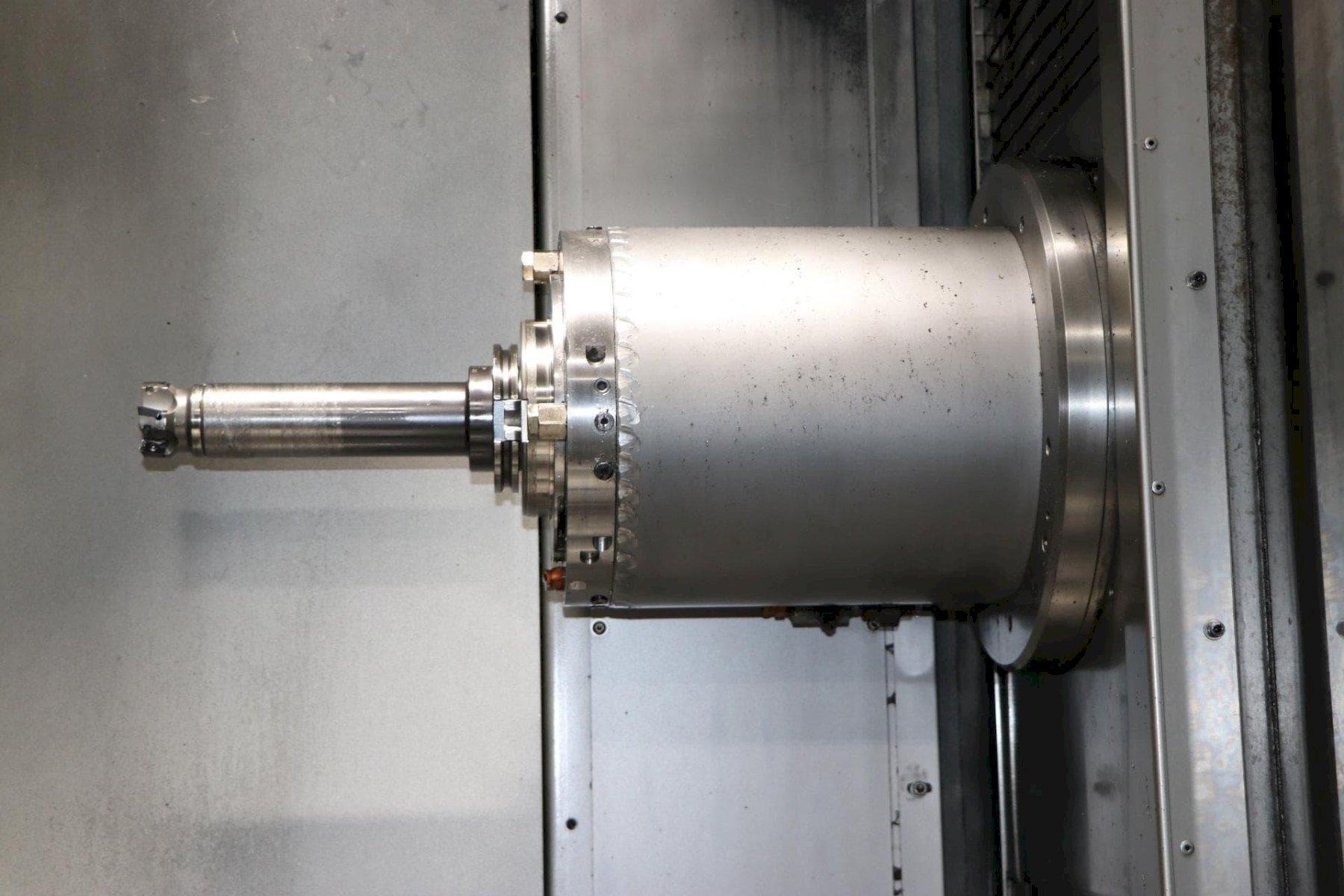

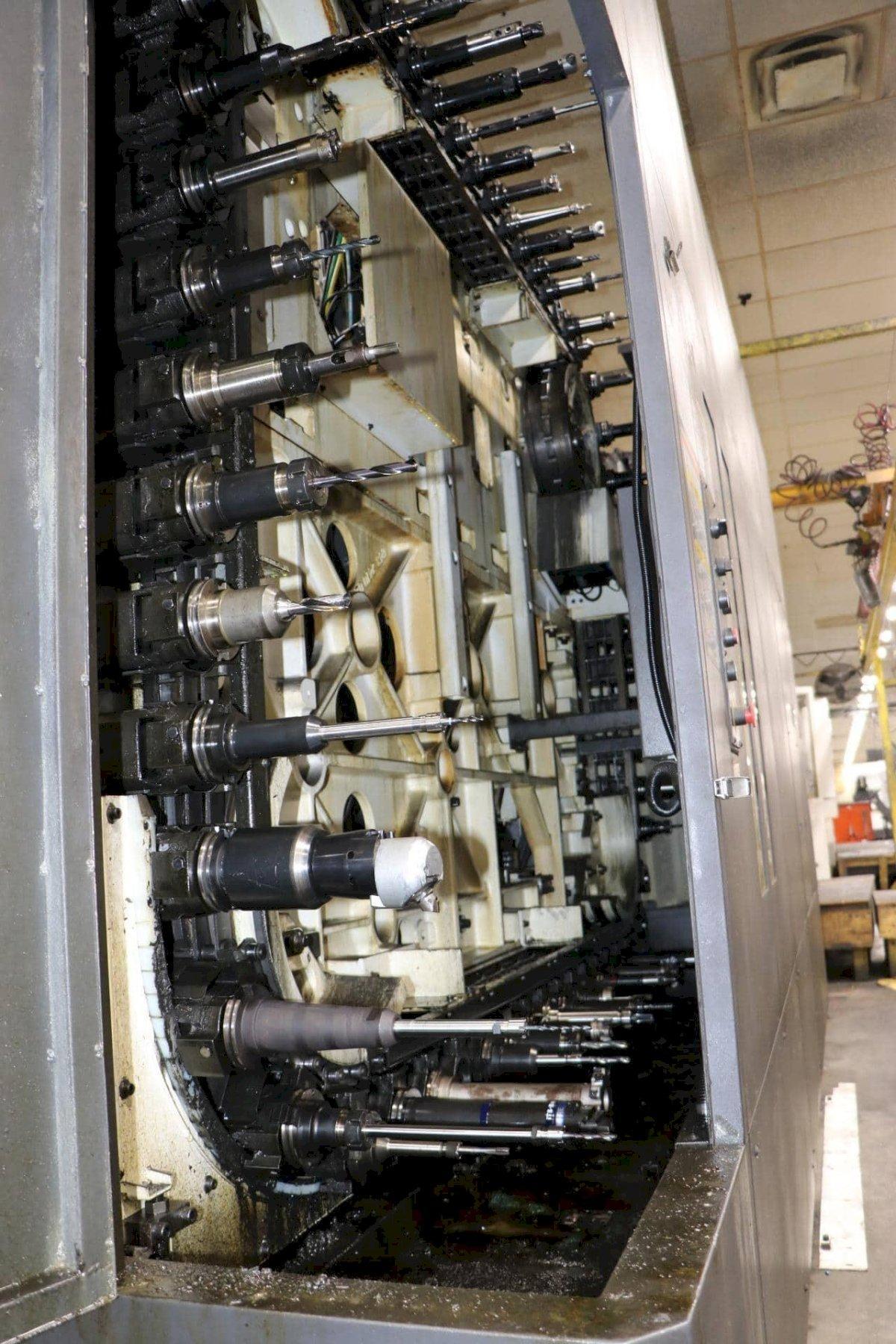

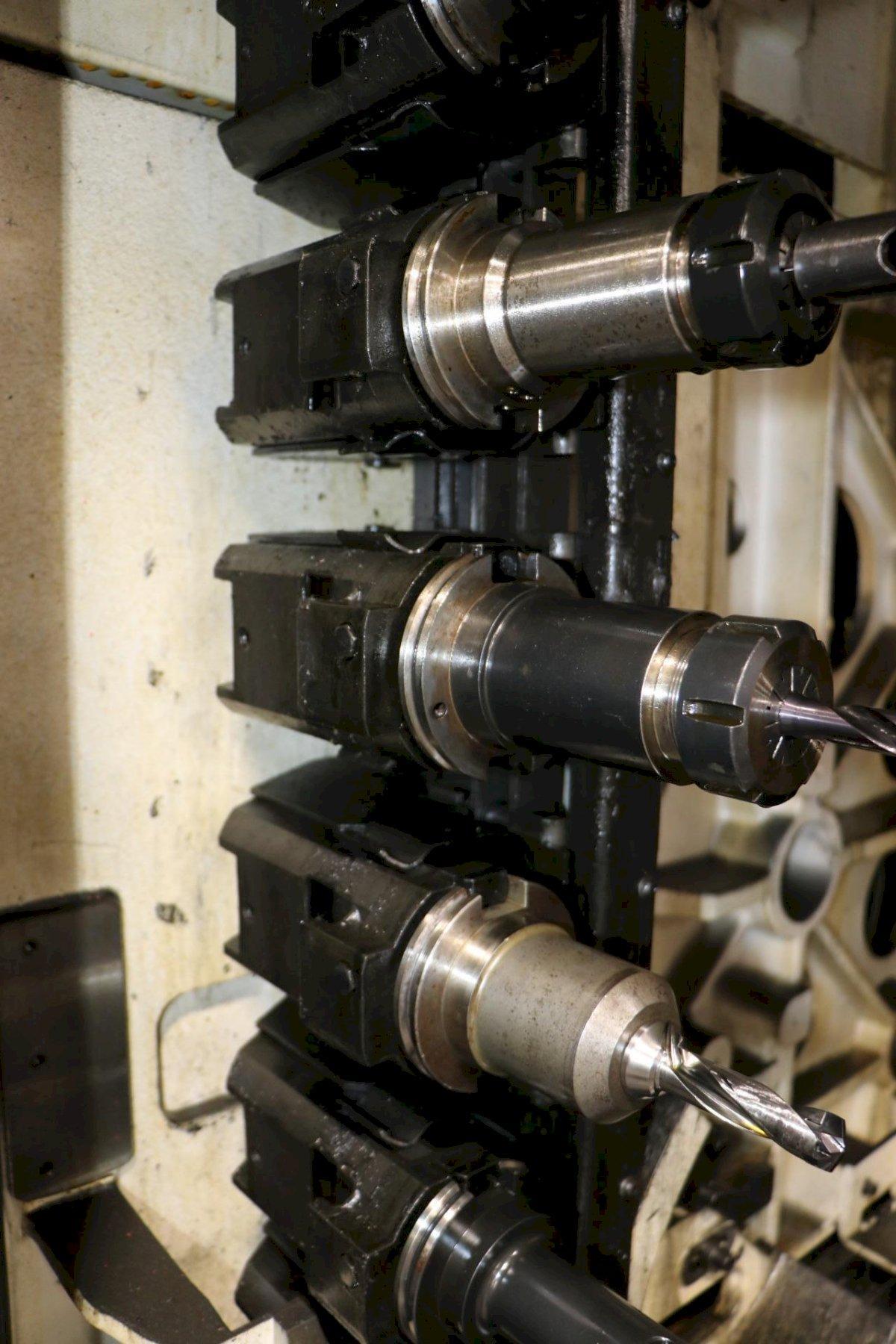

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Automatic Tool Changer (ATC) Capacity: 60 Spindle: CAT 50 Speed: 6000 RPM Power: 40/30 HP

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Dimensions (estimate): 134.25″W x 255.71″D x 126.97″H Weight: 53,900 lbs Electrical requirements: 220/480, 3PH, 60HZ

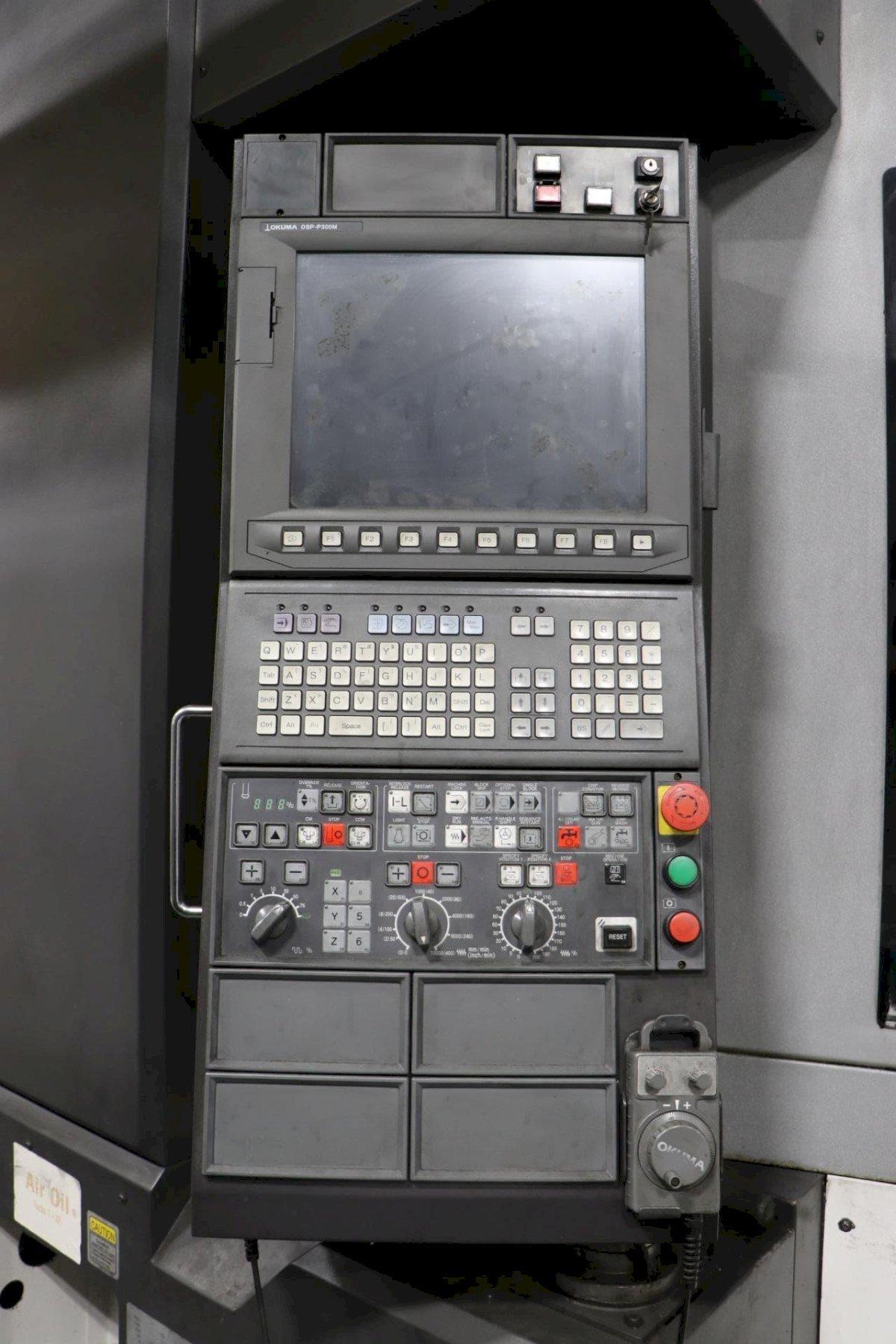

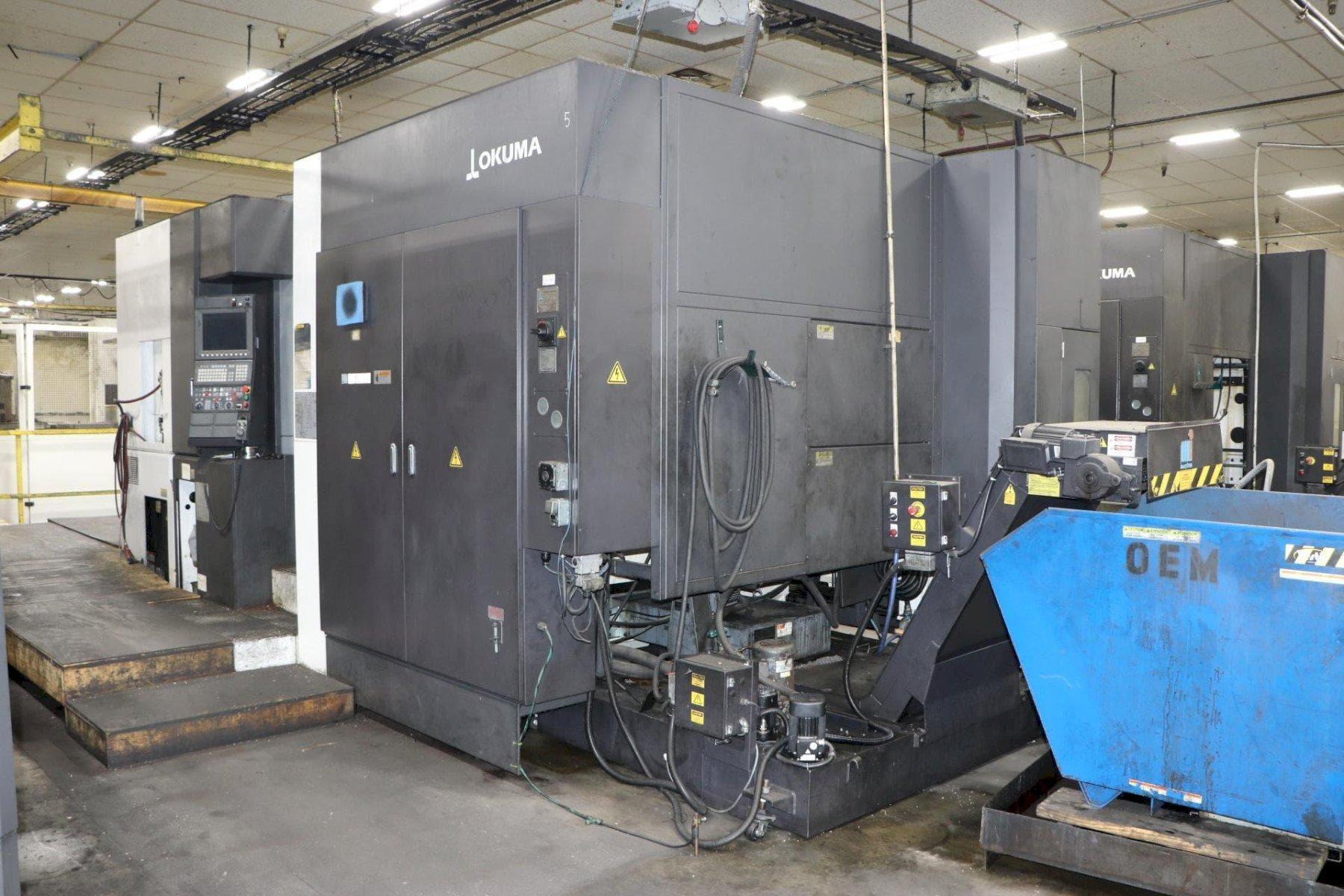

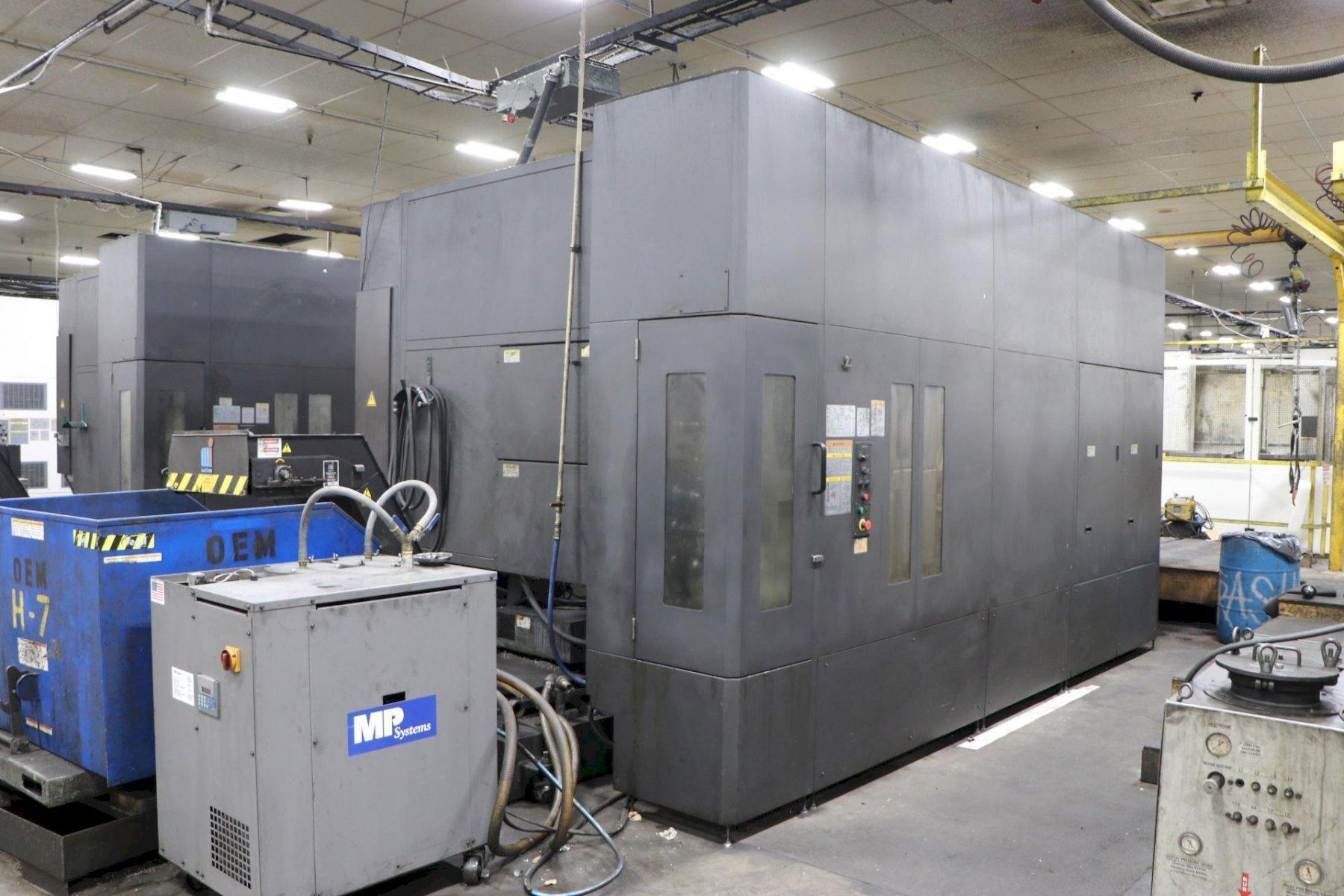

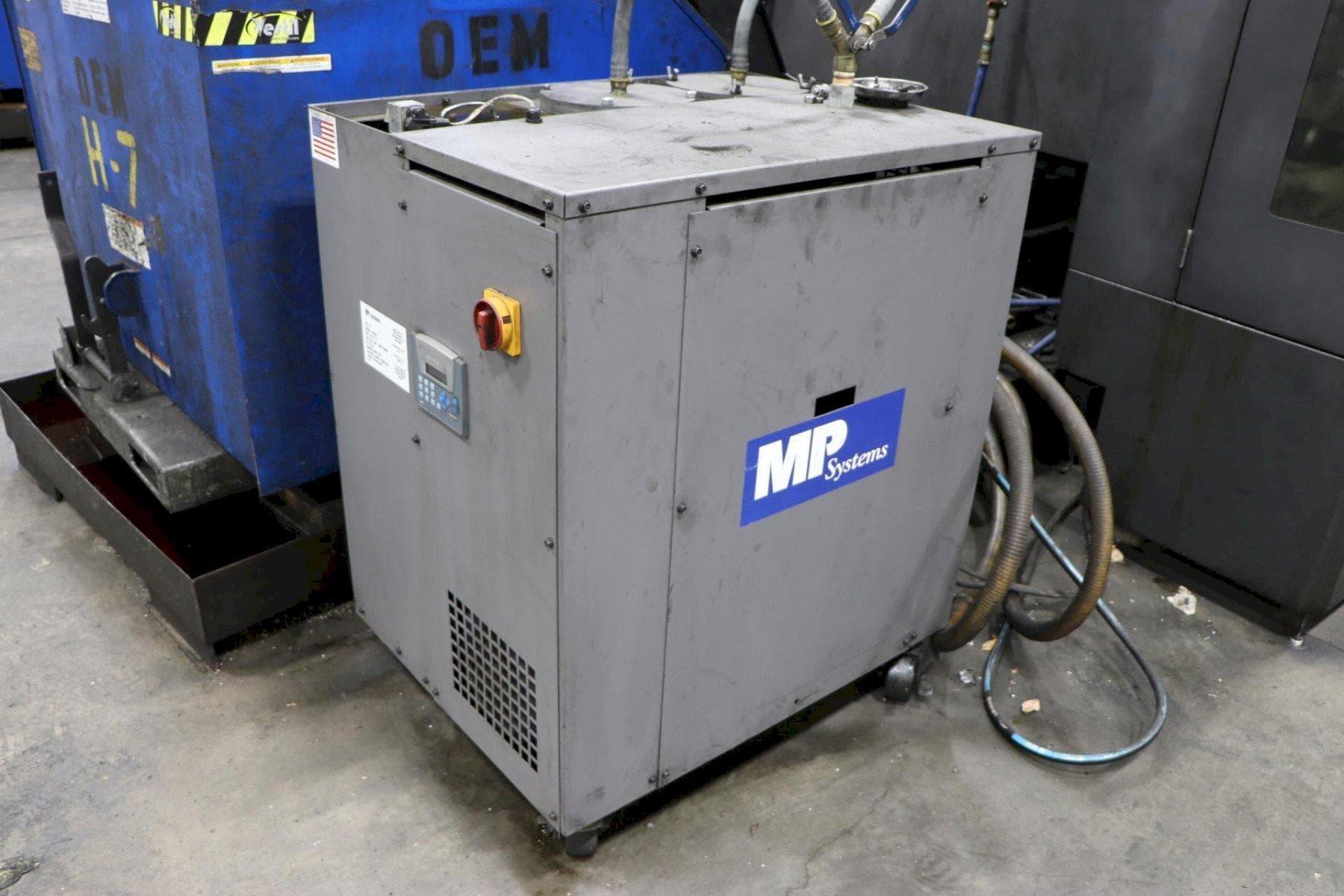

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped with: OSP-P300 Control Mayfran Mini-Tote Chip Conveyor MP Systems Oil Temp Regulator
