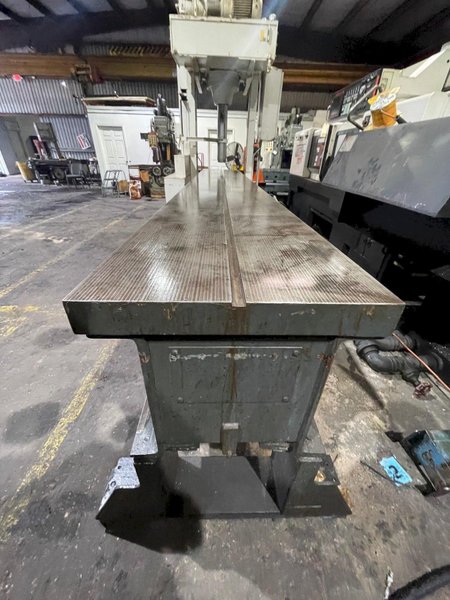

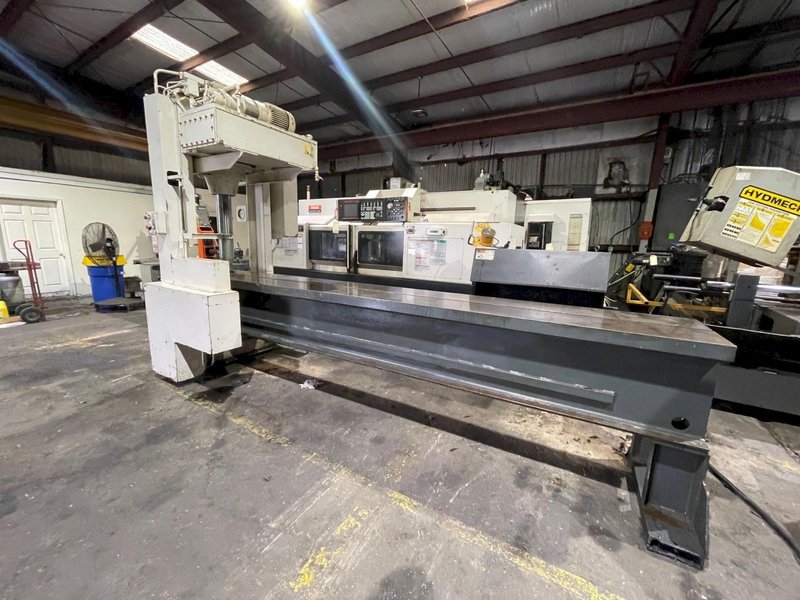

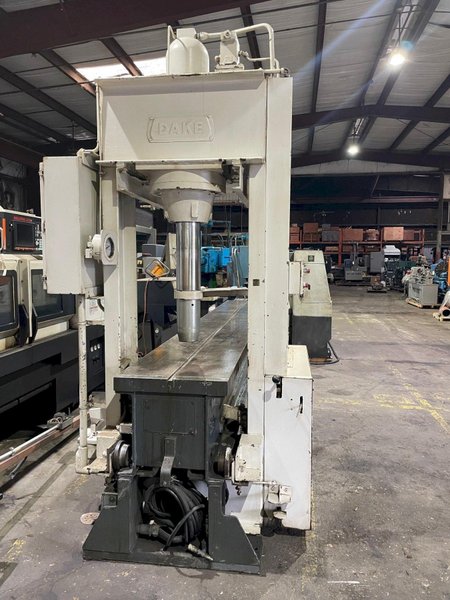

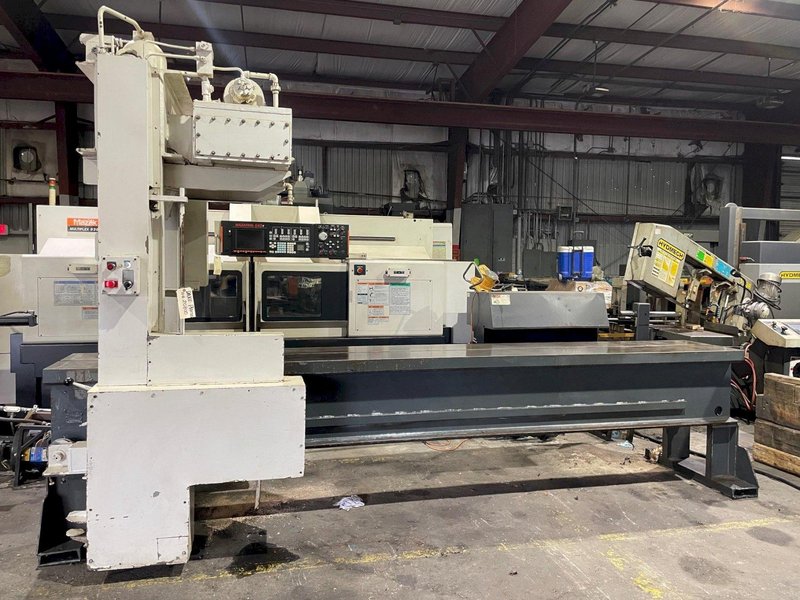

125 Ton Dake Straightening Press with Motorized Gantry
Brand
Category
Model
19-381
Stock #
20800
Year
Not specified
Condition
Not specified
Location
Texas
| Tonnage | 125 tons |
| Dimensions | 65" W x 180" L X 120" H |
| Weight | 12000 pounds |
|
USED 125 TON DAKE HYDRAULIC ROLL FRAME H-FRAME PRESS

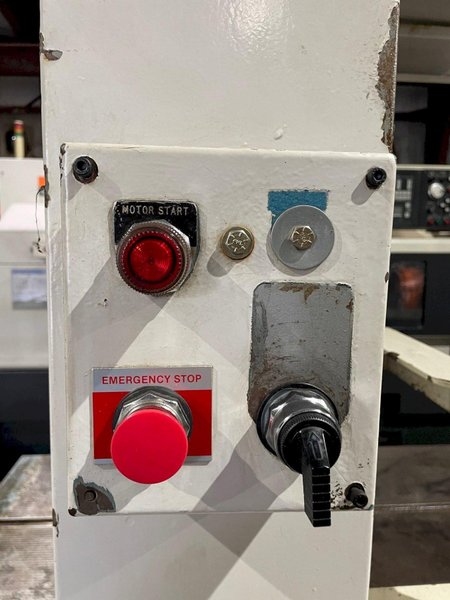

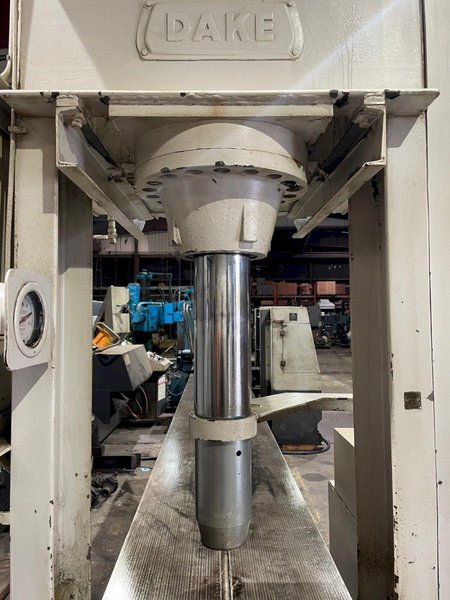

With motorized gantry Model 19-381 Floor standing Distance between side frames: 30" L-R Area of bed: 24" L-R x 180" F-B Stroke of ram: 0 - 14" maximum Daylight opening: 19" Main ram diameter: 8"/6" x 4975 PSI - 125 tons Floor to top of bed: 40" Power unit: Hydraulic pump, driven by 10 HP 1745 RPM 230/460/3/60 motor Frame driven by: 1/2 HP 1725 RPM 230/460/3/60 motor Speed approx.: 17"/minute pressing to 125 tons 38"/minute return Controls: Pushbutton for start and stop Operator hand lever Lever for power frame movement Pressure gauge Weight approx. 12,000 lbs. Overall dimensions approx. 65" L-R x 180" F-B x 166" H |
|
