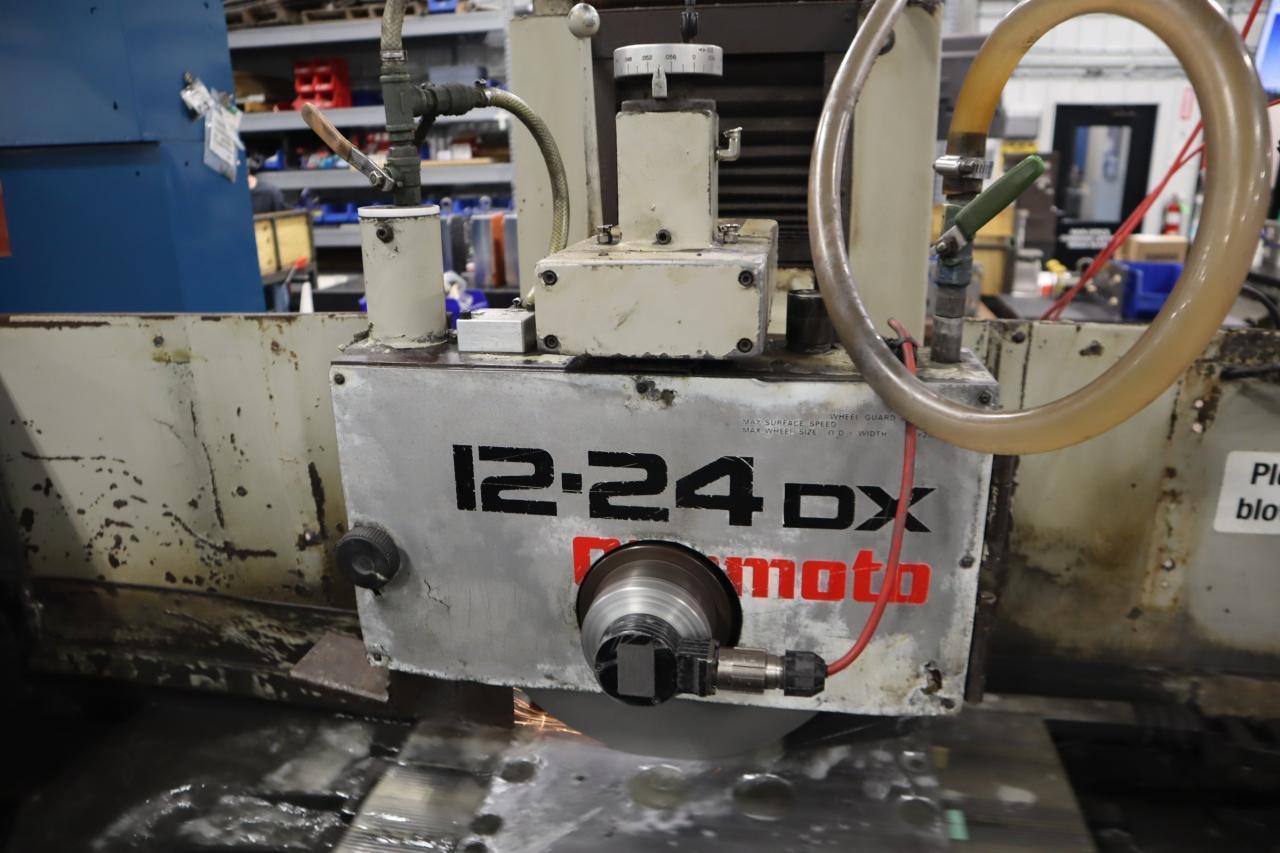

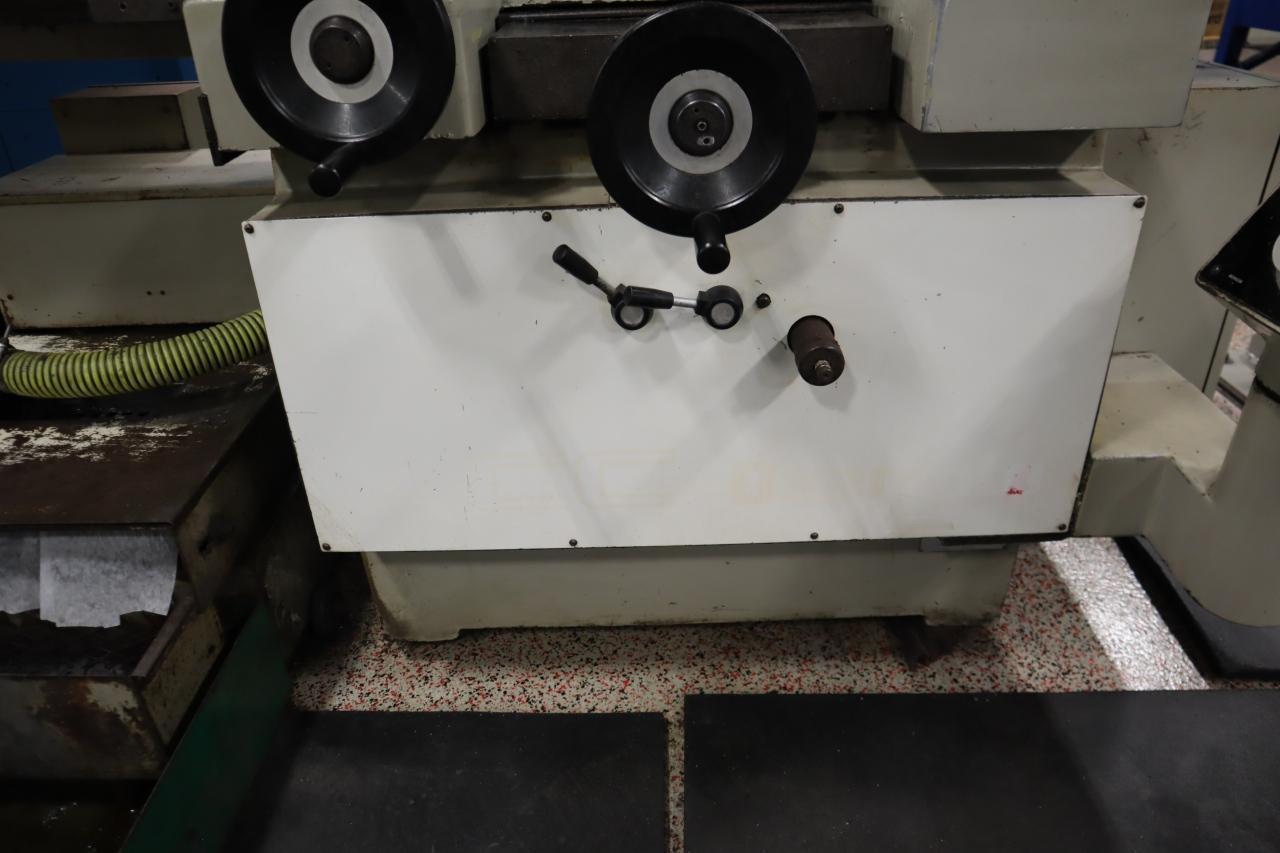

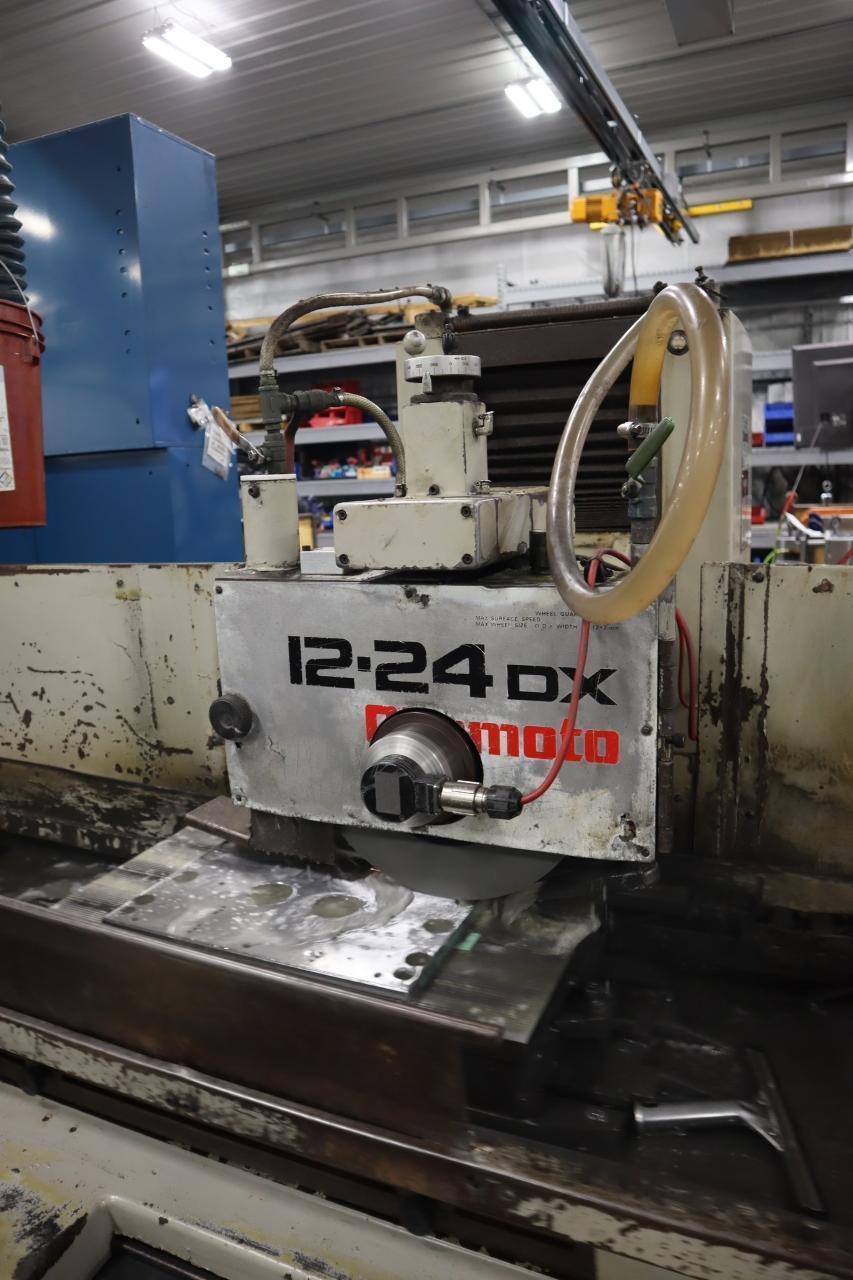

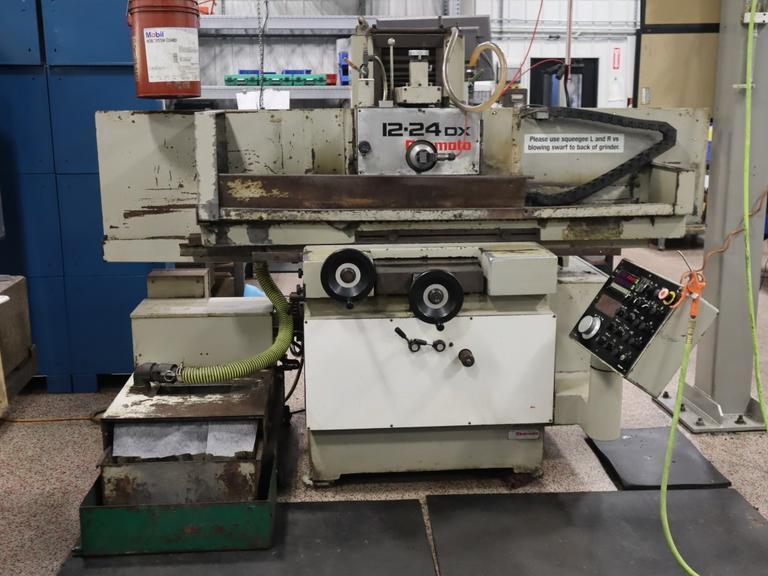

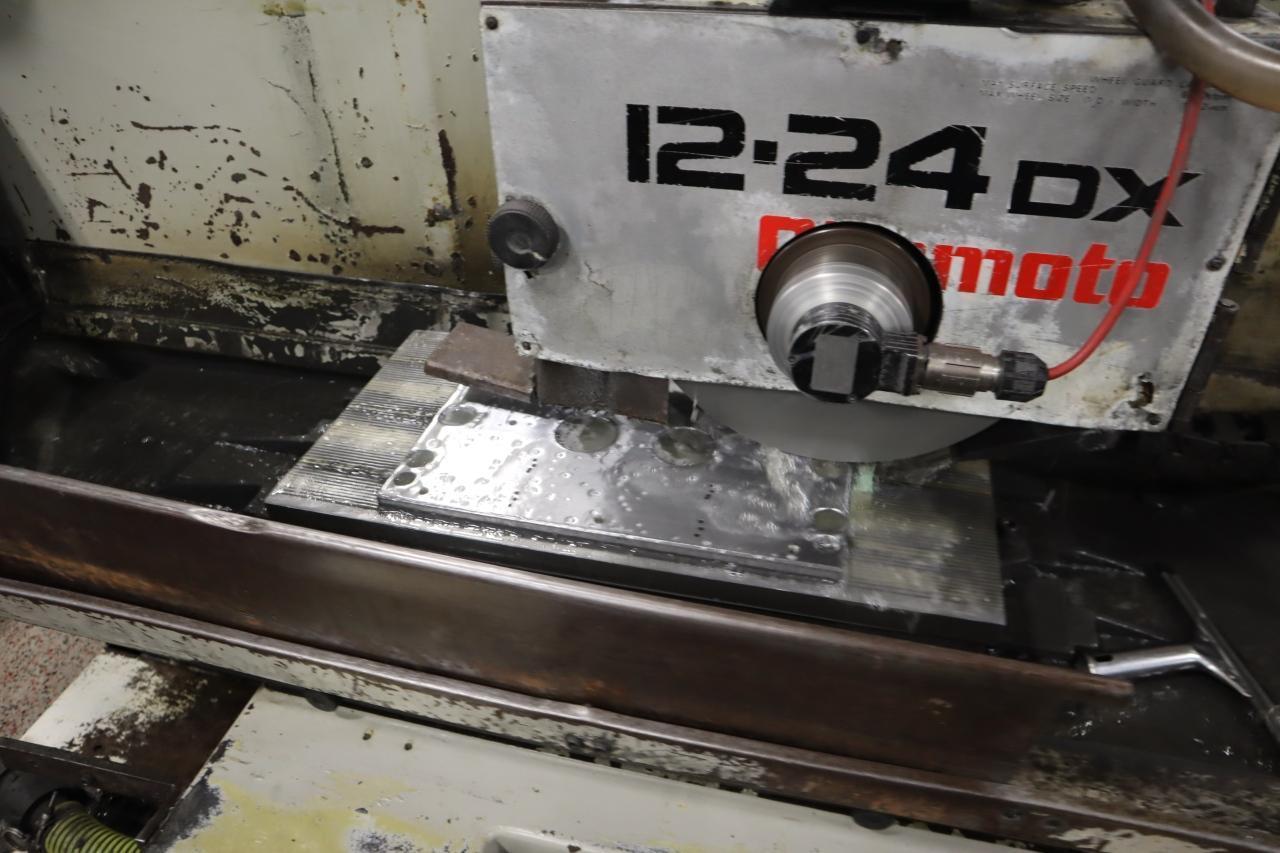

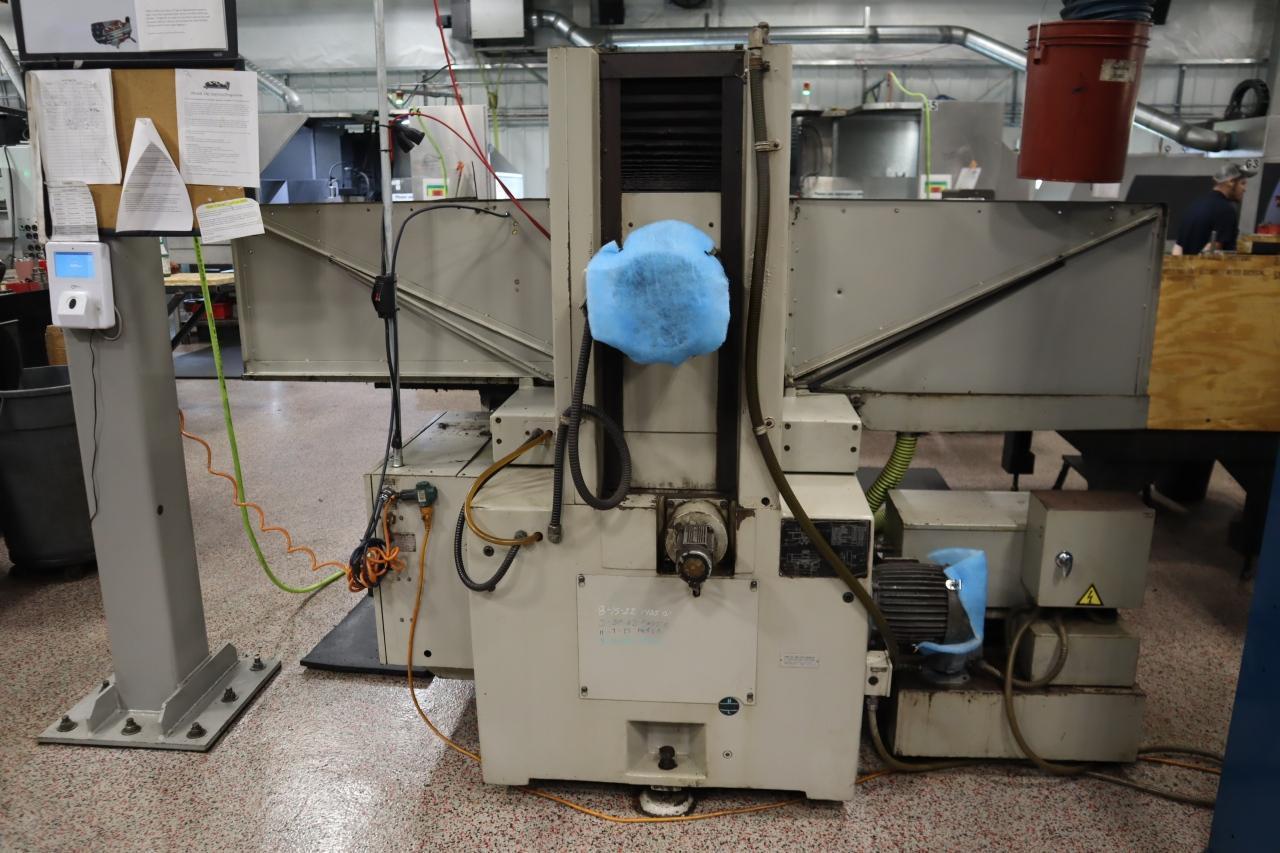

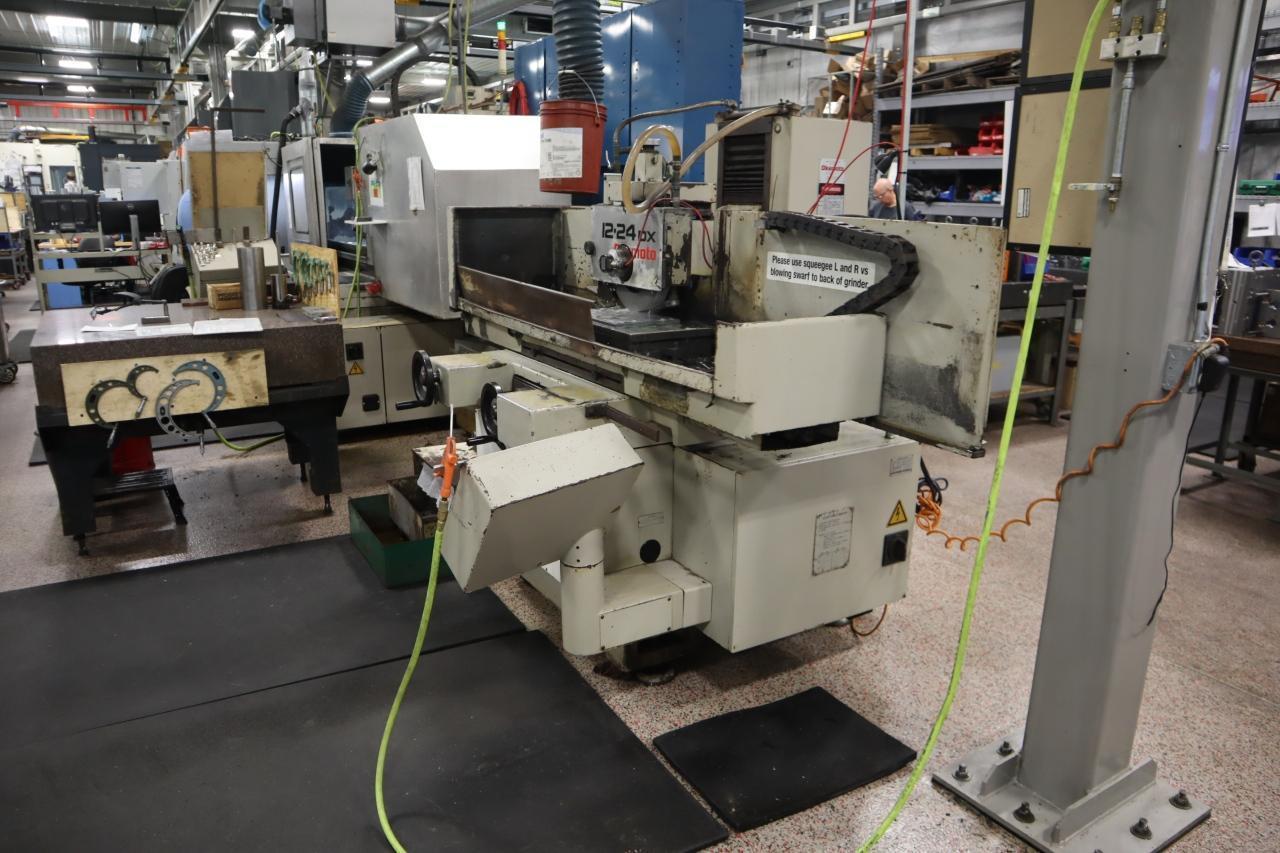

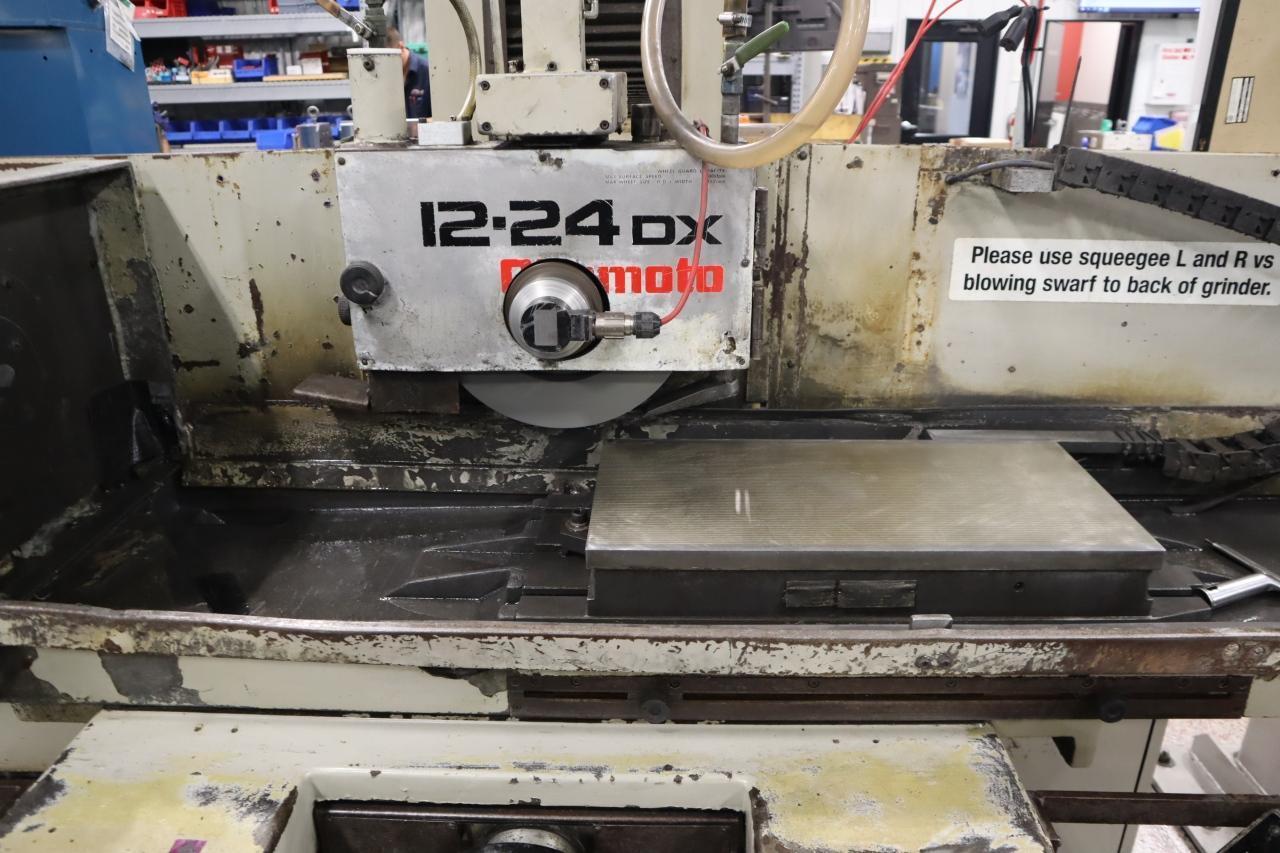

Okamoto ACC12.24 DX Automatic Surface Grinder, 12"x 24", Incremental Downfeed, Over Wheel Dresser, Auto Balance, Coolant
Brand
Category
Model
ACC 12.24DX
Stock #
C1025
Year
2000
Condition
Not specified
Location
Not specified
|

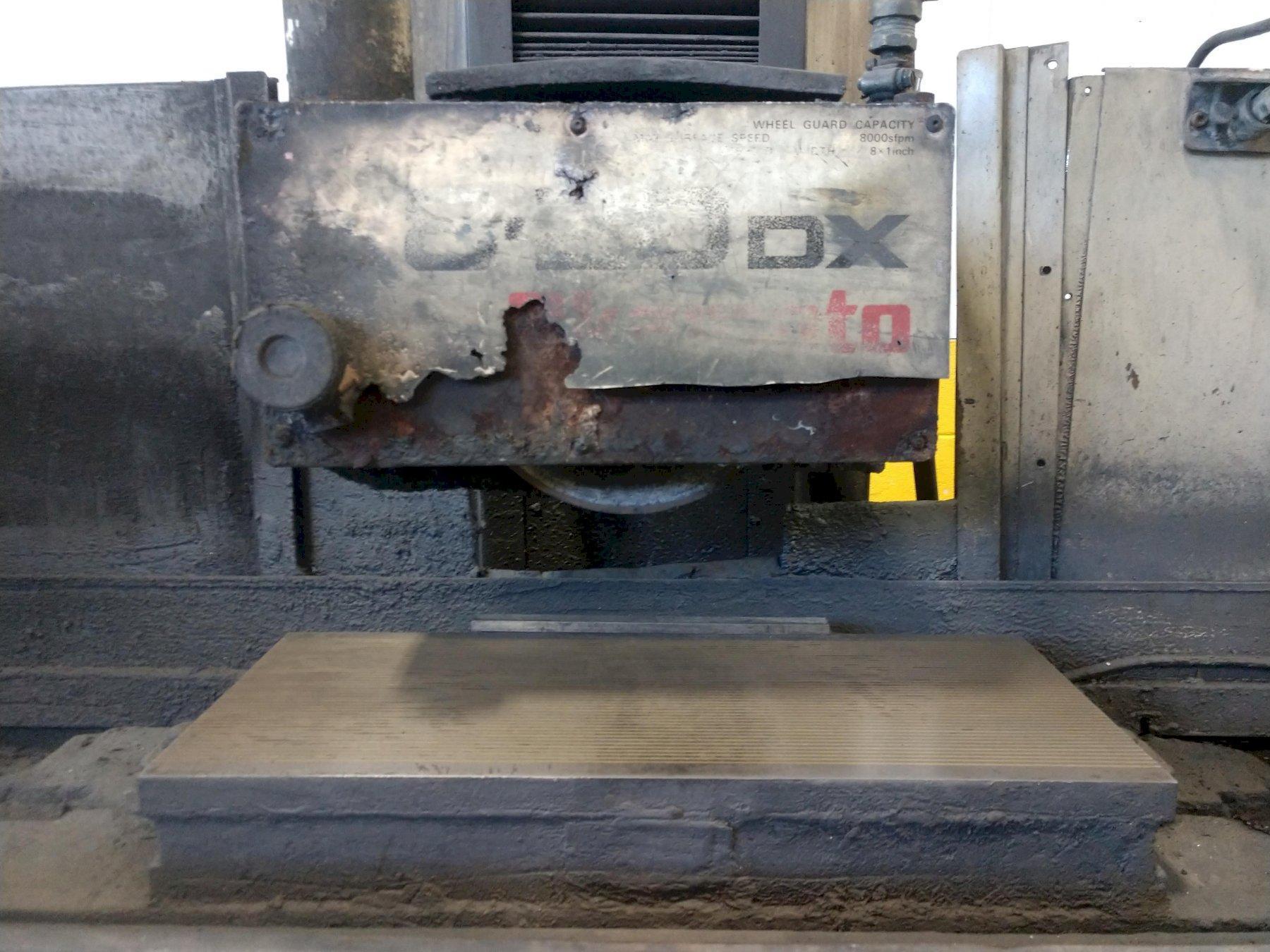

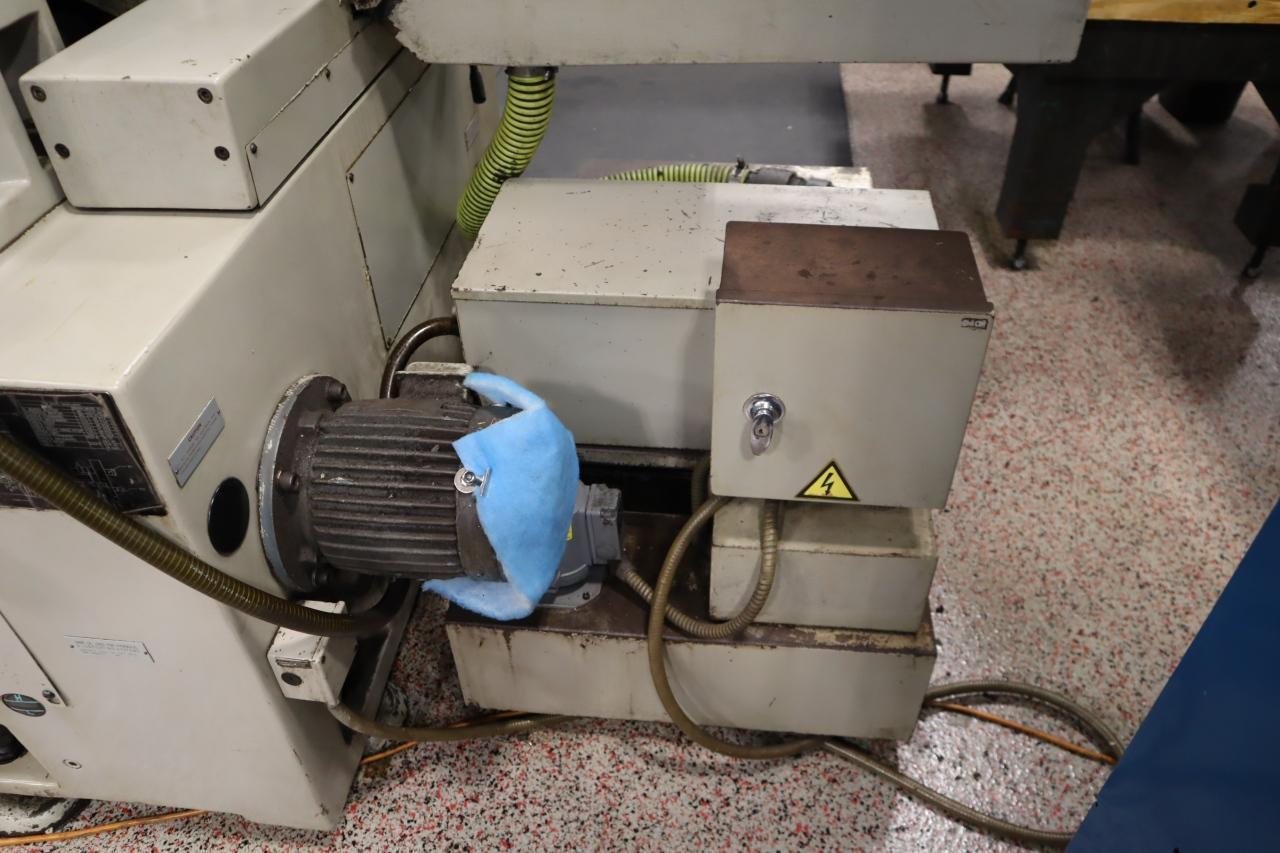

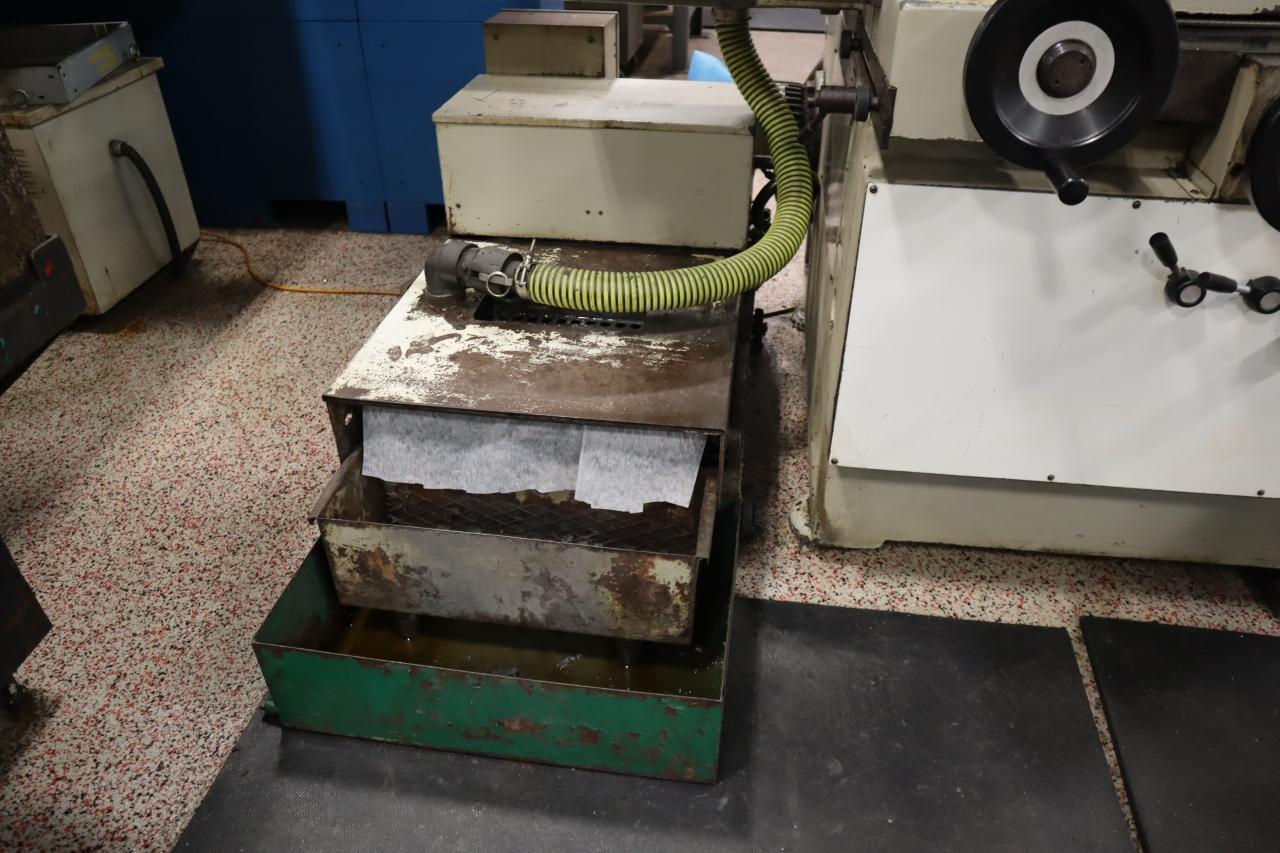

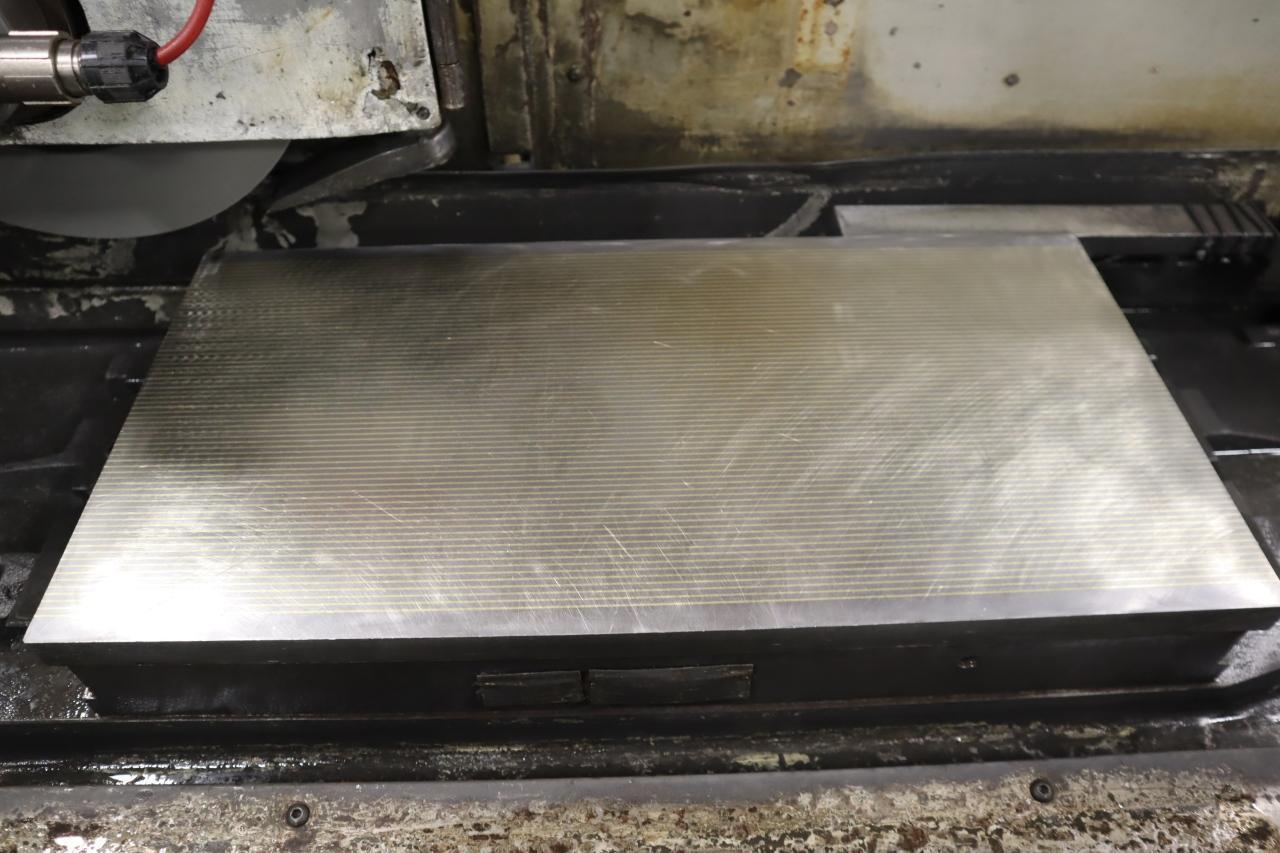

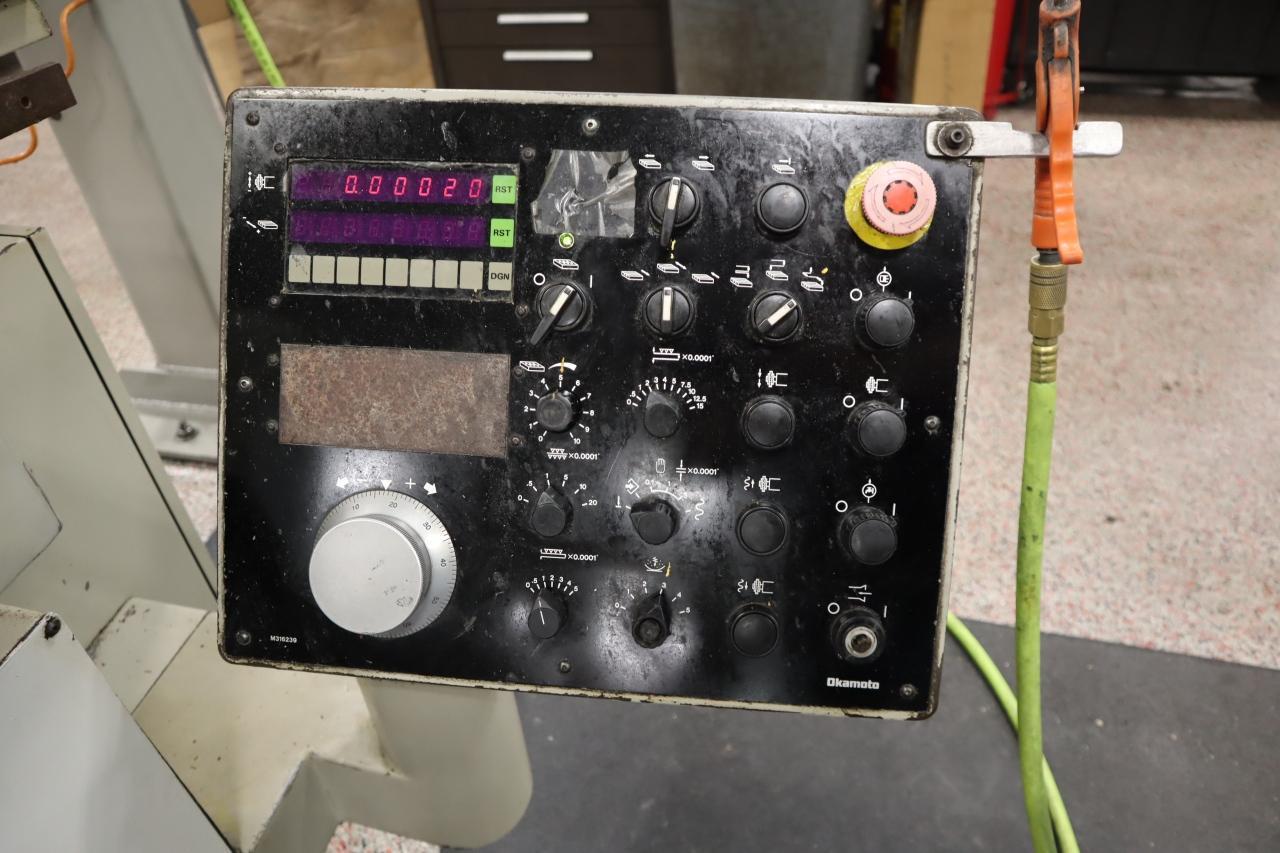

Table Working Surface: 12" x 24" Max Chuck Size: 12" X 24" Max Table Movement (Manual): 29.5" Max Distance Spindle / Wheel to Table: 13.6" Max Table Load (Including Chuck): 925 Lbs. Wheel Speed: 1,800 RPM Auto Longitudinal Feed Rate: 3 - 82 FPM Max Wheel Size : 14" Diameter (12" x 1.5" x 1" STD) Rapid Wheelhead Feed Rate: 40 IPM Hydraulic Motor: .010 - 40 Feet Per Minute Auto Wheelhead Downfeed Increments: .0005" - .0015" Spindle Drive: 5 HP Equipped With: 3-Axis Automatic with Servo Incremental Downfeed, 12" x 24" Fine-Pole Long-Pole Electromagnetic Chuck, LED Readout for Vertical Feed, Automatic Wheel Balancer, Manual Over-the-Wheel Dresser, Wheel Hub and Nut, Coolant System with Paper Filtration Electrics: 220 Volt, 3 Phase |
