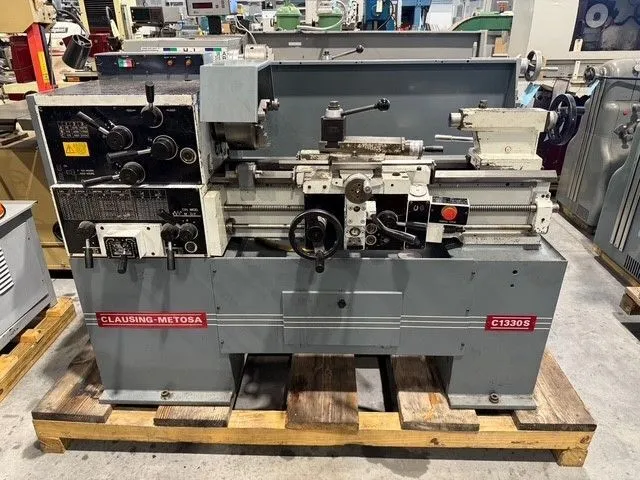

CLAUSING METOSA #C1330S 13” x 30”cc Engine Lathe # 7612
Brand
Category
Type
Model
C1330S
Stock #
7612
Year
Not specified
Condition
Not specified
Location
Not specified
|

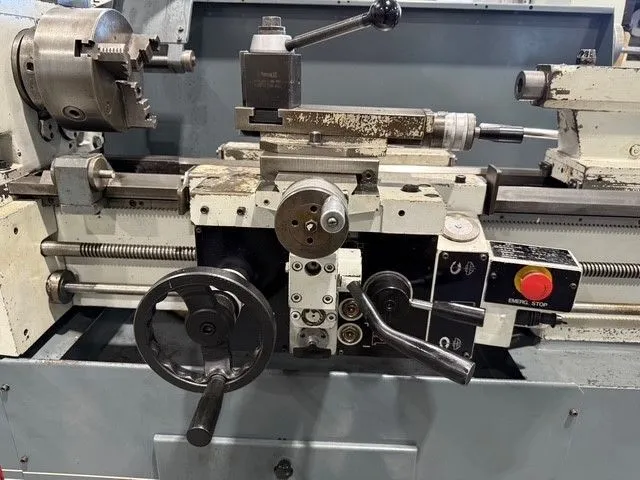

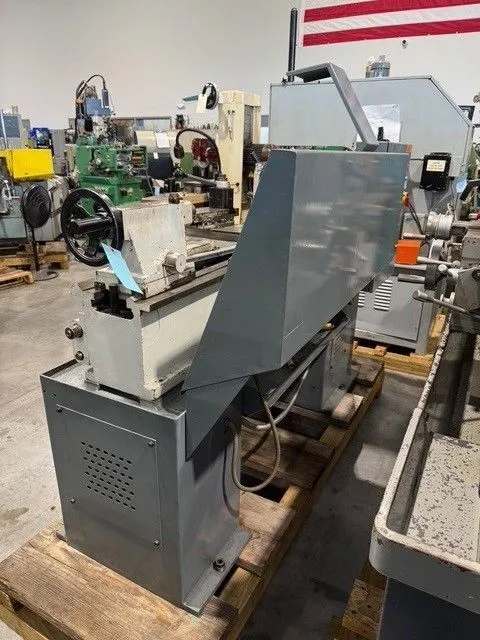

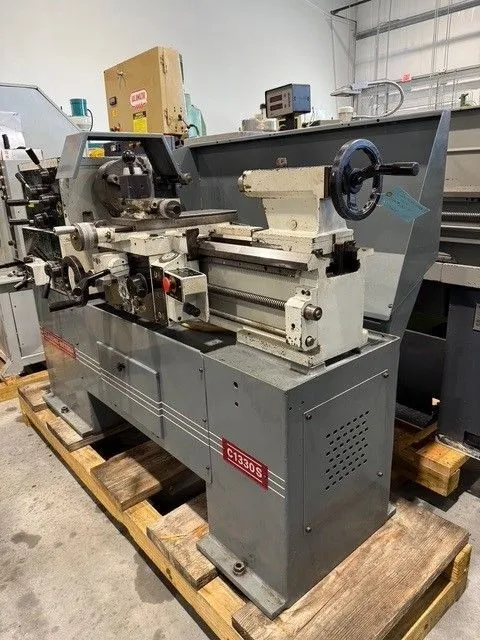

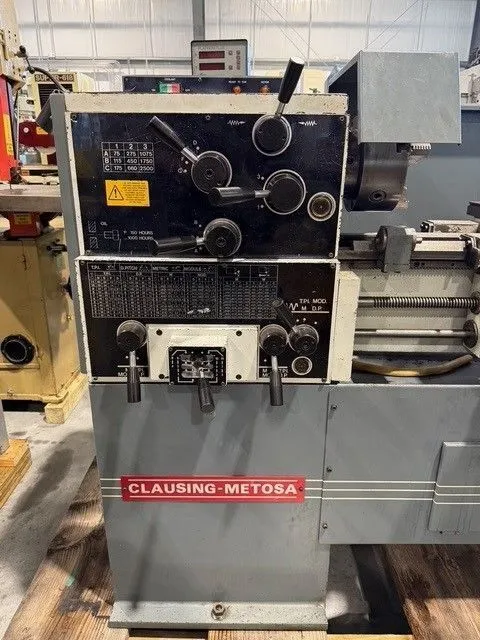

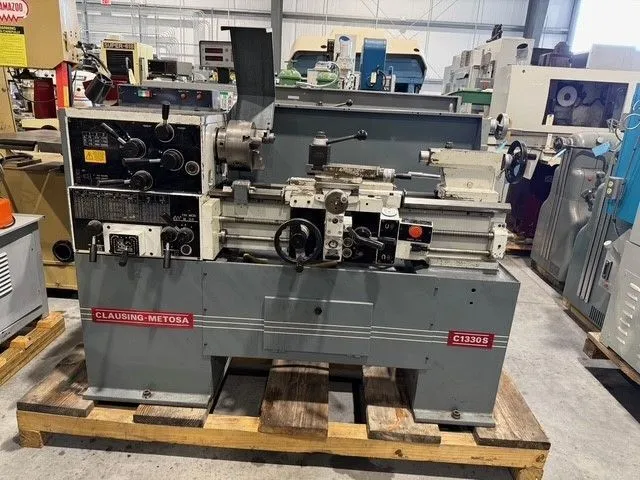

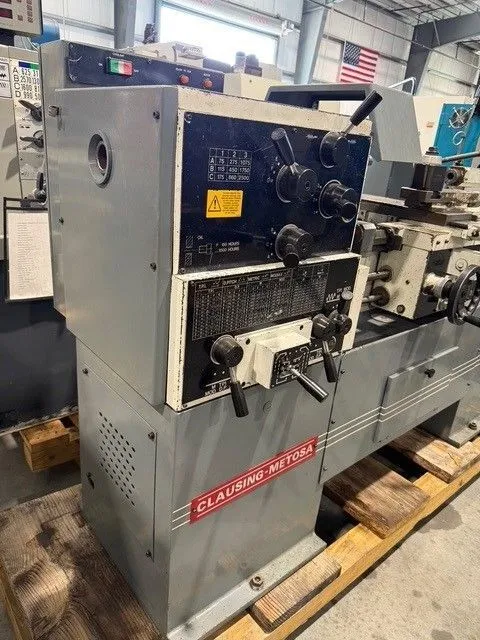

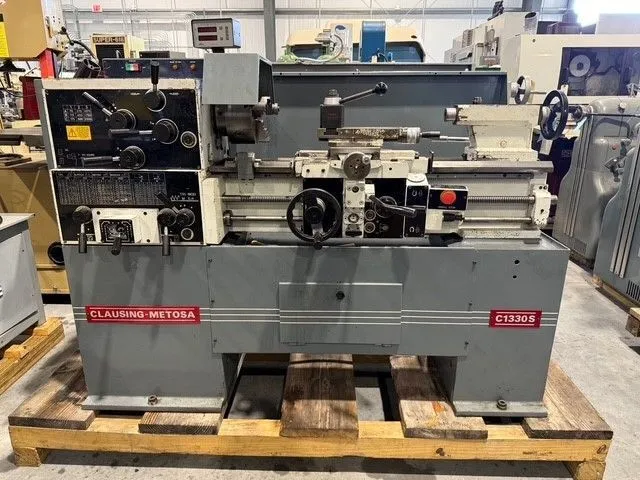

CLAUSING METOSA #C1330S 13” x 30”cc Engine Lathe # 7612

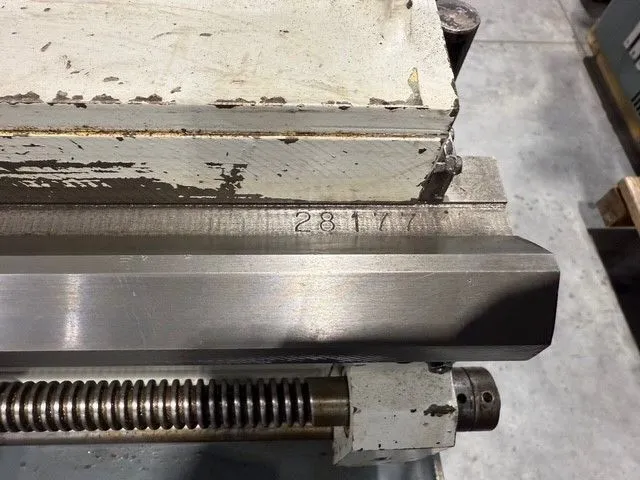

Reference # 7612 Model # C1330S Serial # 28177 Swing over bed- 13-3/16” Swing over carriage- 12-3/16” Swing over cross slide- 6-7/8” Bed width- 10” Spindle bore- 1-5/8” Spindle taper- D1-5 Camlock Spindle Morse taper - #4 Morse Longitudinal feeds- (44) .0018” - .026” Cross feeds- (44) .0005” - .0076” Metric threads- .5mm – 7.5mm Whitmore threads- 60 – 4 T.P.I. Modular threads- .25 -3.75 Diametral threads- 120 – 8 Cross slide travel- 9-5/8” Tool post slide travel- 4-3/4” Tailstock quill diameter- 1-7/8” Tailstock quill travel- 5-1/2” Tailstock taper- #3 Morse Spindle speeds- (9) 75 – 2500 R.P.M. |
