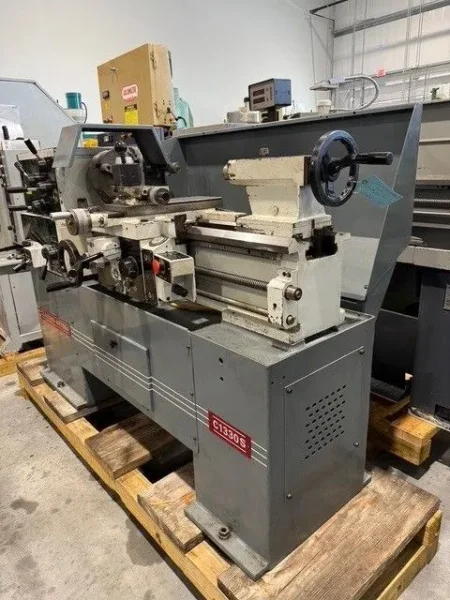

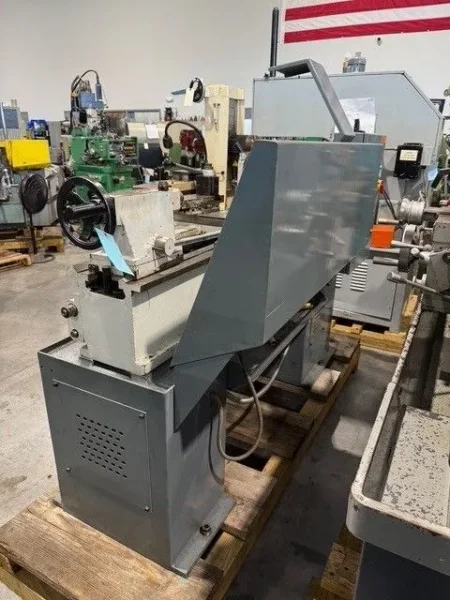

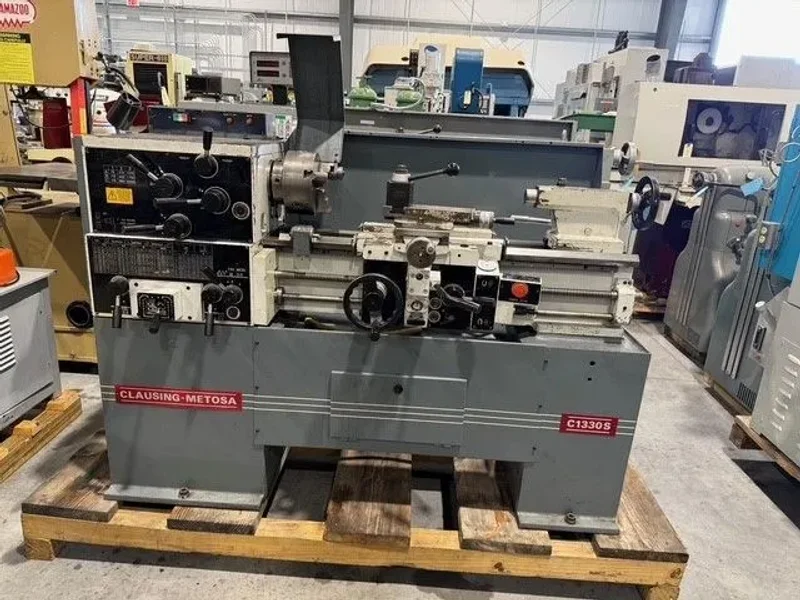

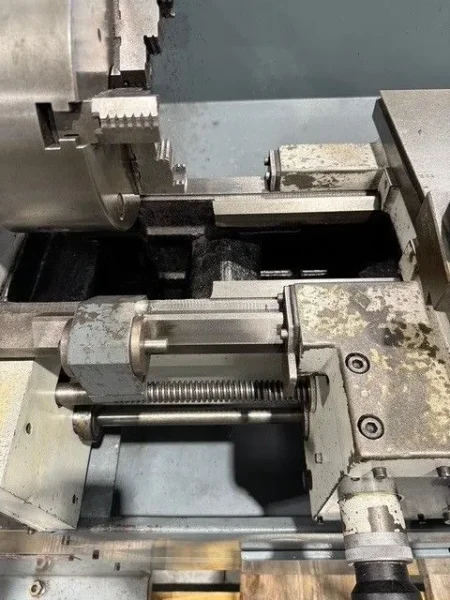

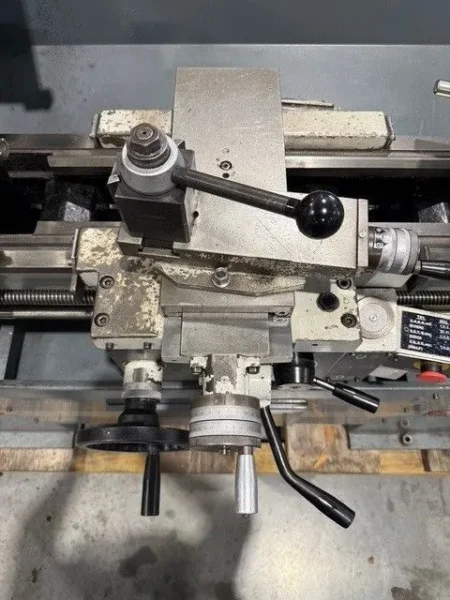

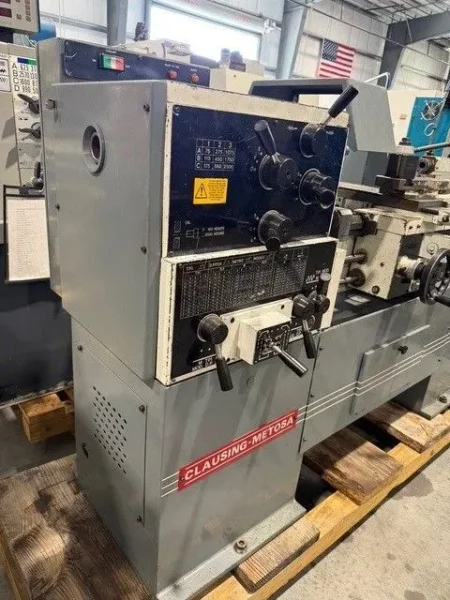

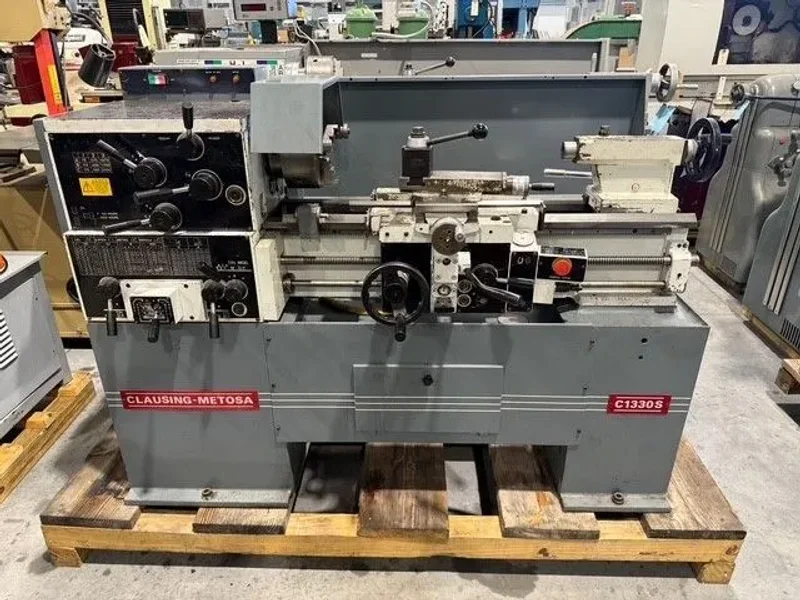

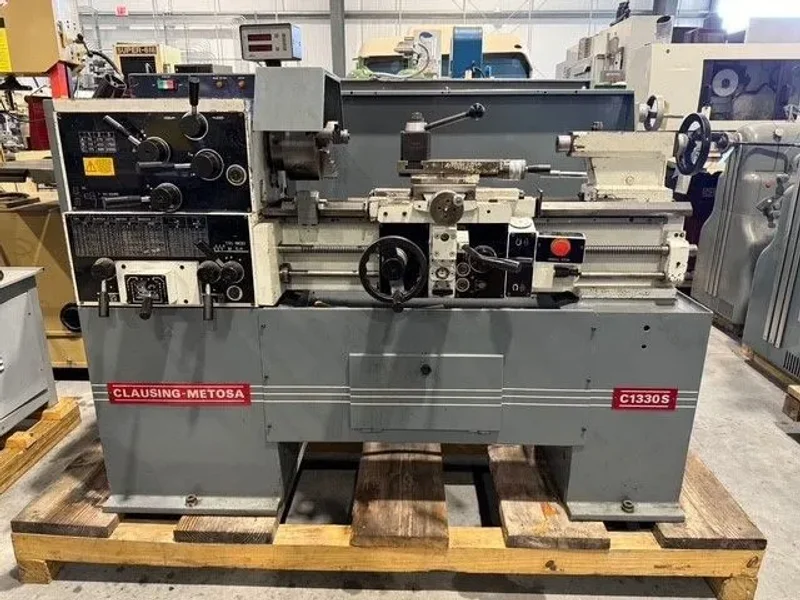

CLAUSING METOSA #C1330S 13” x 30”cc Engine Lathe # 7612

CLAUSING METOSA #C1330S 13” x 30”cc Engine Lathe # 7612

Name: CLAUSING METOSA #C1330S 13” x 30”cc Engine Lathe # 7612
Brand: CLAUSING METOSA
SKU: 7612
Availability: PreOrder

Brand

CLAUSING METOSA

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

Engine Lathes

Manufacturer:

CLAUSING METOSA

Model:

C1330S

Stock #:

7612

Status:

For Sale

Description

CLAUSING METOSA #C1330S 13” x 30”cc Engine Lathe # 7612

ImperialMetric

Swing	13"	330.2 mm
Centers	30"	762 mm
Spindle Bore	1.5"	38.1 mm
Power	5 hp	3.7 kW
RPM	2,000 RPM	2,000 RPM
Swing Over Cross Slide	6.89"	175.01 mm
Dimensions	73” L x 32” W x 67”H	73” L x 32” W x 67”H
Weight	2250 Lbs.	2250 Lbs.

CLAUSING METOSA #C1330S 13” x 30”cc Engine Lathe # 7612
Reference # 7612
Model # C1330S

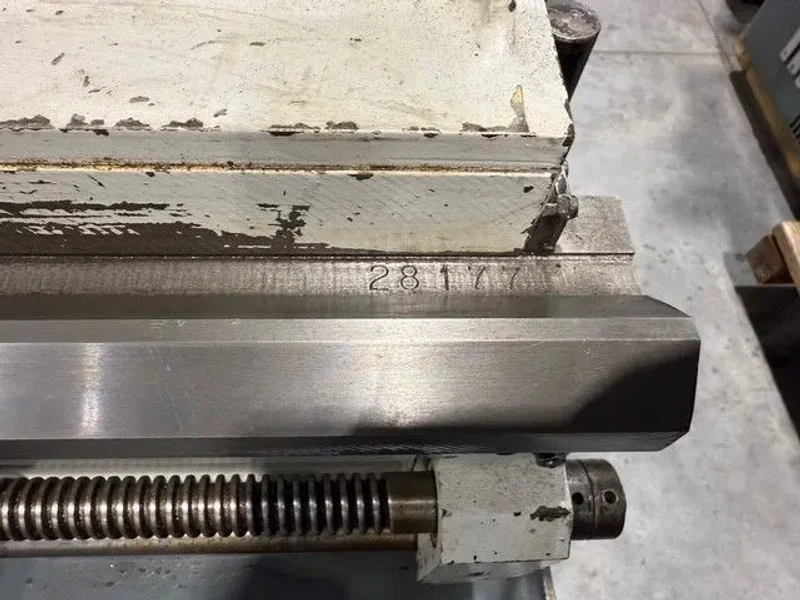

Serial # 28177
Swing over bed- 13-3/16”
Swing over carriage- 12-3/16”
Swing over cross slide- 6-7/8”
Bed width- 10”
Spindle bore- 1-5/8”
Spindle taper- D1-5 Camlock
Spindle Morse taper - #4 Morse
Longitudinal feeds- (44) .0018” - .026”
Cross feeds- (44) .0005” - .0076”
Metric threads- .5mm – 7.5mm
Whitmore threads- 60 – 4 T.P.I.
Modular threads- .25 -3.75
Diametral threads- 120 – 8
Cross slide travel- 9-5/8”
Tool post slide travel- 4-3/4”
Tailstock quill diameter- 1-7/8”
Tailstock quill travel- 5-1/2”
Tailstock taper- #3 Morse
Spindle speeds- (9) 75 – 2500 R.P.M.

***Machine came out of a tech training school***

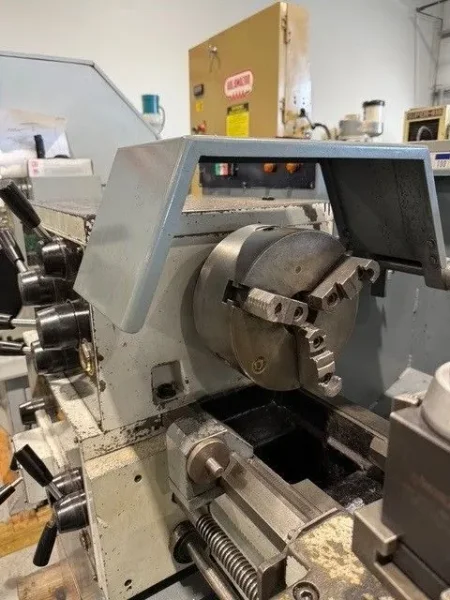

8” BISON 3-Jaw chuck
Carriage stop
Threading dial
Inch / metric hand dials
3 H.P. Motor
Machine is wired for 230 Volt / 3 phase / 60 HZ
Machine weight- 2250 Lbs.
Machine dimensions- 73” L x 32” W x 67”H
Machine location- F.O.B. Sarasota, Florida
