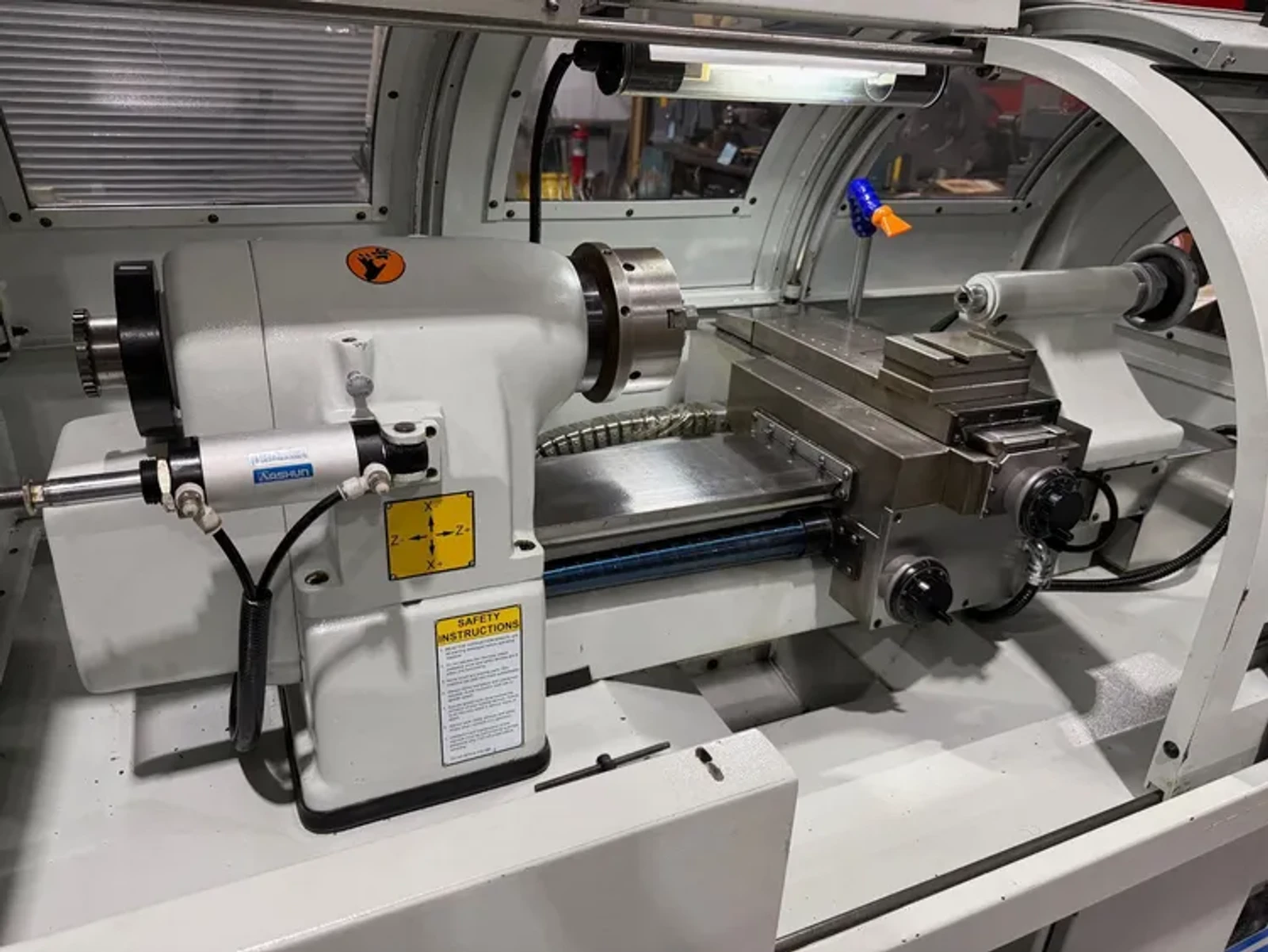

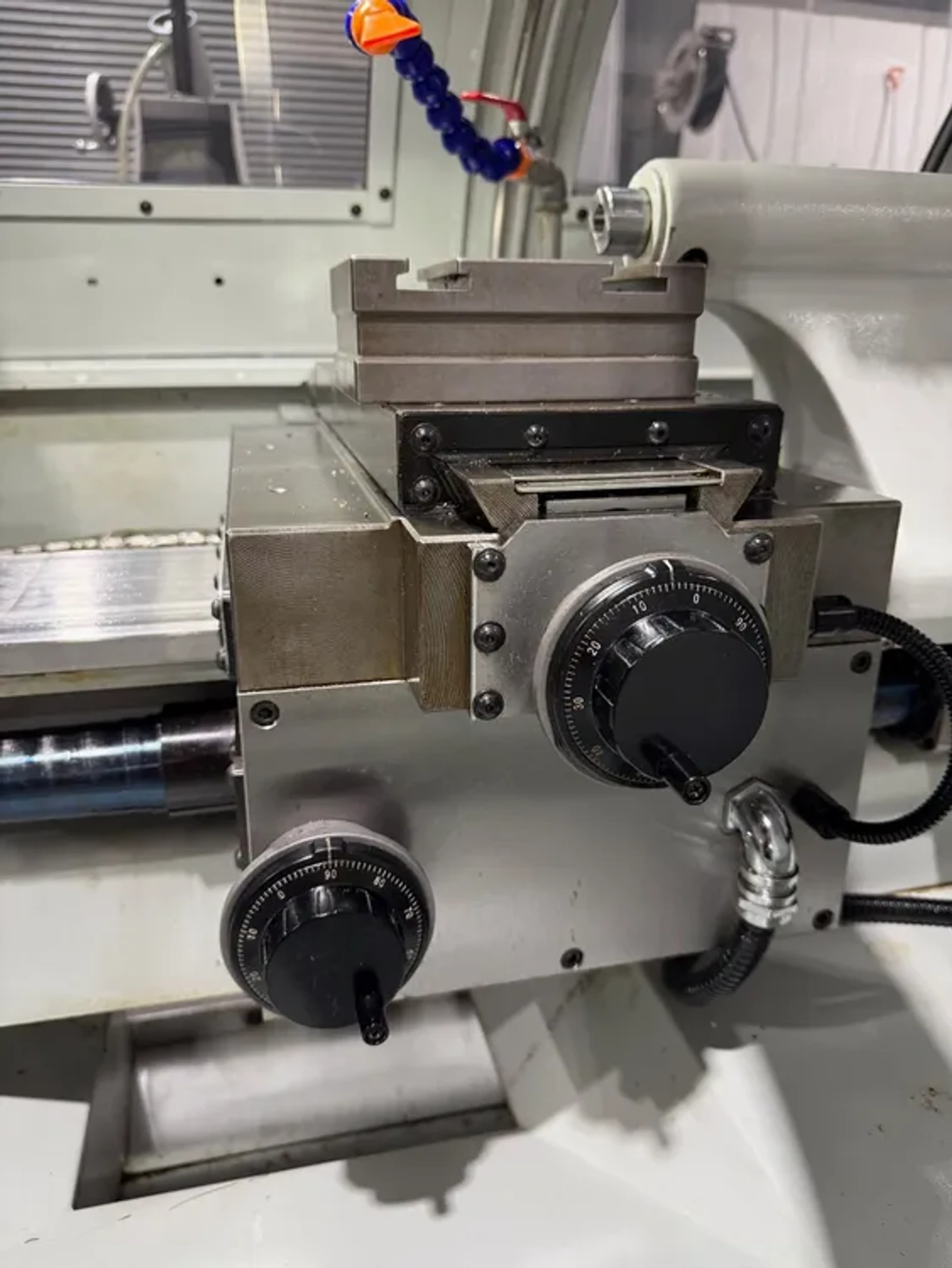

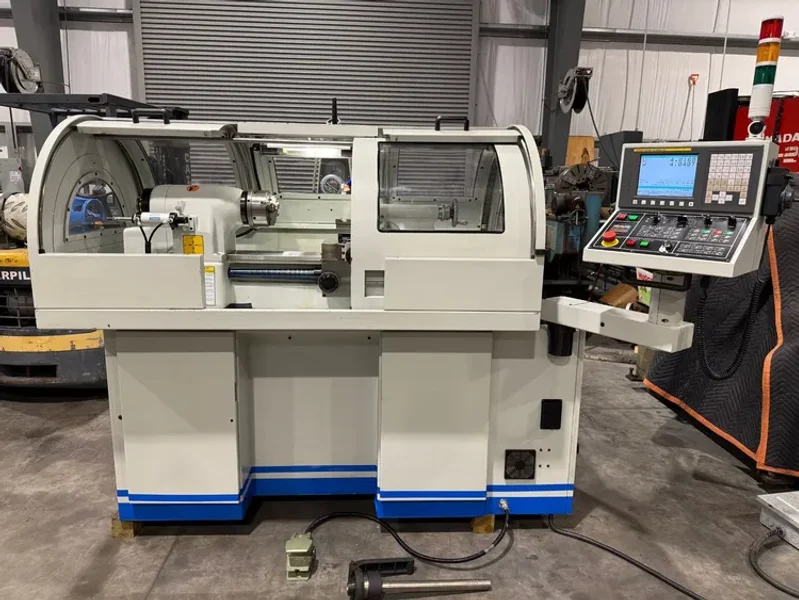

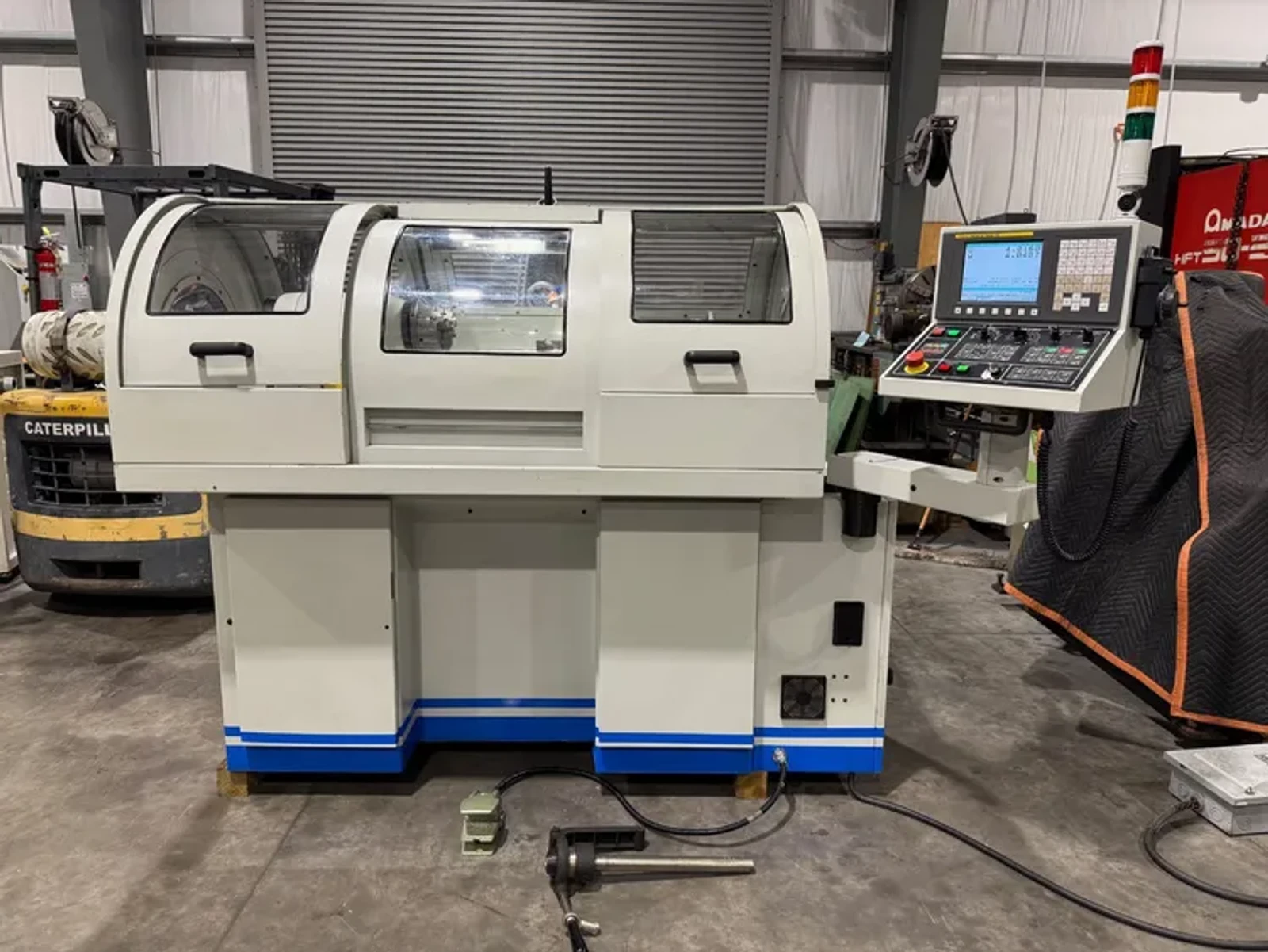

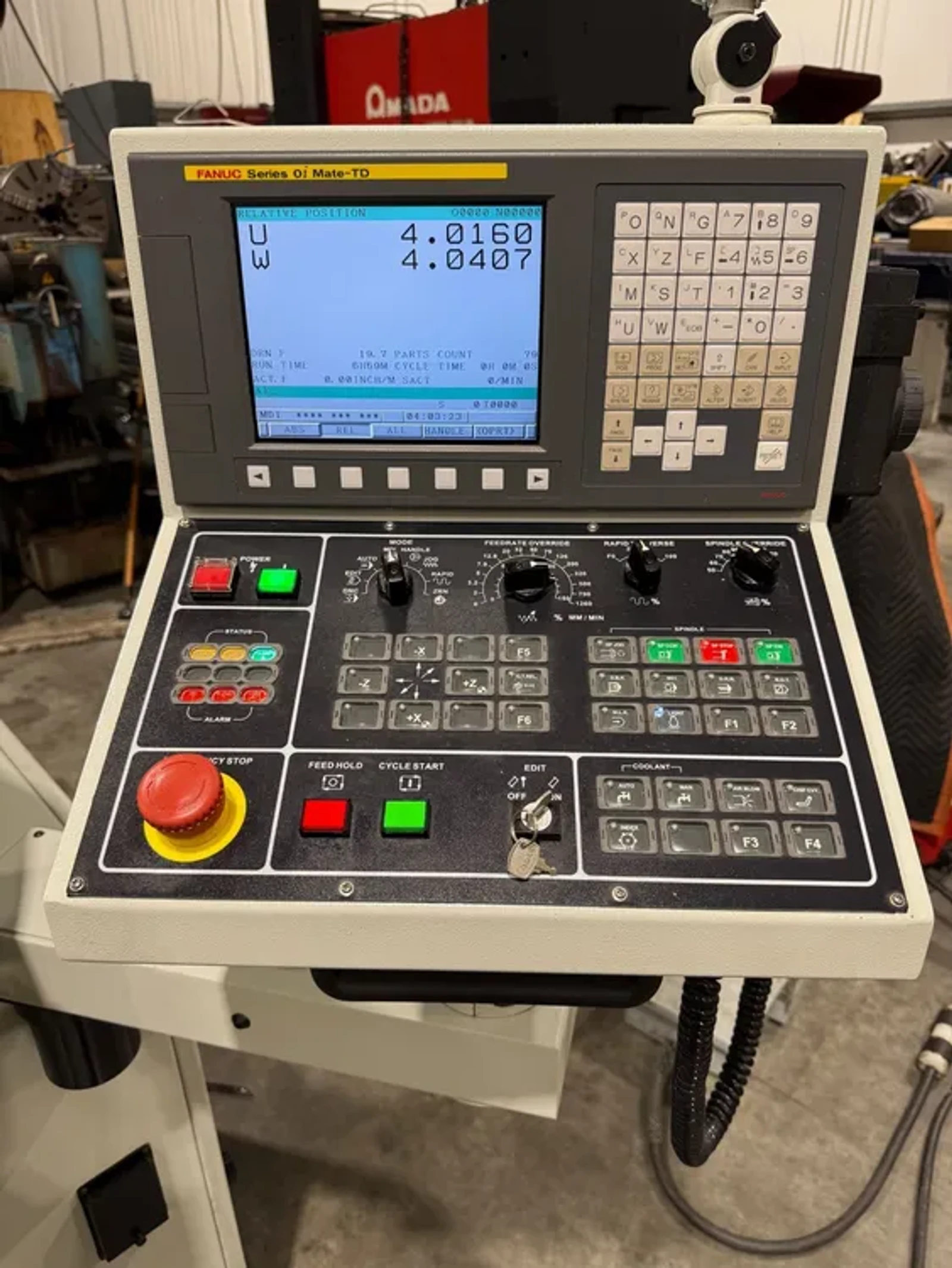

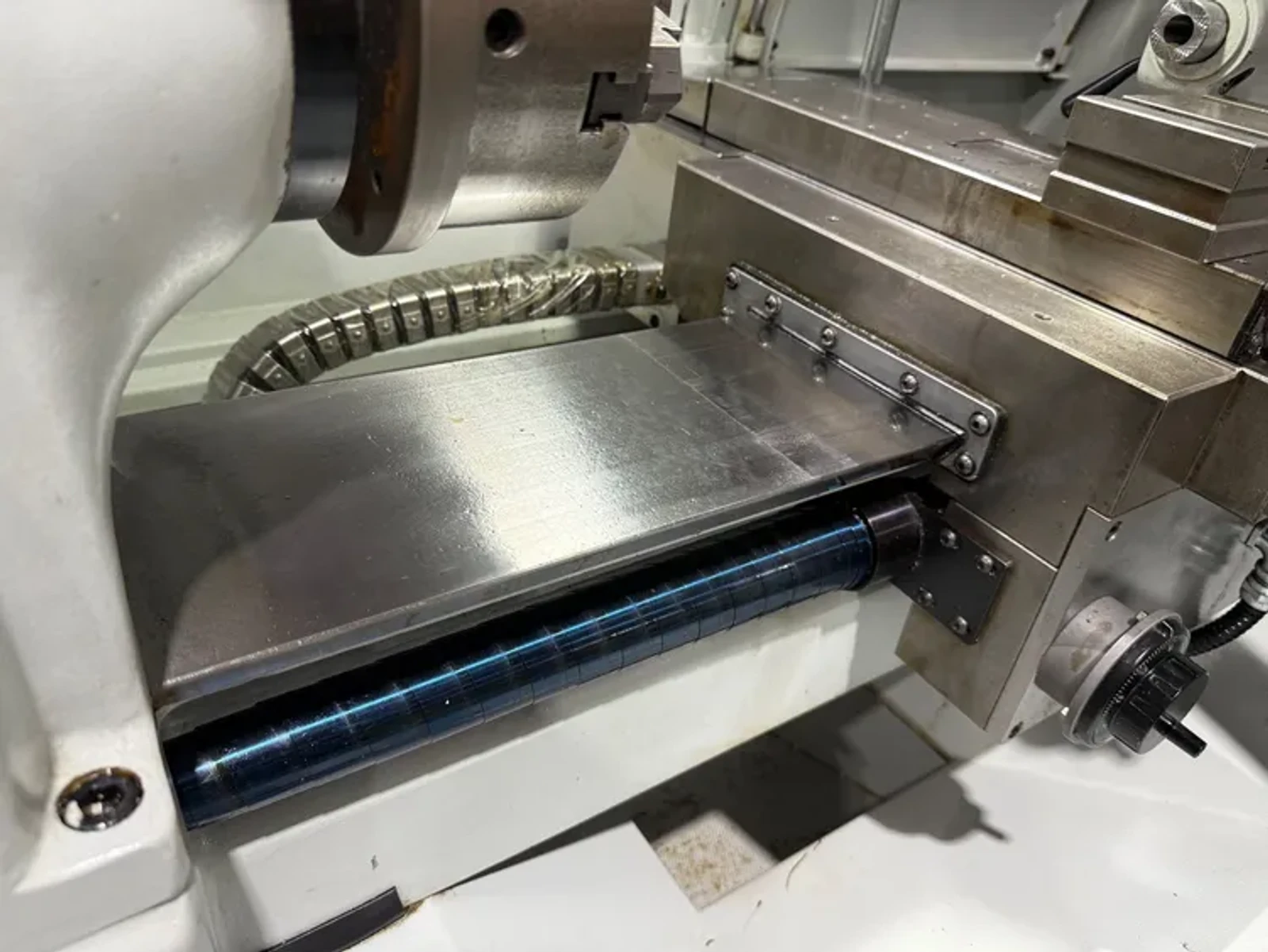

ACRA ATL-1118A CNC Toolroom Lathe FANUC 2014’ #7629

Brand
ACRA
Category
Lathes & Turning Machines
Type
Lathes, CNC
Model
ATL-1118A
Stock #
7629
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING

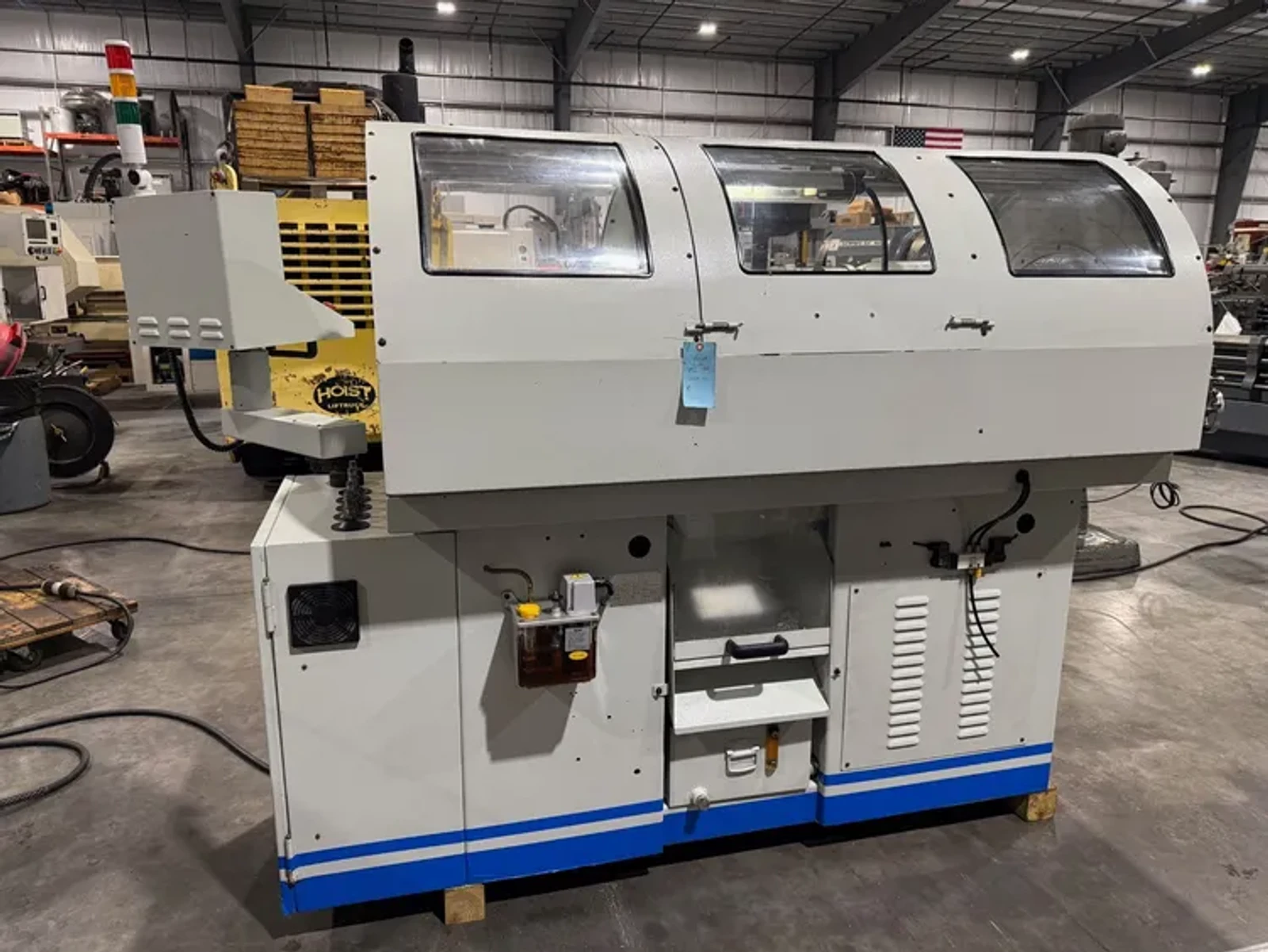

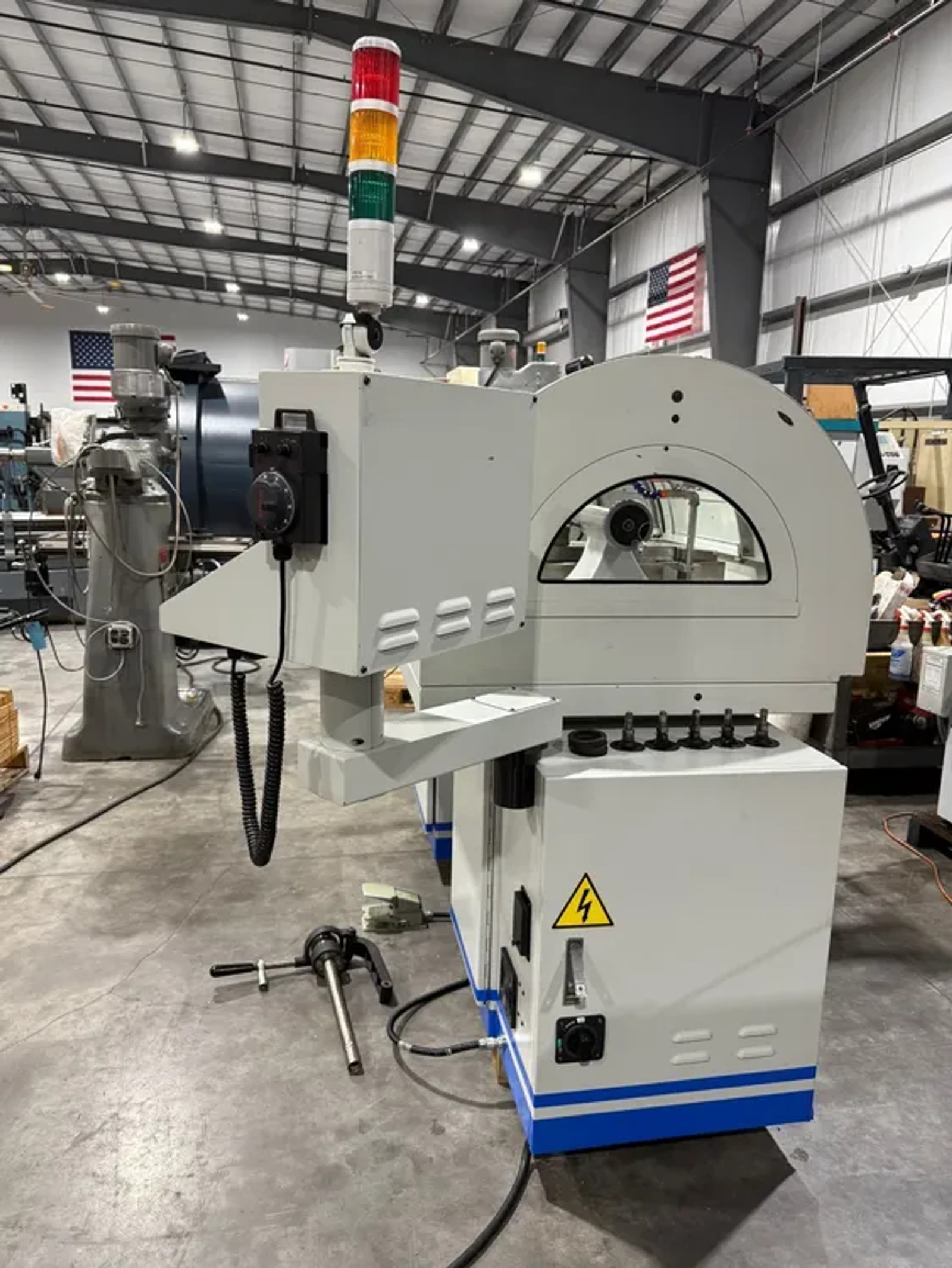

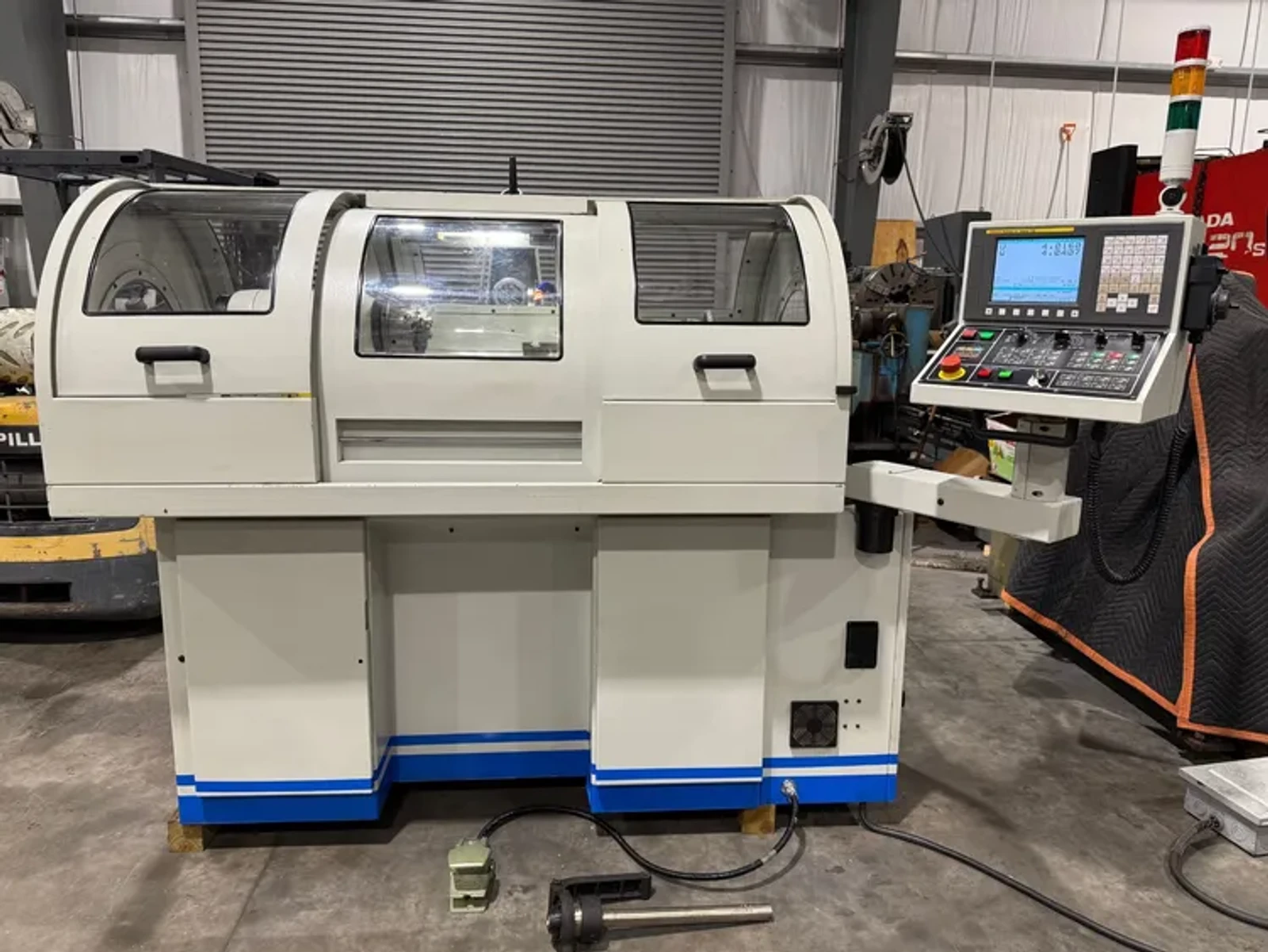

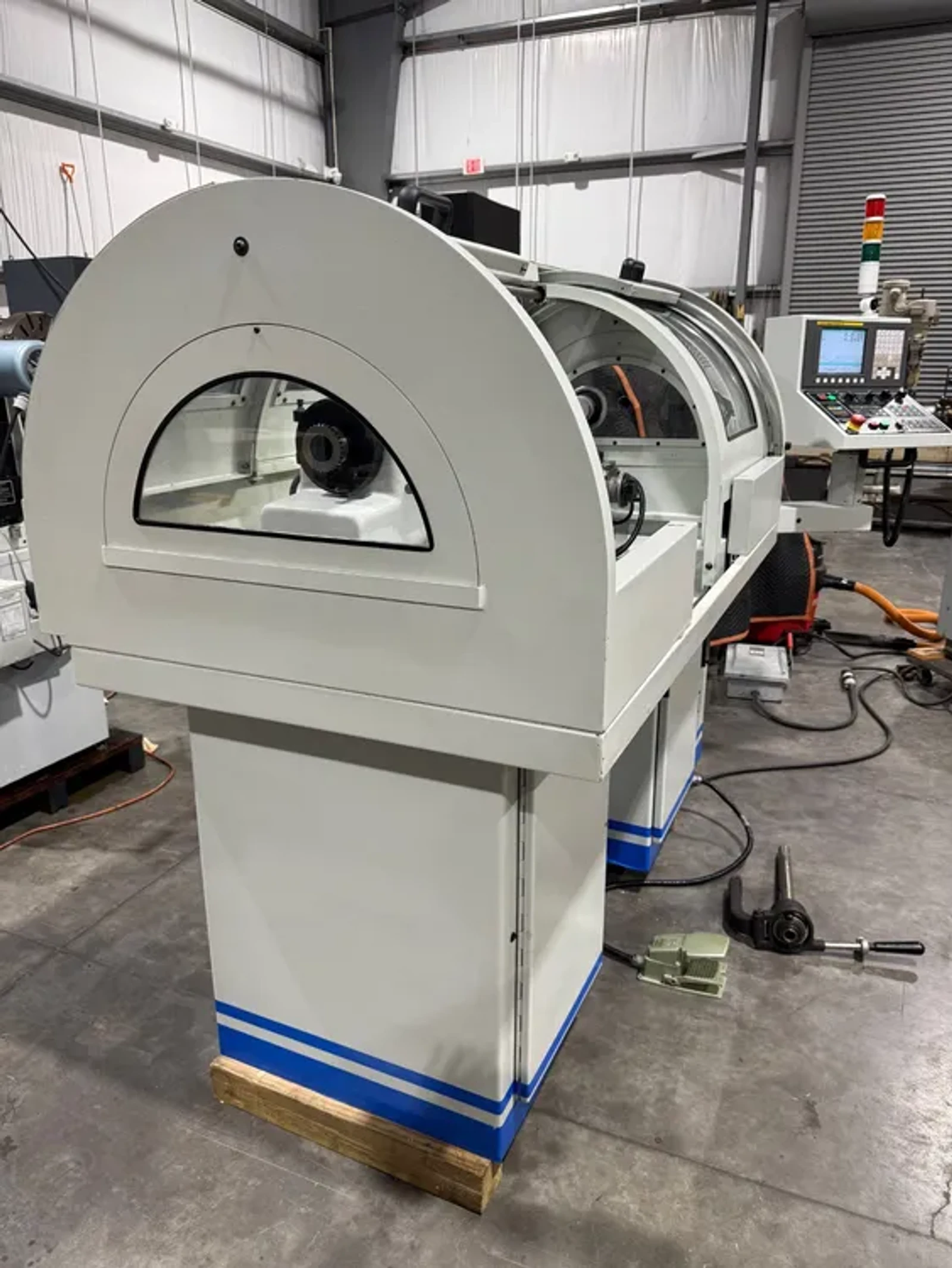

ACRA ATL-1118A CNC Toolroom Lathe FANUC 2014’ #7629
Reference # 7629
Model # ATL-1118A
Serial # 10304156
Year of manufacture- 4/2014’
Swing over bed- 11”
Swing over cross slide- 6”
Swing over carriage- 9”
Distance between centers- 18”

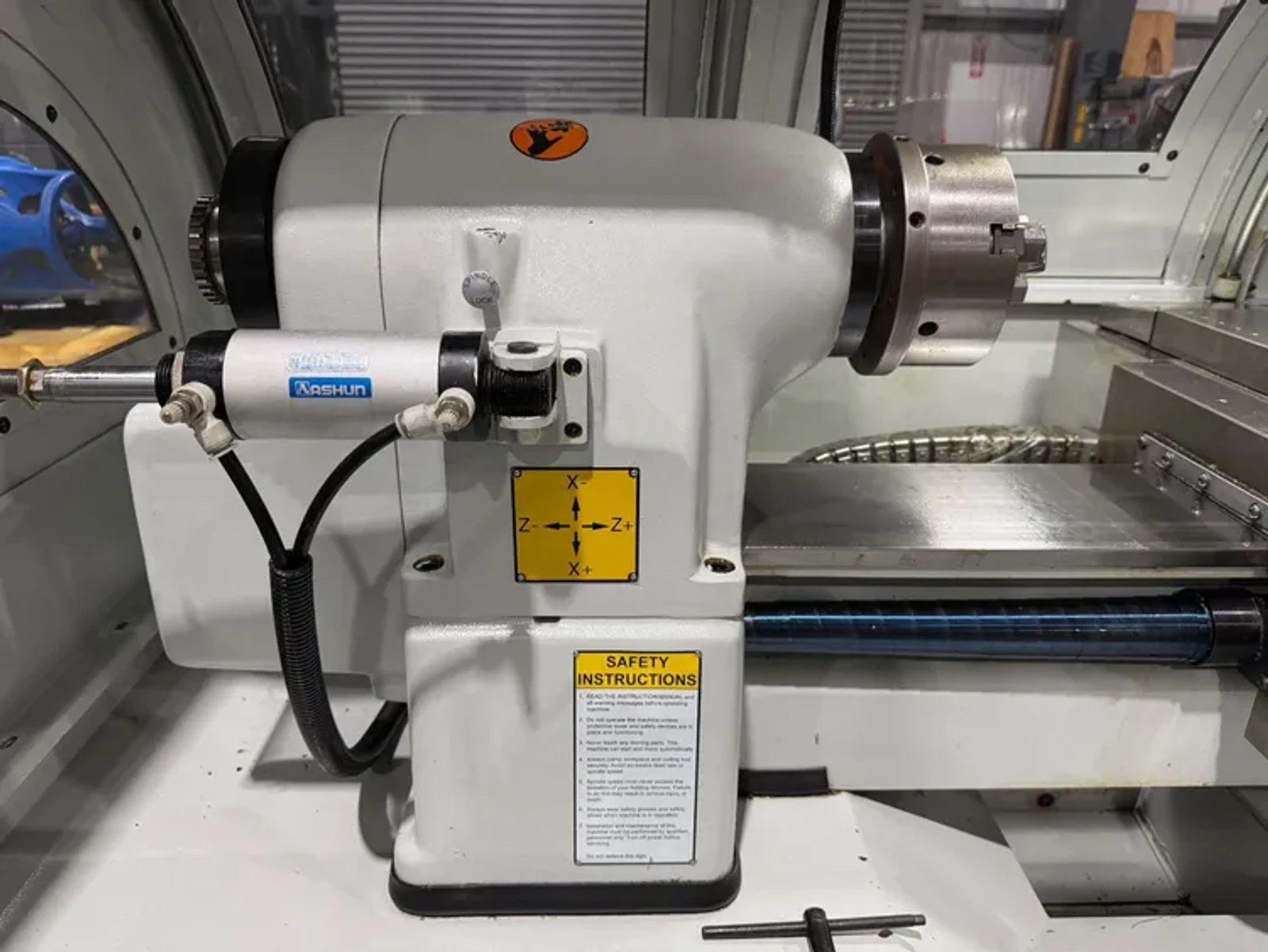

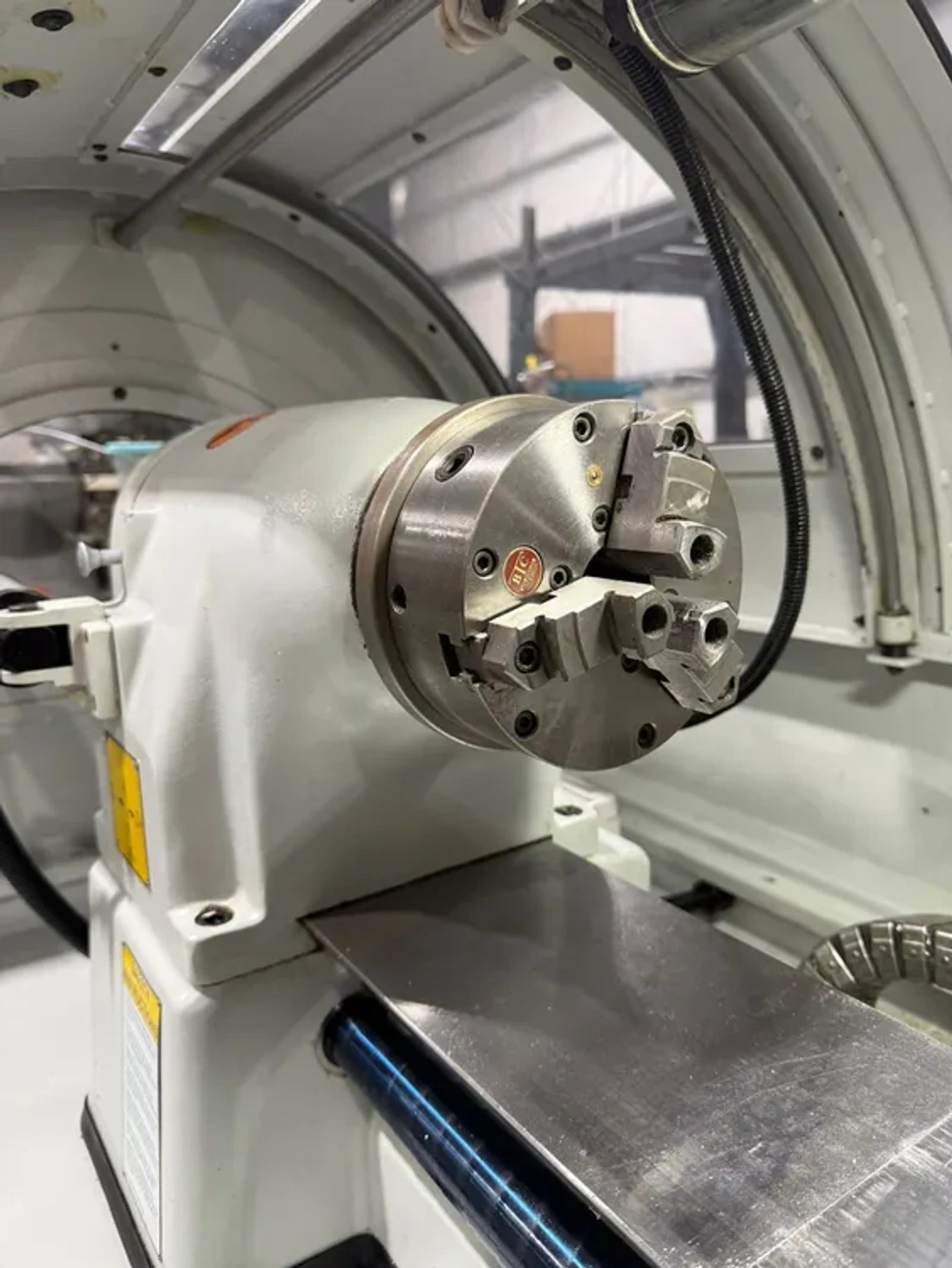

Spindle nose- 4° degree tapered (Hardinge type)
Spindle speeds- 0 – 4,000 R.P.M. C.S.S.
Spindle bore- 1-1/4”
Bar capacity- 11/16”
X axis travel- 6-1/4”
Z axis travel- 13-1/2”
Rapid traverse- 787 I.P.M.

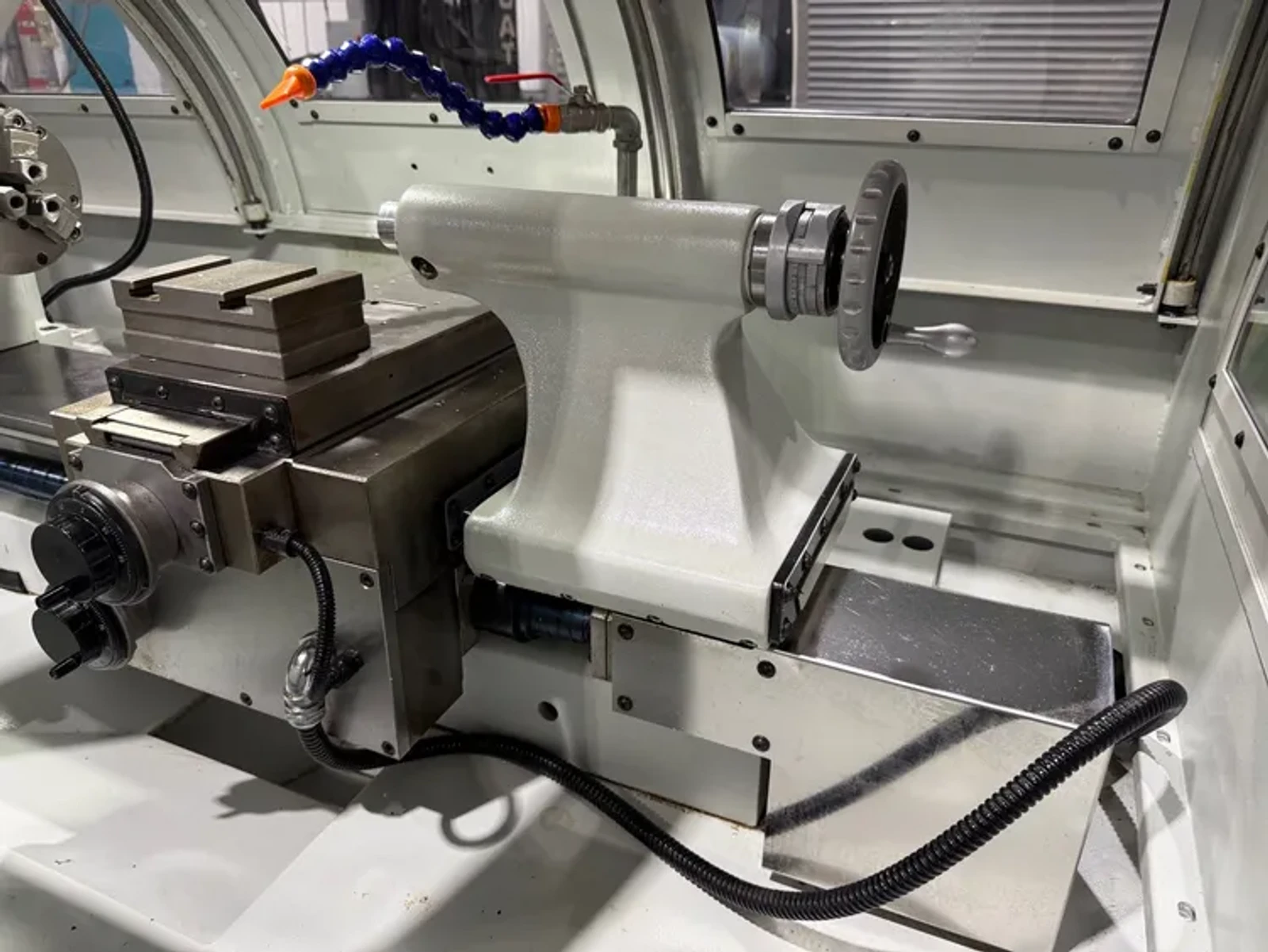

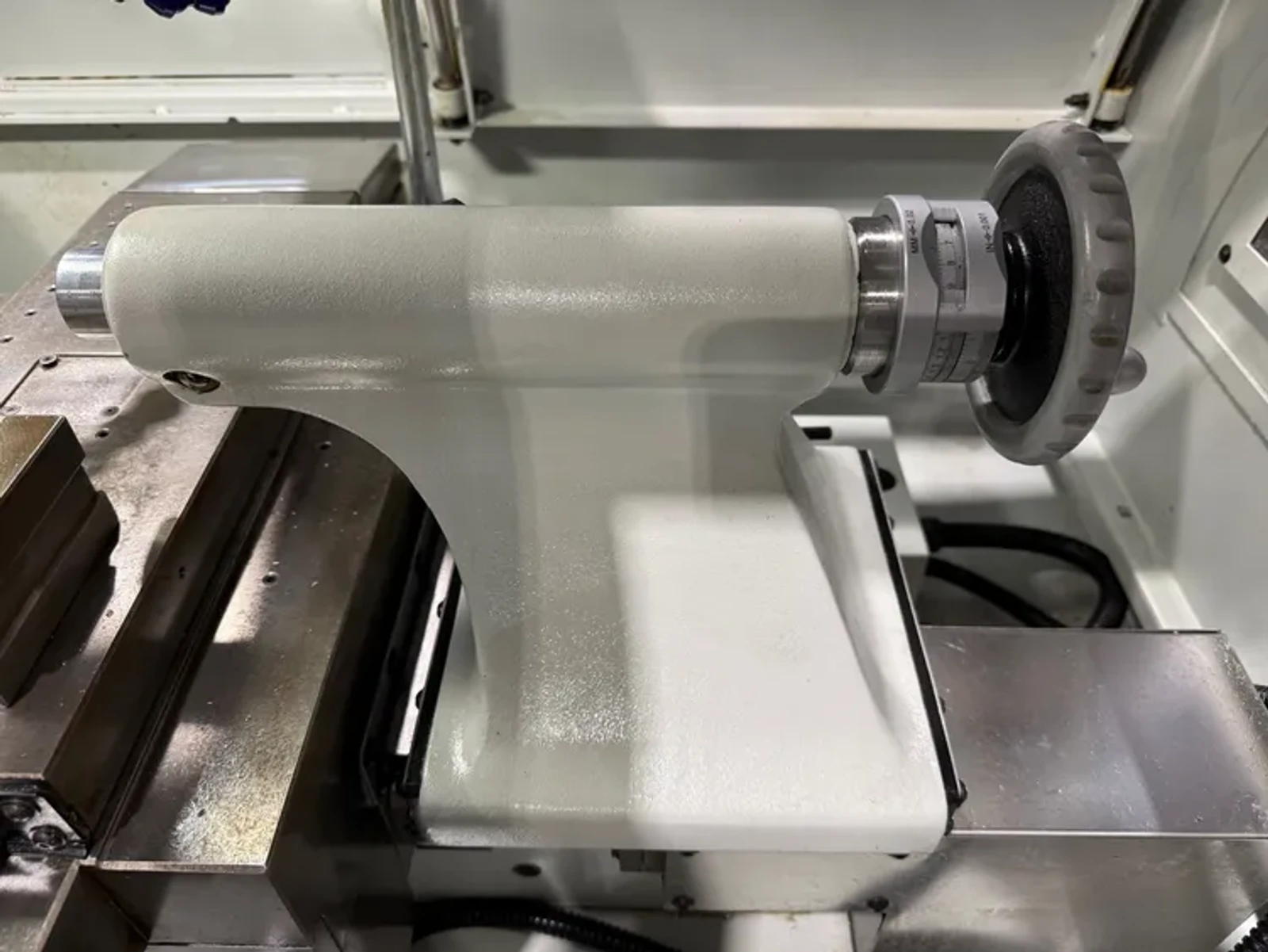

Tailstock quill taper- #2 Morse
Tailstock quill diameter- 1.358”
Tailstock quill travel- 3-3/4”
