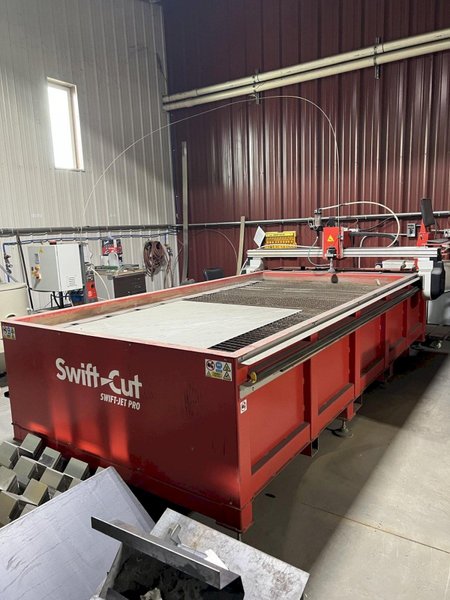

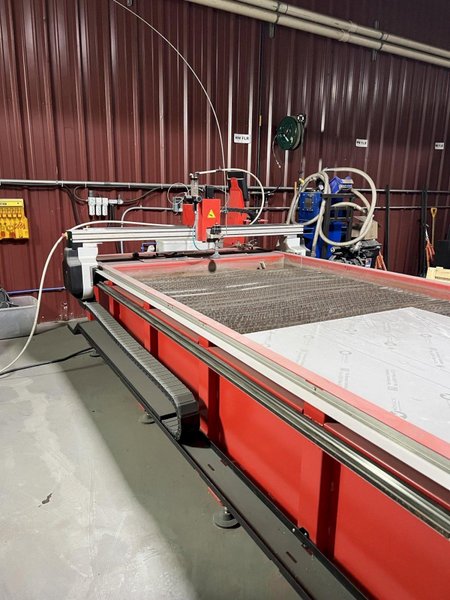

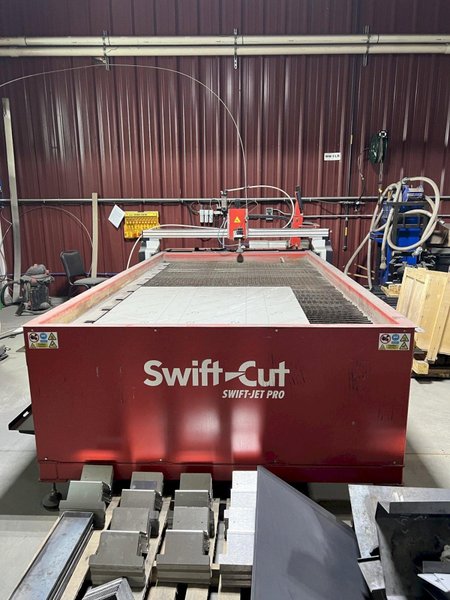

5' X 10' SWIFT-JET PRO 5X10 CNC WATER JET

5' X 10' SWIFT-JET PRO 5X10 CNC WATER JET

New 2023

Only 200 Hours

SPECIFICATIONS:
Table Size                                         13'8" x 7'6"
Table Weight                                    3,758 Lbs.
Operating Weight                            12,600 Lbs.
(Table & Water)
Water Volumn                                 1021 US Gallons
Cutting Envelope                             10' x 5'
z - Axis                                             43"
Gantry Clearance                             9'8"
Max. Material Thickness
      Water Only                               4"
      Abrasive                                   2"
Approximate Dimensions               13'8" x 7'6" x 68" H


Drive Description
Hybrid servo motors and triple sealed linear bearings with scrapers on all axes. A bellow protects the Z-Axis ballscrew water and garnet ingress. Dual drive Y-axis.

EQUIPPED WITH::

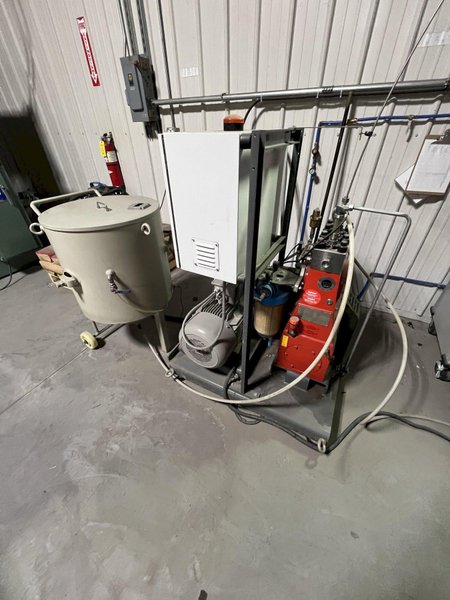

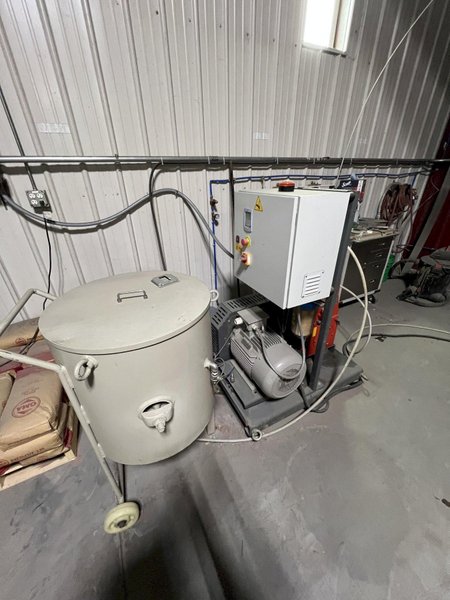

Hammelmann 3800 Bar @ 1450 RPM Motor
Bulk Abrasive Hopper
IGEMS Base Cad
IGEMS 3-Axis Cam
IGEMS AWJ
IGEMS Cam Tools
IGEMS Sign Maker
IGEMS Nest Level 1
IGEMS Nest Level 2
VX1 100 HD Garnet Removal System
Upgraded Hypertherm Cutting Head & Mini Hopper
