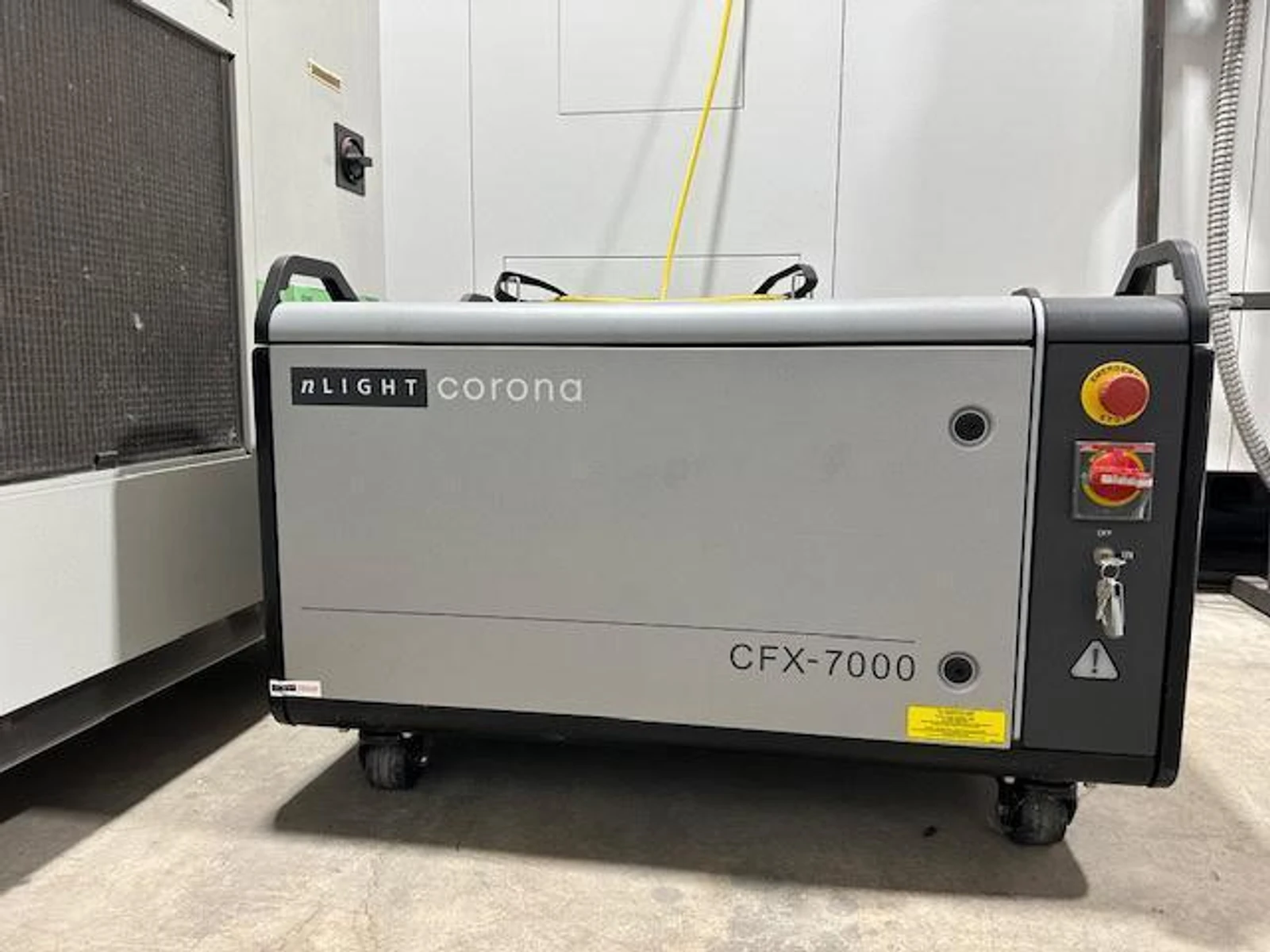

Laser: 7kW nLight Corona CFX-7000 fiber laser.
Control: Mazatrol PreviewG CNC control.
Sheet Size: 60.04″ x 120.08″ (5′ x 10′)
All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Travel: X-axis: 122.04″ Y-axis: 62.20″ Z-axis: 5.91″ Positioning Accuracy: X,Y axis: 0.002″/19.68″ Z axis: 0.0004″/3.94″ Repeatable Accuracy: 0.0012″ (X,Y, and Z axes) Rapid Travels: 2,362 IPM (X, Y, and Z axes) All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Work Table Height: 35.43″ Maximum Load Capacity: 2,050 lbs. Install Dimensions: 330″ W x 170″ L Machine Unit Dimensions: 119.5″ W x 392.1″ L x 95.3″ H Machine Unit Weight: 28,330 lbs All specifications are assumed to be correct but must be confirmed by the purchasing entity.,CNC Type: MAZATROL PreviewG All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Material Thickness: Mild Steel: Up to 1″. Stainless Steel: Up to 1″. Aluminum: Up to 0.750″. All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
