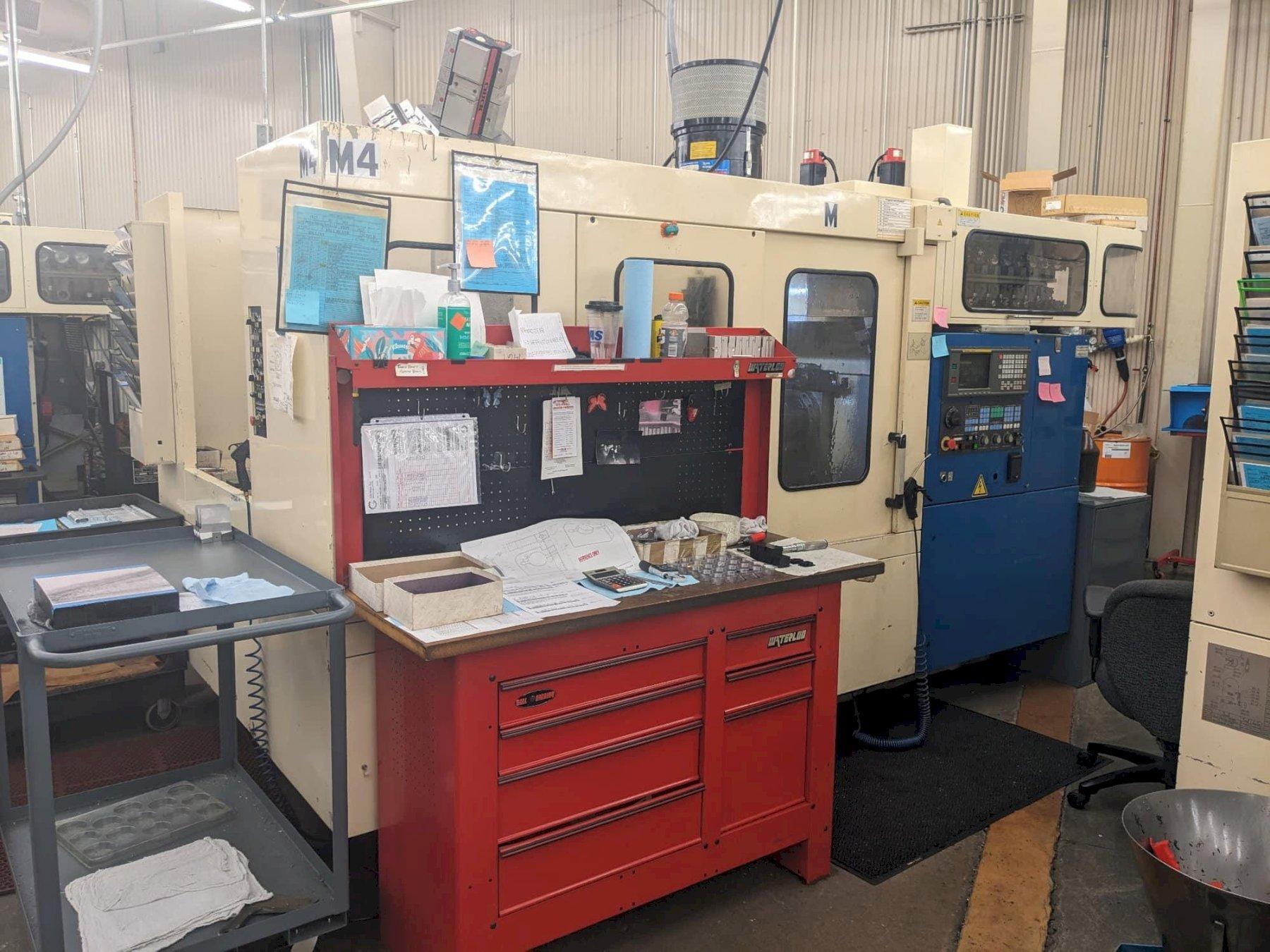

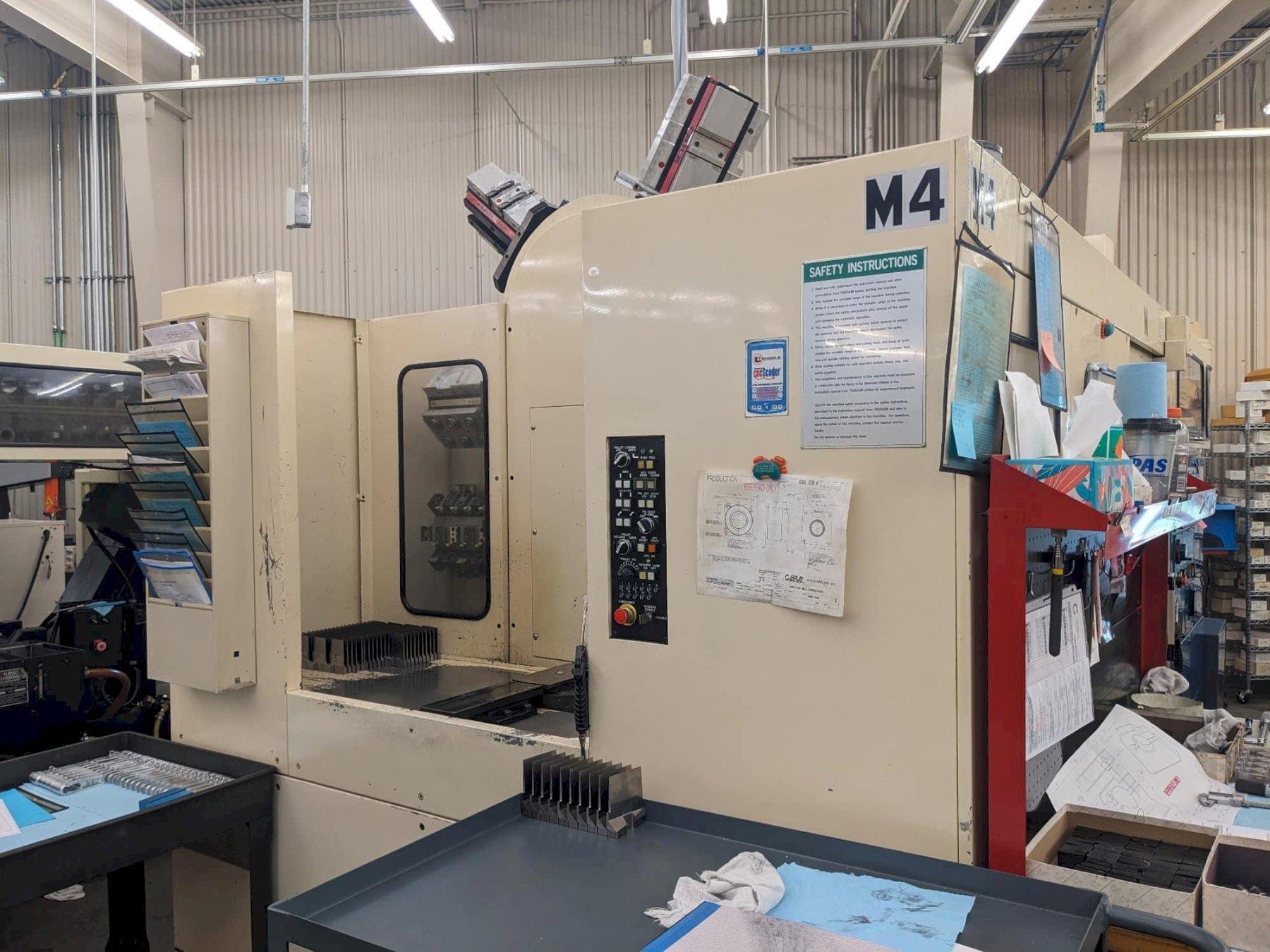

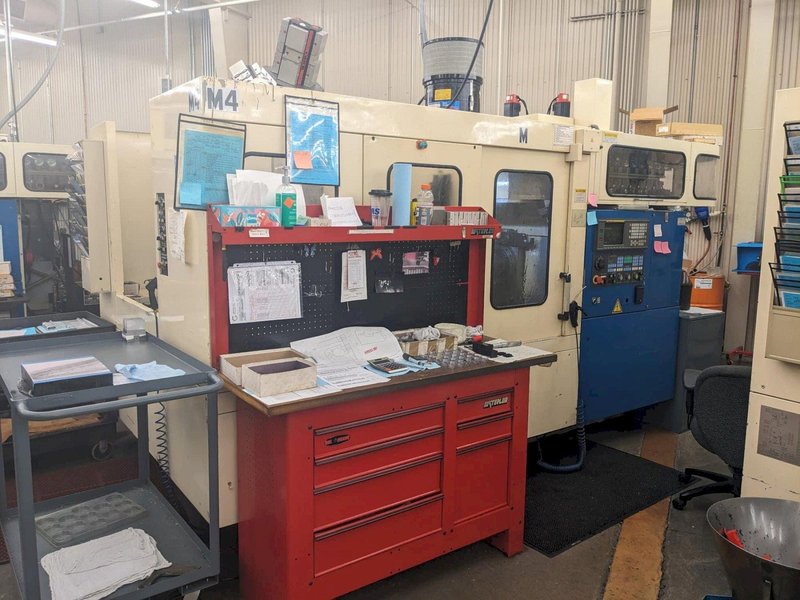

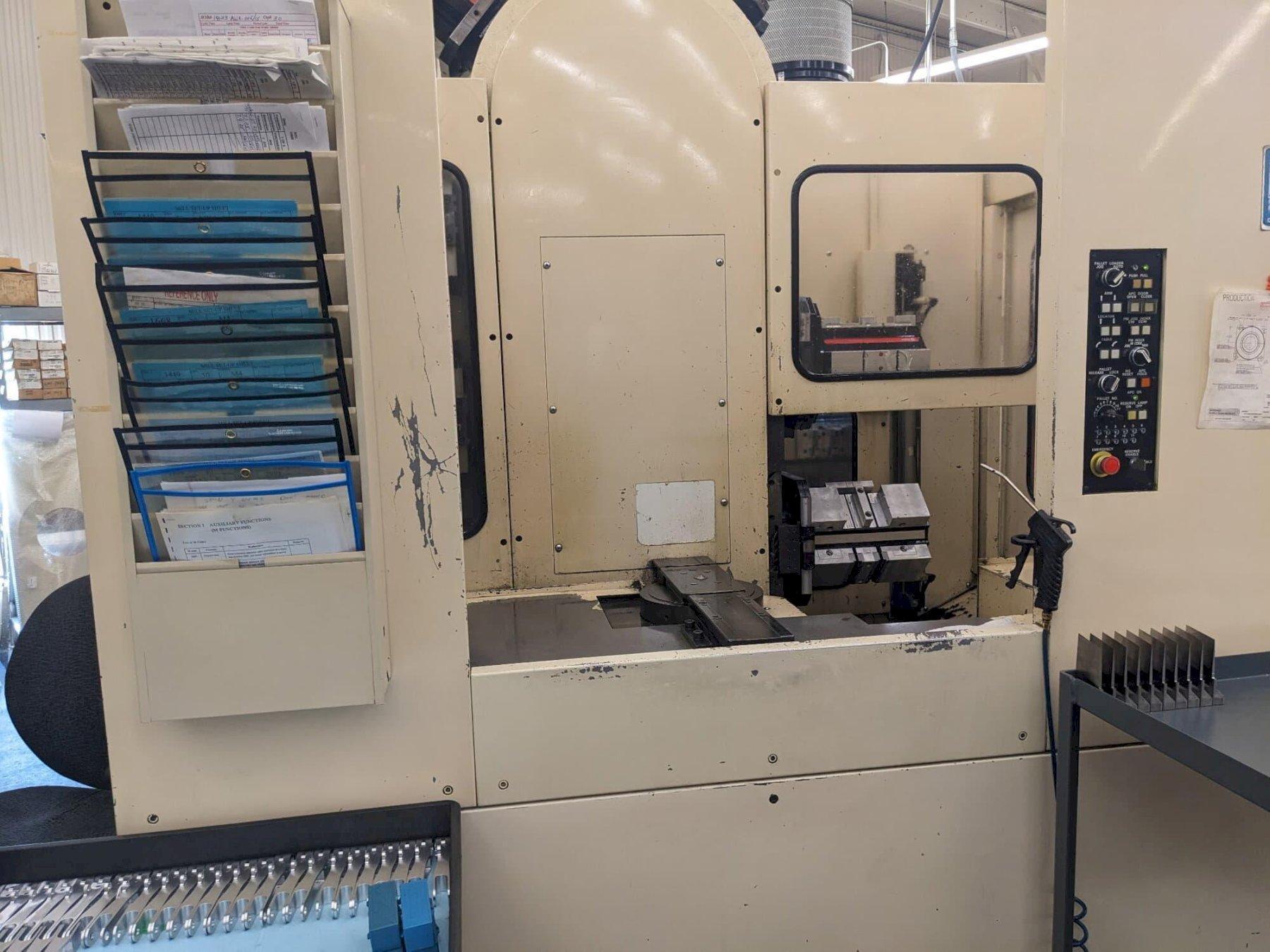

TSUGAMI FMA3 298mm HMC, 1995

Pallet Size……………11.75″ X 11.75″ (298.45) Max Workpiece Weight……176 lbs Maximum Workpiece Size….11.81″ x 11.81″ x 14.17″ X-Axis Travel………….14.17″ Y-Axis Travel………….13″ Z-Axis Travel………….15.74″ Spindle Motor………….10 HP Spindle Taper………….BT-40 (CAT-40 Available) Spindle Speed………….10,000 RPM Rapid Traverse Rates……945 IPM Feed Rates…………….236 IPM Tool Changer…………..62 Tool Change Time……….1 Second Tool Change Chip Time…..5 Seconds Dimensions…………….159 x 98 x 108 Weight………………..23,148

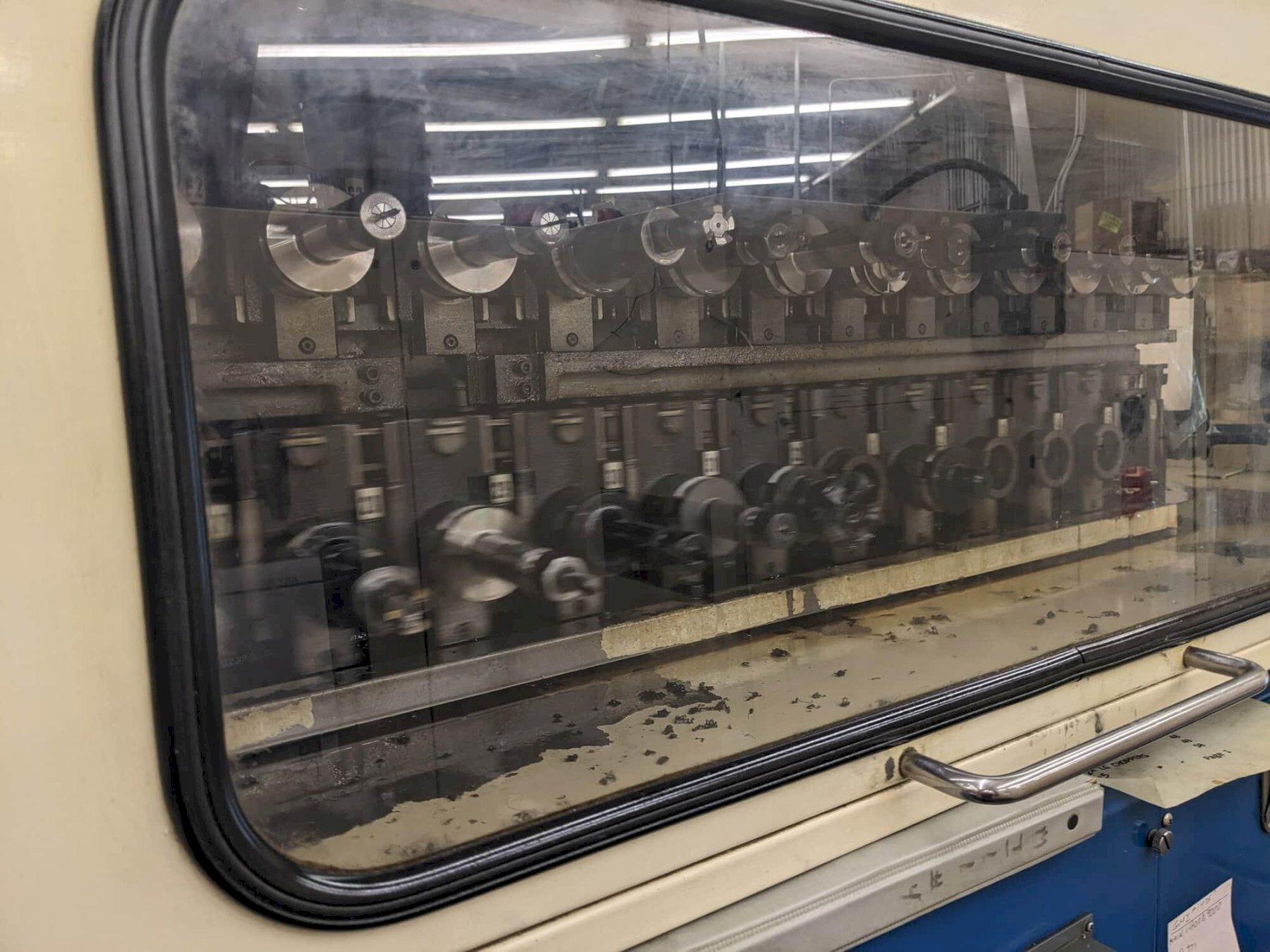

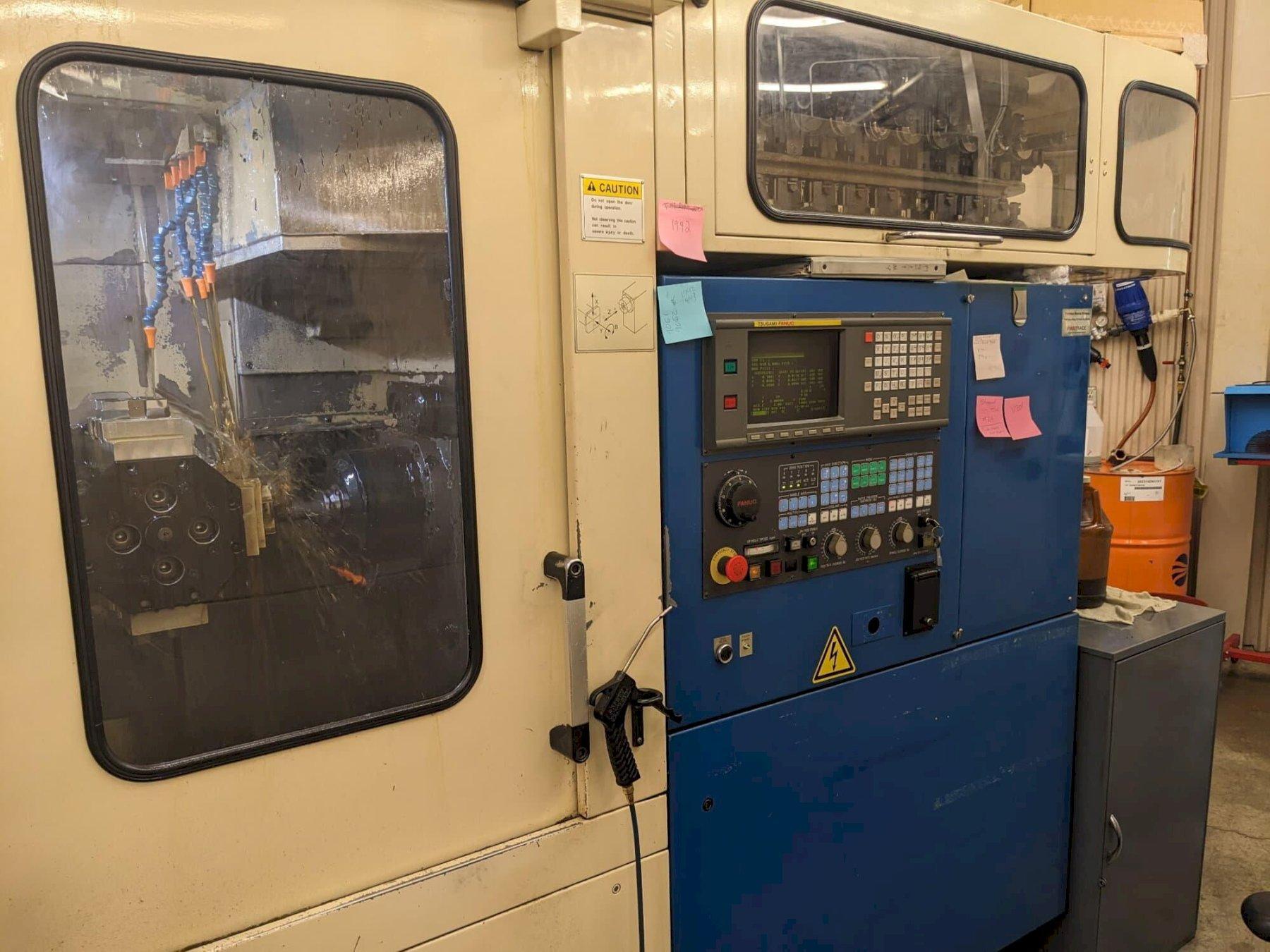

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Fanuc CNC Control 10,000 RPM Spindle 62 Station ATC 11 Station Pallet Pool Auto Part Gauging Tool Breakage Detection Chip Conveyor

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
