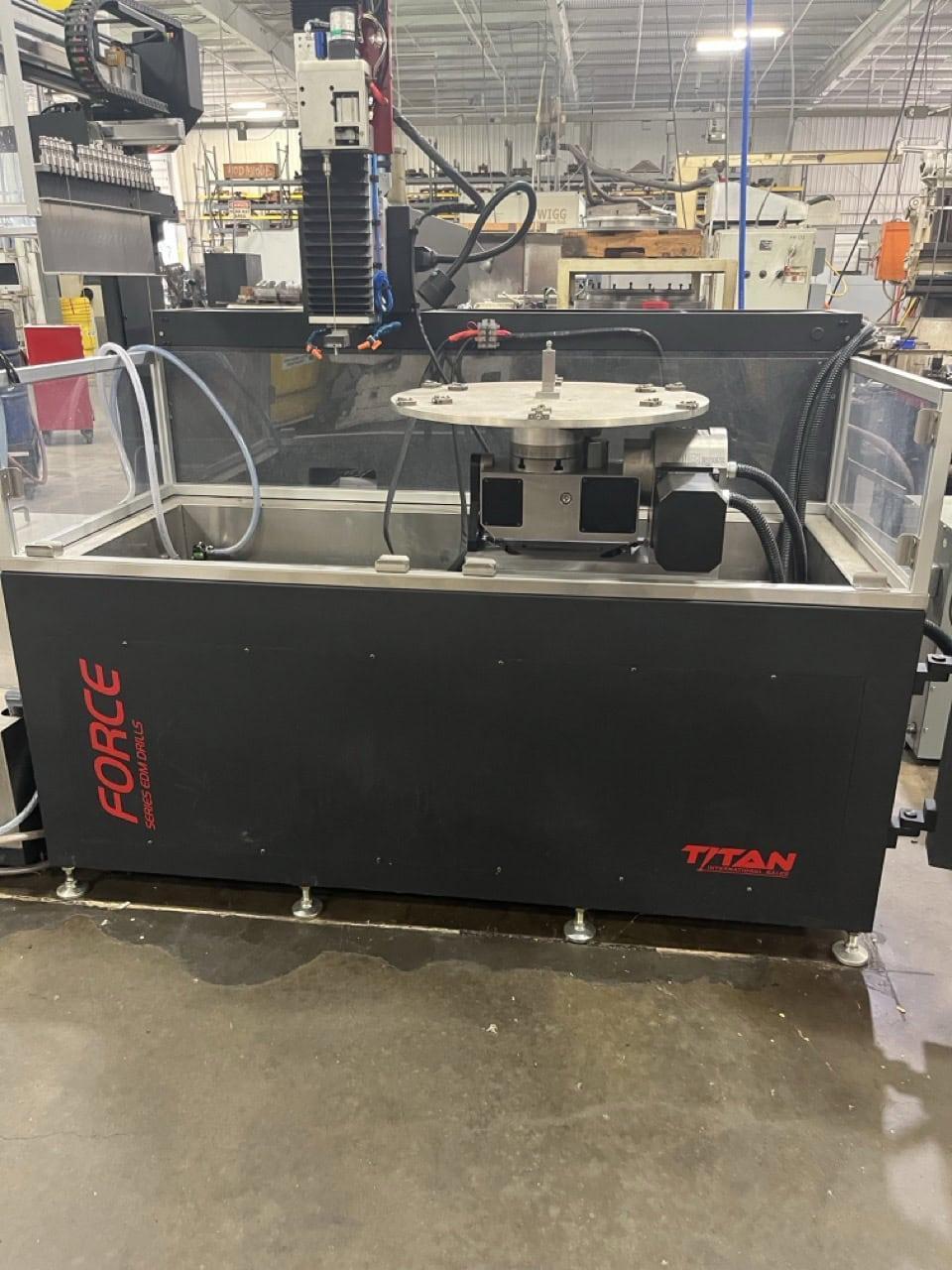

Titan Force 1600 Small Hole EDM Drill, 2023 – Tilting Drill Head, 6-Axis Rotary

Machine Travel Dimensions

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,X Axis: 53.00″ Y Axis: 16.00″ Z Axis: 16.00″ Machine Net Weight: 5,900 Lbs Machine Footprint: 114″ X 69″ X 78.75″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Work Area Specifications

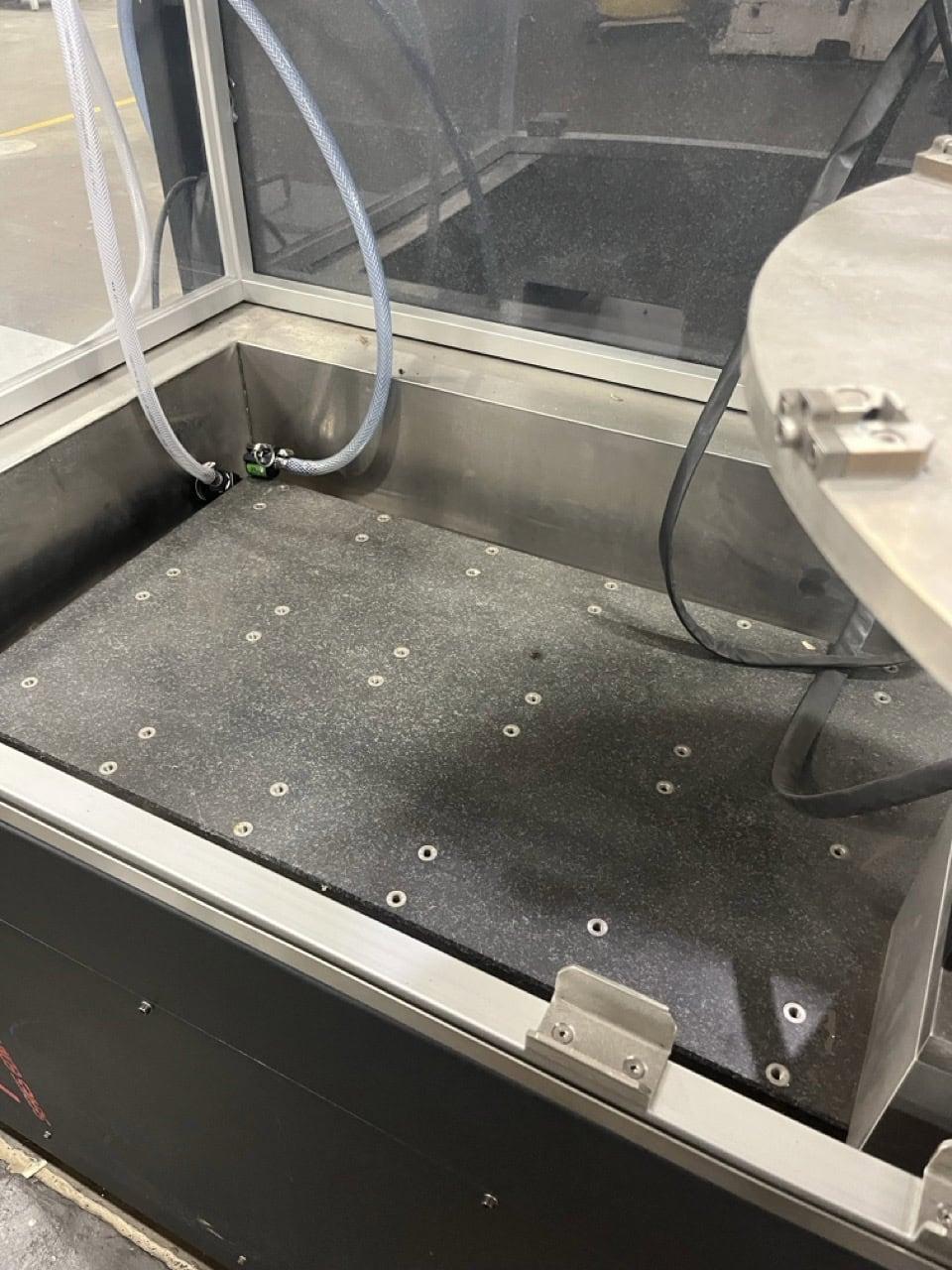

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Granite Table Size (X/Y): 64.00″ X 20.00″ Work Table Size (X/Y): 67.00″ X 32.00″ Max Weight Of Work Piece: 3,100 Lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Machine Tooling Specifications

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Electrode Diameter: .004″ ~ .118″ Max Length Of Electrode: 16.00″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Machine Generator Specifications

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Type: Switching (High Current Fet) Amperage Setting: 0.5A – 70A (0.5A Increments) On-Time Setting: 255 Steps Off-Time Setting: 255 Steps Servo Feedrate: 1200Mm / Min Meters: Voltmeter

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Utilities/Environmental

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Input Power: 3 Phase, 200-240Vac, 60Hz, 4Kva Ambient Temperature: 55-75°F Relative Humidity: 40-50%

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

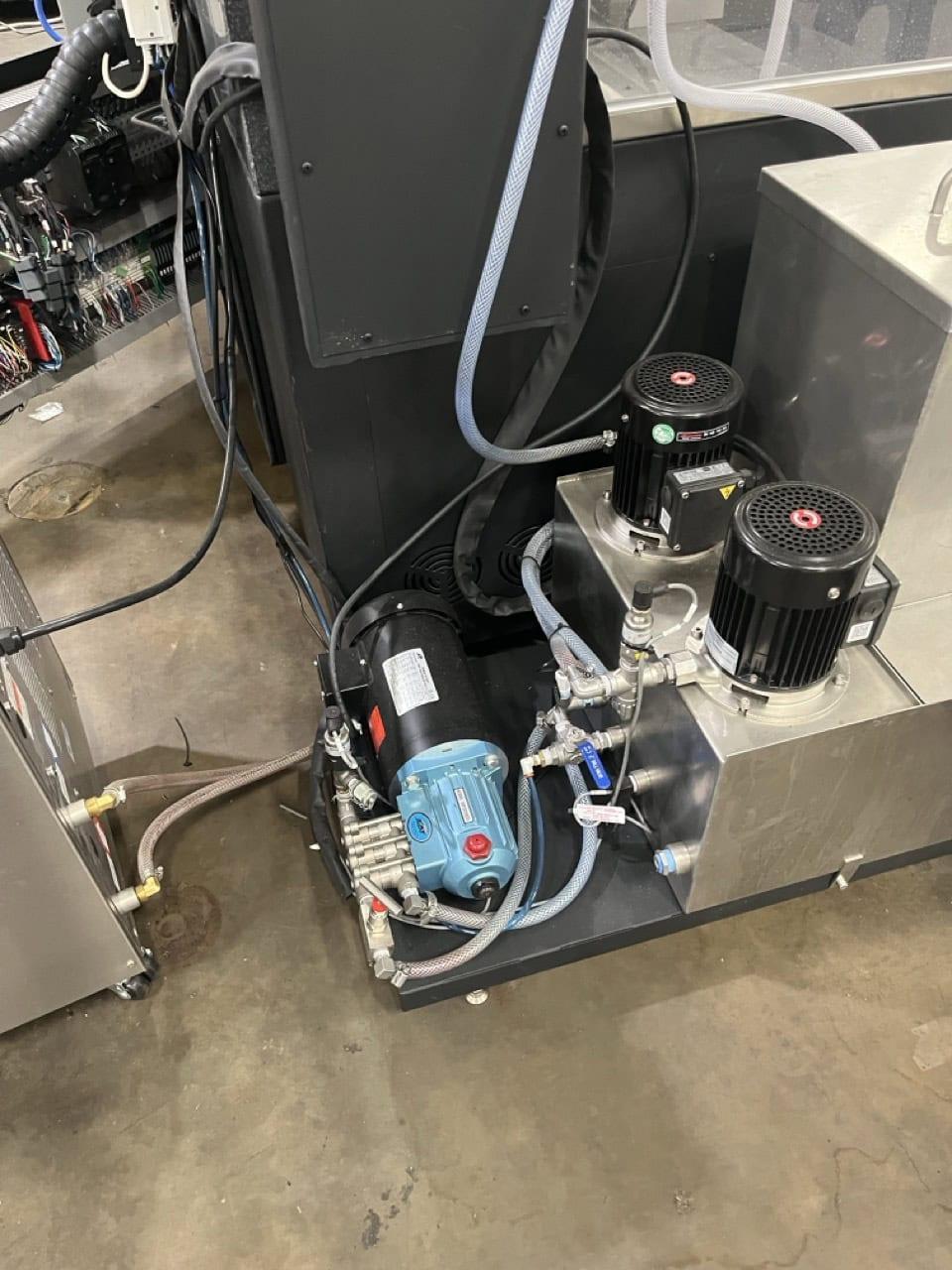

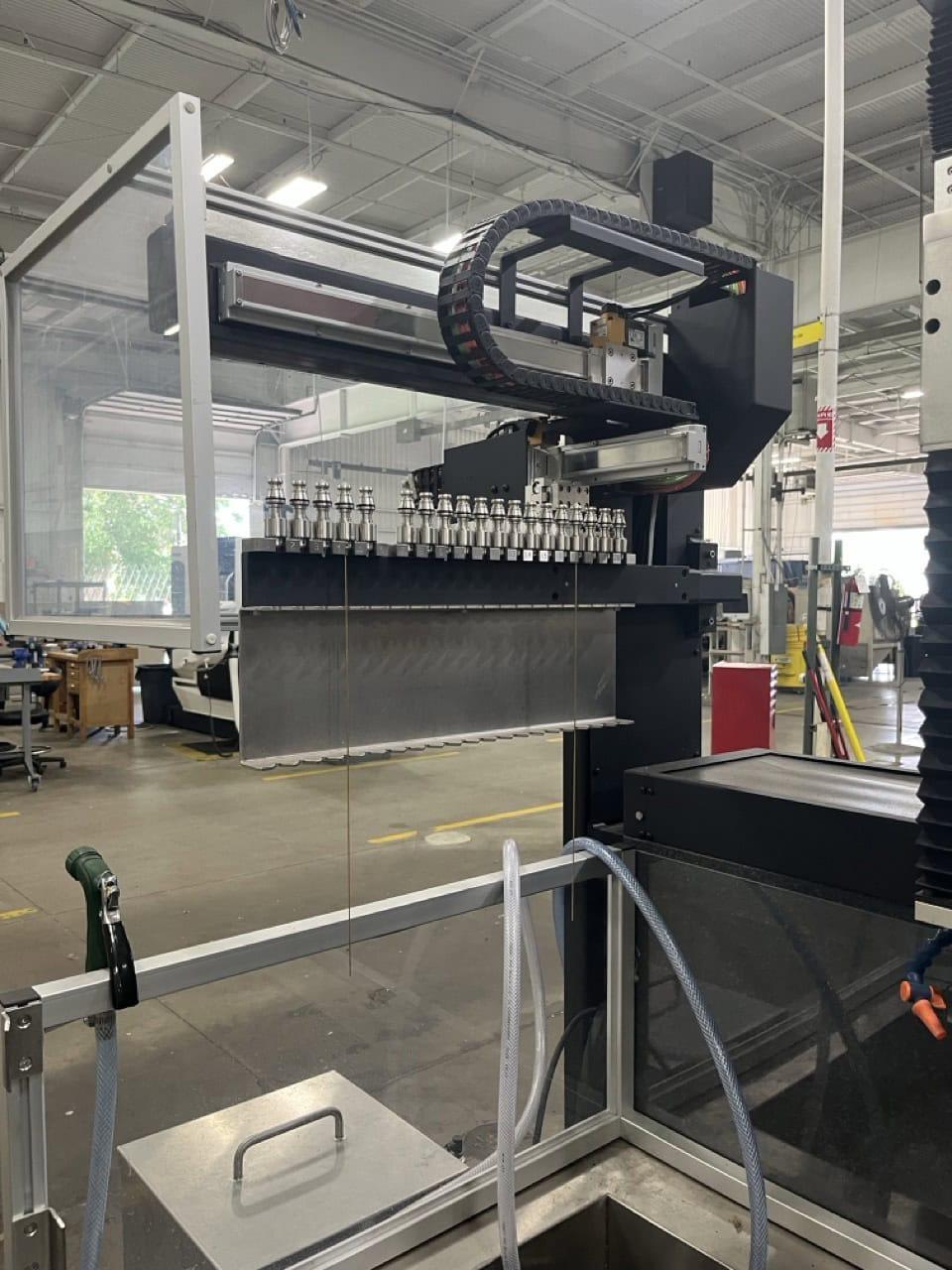

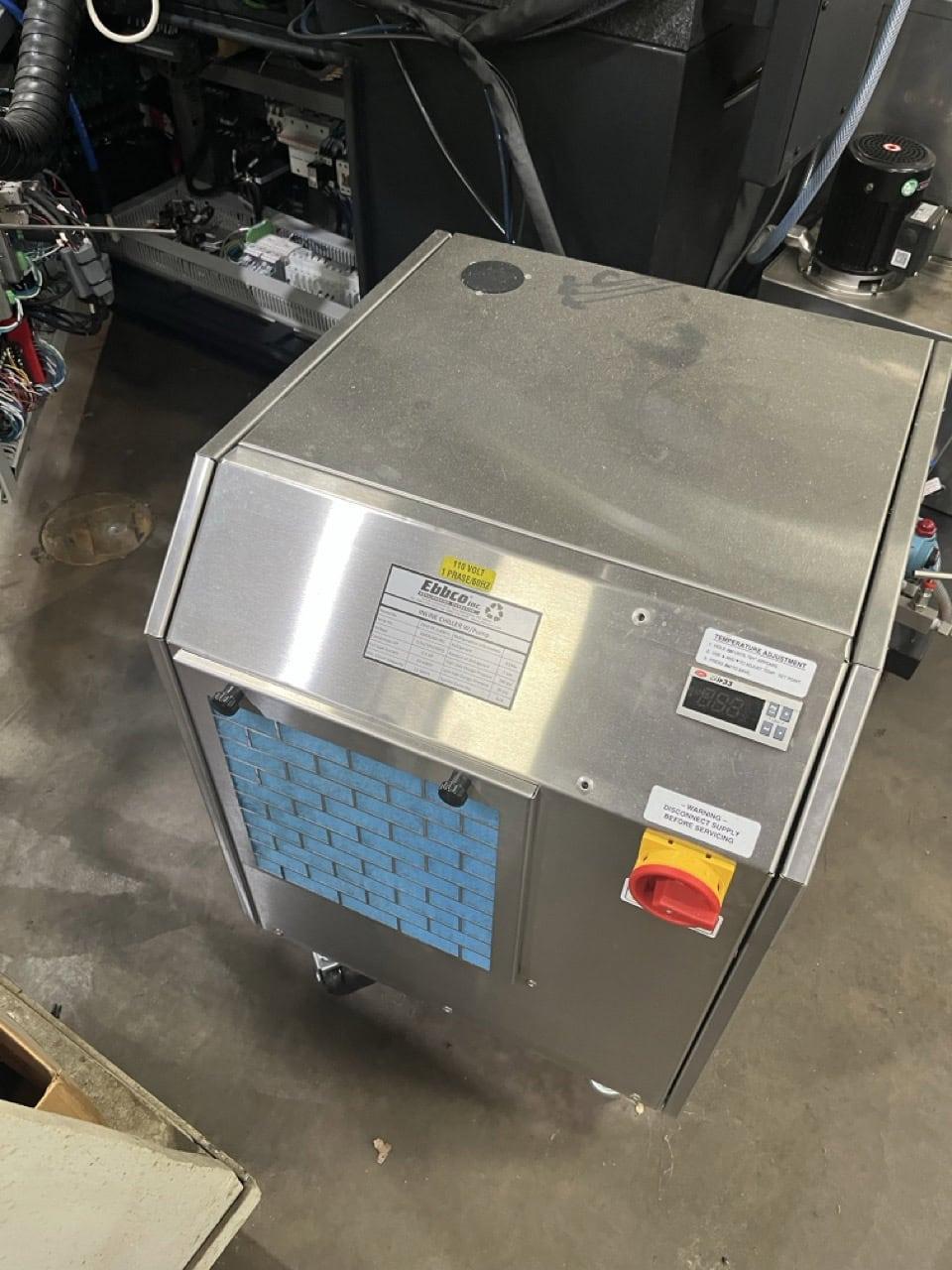

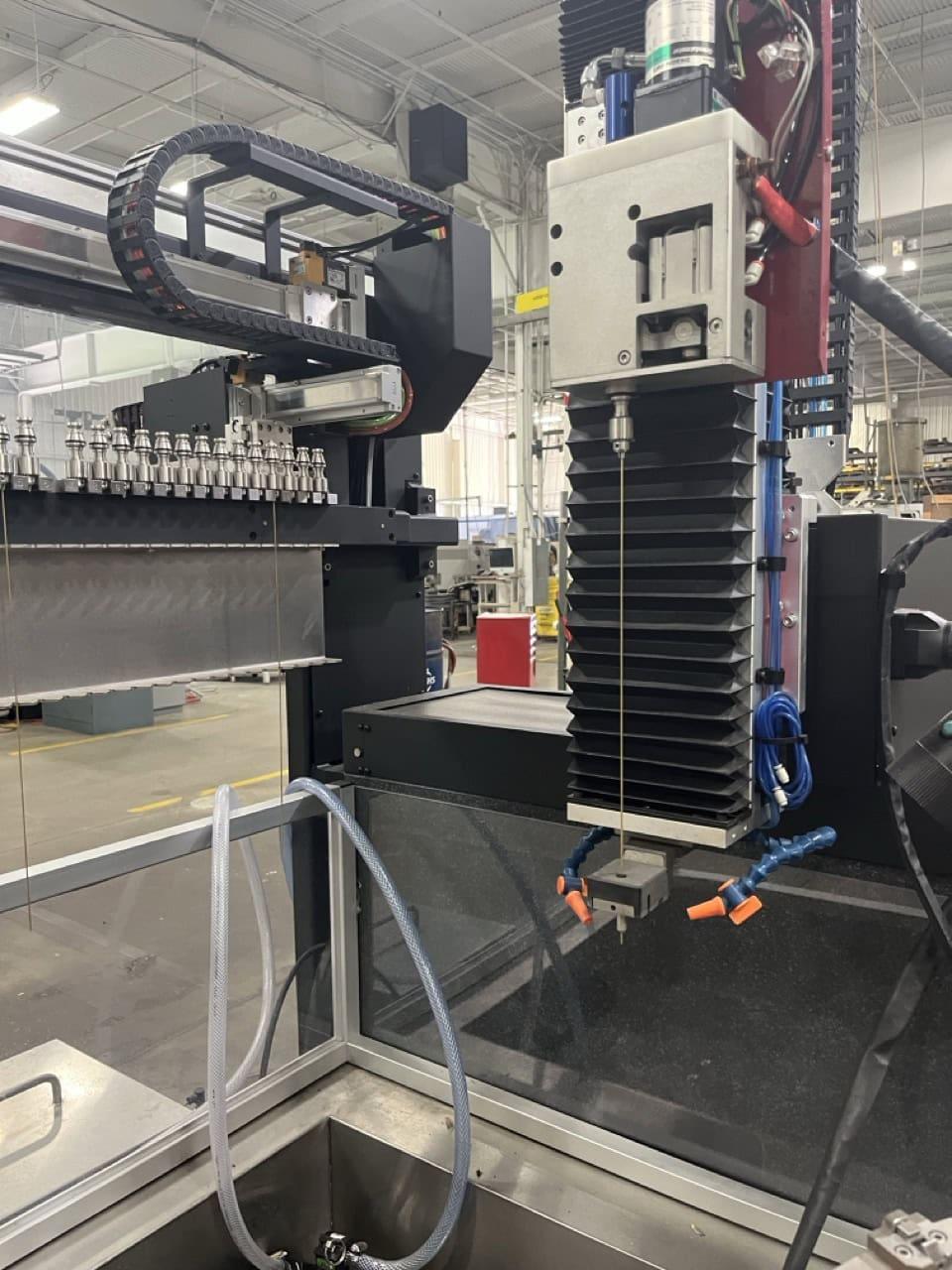

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,30 Station Automatic Electrode Changer CMC Programmable Tilting Drill Head CAT High Pressure Pump Upgrade 30 Gallon EDM Filtration System Signal Tower Type 3 M Code Interface With 3 Additional M Codes TR-6 Axis Rotary Table With Edm Package
