16 GA x 10′ Erbend MFC 3215 CNC Folder, 2022
Brand
Category
Type
Model
3215
Stock #
445929
Year
2022
Condition
Not specified
Location
Not specified
|
Bending Length – 126″ (3200mm)
Capacities:
Mild Steel – 16 ga. (1.5mm)
Stainless – 20 ga. (1 mm)
Aluminum – 0.08″ (2mm)
Dimensions – 175″ x 83″ x 73″ (4450 x 2100 x 1860mm)
Weight – 7,275 lbs (3300kg)

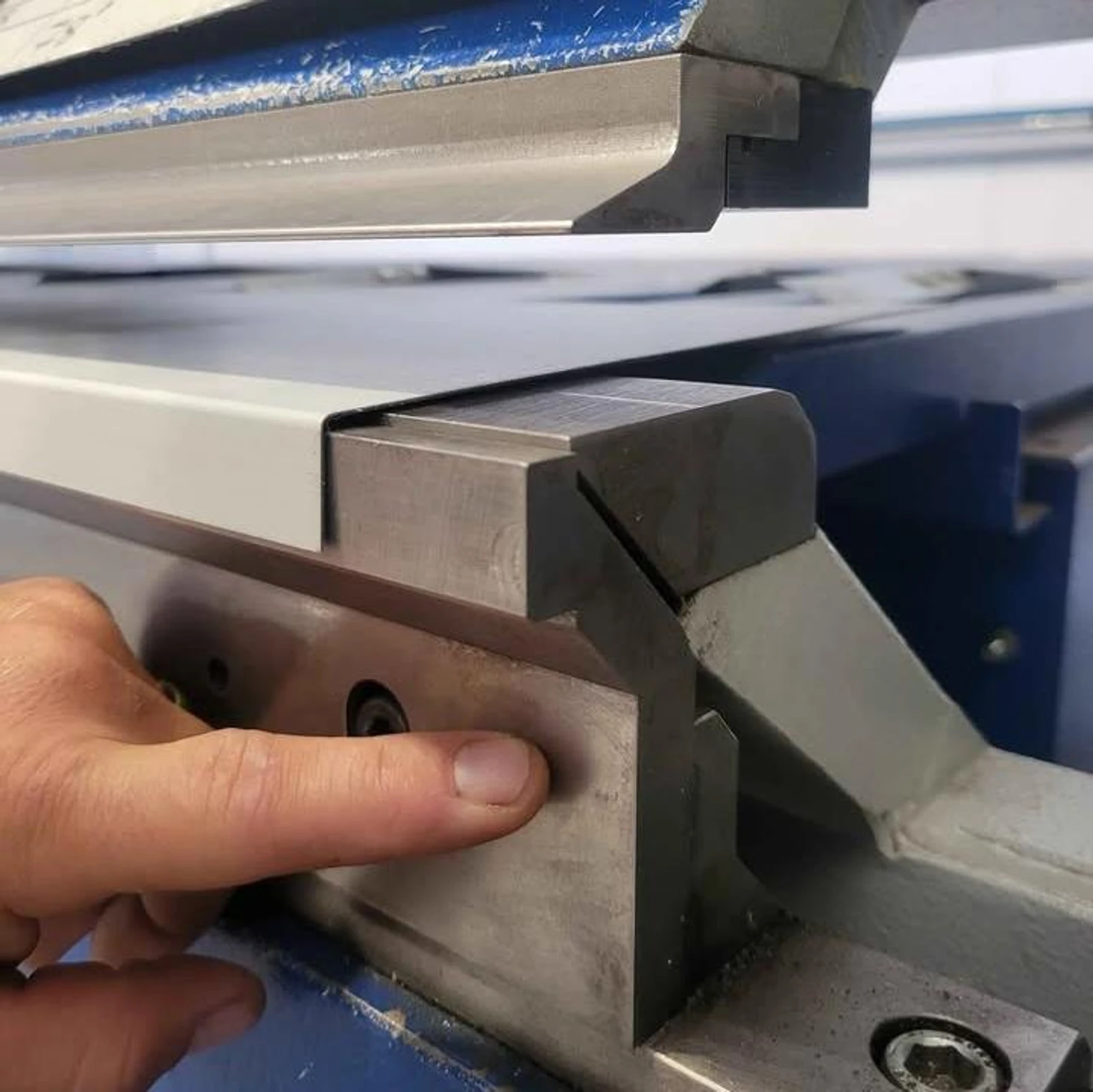

6.30″ (160 mm) clamping beam stroke with vertical movement and 20°sharp nose tool
Eccentric upper beam power transmission system for rapid clamping/unclamping.

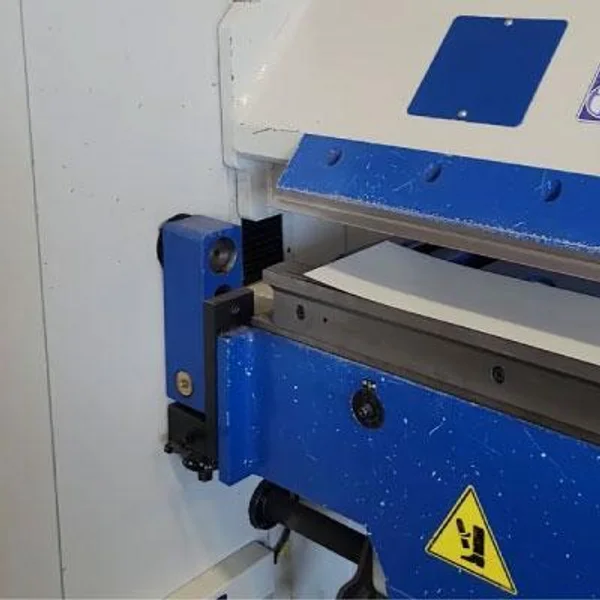

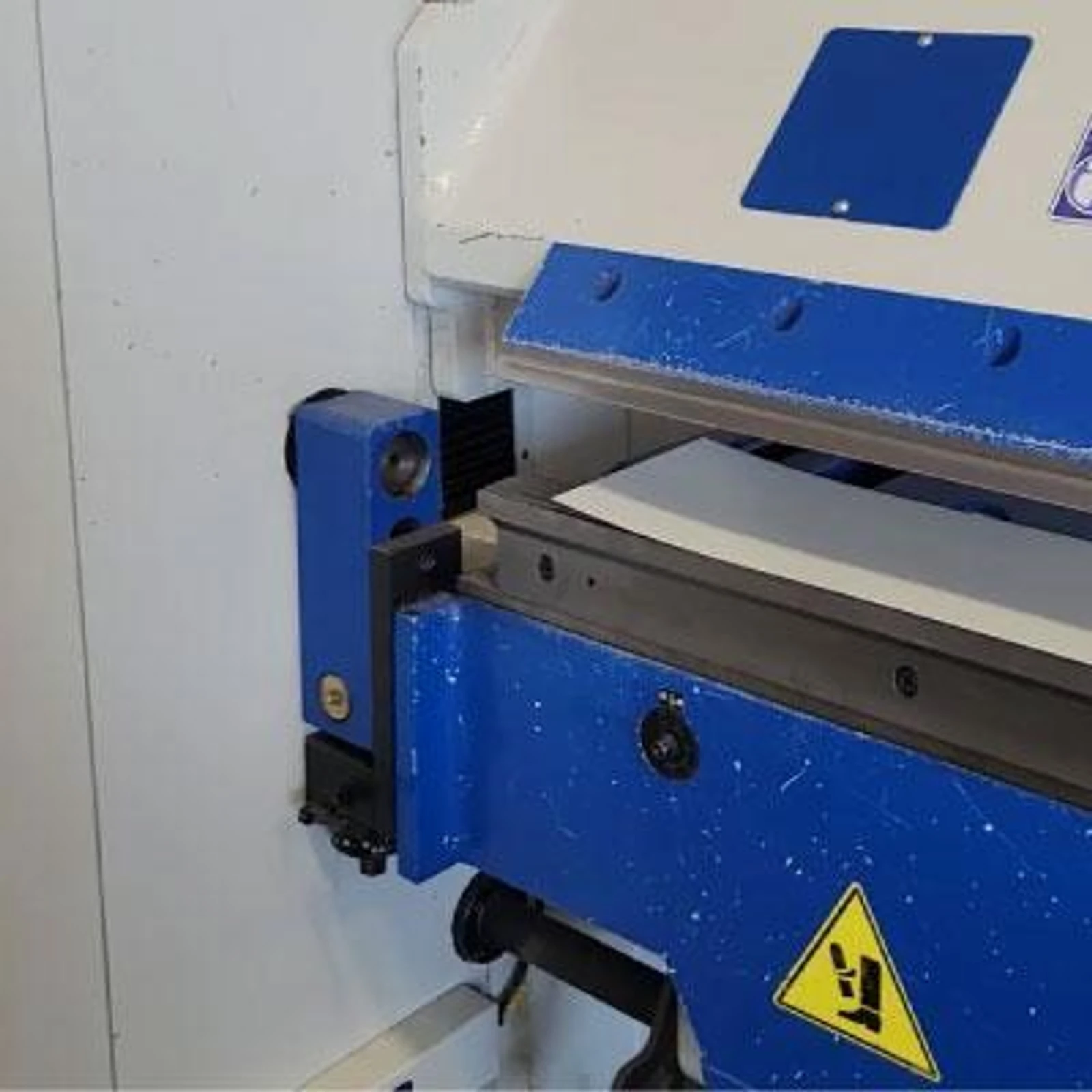

29.53″ (1000 mm) motorized back gauge system and sheet support table with ball casters
3.15″ (80 mm) manual folding beam adjustment
3 switch control foot pedal
Front light barriers

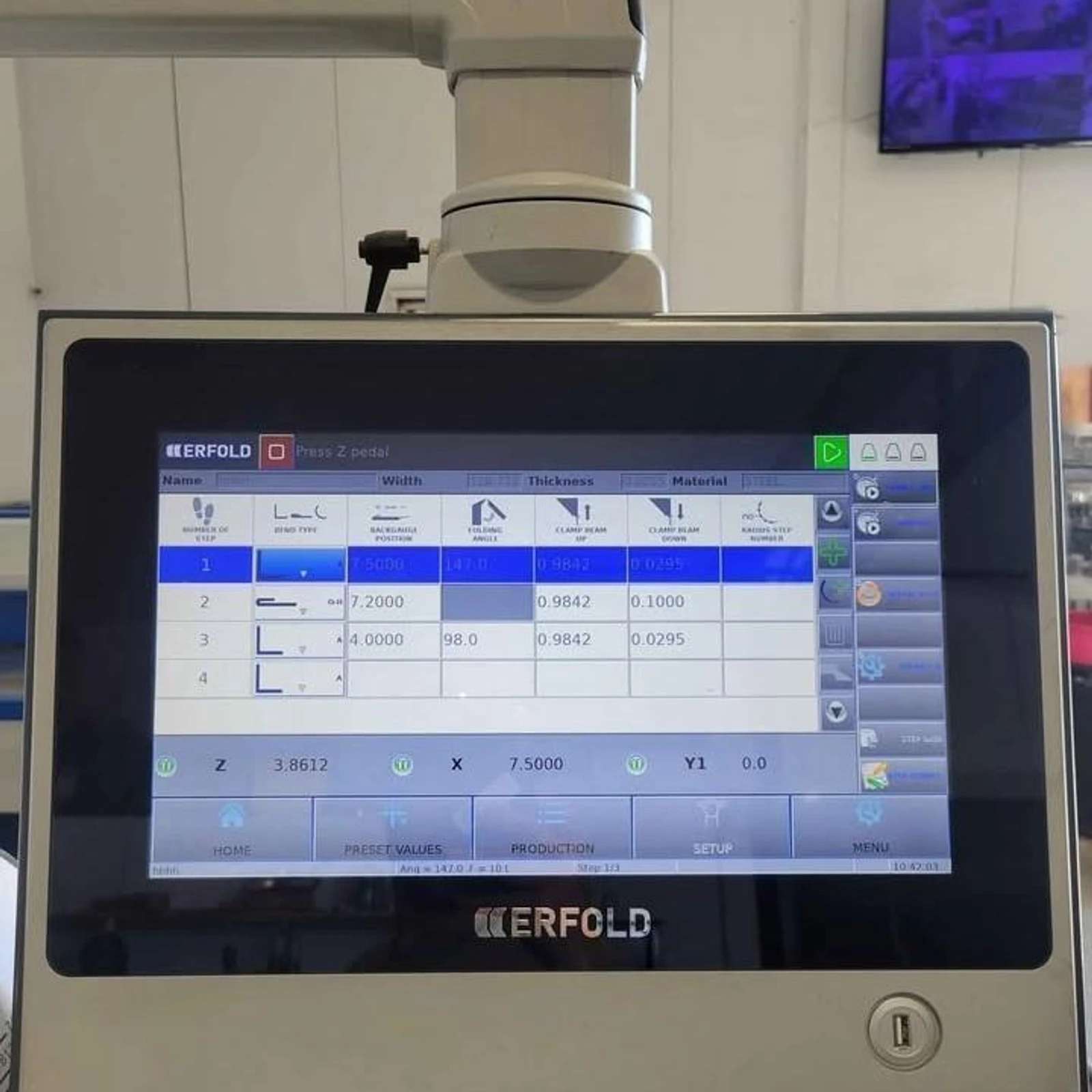

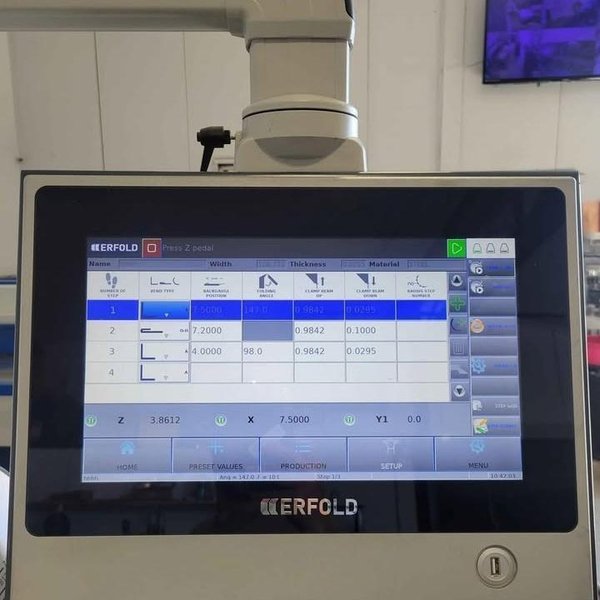

Erfold Basic CNC line by line software on 10.6” touchscreen controller
All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
