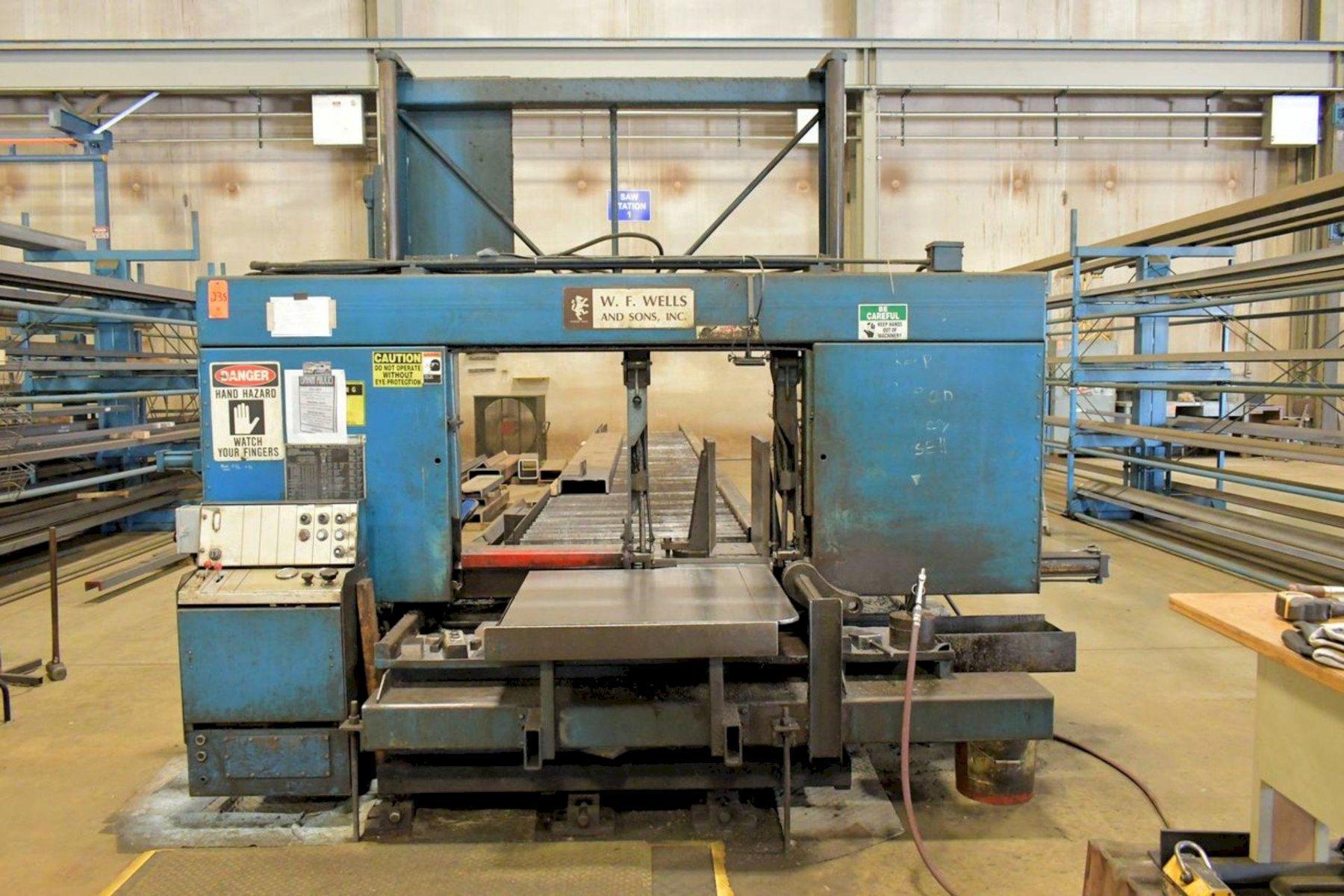

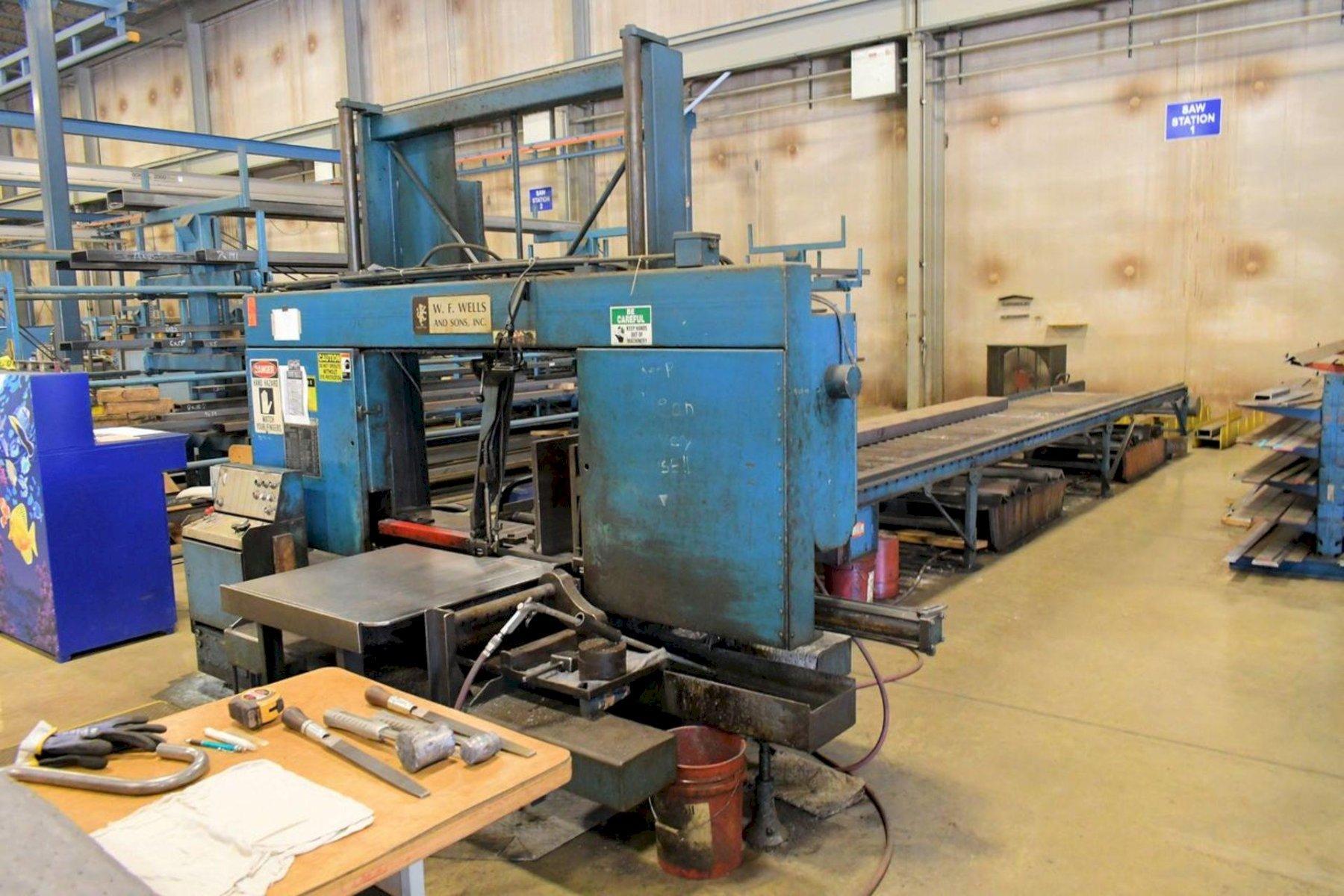

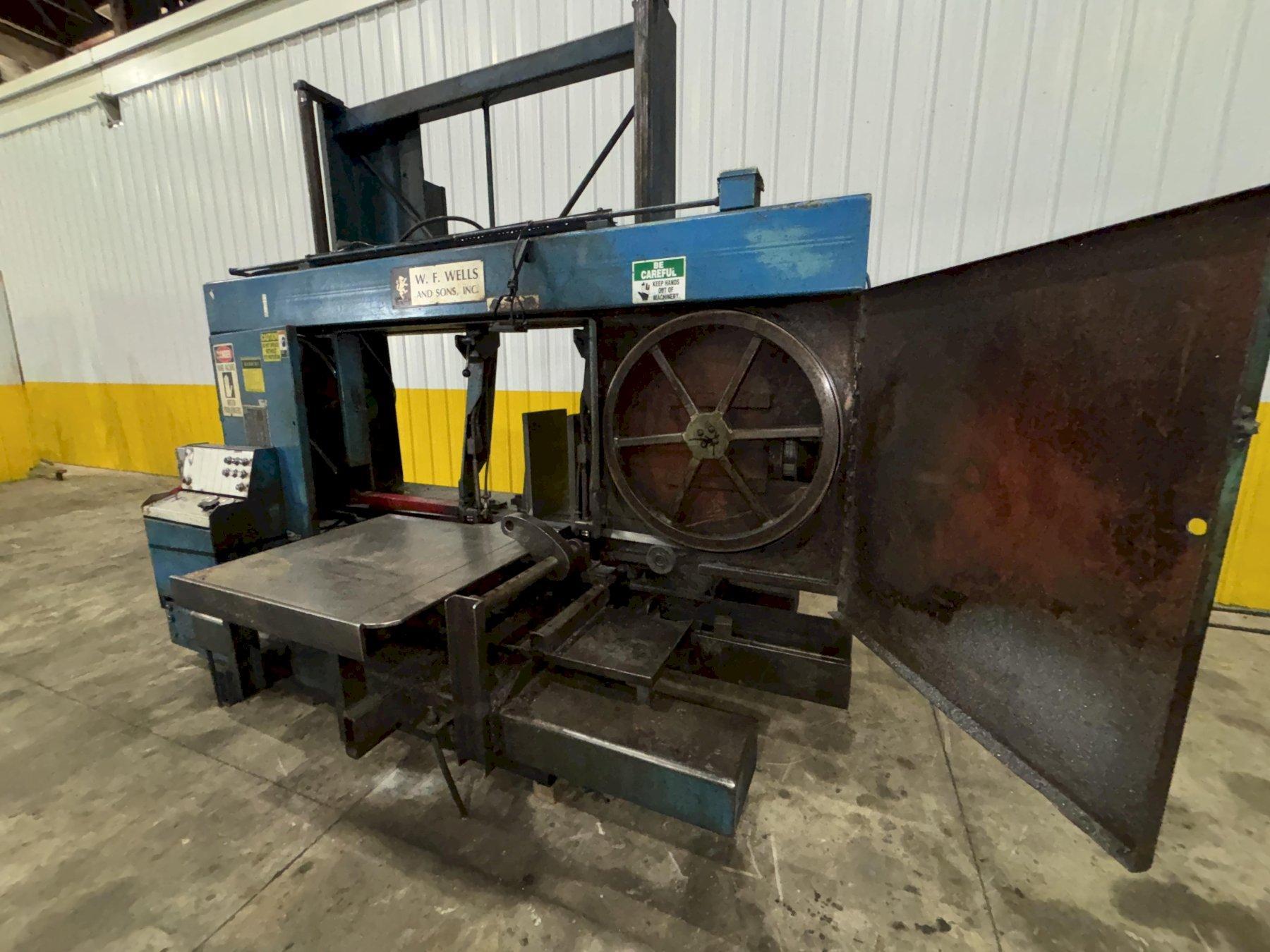

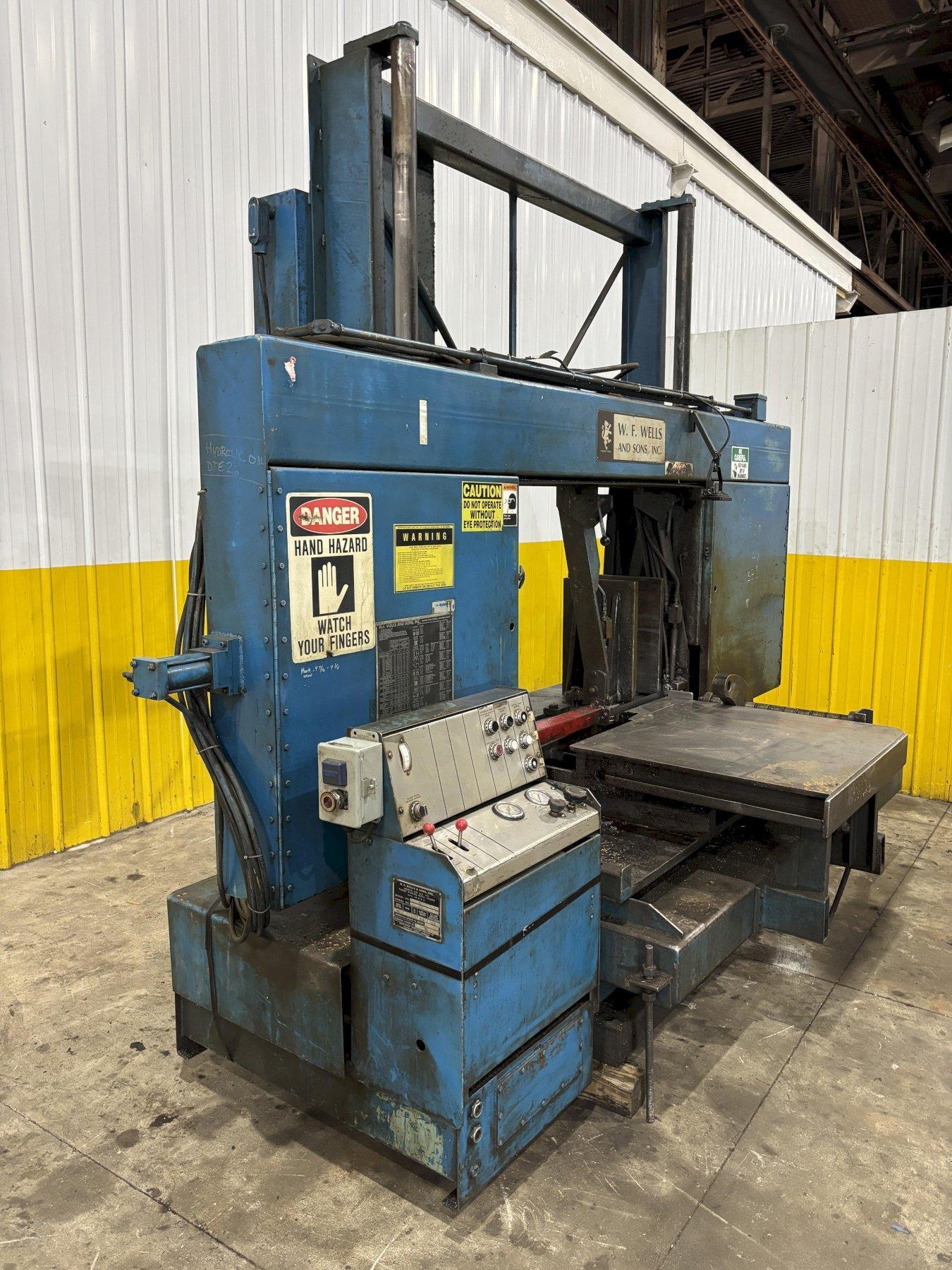

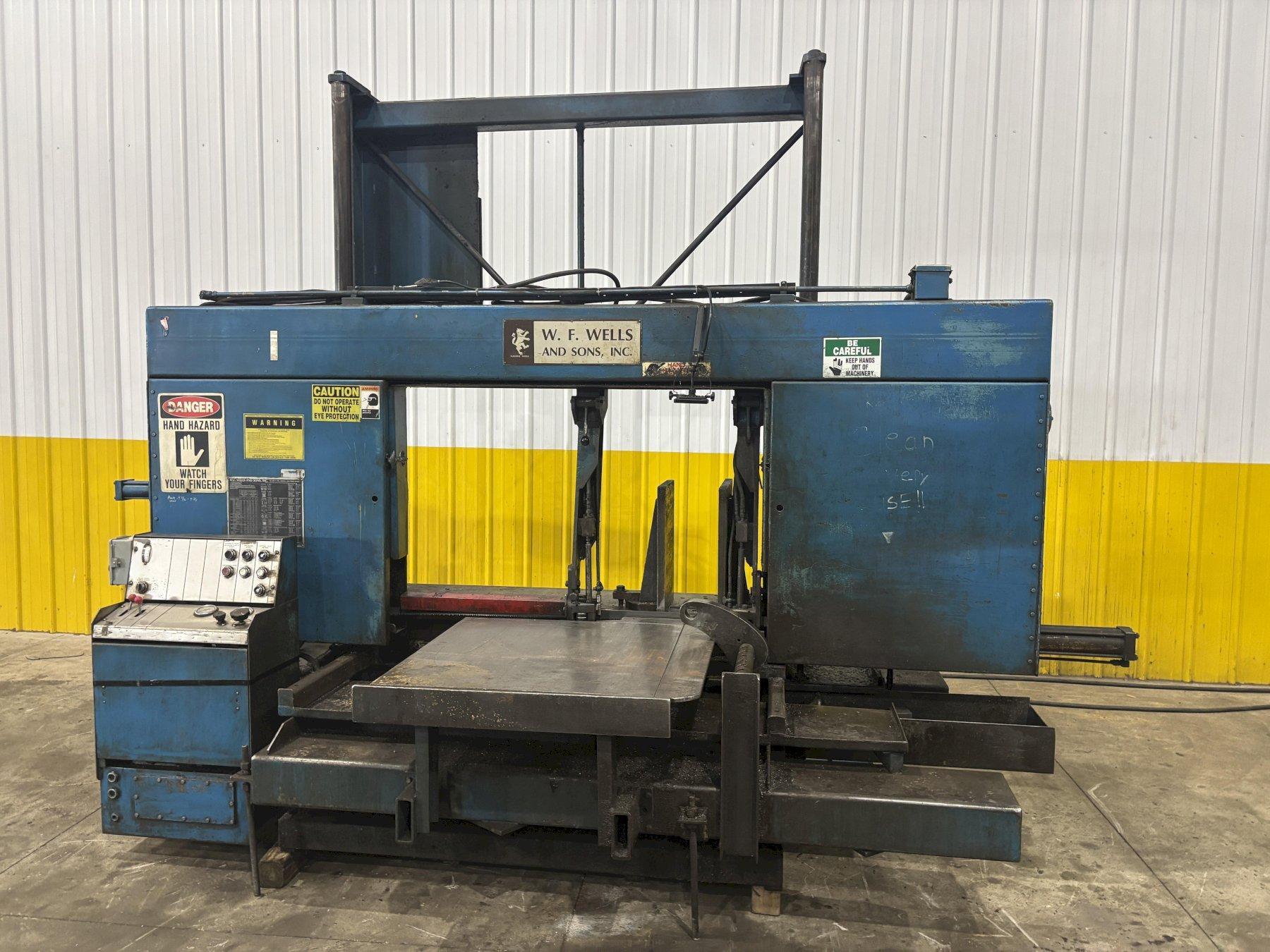

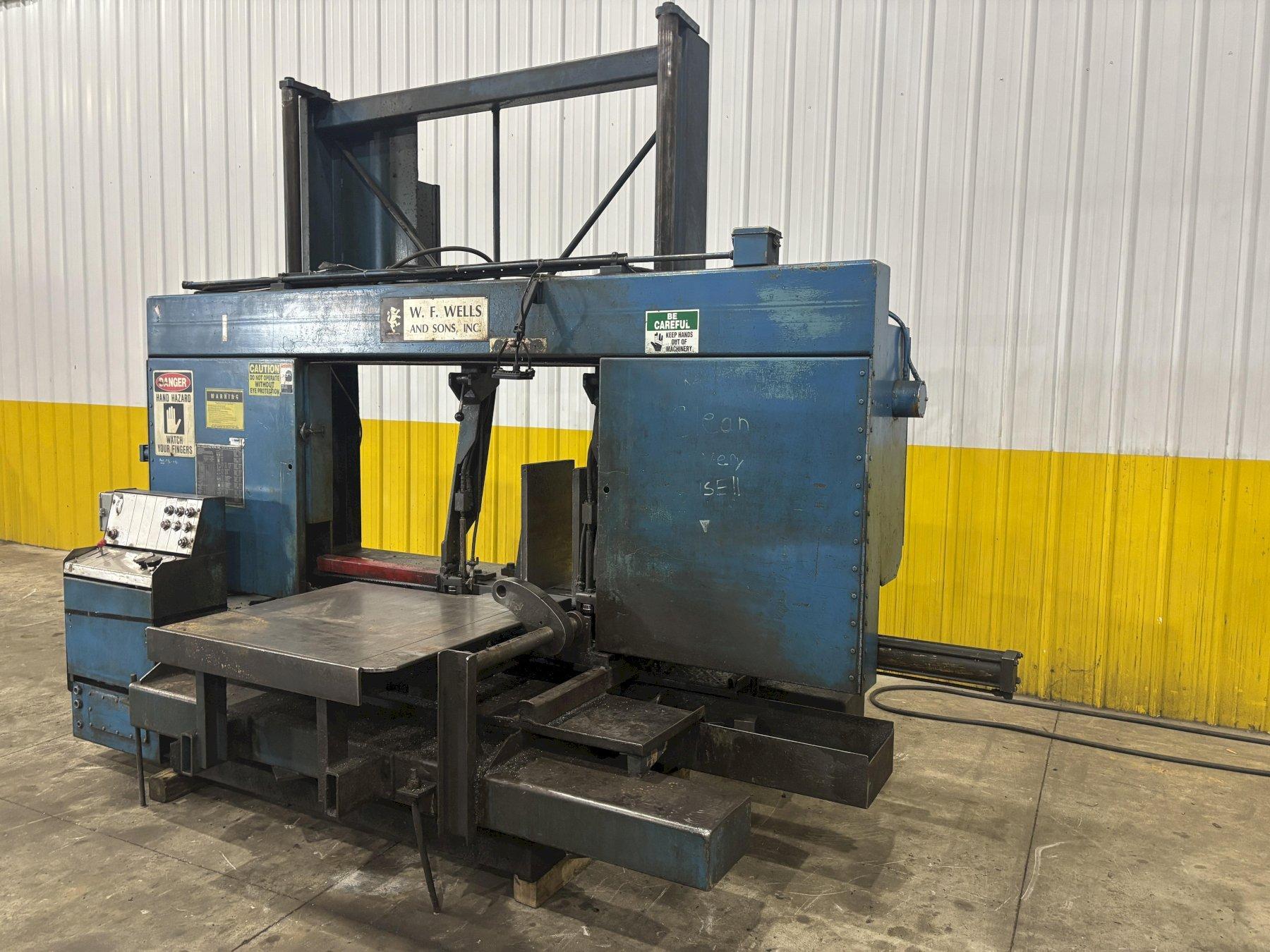

30" X 36" W.F. WELLS MODEL G-30-II HORIZONTAL BANDSAW: STOCK #23678
Brand
Category
Model
G-30-D
Stock #
23678
Year
Not specified
Condition
Good
Location
Ohio
| Dimensions | 145 X 44 X 104" H |
| Weight | 5800 pounds |
| Max Table Load | 15000 pounds |
|

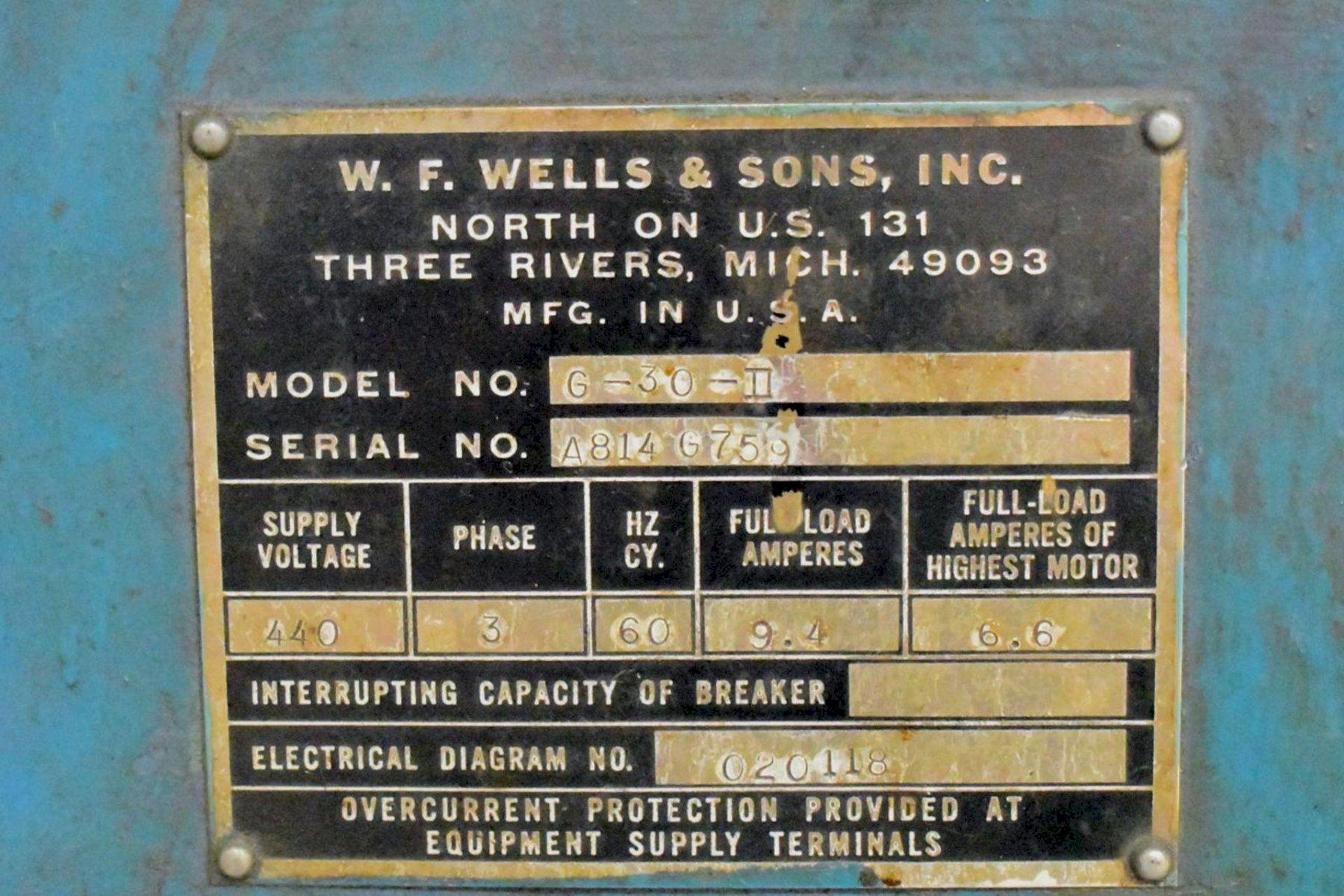

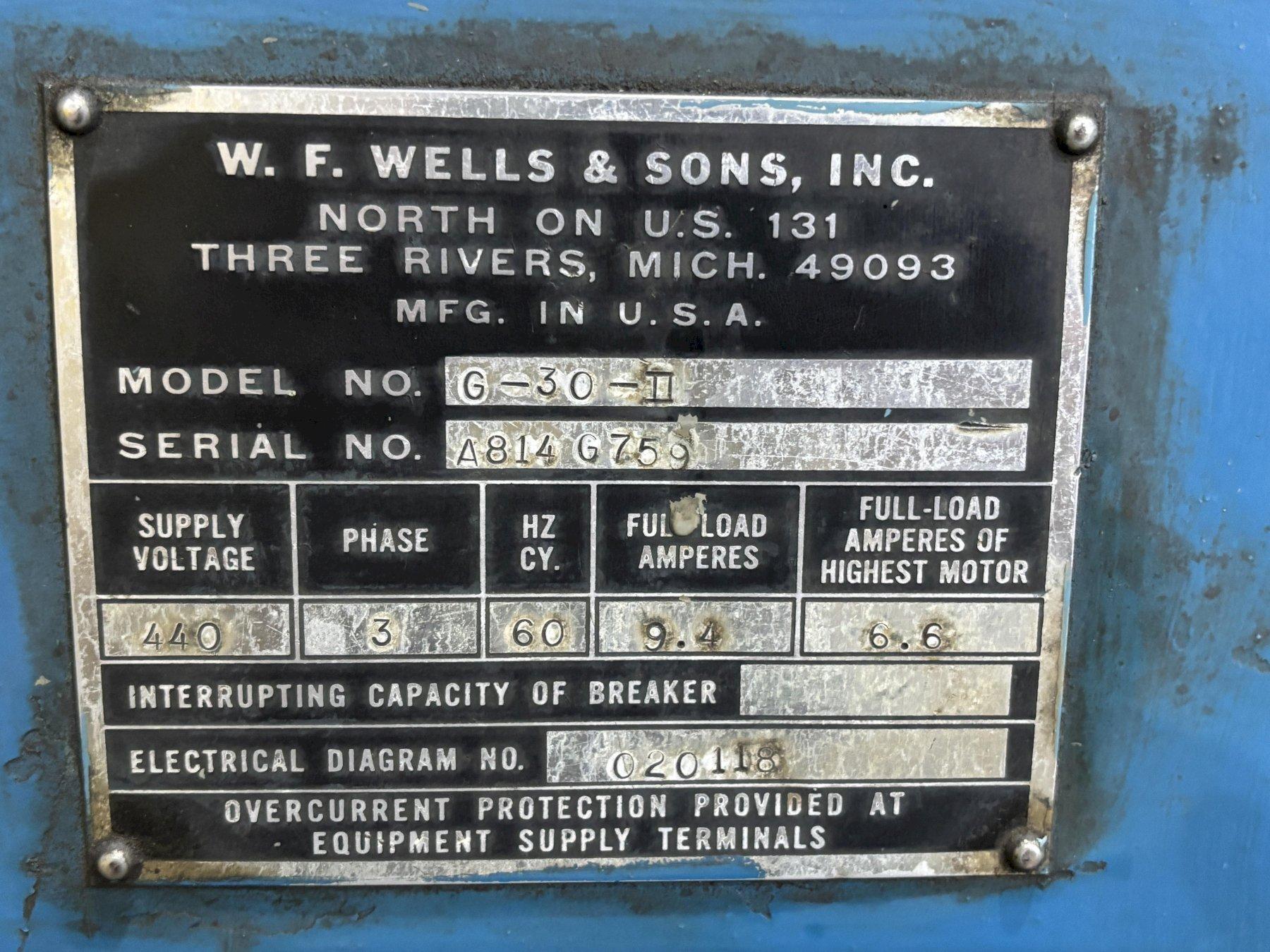

SERIAL .......................... A814G759
MODEL ........................... G-30-II
CAPACITY (RECTANGULAR)........... 30" H X 36" W
CAPACITY (ROUND) ................ 30"
CAPACITY (AT 45 DEGREES) ........ 30" H X 24" W
SAW BLADE ....................... 22'6" X 1.25" X .042"
SAW SPEED ....................... 75 TO 500 FPM

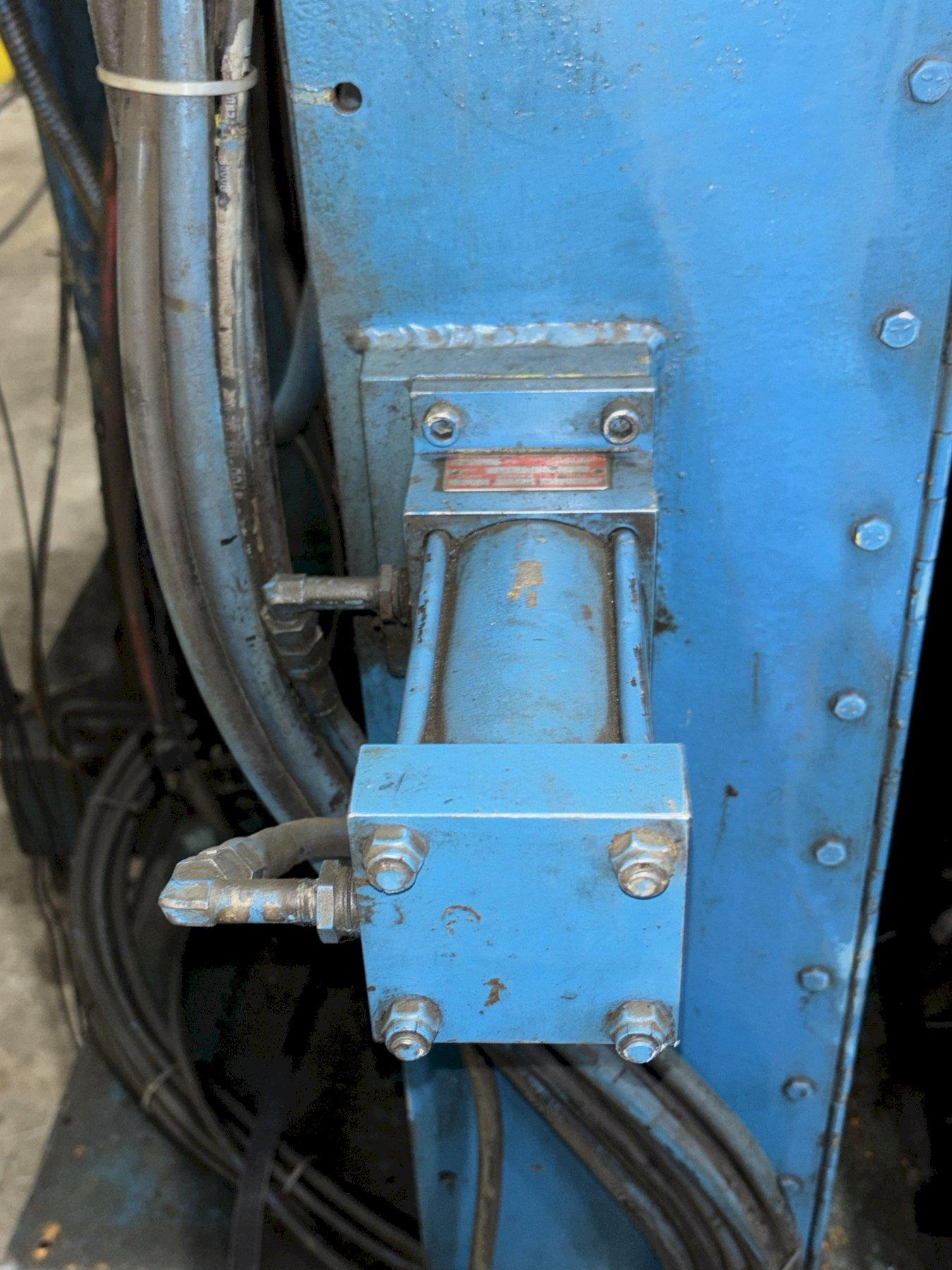

BLADE TENSIONING ................ HYDRAULIC
CLEARANCE UNDER BLADE ........... 32"
SAWING FORCE .................... 0 TO 300 LBS, VARIABLE HEAD CYCLE TIME, LOWER .......... 32" IN 12 SECONDS HEAD CYCLE TIME, RAISE .......... 32" IN 6 SECONDS HYDRAULIC DOWNFEED .............. VARIABLE
WEIGHT CAPACITY ................. 15,000 LBS HYDRAULIC VISE PRESSURE ......... 750 TO 4,500 LBS, VARIABLE

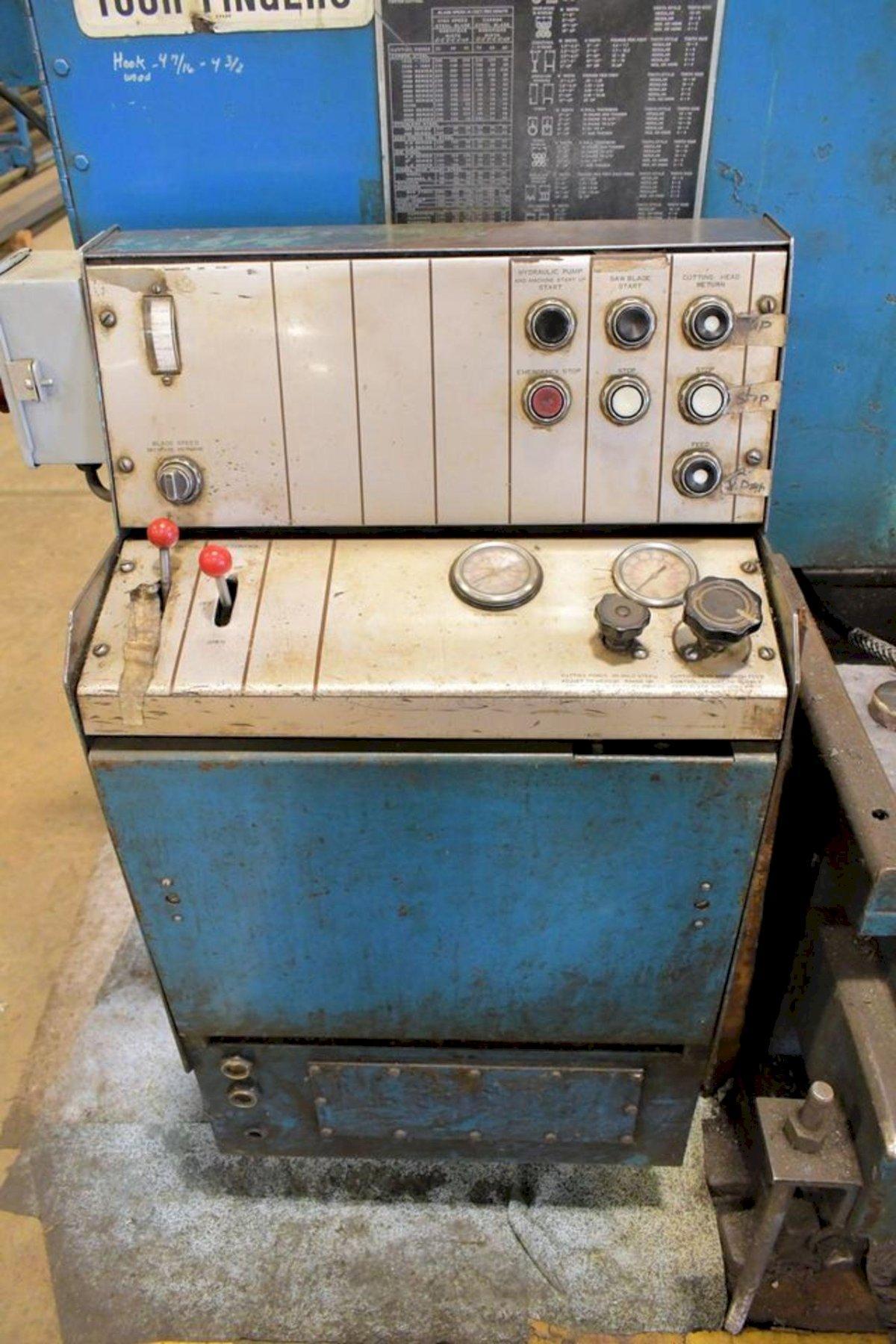

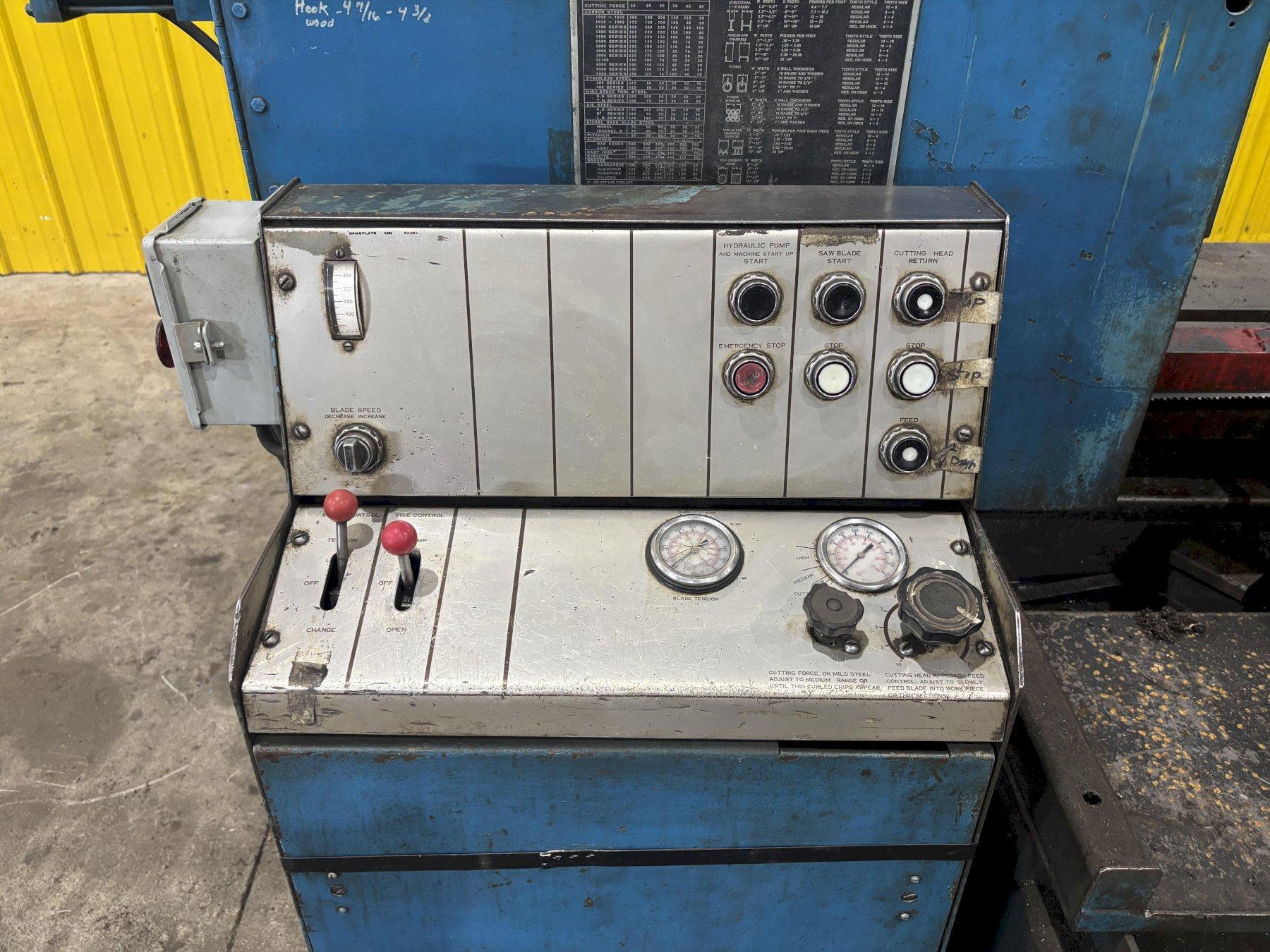

WORK TABLE HEIGHT ............... 27" OPERATOR CONSOLE ................ YES
COOLANT ......................... YES

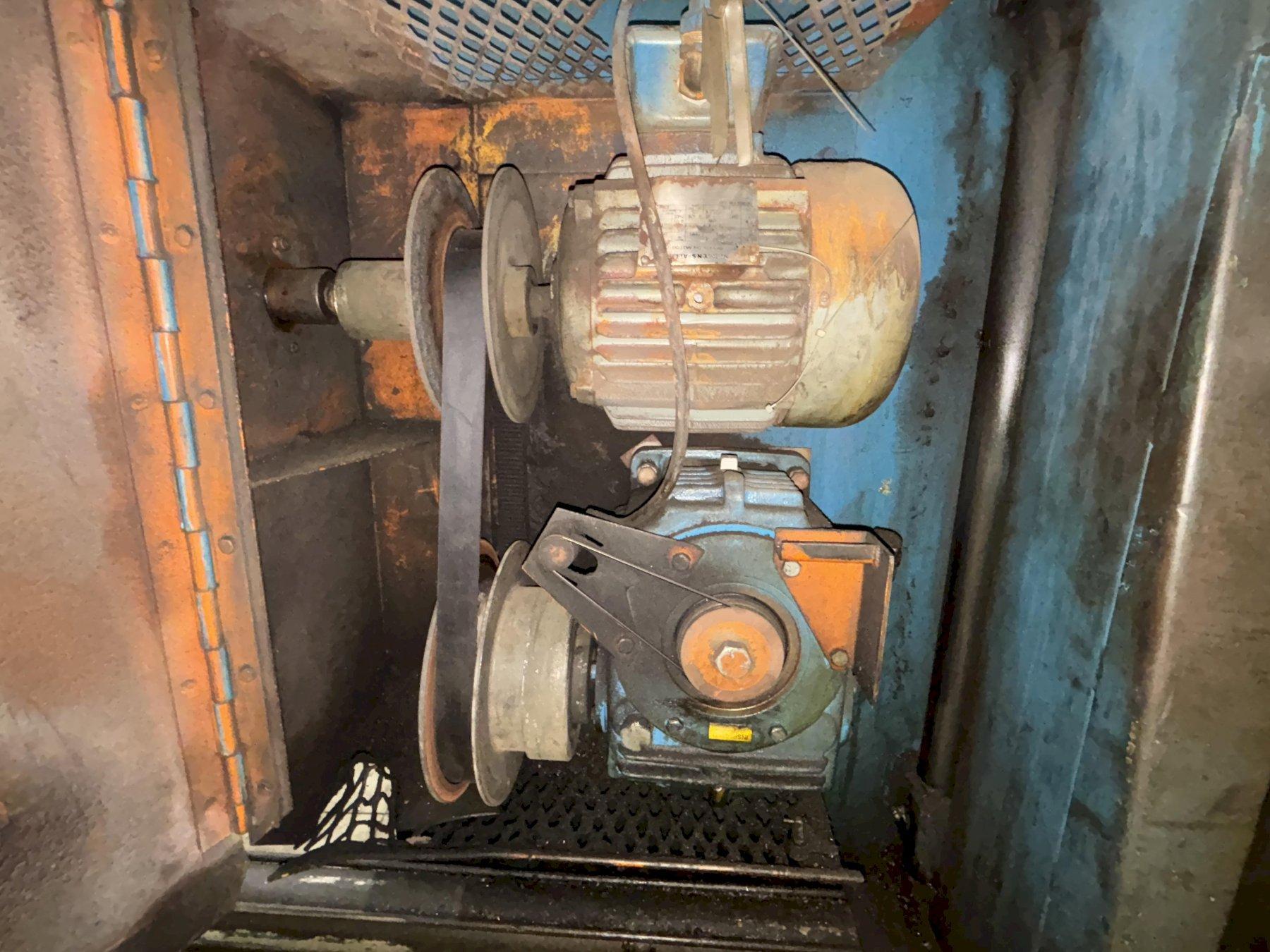

HYDRAULIC MOTOR ................. 2 HORSEPOWER

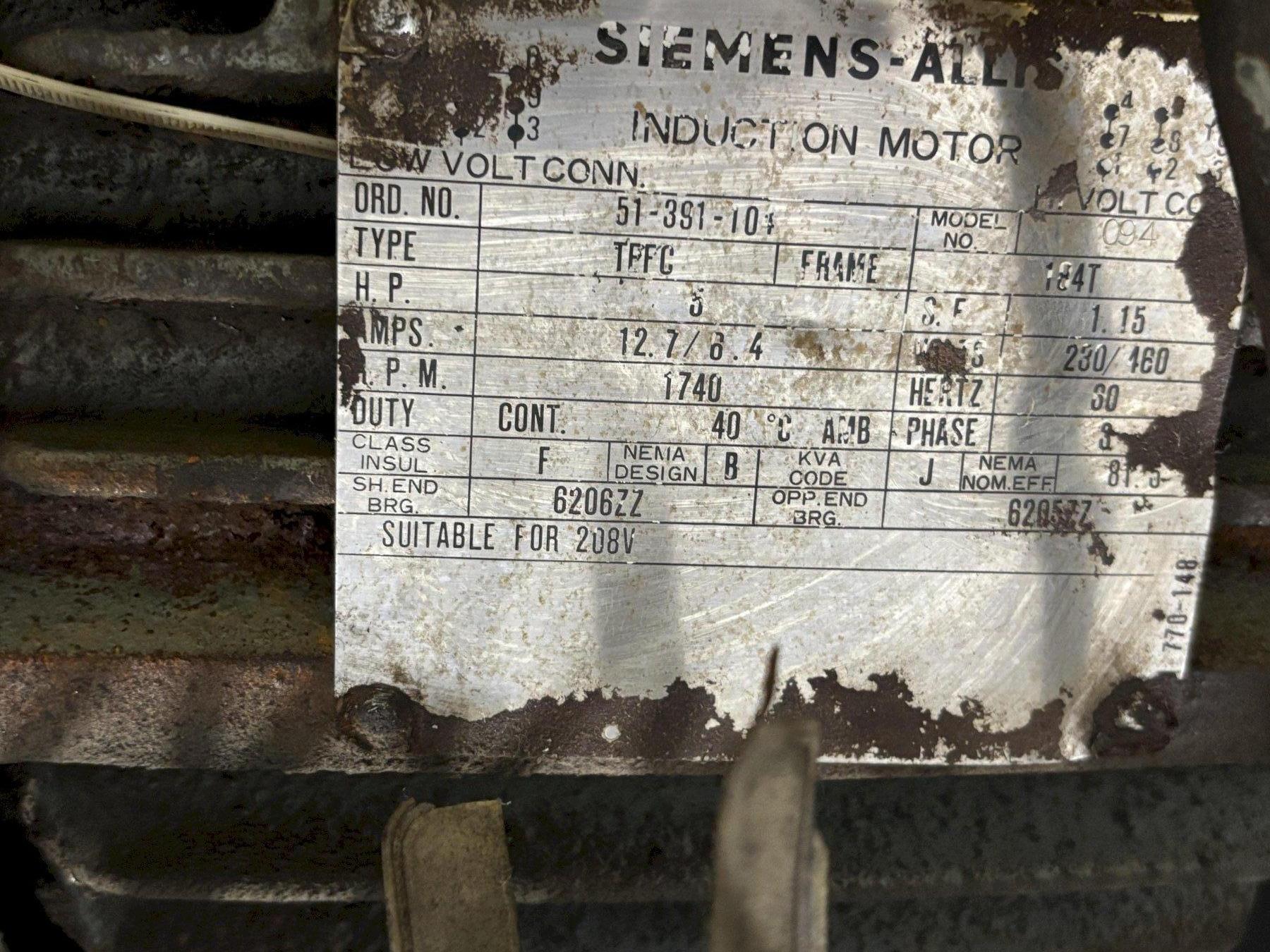

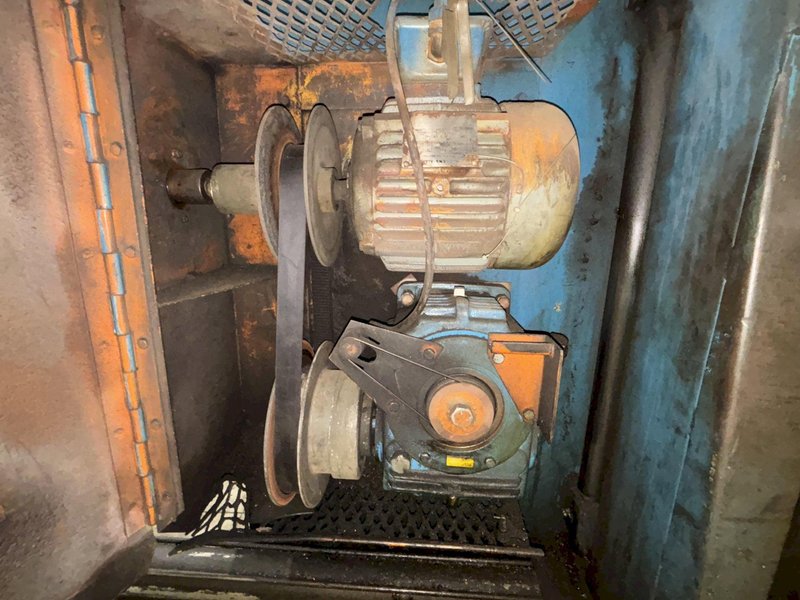

BLADE MOTOR ..................... 5 HORSEPOWER
|
|
