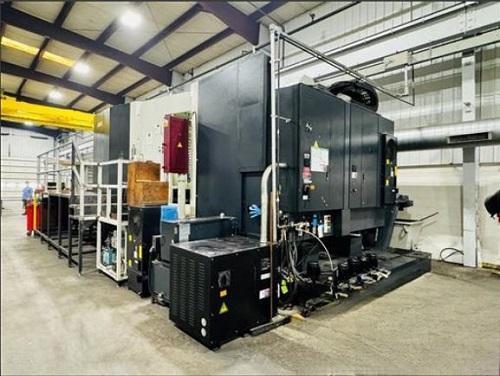

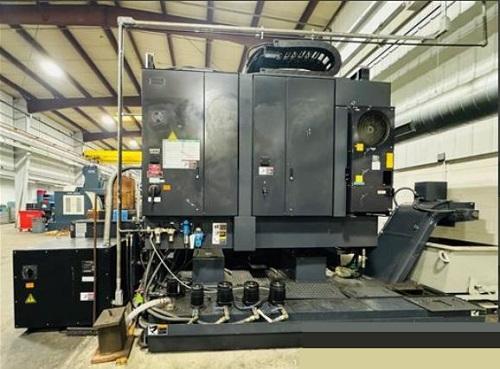

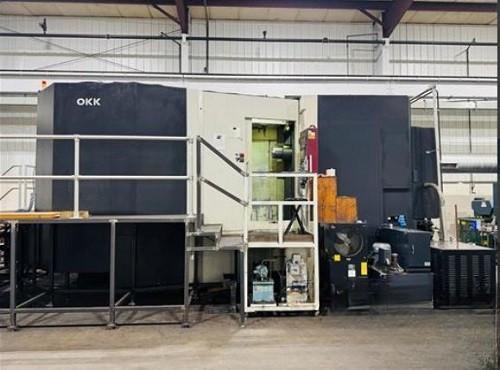

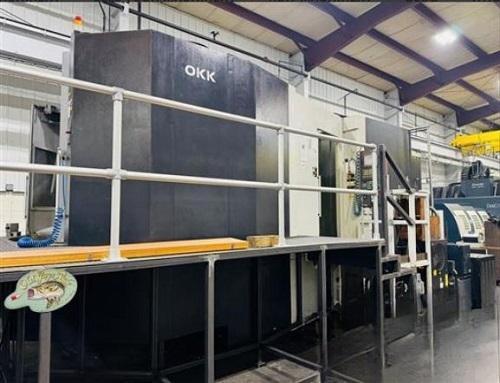

OKK HM-1250S CNC 4-AXIS HORIZONTAL MACHINING CENTER

OKK HM-1250S CNC 4-AXIS HORIZONTAL MACHINING CENTER

FEATURES:

FANUC 310IS-A 4-AXIS CNC CONTROL

(2) 49.21" X 49.21" PALLETS

60-POSITION AUTOMATIC TOOL CHANGER

FULL B-AXIS CONTOURING

THROUGH SPINDLE COOLANT

PROBE

CHIP CONVEYOR

CAPACITY:

X-AXIS TRAVEL 66.93"

Y-AXIS TRAVEL 55.12"

Z-AXIS TRAVEL 48.82"

MAXIMUM WORK-PIECE 77.56" X 59.84"

NUMBER OF PALLETS 2

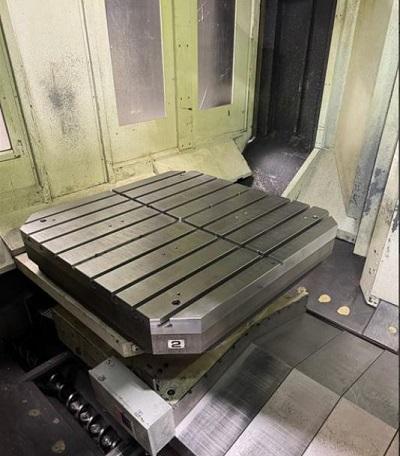

PALLET SIZE 49.21" X 49.21"

PALLET INDEXING 0.001 DEGREE

WEIGHT CAPACITY 6600 LBS.

SPINDLE CENTER TO TABLE TOP 2.76"-57.87"

SPINDLE NOSE TO TABLE CENTER 14.17"-62.99"

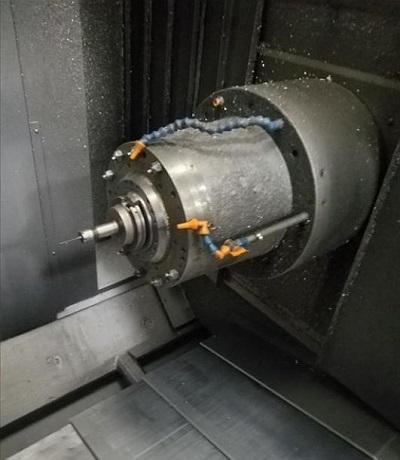

SPINDLE SPEEDS 8,000 RPM

SPINDLE TAPER #50 CAT

SPINDLE MOTOR 40 HP

TOOL CHANGER 60 ATC

MAXIMUM TOOL DIAMETER 4.53" / 10.63"

MAXIMUM TOOL LENGTH 23.62"

MAXIMUM TOOL WEIGHT 55 LBS

RAPID TRAVERSE, (X,Y & Z) 1889 IPM

MACHINE WEIGHT 72,000 LBS

CNC CONTROL OPTIONS:

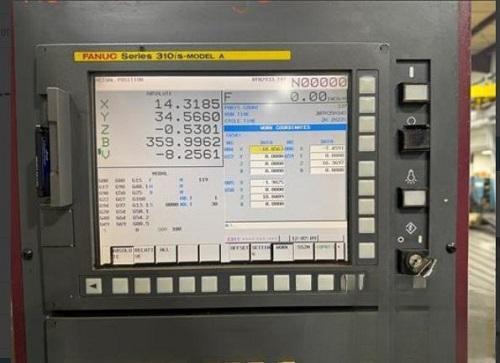

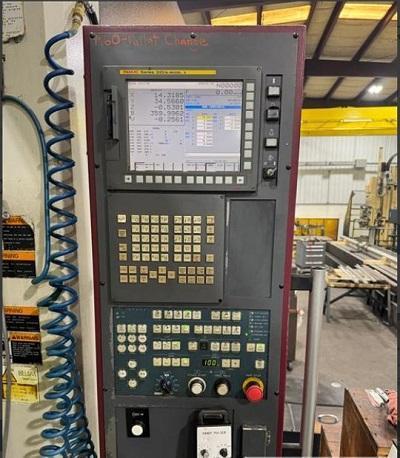

FANUC 310IS-A 4-AXIS CNC, GRAPHIC DISPLAY, 10.4" COLOR TFT

USB PORT, PC/MCIA INTERFACE

PROGRAM RESTART

STORED PITCH ERROR COMPENSATION

SPINDLE ORIENTATION

INCH/METRIC CONVERSION

CANNED CYCLES

AUTOMATIC CORNER OVERRIDE

48 PAIRS OF ADDITIONAL WORK COORDINATE SYSTEM

CUTTER COMPENSATION C

TOOL OFFSET MEMORY C

BACKGROUND EDITING

MACRO EXECUTOR

CUSTOM MACRO B

PMC FUNCTION

STORED STROKE CHECK 2, 3

HQ CONTROL

HELICAL INTERPOLATION

512 KB PROGRAM MEMORY

PROGRAMMABLE MIRROR IMAGE

120 REGISTERED PROGRAMS

200 SETS OF TOOL OFFSETS

128 PAIRS OF TOOL LIFE MANAGEMENT

DIGITAL SERVO FUNCTION

CONTROLLABLE AXES EXPANSION

SECOND REFERENCE POINT RETURN

EQUIPPED WITH:

(2) 49.21" X 49.21" PALLETS

FULL B-AXIS PALLET CONTOURING/ROTATION

60-POSITION AUTOMATIC TOOL CHANGER

THROUGH SPINDLE COOLANT (1000 PSI)

BLUM LASER AUTO TOOL LENGTH MEASUREMENT

TOOL BREAKAGE DETECTION

RIGID TAPPING

RENISHAW TOUCH PROBE

MANUAL PULSE GENERATOR

DUAL CHIP AUGERS

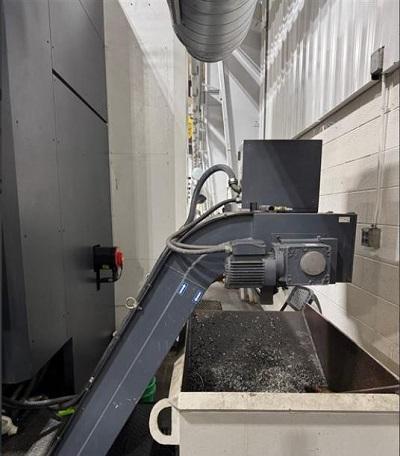

HAKUSAN CHIP CONVEYOR (LEFT REAR EXIT)

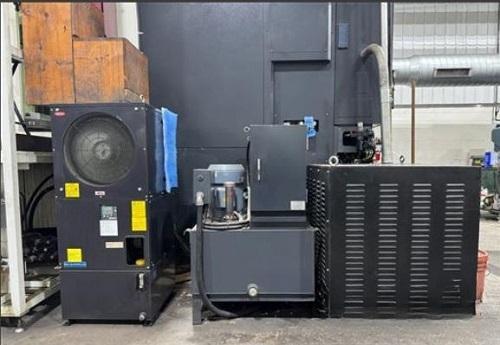

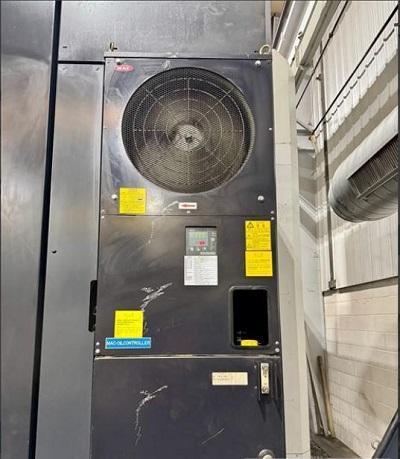

SPINDLE CHILLER UNIT

MULTI-TAP TRANSFORMER

THREE COLOR TOWER LIGHT

B-AXIS LINEAR SCALES

DUAL POSITION FEEDBACK
