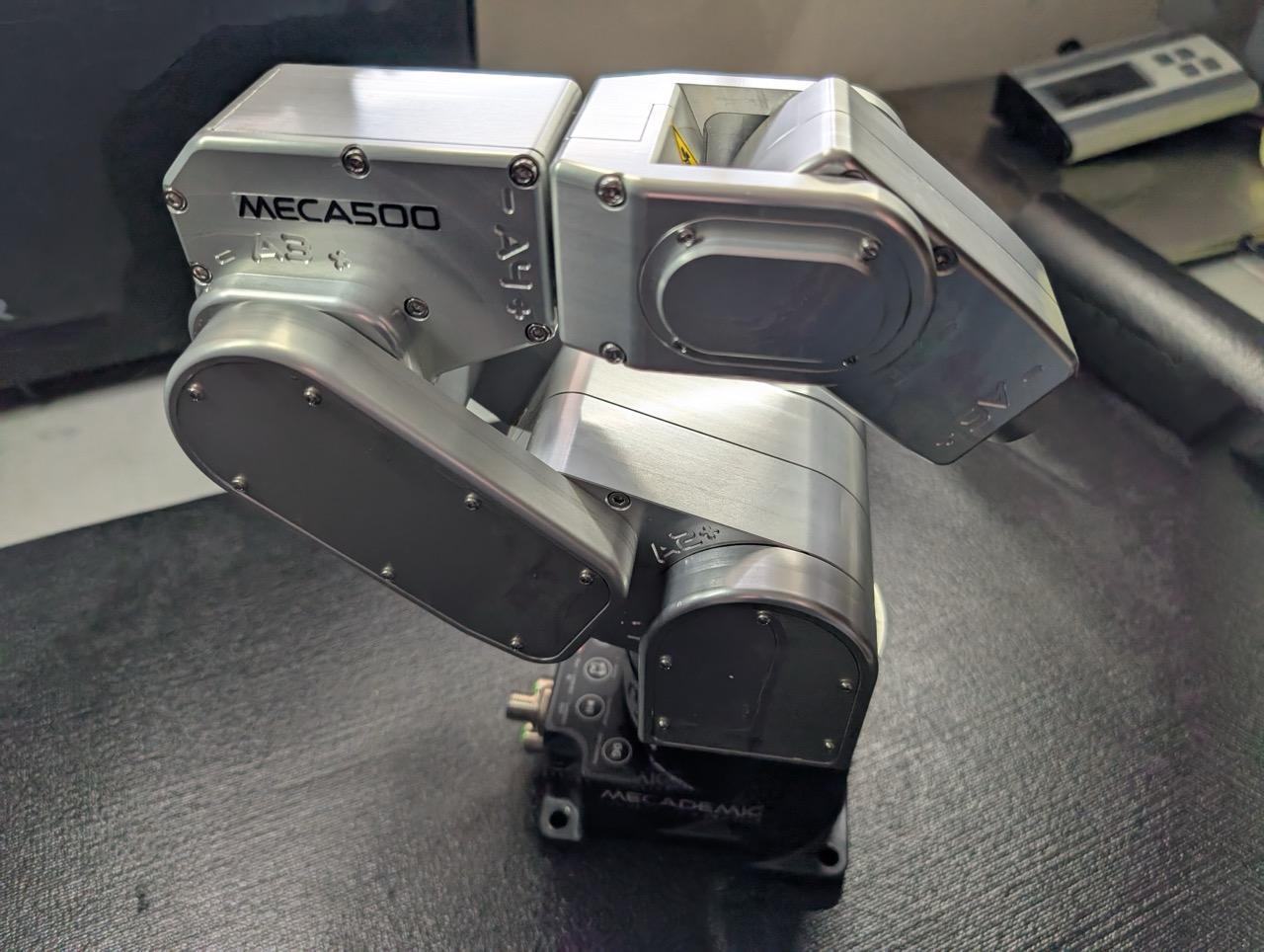

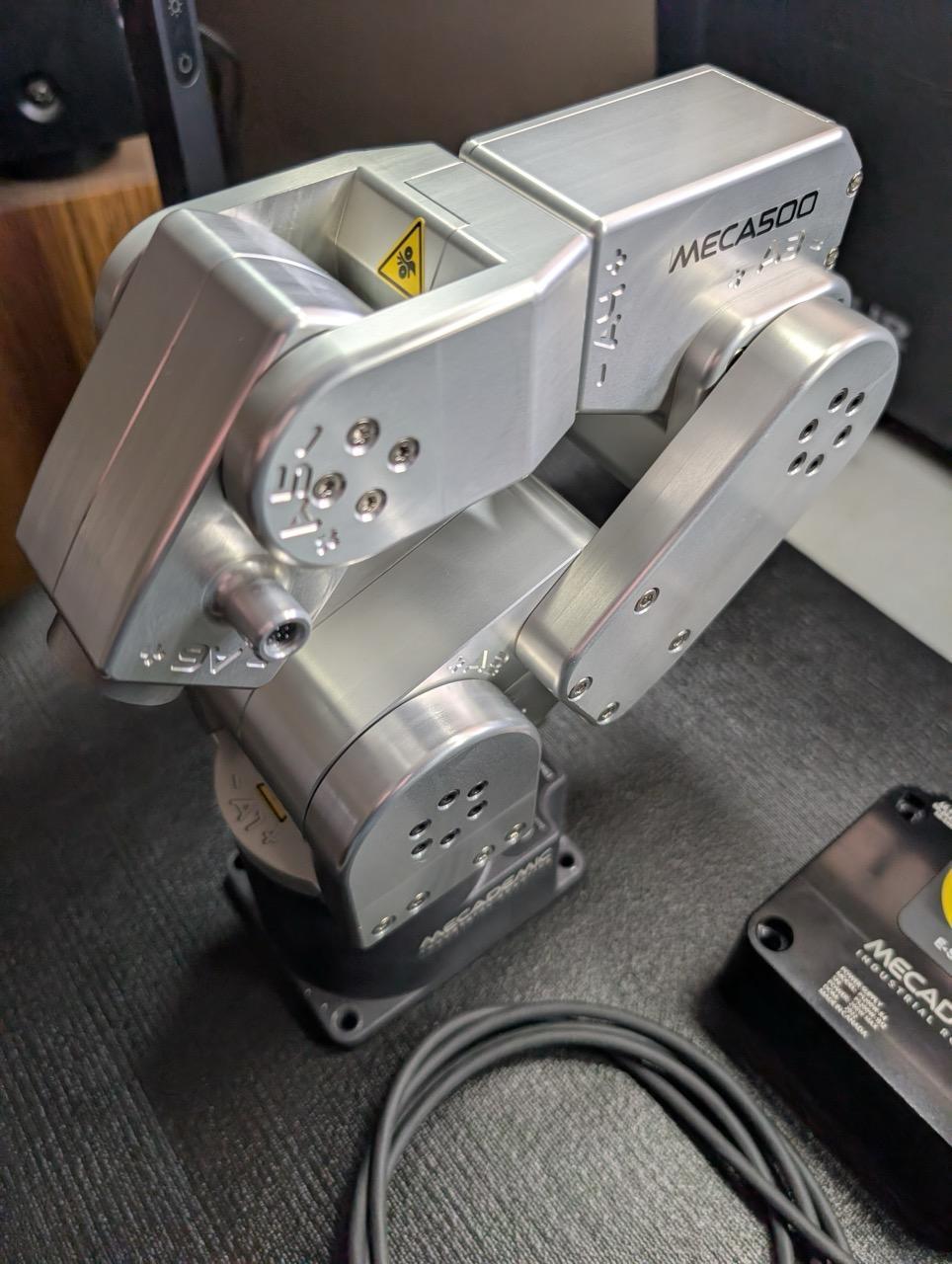

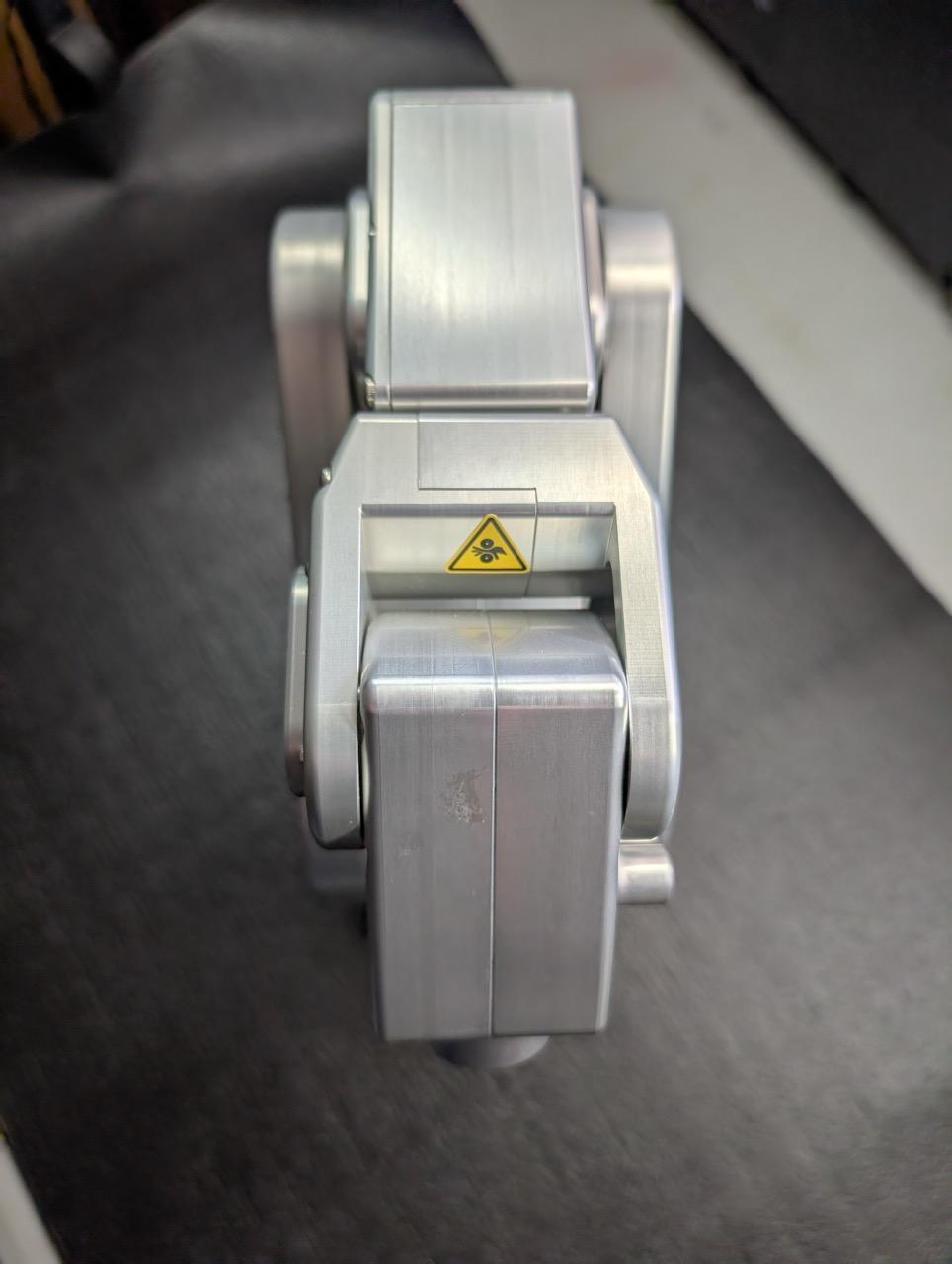

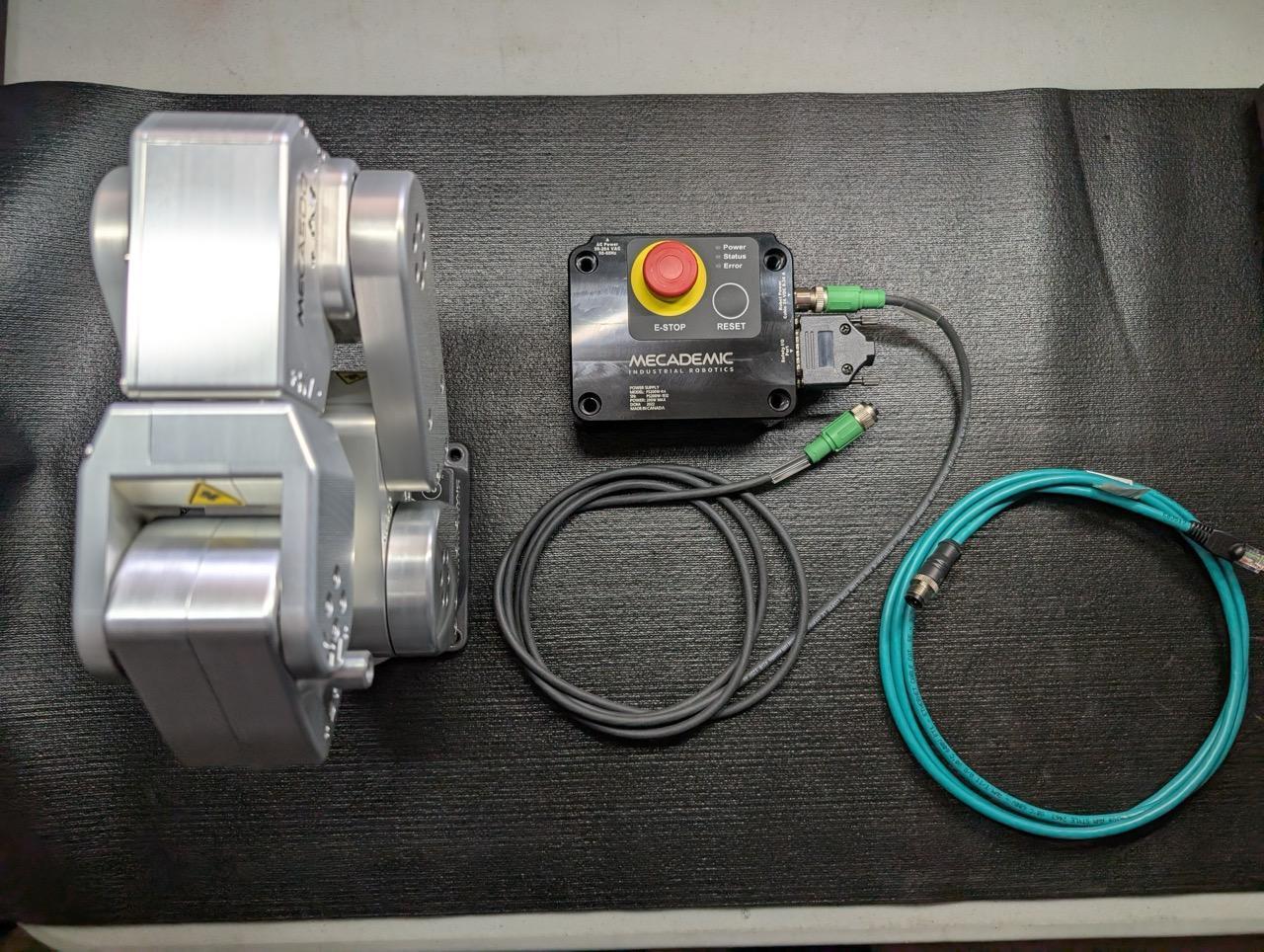

Mecademic Meca 500 Robot, 2023 – 6 Axis

Horizontal Reach: 12.99″ Position Repeatability: 0.00019″ Rated Payload: 1.10 LBS Maximum Payload: 2.20 LBS Weight of Robot Arm: 10.14″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Range for joint 1: [−175°, 175°] Range for joint 2: [−70°, 90°] Range for joint 3: [−135°, 70°] Range for joint 4: [−170°, 170°] Range for joint 5: [−115°, 115°] Range for joint 6: [−36,000°, 36,000°]

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Maximum speed for joints 1 & 2: 225°/s Maximum speed for joint 3: 225°/s Maximum speed for joints 4 & 5: 350°/s Maximum speed for joint 6: 500°/s

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,*Note: 6 Available

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
