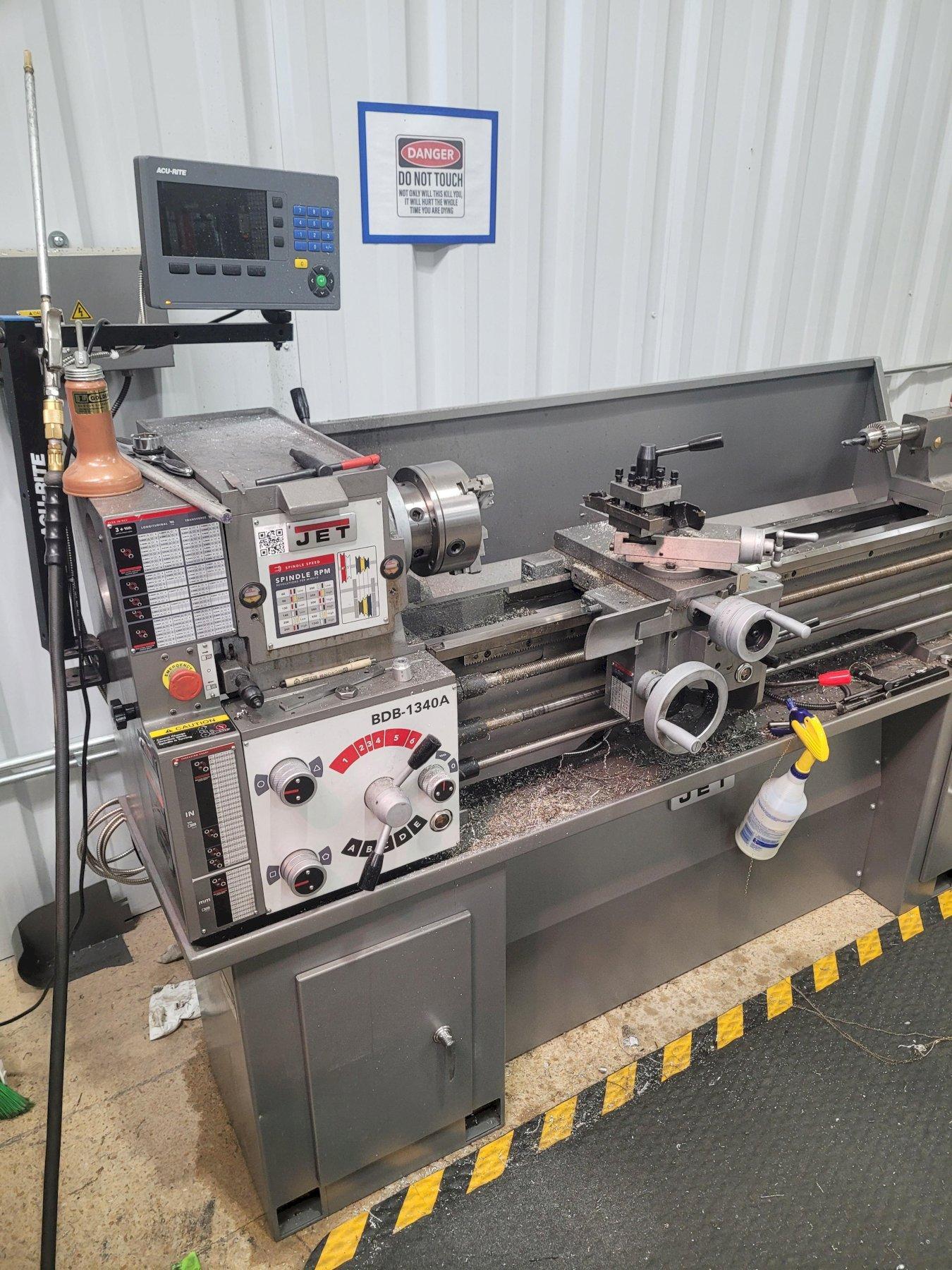

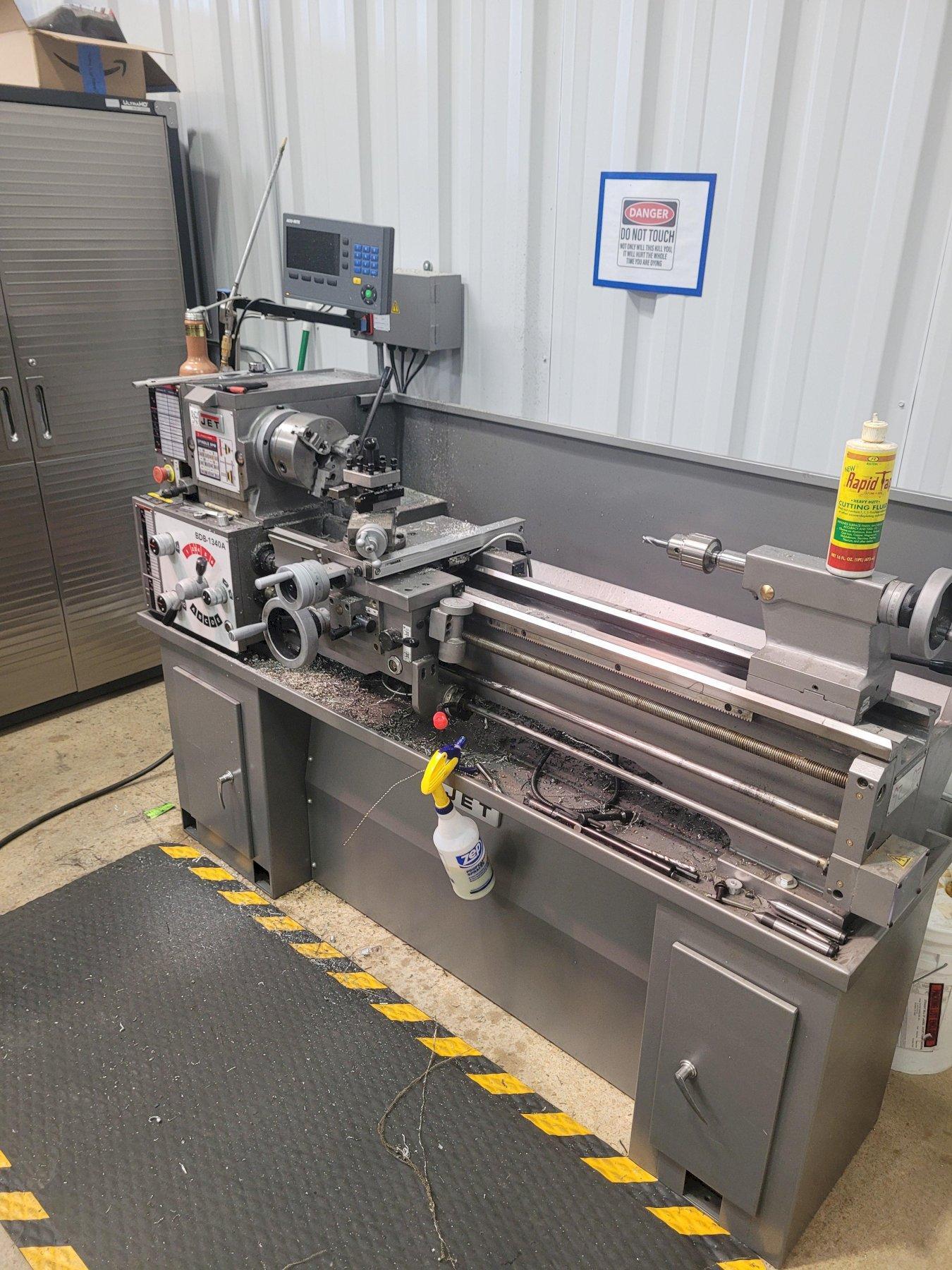

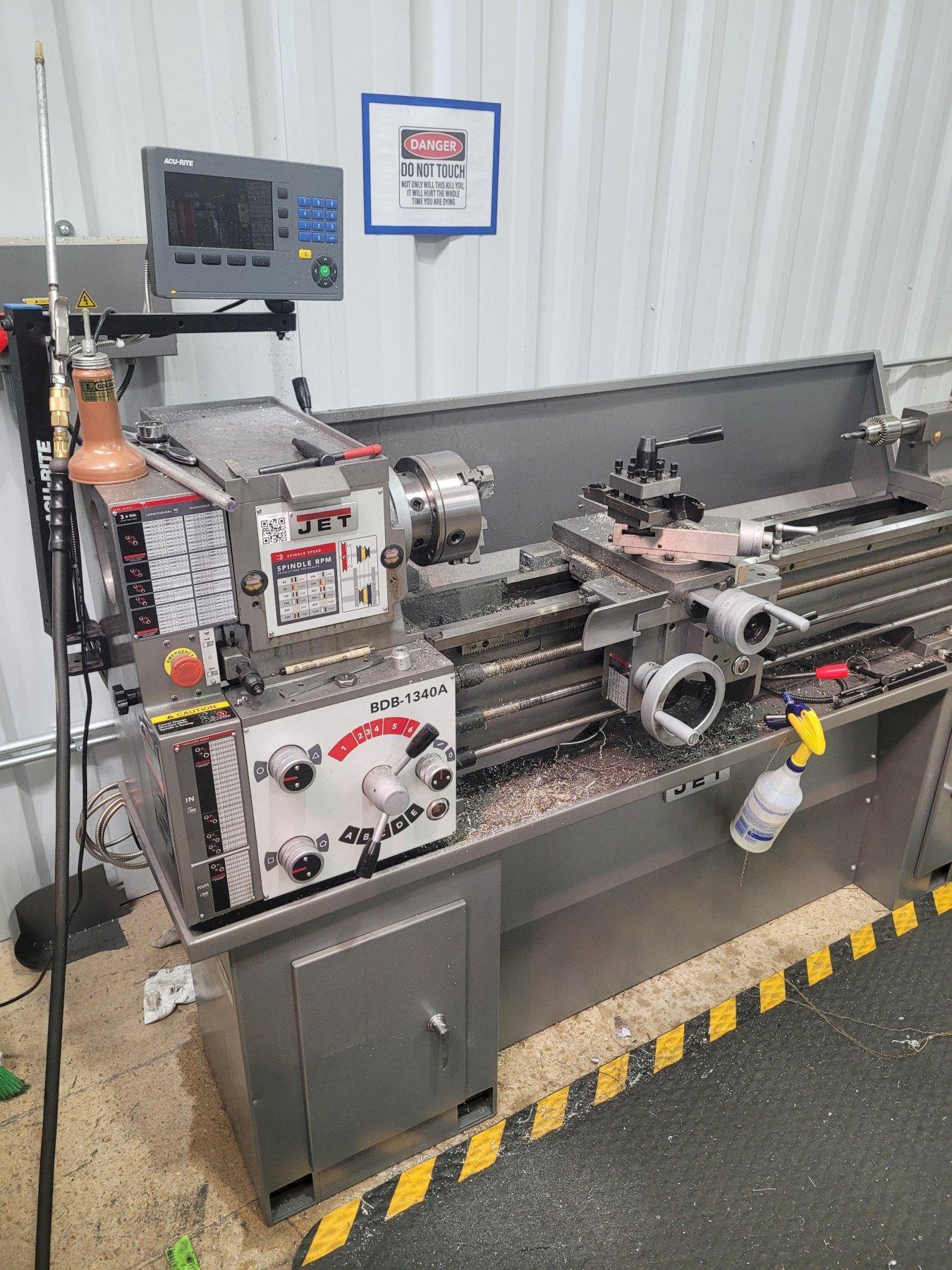

Jet BOB-1340A Belt Drive Bench Lathe, 2022

Motor: 2 HP, 230 V, single‑phase Pre-wired: 230 V Drive: Belt with enclosed gearbox and helical gears for quieter operation Swing Over Bed: 13″ Swing Over Cross‑Slide: 7 25/32″ Swing Through Gap: 18 3/4″ (with 8″ removable section) Distance Between Centers: 40″ Spindle Bore: 1 3/8″ Spindle Mount: D1‑4 Spindle Taper: MT‑5 (dedicated sleeve to MT‑3) Spindle Speeds: 12 steps, from 60 to 1,240 RPM Longitudinal: 0.0018–0.0374 ipr Cross‑feed: 0.0006–0.013 ipr Inch Threads: 38 options, 3½ – 80 TPI Metric Threads: 23 options, 0.45–10 mm pitch Tailstock Spindle Travel: 3¾”, MT‑3 taper Compound Slide Travel: 2 11/16″ Cross‑Slide Travel: 6 5/16″ Carriage Travel: 35″ Steady Rest Capacity: 2 5/8″ Follow Rest Capacity: 2 3/4″ Tool Post Opening: Up to 5/8″ x 5/8″ tool bit Machine Dimensions: 71″ x 32″ x 45″ Machine Weight: 1,175 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
