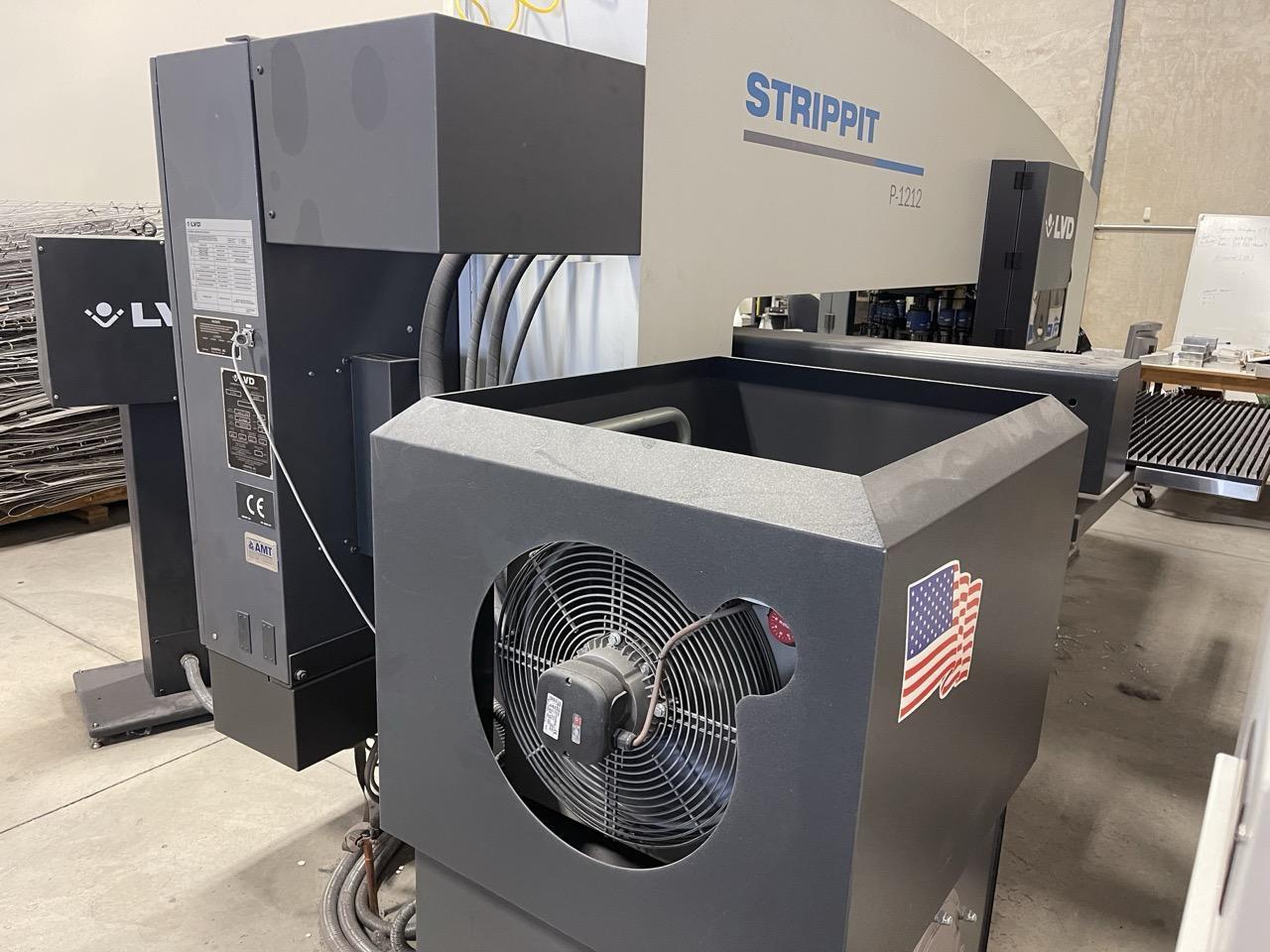

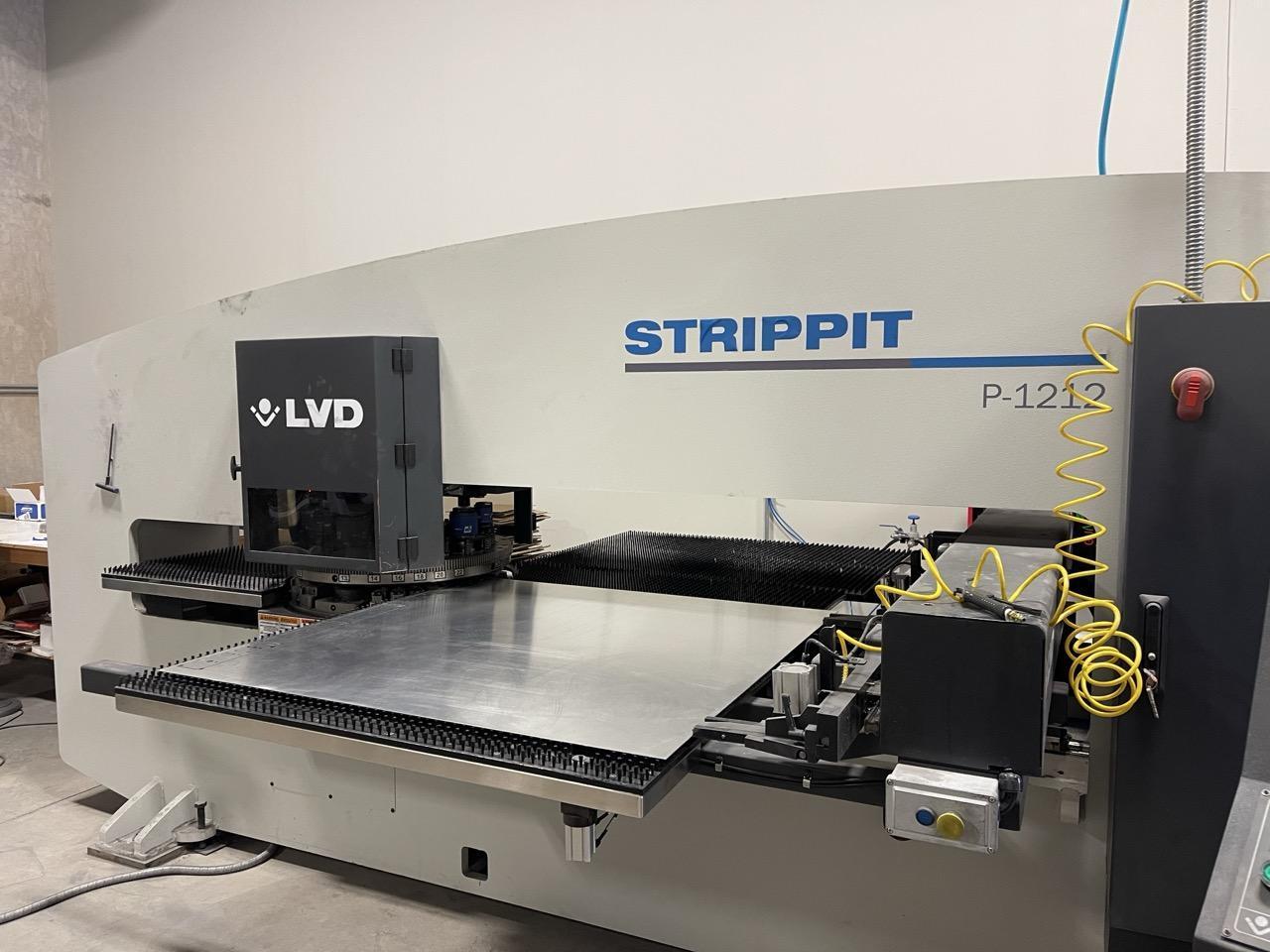

22 Ton LVD P-1212 Turret Punch, 2022 – Low Hours, Lightly Used

American Made!

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Model: P-1212 Year: 2022 Tonnage 22 T # Turret Stations 21

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,33 Station, Thick Style Tooling 22 each 0.500″, (12,7 mm), ‘A’ stations 11 Round only 11 Keyed 6 each 1.250”, (31,7 mm), ‘B’ stations 3 each 2″, (50,8 mm), ‘C’ stations, all fully indexable 2 each 3.500″, (88,9 mm), ‘D’ stations

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Brush Table

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Maximum Material: 0.250″ (6,35 mm) mild steel Maximum Tonnage: 20 Metric (200 KN) Accuracy: ±.004”, (±0,1 mm) Repeatability: ±.002”, (±0,05 mm) Workpiece Size:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Nominal: 49.2″ x 49.2″ (1250 mm x 1250 mm) Recommended Maximum: 98.4” x 49.2″ (2500 mm x 1250 mm) * * Requires Progressive Move and additional sheet support (provided by end user)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Workpiece Capacity:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Brush Table: 81.5 lbs (37 kg) @ 100% speed 90.4 lbs (41 kg) @ 75% speed 134.1 lbs (61 kg) @ 50% speed 160.9 lbs (73 kg) @ 25% speed

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Floating Clamps: 2 manual lock Maximum Clamp Spread: 37.4” (950 mm) Turret Configuration: 33 station total

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Dimensions: Dimensions are for machine only w/o control Width: 100” 2550 mm Height: 82.47” 2085 mm Depth: 177.1” 4498 mm Shipping Wt: 18,040 lbs. 8200 kg

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
