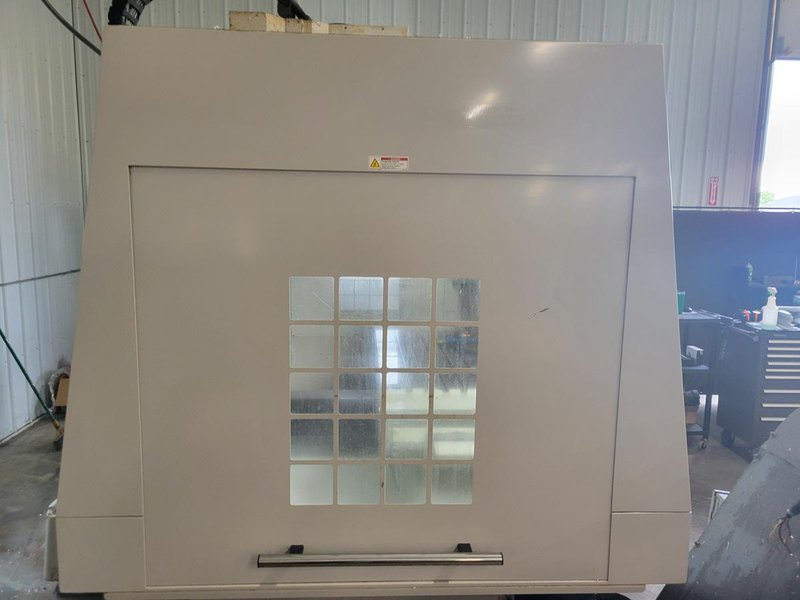

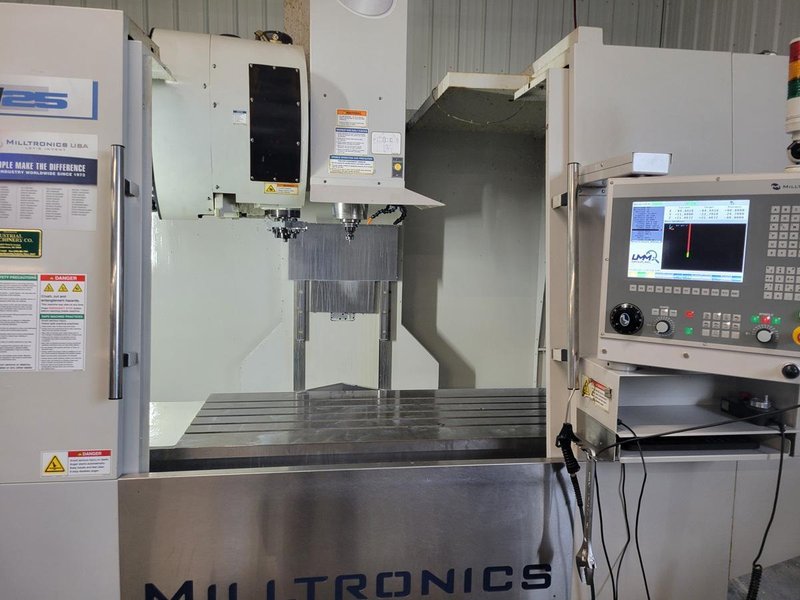

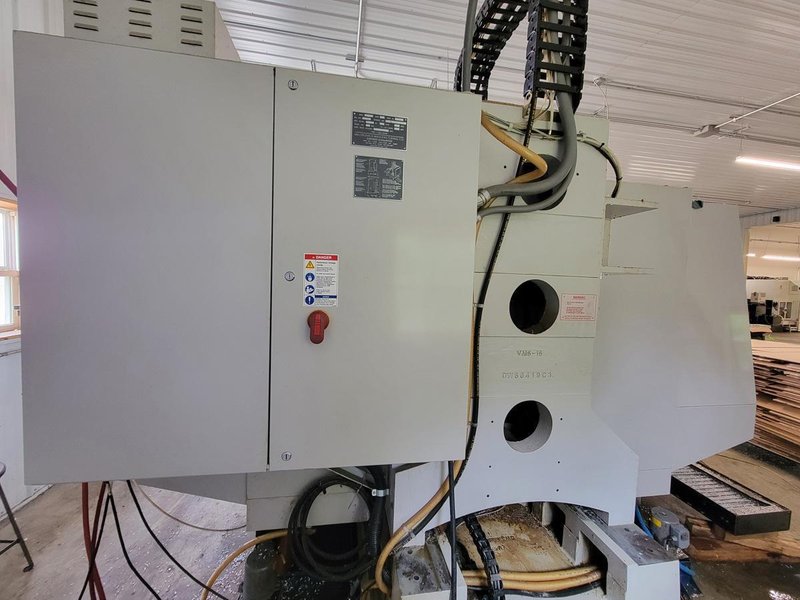

2017 Milltronics VM25 Linear Way Vertical Machining Center

Name: Used MILLTRONICS VM25 For Sale 64099
Brand: MILLTRONICS
SKU: 64099
Availability: PreOrder

Brand

MILLTRONICS

Location

Michigan

REQUEST FINANCING

Specifications
Files & Videos

CNC Control

yes

2017 Milltronics Model VM25 Vertical Machining Center
Travels: X-50"
Y-25
Z-24
Table Size: 24" x 56"
Table Load: 3500 Lbs
T-Slot Size: .63"
Spindle Gage Line to Table Distance: 4"-28"
Column to Spindle Center: 25"
Cat 40 Spindle Taper
8000 Max Spindle RPM
24/15 H.P. Spindle Motor @ 255 Ft-Lbs
Double Arm ATC Type
24 Tools
Pull Stud: MAS 60 Degree, CT Flange 40 Taper
1000 IPM Axis Rapids
Max Cutting: 500 IPM

Dims: 120" Tall x 144" x 112"
19,000 # Approx. Weight
30 KVA/80 AMPS, 208-235 Volts, 3 Phase

Equipped with:
Milltronics 8200-B Series Control
Spindle Air Purge
Coolant through spindle ready
Auto Lubrication
Rigid Tapping
LCD Hour Meter
1 GB Program Storage Memory
DXF File Import

No files or videos to display
