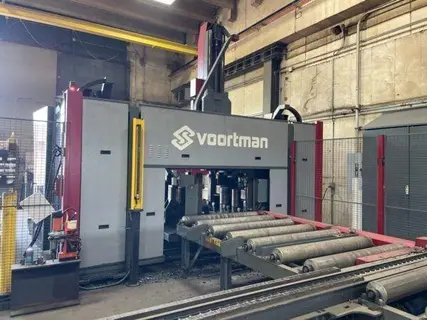

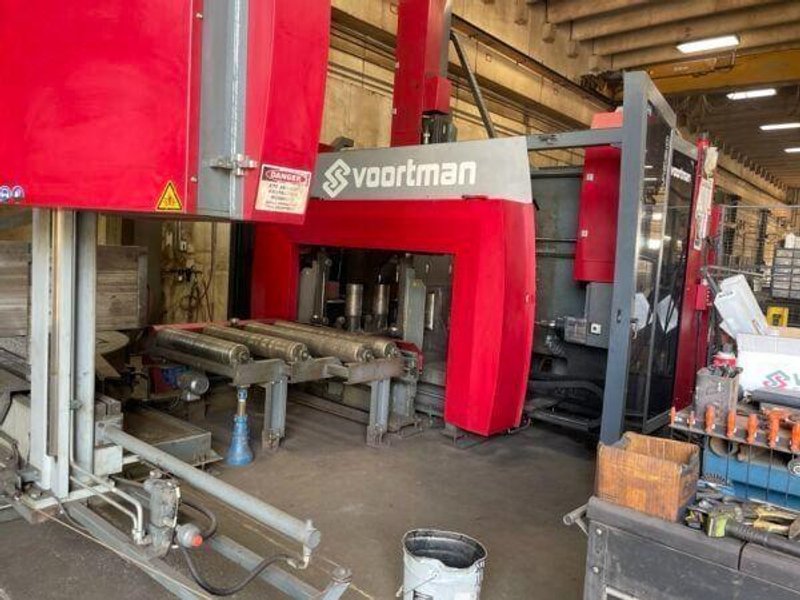

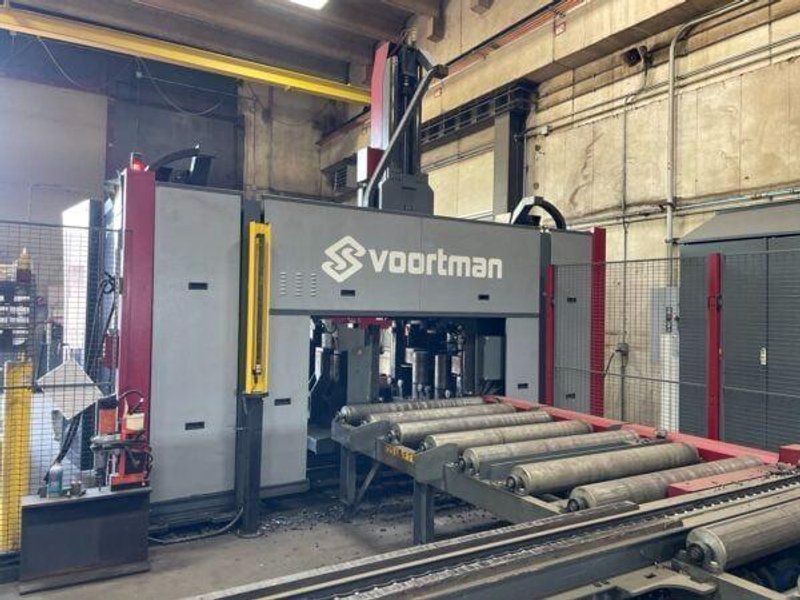

2015 VOORTMAN V630 3-AXIS BEAM DRILLING AND MILLING MACHINE – INCLUDES 50″ VB1250 SAW

Model
V630
Stock #
IGAM0620004
Year
Not specified
Condition
Not specified

Location

Michigan

Overview

The Voortman V630 is a high-performance beam processing machine designed for precision and efficiency. Capable of drilling, milling, countersinking, thread tapping, numbering, and marking, it processes both the web and flanges simultaneously to maximize throughput. Ideal for structural steel fabrication.

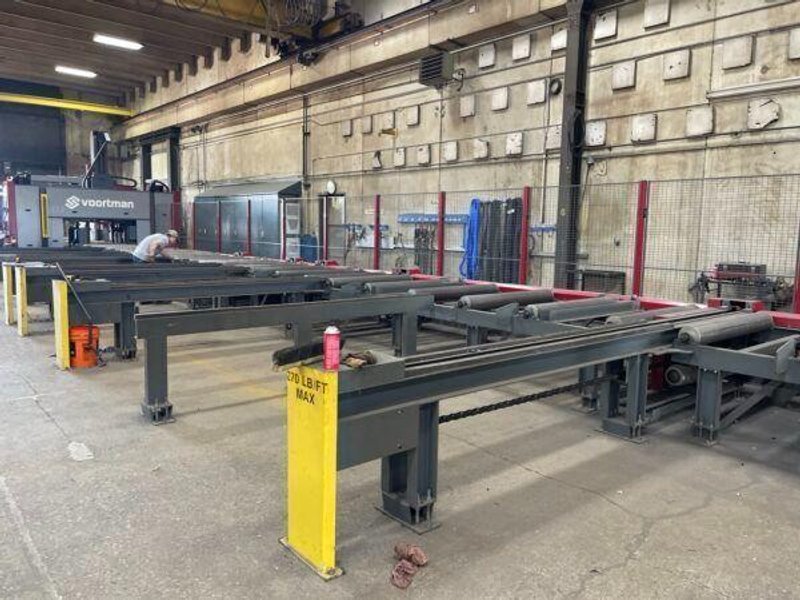

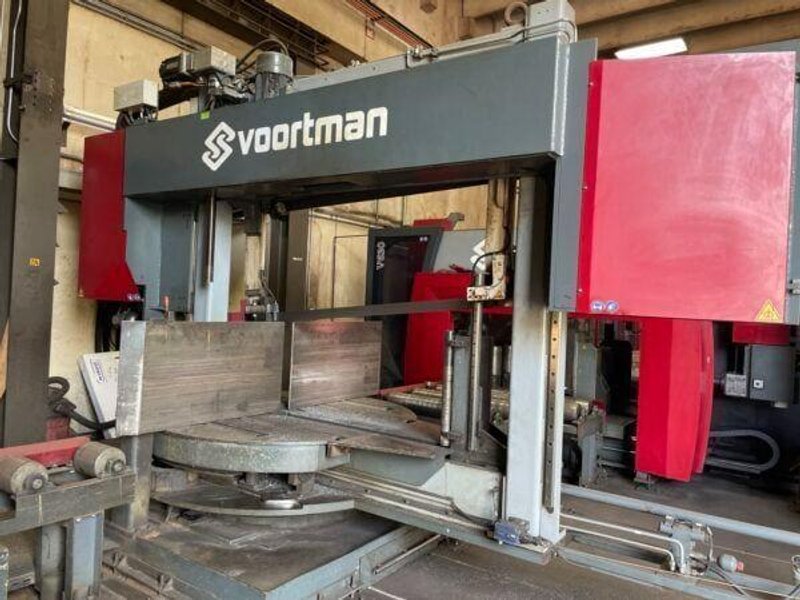

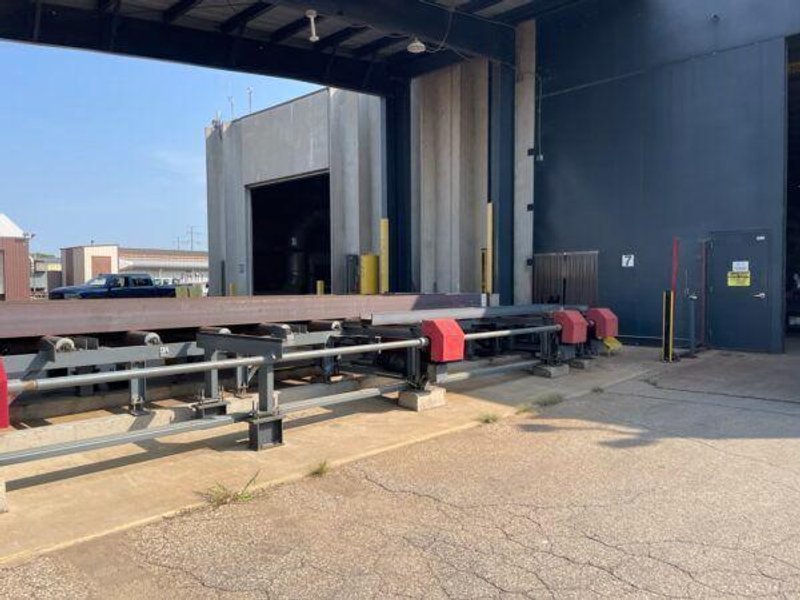

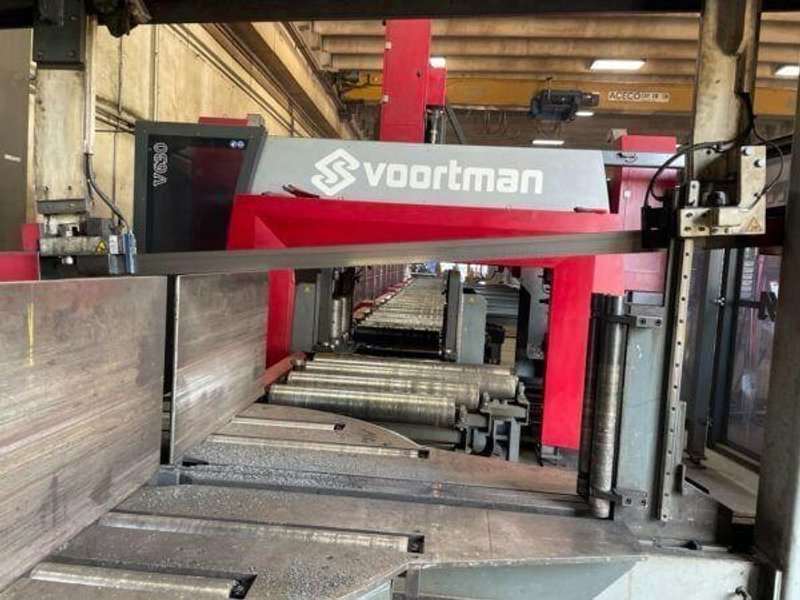

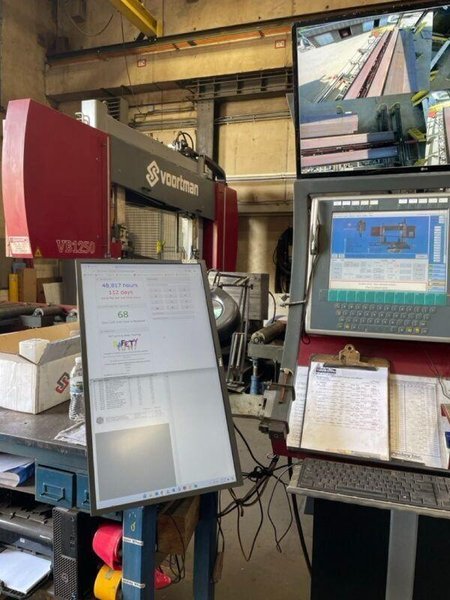

50″ VB1250 saw is included in the price, as well as 60′ infeed and outfeed with double drag dogs on the infeed.

Location: WI

,
Specifications:
Operating Range:   23.6″ x 49.2″
Positioning Weight:   43,652 lbs.
Drilling & Positioning:    Servo Motors
Positioning Speed X:   138ft/min
Positioning Speed Y:   115ft/min
Positioning Speed Z:   115ft/min
Drilling Units:   3
Nominal Power:   30 kW
Speed:   0-2500 RPM(Stepless)
Tool Changer:   3×6 Station
Drill Holder:   SK40
Drill Diameter:   0-.2″- 1.6″
Thread Tapping:    M6-M30
Cabin Weight:    30,865 lbs.

Equipped With:

Each drill head has an ATC w/ 6 tool positions.

Can drill both web and flanges at the same time.

Processes: Drilling, milling, countersinking, thread tapping, numbering, marking
