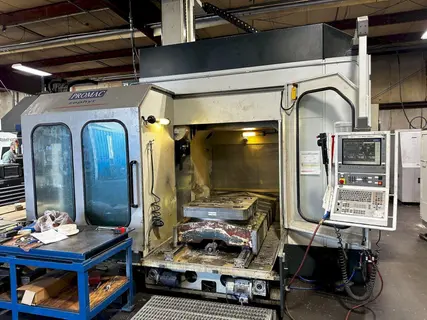

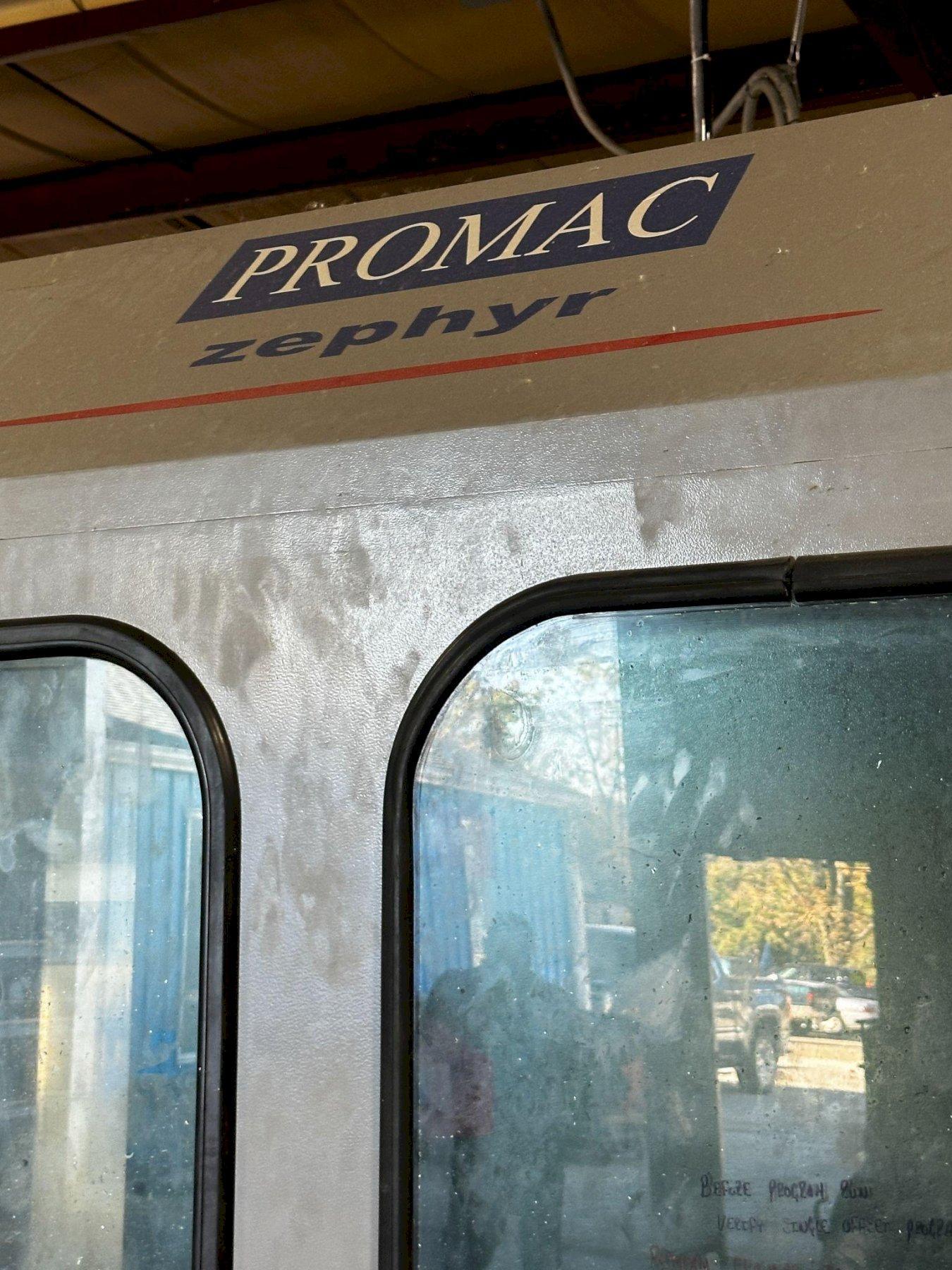

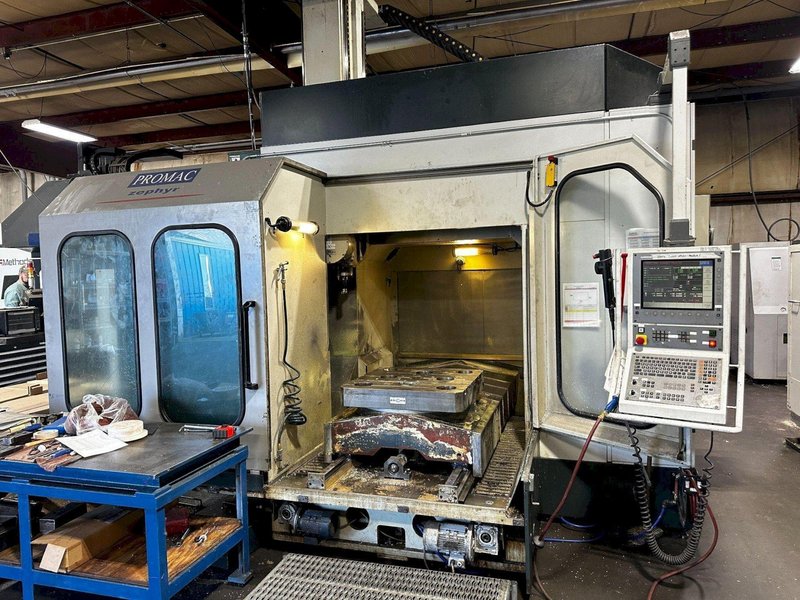

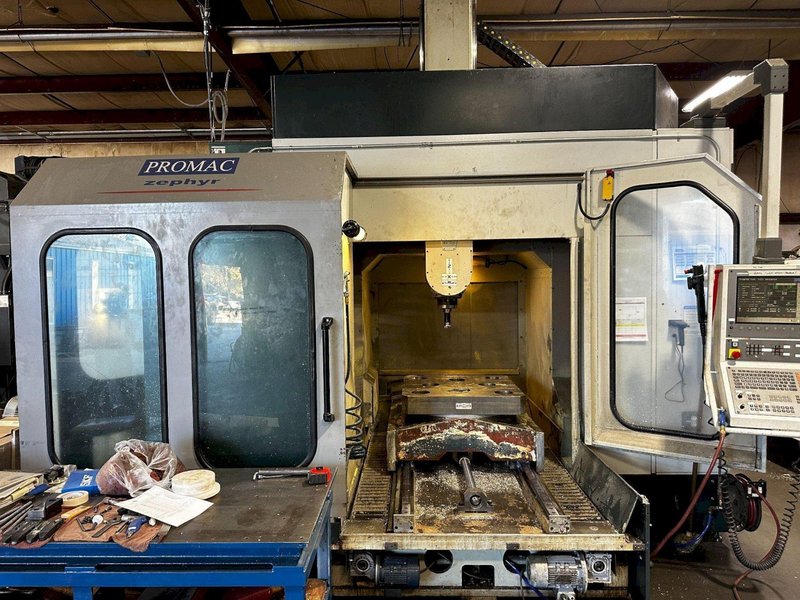

2006 Promac Zephyr VTR1.2 5A CNC 5-Axis Vertical Machining Center

Product Specifications

• Model Year: 2006
• Machine Type: 5-Axis Vertical Machining Center
• Control System: Siemens 840D CNC
• X-Axis Travel: 1,200 mm (47.2″)
• Y-Axis Travel: 800 mm (31.5″)
• Z-Axis Travel: 600 mm (23.6″)
• A-Axis (Tilt): ±110°
• C-Axis (Rotation): 360° continuous

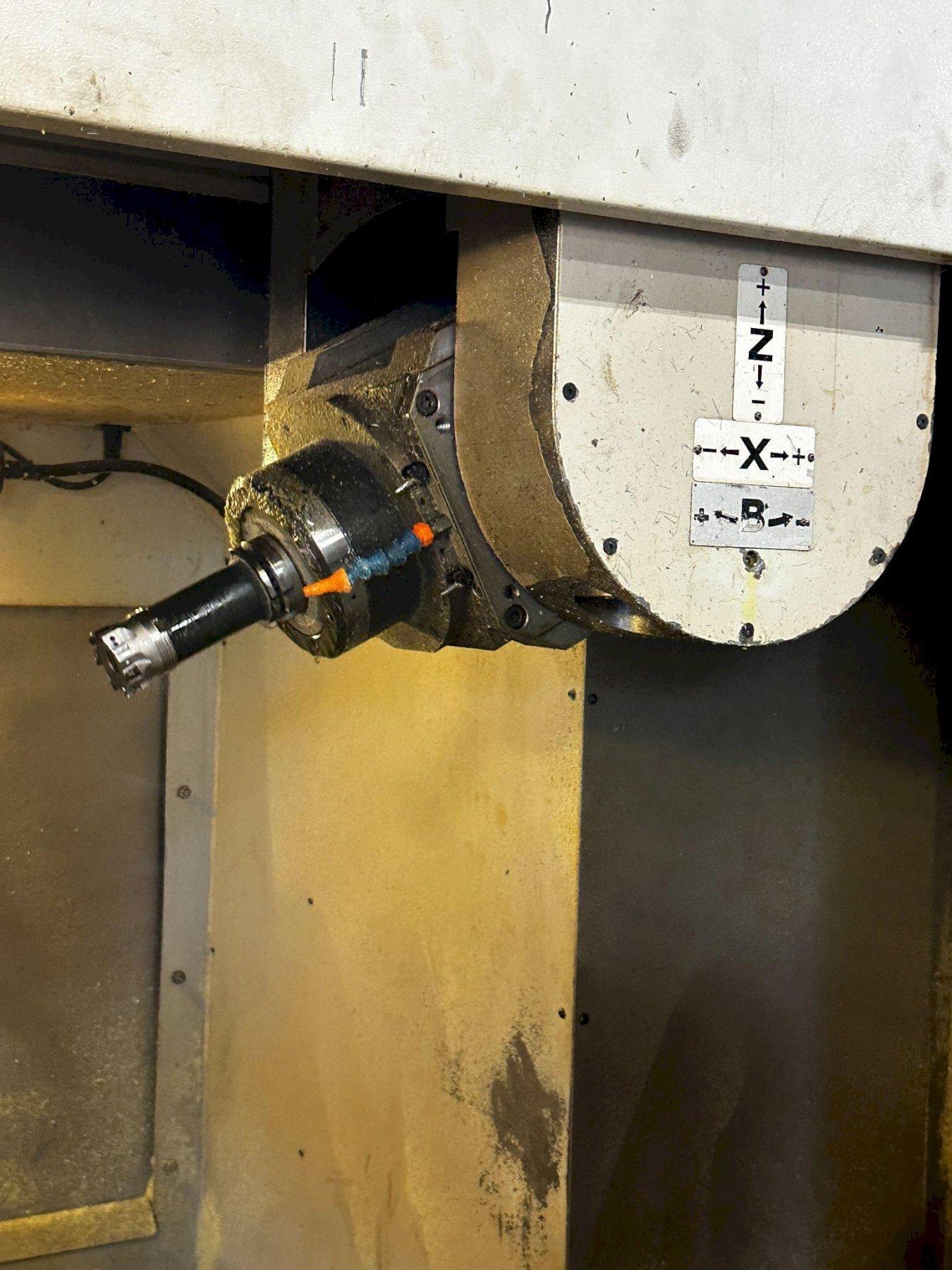

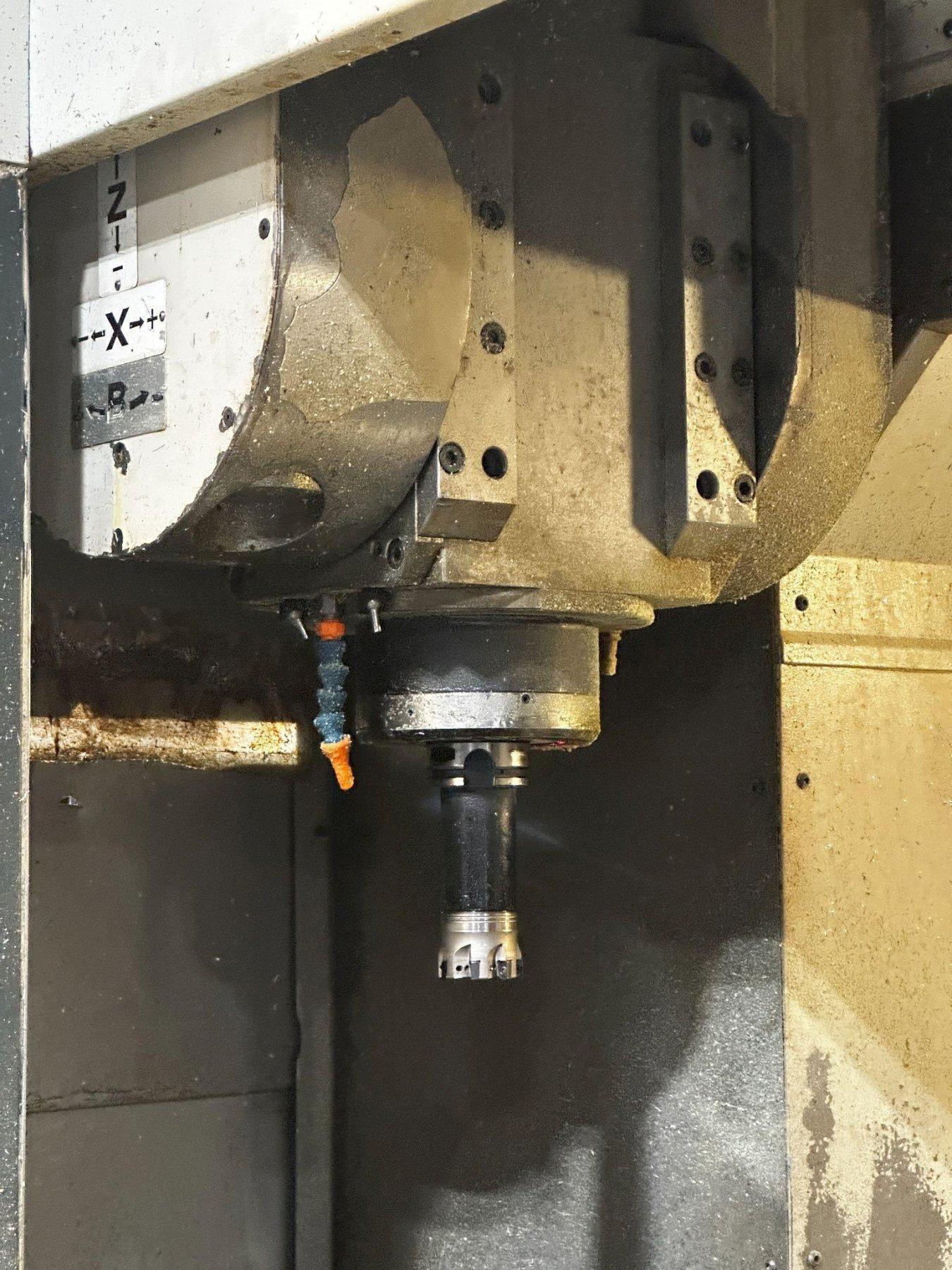

• Spindle Speed: 15,000 RPM

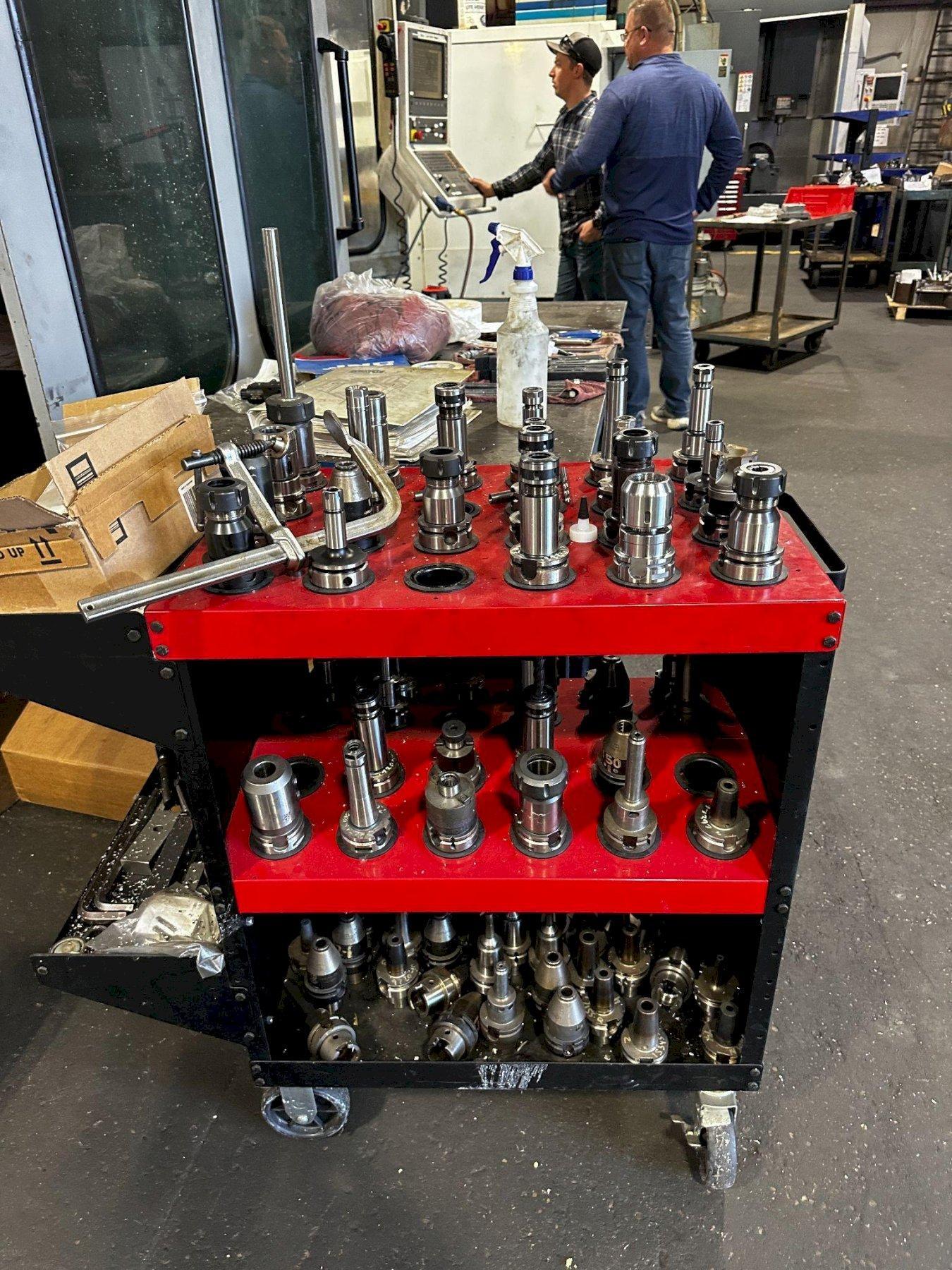

• Spindle Taper: HSK-A63
• Spindle Power: 30 kW (approx. 40 HP)

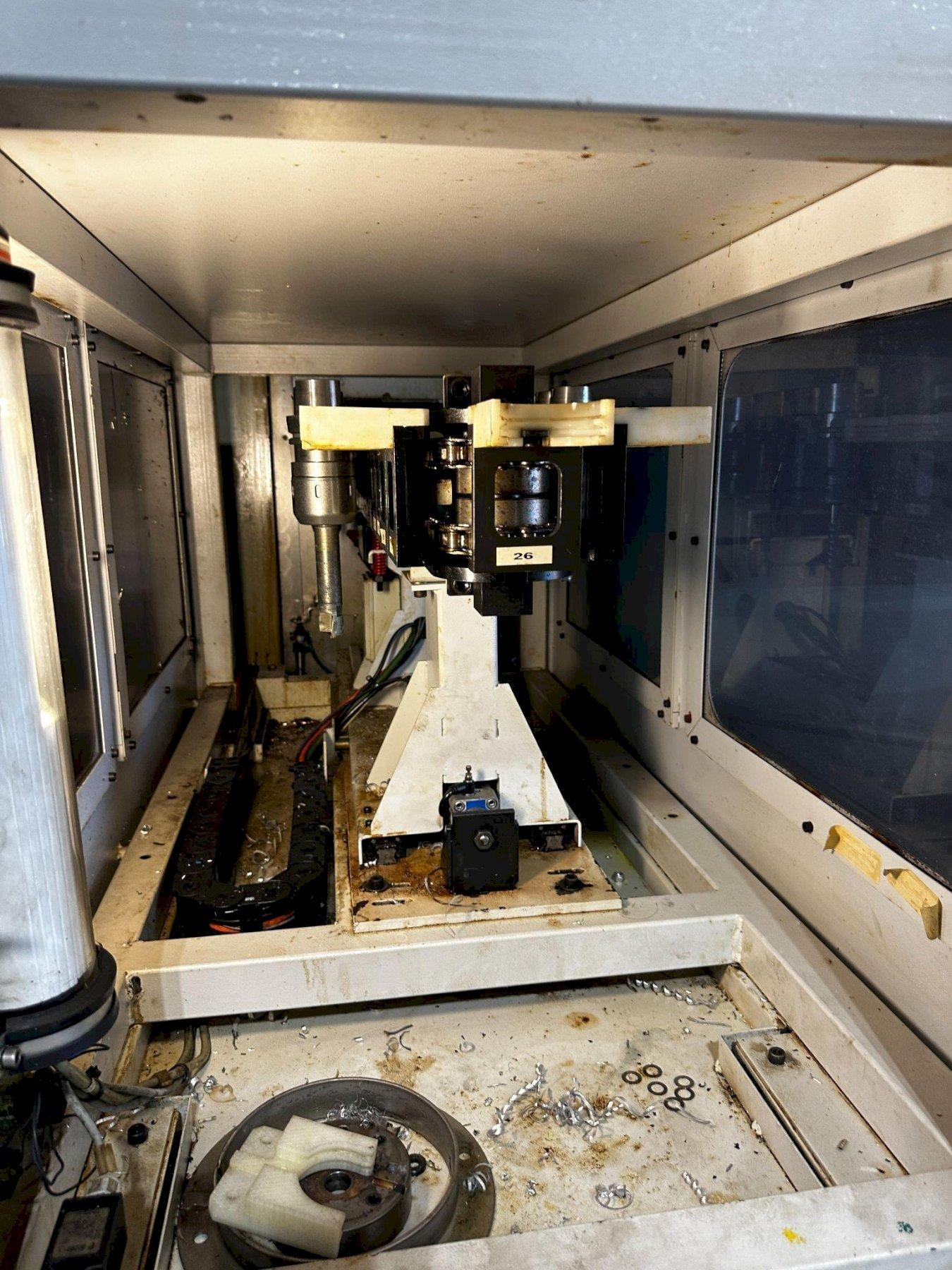

• Tool Changer Capacity: 40 tools

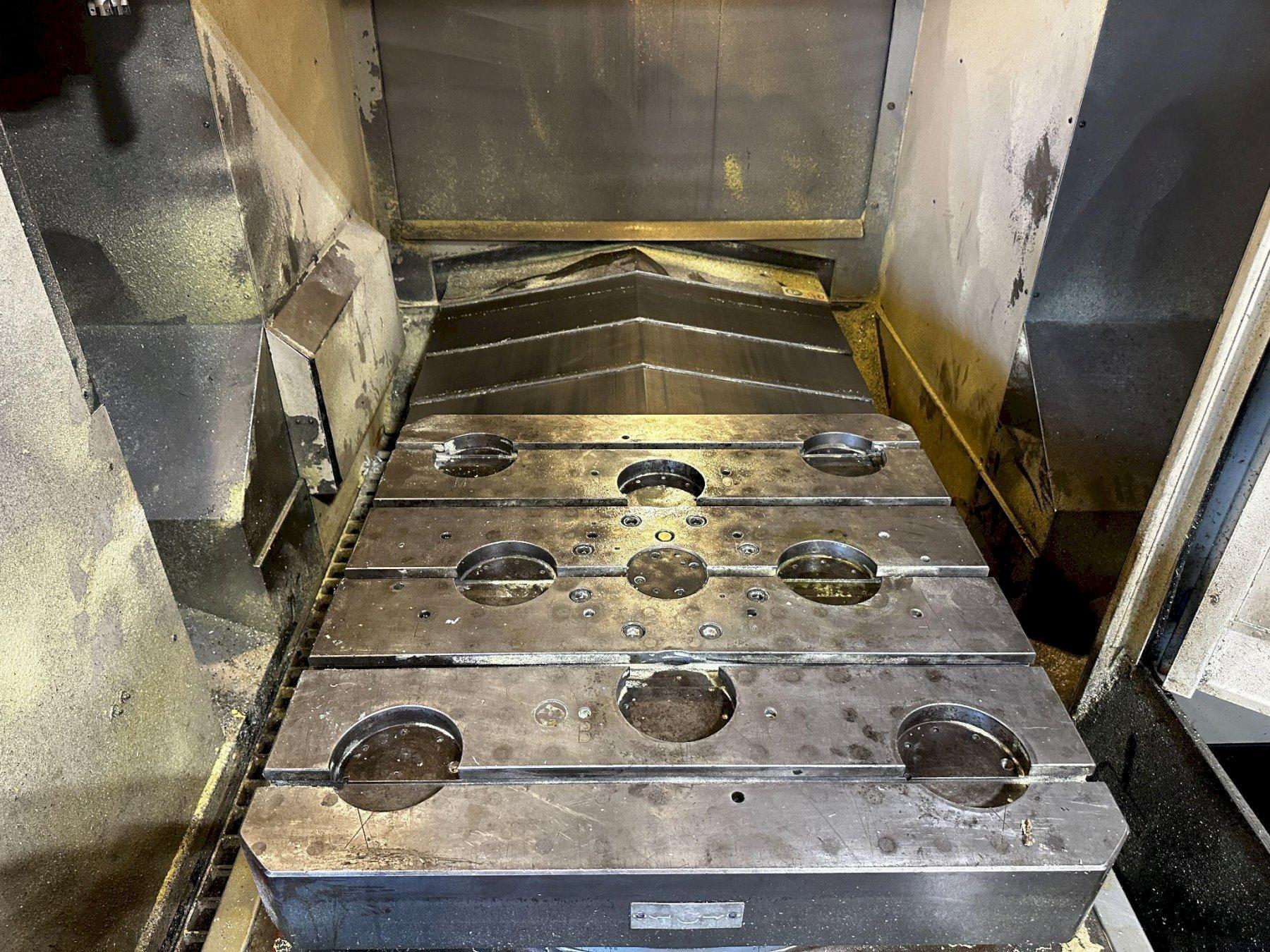

• Max Table Load: Approx. 1,000 kg (2,204 lbs)
• Machine Weight: Approx. 18,000 kg (39,683 lbs)

Key Features

• Simultaneous 5-axis machining for complex surface contours and deep cavities

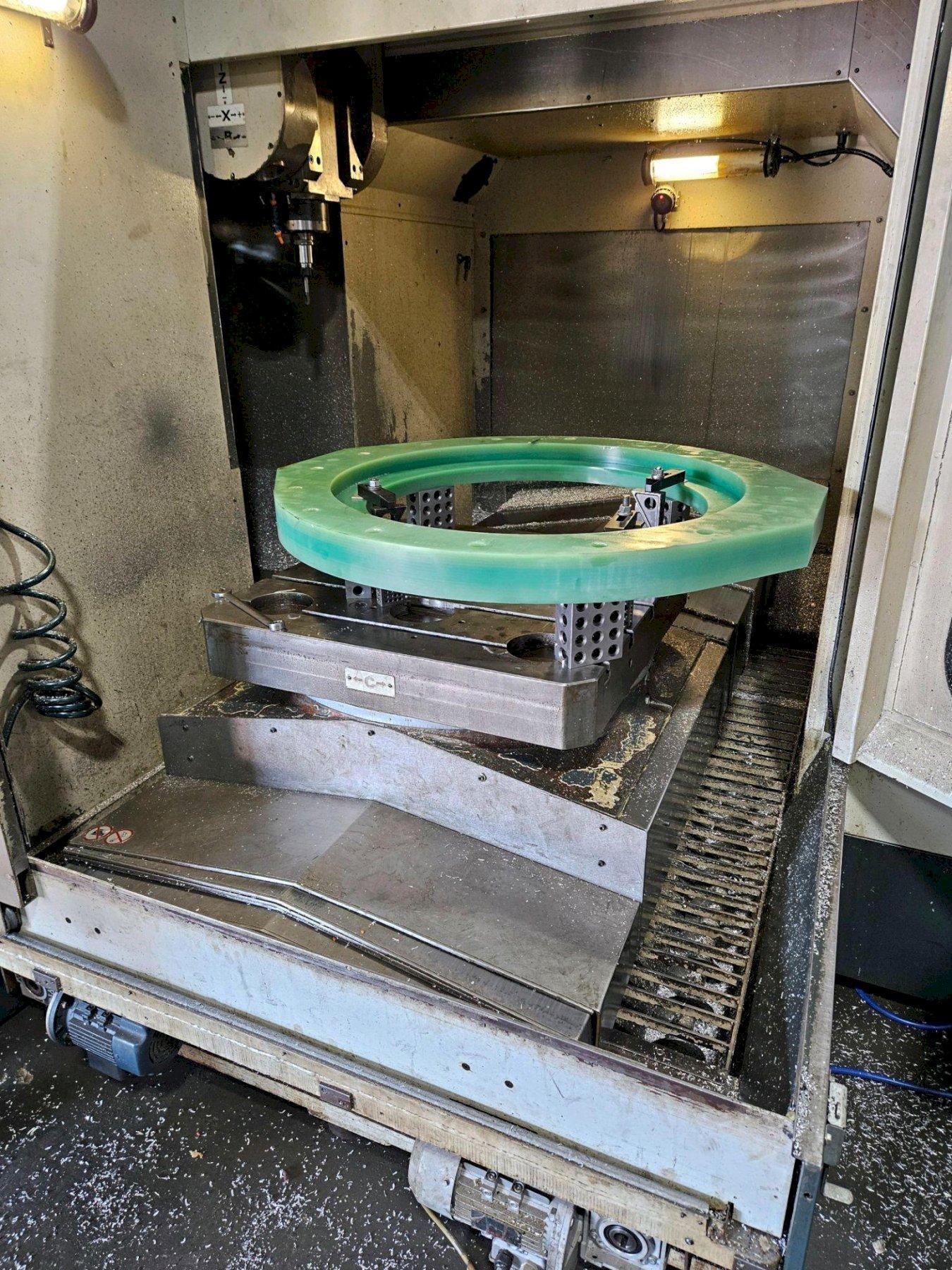

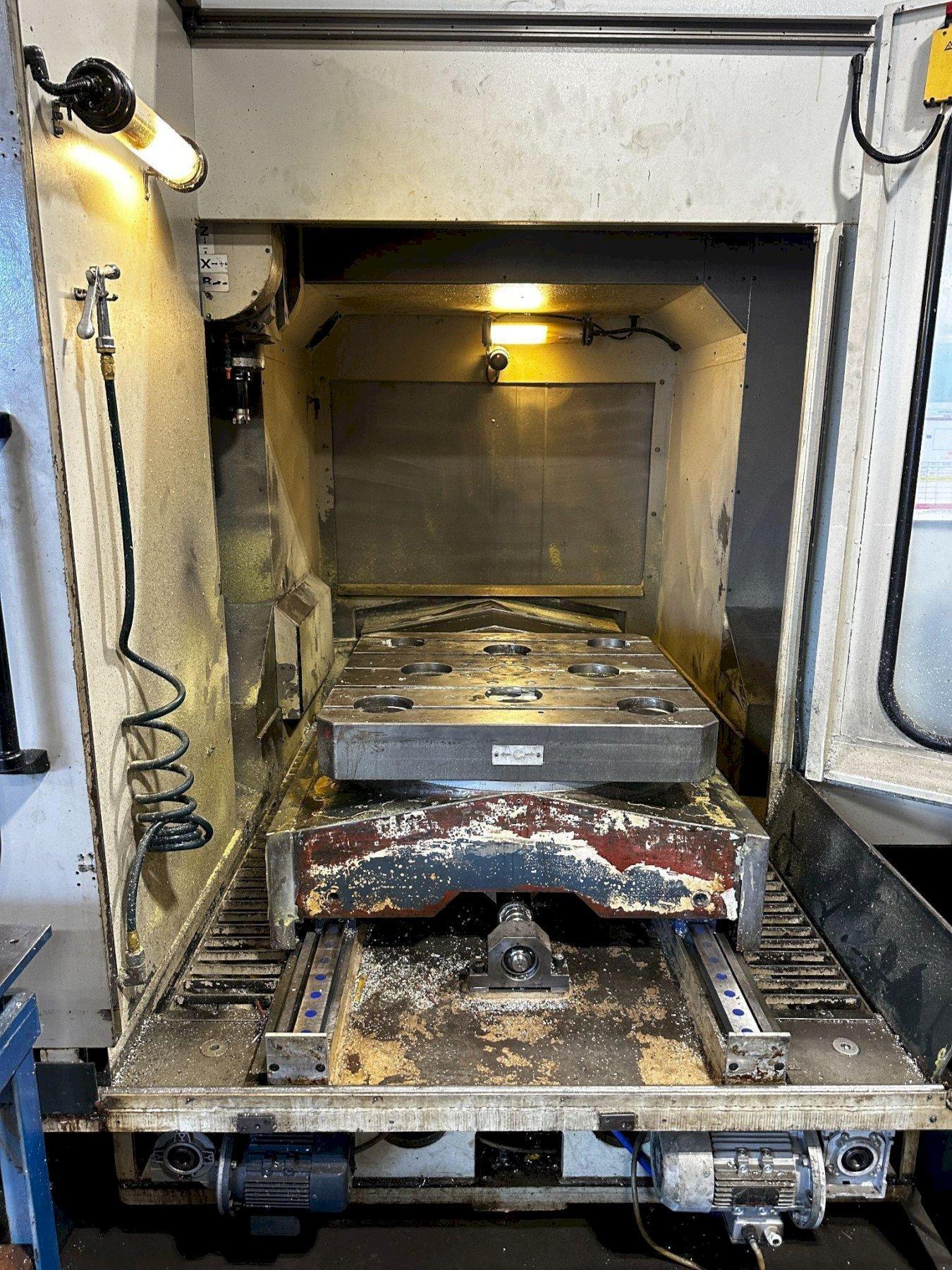

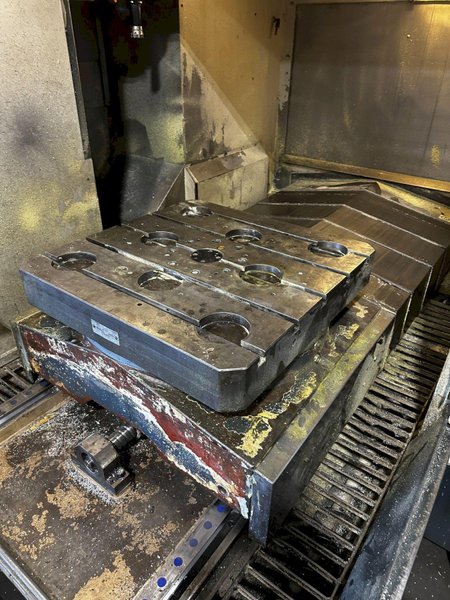

• Integrated rotary-tilt table for flexible part orientation
• High-speed HSK-A63 spindle ideal for fine finishing and rapid material removal
• Siemens 840D control system with advanced 5-axis interpolation features
• Heavy-duty construction ensures vibration reduction and thermal stability

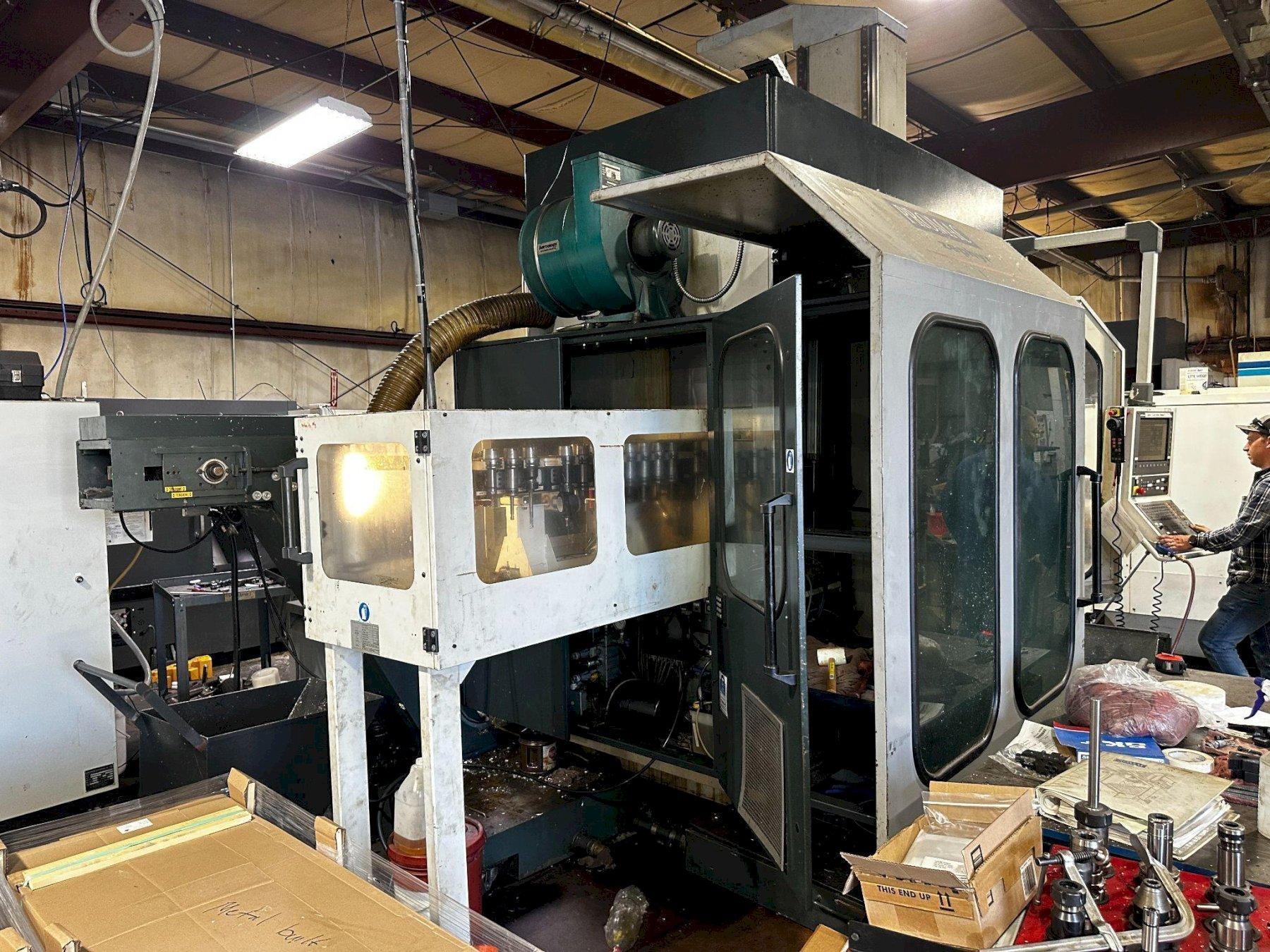

• 40-position automatic tool changer for efficient production cycles
• Compact machine footprint for space-conscious production floors
• Suited for both roughing and finishing operations in a single setup

Applications

• Aerospace part production requiring multi-face access
• Precision mold and die manufacturing
• Complex 3D machining for automotive and motorsport components
• Medical devices and prosthetic tooling
• General engineering tasks demanding simultaneous multi-axis capability
