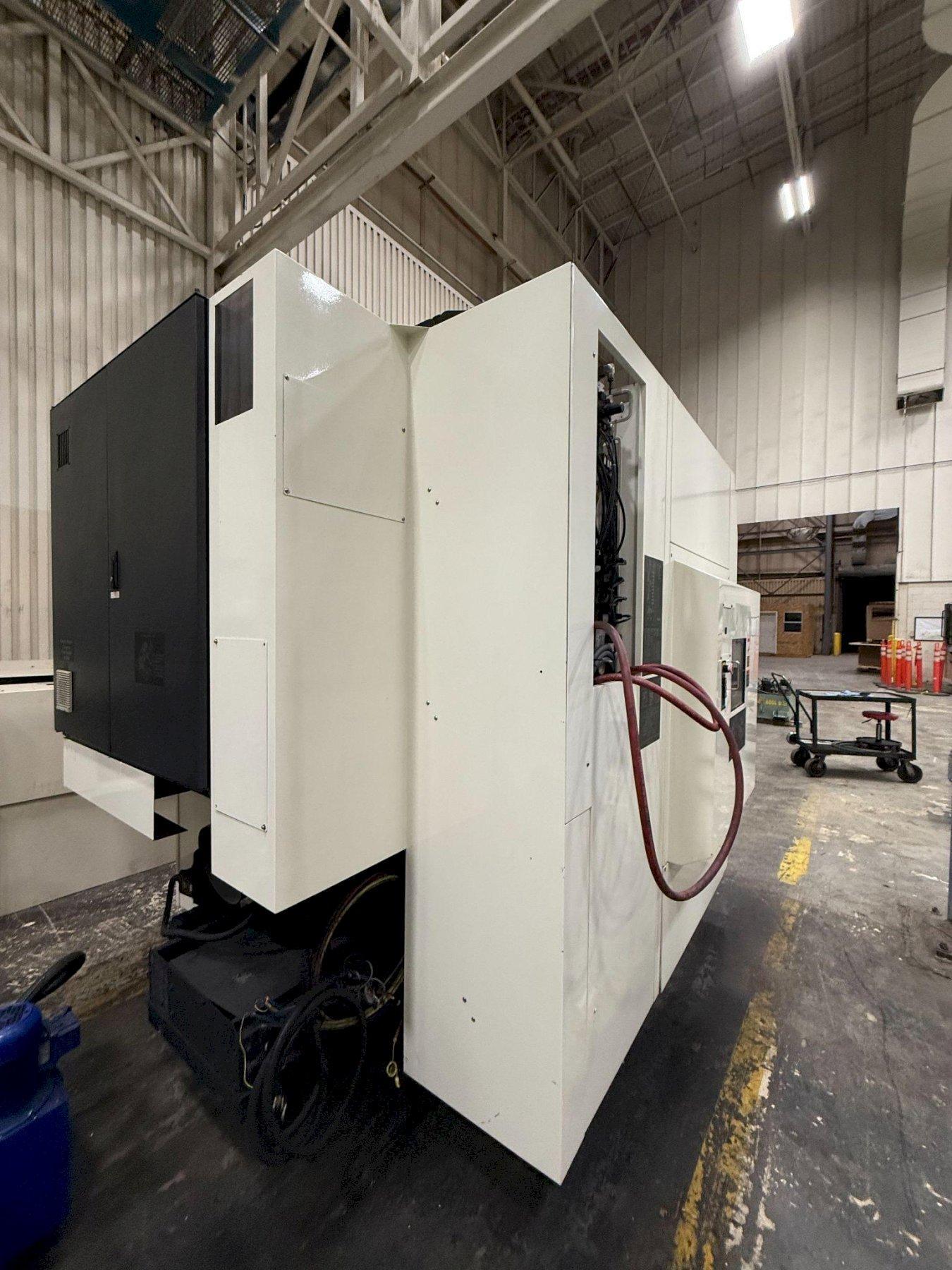

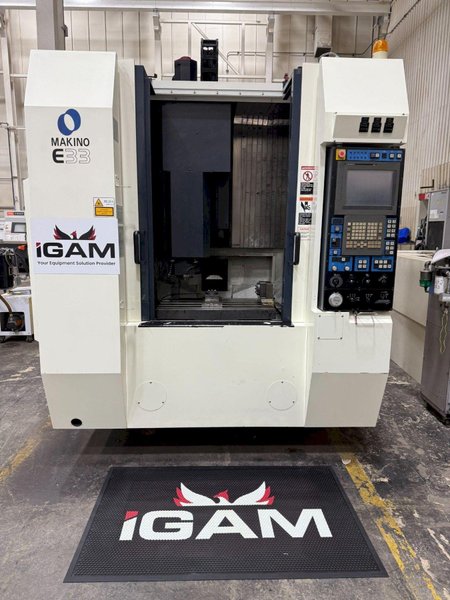

MAKINO E33 GRAPHITE VERTICAL MACHINING CENTER

Product Specifications

• Model: Makino E33

• Year: 2005

• Machine Type: Graphite Vertical Machining Center

• Control: Professional 5 (Fanuc 310is Model A)

• X-Axis Travel: 25.6 inches

• Y-Axis Travel: 17.7 inches

• Z-Axis Travel: 17.7 inches

• Spindle Speed: 40,000 RPM

• Tool Changer Capacity: 30-tool automatic tool changer (ATC)

• Maximum Tool Length: 9.84 inches

• Maximum Tool Weight: 2.3 lbs

• Auxiliary Equipment: BLUM laser, Extor graphite dust collector, Oilmatic spindle chiller

Key Features

• 40,000 RPM high-speed spindle ideal for fine, detailed graphite machining

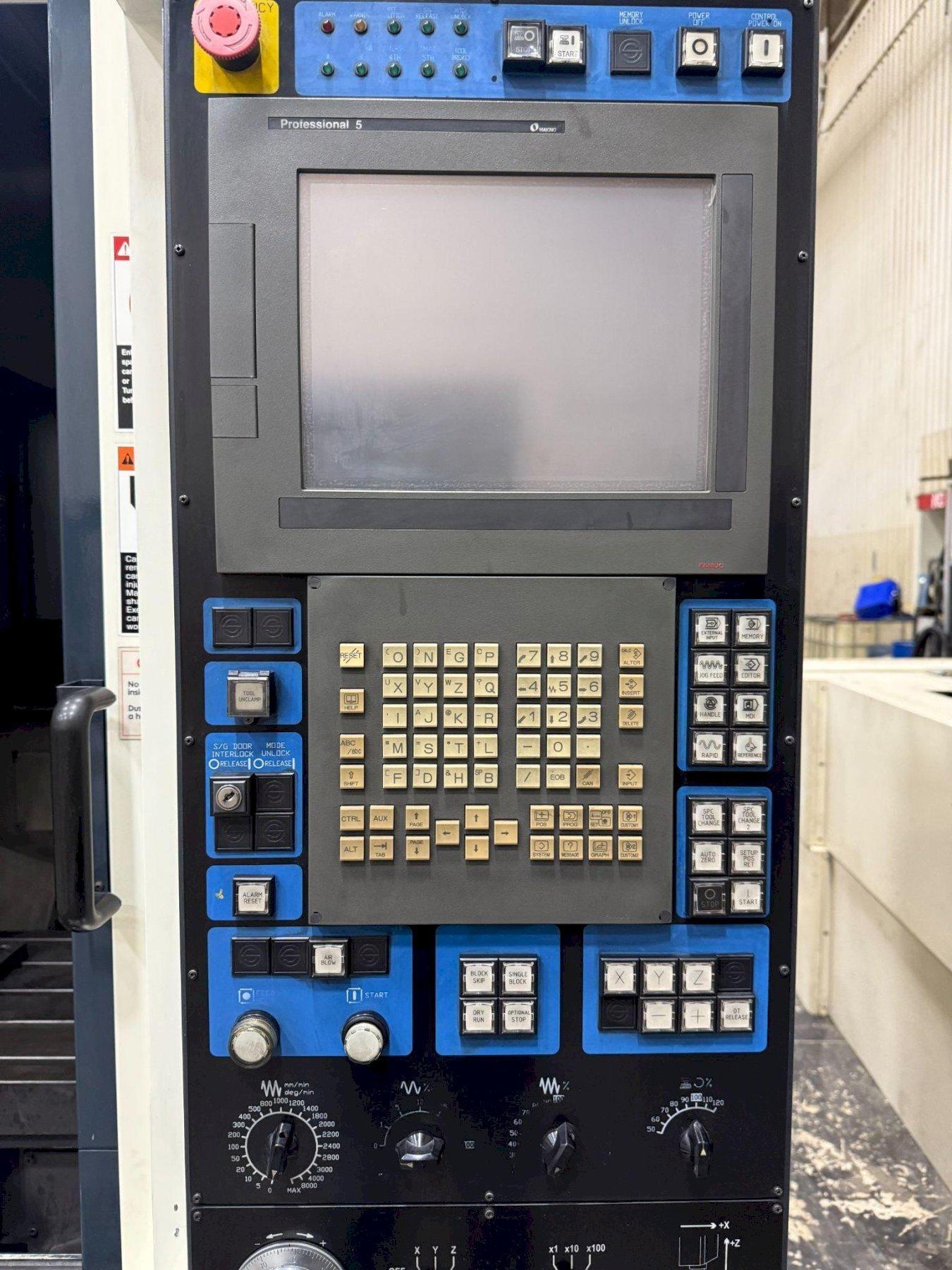

• Professional 5 control with Fanuc 310is for precise, intuitive CNC operation

• BLUM laser system ensures high-accuracy tool measurement and compensation

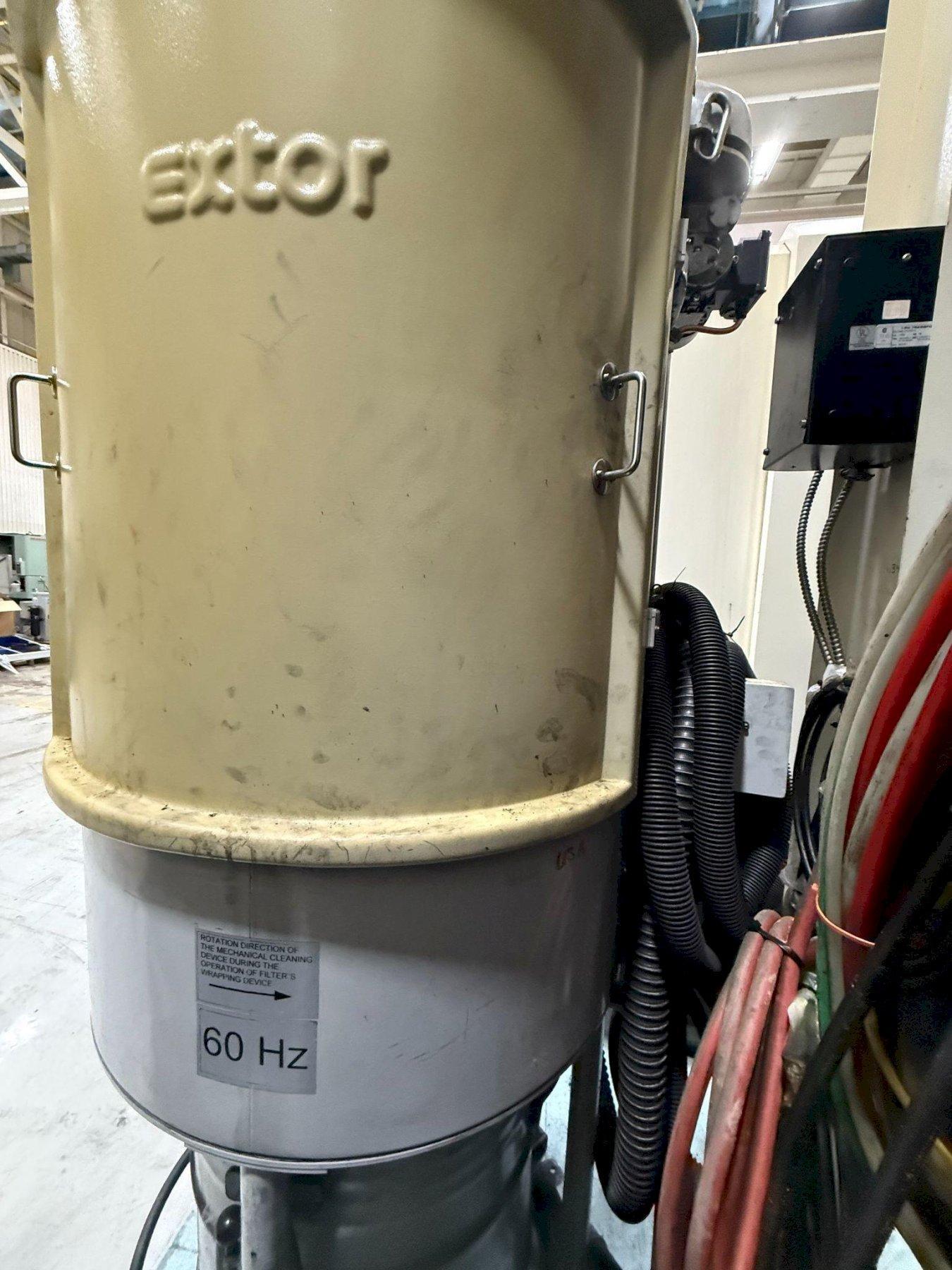

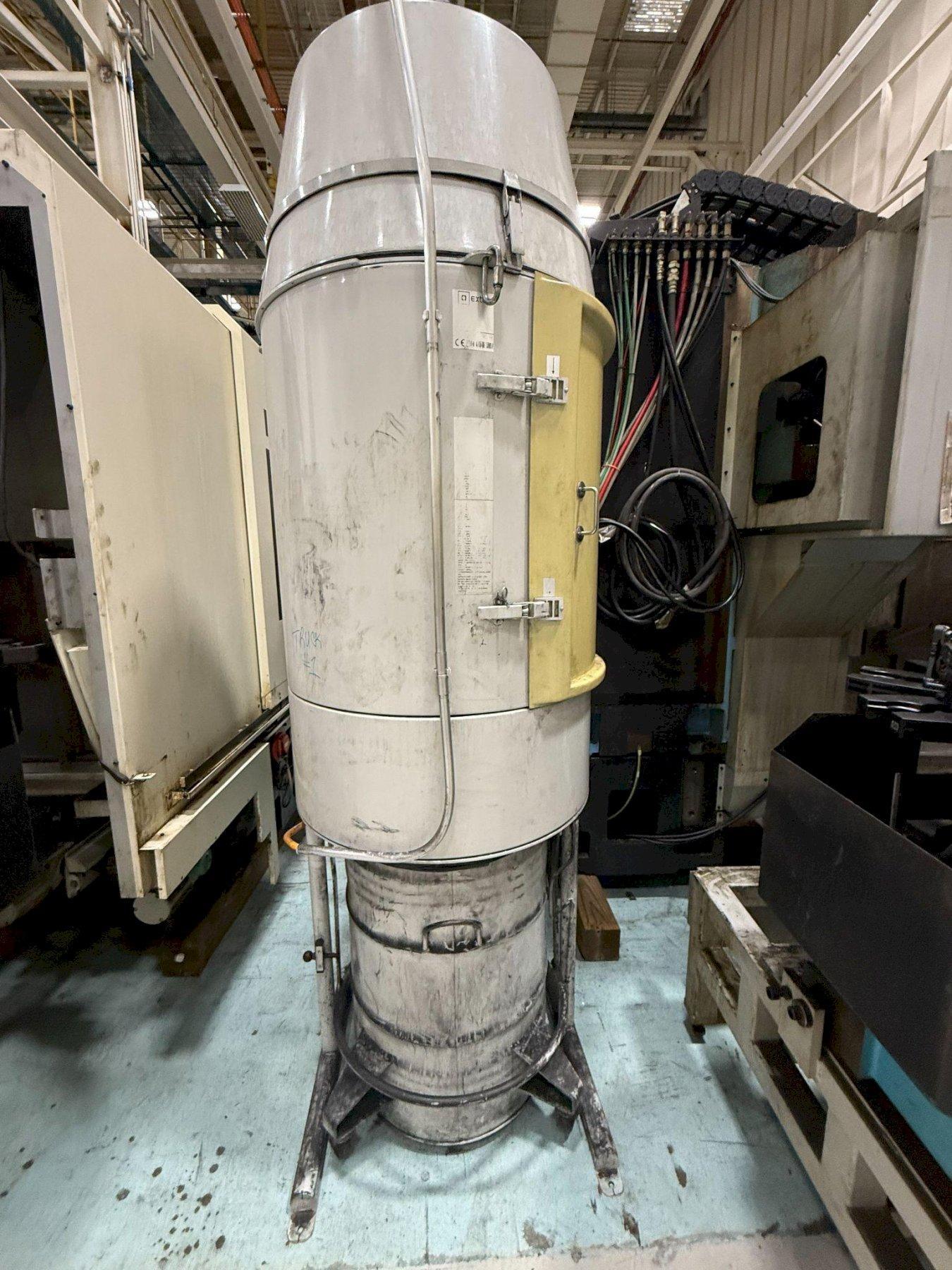

• Graphite dust management via Extor system ensures clean operation and part integrity

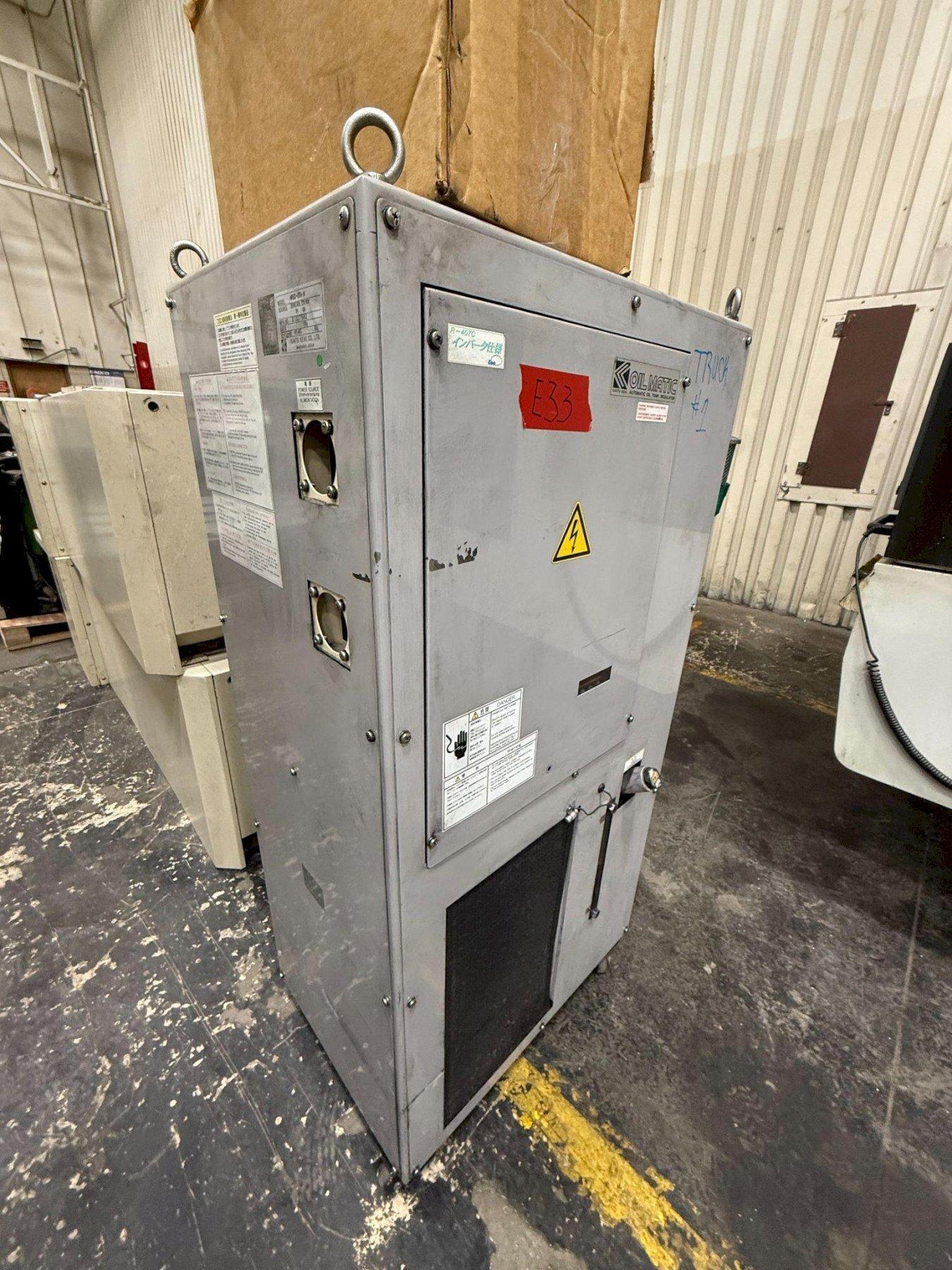

• Oilmatic spindle chiller maintains thermal stability for consistent tolerances

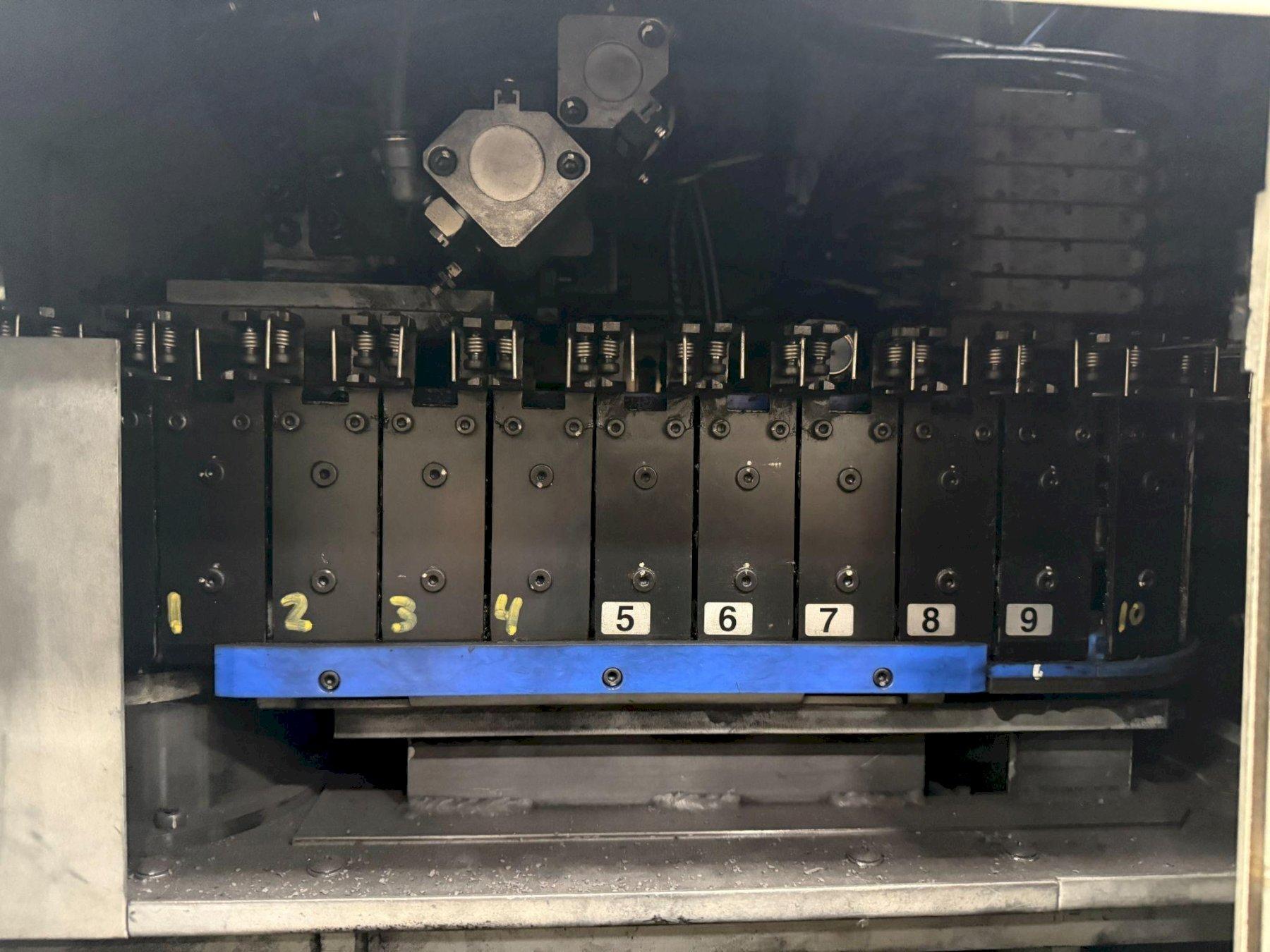

• 30-position ATC supports complex toolpaths and high mix machining

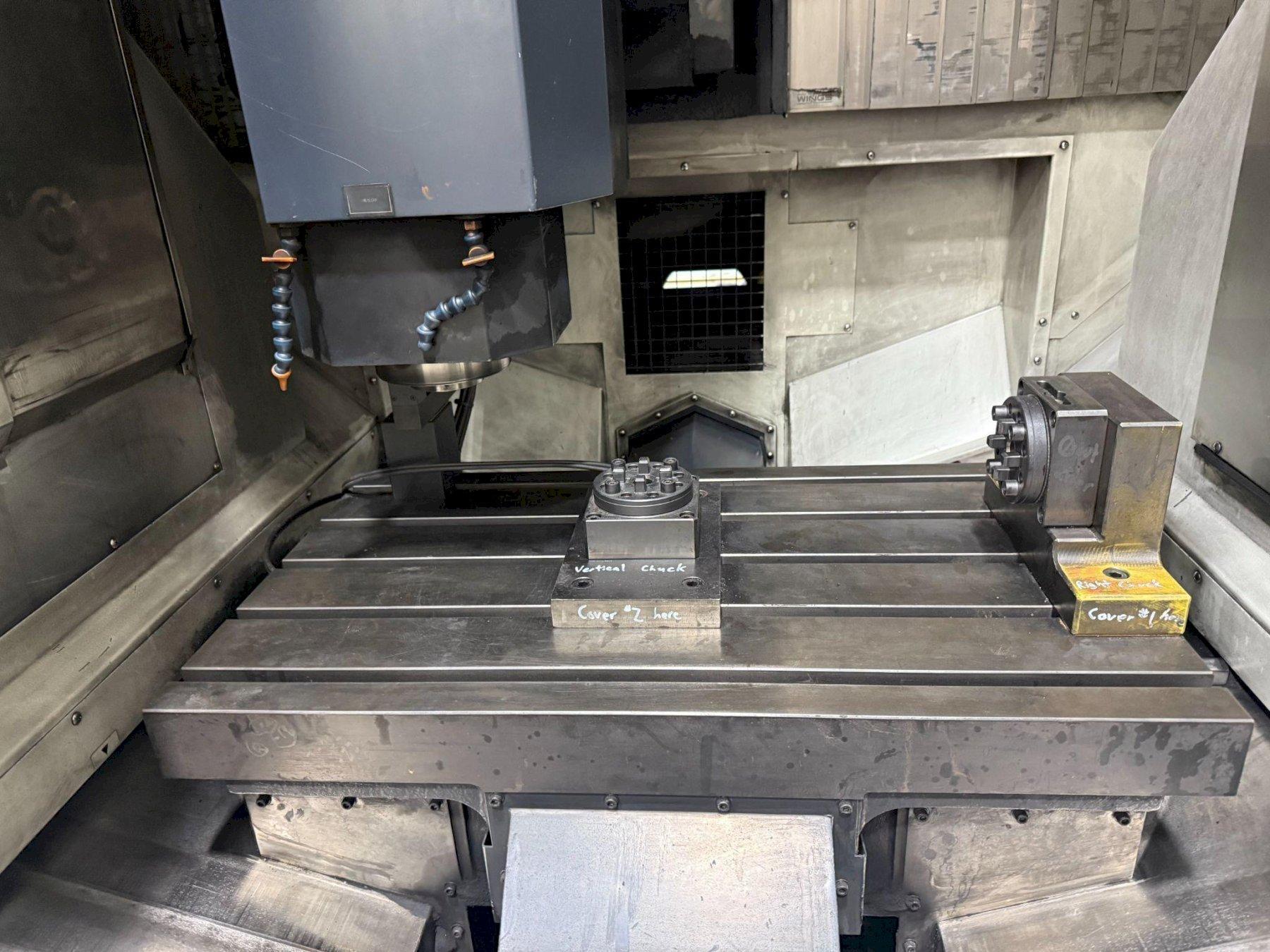

• Compact yet spacious work envelope for mold making, EDM electrode machining, and more

Applications

• Graphite electrode manufacturing for EDM processes

• Precision mold and die work requiring tight tolerances and high finish

• Aerospace and automotive prototyping involving carbon-based materials

• Medical and electronics parts from brittle, dust-sensitive materials

• Clean machining environments where dust collection is critical
