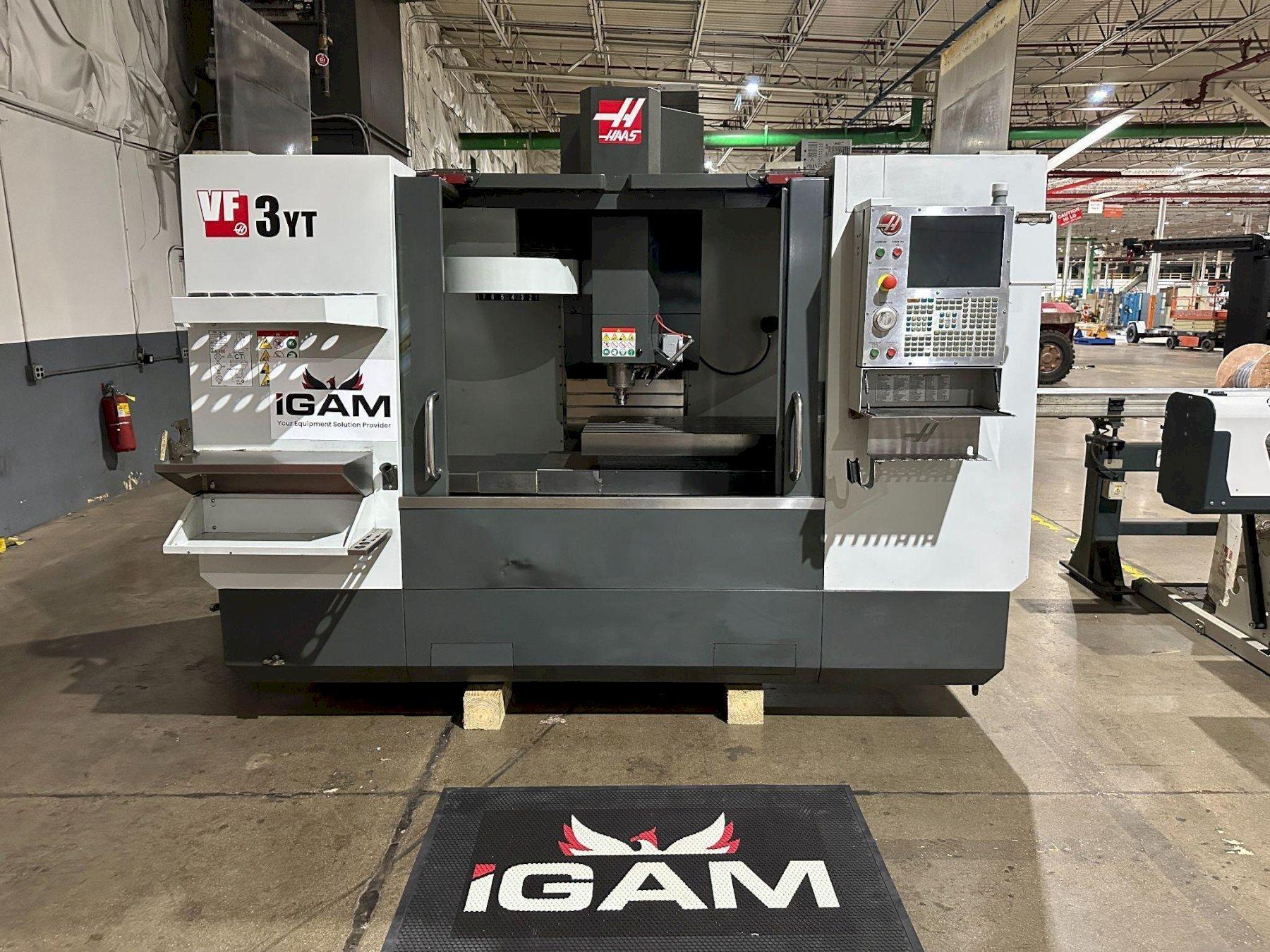

2016 HAAS VF-3YT Vertical Machinery Center

Product Specifications

• Model: HAAS VF-3YT
• Year: 2016
• Machine Type: CNC Vertical Machining Center

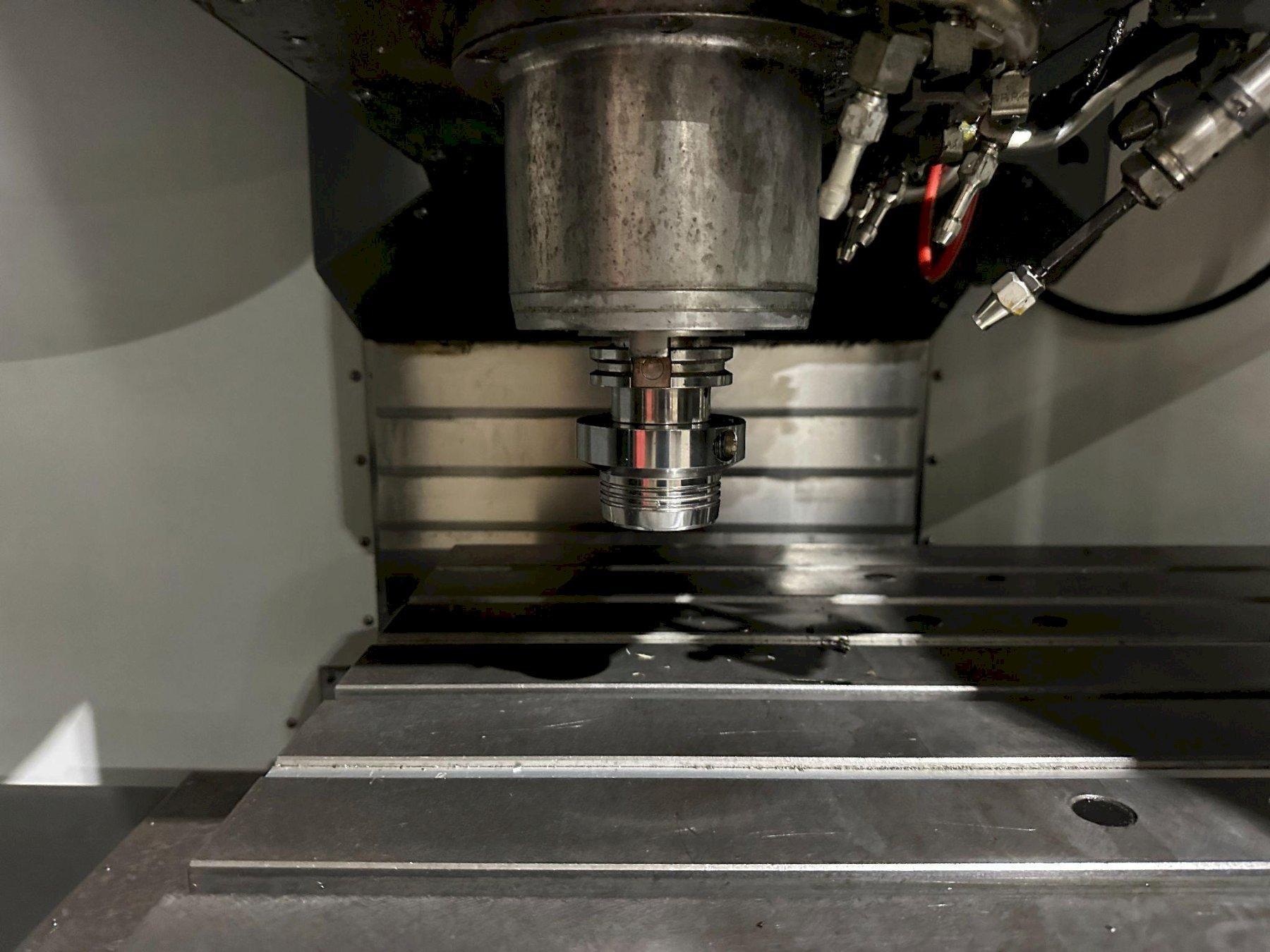

• Spindle Speed: Up to 10,000 RPM
• Spindle Type: Inline direct-drive

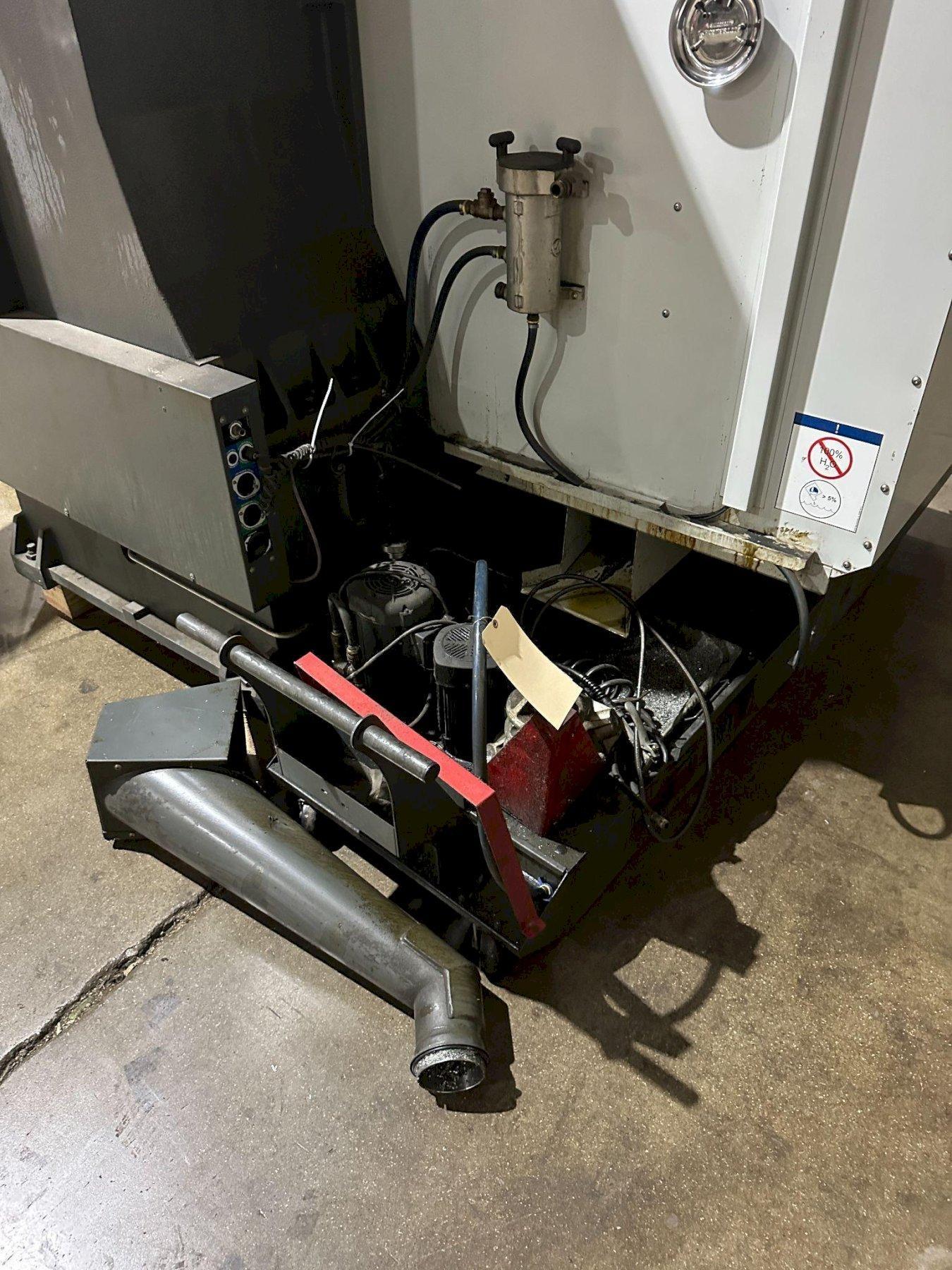

• Coolant System: Through-spindle coolant (TSC)
• Axis Configuration: 3-axis with 4th-axis rotary attachment included
• Control: HAAS CNC with VPS (Visual Programming System) editing
• Networking: Wireless connectivity enabled
• Tapping: Rigid Tapping feature included
• Travel:
  • ~X-Axis: 40″
  • ~Y-Axis: 26″ (extended travel)
  • ~Z-Axis: 25″
• Table Size: 48″ x 18″
• Tool Changer: 20+1 side-mount or carousel type (varies by setup)
• Construction: Cast-iron frame with HAAS reliability

Key Features

• 10,000 RPM spindle allows for high-speed machining and fine finishes
• Through-spindle coolant system improves tool life and chip evacuation

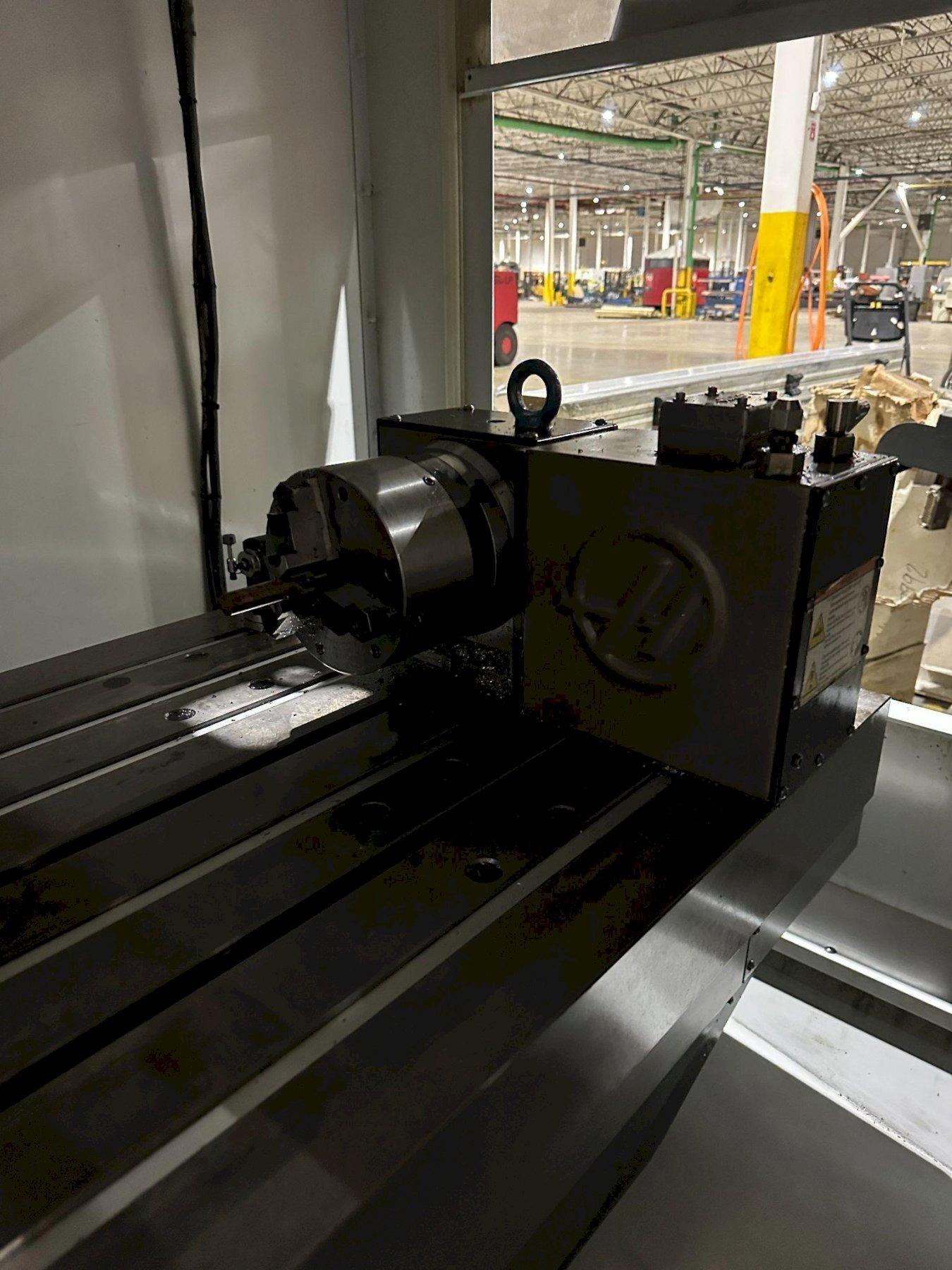

• 4th-axis rotary capability expands machining flexibility (included)
• VPS editing enables simplified on-machine programming
• Wireless networking allows seamless file transfer and monitoring
• Rigid Tapping ensures thread accuracy without the need for tension/compression holders
• Heavy-duty construction minimizes vibration and increases machining precision
• Trusted HAAS performance and service support

Applications

• Precision component machining for aerospace, automotive, and defense
• Mold and die work requiring high-speed cutting and fine detail
• High-mix, low-volume contract machining
• Custom parts fabrication and prototyping
• Multi-face machining with rotary axis integration
