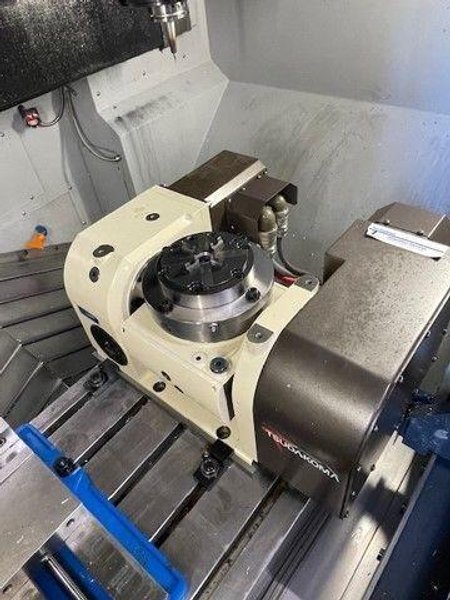

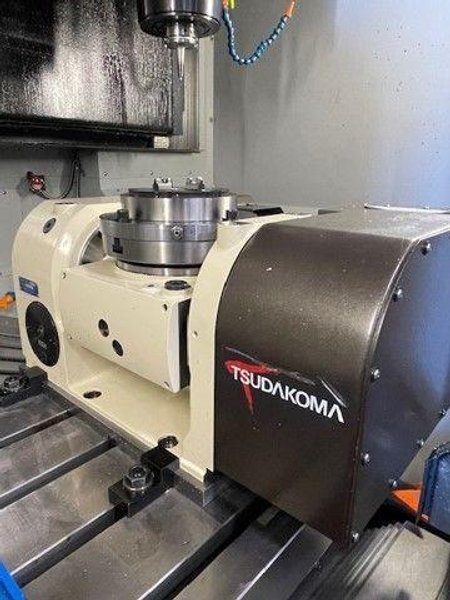

TSUDAKOMA TWA160 HIGH SPEED TILTING ROTARY TABLE

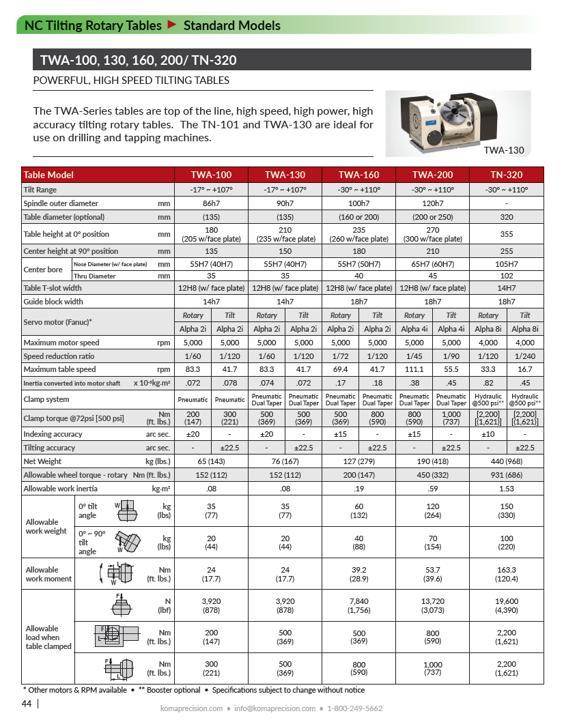

Product Specifications

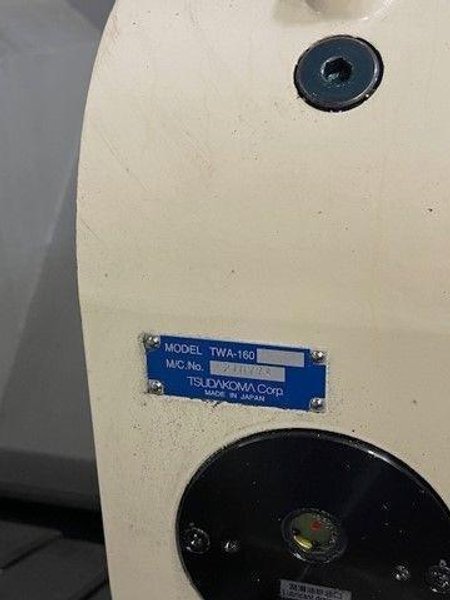

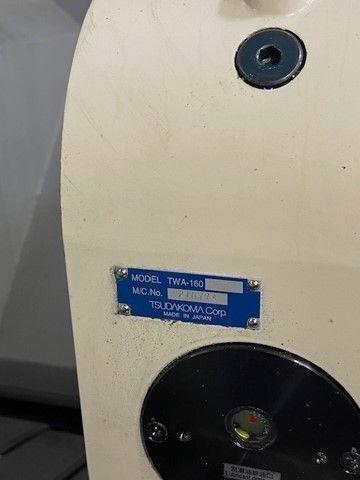

• Model: TWA160
• Type: High-Speed Tilting Rotary Table
• Table Diameter: Approx. 160 mm (6.3 in)
• Tilt Axis: Integrated (4th and 5th axis capability)
• Tilting Range: Typically ±110° (varies by configuration)
• Rotation Speed: High-speed operation (model-specific, typically up to 33.3 RPM or higher)
• Indexing Accuracy: High precision, typically ±10 arc seconds
• Drive Type: Roller gear cam or direct drive (varies by build)
• Mounting Style: Vertical or horizontal
• Location: Michigan (MI)

Key Features

• High-speed rotary and tilting motion for dynamic multi-axis operations
• Compact 160 mm table size fits a variety of machining center configurations
• Ideal for small to medium part production requiring complex angles
• Strong clamping and braking mechanism for rigid positioning
• Excellent repeatability and precision with minimal backlash
• Compatible with most CNC controls (Fanuc, Mitsubishi, Siemens, etc.)
• Enhances machine versatility for 4+1 or full 5-axis machining
• Built for continuous, demanding production environments
• Renowned Tsudakoma engineering ensures long-term reliability

Applications

• Aerospace components with compound contours
• Medical device machining requiring angled features
• Mold and die components with undercuts or angled pockets
• Precision automotive parts involving multi-face machining
• General 5-axis prototyping and high-accuracy production
