48″ X .062 X 10,000 LB CWP CUT TO LENGTH CTL LINE
Brand
Not specified
Category
Type
Model
Line
Stock #
IGAM1070004
Year
Not specified
Condition
Not specified
Location
Michigan

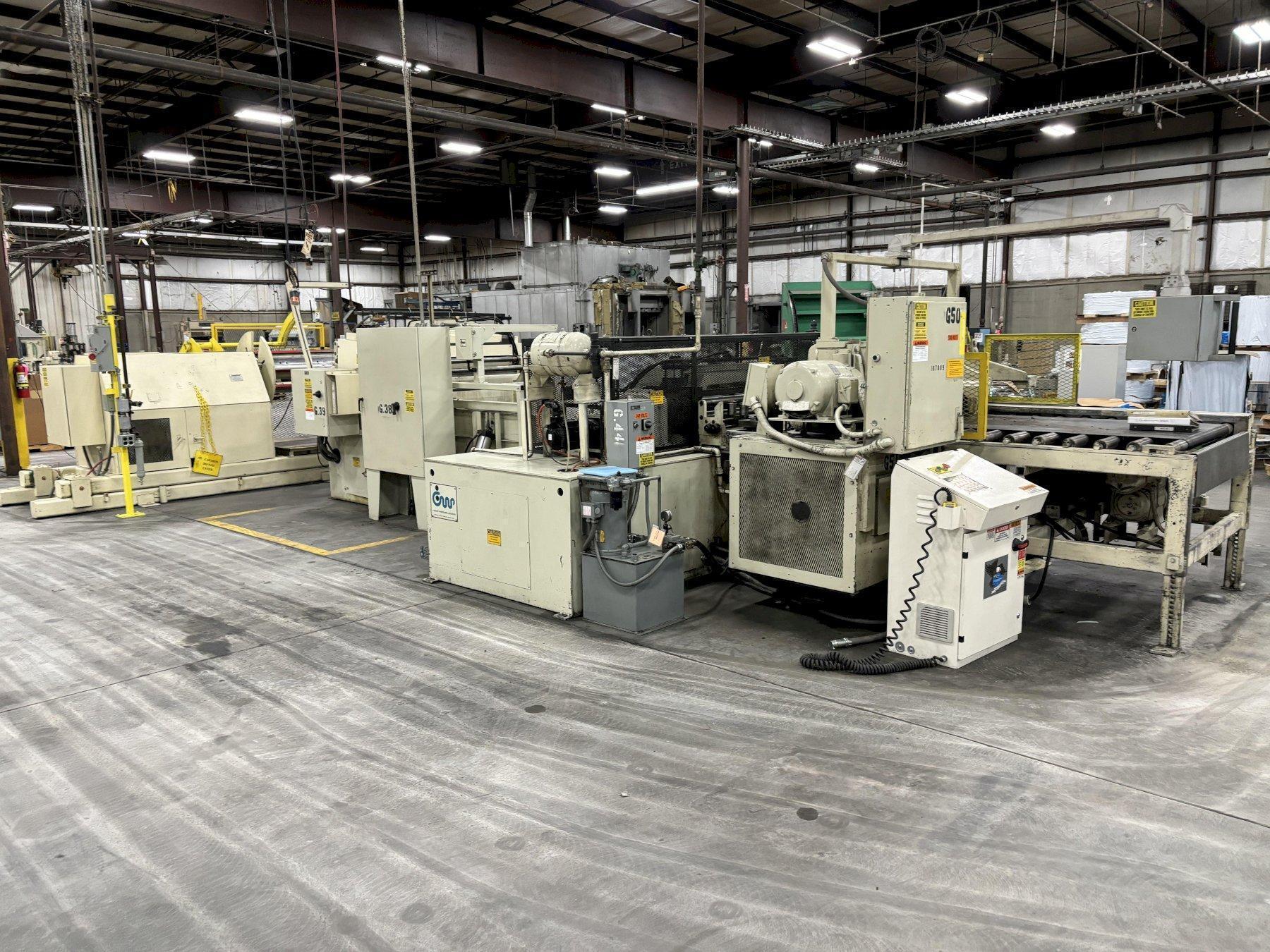

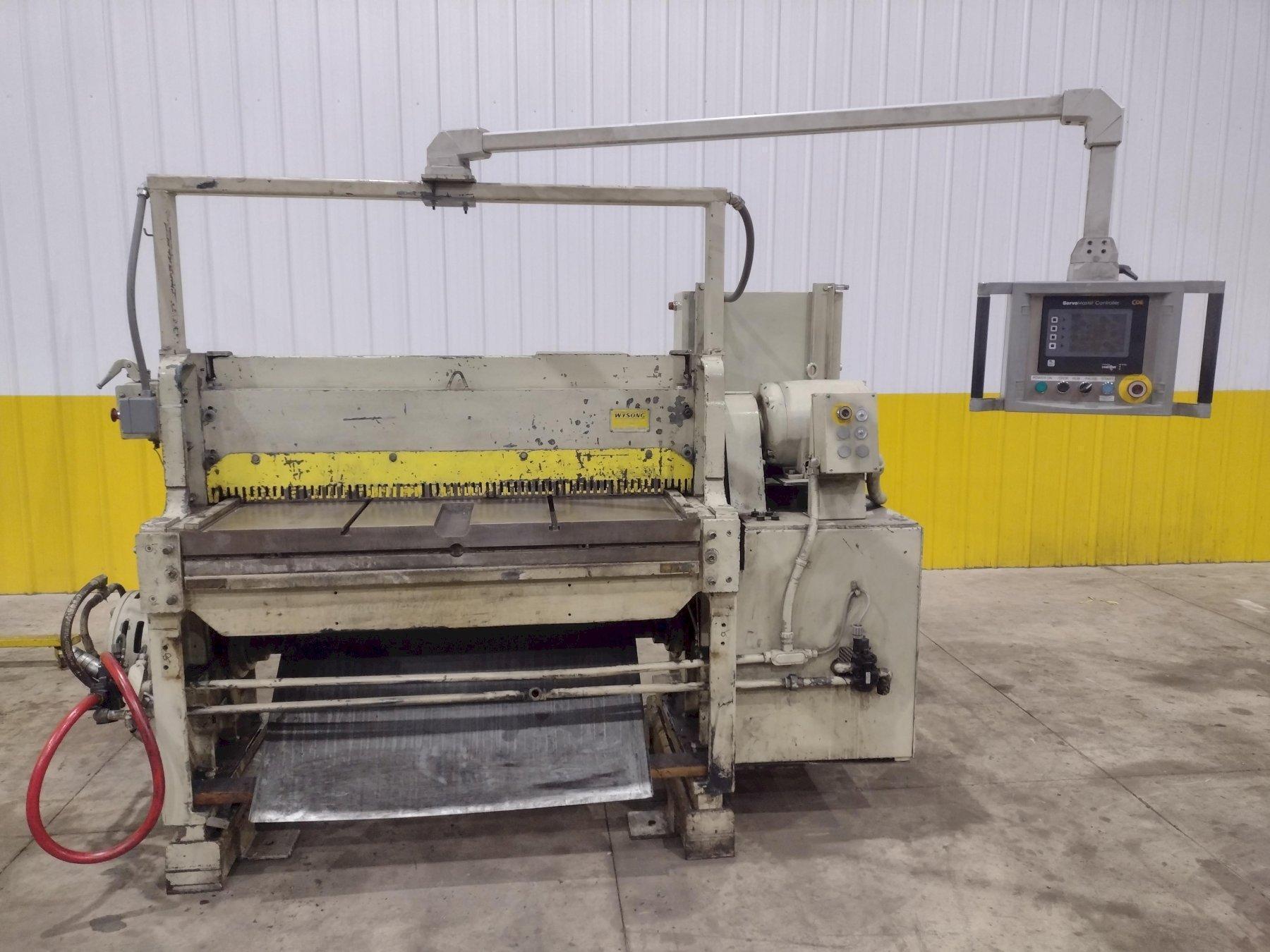

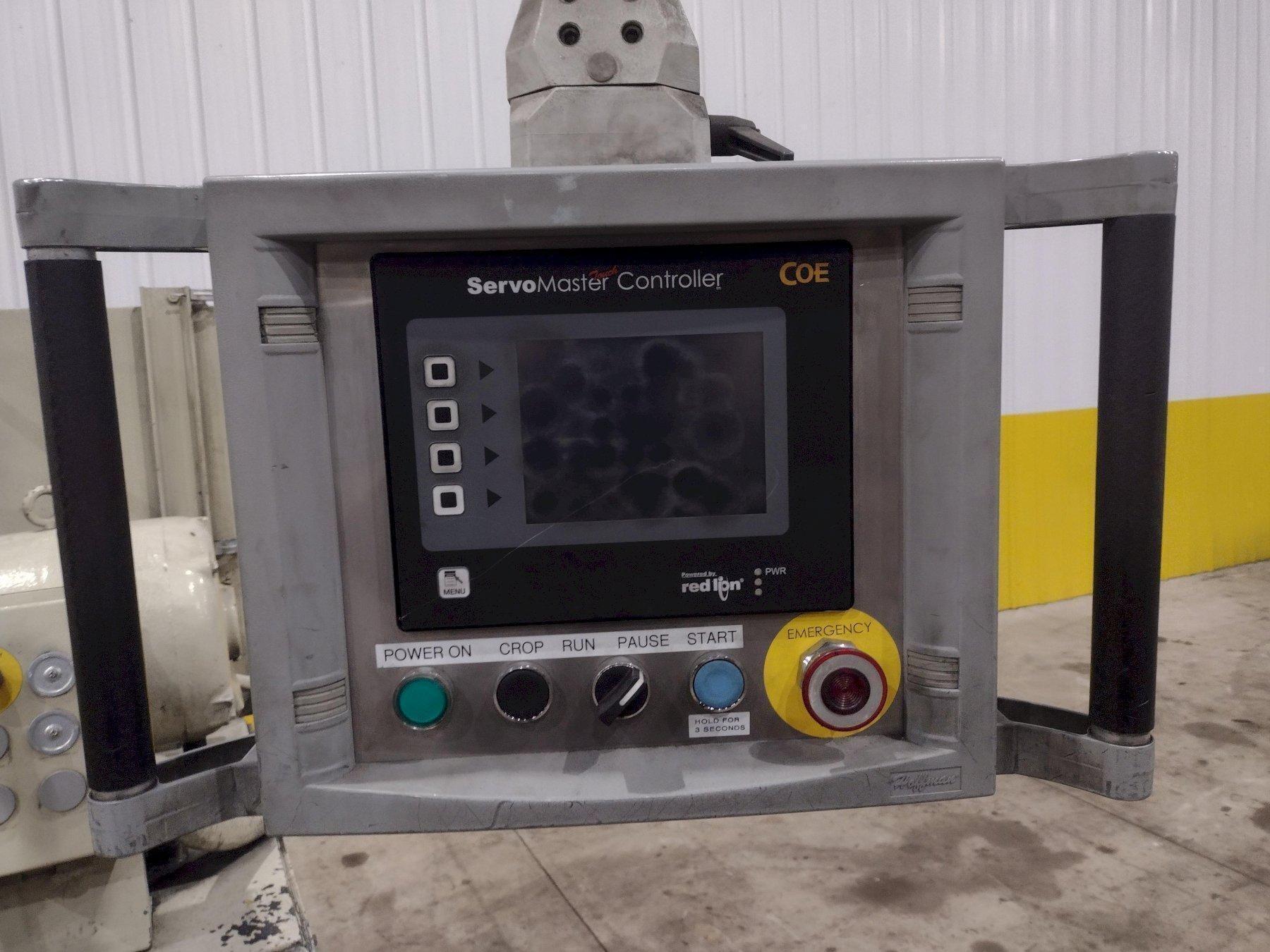

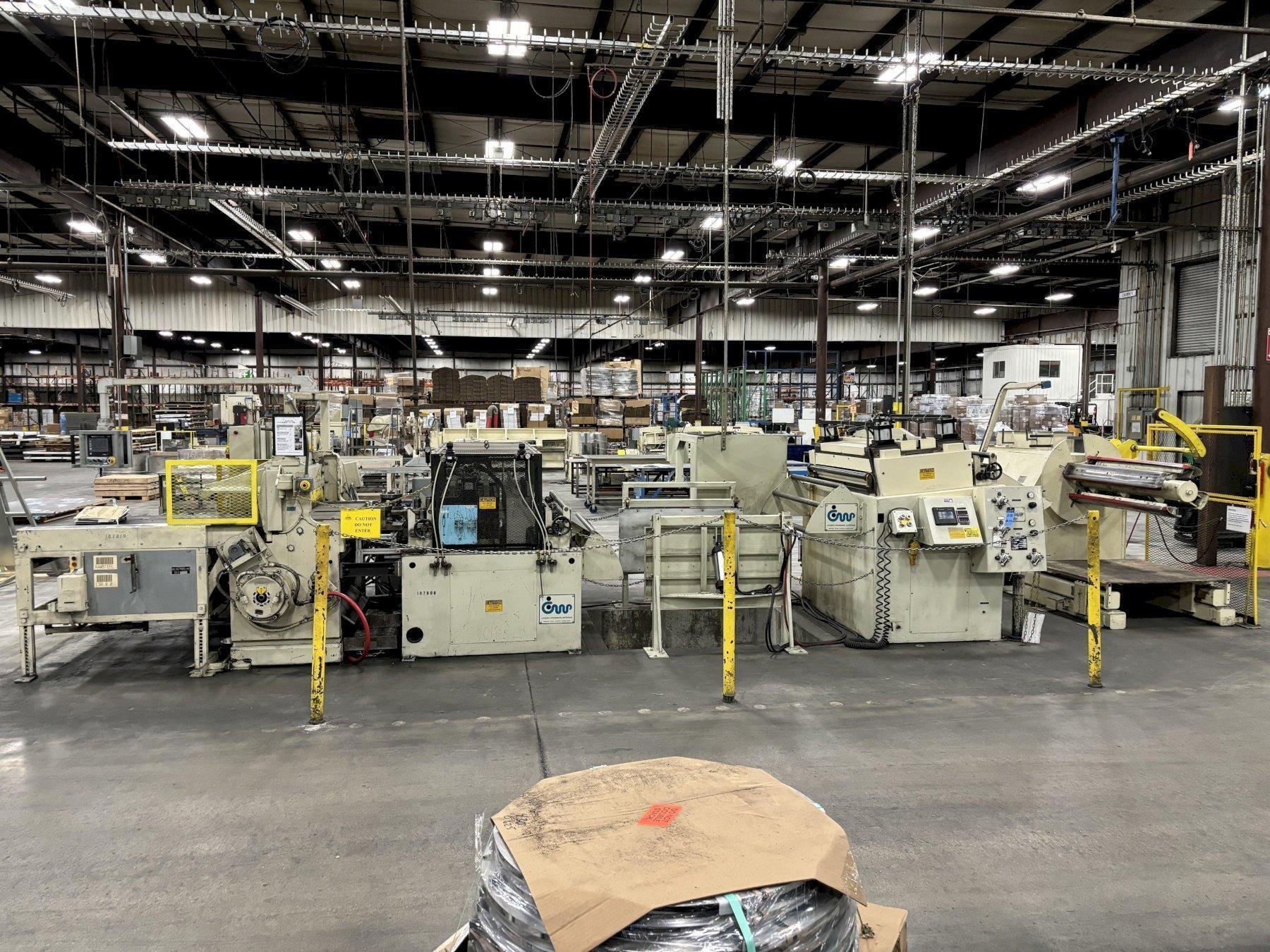

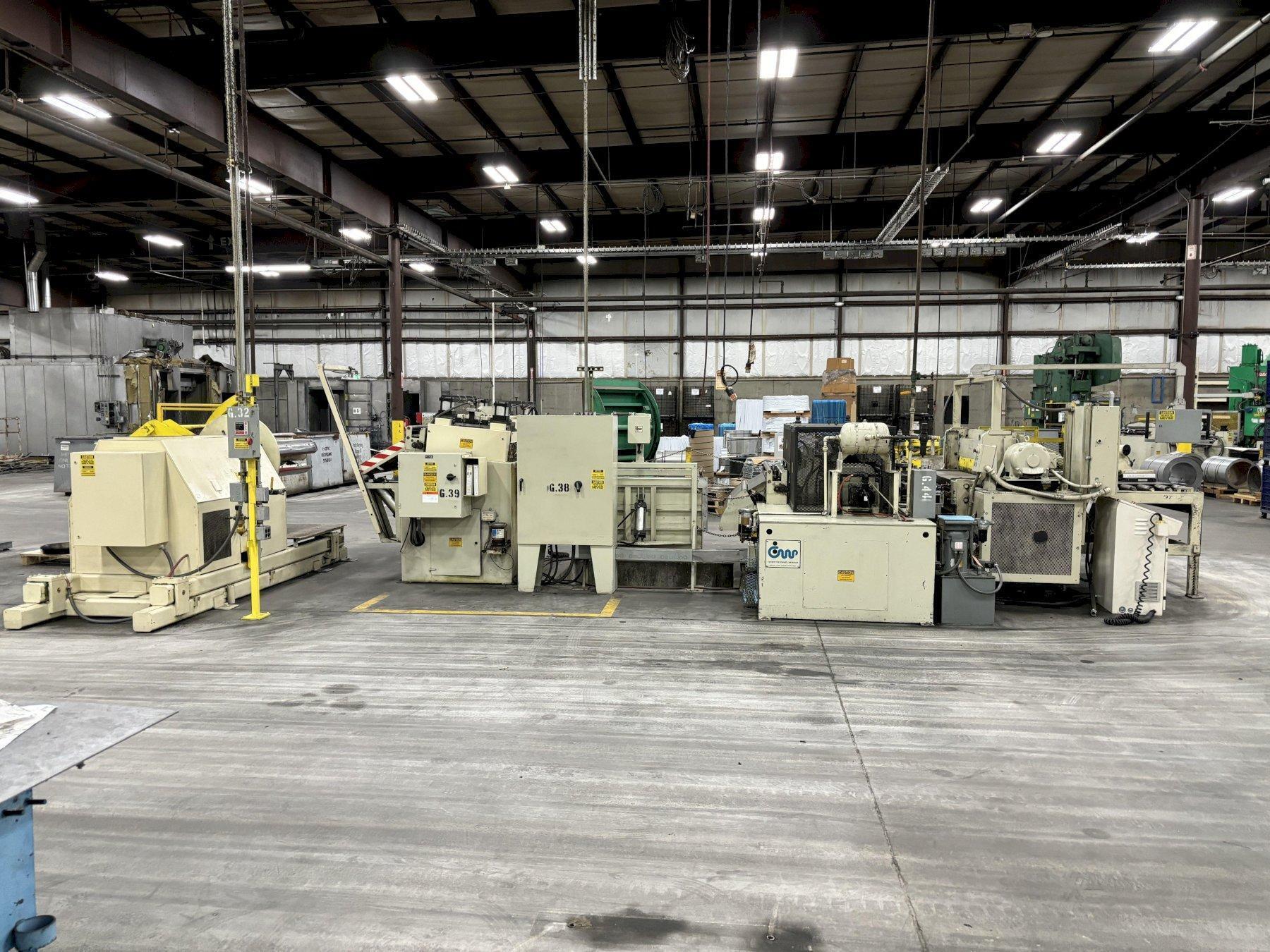

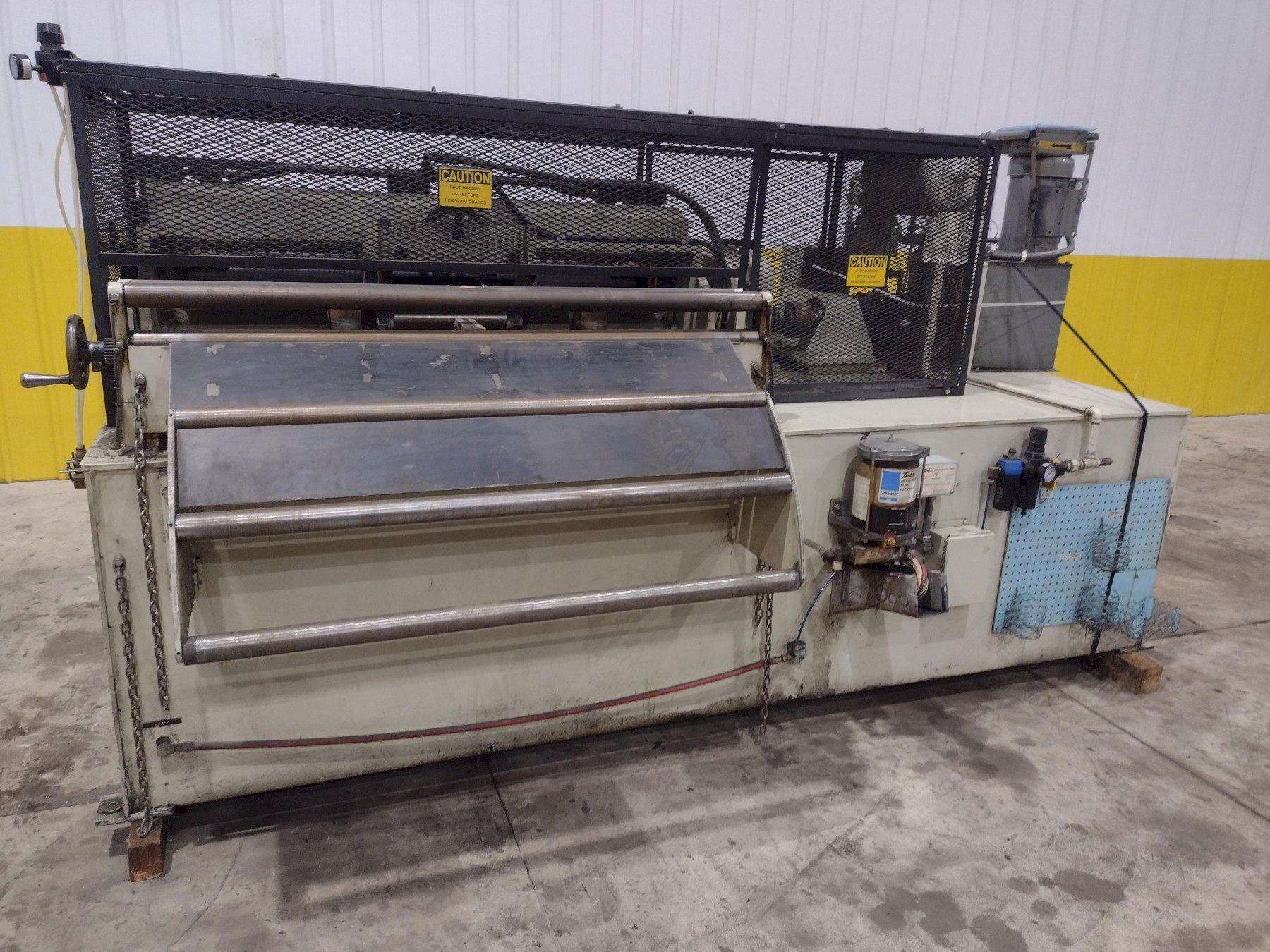

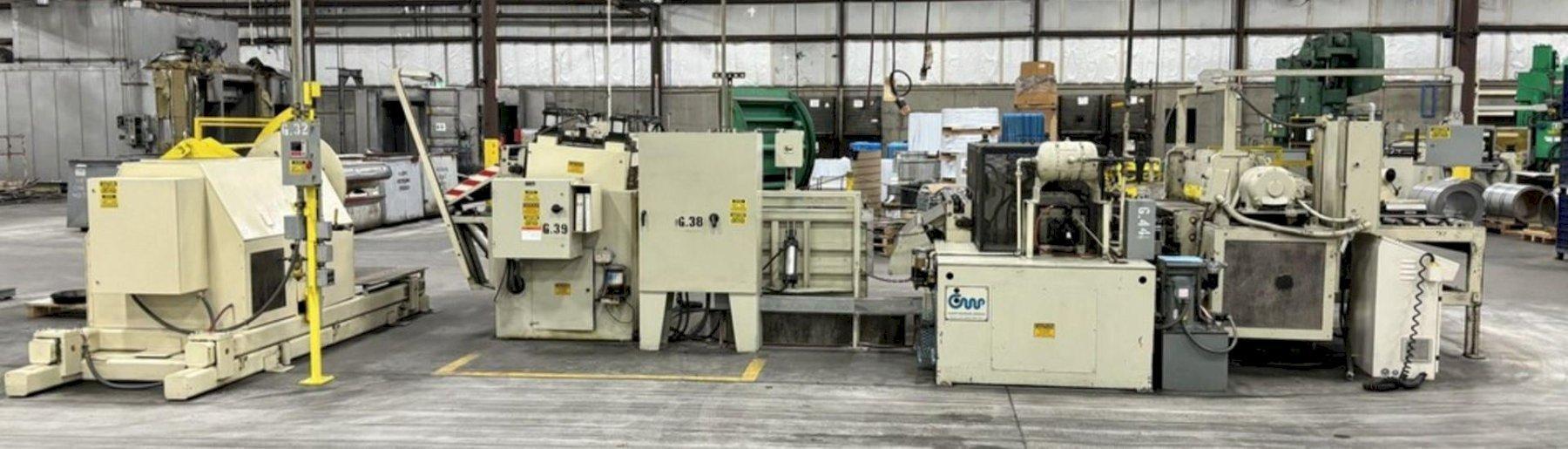

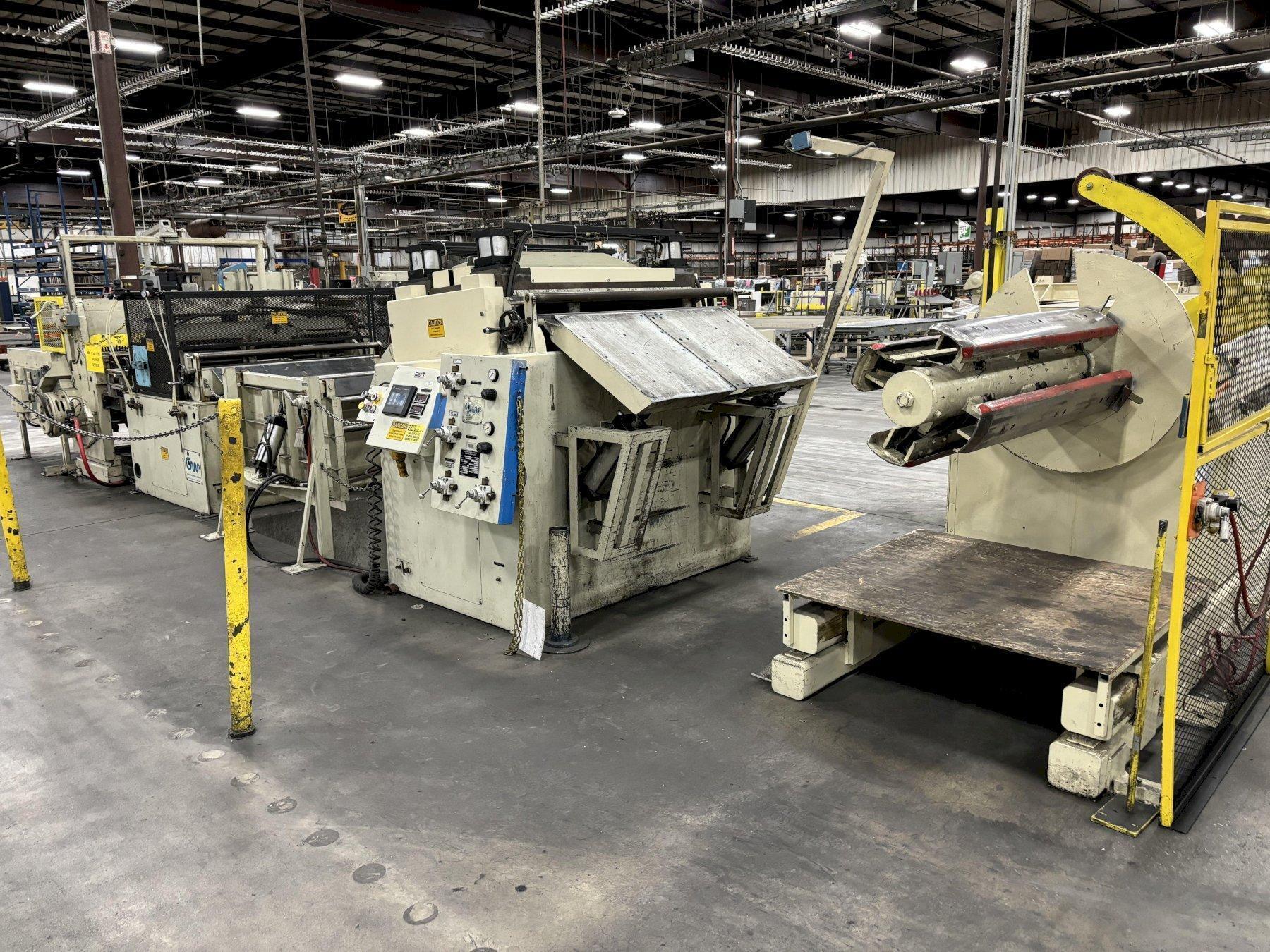

OverviewThe Used CTL Cut-To-Length Line, Model: Line is a robust and efficient material processing system designed to uncoil, level, and precisely cut metal coil stock to specified lengths. With a 48-inch width capacity, .062-inch thickness capability, and a 10,000 lb coil weight limit, this line is ideal for medium-duty applications across various metal fabrication and manufacturing sectors. Currently located in NW Ohio, this CTL line offers reliable performance for companies looking to enhance throughput and sheet accuracy in their coil processing operations. Specification TableCwp Cut To Length Line Capacity 48" X .062" (14 Gauge) X 10,000 Lbs Direction R --> L Consisting Of: Gary Uncoiler Coil Reel Serial 175 Model 4500-Sp-48 Capacity 10,000 Llbs Cwp Strightener Serial C801 Model 48D7 Peeler Table Entry Pinch Rolls Width 48" Thickness .021" Top .062" Speed 1200 Ipm Motorized Exit Pinch Rolls Cascade Rolls Out Cwp Threading Table Serial C800 Model 48Ptt21 2 Sides Cwp Servo Feeder Coe Servo Controls Servo Master Touch Serial C799 Model Smxhd48Se4 Capactiy 48" W X .062" Thick Feed Length 999.999 Pass Line 42" Speed 30 Fl At 85 Sec Entry Guide Cascade Rolls In Hydraulic Notching Stations 2 Wysong Shear Serial P46-118 Model Hs-1252 Capacity 14 Gauge Air Clutch Gary Run Out Table Serial 175 Model 4500-Sp-48 Hydraulic Lift Table 30 X 61 X 15" H Caster WheelsProduct Specifications
