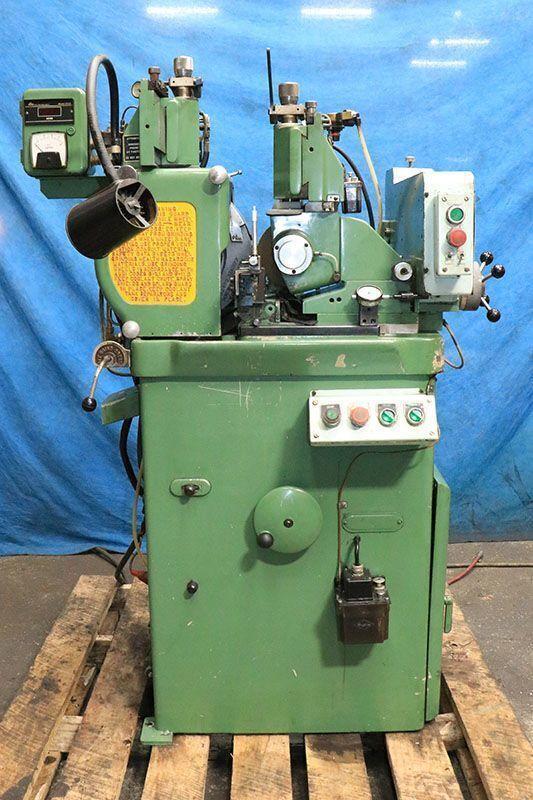

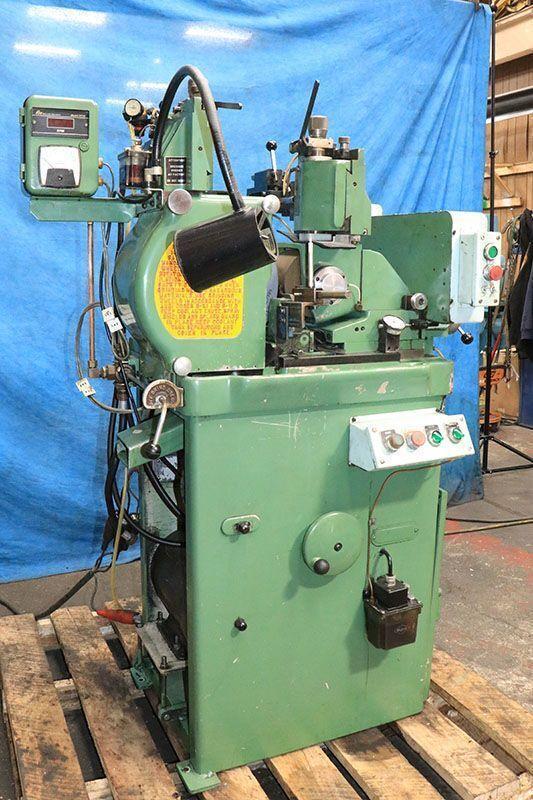

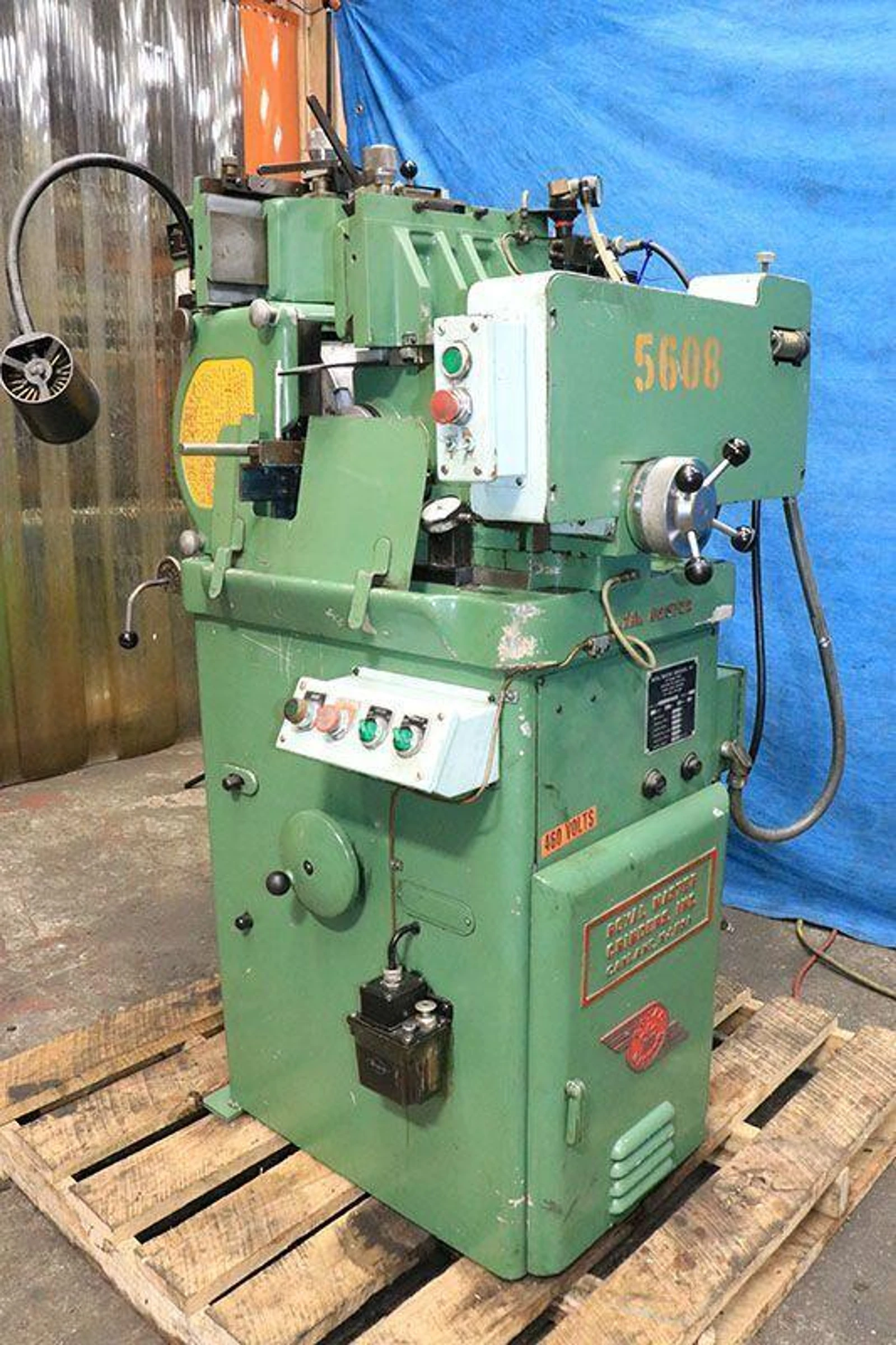

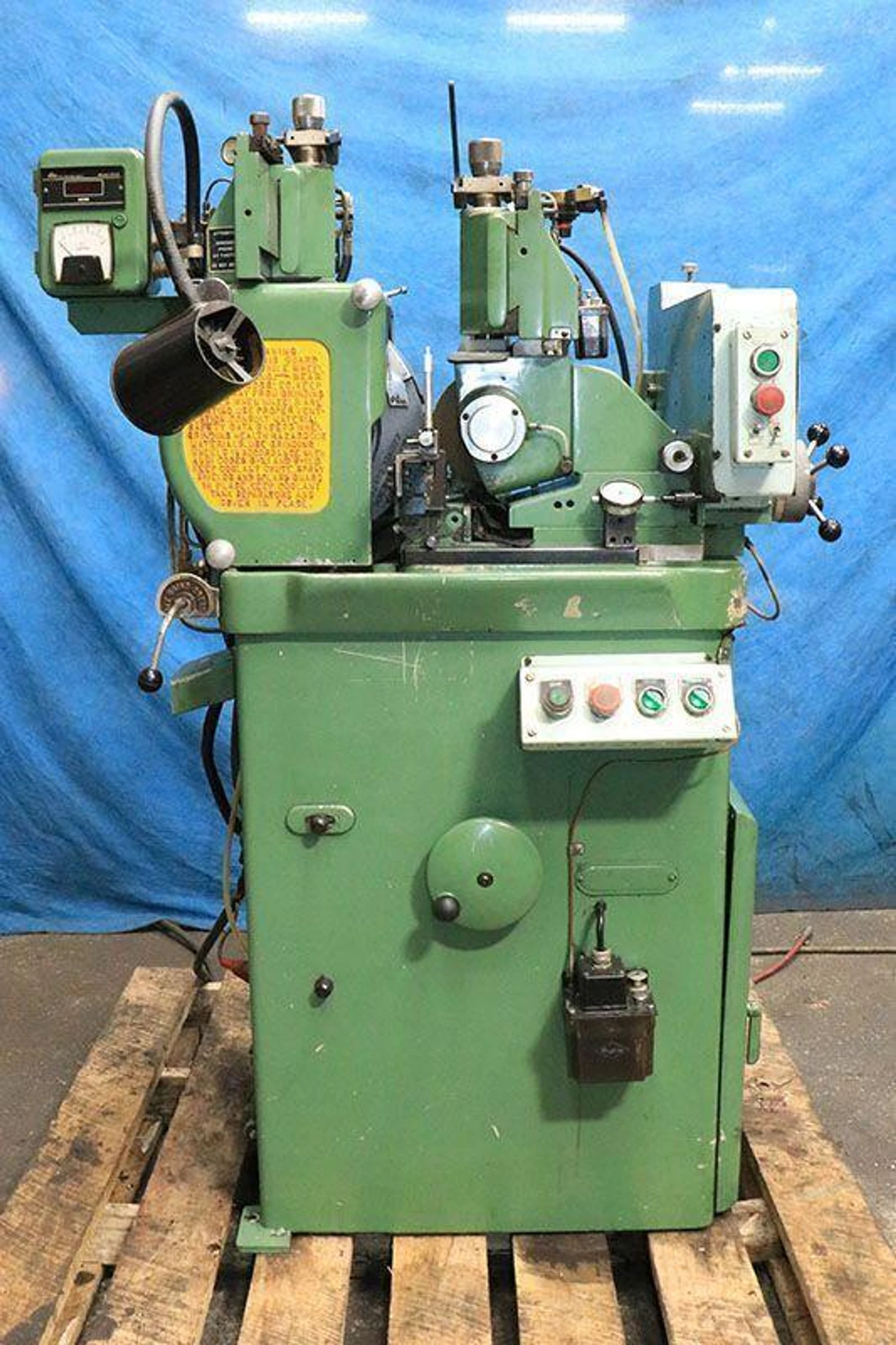

ROYAL MASTER TG12X4 CENTERLESS GRINDER

Product Specifications

• Model: TG12x4

• Manufacturer: Royal Master

• Capacity: 1.5″ workpiece diameter

• Grinding Wheel Diameter: 12″

• Regulating Wheel Diameter: 6″

• Regulating Wheel Speed: 500 RPM

• Grinding Wheel Motor Power: 7.5 HP

• Electrical Requirements: 3-phase, 60 Hz, 208-230/460V (wired for 460V)

• Location: New Jersey

• Condition: Used

Key Features

• Automatic Cycle Option: Enables automatic infeed of the regulating wheel

• Precision Regulating Wheel Spindle: For consistent speed and load handling

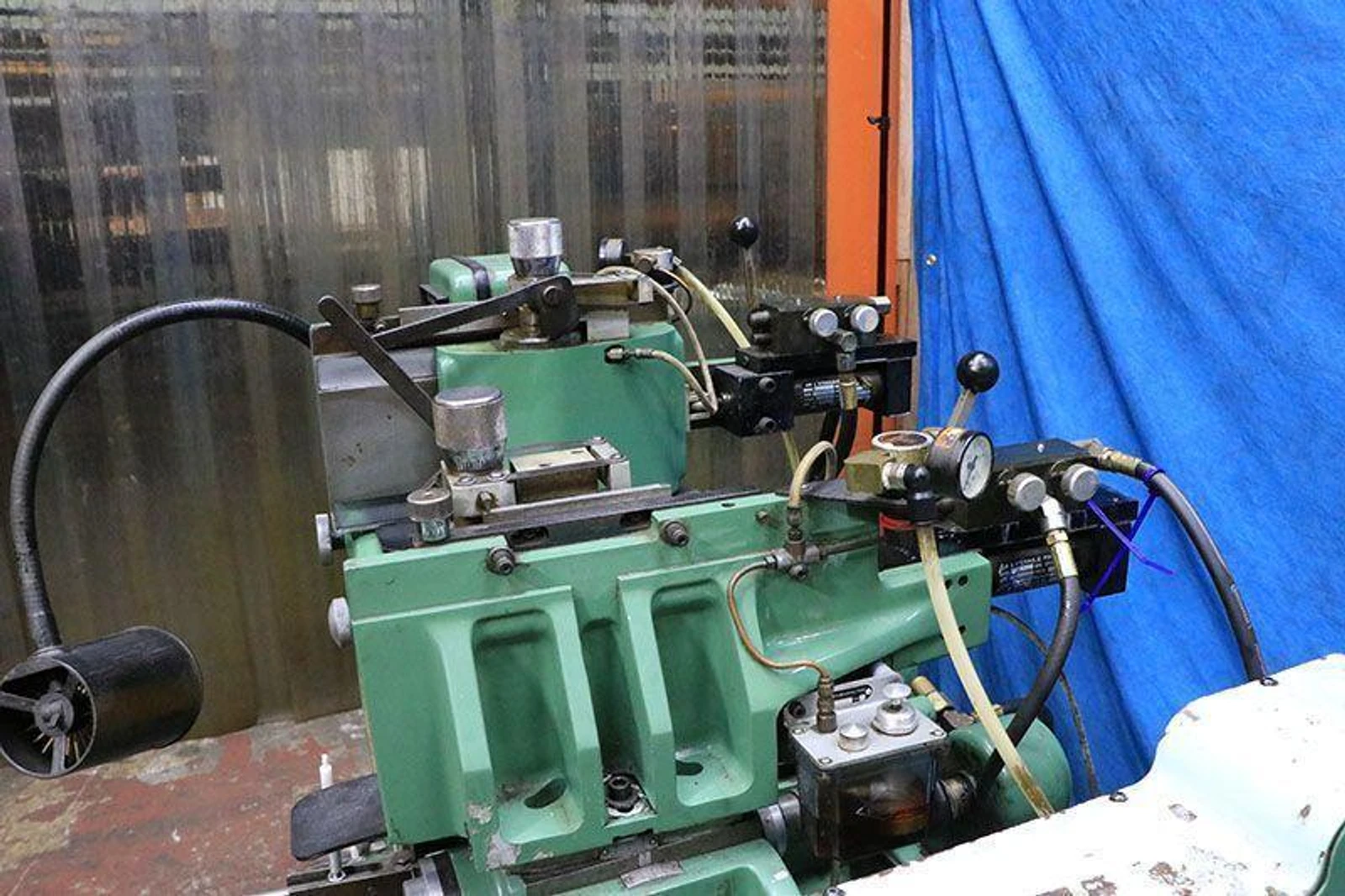

• Dual Hydraulic Dressers:

  • ~One for the grinding wheel

  • ~One for the regulating wheel

  • ~Both equipped with air sensing for close tolerance control

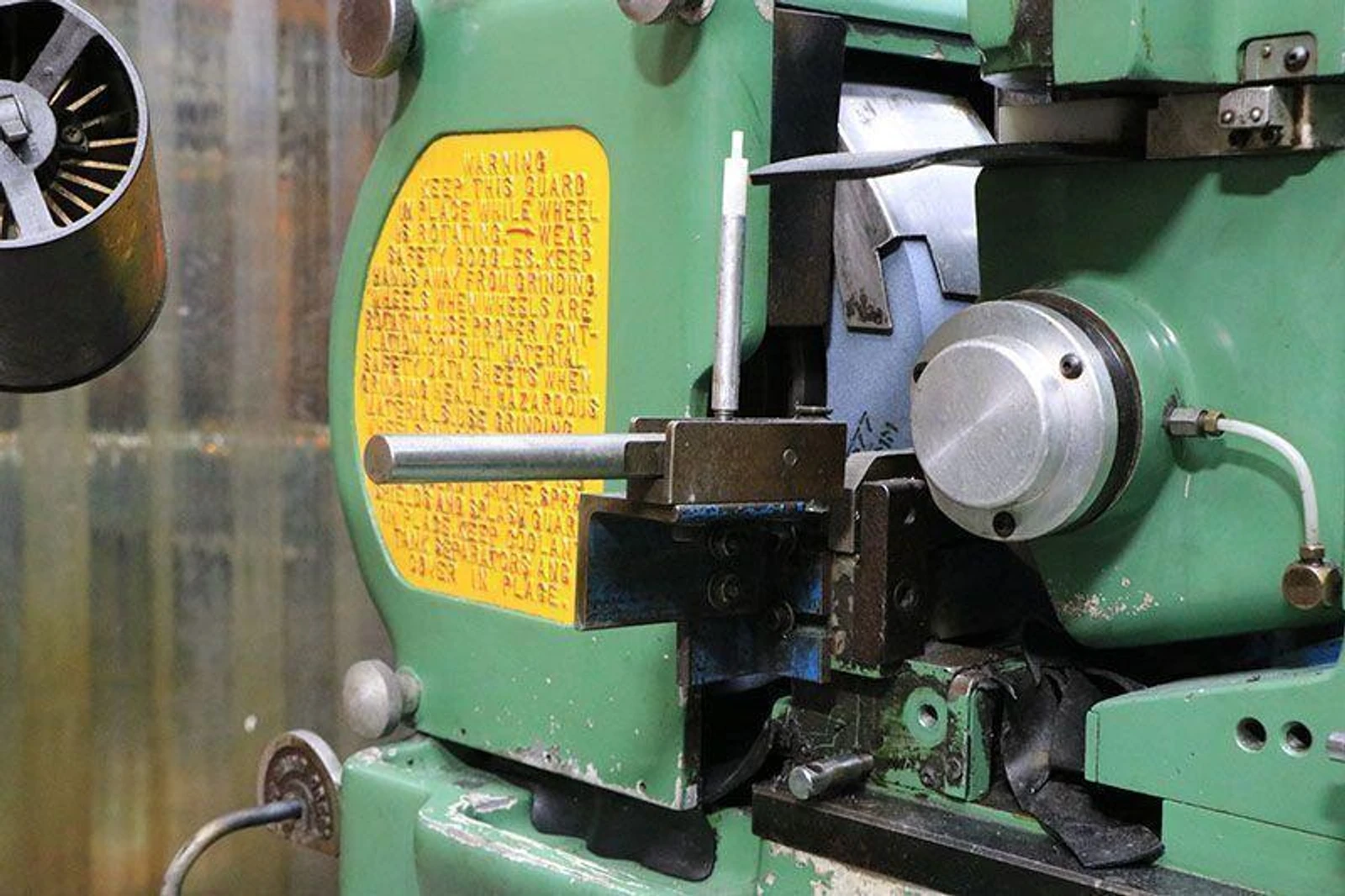

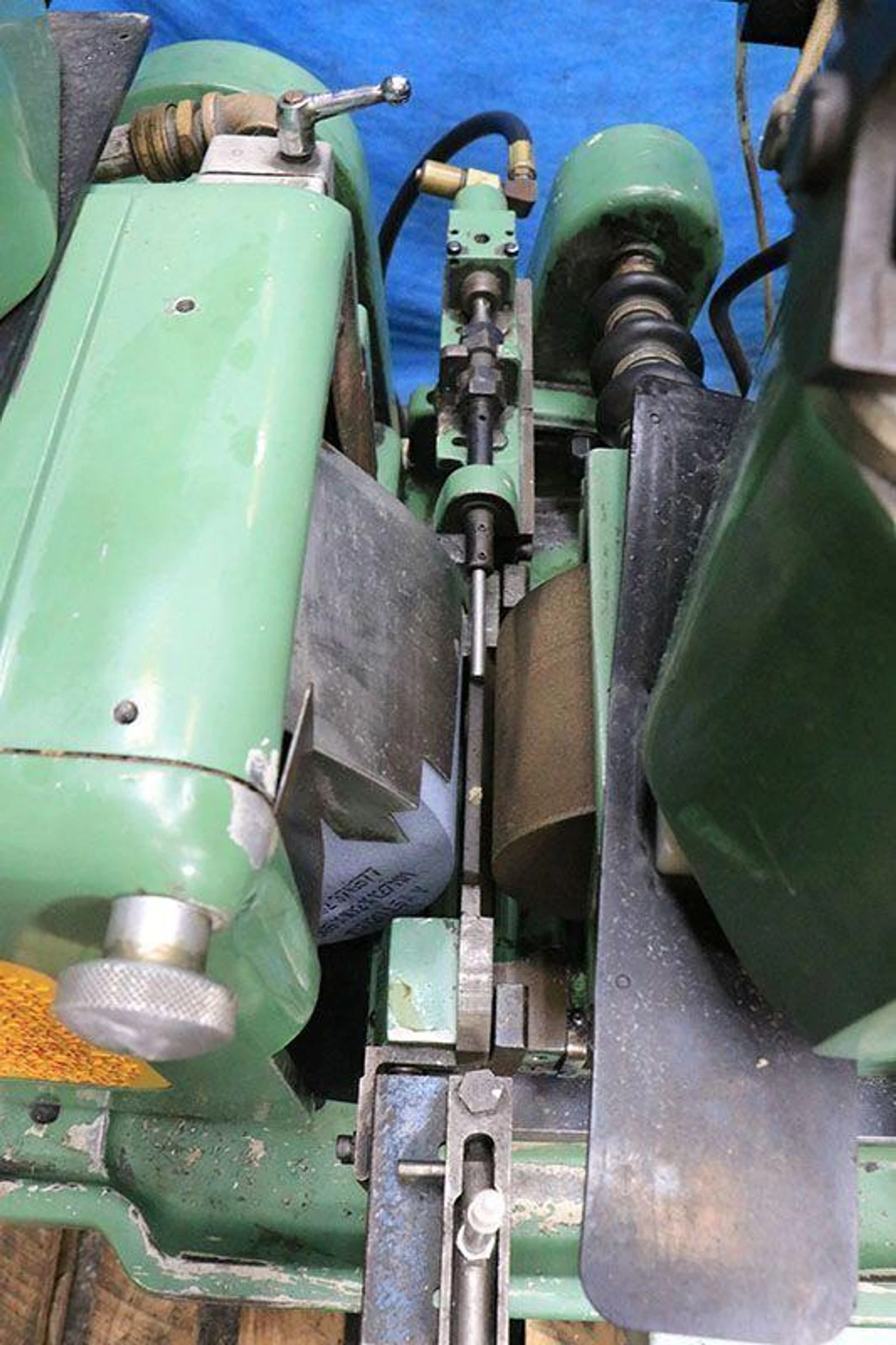

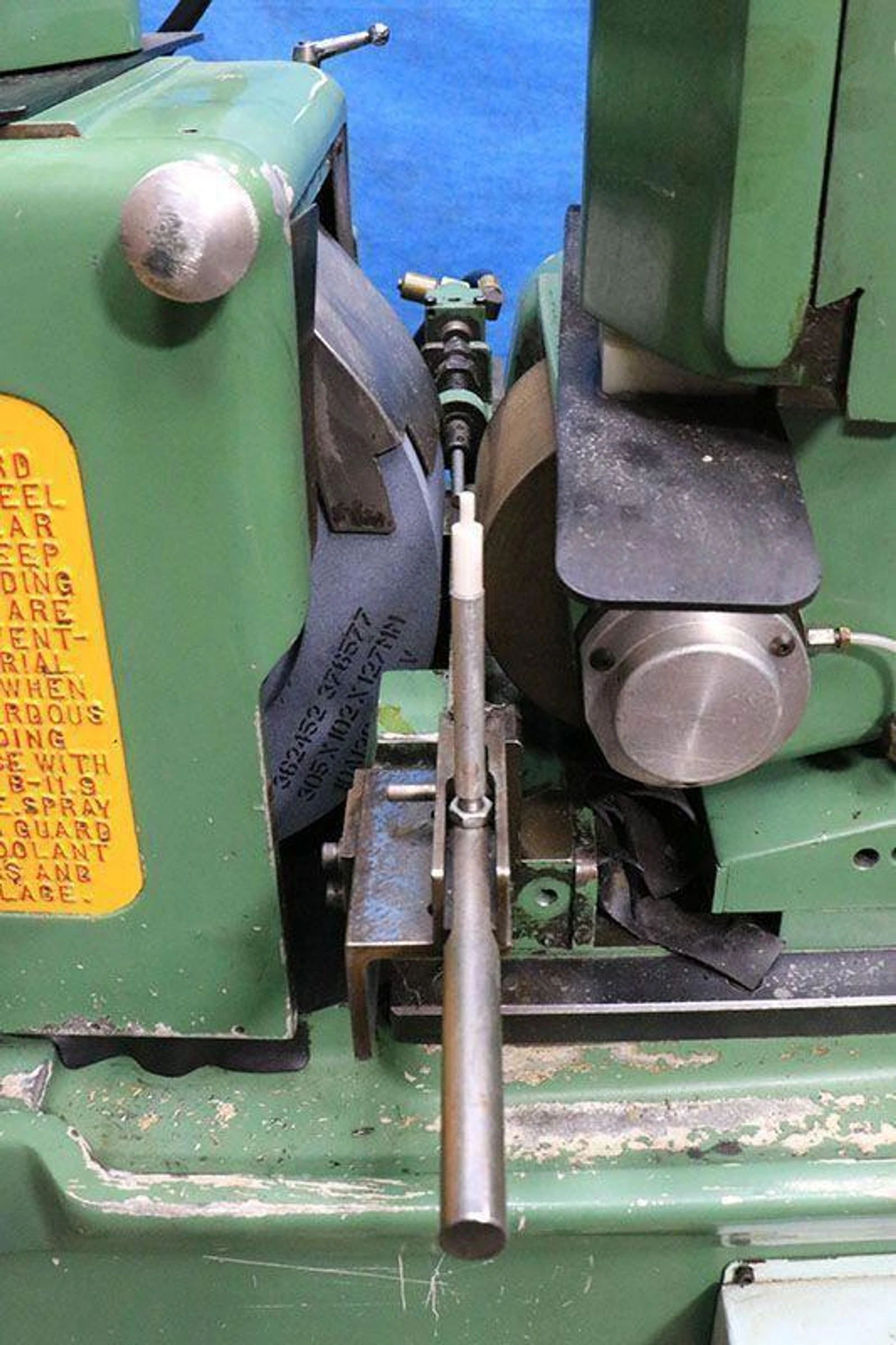

• Infeed Work Rest with Blades

• Part Ejector System

• Dial Indicator: For precise regulating wheel positioning

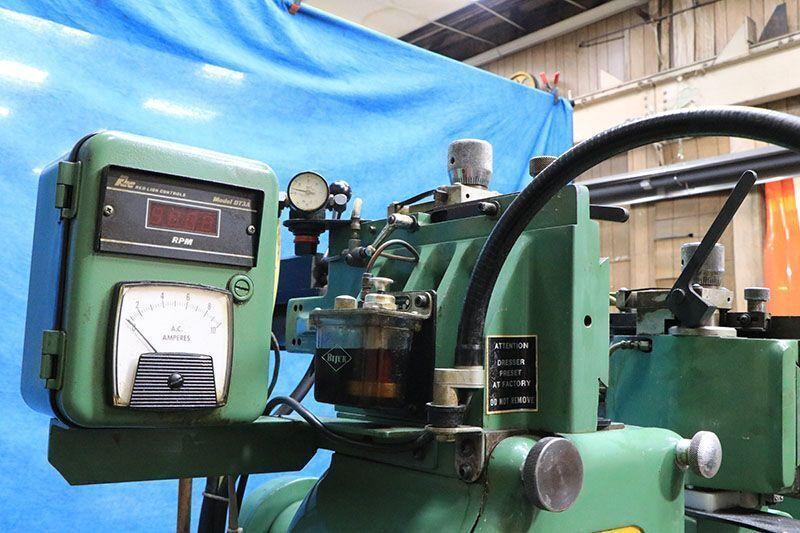

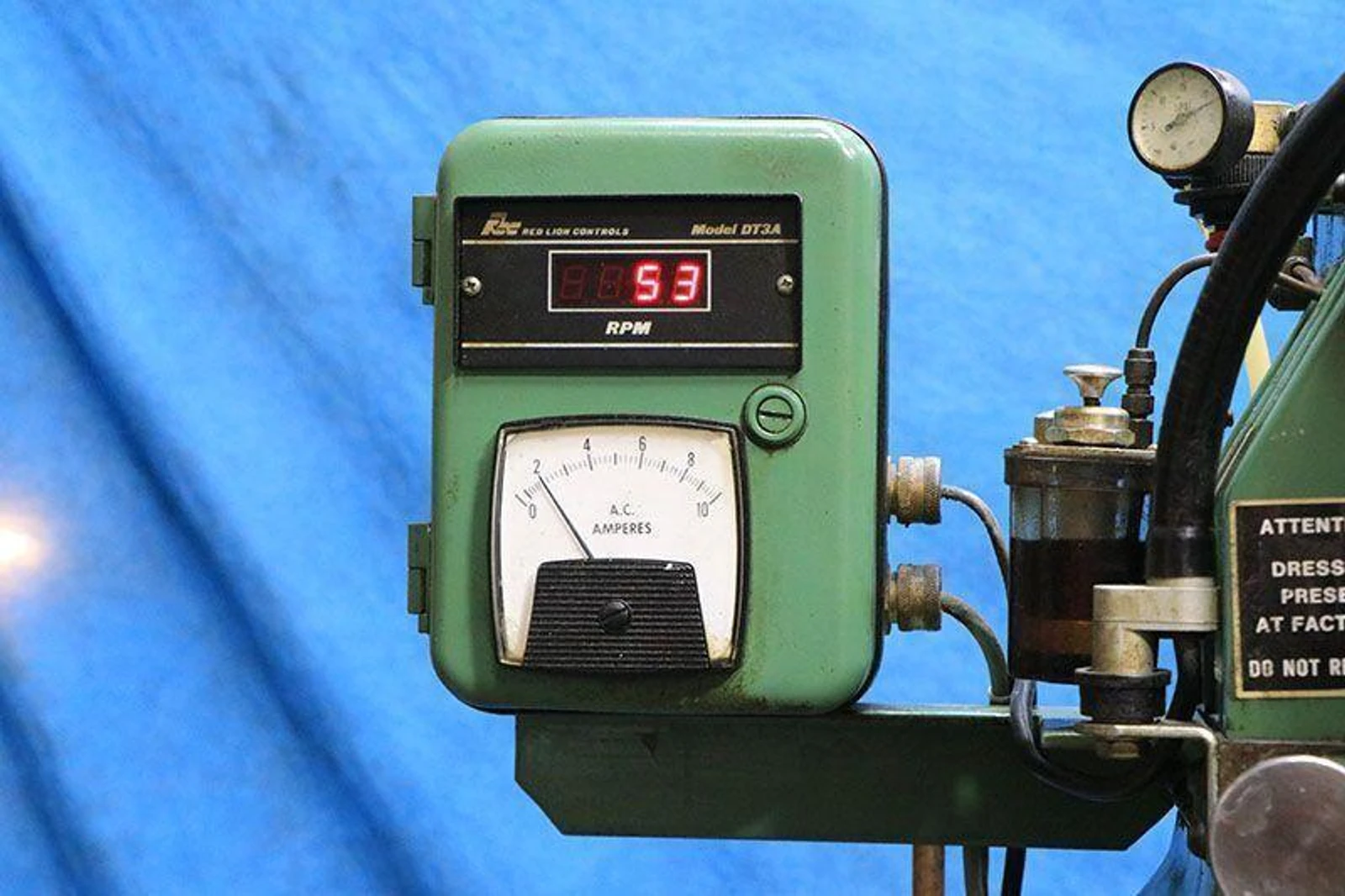

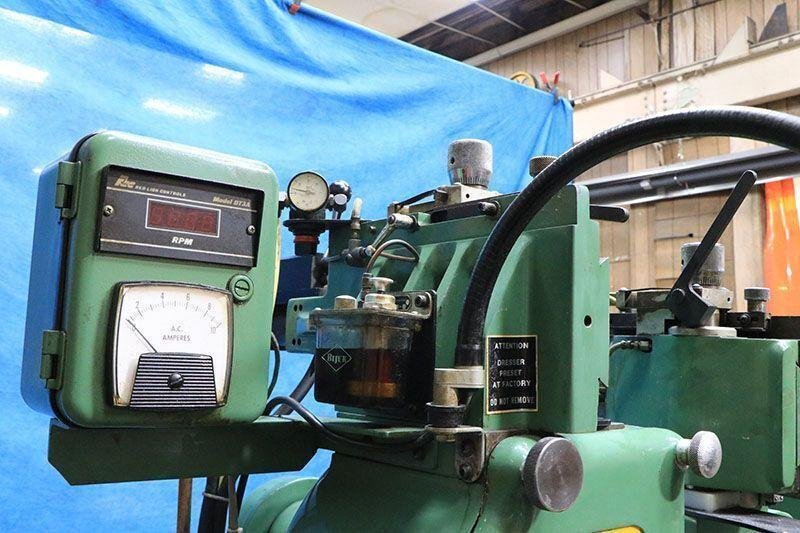

• Digital Control: For regulating wheel speed adjustments

• Coolant System: Includes tank and pump for extended grinding performance

• Self-Contained Hydraulic System: For dressing and wheel control

Applications

• Medical components (e.g., guidewires, cannulas)

• Precision ground shafts and pins

• Aerospace and defense parts

• Automotive valve and transmission components

• Toolroom and fine-tolerance production environments
