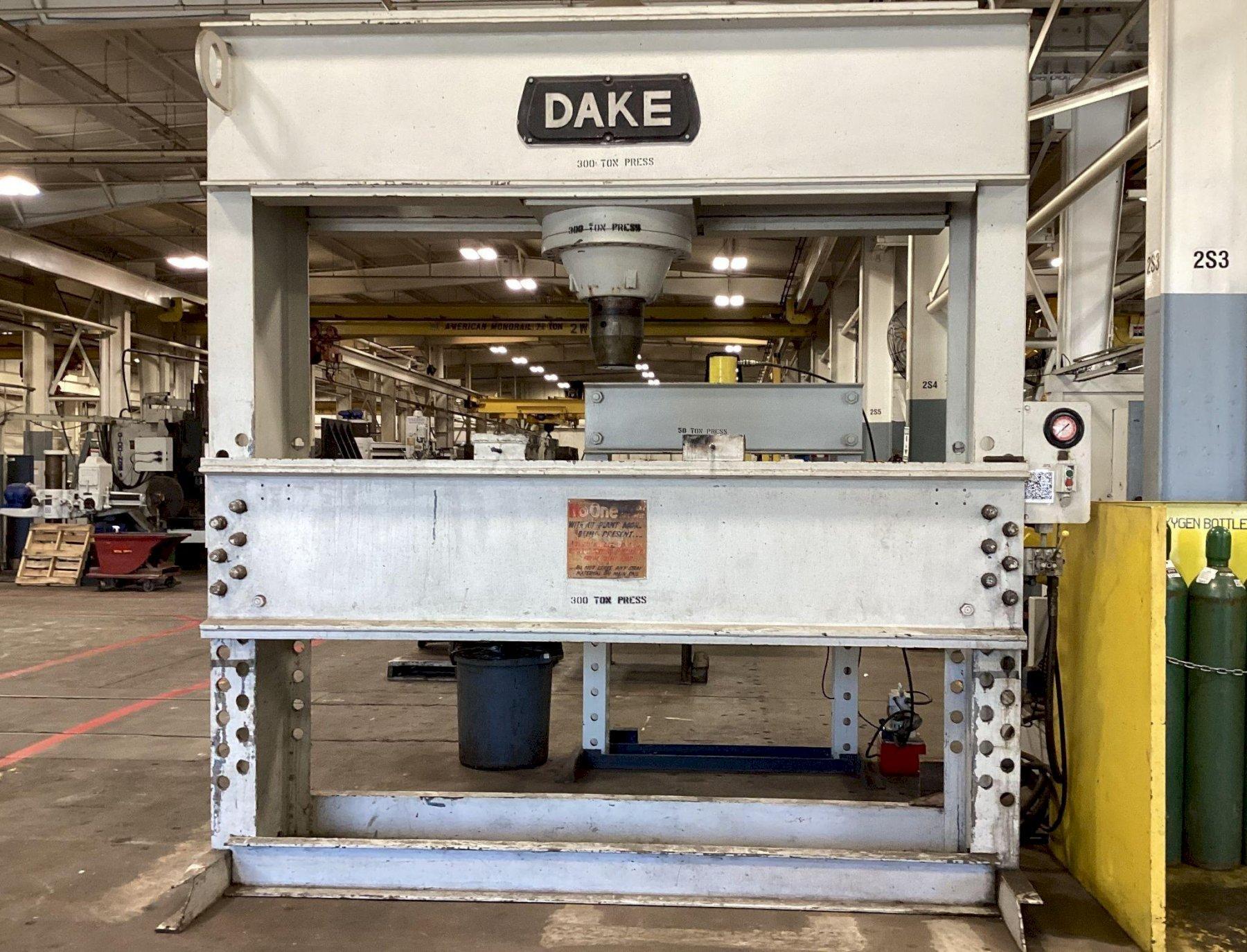

1973 300 TON DAKE H-FRAME ELECTRIC HYDRAULIC PRESS USED

Product Specifications

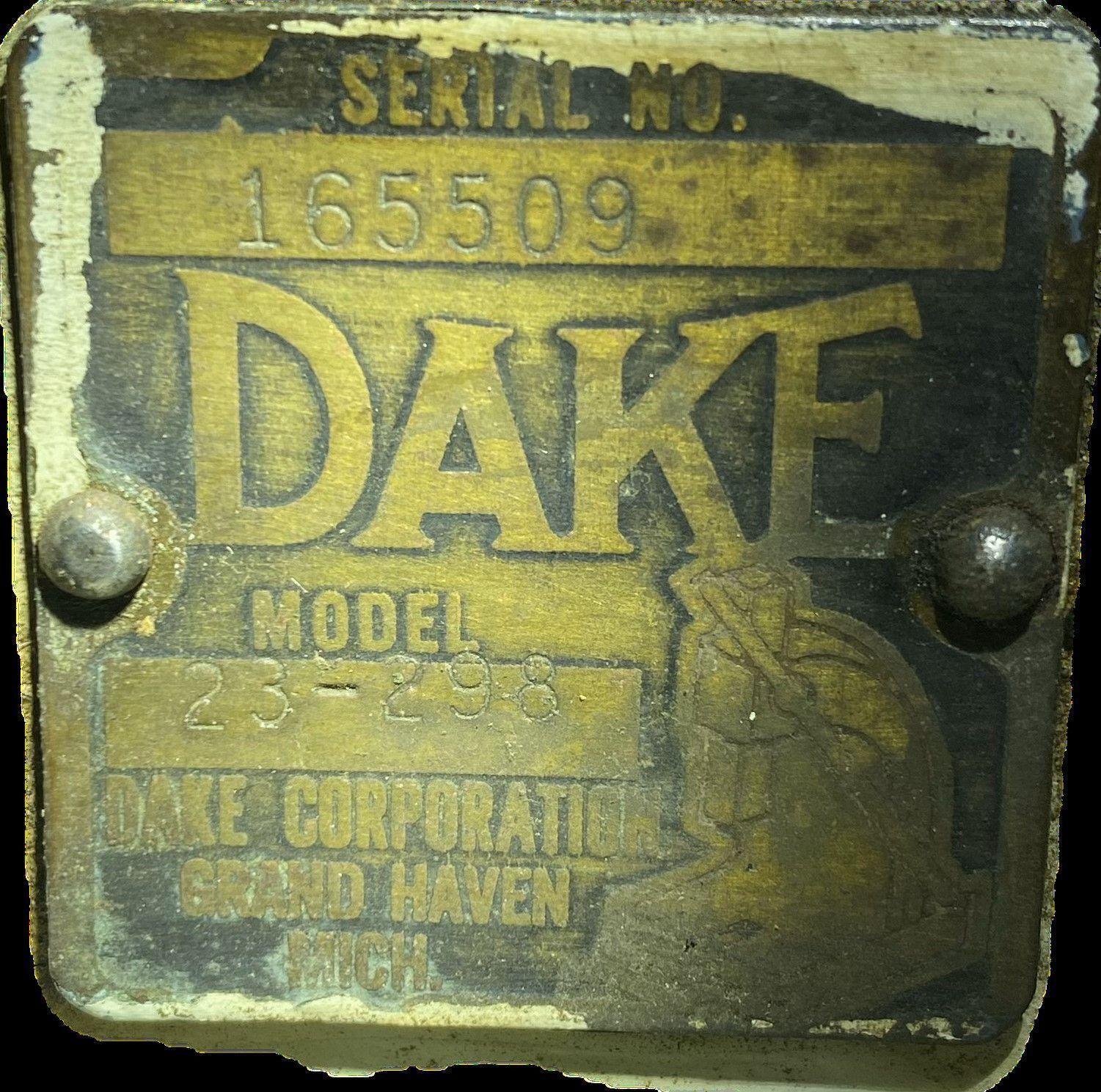

• Manufacturer: Dake

• Model: 23-298

• Year: 1973

• Rated Capacity: 300 Tons

• Up Stroke Capacity: 115 Tons

• Stroke: 16″

• Width Between Uprights: 108″ (Left to Right)

• Table Depth: 31″

• Distance Between Crossbars: 18″ (Front to Back)

• Ram to Table (Max): 48″

• Ram to Table (Min): 8″

• Pressing Speed: 8 IPM

• Hydraulic Reservoir Capacity: 30 Gallons

• Motor: 10 HP / 230/460V / 3 Phase

• Location: New Jersey

Key Features

• 300-Ton Forming Power: Ideal for heavy forming, punching, bending, and assembly tasks

• Separate Hydraulic Unit: Improves access and allows easier system maintenance

• Heavy-Duty V-Blocks: Supports accurate and stable workpiece positioning

• Forklift-Accessible Adjustable Table: Easily reconfigurable for various part sizes

• Wide 108” Upright Opening: Accommodates long or bulky parts with ease

• Variable Ram-to-Table Distance: 8″–48″ clearance supports a wide range of dies and setups

• Robust Electric Drive System: 10 HP motor provides consistent power and efficiency

Applications

• Heavy metal forming and stamping

• Structural steelwork and industrial fabrication

• Maintenance and repair operations

• Custom tooling and die work

• Press fitting or straightening of large components
