2002 OKUMA IMPACT LU-15 TWIN TURRET CNC LATHE USED

2002 OKUMA IMPACT LU-15 TWIN TURRET CNC LATHE USED

Name: Used OKUMA IMPACT LU-15 For Sale IGAM1420001
Brand: OKUMA
SKU: IGAM1420001

Brand

OKUMA

Location

Michigan

REQUEST FINANCING

Specifications
Files & Videos

Overview

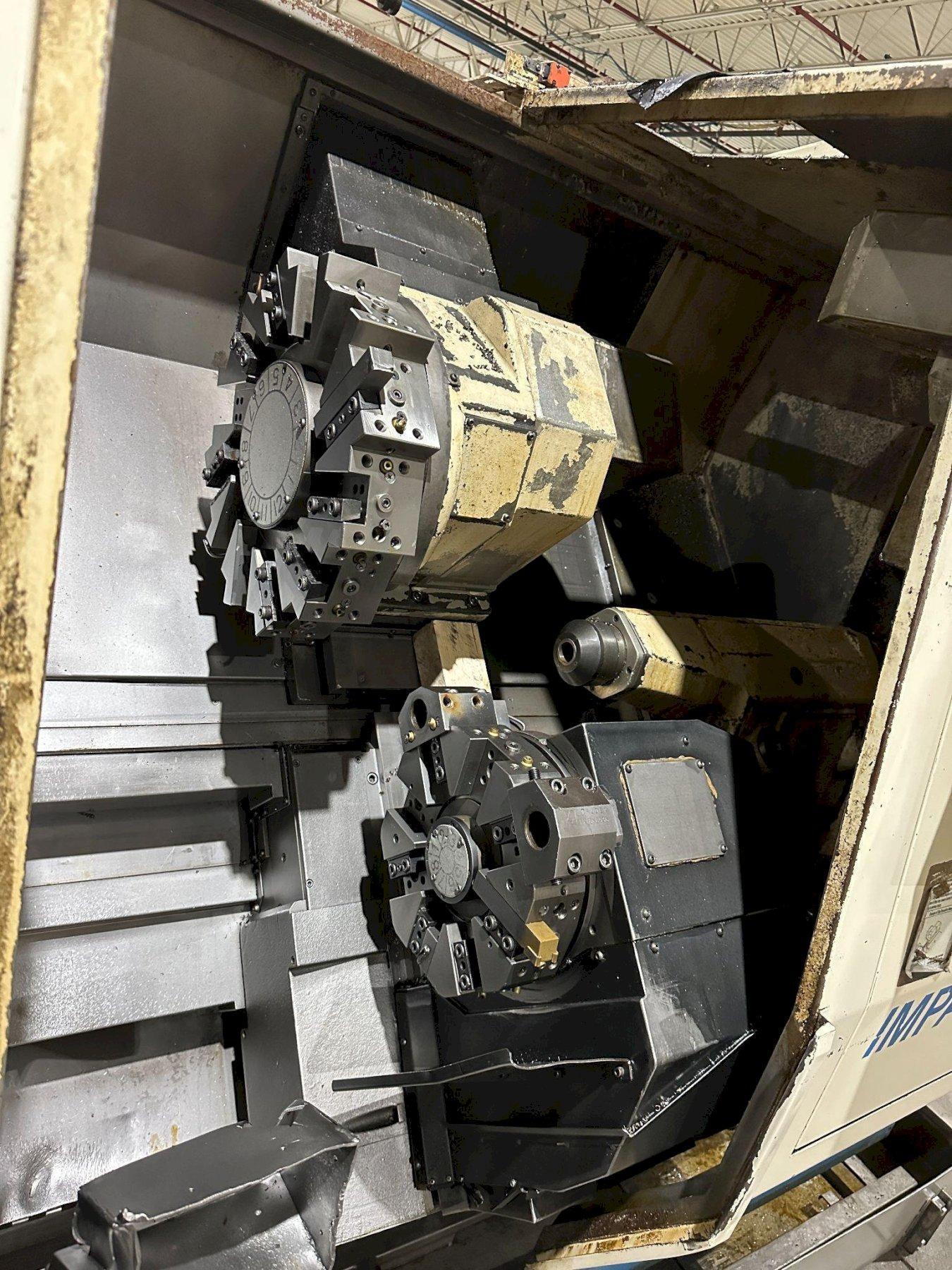

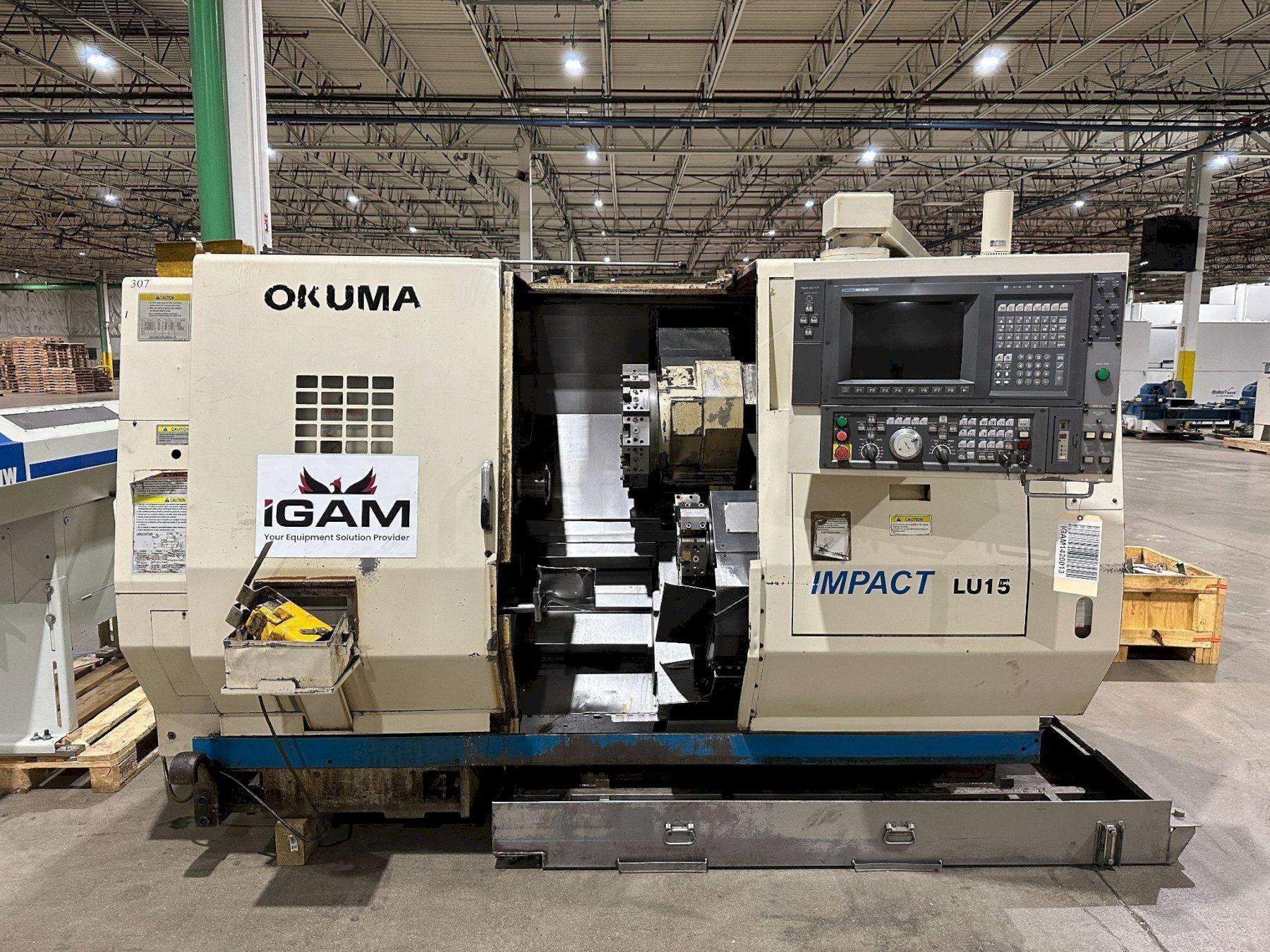

The 2002 OKUMA IMPACT LU-15 is a precision-engineered used twin turret CNC lathe designed for high-speed, multi-axis turning operations in demanding manufacturing environments. Built by Okuma, a leader in CNC machine tools, the LU-15 features dual turrets for simultaneous machining, increasing productivity and reducing cycle time. This machine includes a Jorgensen chip conveyor for efficient chip management, and an SMW Spacesa R210 bar feeder is available as an optional add-on, enhancing automation capabilities for bar stock operations.

Specification Table

CNC Control	Okuma OSP-U100L
Swing	20.87″
Turning Dia	13.78″
Center Distance	20.47″
Chuck Size	10″
Bar Capacity	2.56″
X-axis Travel	9.45″
Z-axis Travel	21.65″
Rapid Traverse Rate (X/Y/Z)	787/984 IPM
Spindle Speed (rpm)	4,500 RPM
Spindle Motor (hp)	20 hp
Tailstock	Yes
Turret Capacity	12/turret 24 total

Control Okuma OSP-U100L
Max Swing Over Bed 20.87″ (530 mm)
Max Turning Diameter 13.78″ (350 mm)
Max Turning Length 20.47″ (520 mm)
X1/X2-Axis Travel 9.45″ (240 mm)
Z1/Z2-Axis Travel 21.65″ (550 mm)

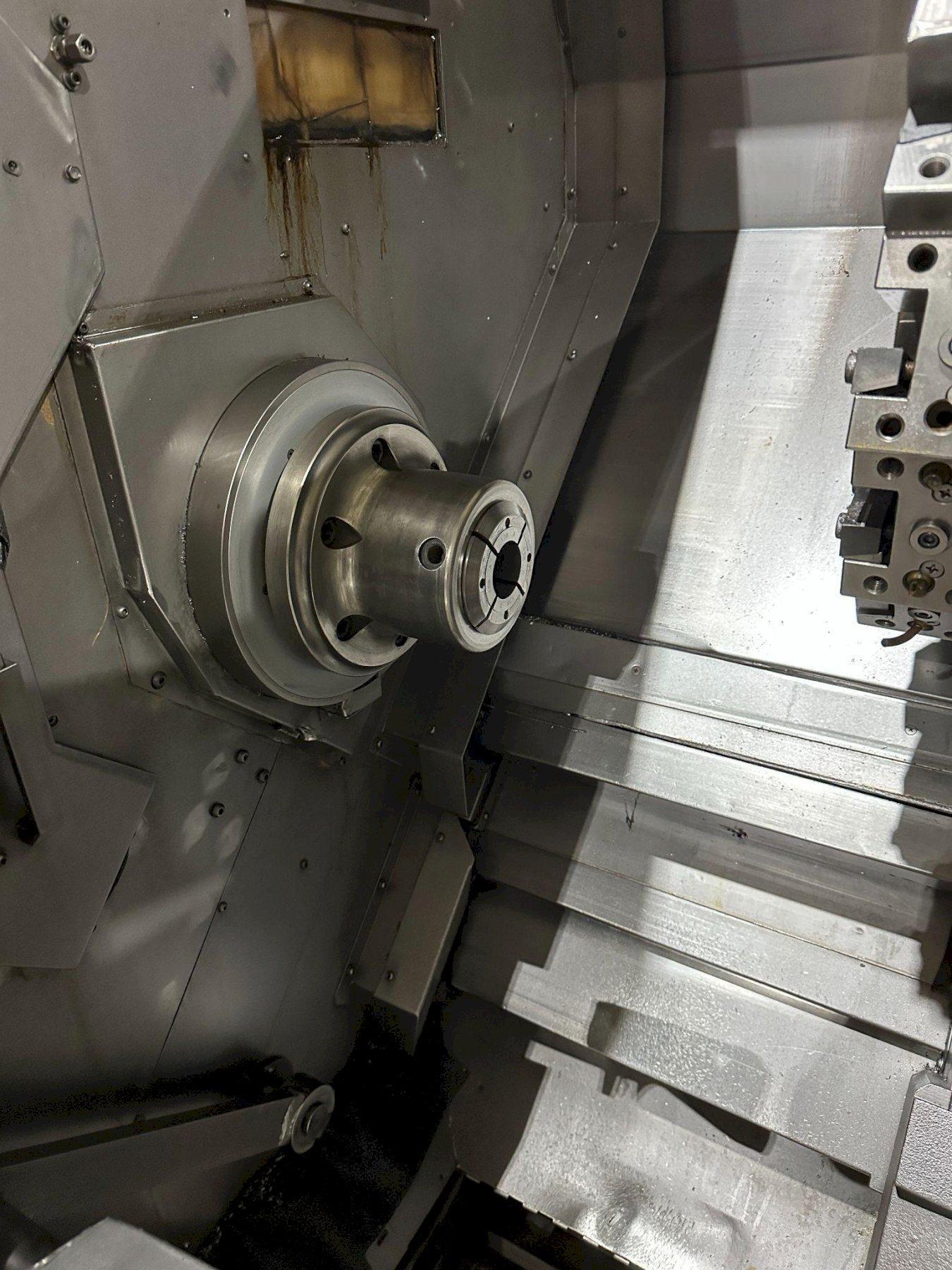

Spindle Nose A2-8
Spindle Bore 3.15″ (80 mm)
Bar Capacity 2.56″ (65 mm)
Spindle Speed 4,500 RPM
Spindle Motor 20 HP (15 kW), AC
Number of Turrets 2
Turret Capacity 2 × 12-station turrets (24 total tool positions)
Rapid Traverse (X/Z) 787 / 984 IPM (20 / 25 m/min)
Tailstock Programmable hydraulic
Machine Dimensions Approx. 112″ × 78″ × 70″
Machine Weight ~13,500 lbs (6,123 kg)
Power Requirements 220V / 3-Phase / 50-60 Hz

Product Specifications:

Model: OKUMA IMPACT LU-15
Year: 2002
CNC Control: OSP-U100L
Configuration: Twin turret, horizontal lathe
Maximum Turning Diameter: Approx. 250mm (varies with tooling)
Maximum Turning Length: Approx. 600mm
Spindle Speed: Up to 4,500 RPM
Spindle Bore: Approx. 2.56 in (65 mm)

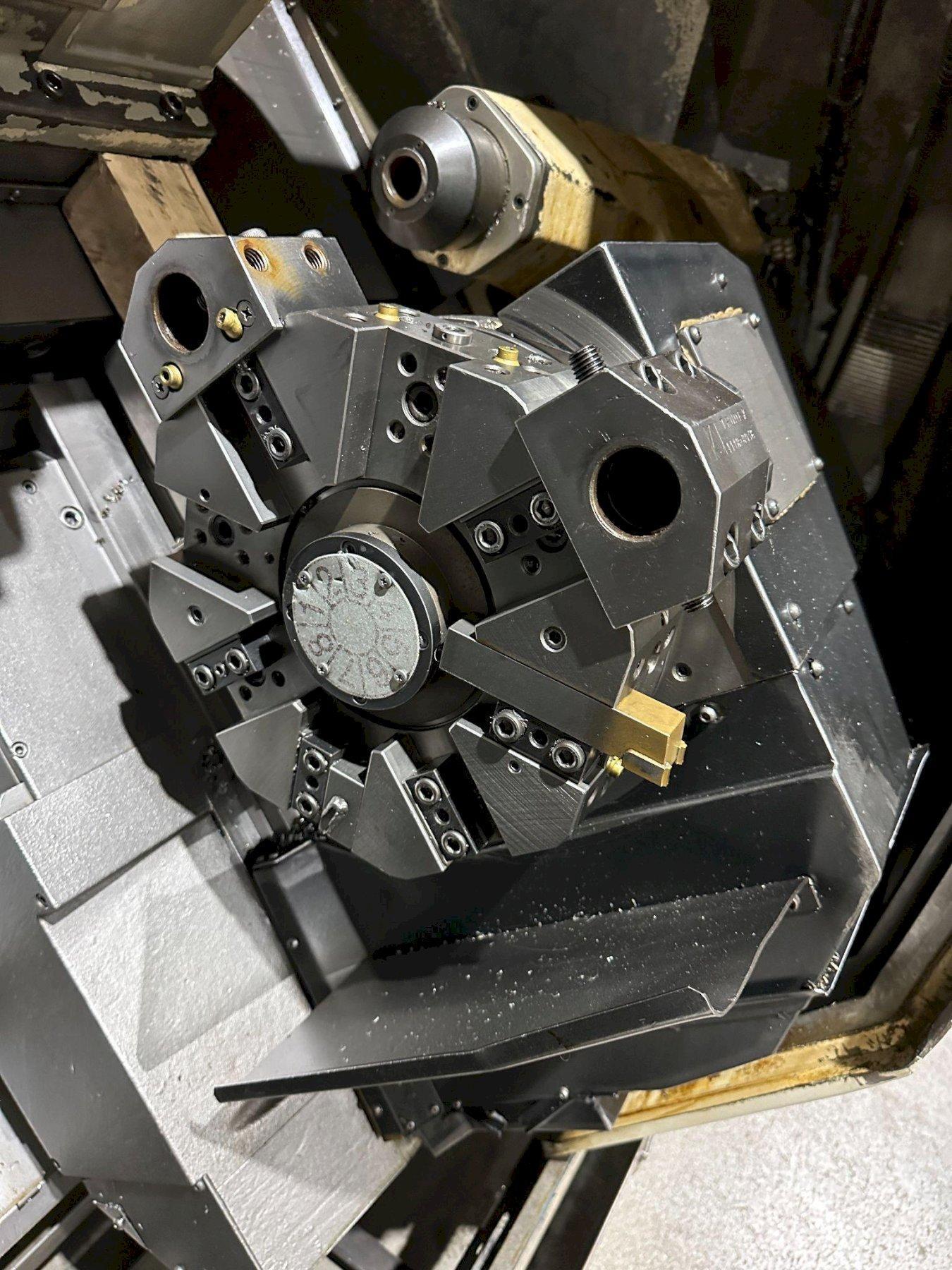

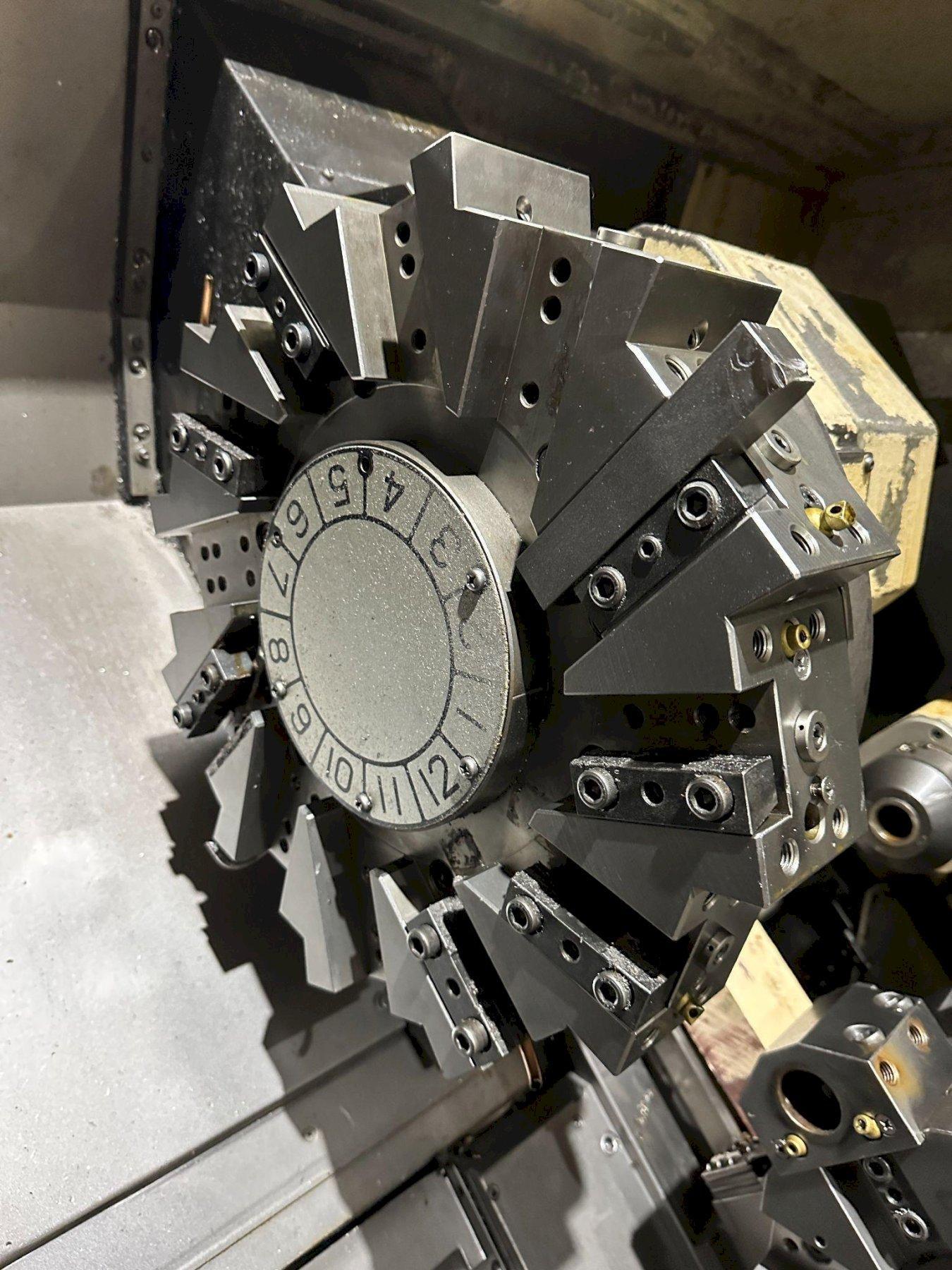

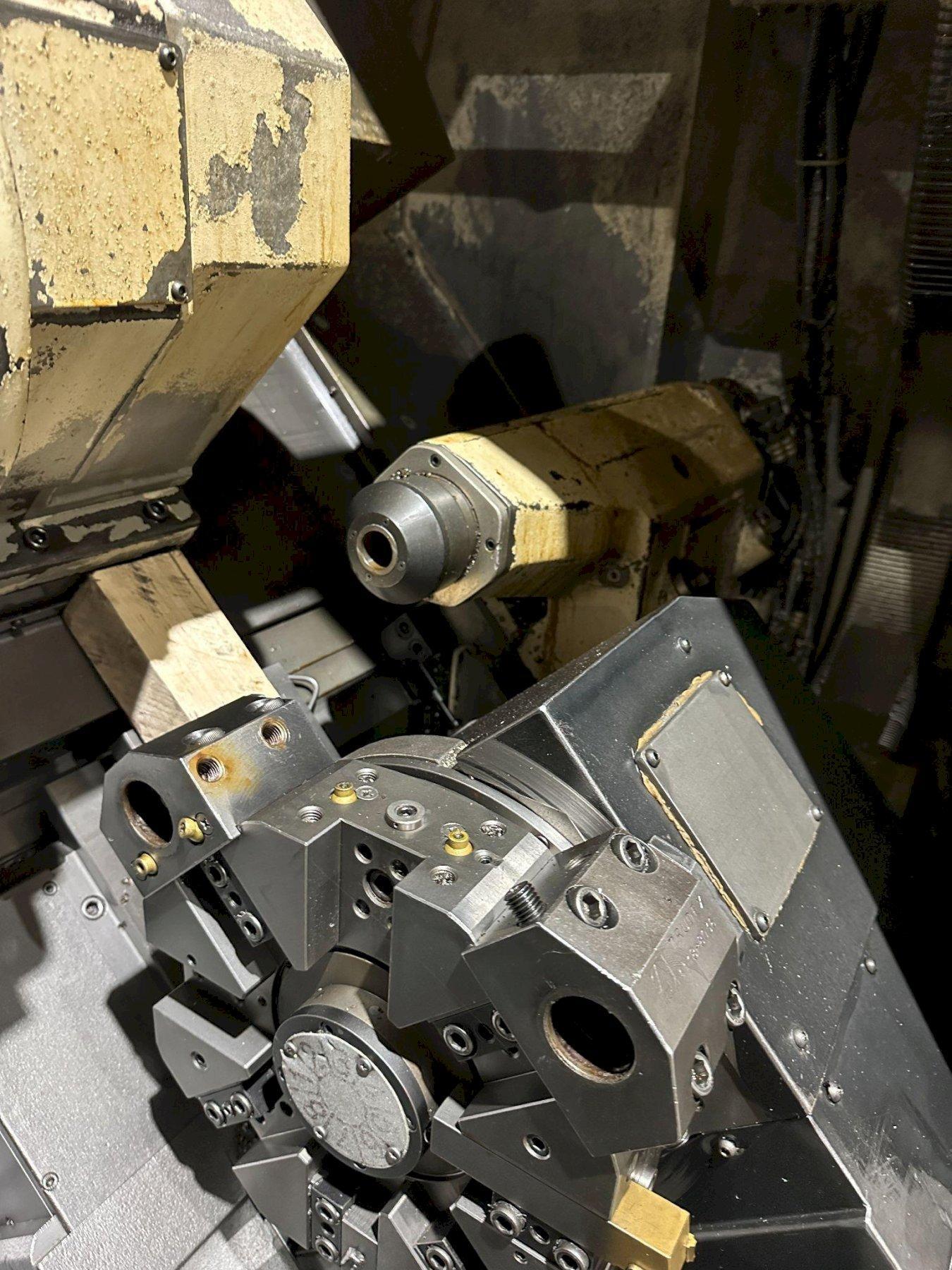

Turrets: 2 (upper and lower) with 12 tool stations each

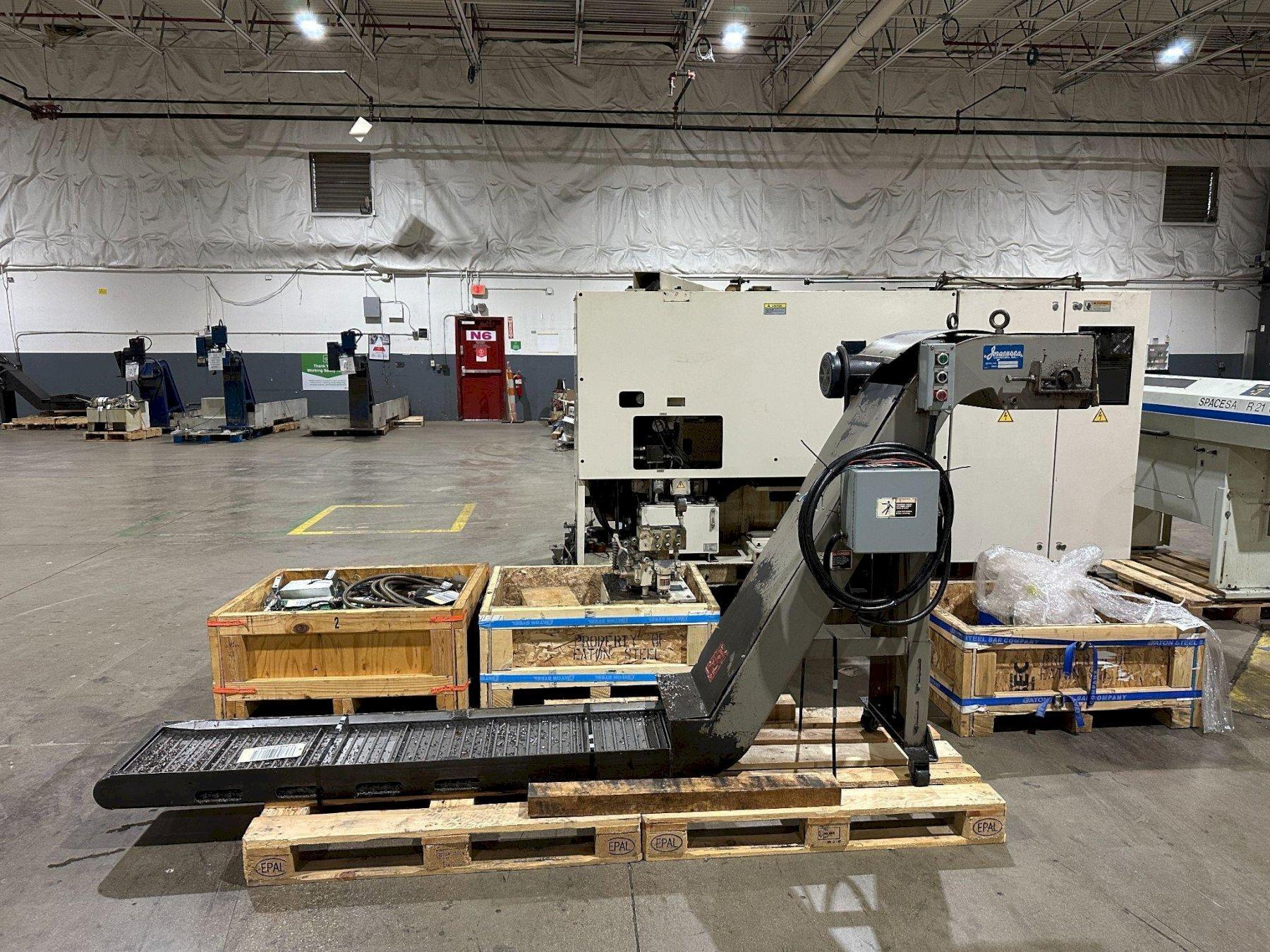

Chip Conveyor: Jorgensen included

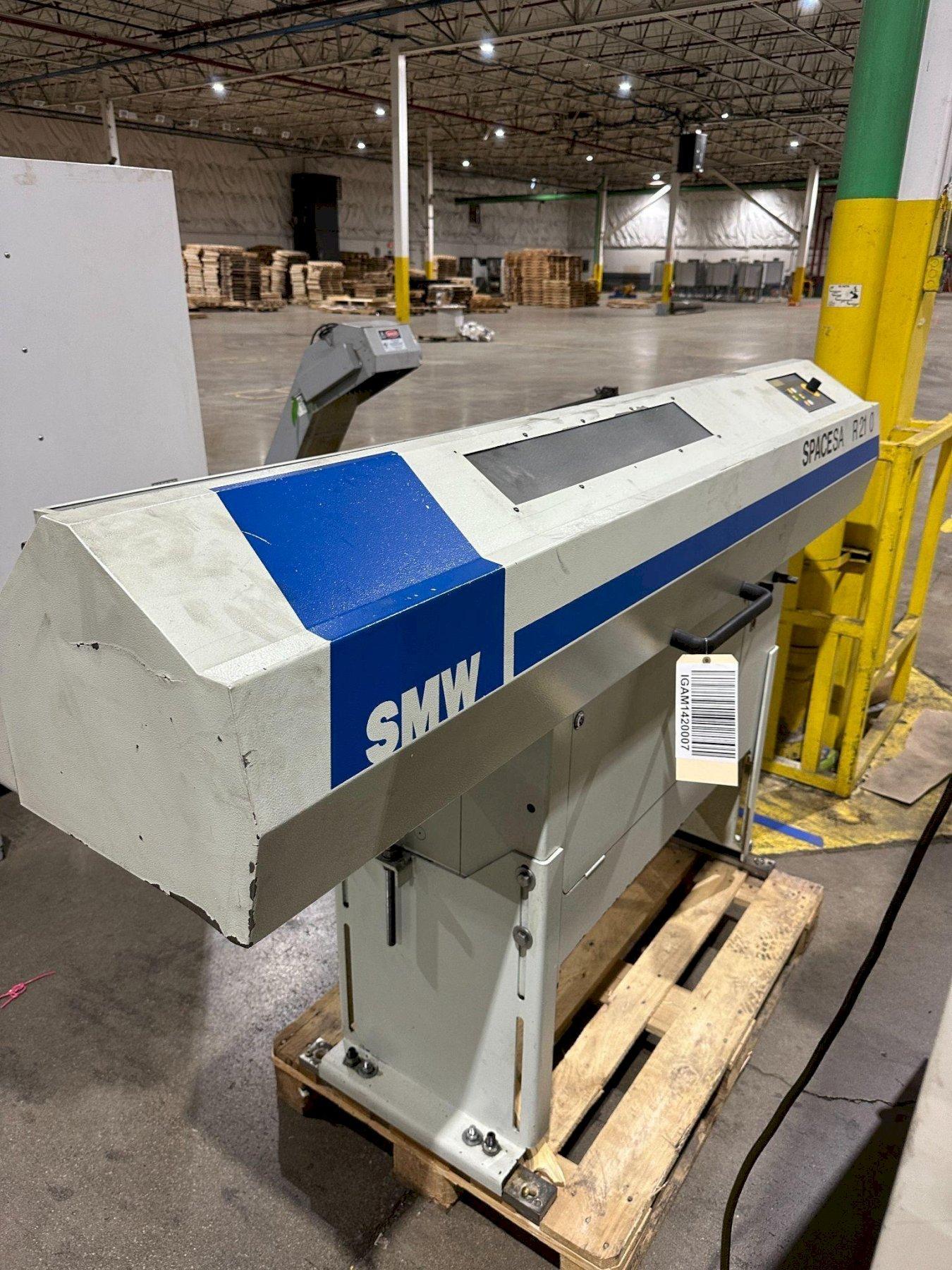

Bar Feeder: Optional SMW Spacesa R210 available

Key Features:

Twin turret configuration for synchronized multi-tool operations
High-speed spindle for efficient metal removal rates
Rigid machine structure ideal for heavy-duty applications

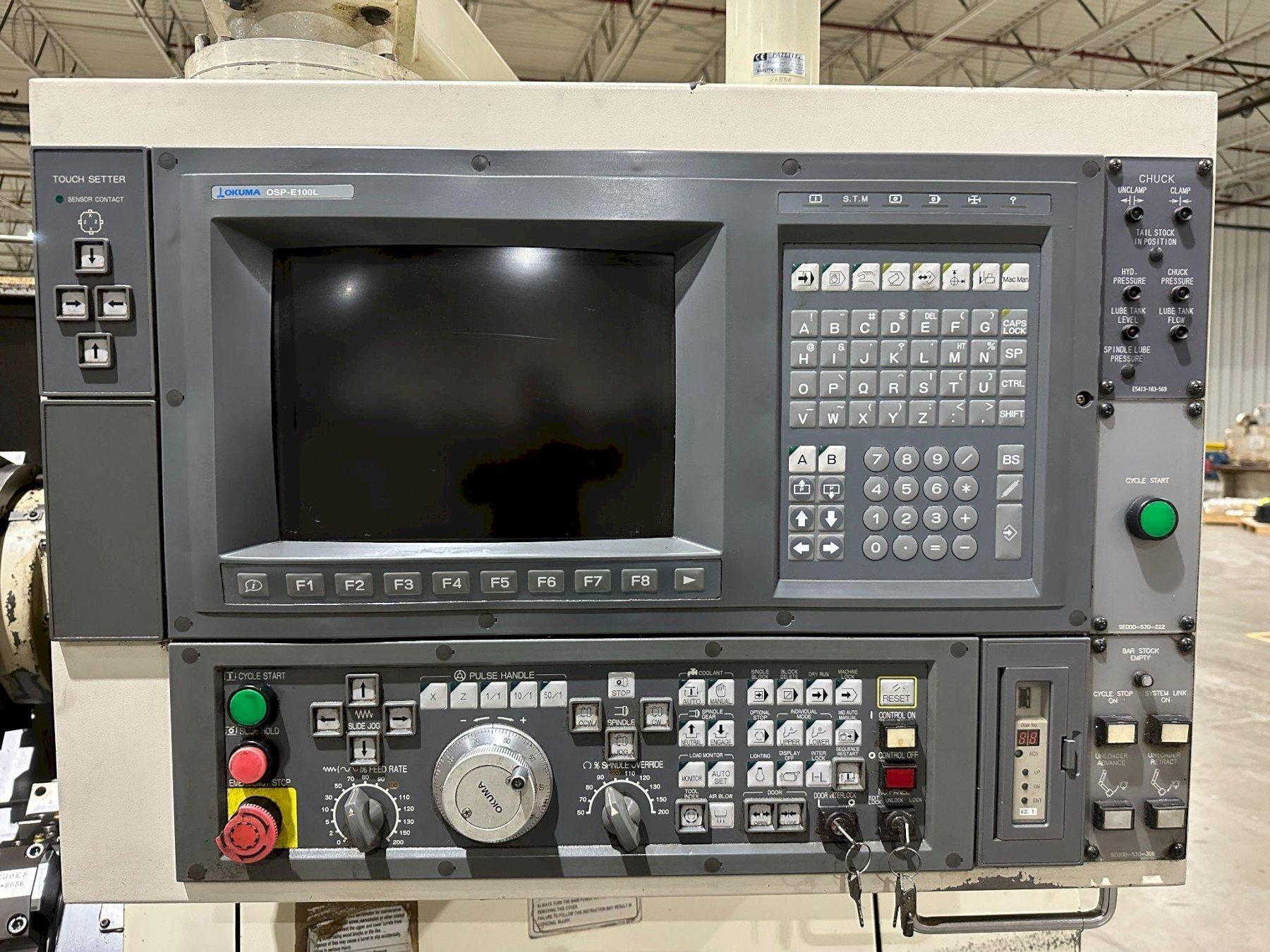

OSP-U100L CNC control for precise and intuitive programming
Integrated Jorgensen chip conveyor for automated waste handling
Optional SMW Spacesa R210 bar feeder to automate bar feeding and increase throughput

Applications:

High-volume production of precision cylindrical components
Aerospace and automotive part manufacturing
Complex multi-operation machining
Batch production with bar-fed automation
Applications requiring fast tool change and reduced idle time
