2005 HAAS SL-30T CNC LATHE WITH HENNING CHIP CONVEYOR USED

Brand
HAAS
Category
Lathes & Turning Machines
Type
Lathes, CNC
Model
SL-30T
Stock #
IGAM1420002
Year
Not specified
Condition
Not specified

Location

Michigan
REQUEST FINANCING

Overview

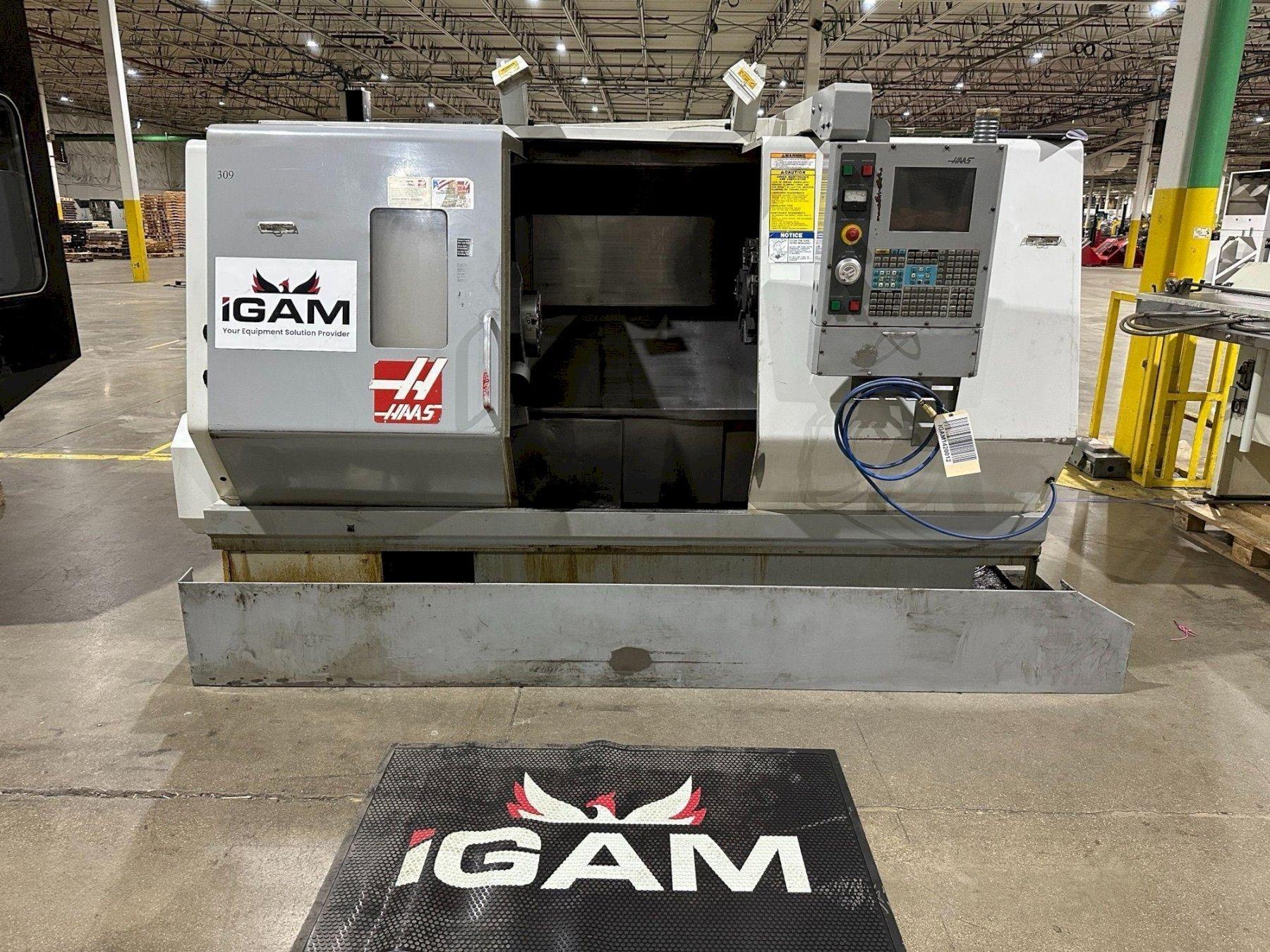

The 2005 HAAS SL-30T CNC Lathe is a robust, high-performance turning center designed for precision machining in industrial environments. This used machine is equipped with the reliable Haas CNC control system, offering a user-friendly interface for efficient operation. With a 30″ swing, 17″ turning diameter, and a powerful 30 hp spindle motor, the SL-30T is engineered to handle a wide range of turning tasks with accuracy and consistency. This unit includes a Henning chip conveyor, streamlining chip removal for uninterrupted production flow.

,

Specification Table

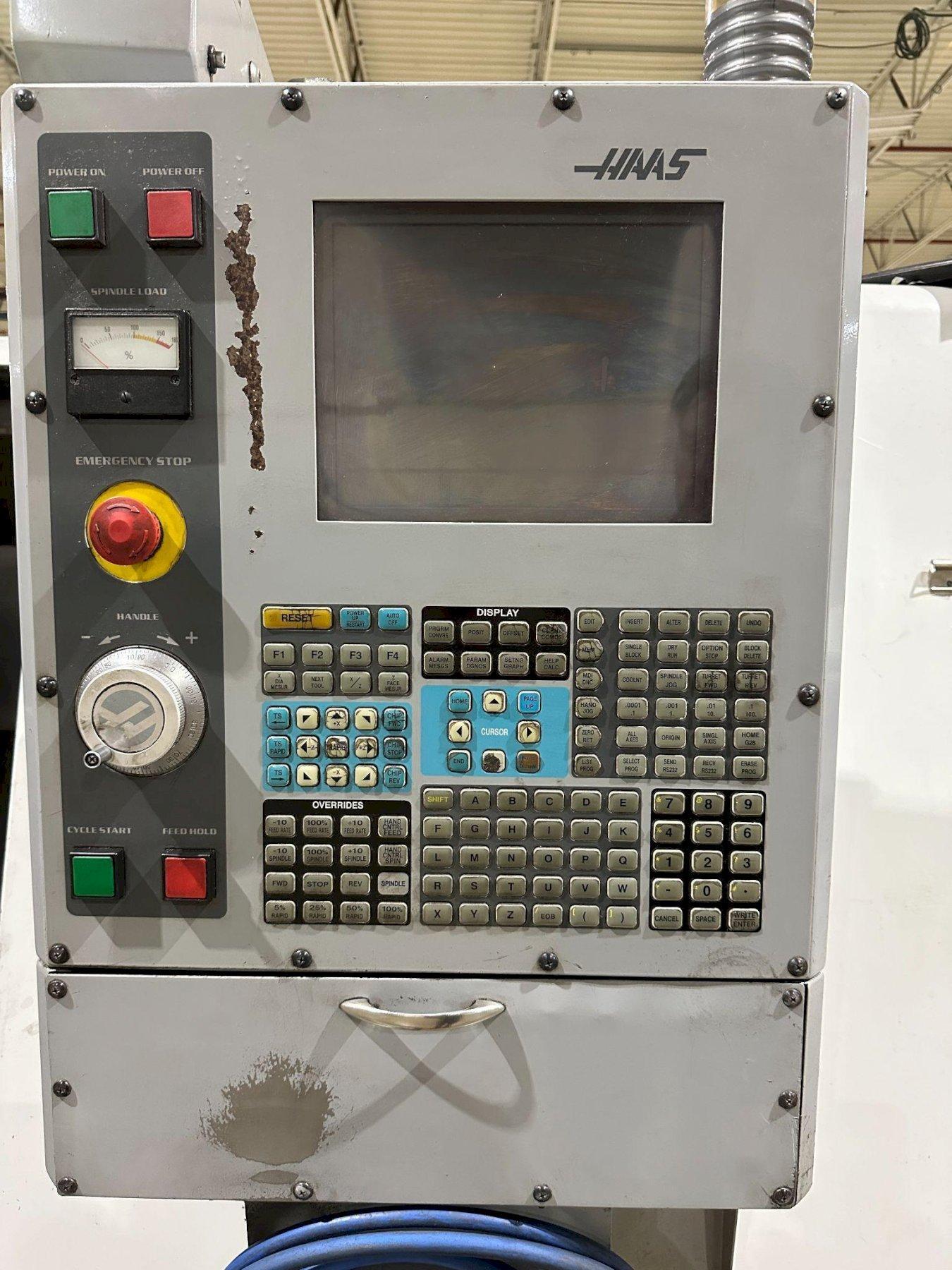

CNC Control Haas CNC Control
Swing 30″
Turning Dia 17″
Center Distance 34″

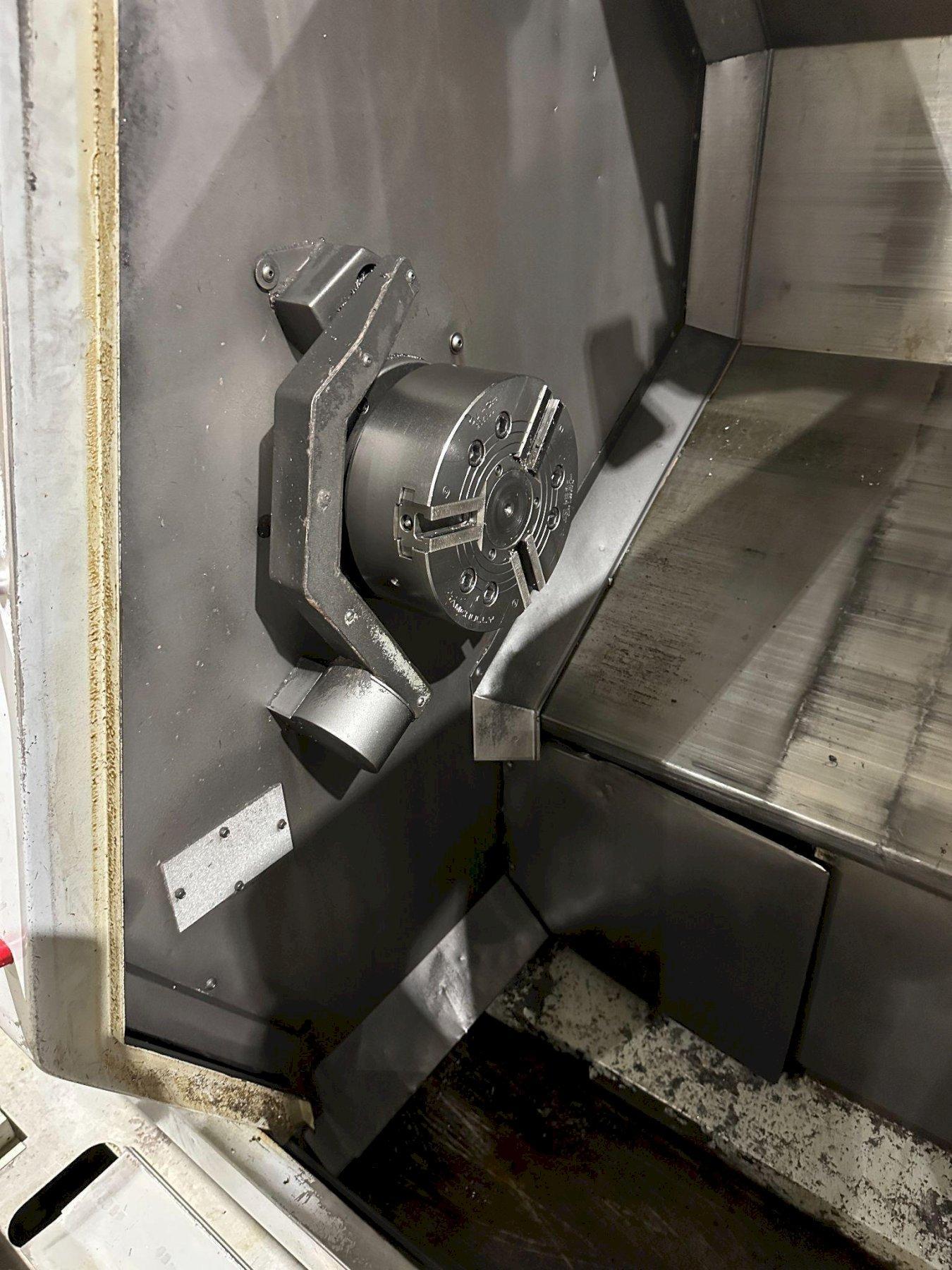

Chuck Size 10″
Bar Capacity 3″
X-axis Travel 11.3″
Z-axis Travel 34″
C Axis Indexing .001
Spindle Nose A2-6
Spindle Speed (rpm) 3,400 RPM
Spindle Motor (hp) 30 hp
Tailstock No
Live Tooling No
Live Tooling Motor (hp) 5 hp

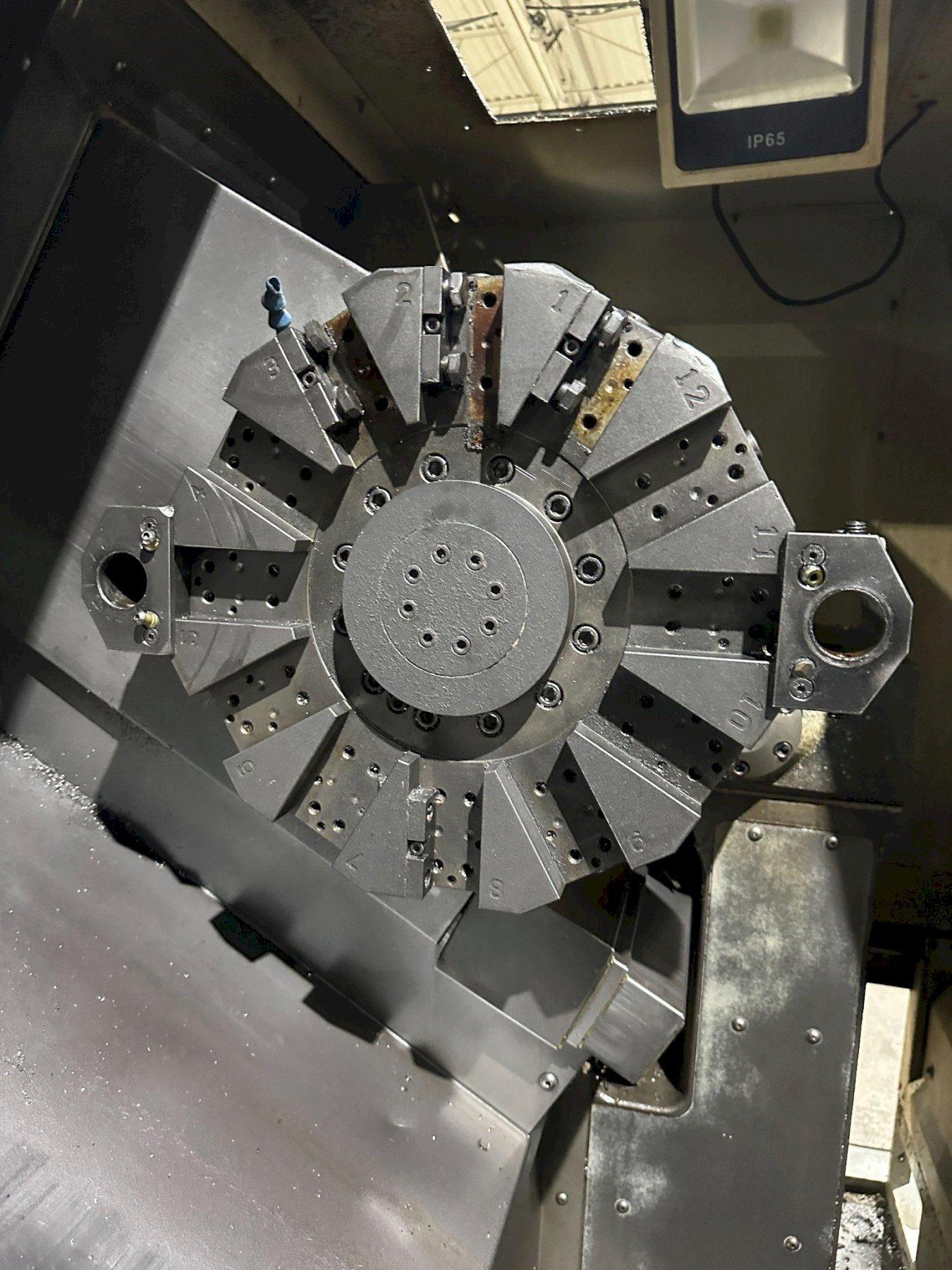

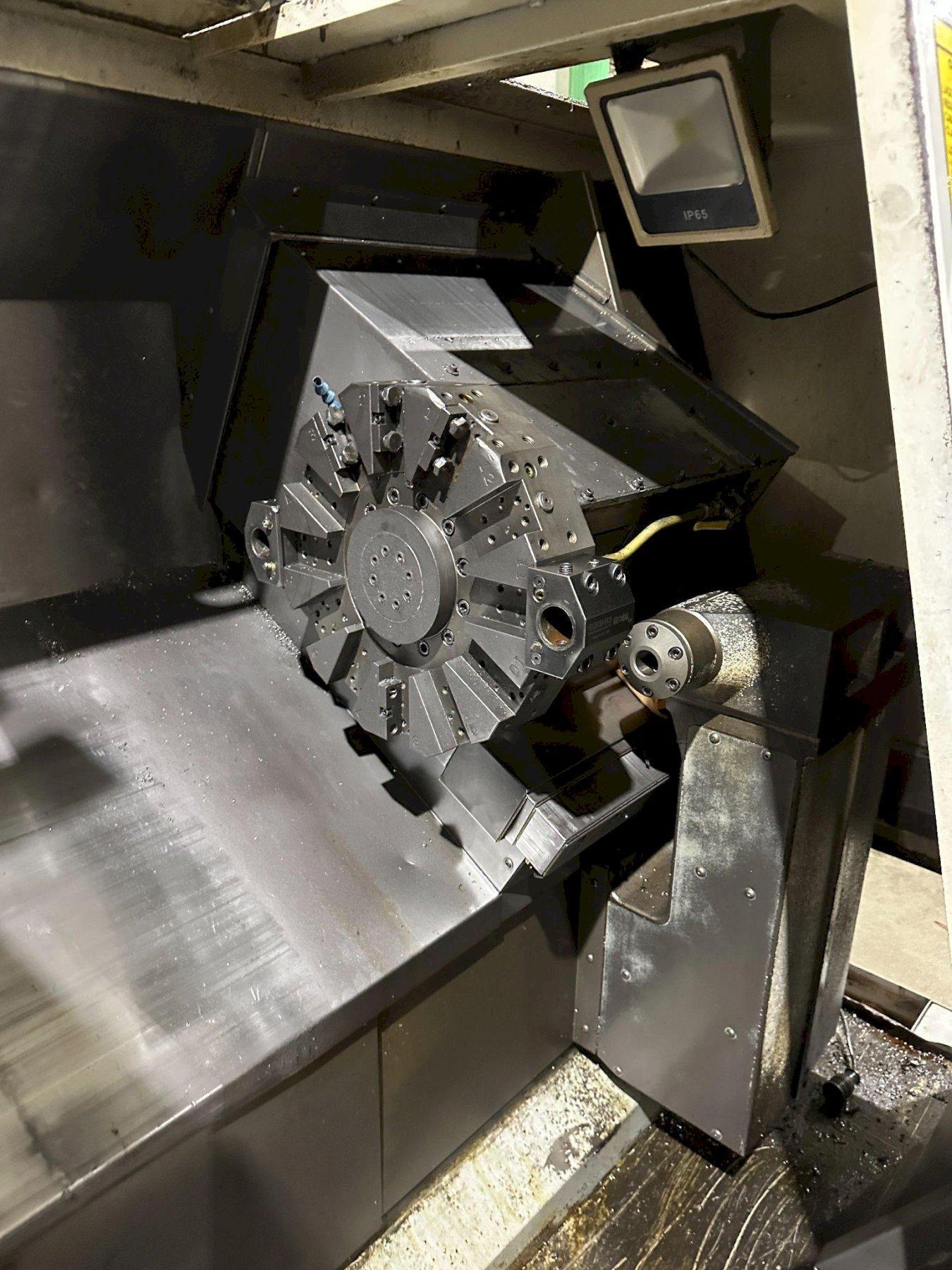

Turret Capacity 12
Machine Weight 14,000 lb

Product Specifications:

  • Manufacturer: HAAS
  • Model: SL-30T
  • Year: 2005
  • CNC Control: Haas
  • Swing Over Bed: 30″
  • Maximum Turning Diameter: 17″
  • Chuck Size: 10″
  • Spindle Speed: Up to 3,400 RPM
  • Spindle Motor: 30 hp
  • Turret: 12-station
  • Machine Weight: Approx. 14,000 lbs

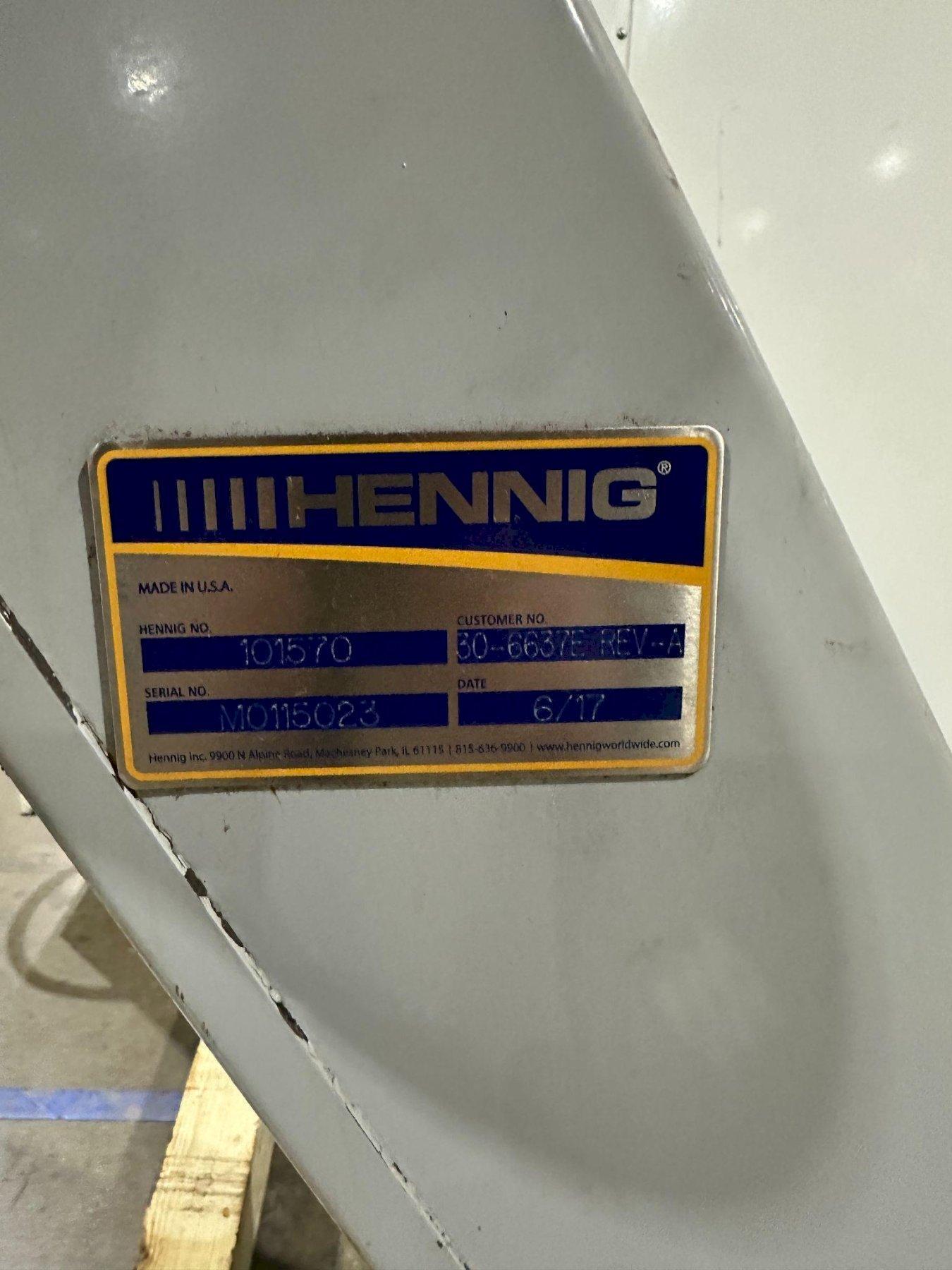

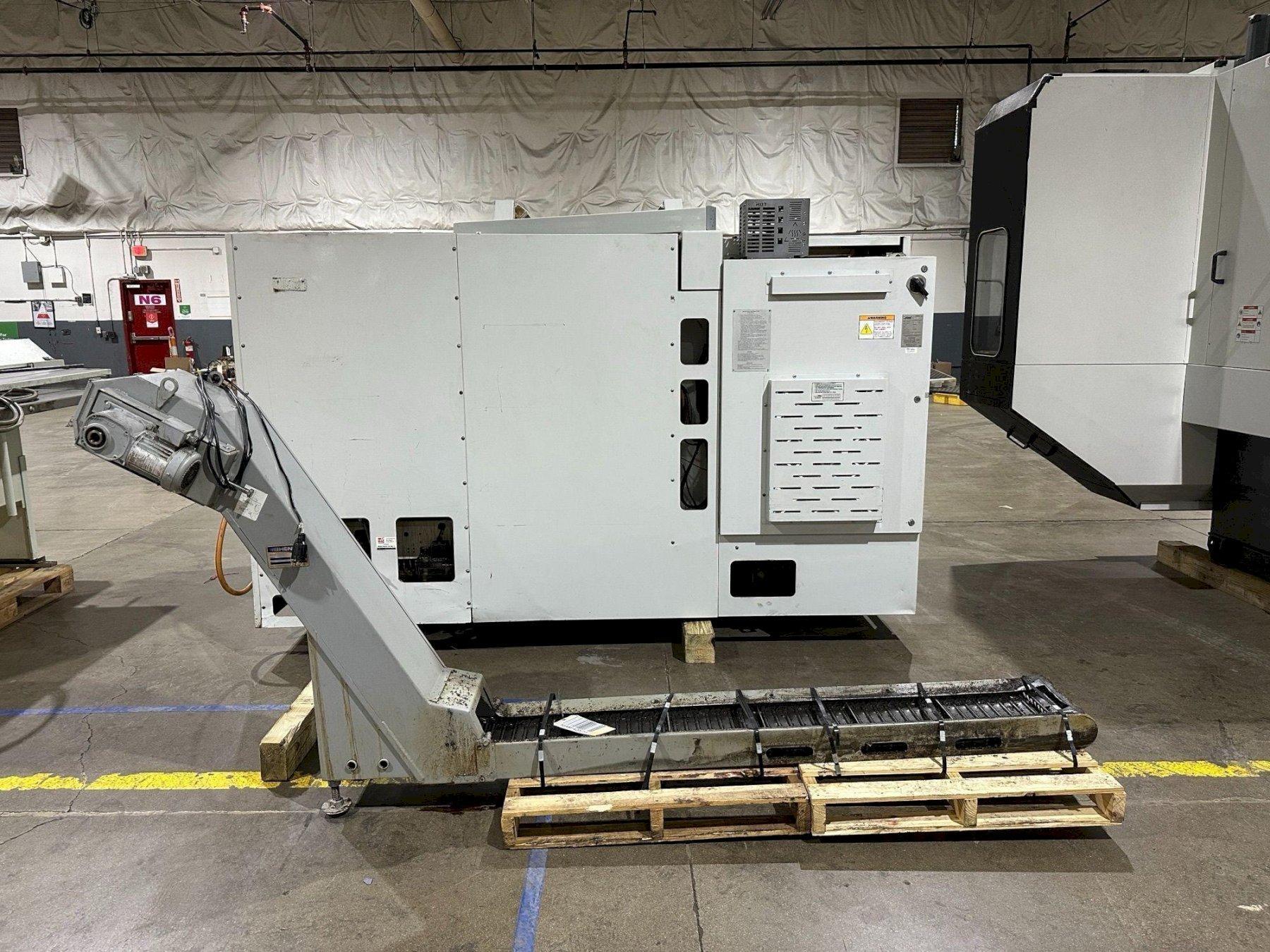

  • Chip Conveyor: Henning brand included



Key Features:

  • High-horsepower 30 hp spindle for demanding cutting applications
  • Large 30″ swing with generous 17″ turning diameter
  • Haas CNC control for intuitive programming and monitoring
  • Durable 12-tool turret enabling efficient tool changes
  • Integrated Henning chip conveyor for clean and continuous operation
  • Rigid construction suitable for medium to heavy-duty machining



Applications:

  • General-purpose metal turning in small- to mid-sized machine shops
  • Production of cylindrical parts in aerospace and automotive sectors
  • Batch manufacturing with high dimensional repeatability
  • Machining of medium to large diameter components
  • Educational or training environments requiring a full-size CNC lathe
