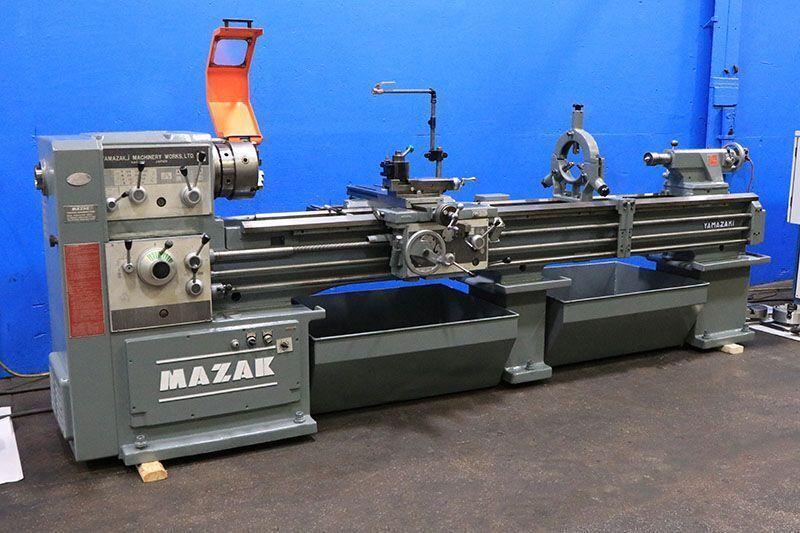

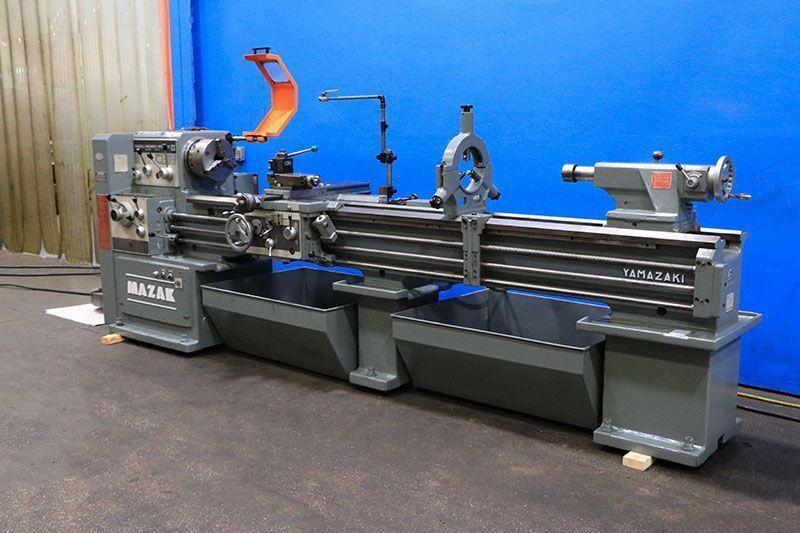

1980’S MAZAK GAP BED LATHE USED

Specifications:

Swing over bed ways: 18″

Swing in removable gap: 25-1/8″

Swing over cross slide: 10-1/8″

Distance between centers: 100″

Hole Thru Spindle: 3-1/8

Spindle Nose: D1-8″

Camlock Bed width: 14-1/2″

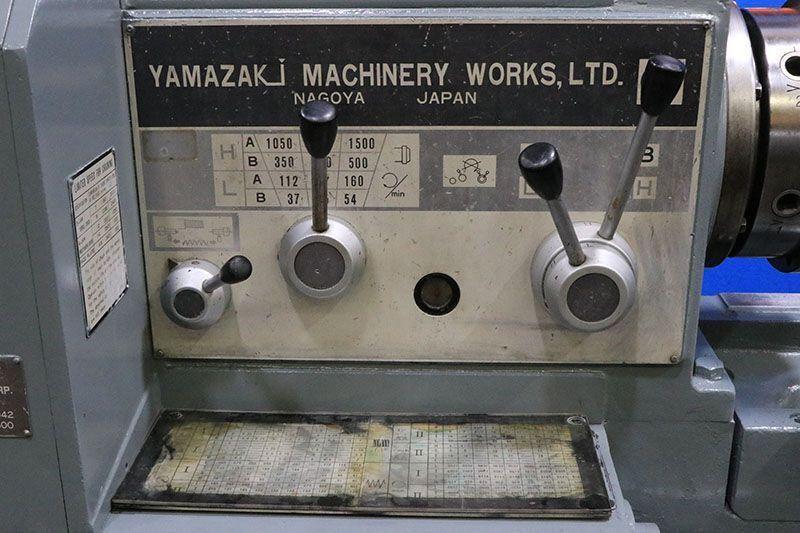

Spindle speed range(12): 25-1500 RPM

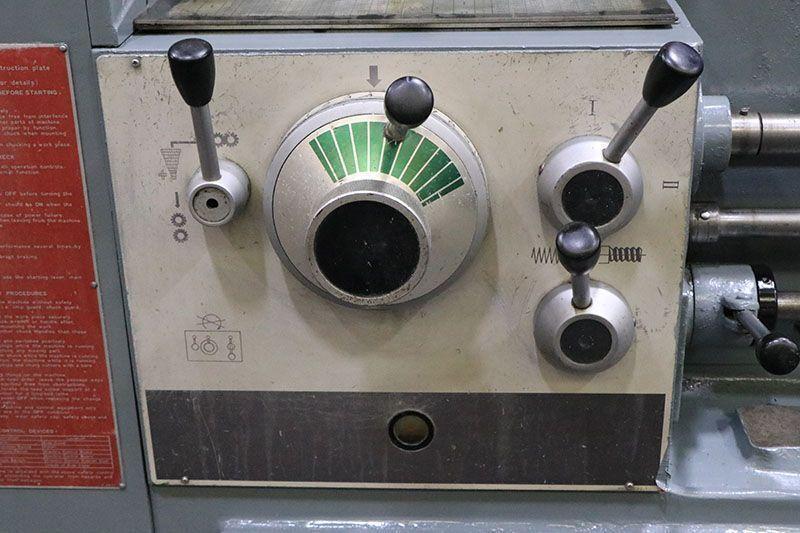

Longitudinal feed range (80): .0024″ – .035″ IPR

Cross feed range: 1/2 of longitudinal setting

Inch threading range(40): 4 – 56

TPI Metric threading range(23): .5 – 7 mm

Tailstock spindle travel/taper: 6-5/16″ & #4MT

Main motor: 10 HP

Approx. dimensions: 160″L x 45″W x 50″H

Approx. weight: 7500 lbs

Key Features:

•

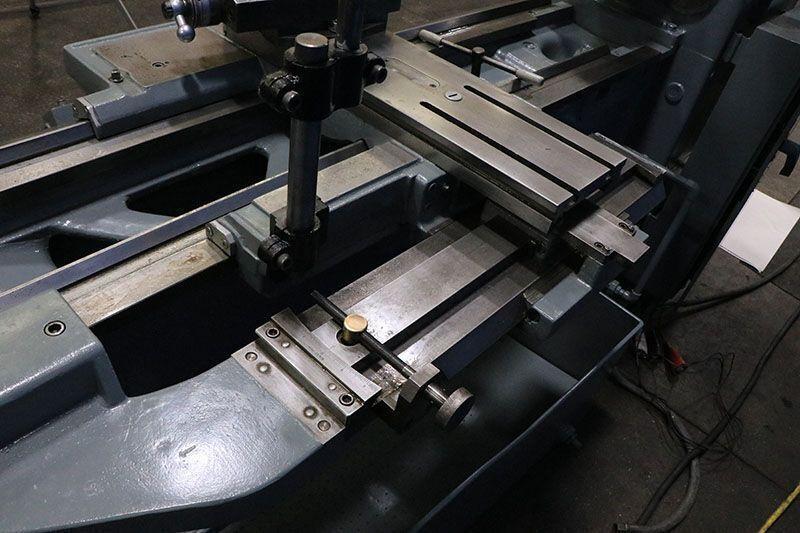

  Taper turning attachment enables accurate and repeatable tapers
•

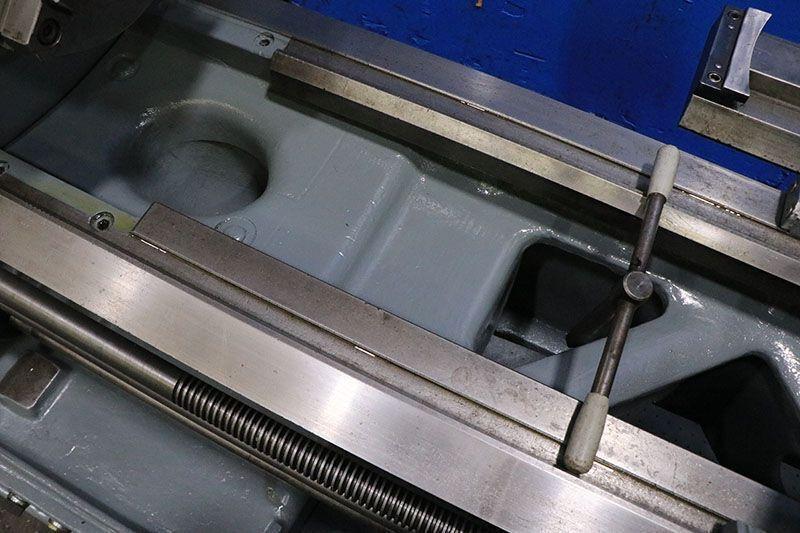

  Removable gap block allows increased swing capacity for large workpieces
•

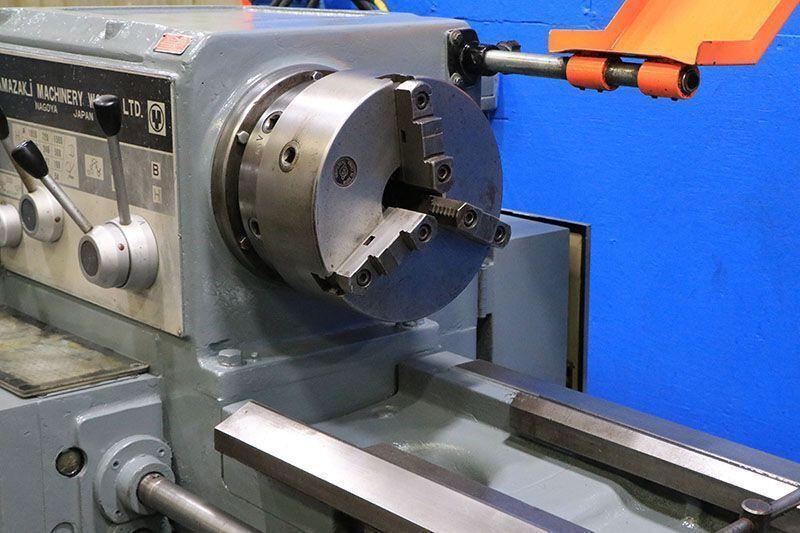

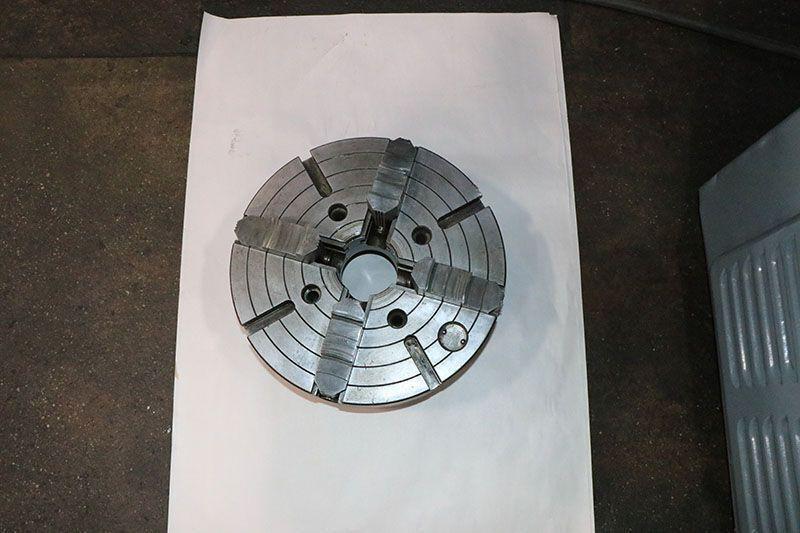

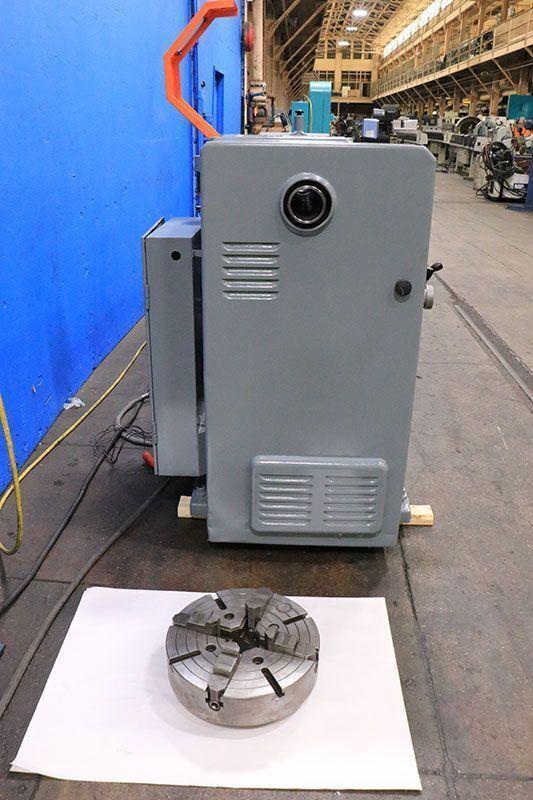

  12″ 3-jaw and 15″ 4-jaw chucks for flexible workholding
•

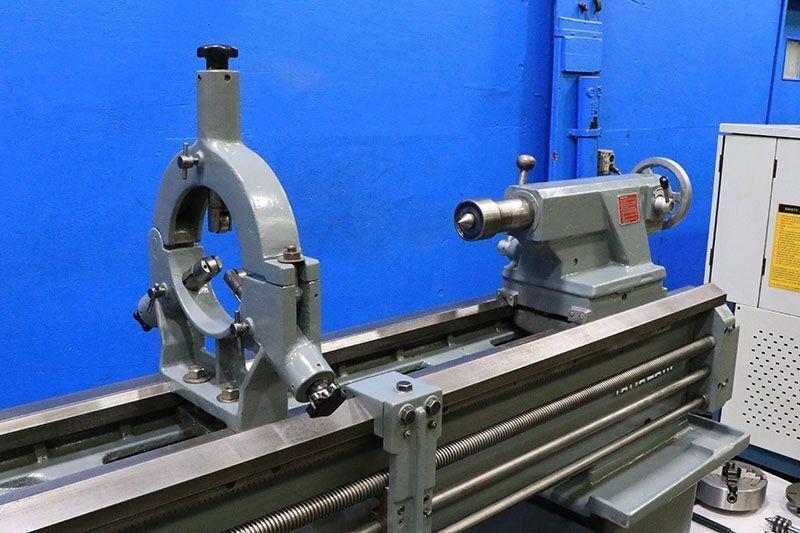

  Roller-type steady rest supports long or slender parts during machining
•

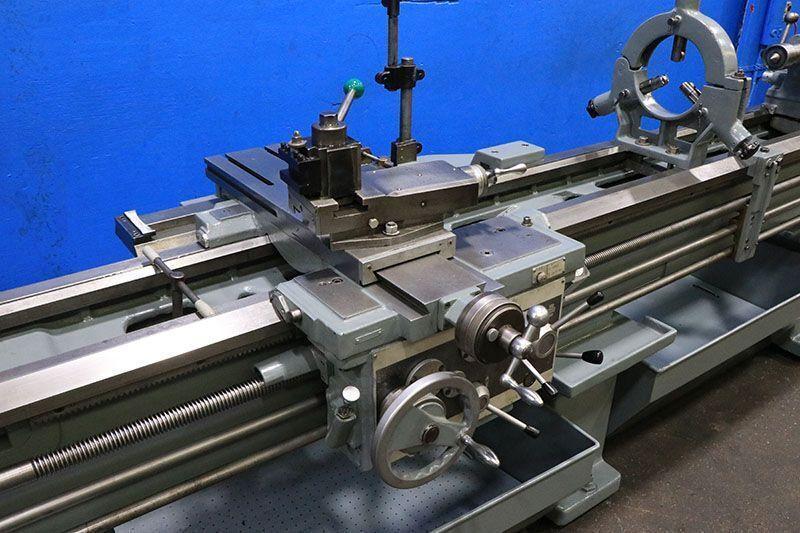

  Quick change toolpost enhances efficiency for tool changes and setups
•
  Live center included for tailstock to support rotating workpieces
•

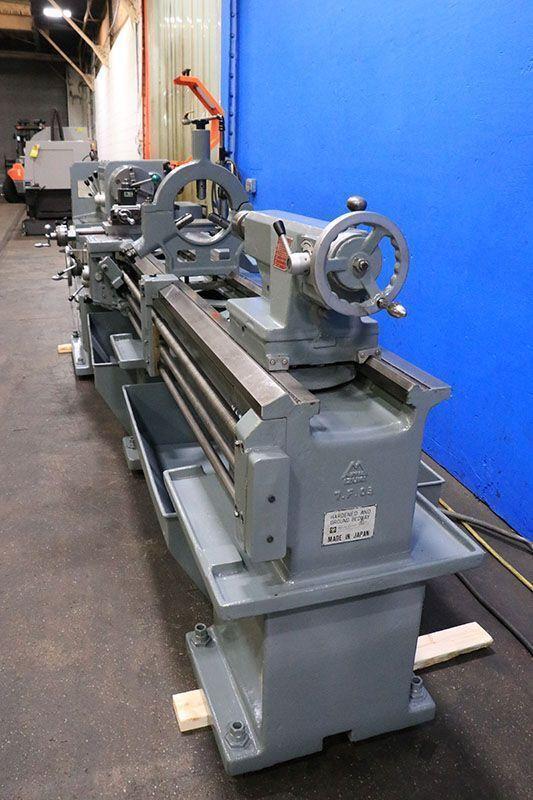

  Two-speed tailstock for variable thrust and control during drilling or reaming
•
  Hardened and ground bed ways ensure long-term precision and durability
•
  Supports both inch and metric threading for versatile operations.
