FADAL 6030 907-1 VERTICAL MACHINING CENTER CNC USED

FADAL 6030 907-1 VERTICAL MACHINING CENTER CNC USED

Name: Used FADAL 907-1 VMC 6030 For Sale IGAM1220002
Brand: FADAL
SKU: IGAM1220002

Brand

FADAL

Location

Michigan

REQUEST FINANCING

Specifications
Files & Videos

Overview

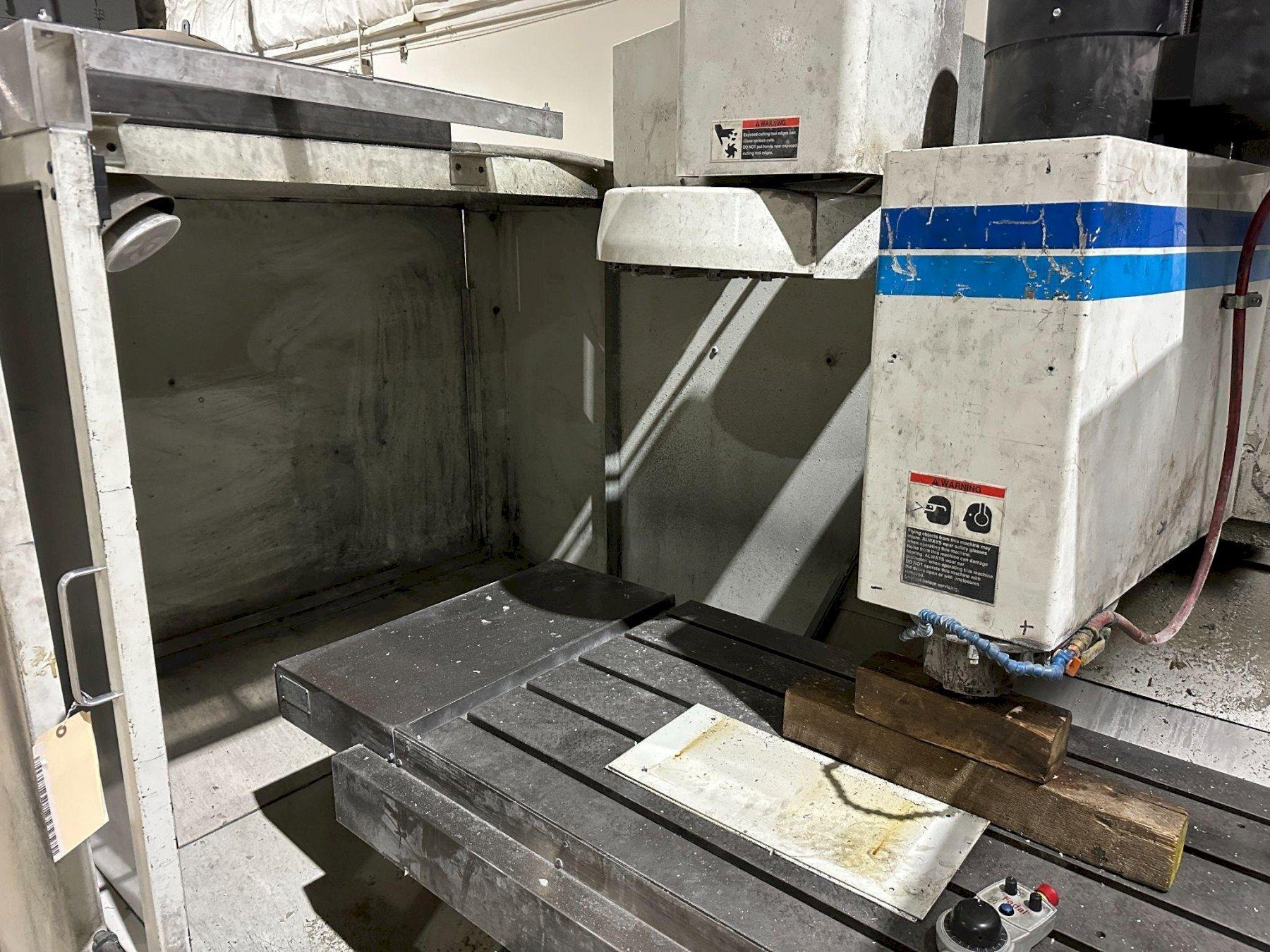

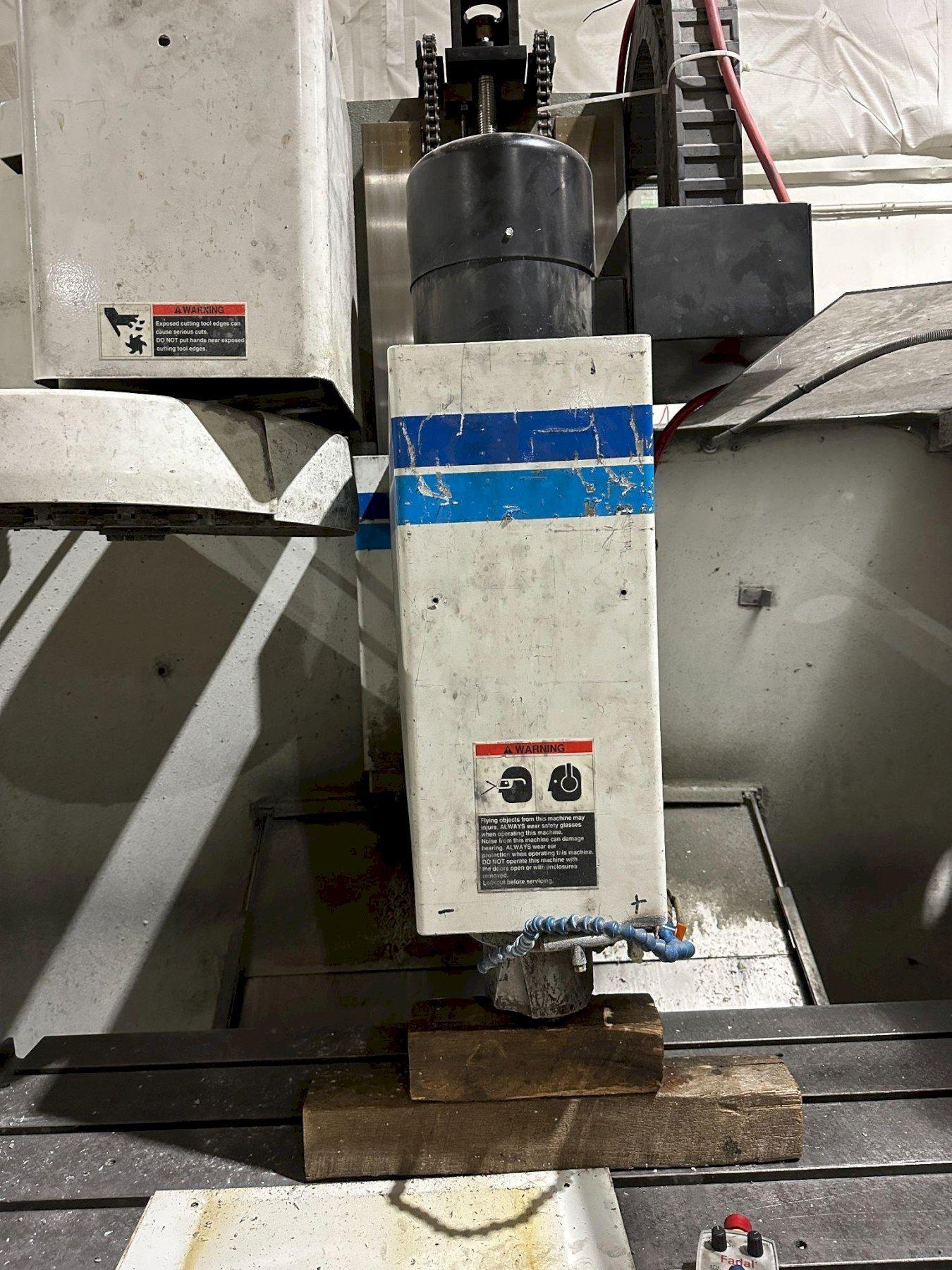

The FADAL 6030 Model 907-1 Vertical Machining Center (CNC) is a used high-capacity CNC milling machine engineered for precision, rigidity, and versatility in demanding machining applications. With an expansive 60″ x 30″ x 30″ travel, powerful 15 HP spindle motor, and a robust 20-position automatic tool changer (ATC), this VMC delivers efficient operation and high throughput for both one-off and production-level tasks. Designed around the reliable CAT 40 taper and offering a 3,300 lb table load capacity, the FADAL 6030 is well-suited for shops handling large components and complex part geometries.

Specification Table

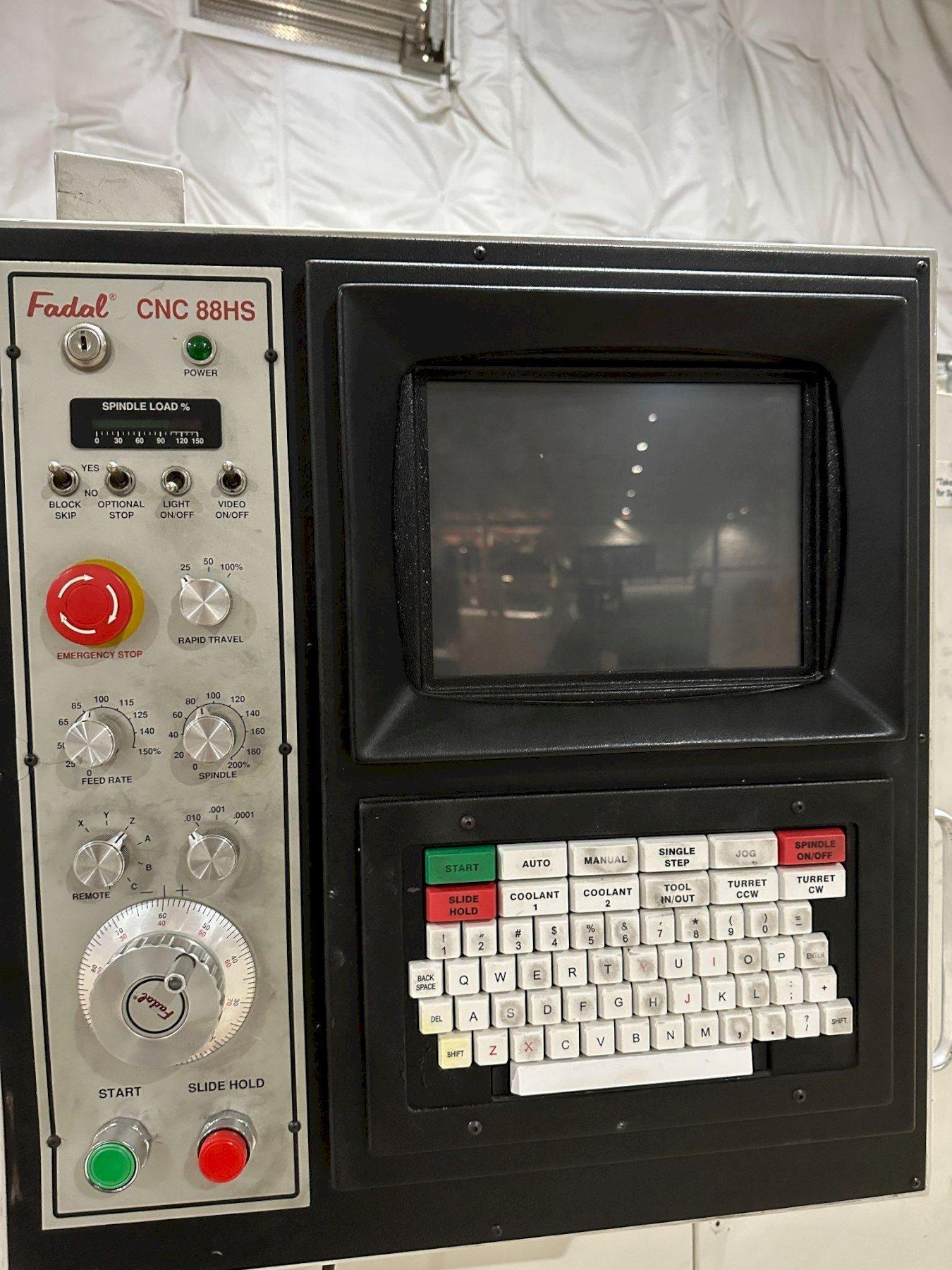

CNC Control	CNC 88HS
# Axis	3
Table-L	62.5″
Table-W	30″
Max Table Load	3300
X-axis Travel	60″
Y-axis Travel	30″
Z-axis Travel	30″
Rapid Traverse Rate (X/Y/Z)	400IPM
Spindle Taper	CAT 40
Spindle Speed	0 RPM
Main Motor	15 hp
# ATC	20
Machine Dimensions	159118000
Machine Weight	17000

X-Axis Travel: 60”
Y-Axis Travel: 30”
Z-Axis Travel: 30”

Rapid Traverse (X, Y, Z): 400 IPM
Table Size: 30” x 62.5”
Max Table Weight: 3,300 LB
Spindle Nose to Table: 5.5” – 35.5”
Spindle Motor: 22.5 HP
Spindle Speed: 10 – 10,000 RPM
Spindle Taper: CAT 40
Auto Tool Changer: 20

Product Specifications:

Manufacturer: FADAL
Model Number: 6030 (907-1)
X/Y/Z Travel: 60″ x 30″ x 30″
Table Size: 62.5″ x 30″
Table Load Capacity: 3,300 lbs
Spindle Taper: CAT 40
Spindle Motor: 15 HP
Rapid Traverse Rate: 400 IPM (inches per minute)
Tool Changer: 20-position Automatic Tool Changer (ATC)
CNC Control: FADAL CNC (specific model may vary)

Key Features:

Extended travel dimensions ideal for machining large parts
CAT 40 spindle taper supports a wide range of tool sizes
20-tool ATC allows for seamless tool transitions during complex operations
High torque 15 HP spindle motor enables aggressive material removal
Heavy-duty construction ensures stability, accuracy, and repeatability

Applications:

Aerospace and Defense Component Machining
Large Die and Mold Work
Industrial Equipment and Automation Parts
High-Volume Production Machining
Custom Metal Fabrication and Prototyping

No files or videos to display
