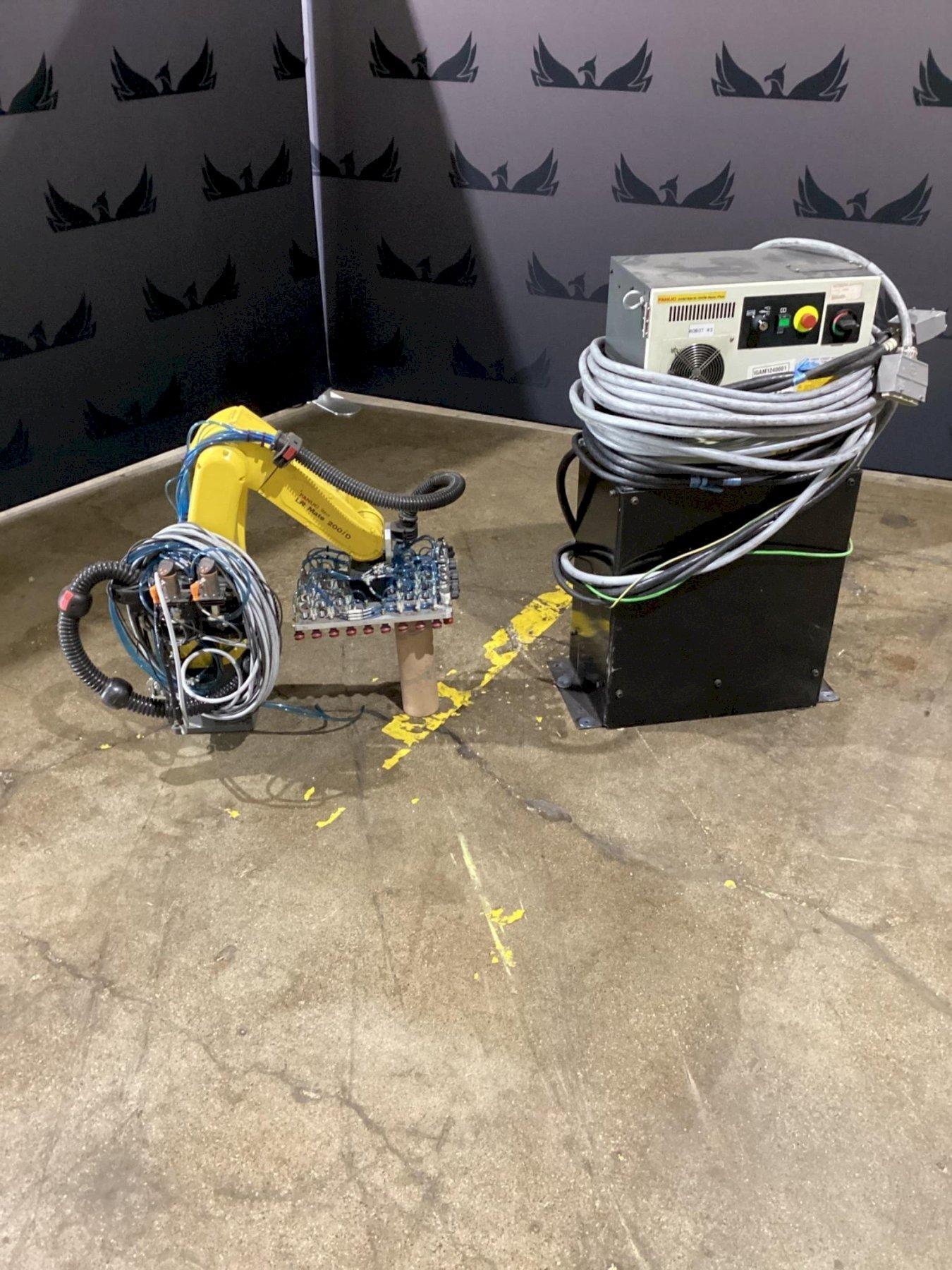

FANUC M-16IB/20 ROBOT + R-J3IB CONTROLLER USED

Product Specifications:

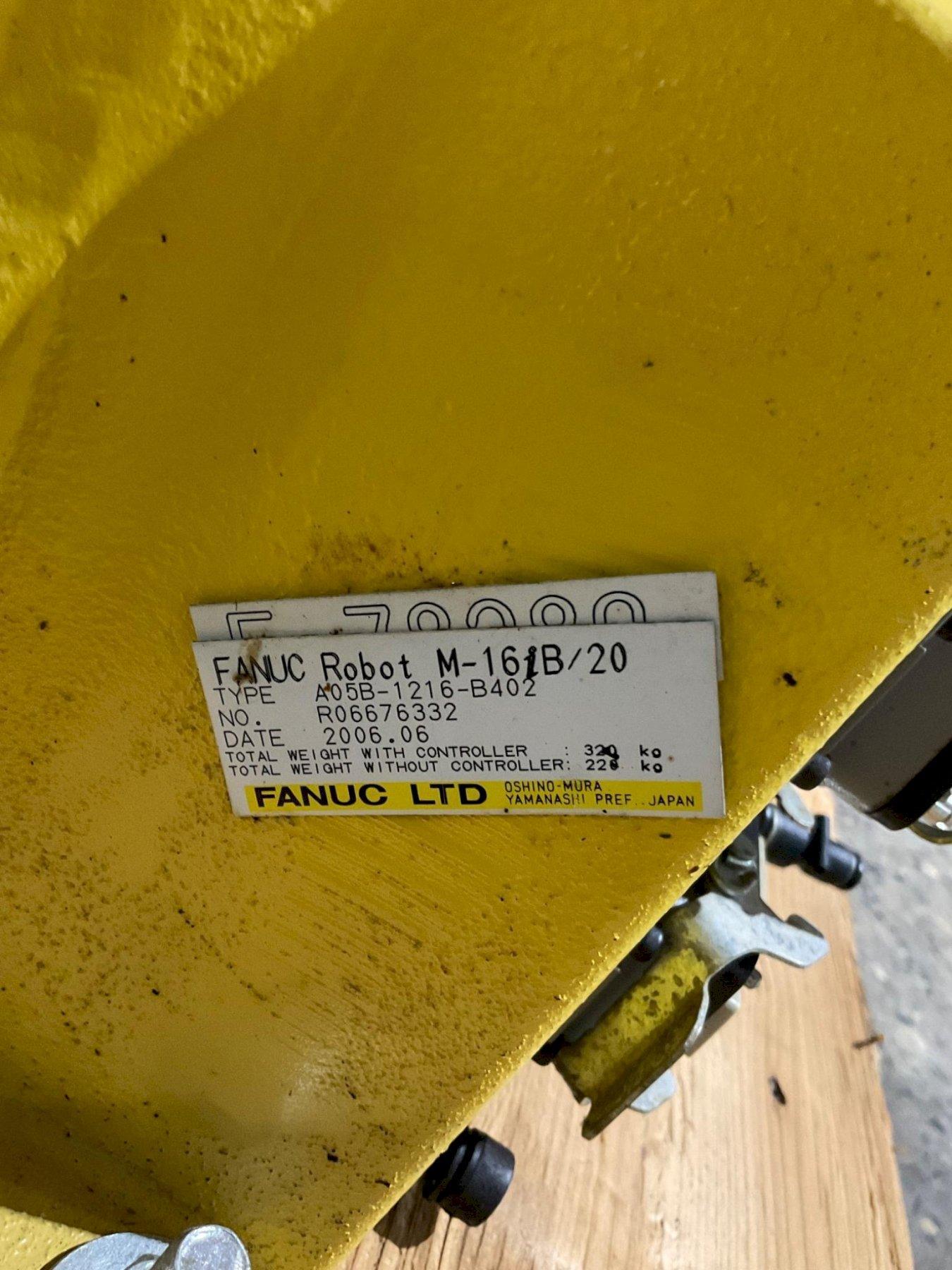

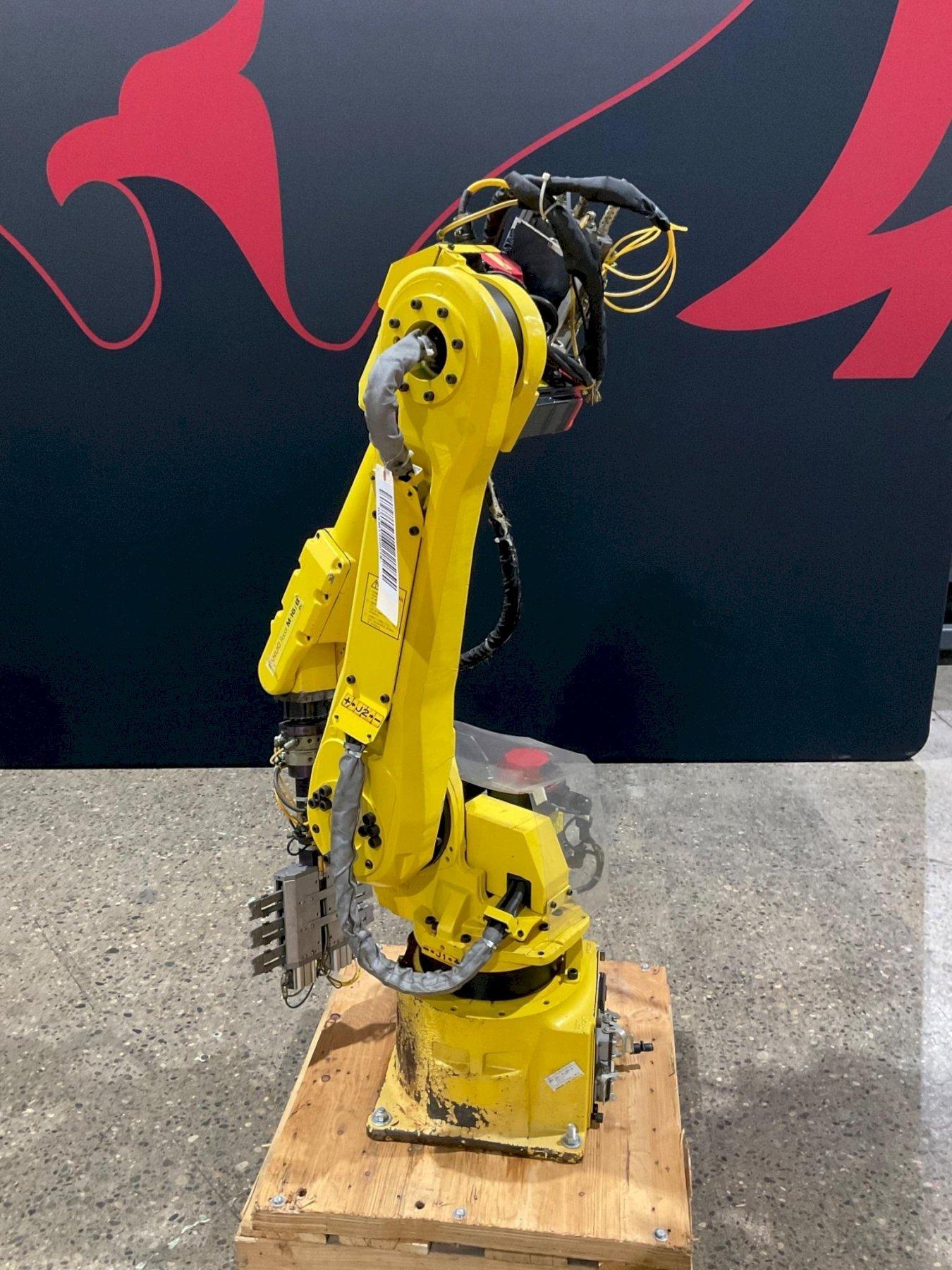

• Robot Arm:

  • Model: M-16iB/20

  • Axes: 6

  • Payload Capacity: 20 kg

  • Reach: 1,667 mm

  • Repeatability: ±0.08 mm

  • Mounting Options: Floor, inverted, angle

  • Mass: Approximately 220 kg

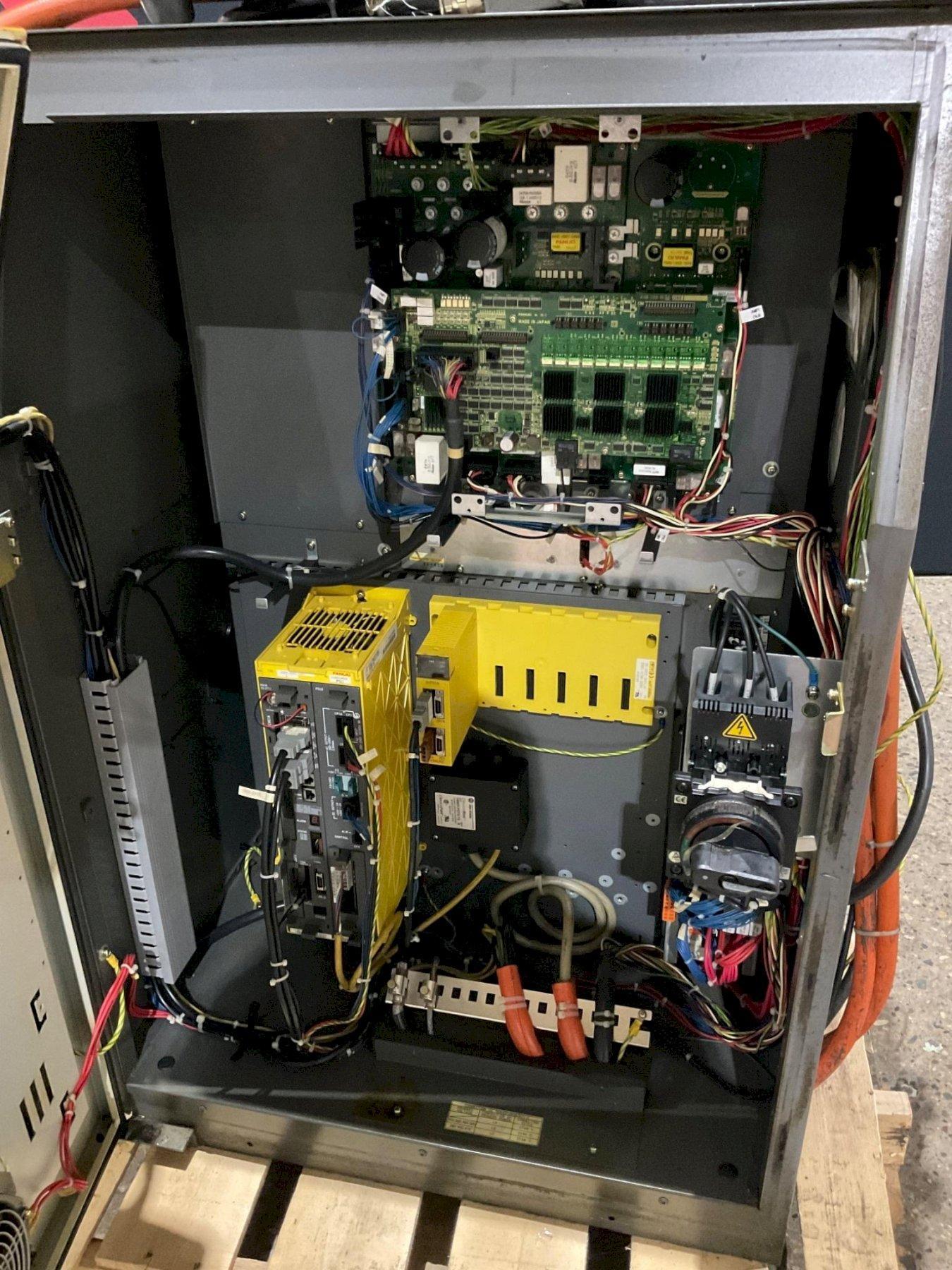

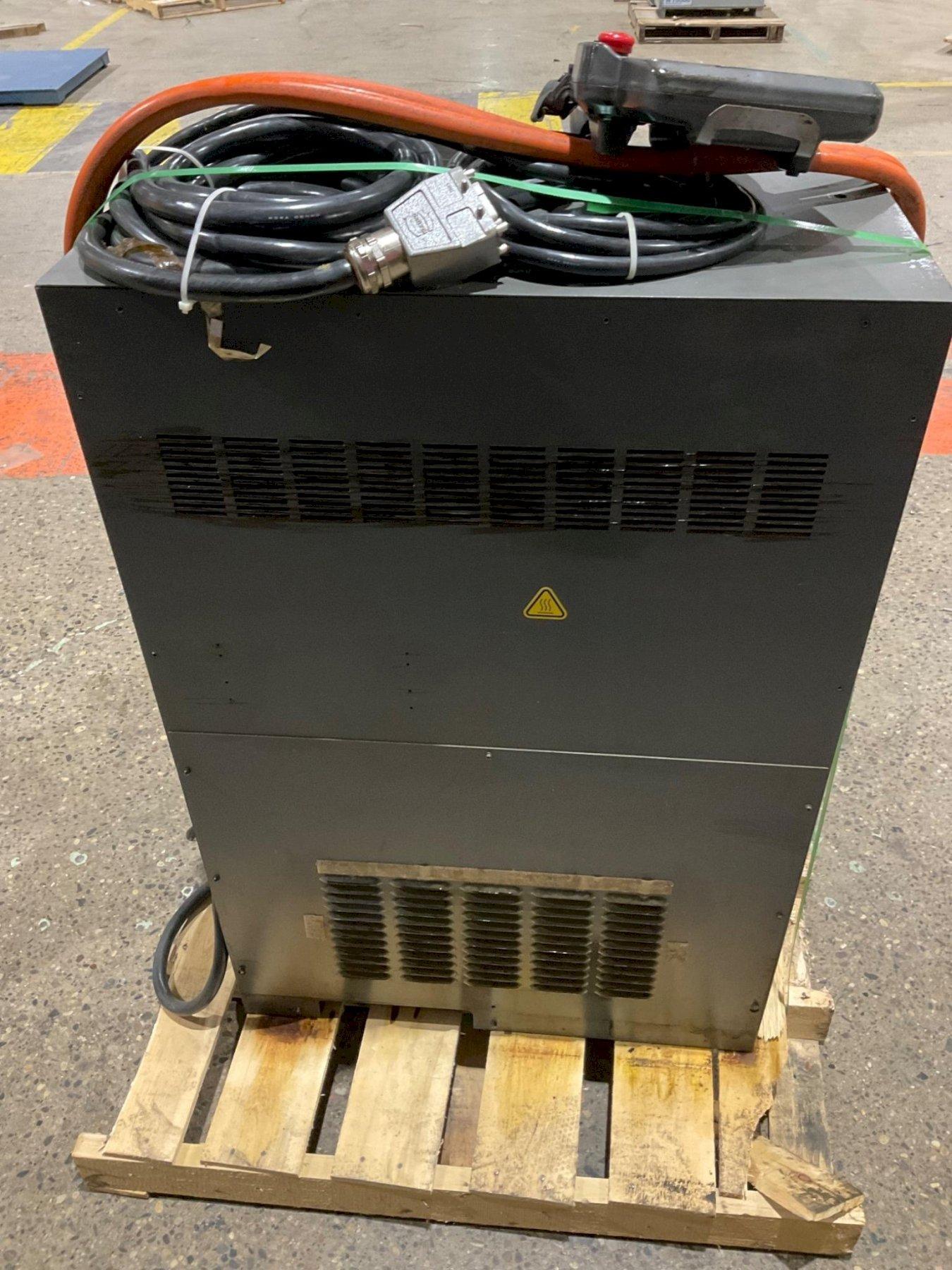

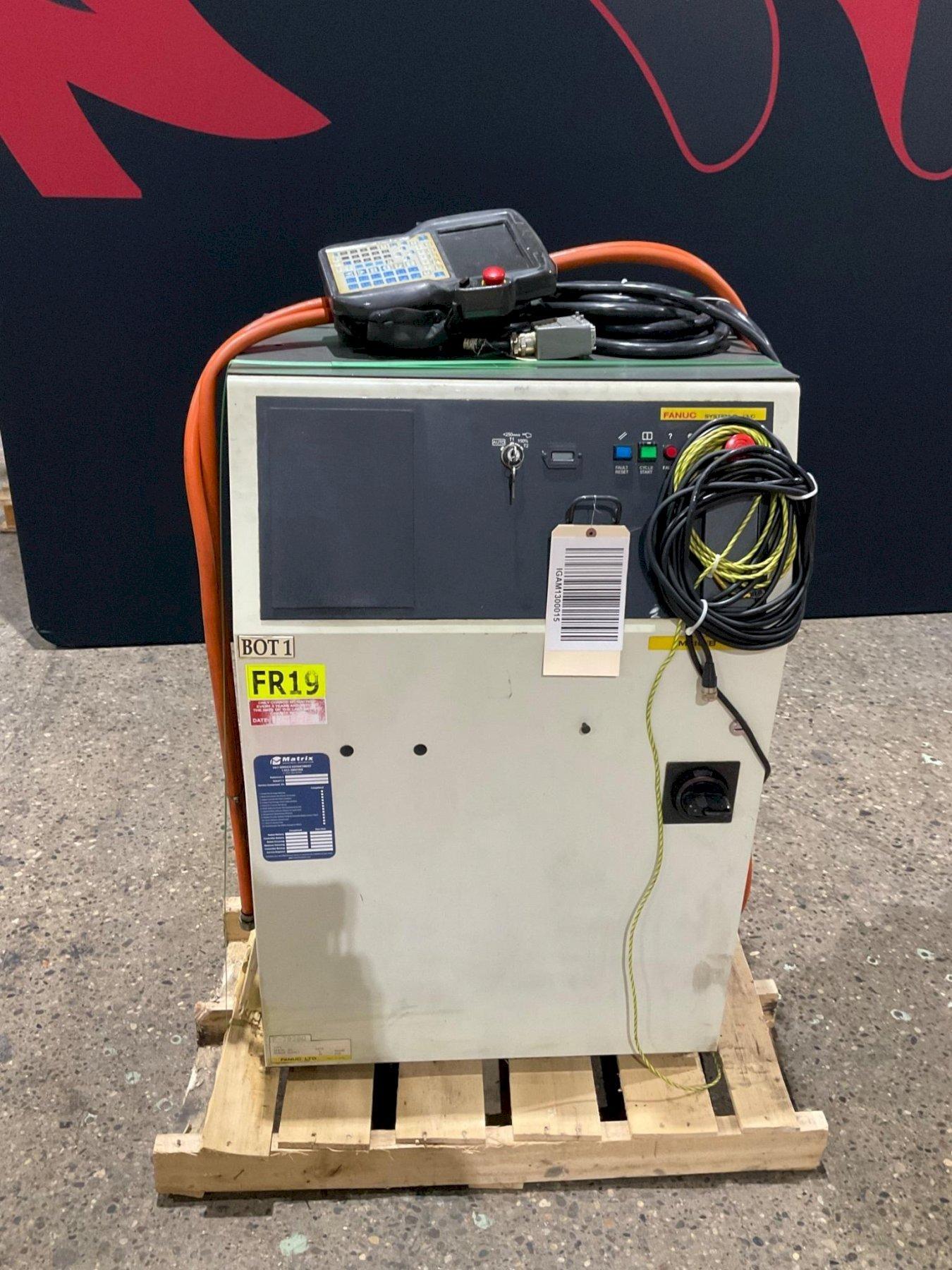

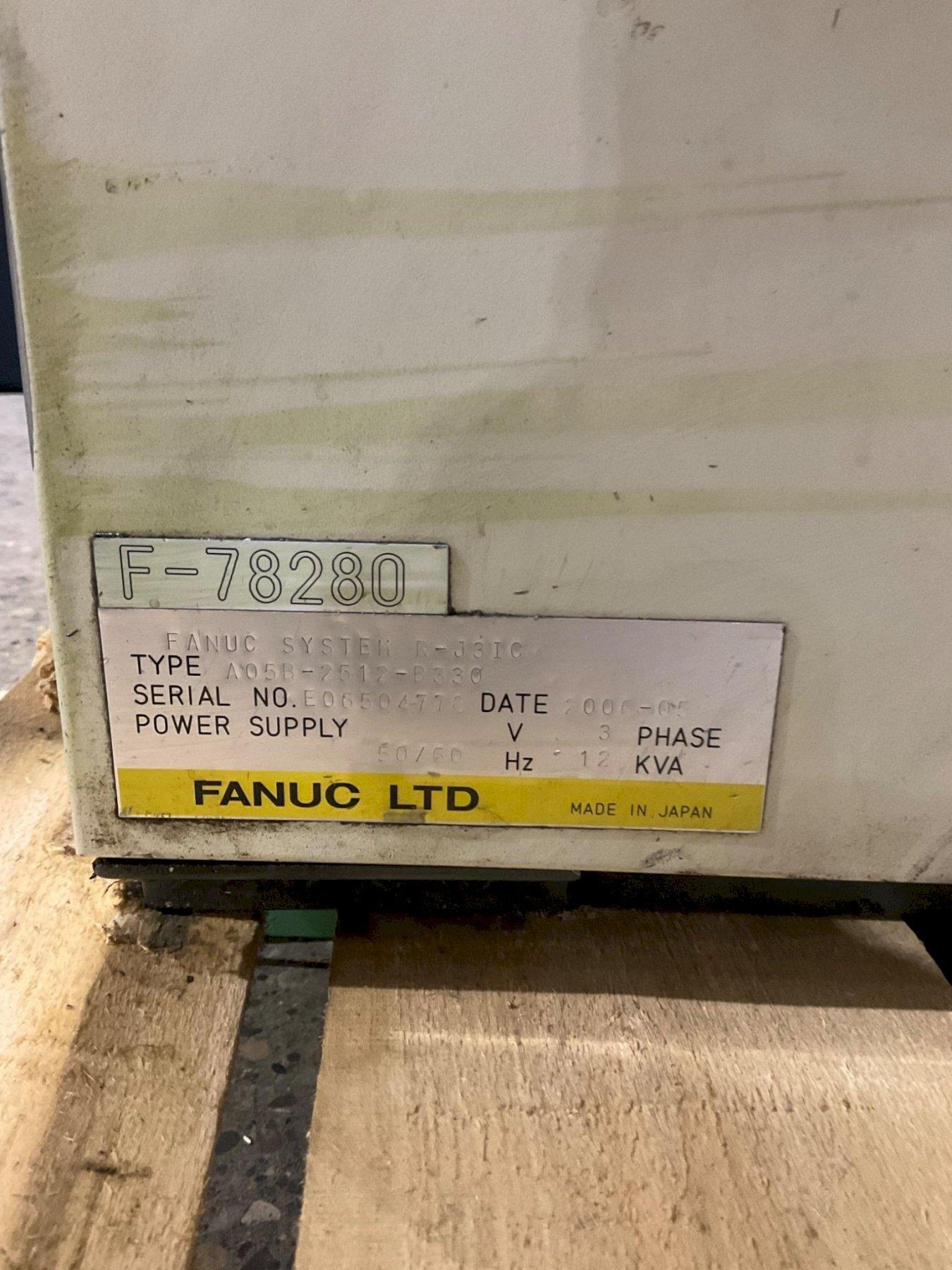

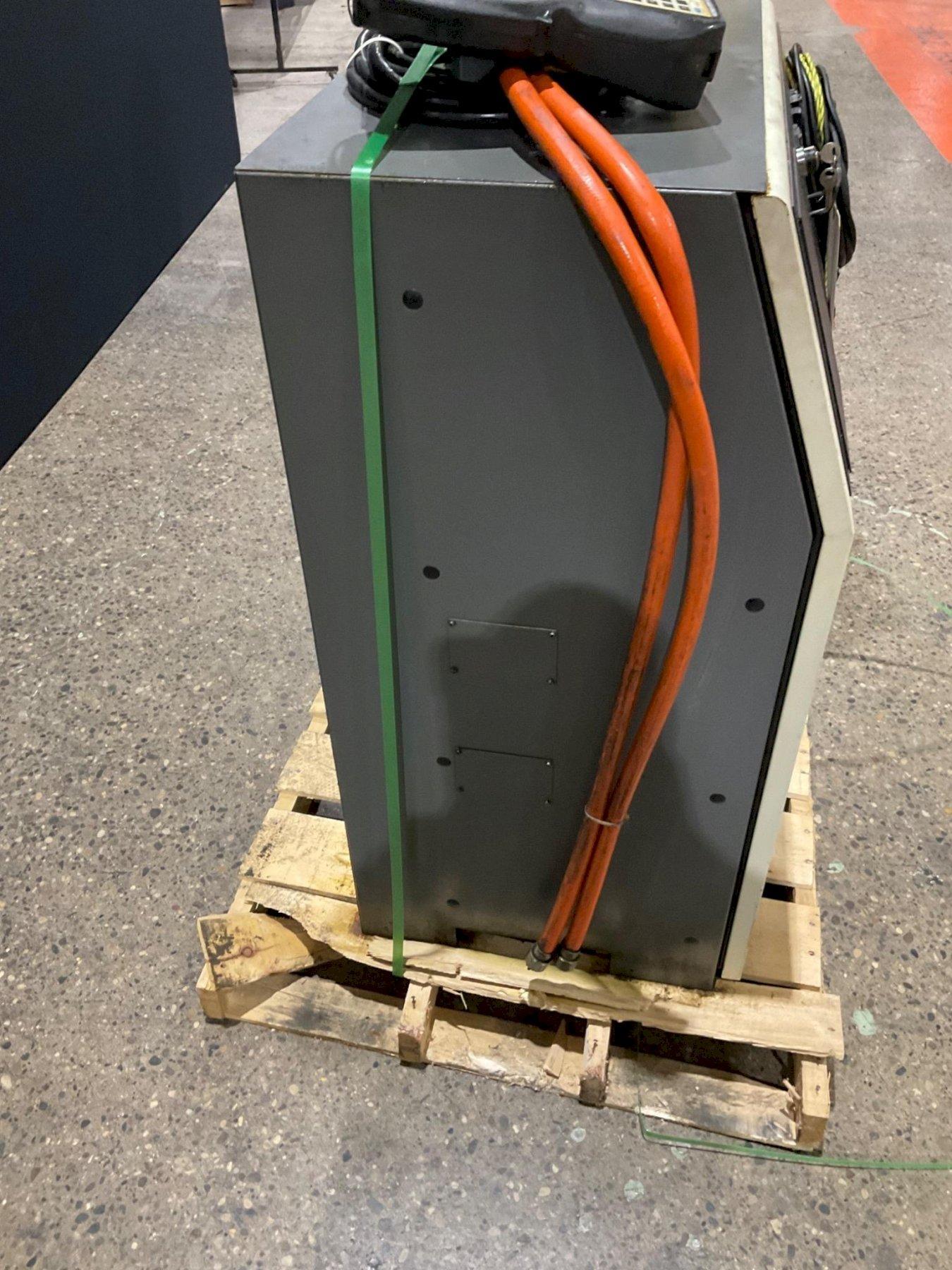

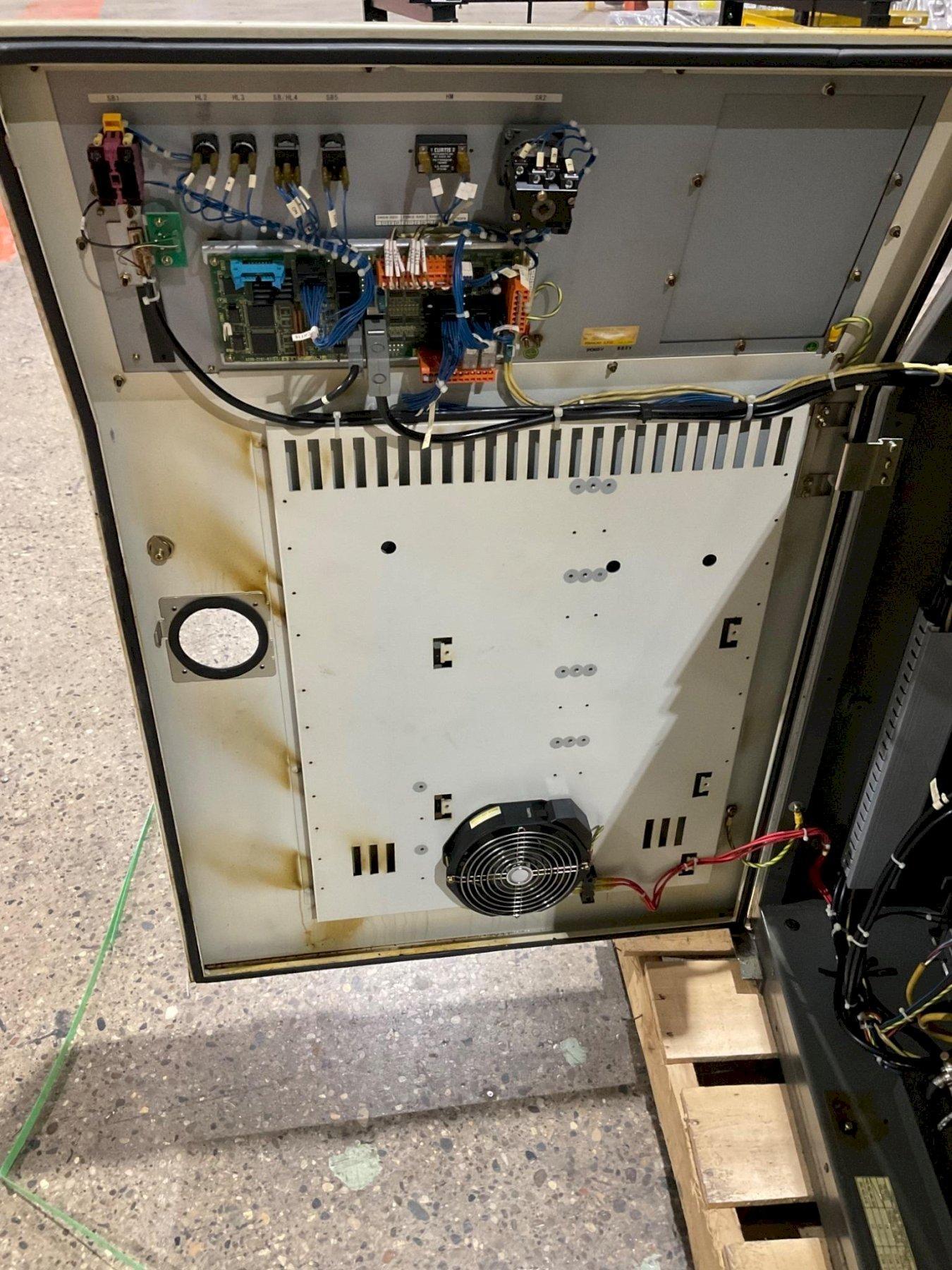

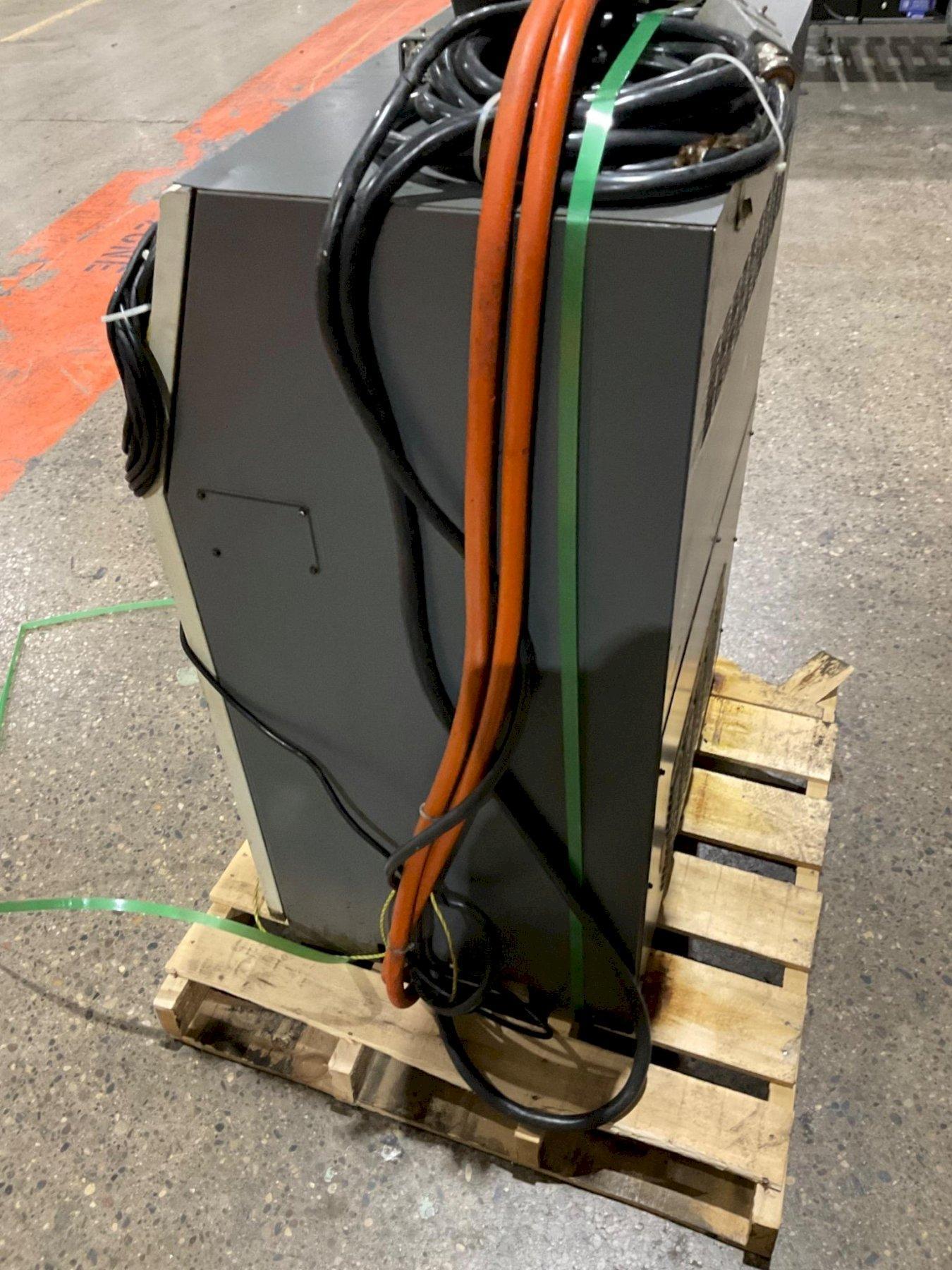

• Controller:

  • Model: R-J3iB

  • Control Capacity: Capable of managing up to 16 FANUC motor-based axes simultaneously

  • Variants: Available in A-cabinet, B-cabinet, and Mate-cabinet styles to accommodate different robot sizes and applications

Key Features:

• Enhanced Work Envelope: The M-16iB/20’s “double-jointed” arm design increases its work envelope and positioning flexibility, allowing it to handle large parts within its reach.

• Advanced Motion Control: The R-J3iB controller offers improved motion dynamics and application performance over its predecessors, enhancing operational efficiency.

• Versatile Mounting: Multiple mounting options, including floor, inverted, and angle positions, provide flexibility in integration into various production environments.

• High-Speed Operation: The robot’s axes offer substantial motion speeds, with J1 and J2 at 165°/s, J3 at 175°/s, J4 at 350°/s, J5 at 340°/s, and J6 at 520°/s, facilitating efficient task execution.

Applications:

• Material Handling: Efficiently transports components and products between processes.

• Assembly Operations: Performs precise assembly tasks in manufacturing settings.

• Dispensing: Suitable for applications requiring accurate dispensing of materials.

• Additive Manufacturing: Can be integrated into 3D printing and additive manufacturing processes.
