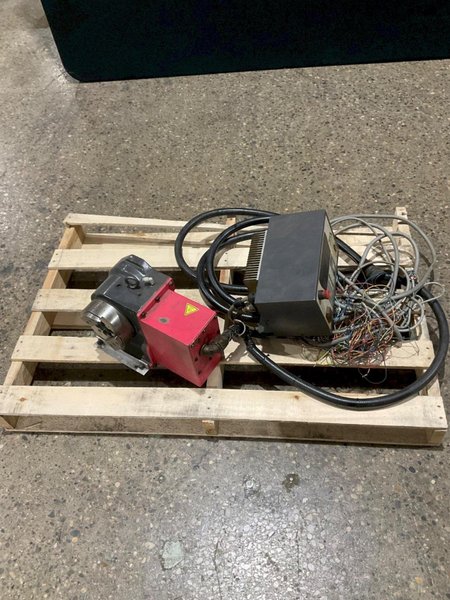

KITAGAWA RS160RAO NC ROTARY TABLE W/ MAC MINI CONTROLLER USED

Product Specifications

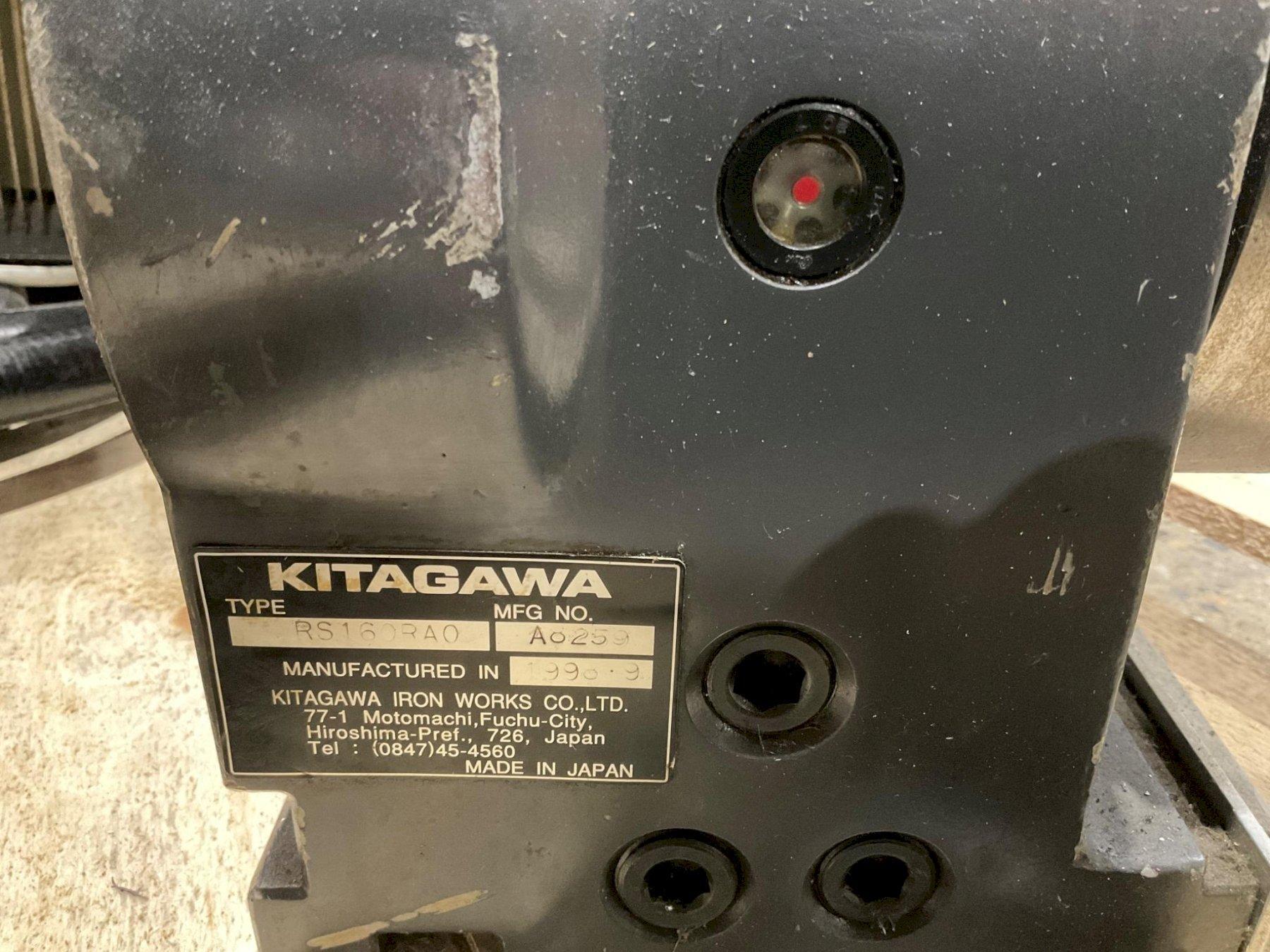

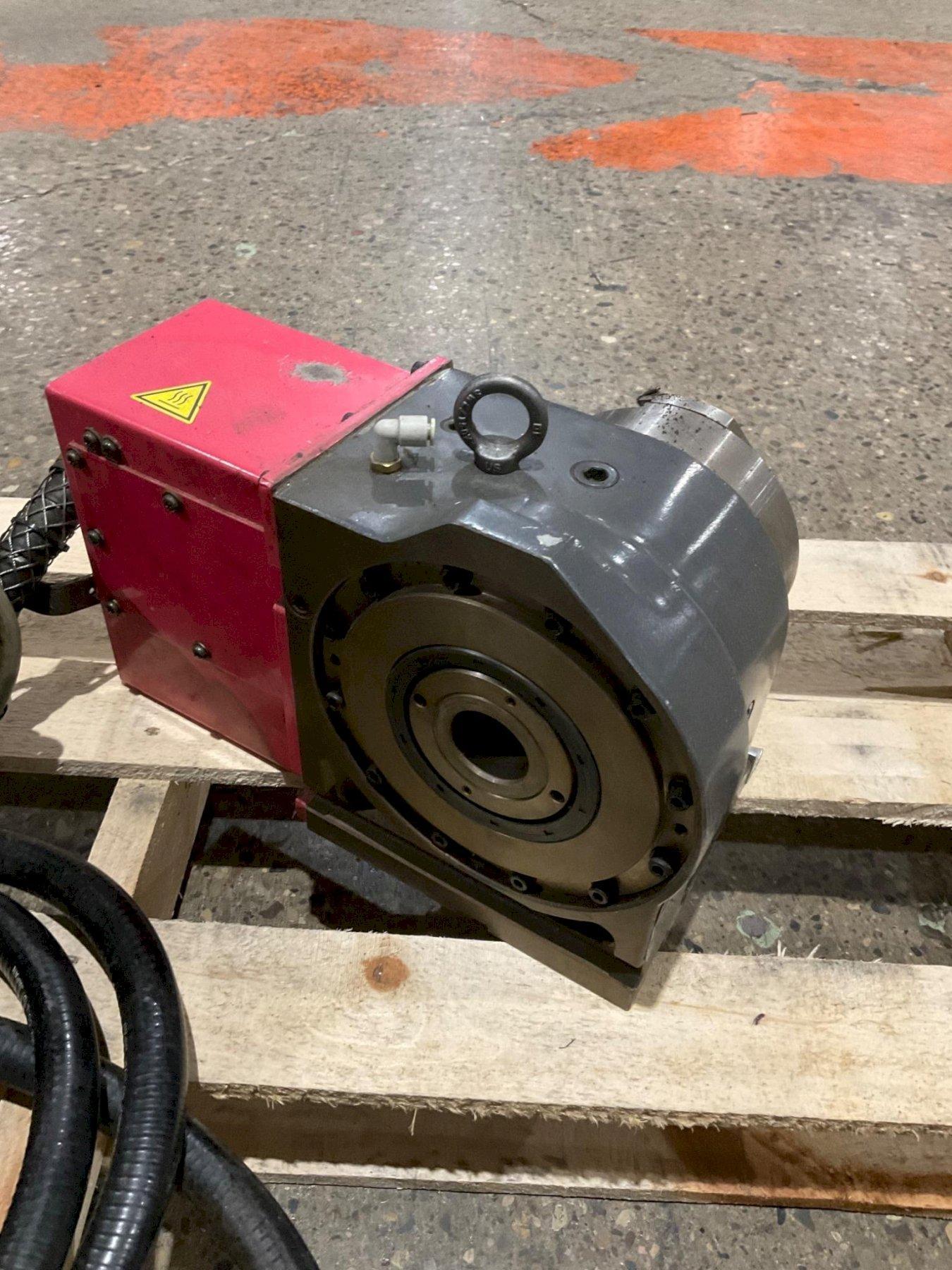

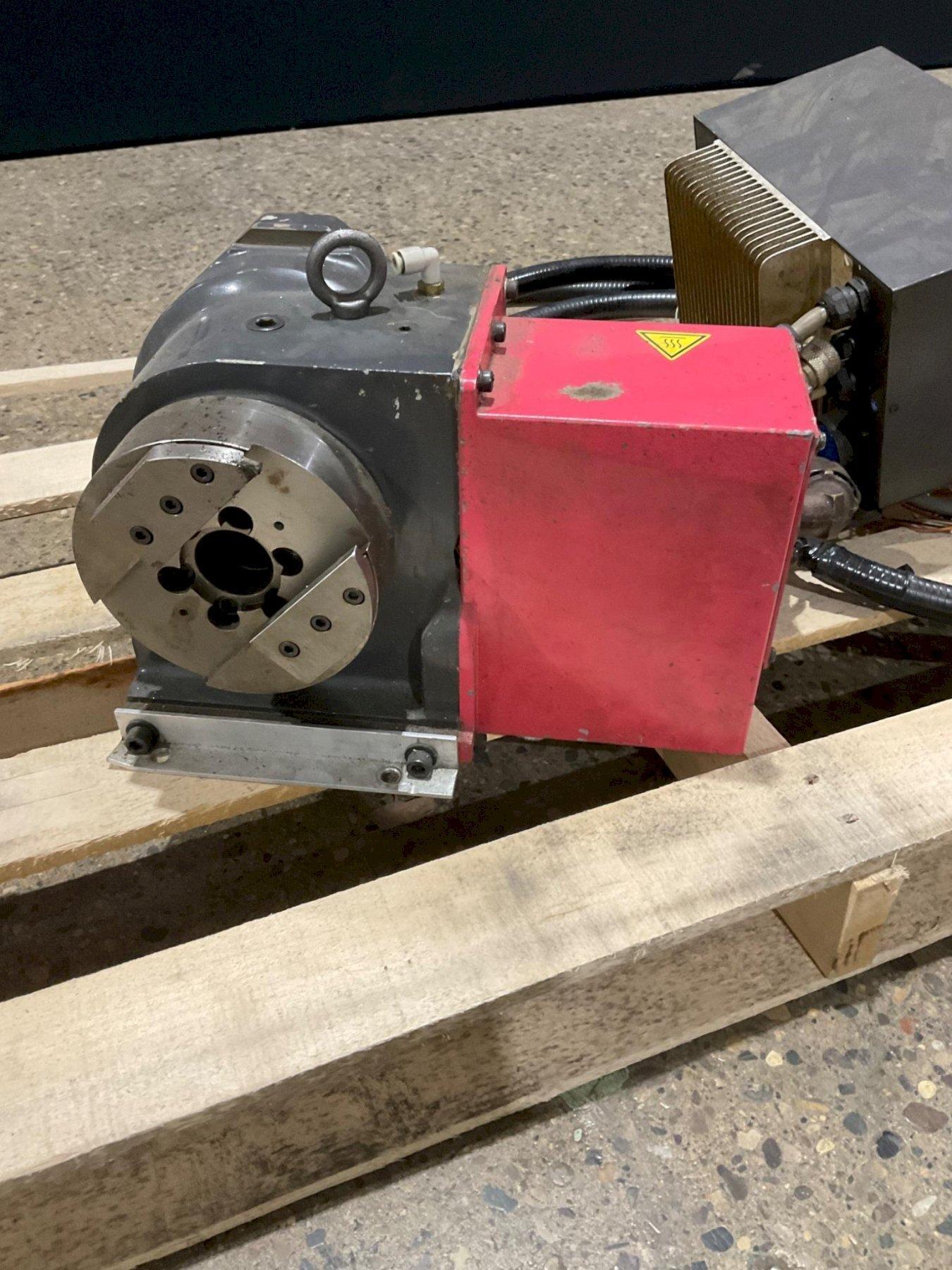

• Rotary Table Model: RS160RAO

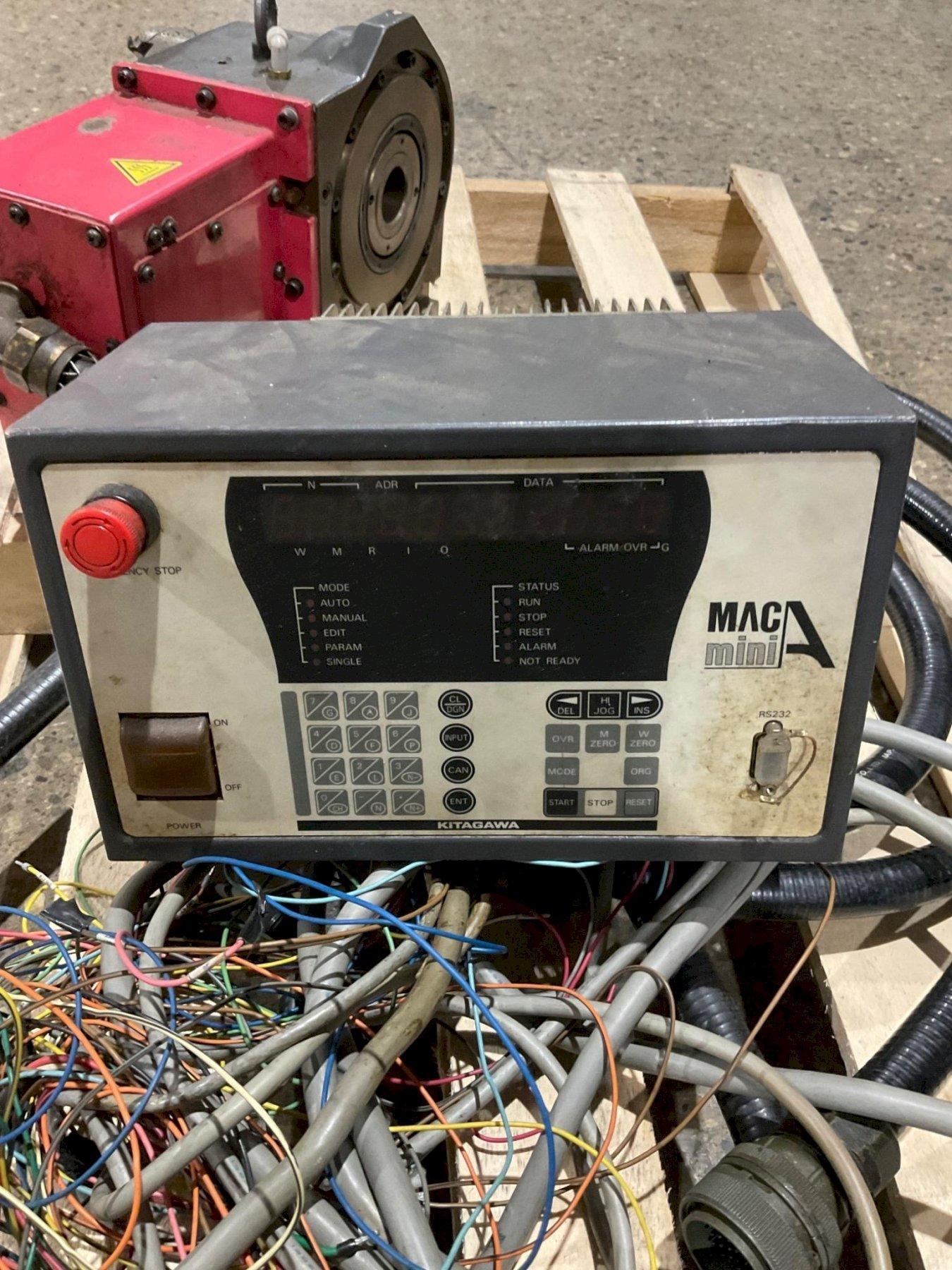

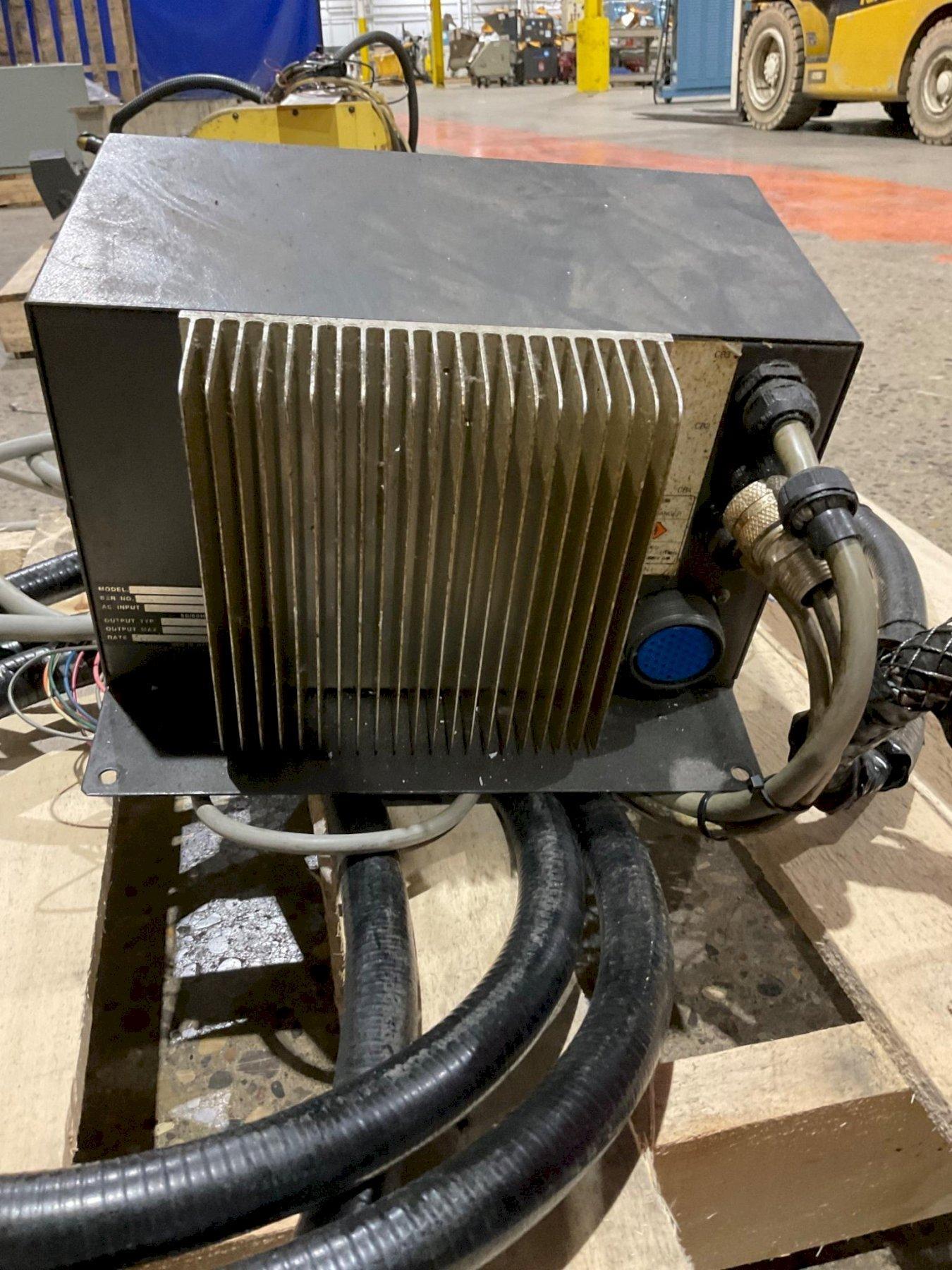

• Controller Model: MAC Mini

• Table Diameter: 160 mm

• Clamping System: Pneumatic or hydraulic (model dependent)

• Rotational Torque: Approx. 150 Nm (varies by setup)

• Gear Ratio: High-precision worm gear (common ratios: 1/90 or 1/120)

• Motor Type: Servo motor-driven (compatible with various CNC interfaces)

• Positioning Accuracy: High precision, typical ±20 arc-sec or better

• Weight Capacity (Vertical): Approx. 100–150 kg (depends on setup)

Key Features

• Compact design suited for smaller machining centers

• High clamping torque for stable heavy-duty machining

• MAC Mini controller allows standalone or semi-integrated NC control

• Suitable for retrofitting to 3-axis CNC machines for 4th-axis capability

• Built for reliability and minimal maintenance in continuous-duty environments

Applications

• 4th-axis CNC milling operations

• Precision drilling and indexing in multi-face machining

• Aerospace and automotive part manufacturing

• Mold and die production

• Retrofit solutions for increasing CNC versatility
