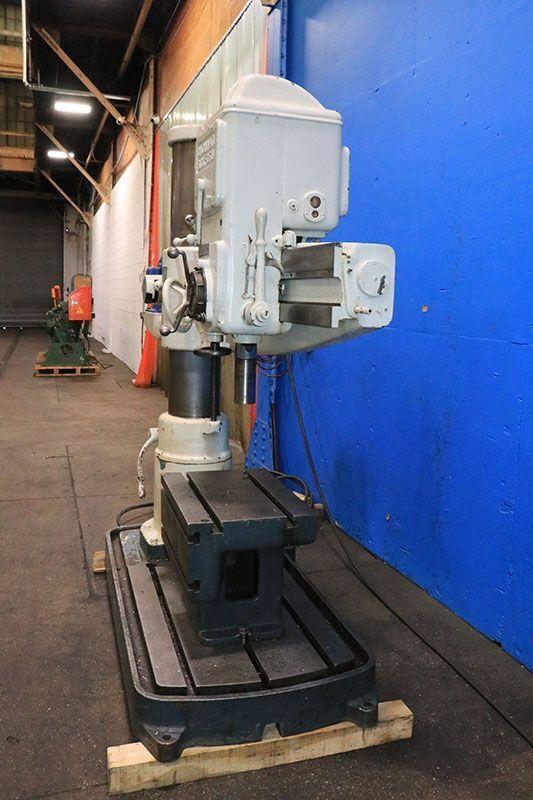

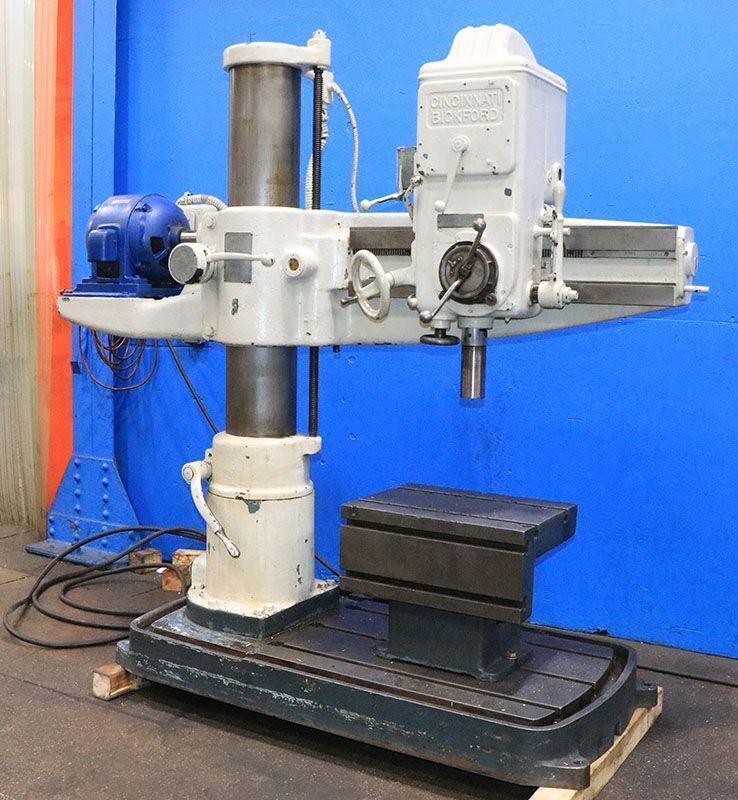

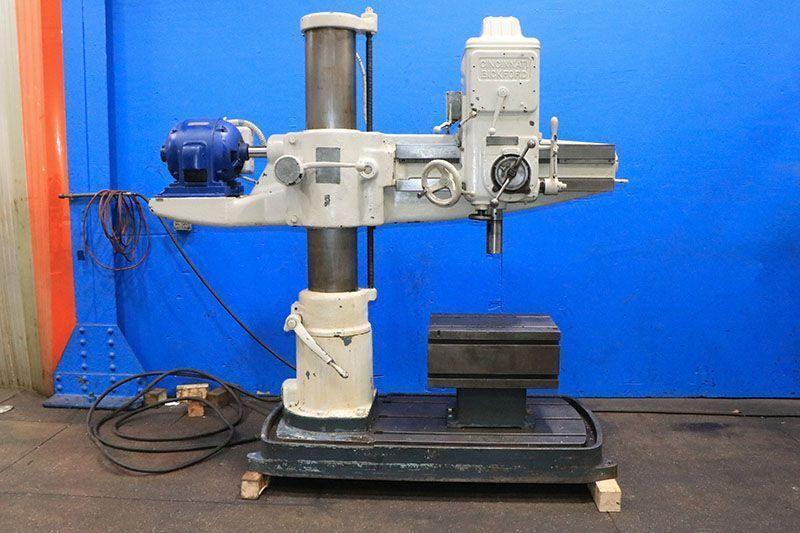

1944 CINCINNATI-BICKFORD SUPER SERVICE 3′ x 9″ RADIAL ARM DRILL USED

Product Specifications:

• Manufacturer: Cincinnati-Bickford

• Model: Super Service

• Year: 1944

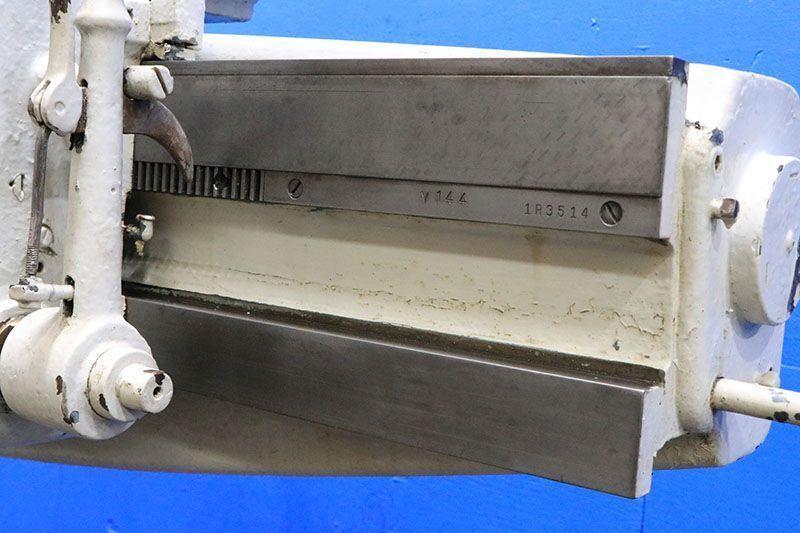

• Arm Size: 3 ft

• Column Diameter: 9″

• Face of Column to Spindle Center: 16-1/2″ (min), 42″ (max)

• Spindle to Base Distance: 15-3/4″ (min), 53″ (max)

• Arm Elevating Height: 27″

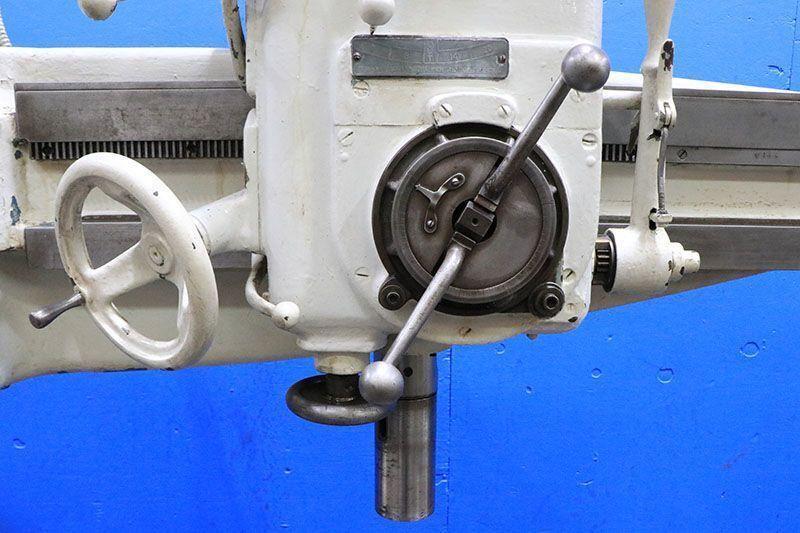

• Spindle Vertical Travel: 10″

• Spindle Taper: #4 MT (Morse Taper)

• Spindle Feeds (IPR): 4, 8, 14, 20 thousandths/rev

• Spindle Speed Range: 60 – 1200 RPM (9 speeds)

• Base Size: 30″ W x 40″ L

• Floor Space Required: 75″ x 60″ x 80″ (H with arm down)

• Approximate Weight: 4,250 lbs

• Location: New Jersey (NJ)

Key Features:

• Heavy-duty radial design ideal for large and irregular workpieces

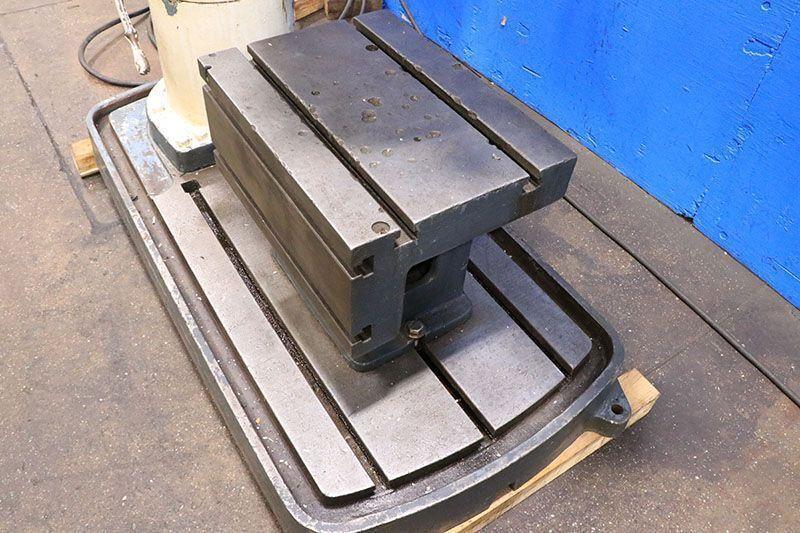

• T-slotted base and box table for flexible fixturing and support

• Power arm elevation for easy vertical positioning

• Integrated coolant system for improved tool life and chip evacuation

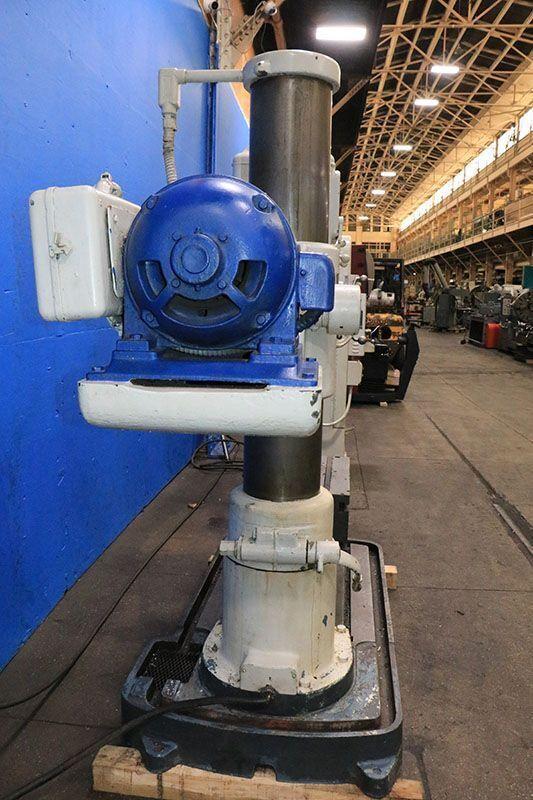

• 3 HP motor delivers consistent power across all speed ranges

Applications:

• Industrial and heavy-duty drilling operations

• Fabrication shops and metalworking plants

• Machining large castings and steel components

• Aerospace and marine component manufacturing

• Maintenance departments requiring robust and versatile drilling
