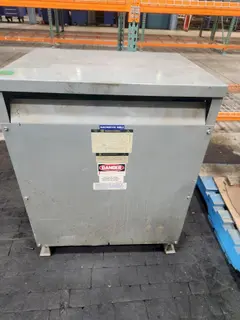

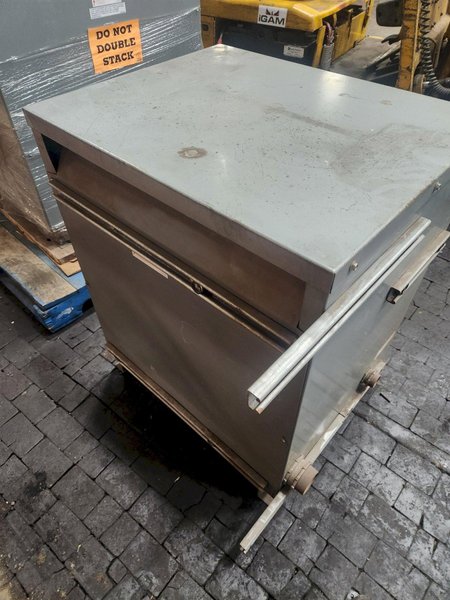

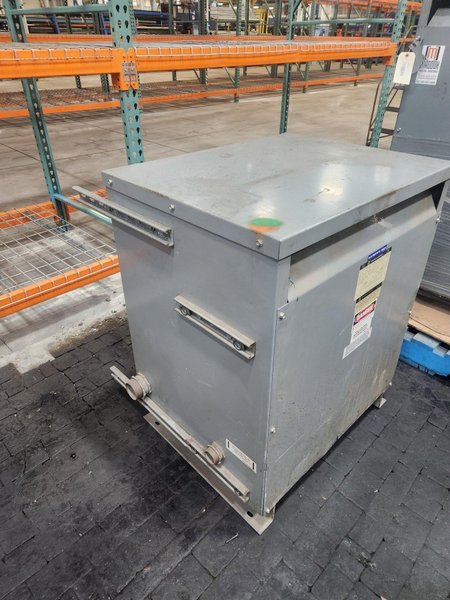

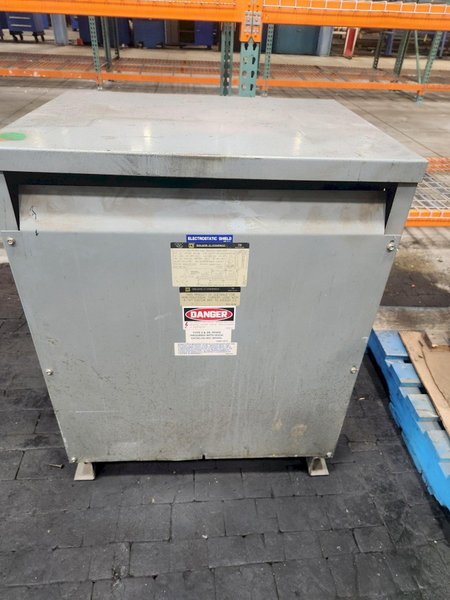

Square D Transformer 45T3HBISCUNLP-IZ 45 KVA USED

Product Specifications

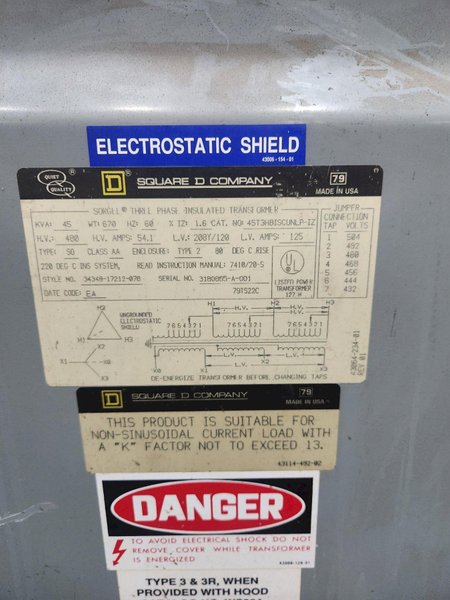

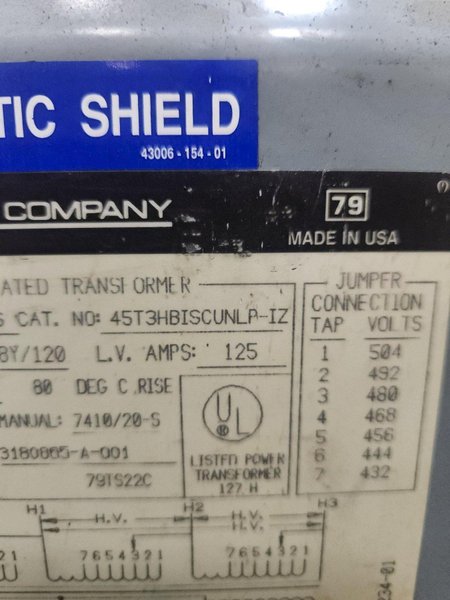

• Catalog Number: 45T3HBISCUNLP-IZ

• Part Number: 3292302-001-003FA

• Style Number: 34349-17212-078

• Power Rating: 45 kVA

• Frequency: 60 Hz

• Transformer Type: SO (Dry-type)

• Class: AA

• Enclosure Type: NEMA 1 (ventilated, indoor use)

• Mounting: Floor-mounted

• Weight: 670 lbs

• Date Code: FA

Electrical Ratings

• High Voltage (HV): 480V, 54.1 Amps

• Low Voltage (LV): 208Y/120V, 125 Amps

• Phase: 3-phase

Key Features

• Copper windings for superior conductivity and energy efficiency

• Durable dry-type transformer requiring minimal maintenance

• 45 kVA capacity supports medium-load applications

• Complies with ANSI and NEMA industry standards

• Suitable for a wide range of commercial and industrial electrical needs

Applications

• Step-down transformer for facility distribution systems

• Lighting panels and equipment power in commercial buildings

• Manufacturing or processing control systems

• Backup power integration

• Utility rooms and mechanical equipment rooms
