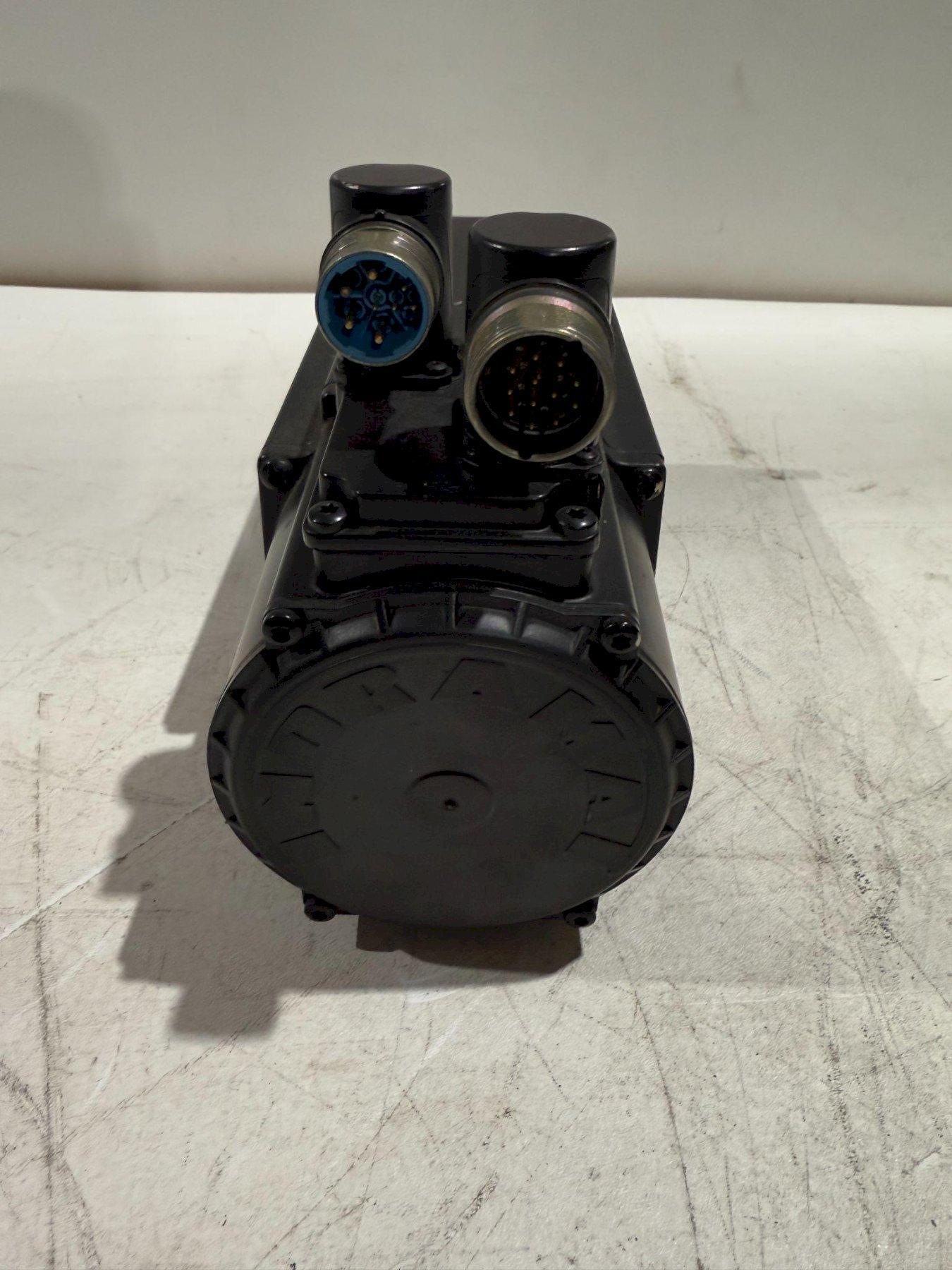

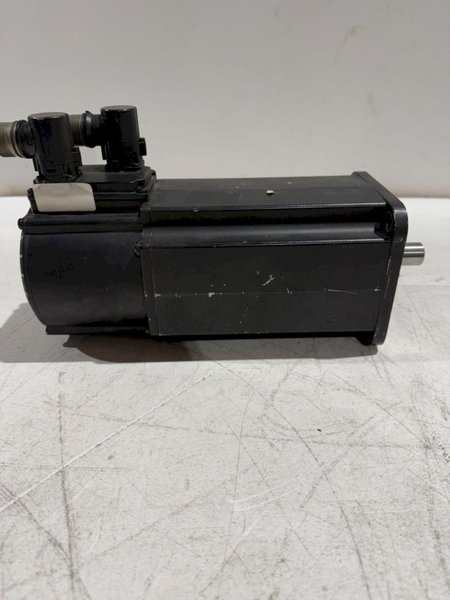

REXROTH INDRAMAT MHD071B-061-PG1-UN SERVO MOTOR USED

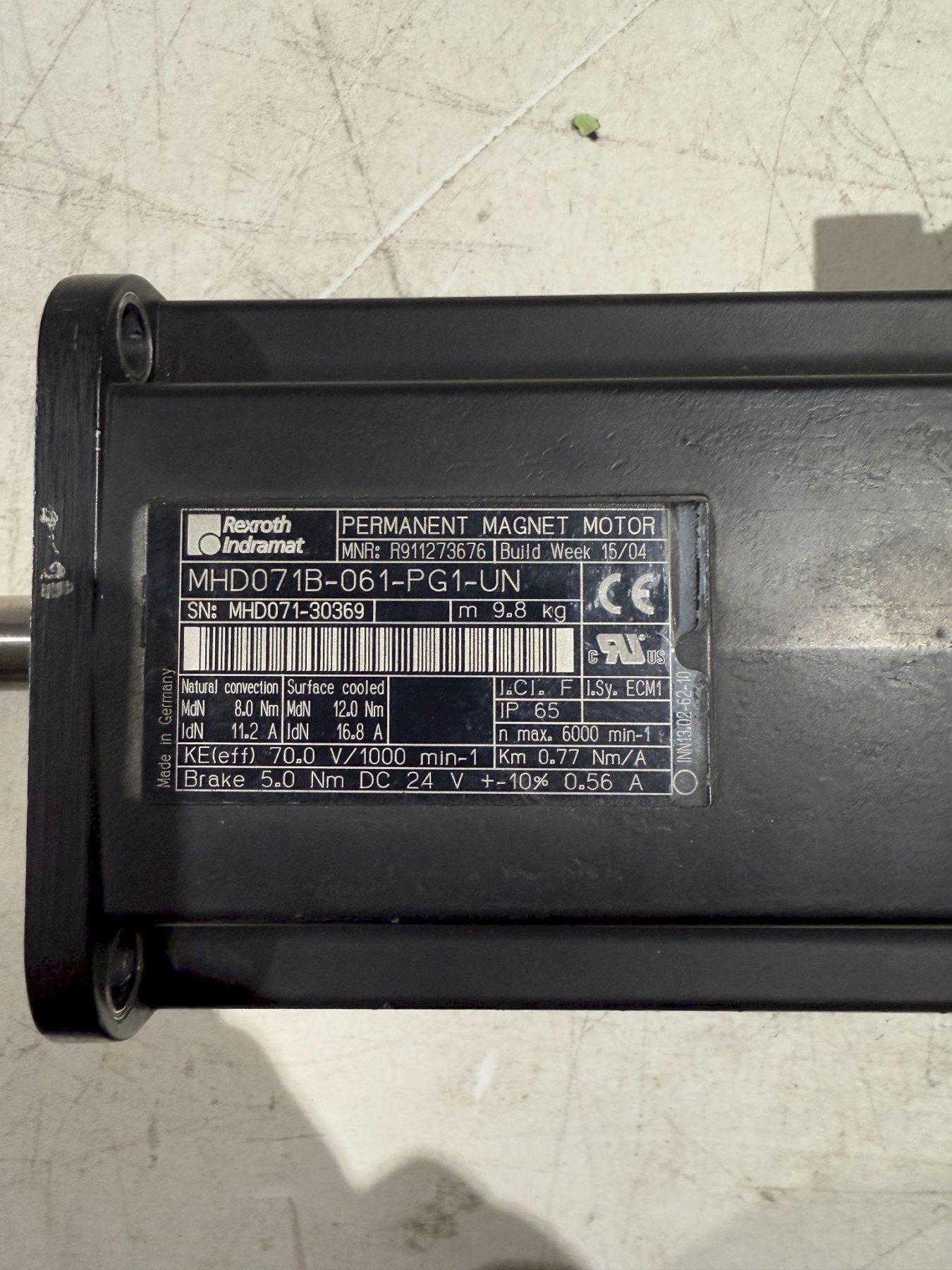

Product Specifications

• Manufacturer: Bosch Rexroth (Indramat)

• Model: MHD071B-061-PG1-UN

• Motor Type: AC synchronous servo motor

• Frame Size: MHD071

• Length: B (standard)

• Windings: 061

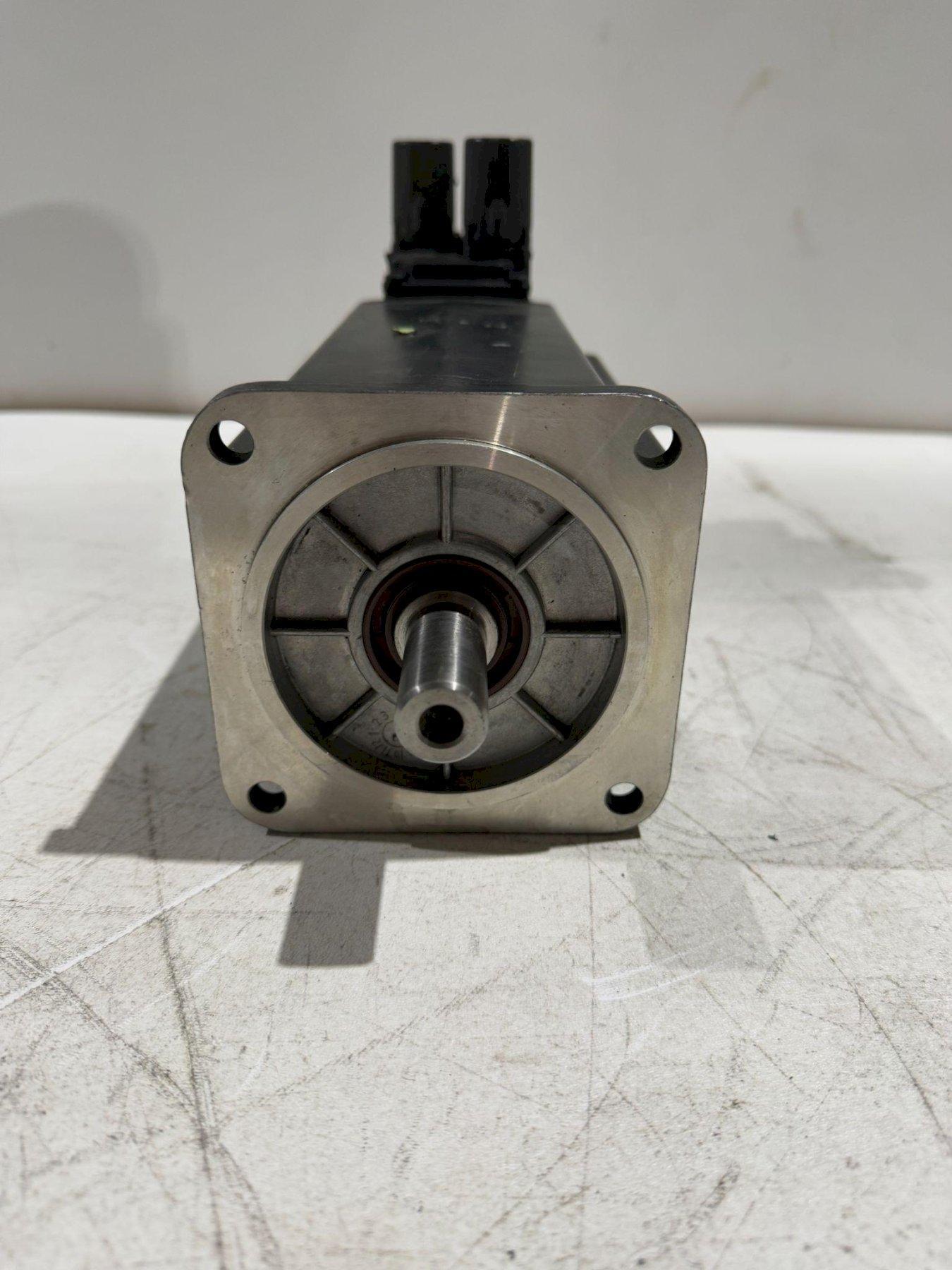

• Shaft Type: Plain shaft with keyway

• Feedback: Encoder with integrated multiturn absolute encoder (PG1)

• Cooling Method: Natural convection (surface cooled)

• Protection Class: IP65

• Mounting Type: Flange-mounted

• Rated Torque: Approx. 6.8 Nm (varies slightly by setup)

• Rated Speed: Approx. 3,000 RPM

Key Features

• High-precision positioning with integrated encoder feedback

• Compact design suited for tight industrial spaces

• Maintenance-free brushless technology

• Compatible with Rexroth IndraDrive and Diax 04 drive systems

• Fully enclosed IP65-rated housing for harsh environments

• Designed for high-dynamic applications and 24/7 duty cycles

Applications

• CNC machine tools and milling centers

• Industrial robotics and automation arms

• Printing and textile machinery

• Packaging and bottling lines

• Assembly and material handling equipment
