GENERAL ELECTRIC pn: 9T83B5574 75 KVA TRANSFORMER 480V to 230V NEW

GENERAL ELECTRIC pn: 9T83B5574 75 KVA TRANSFORMER 480V to 230V NEW

Name: GENERAL ELECTRIC pn: 9T83B5574 75 KVA TRANSFORMER 480V to 230V NEW
Brand: GENERAL ELECTRIC
SKU: IGAM0830005
Availability: PreOrder

Brand

GENERAL ELECTRIC

Location

Michigan

REQUEST FINANCING

Specifications
Files & Videos

Overview

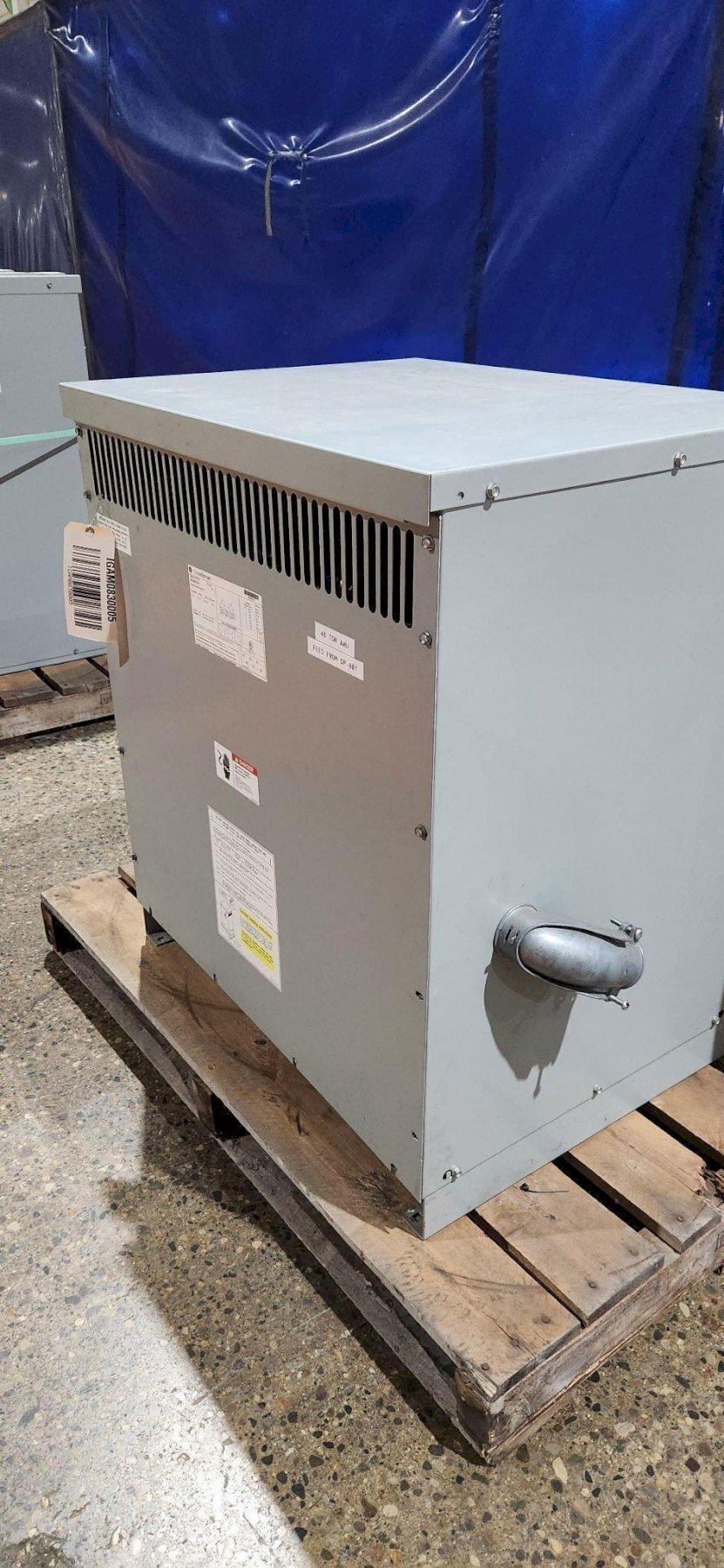

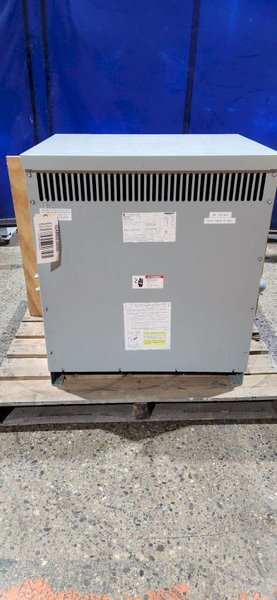

The General Electric 9T83B5574 Transformer is a new 75 kVA dry-type unit designed to step down 480V primary voltage to a 230V secondary output in industrial and commercial power distribution systems. Built with GE’s proven reliability and quality, this transformer is ideal for applications requiring efficient energy conversion and dependable performance. The 9T83B5574 features a ventilated enclosure, robust copper windings, and a low-maintenance design, making it suitable for continuous operation in a wide range of environments.

Specification Table

Power

75 kV·A

Product Specifications

Manufacturer: General Electric (GE)
Part Number: 9T83B5574
Transformer Type: Dry-type, ventilated
Power Rating: 75 kVA
Phase: 3-phase
Primary Voltage: 480V
Secondary Voltage: 230V
Frequency: 60 Hz
Cooling: Natural air-cooled (AN)
Enclosure: Ventilated, NEMA 1 or 2 (check specific configuration)
Windings: Copper
Mounting: Floor-mounted

Key Features

Converts 480V to 230V for industrial equipment and machinery
High-efficiency copper windings for optimal conductivity and thermal performance
Ventilated enclosure ensures cool operation and long service life
Dry-type construction eliminates the need for oil or liquid cooling
GE-certified for quality, durability, and performance in demanding settings
