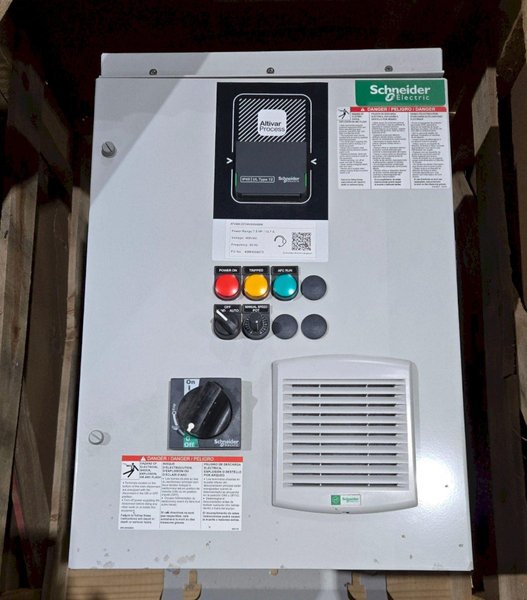

SCHNEIDER ELECTRIC ATV660U55T4N2AAWABN VFD 7.5HP 12.7AMP USED

Product Specifications

• Model: SCHNEIDER ELECTRIC ATV660U55T4N2AAWABN

• Series: Altivar Process ATV600

• Motor Power Rating: 7.5 HP (5.5 kW)

• Input Voltage: 380–480V AC, 3-phase

• Output Current: 12.7 Amps

• Frequency Range: 0.1 Hz to 599 Hz

• Enclosure Type: NEMA 12 (IP54) for dust and drip protection

• Control Method: V/Hz, Sensorless Vector, and Flux Vector Control

• Communication Options: Modbus, Ethernet, CANopen (expandable)

• Mounting Type: Wall or cabinet mount

• Weight: Approximately 20–25 kg

Key Features

• Energy-efficient motor control with built-in process optimization

• Rugged construction suitable for harsh industrial environments

• Flexible connectivity with multiple communication protocols

• Integrated safety functions, including Safe Torque Off (STO)

• Intuitive user interface with graphical keypad for easy setup and monitoring

Applications

• HVAC systems and building management

• Water and wastewater treatment plants

• Industrial pumps, compressors, and fans

• Conveyor systems in manufacturing and logistics

• Energy management in processing plants
