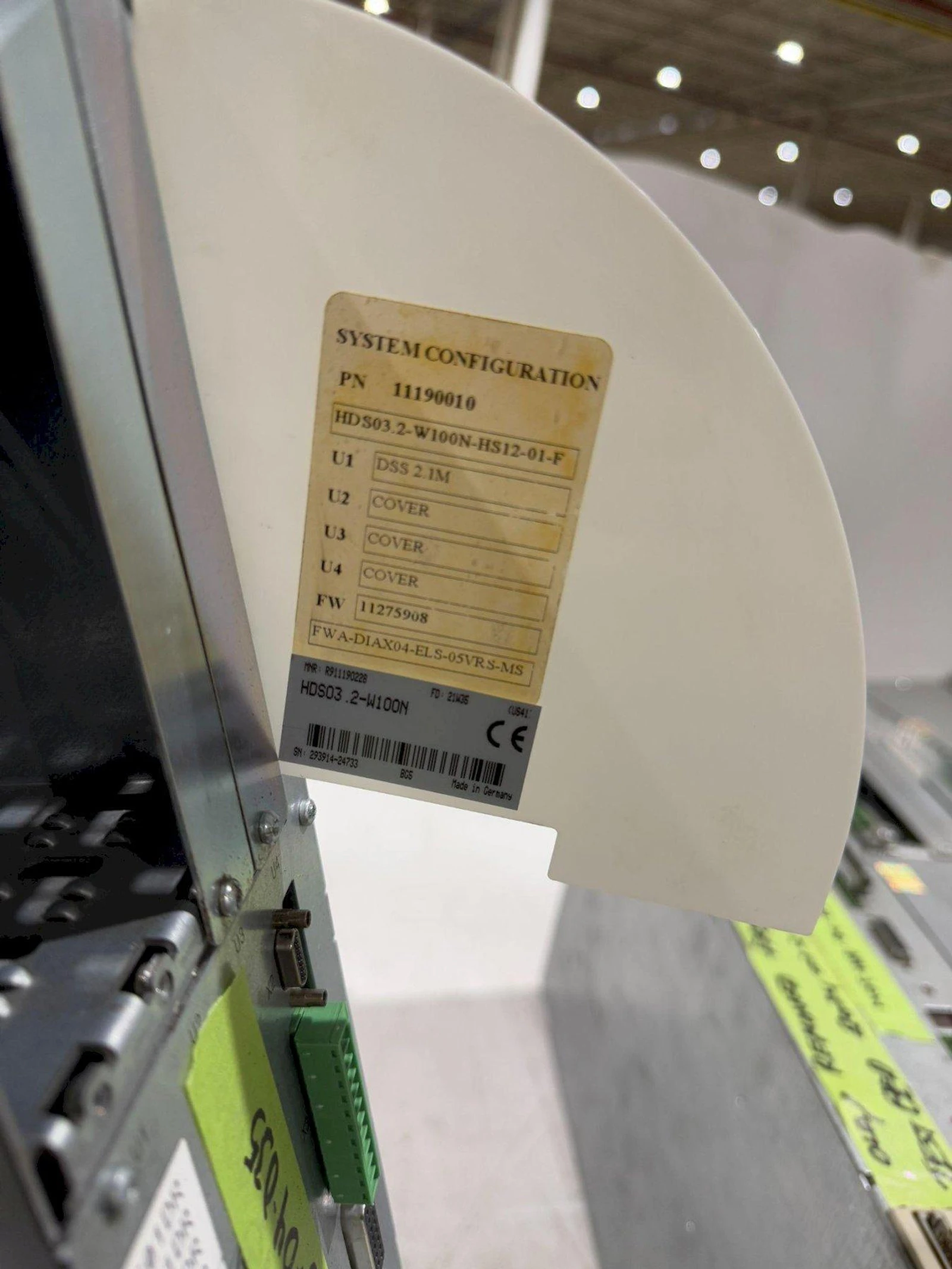

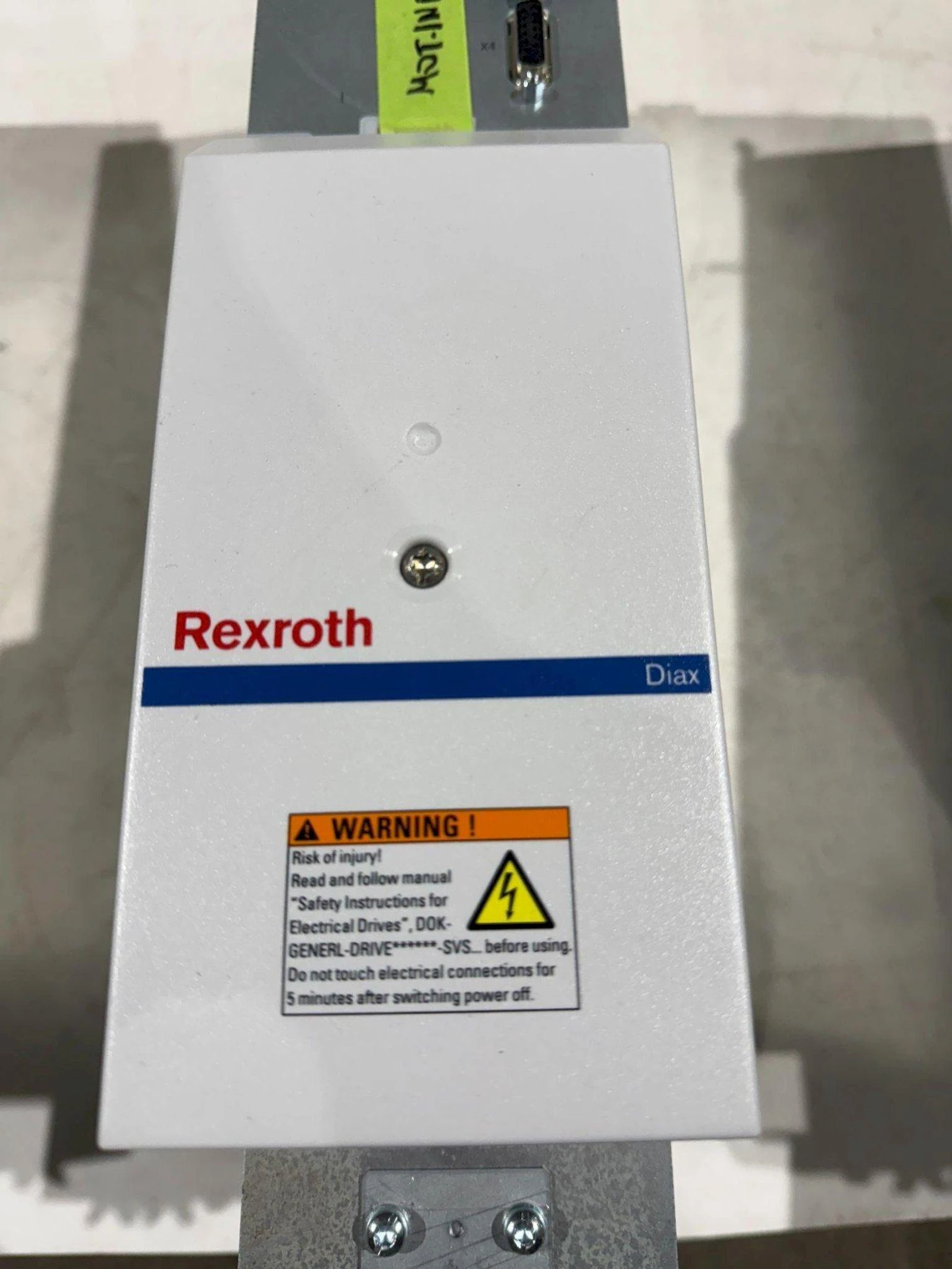

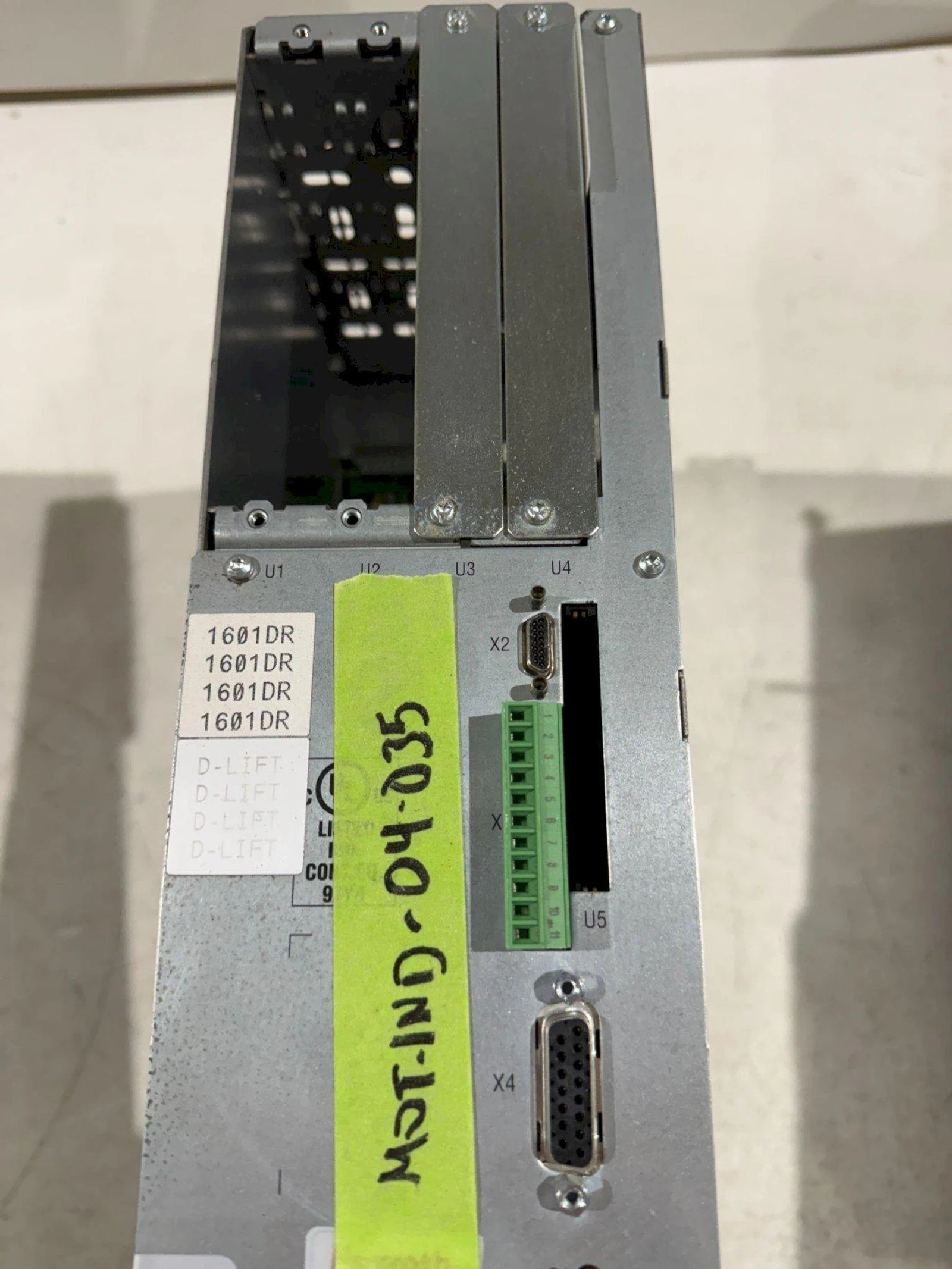

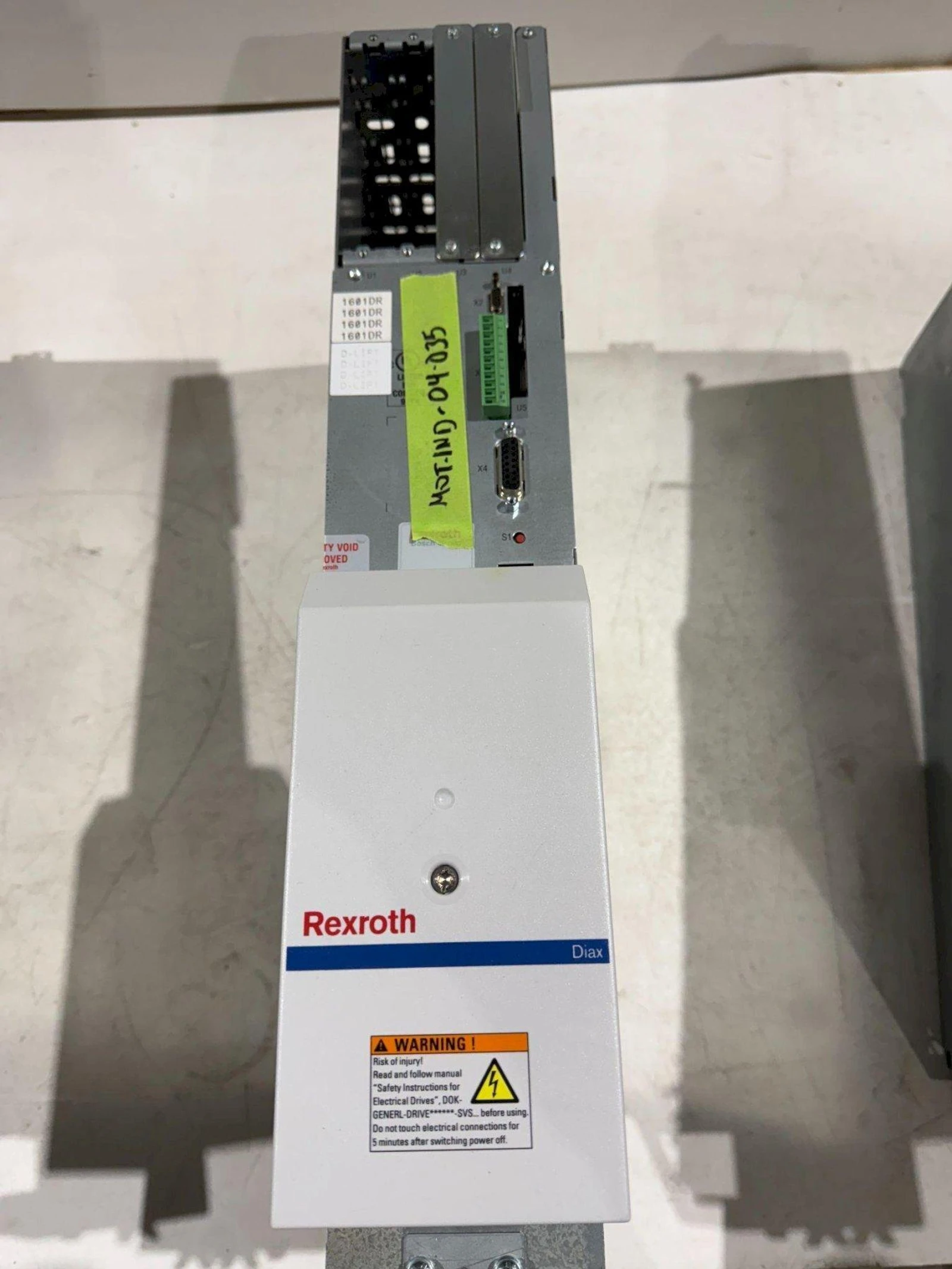

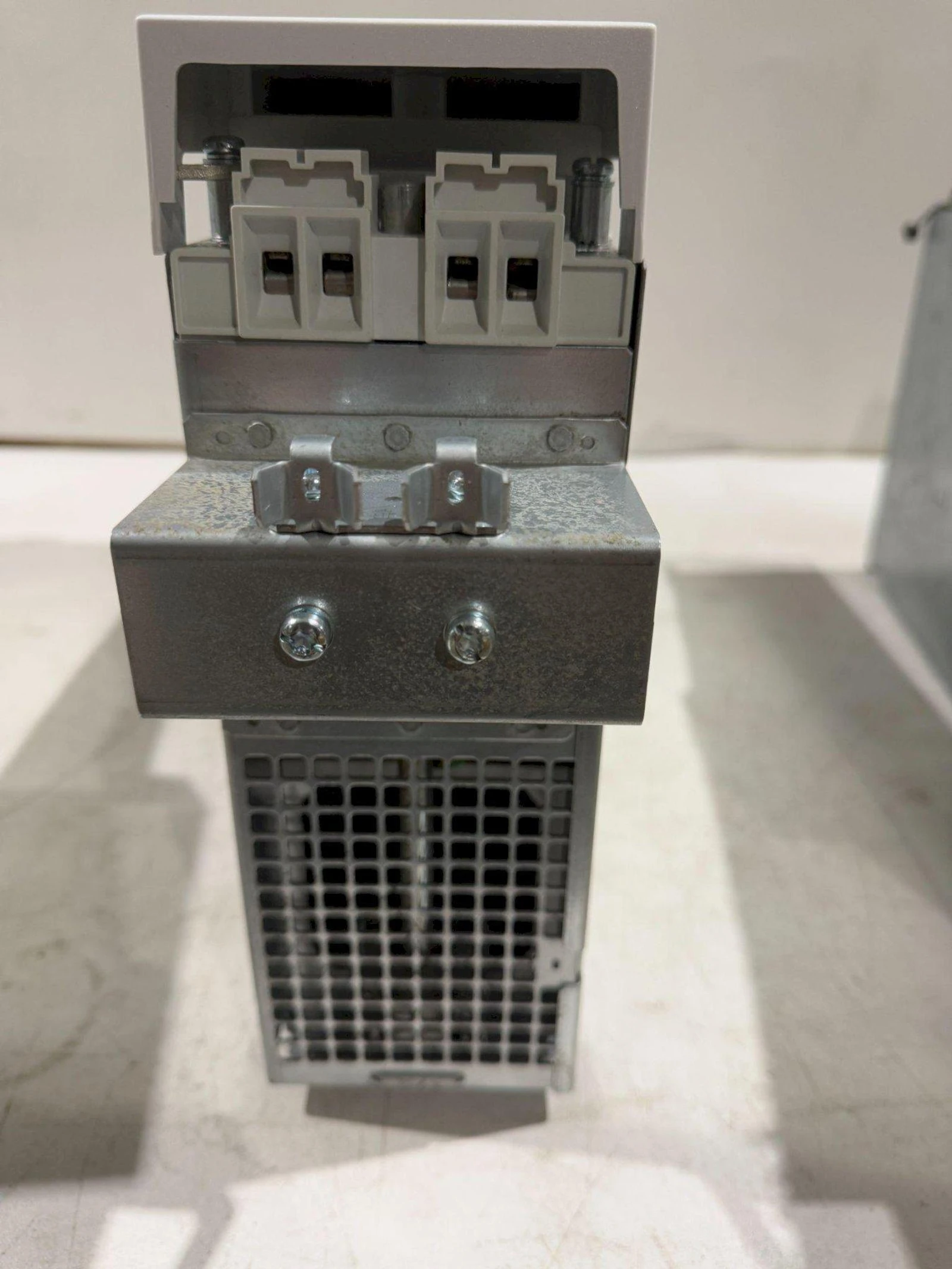

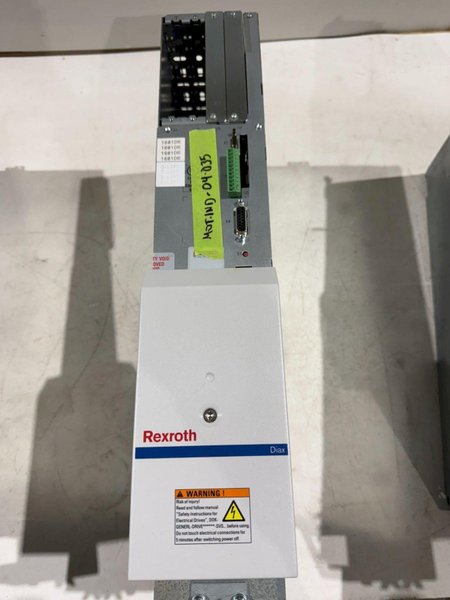

REXROTH HDS03.2-W100N-HS12-01-F SERVO DRIVE USED

Product Specifications

• Model Number: HDS03.2-W100N-HS12-01-F

• Drive Series: DIAX04

• Rated Current: 100 A

• Cooling Type: Air-cooled (internal fan)

• Power Supply: Requires HVE/HVR power supply modules

• Control Interface: SERCOS (optical fiber communication)

• Motor Compatibility: Supports Rexroth Indramat 1MB, MHD, and MKD series motors

• Mounting Configuration: Modular rack-mount

• Firmware Version: 01

Key Features

• High-capacity 100 A drive for heavy-duty servo applications

• SERCOS interface for real-time digital control and diagnostics

• Advanced fault monitoring and protection functions

• Modular design for scalable motion control systems

• Compatible with various Rexroth motor series for flexible application use

Applications

• Industrial CNC machining centers

• Automated production lines and robotics

• Packaging and labeling machinery

• Printing presses with high dynamic demands

• Material handling and conveyor control systems
