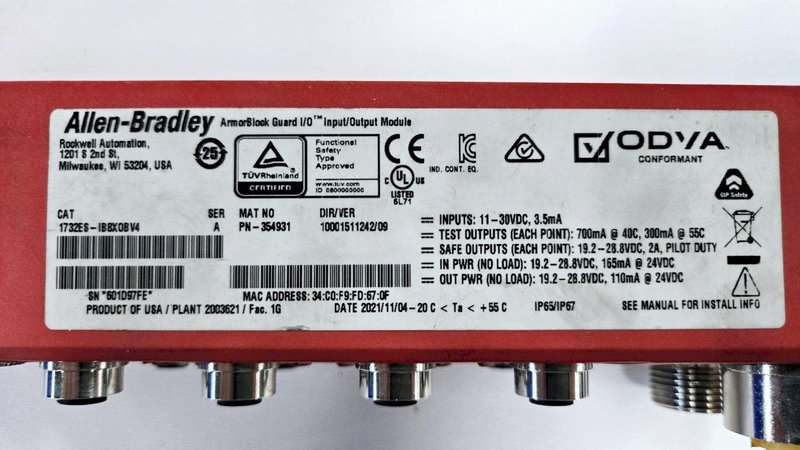

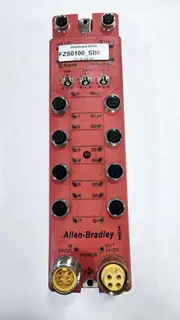

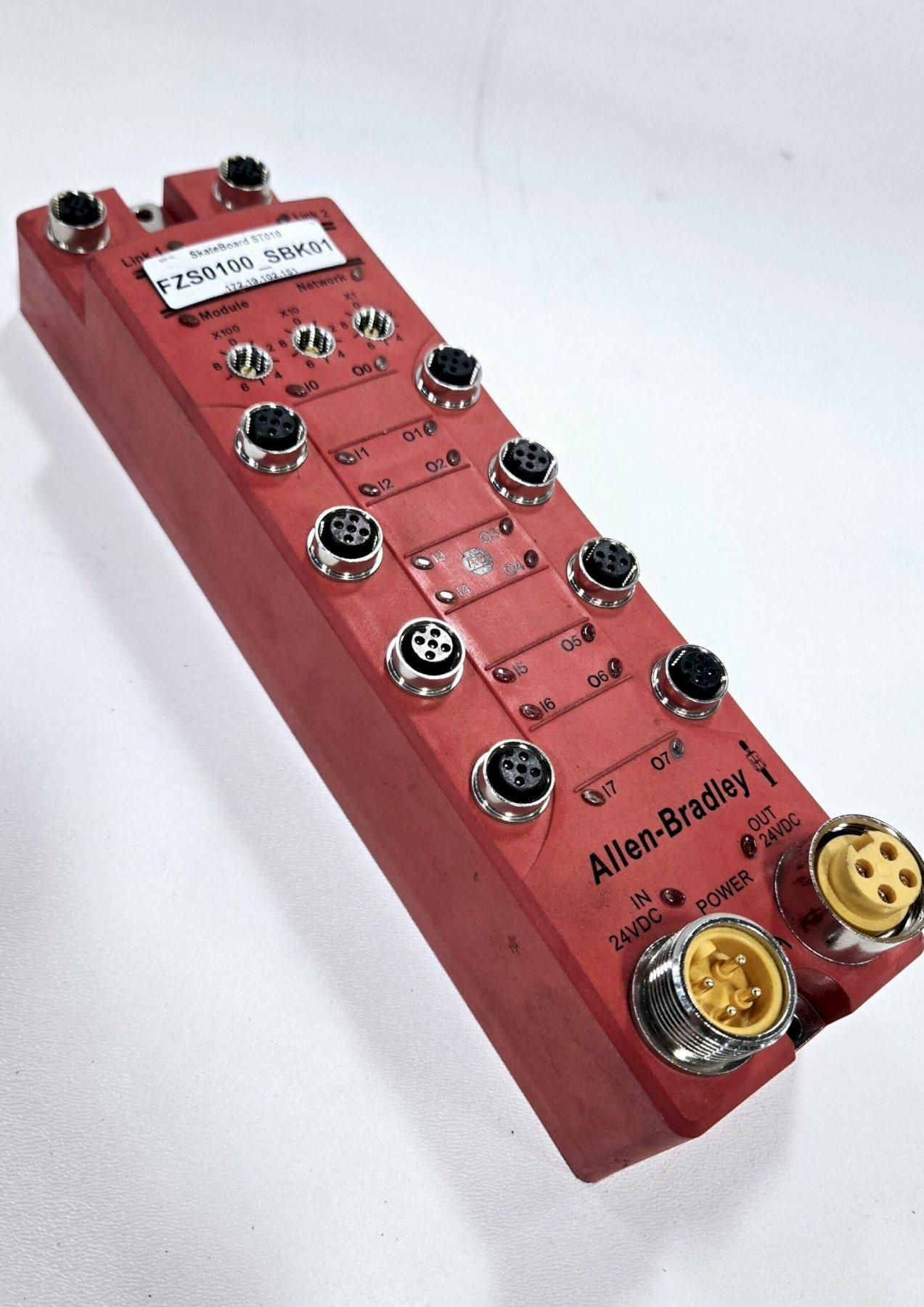

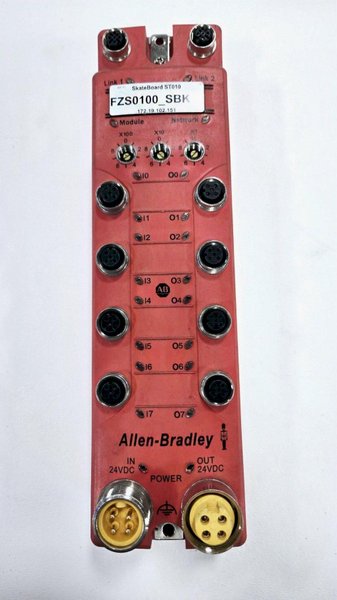

ALLEN BRADLEY 1732ES-IB8X0BV4 GUARD I/O USED

Product Specifications:

• Manufacturer: Allen-Bradley (Rockwell Automation)
• Model Number: 1732ES-IB8X0BV4
• Condition: Used
• Safety Inputs: 8 safety-rated inputs
• Safety Outputs: 4 safety-rated outputs
• Communication Protocols: EtherNet/IP and CIP Safety
• Connector Type: M12
• Power Supply Voltage: 24V DC nominal
• Operating Temperature Range: -10°C to 55°C (14°F to 131°F)
• Enclosure Rating: IP65/67 for protection in harsh environments
• Certifications: CE, UL, TUV, and SIL 3 capable

Key Features:

• Safety-rated inputs and outputs for compliance with industry safety standards.
• CIP Safety over EtherNet/IP for secure and reliable safety communication.
• Rugged IP65/67-rated housing for enhanced durability in industrial environments.
• Compact and modular design for flexible installation in space-constrained areas.
• M12 connectors for fast and secure device wiring.
• Fully compatible with GuardLogix controllers for streamlined system integration.
• Capable of SIL 3 and PLe safety ratings to meet stringent safety requirements.

Applications:

• Machine Safety: Monitors safety devices like emergency stop buttons, light curtains, and safety mats.
• Robotic Systems: Ensures safe operation of robotic equipment in manufacturing environments.
• Assembly Line Safety: Provides safety monitoring and control for automated production lines.
• Material Handling: Safeguards conveyor systems and automated material handling equipment.
• Process Safety: Designed for hazardous applications requiring SIL 3/PLe compliance.
