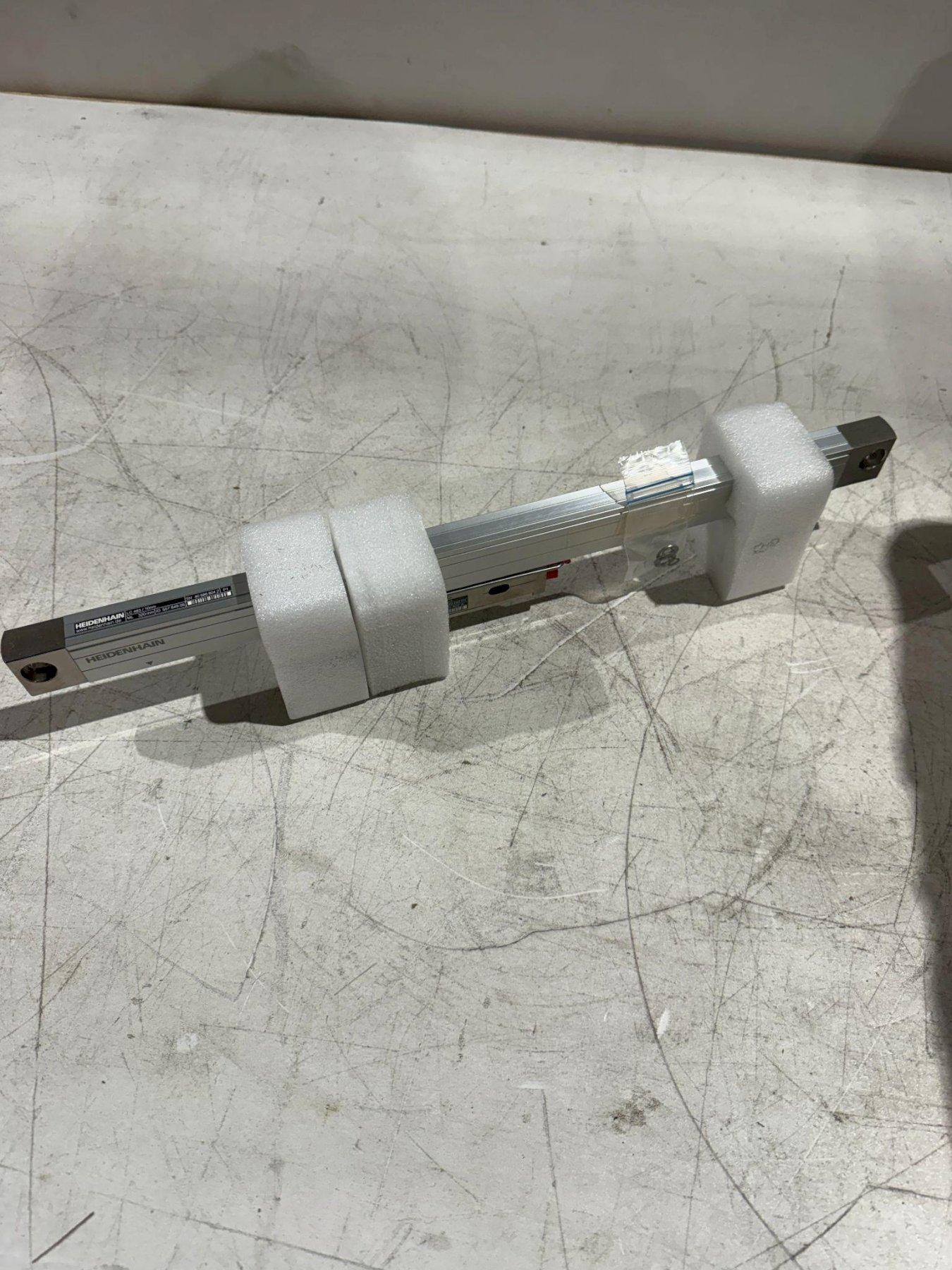

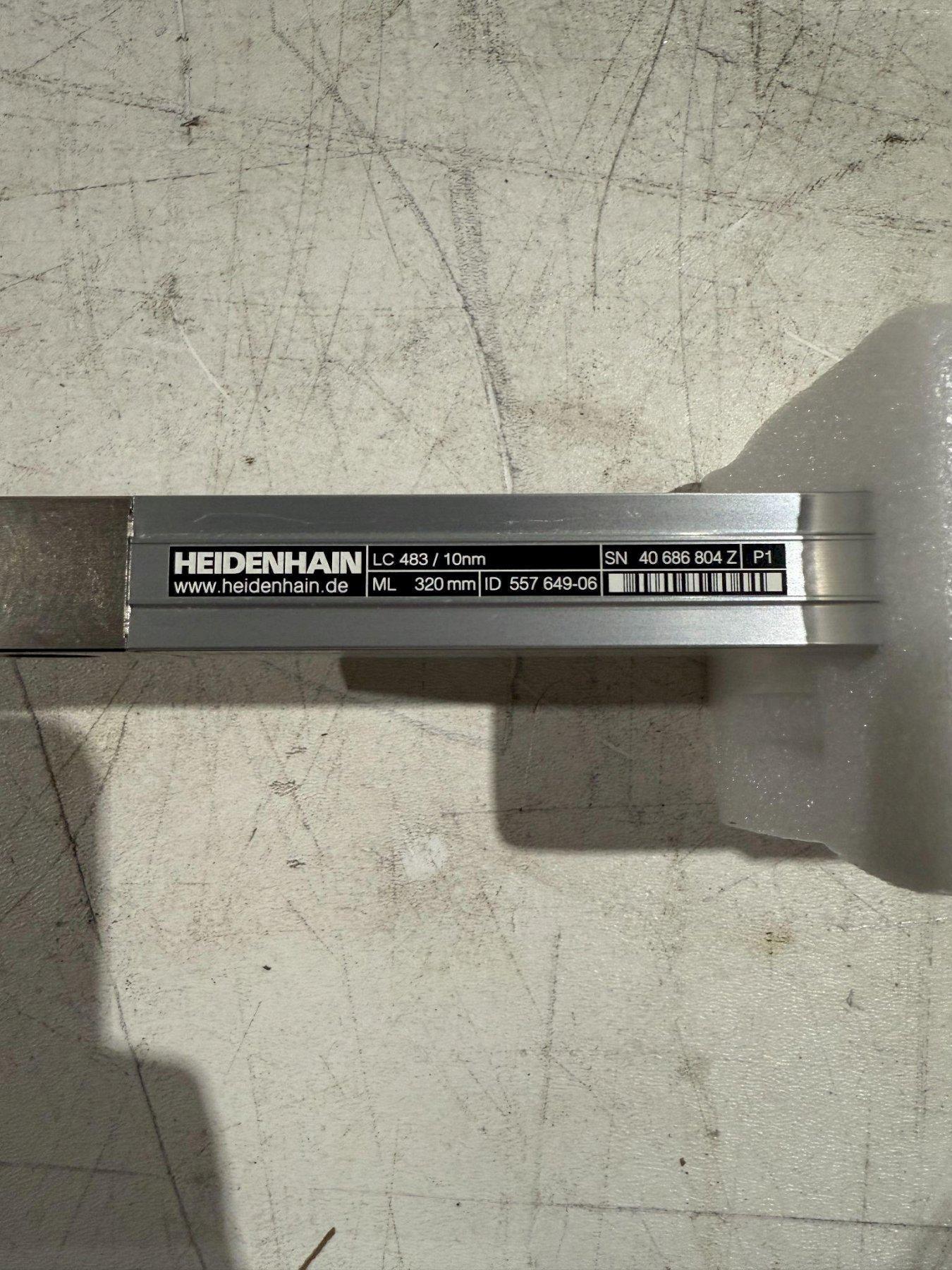

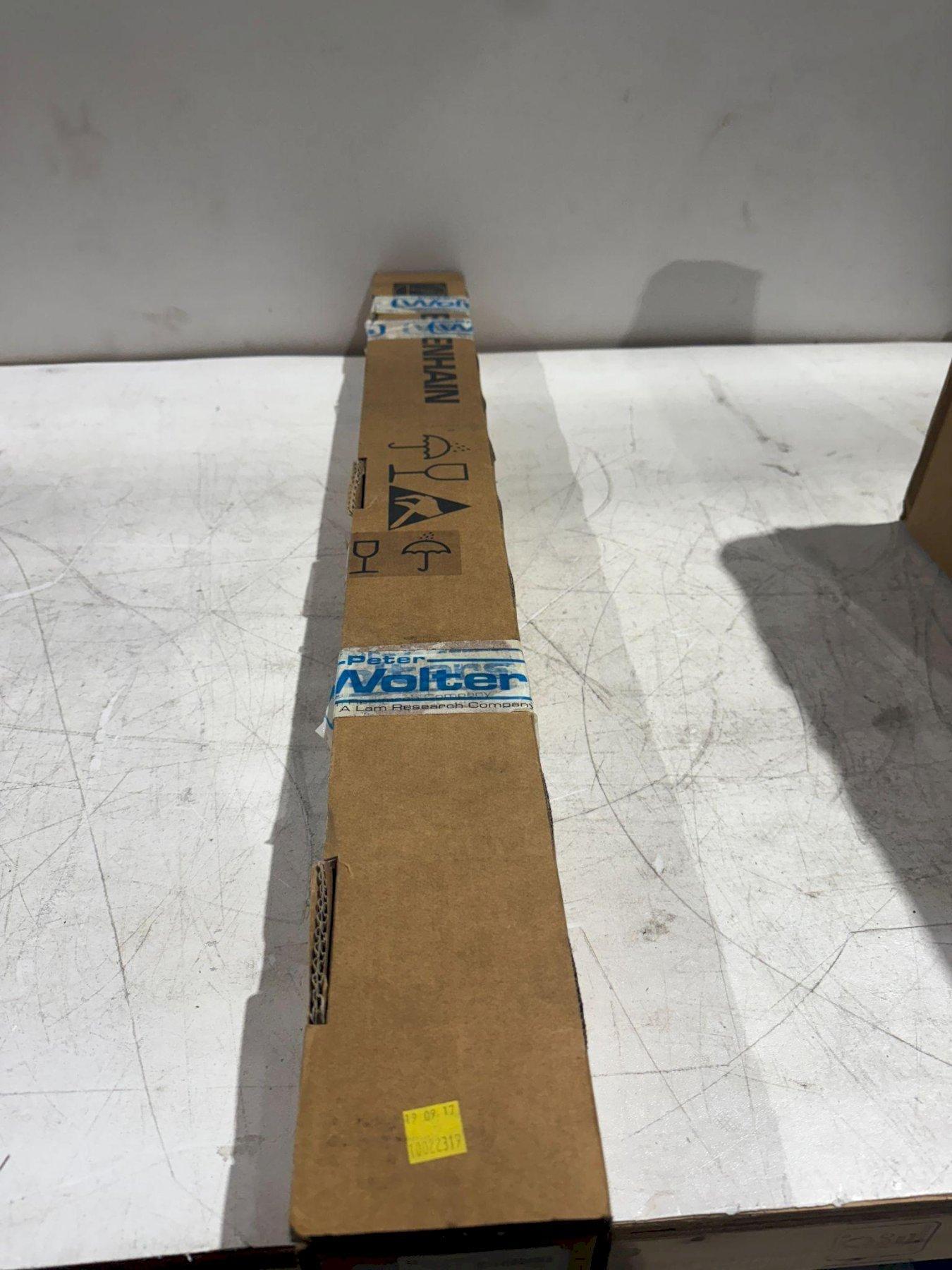

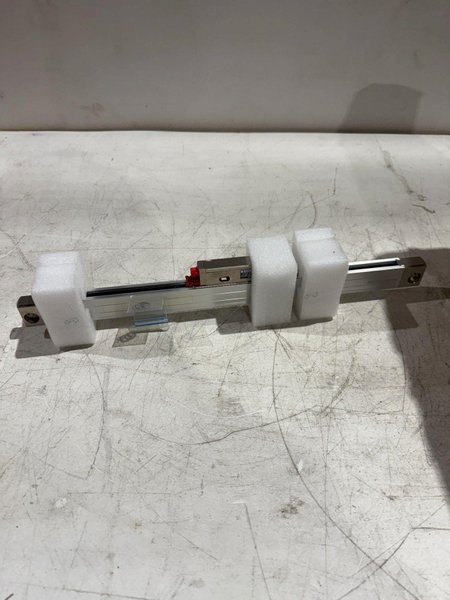

HEIDENHAIN LC483/10NM LINEAR ENCODER 557 649-06 NEW IN BOX

Model
LC483/10NM
Stock #
IGAM0450050
Year
Not specified
Condition
Not specified

Location

Michigan

Overview

The Heidenhain LC483/10NM Linear Encoder, part number 557 649-06, is a new in box high-precision absolute linear measurement system designed for integration with high-end CNC machines and automation equipment. Known for its robust construction and exceptional accuracy, the LC483 series is equipped with a 10 nm resolution scale and absolute positioning capabilities, ensuring precise feedback for demanding motion control applications. Its compact size and sealed enclosure make it well-suited for environments where space constraints and protection from contamination are critical.

,

Product Specifications

  • Model Number: LC483/10NM

  • Part Number: 557 649-06

  • Measurement Type: Absolute linear encoder

  • Resolution: 10 nanometers (nm)

  • Measuring Length: Varies by configuration (typically custom per machine)

  • Output Signal: EnDat 2.2 or similar digital interface

  • Protection Rating: IP67 (sealed housing)

  • Mounting: Integrated guideway for secure machine installation

  • Cable Length: Standard lengths (varies by configuration)



Key Features

  • High-resolution 10 nm absolute feedback for ultra-precise motion control

  • Sealed housing (IP67) resists coolant, chips, and dust in industrial settings

  • Direct position feedback for improved system accuracy and thermal stability

  • EnDat interface for fast communication with modern CNC systems

  • Rugged design optimized for long life and minimal maintenance



Applications

  • High-precision CNC machining centers and lathes

  • Semiconductor and electronics manufacturing equipment

  • Coordinate measuring machines (CMMs)

  • Linear motor positioning systems

  • Automation platforms requiring nanometer-level feedback
