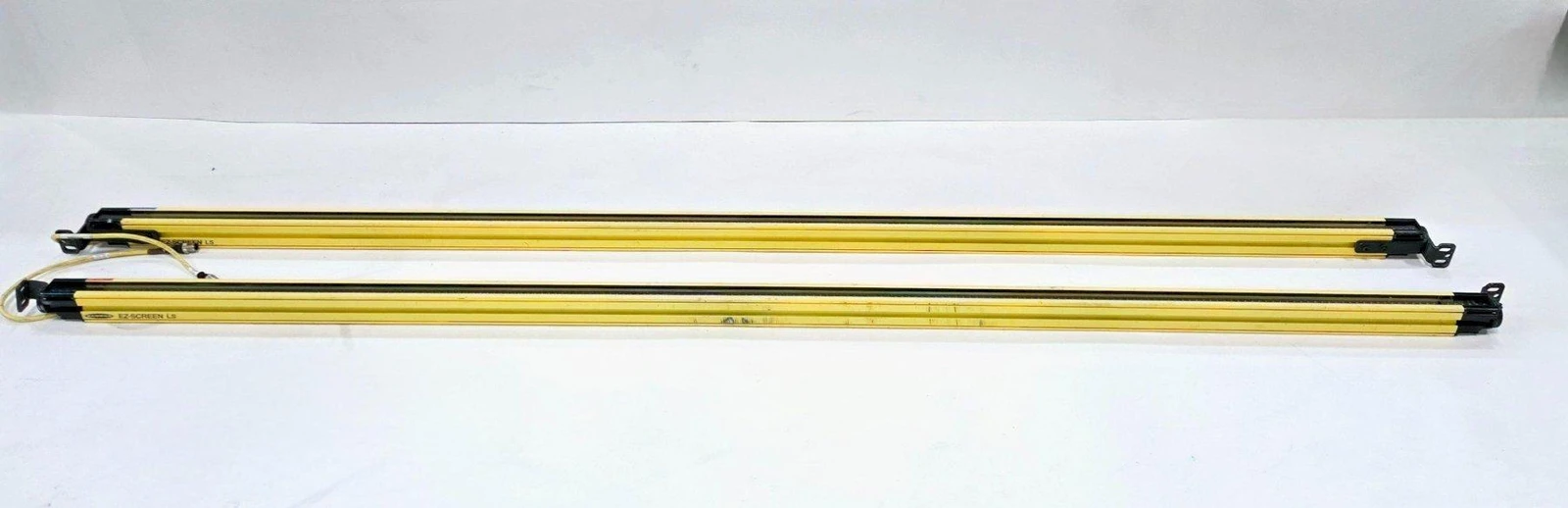

BANNER SLLCR23-1820-S / SLLCE23-1820-S EZ-SCREEN LIGHT CURTAINS USED

Product Specifications:

• Brand: Banner Engineering

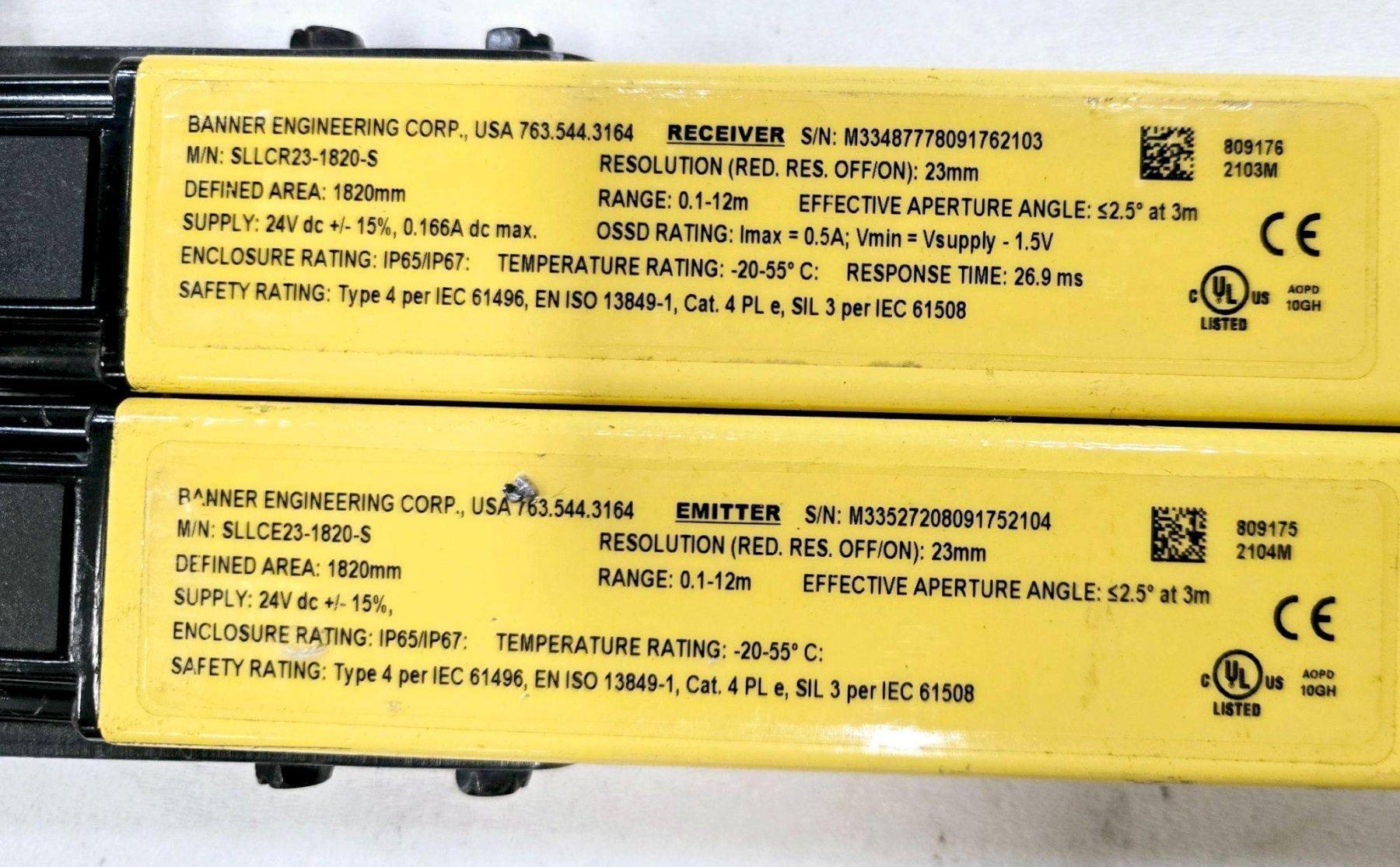

• Models: SLLCR23-1820-S (Receiver), SLLCE23-1820-S (Emitter)

• Series: EZ-SCREEN

• Beam Resolution: 23 mm (typical for finger protection)

• Sensing Range: Up to 20 meters (depending on alignment)

• Height of Protected Area: 1820 mm

• Voltage: 24V DC

• Outputs: Safety PNP outputs (OSSD)

• Housing Material: Anodized aluminum with sealed end caps

• Connector Type: M12 quick-disconnect or flying leads (varies)

Key Features:

• Complete emitter and receiver pair for safety light curtain system

• 23 mm resolution ideal for finger and hand detection

• 1820 mm active sensing height covers large protection zones

• Fast response time supports high-speed machine safety

• Built-in diagnostics and alignment indicators simplify setup

Applications:

• Machine safeguarding at presses and robotic cells

• Perimeter guarding of hazardous equipment

• Assembly and packaging line safety

• Palletizer and conveyor zone access control

• Any OSHA/ISO-compliant safety-critical application
