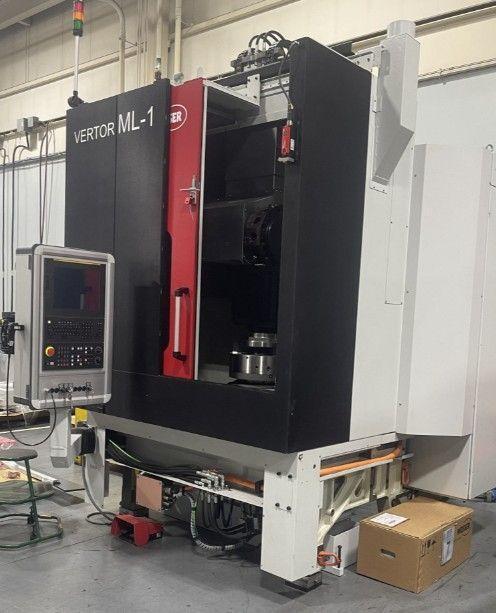

2018 WEISSER VERTOR ML-1L CNC VERTICAL LATHE USED

Product Specifications

• Model: WEISSER VERTOR ML-1L CNC Vertical Lathe
• Year: 2018

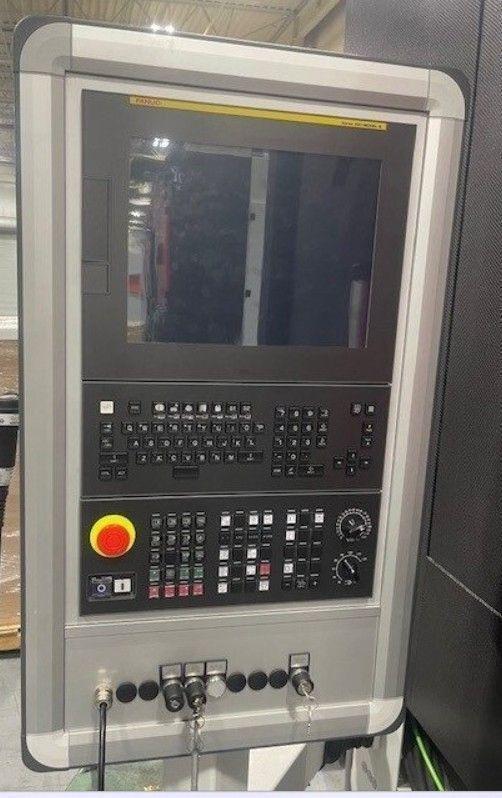

• Control System: Fanuc Series 32i
• Turning Diameter: 17.72″

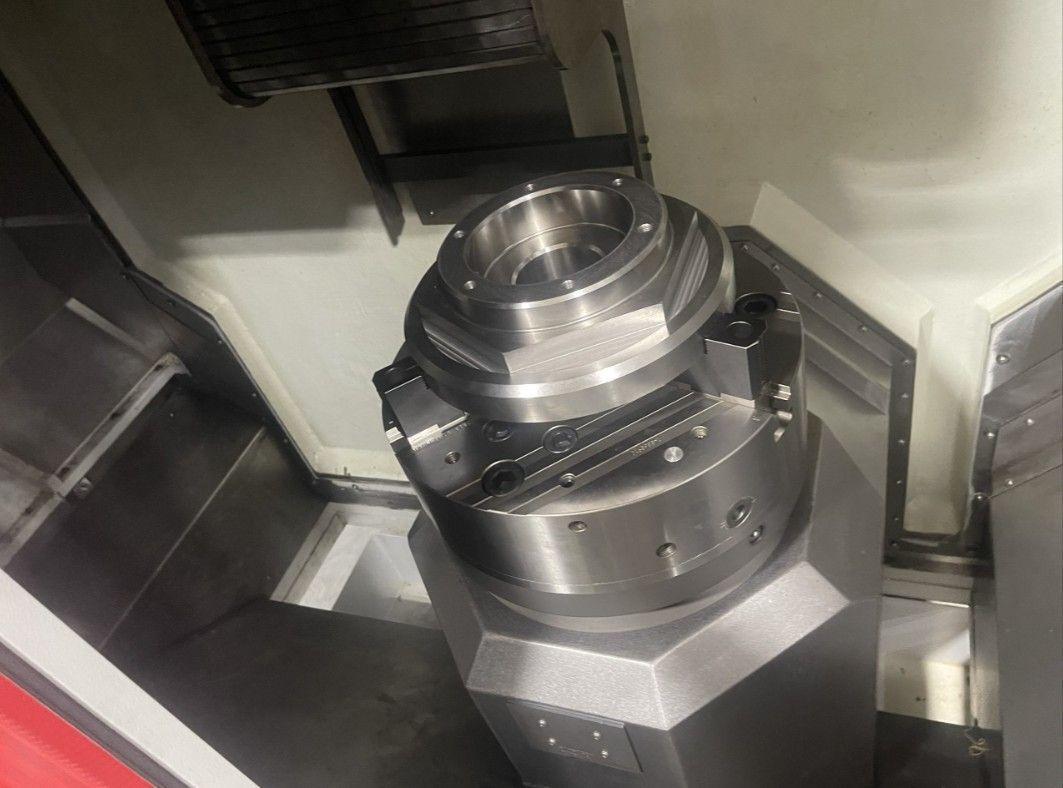

• Chuck Size: 23.6″
• Spindle Speed: Up to 3,500 RPM
• Rated Spindle Speed: 1,200 RPM
• Drive Power: 52 kW (100% CDF), 67 kW (40% CDF)
• Dimensions (L x W x H): 118″ x 75″ x 102″
• Weight: 24,251 lbs
• Max Process Speed: 30 m/min
• Ball Screw Diameter: X1 = 1.6″, Z1 = 1.6″

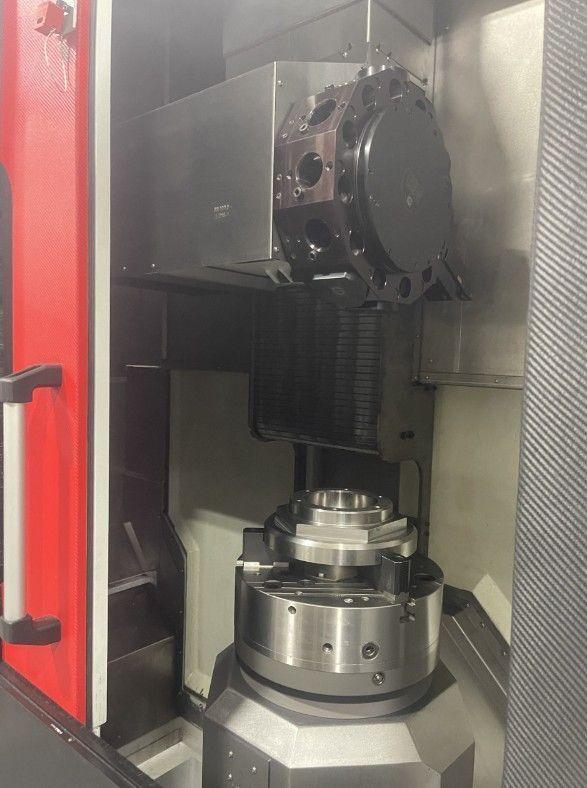

• Number of Tools: 12
• Tool Holder Type: VD140/50
• Tool Flight Circle: 24.4″
• Spindle Bearing Diameter: 5.9″

Key Features

• Advanced Fanuc 32i CNC system for high-precision control
• Vertical configuration with 23.6″ chuck for large, heavy workpieces
• 12-position tool turret allows flexible and efficient tool changes
• High-speed spindle operation with excellent torque output
• Sturdy cast construction ensures low vibration and high rigidity
• Tool flight circle of 24.4″ accommodates larger tooling setups
• Optimized for continuous-duty performance in industrial environments

Tailstock Features

• Working Stroke: 7.9″
• Max Peak Distance: 25.2″
• Pressing Force: 850 daN
• Spindle Bearing: Rigid, non-rotating design
• Center Point Adapter: MK4 taper

Applications

• Precision turning of large and heavy components
• Automotive and aerospace part production
• Energy sector components (valves, housings, hubs)
• High-volume production and custom batch machining
• Machining of castings and forged parts requiring stability
