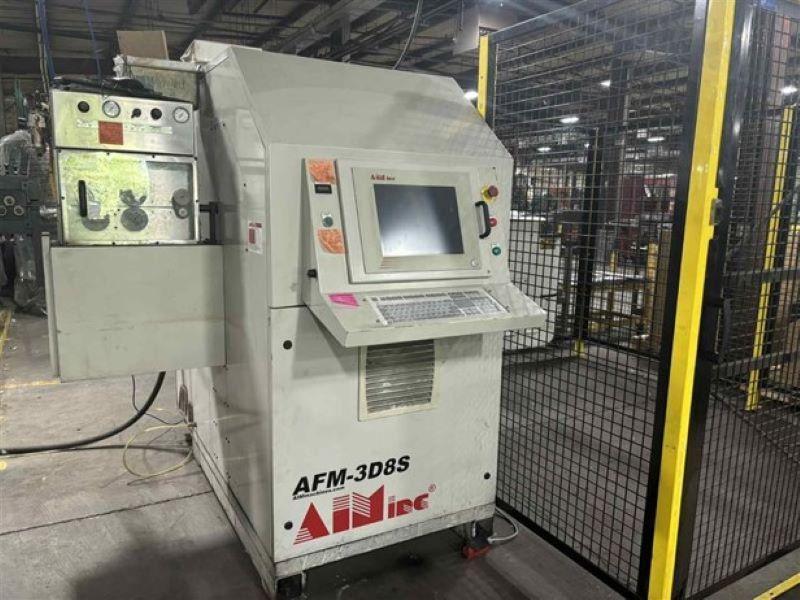

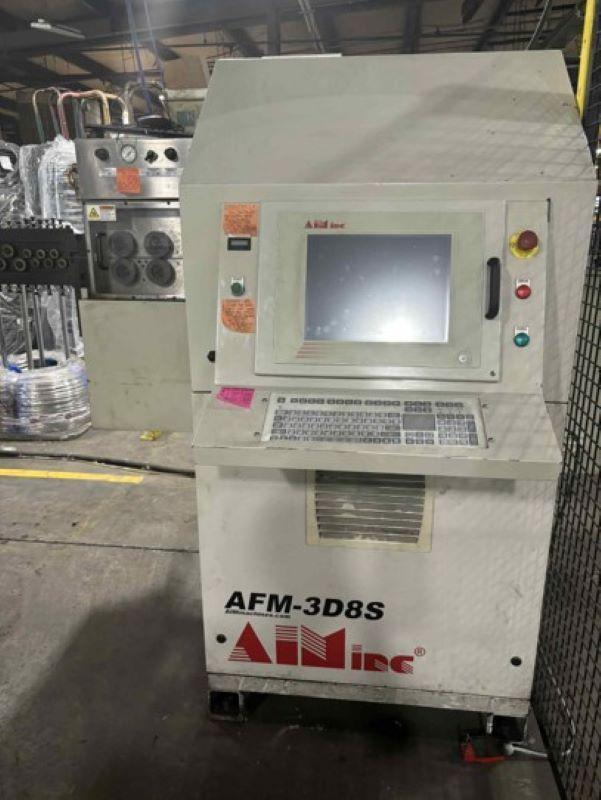

AIM model AFM-3D8S 3D CNC WIRE BENDER
Brand
Category
Model
AFM-3D8S
Stock #
9075
Year
2011
Condition
Used
Location
Not specified
|
Wire Dia. Range: 2mm 8-mm (.080" - .313")
Max. Wire Tensile At Max. Wire Dia: 620 N/mm? (90 kPSI) Feeder Axis #1: Wire Feed Resolution: <0.0001mm (<0.00001?) Max wire feed speed: 152 m/min (506? f/min) Bender Axis # 2: Bender Resolution: <0.0001? Max Bender Speed: 2500?/sec Max Bender Angle: Unlimited Turret Axis #4: Turret Axis Tool Change Time: 250 mSec Set-Up Time: Same Wire Dia.: 1 Minute Change Feeder Rollers & Bending Tools: 8 Minutes Dimensions: (LxWxH) AFM-3D8: 9,250 Lbs. 102? x 82? x 84? Payoff Unit: 1,700 Lbs. 94? x 74? x 74 Features: * AIM powered wire dereeler (4400 lbs capacity) Location: N.AMERICA |
