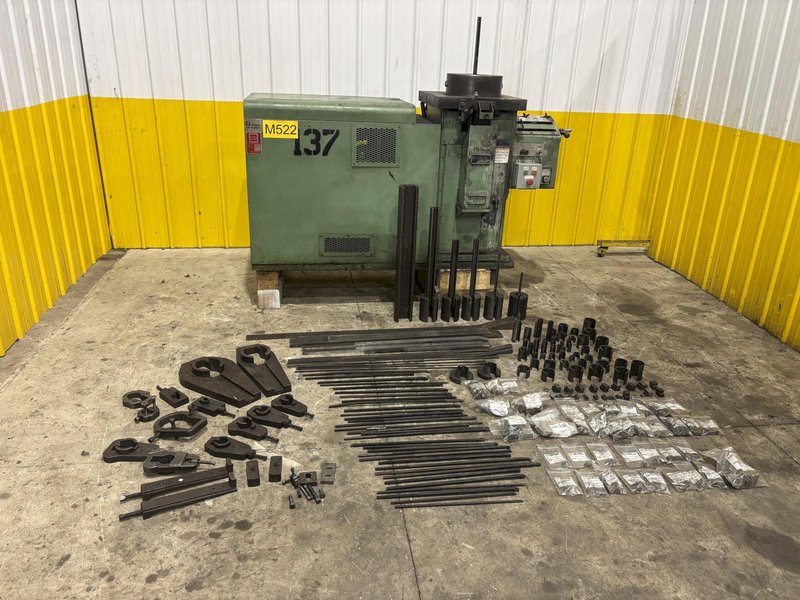

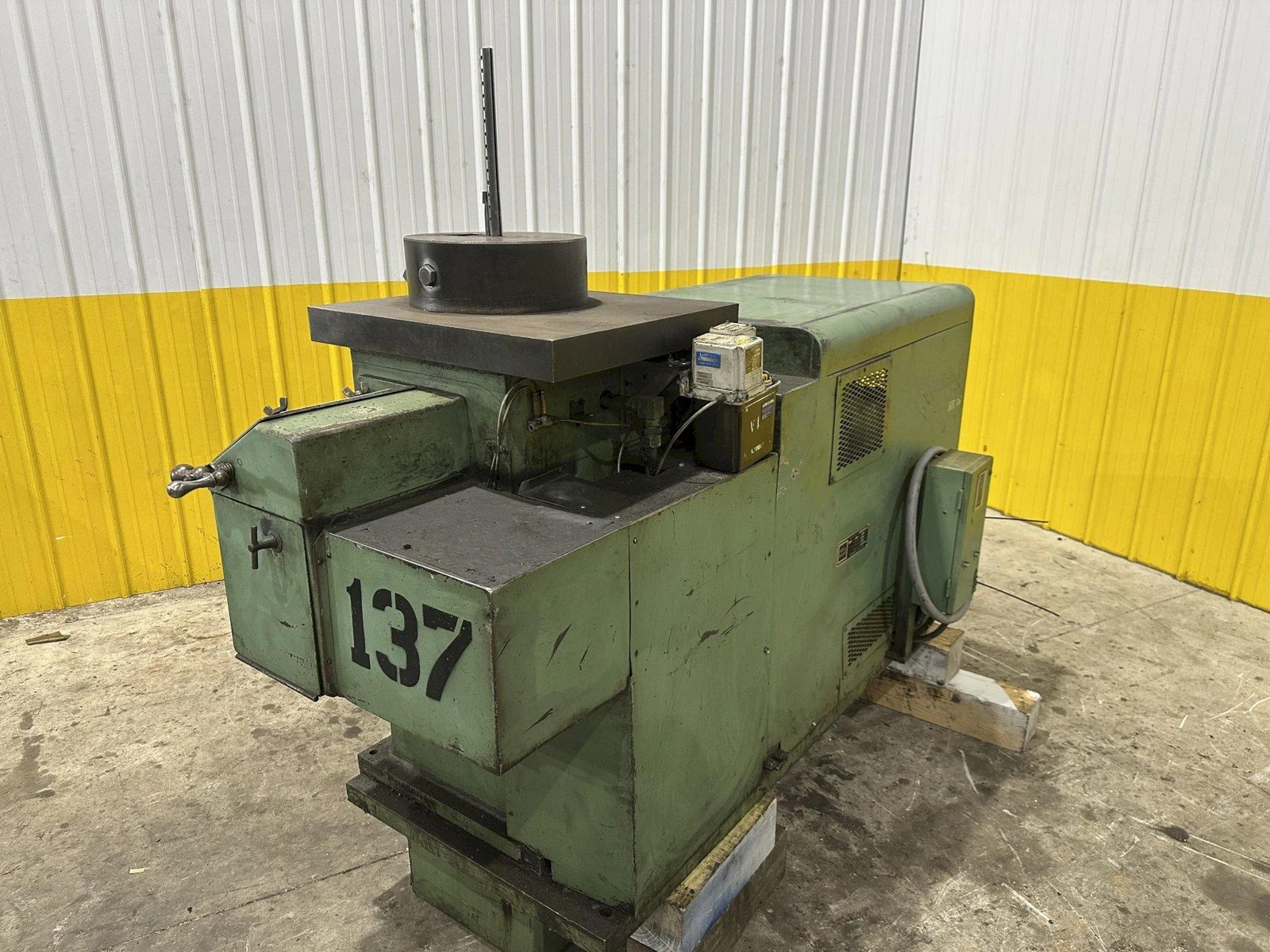

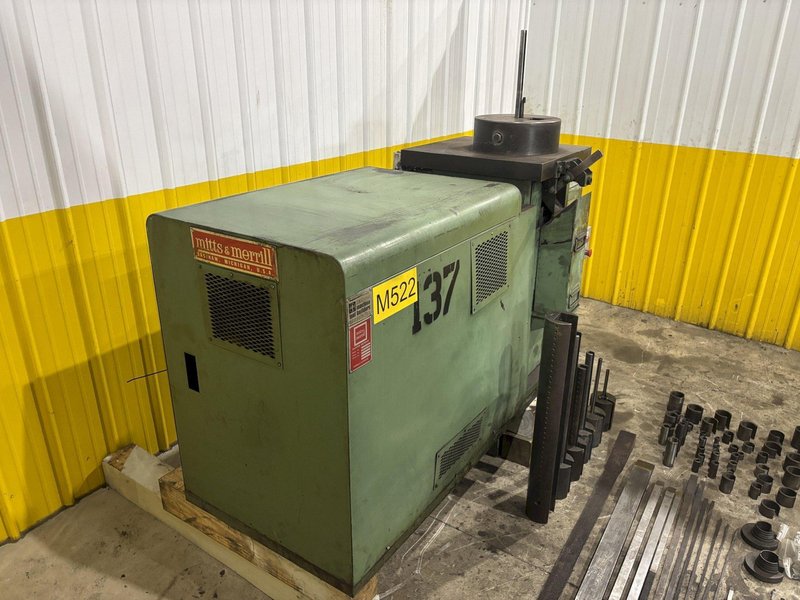

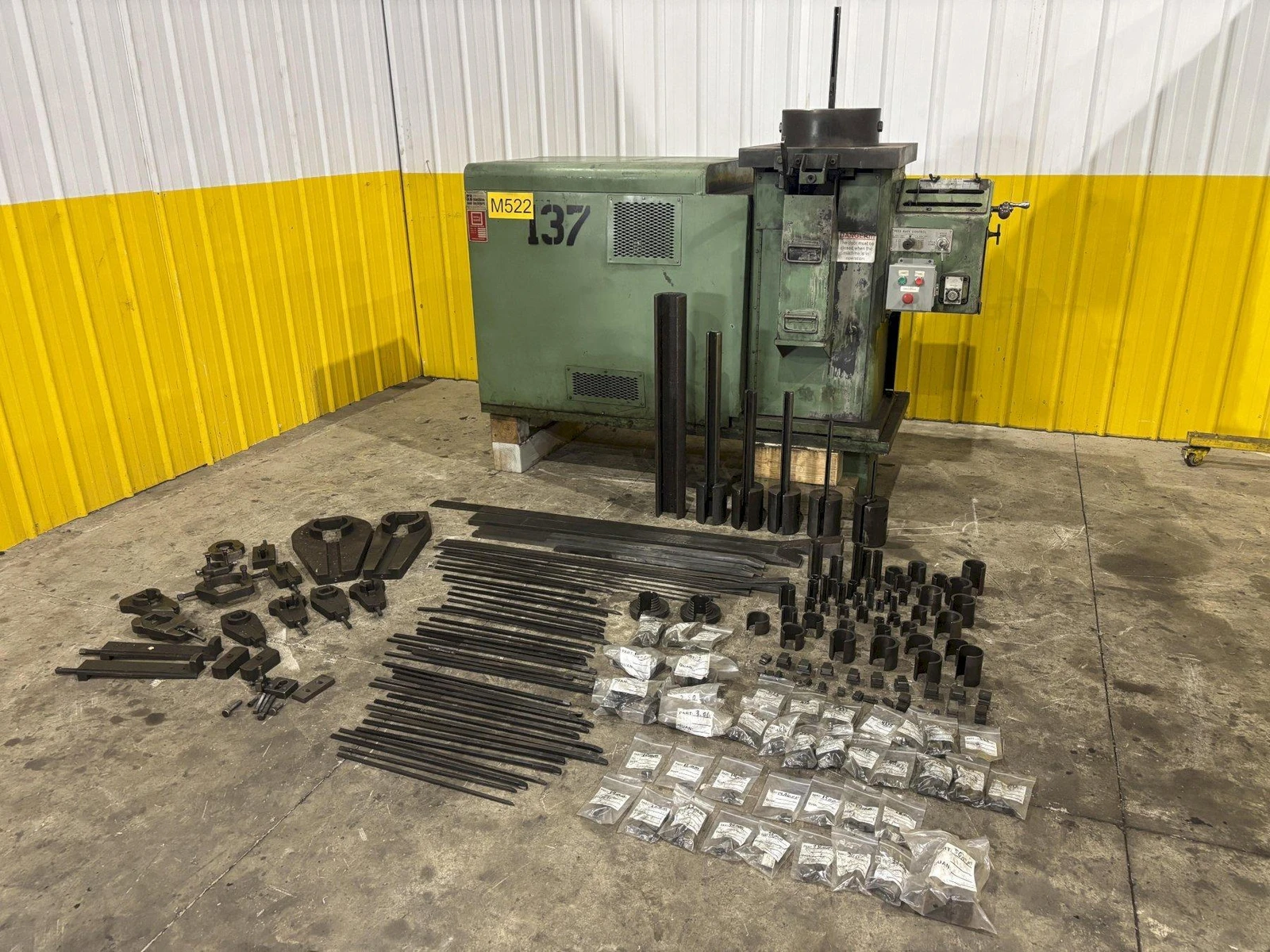

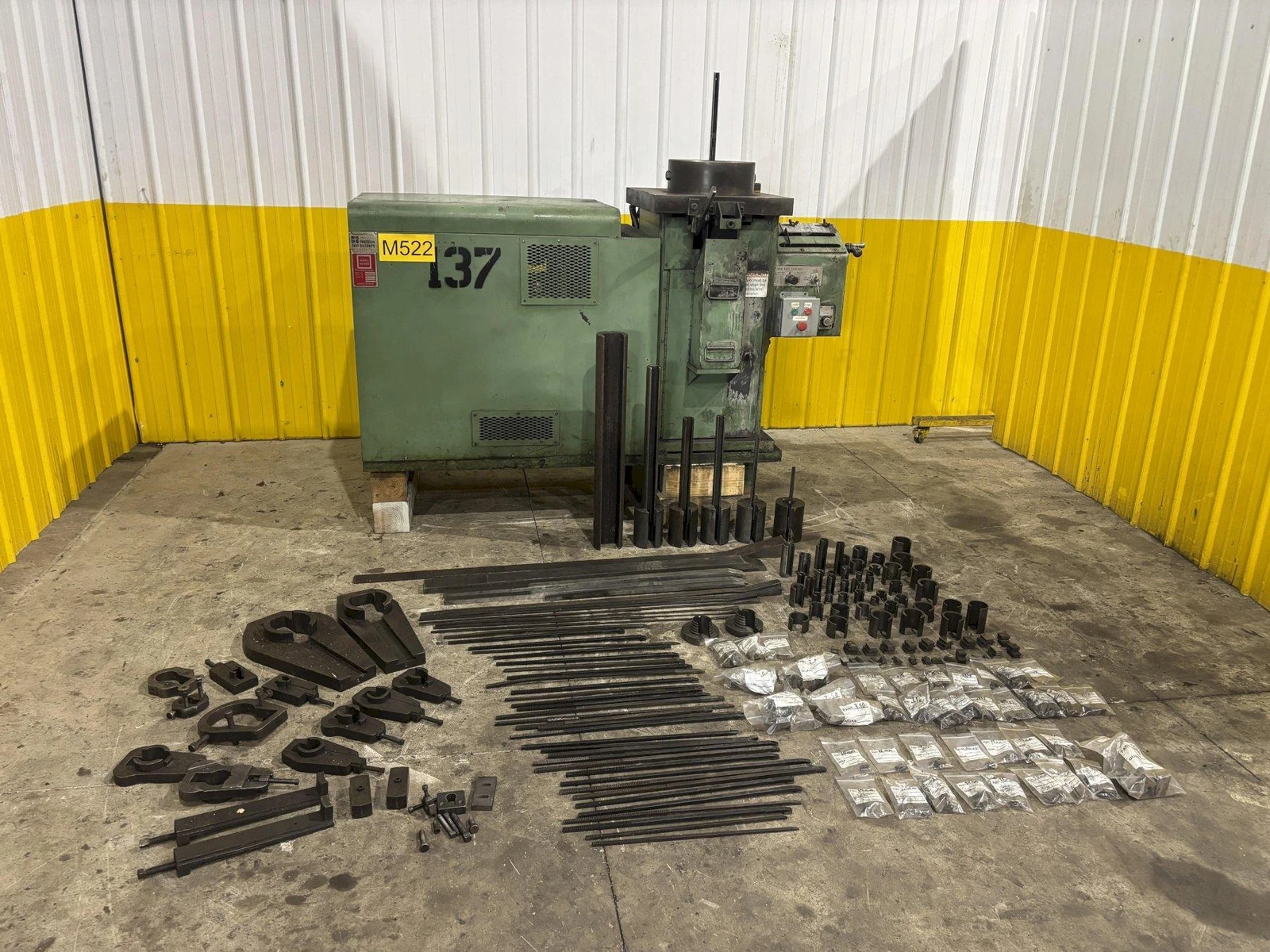

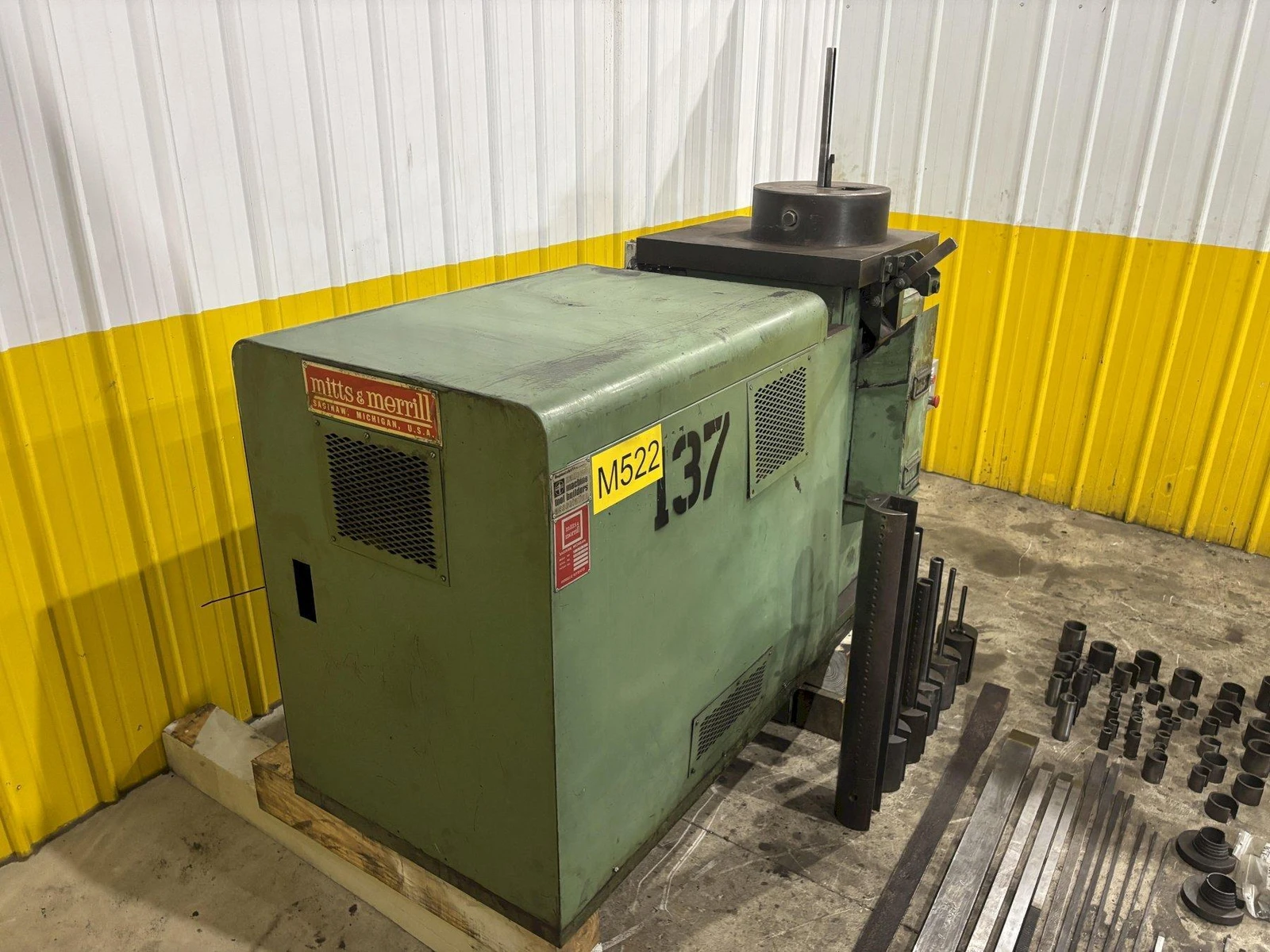

3" X 24" MITTS & MERRILL MODEL #5HFR-KS HYDRAULIC KEY CUTTER BROACH KEYSEATER: STOCK #23647
Brand
Category
Type
Model
S-HFR-KS
Stock #
23647
Year
Not specified
Condition
Good
Location
Ohio
| Dimensions | 71" x 30" x 48-5/8" H |
|

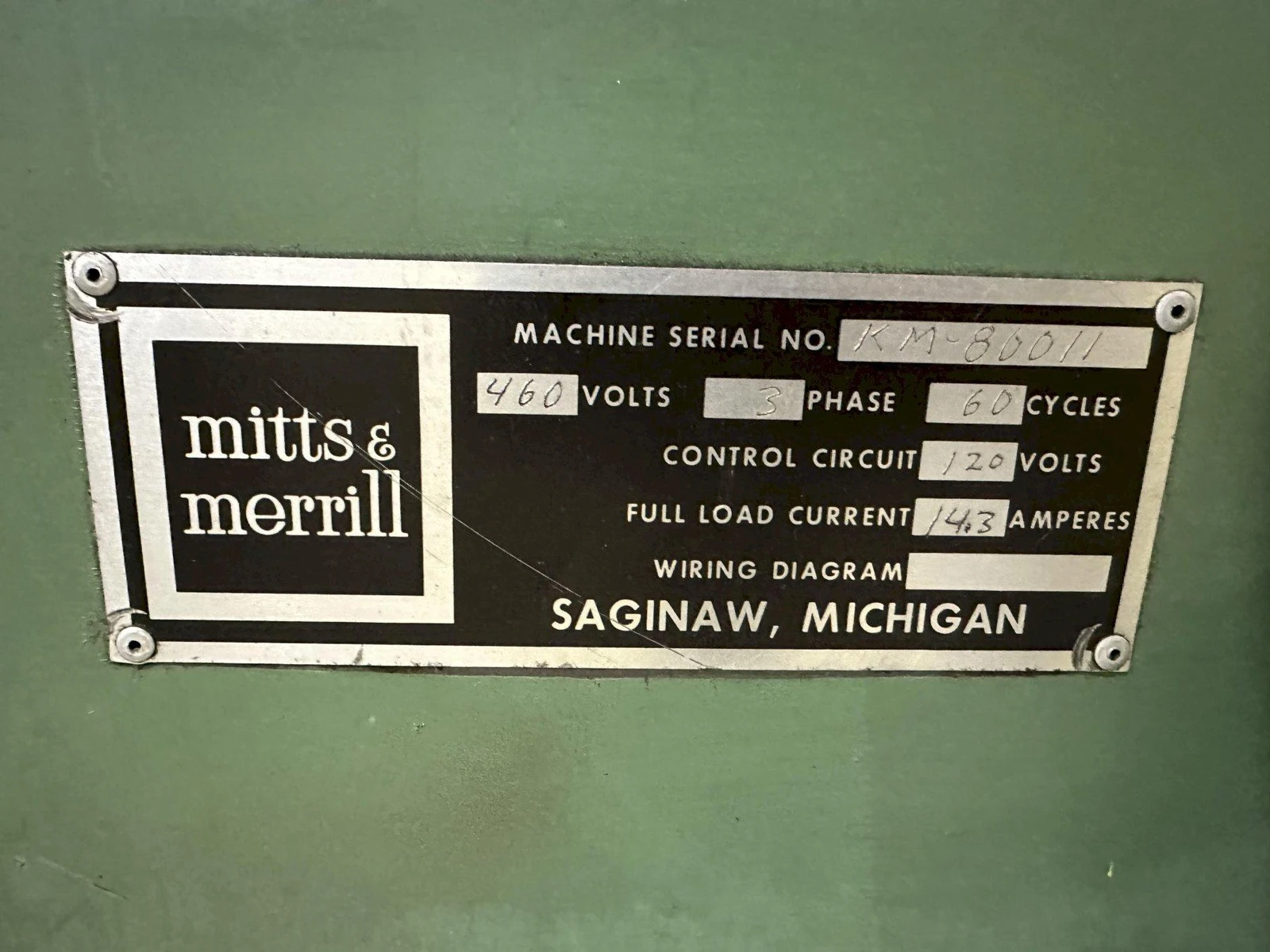

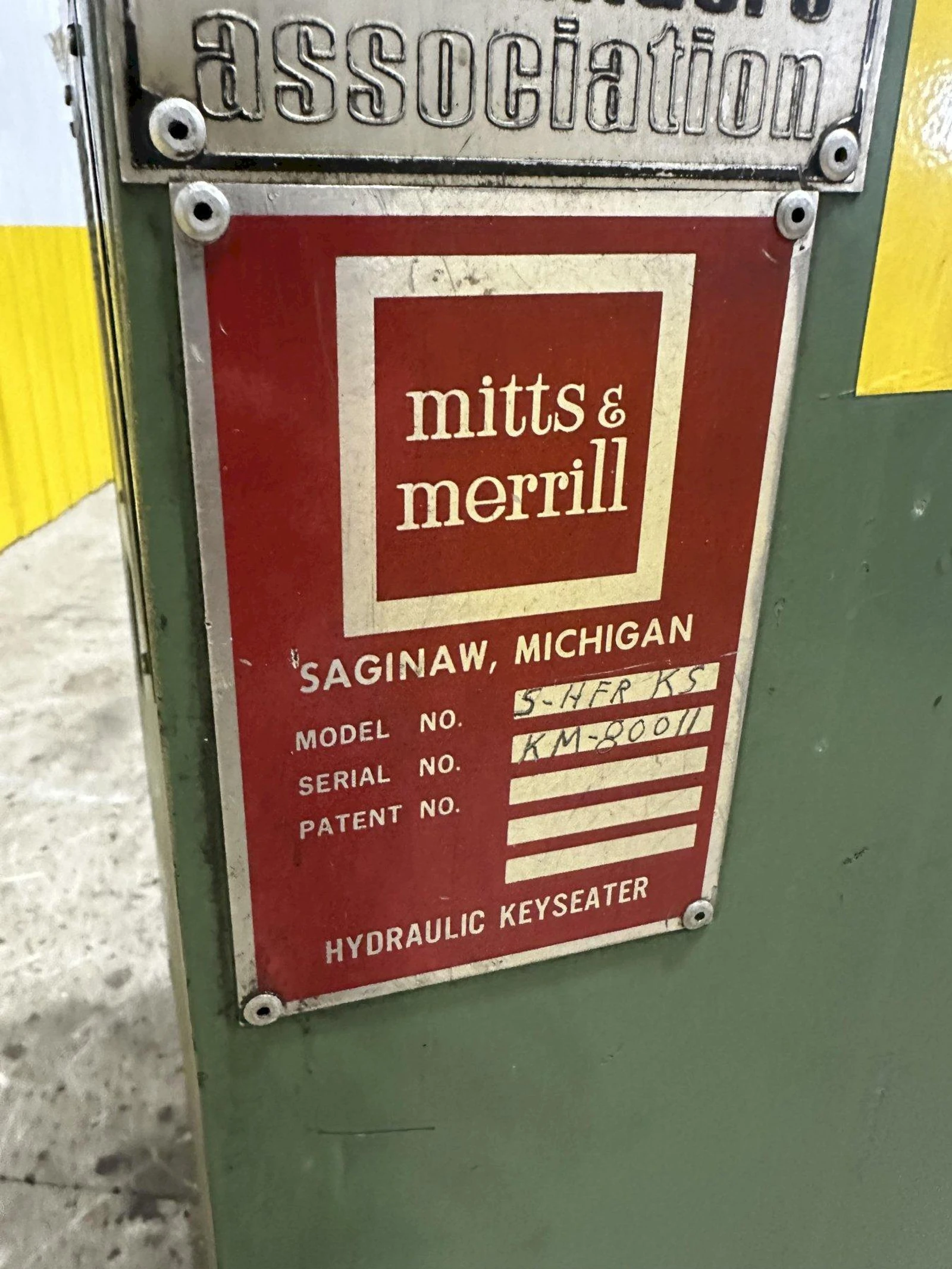

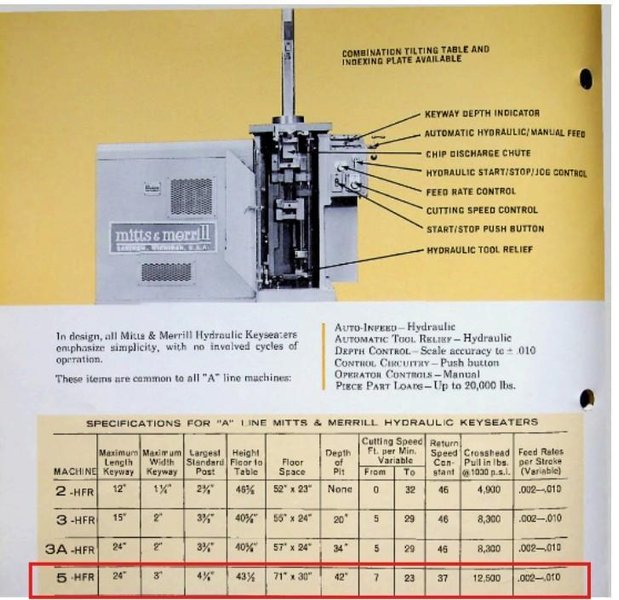

SERIAL .................................... KM-80011
MODEL ..................................... 5HFR-KS
KEYWAY LENGTH ............................. 24"
KEYWAY WIDTH .............................. 3"
LARGEST STANDARD POST ..................... 4-7/8"
CUTTING SPEED (VARIABLE)................... 7 TO 23 FPM
RETURN SPEED (CONSTANT).................... 37 FPM
FLOOR TO TABLE ............................ 43.5"

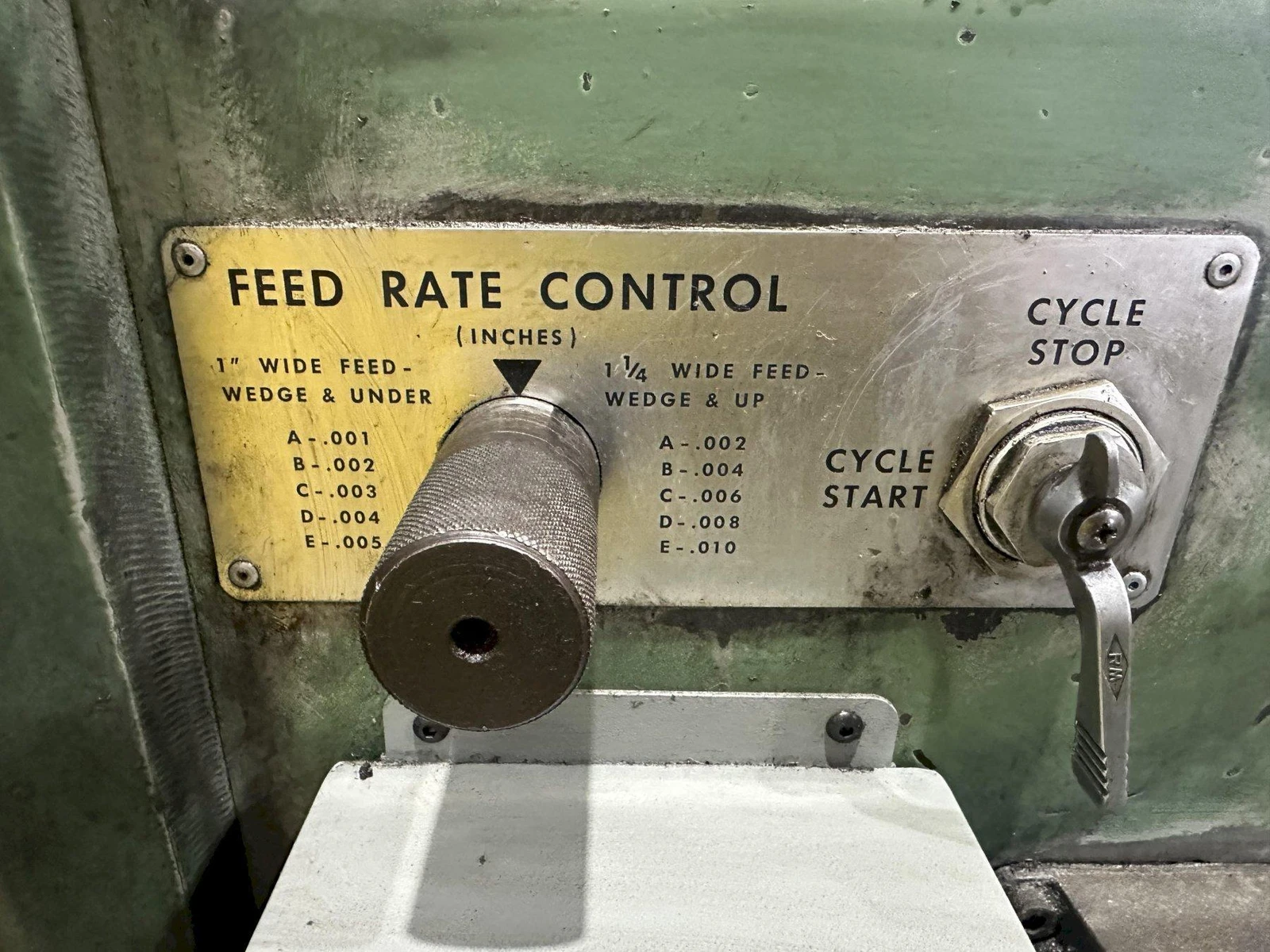

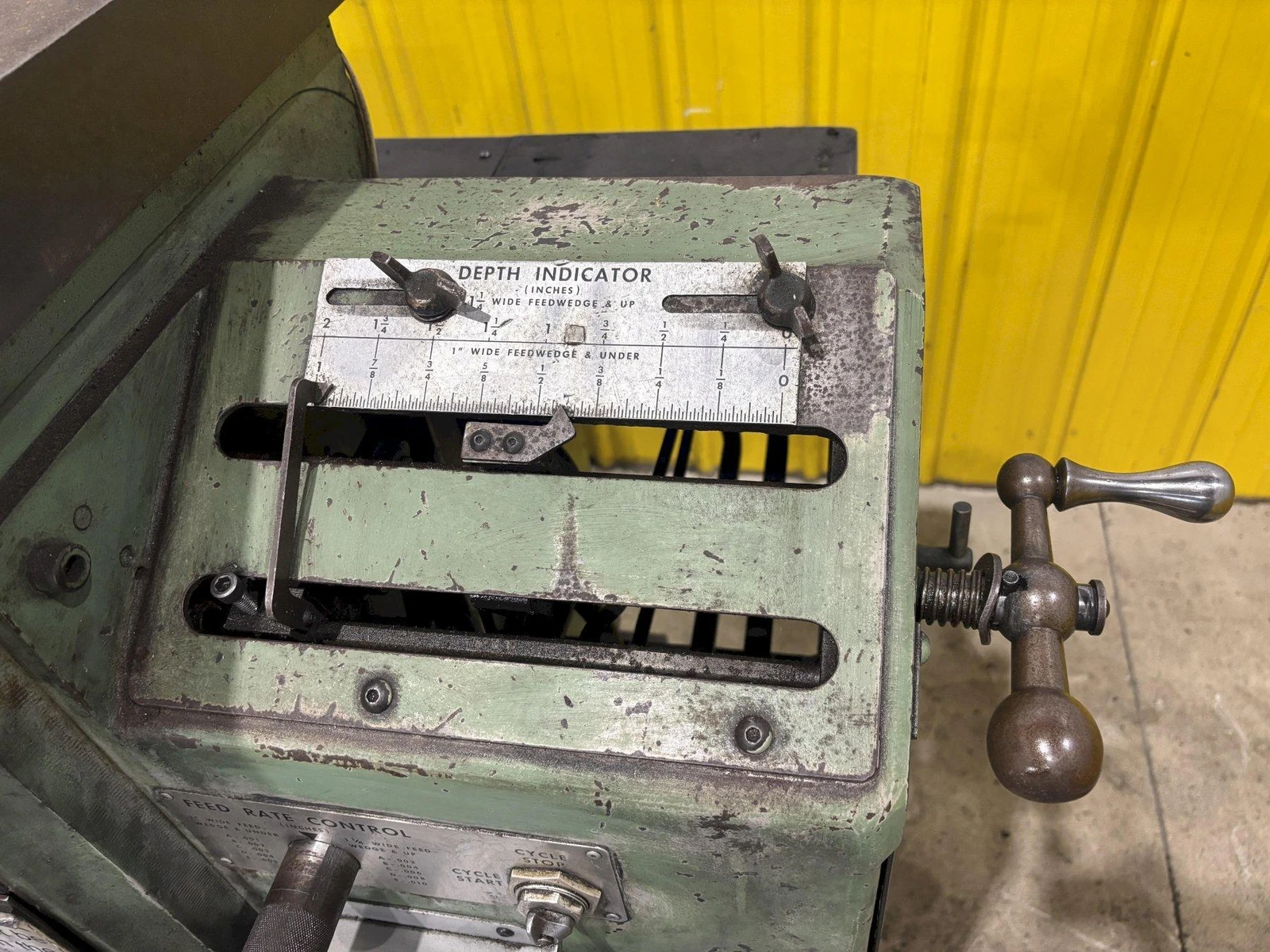

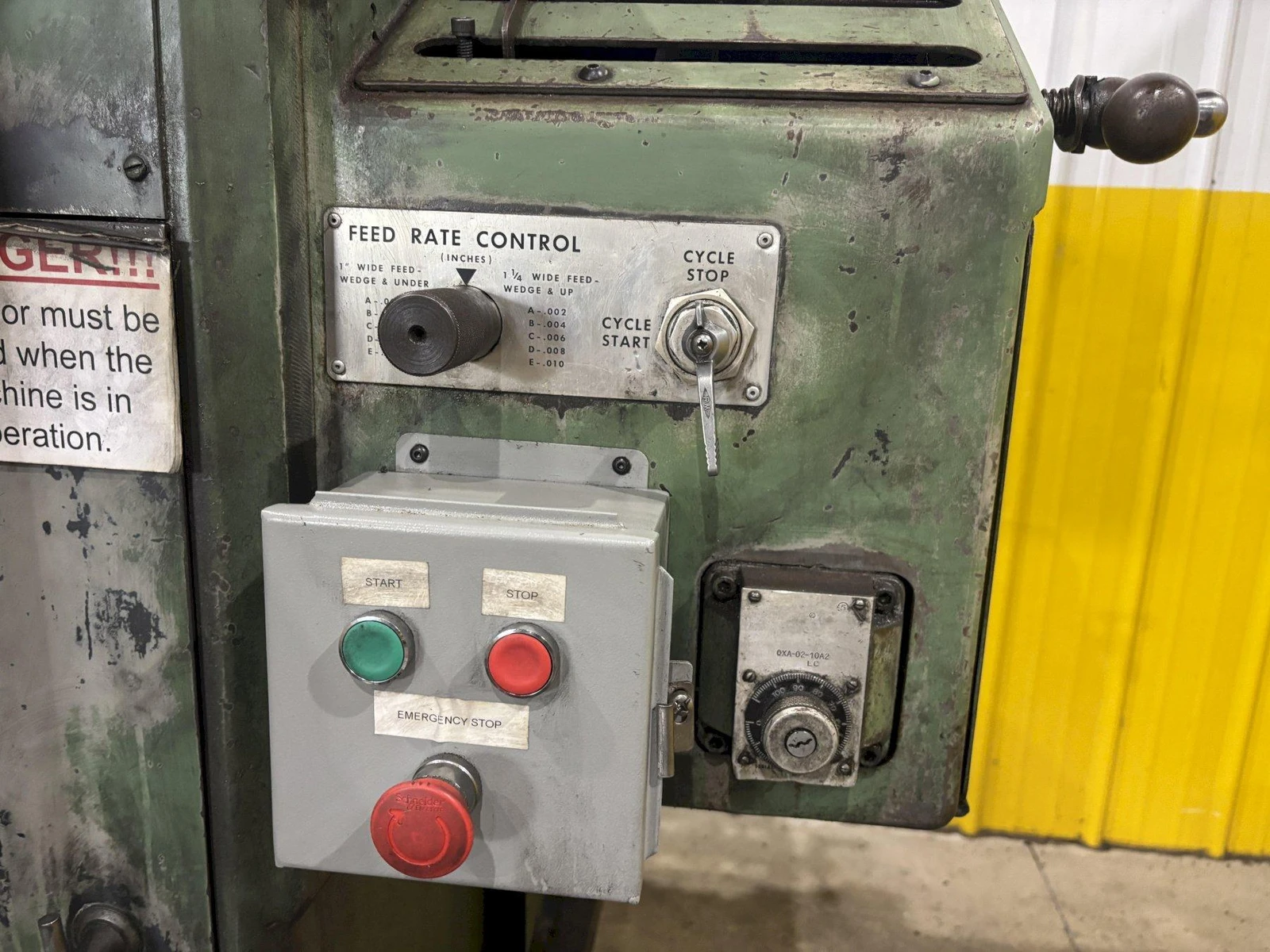

HYDRAULIC VARIABLE FEED RATE PER STROKE ... .002 TO .010
MOTOR ..................................... 10 HP

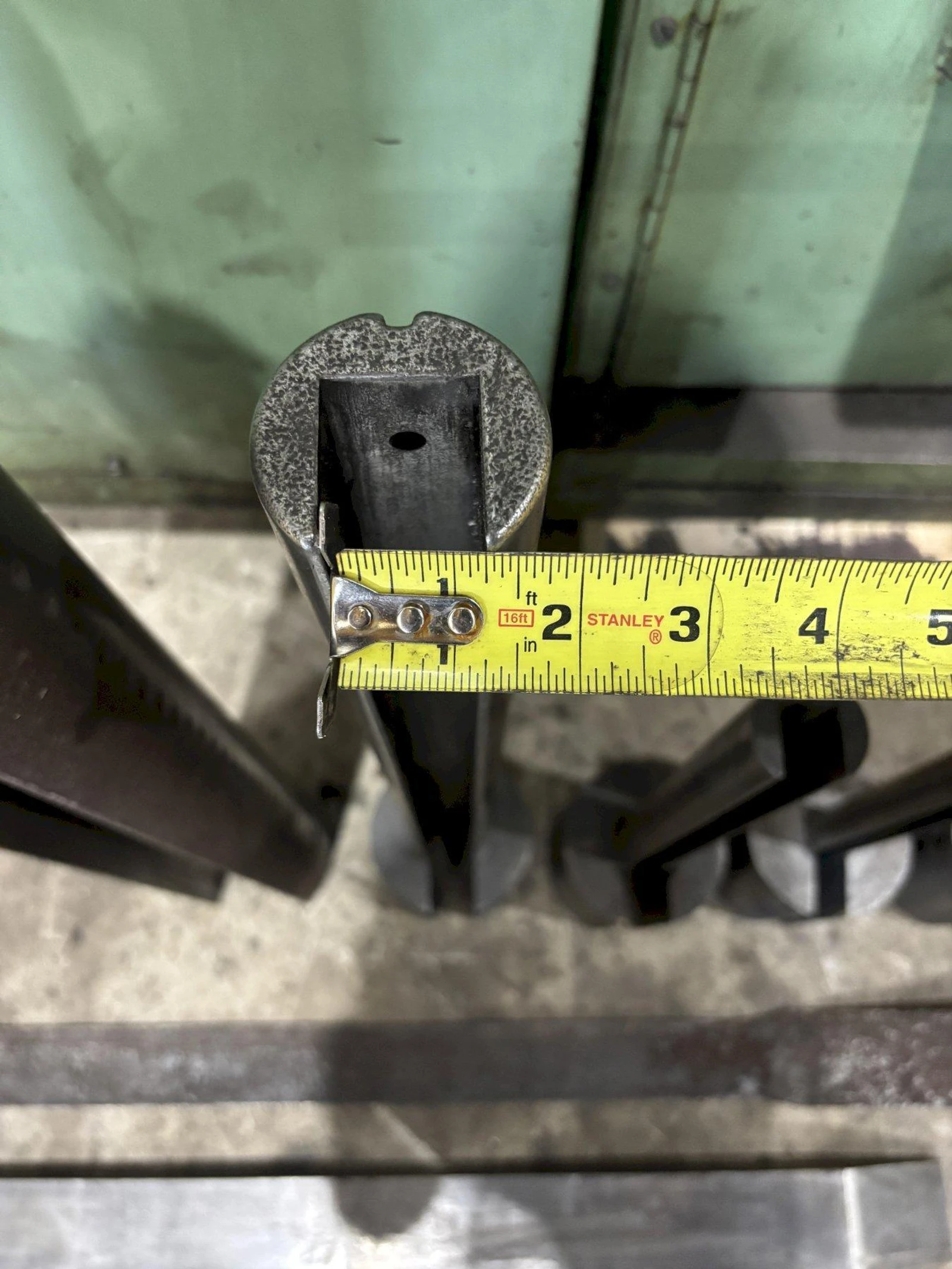

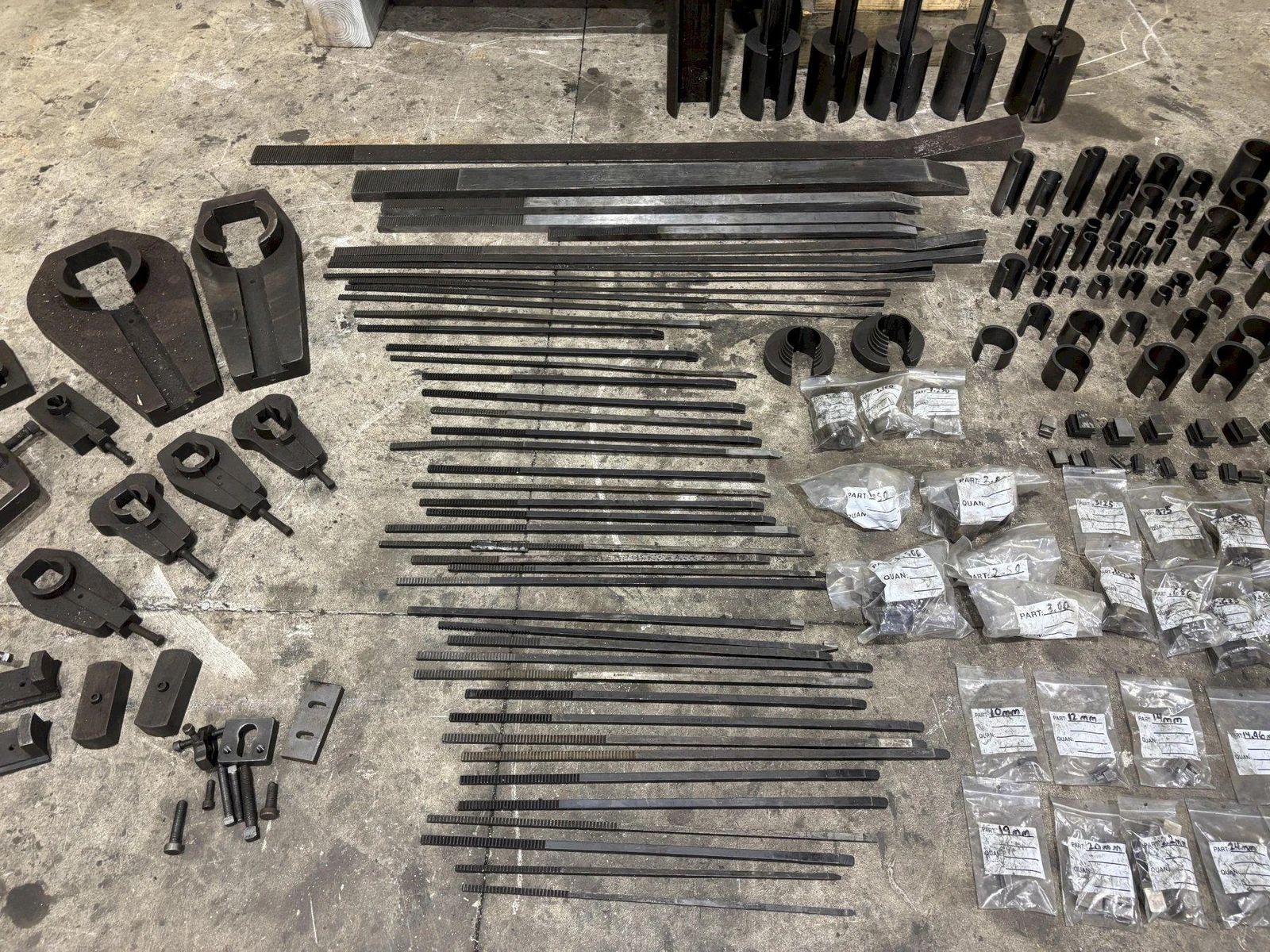

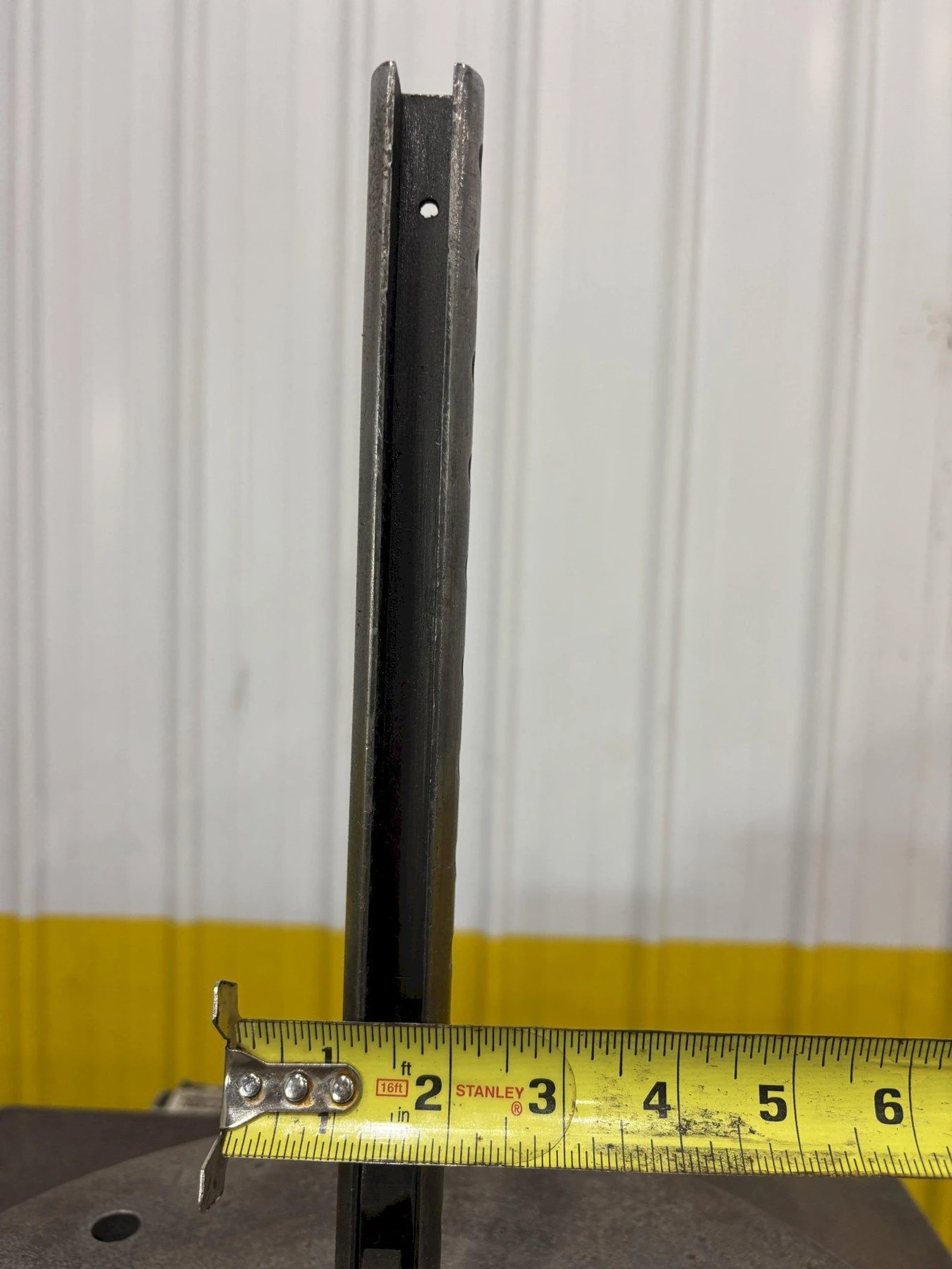

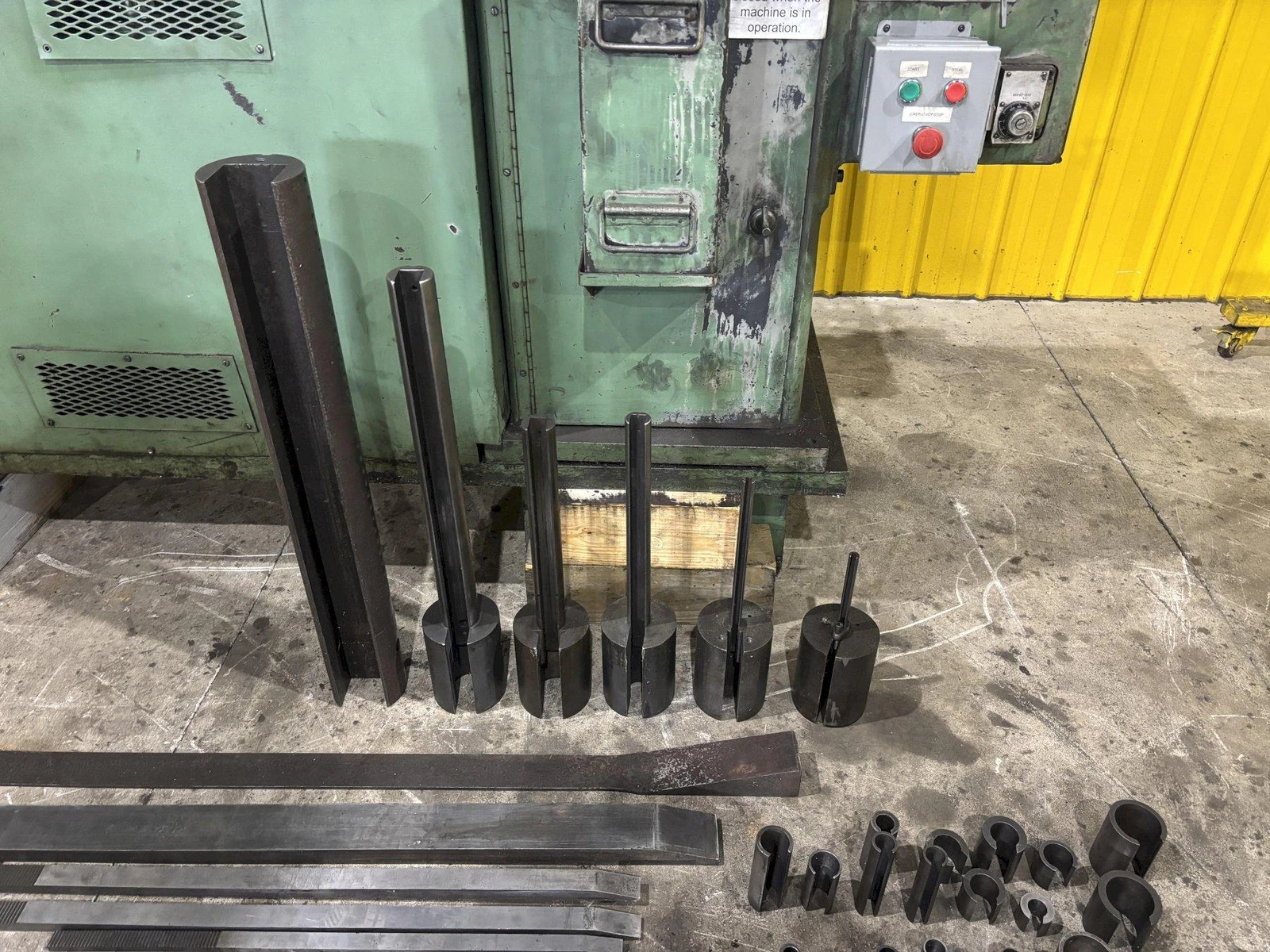

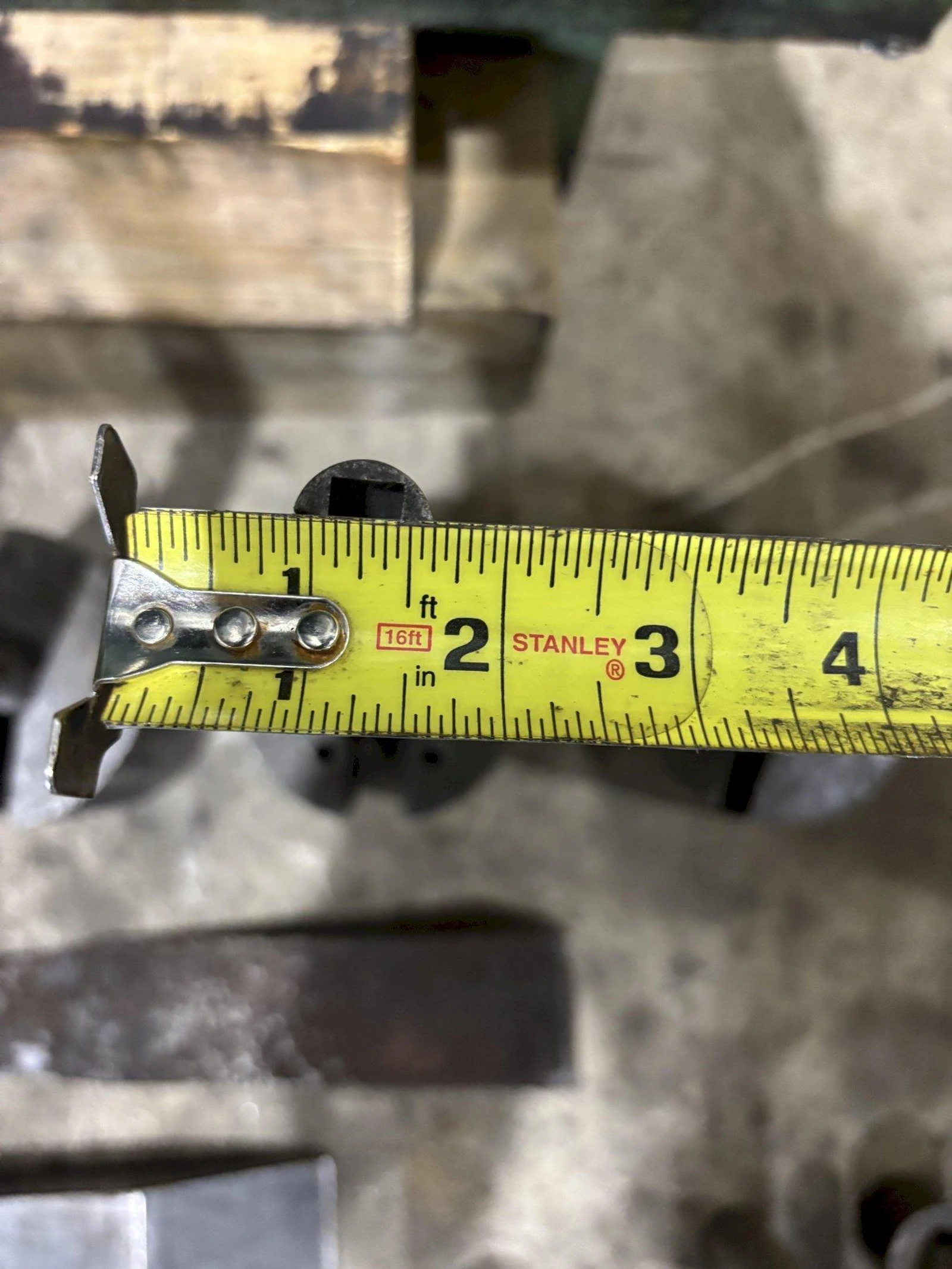

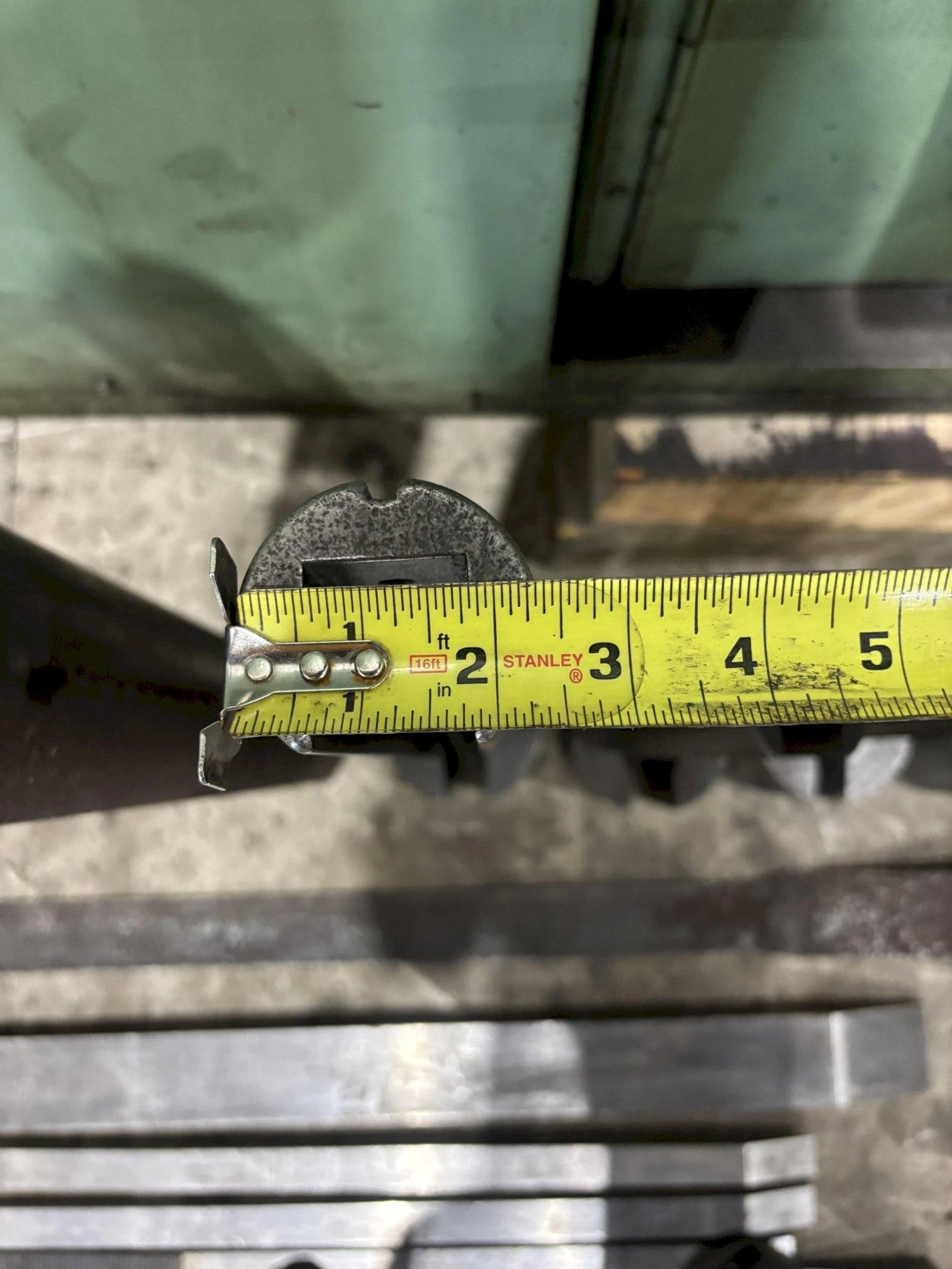

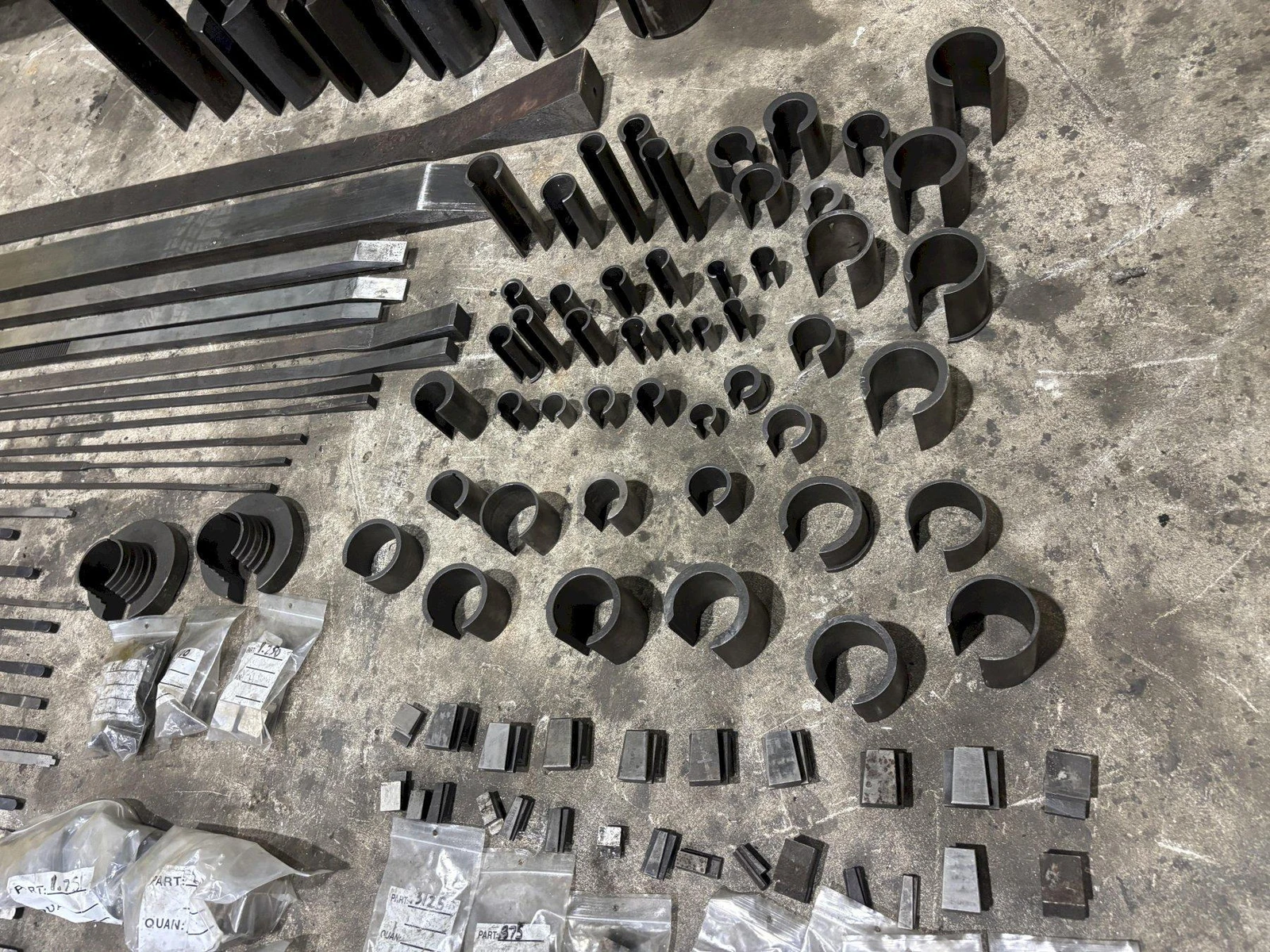

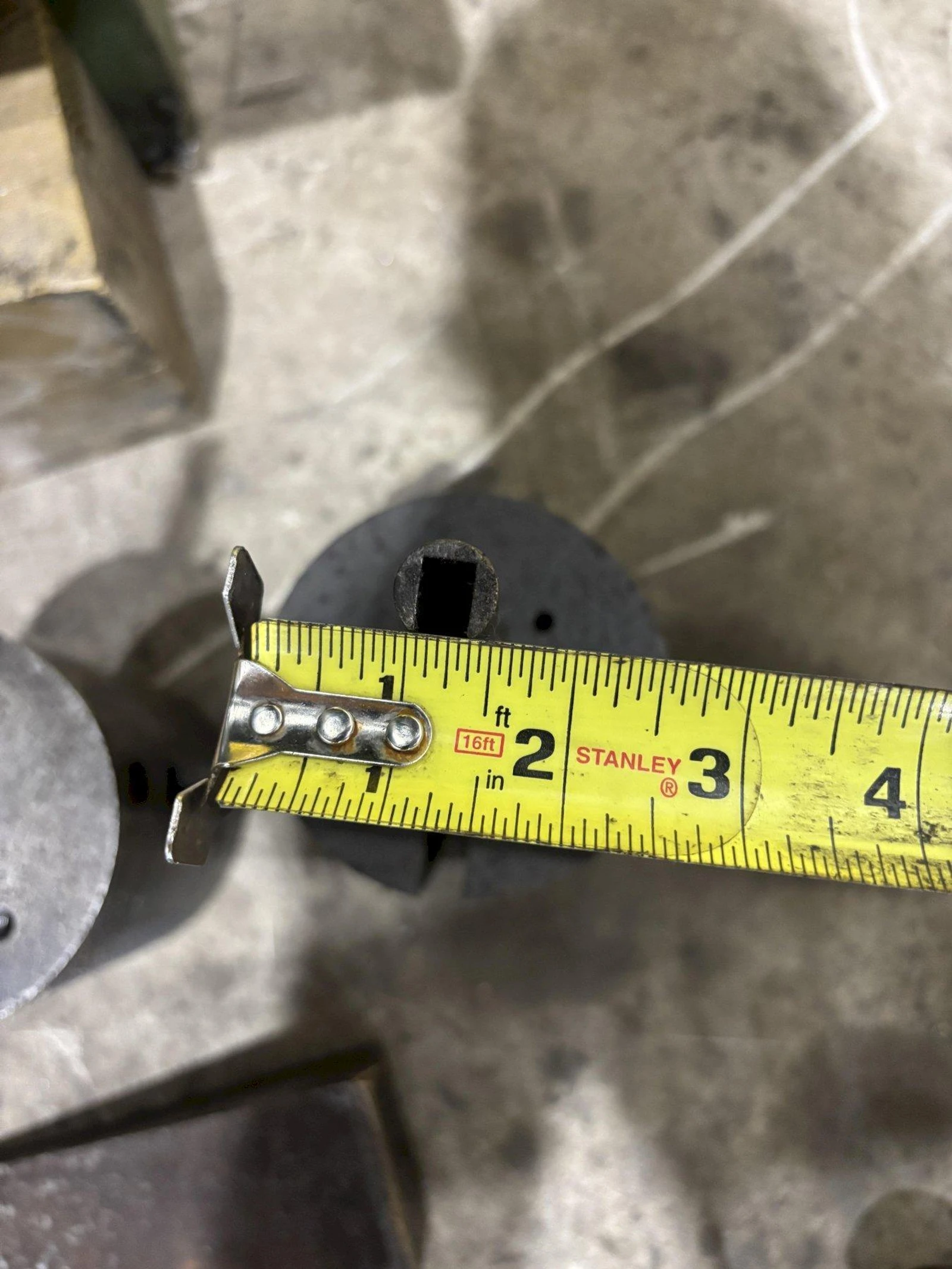

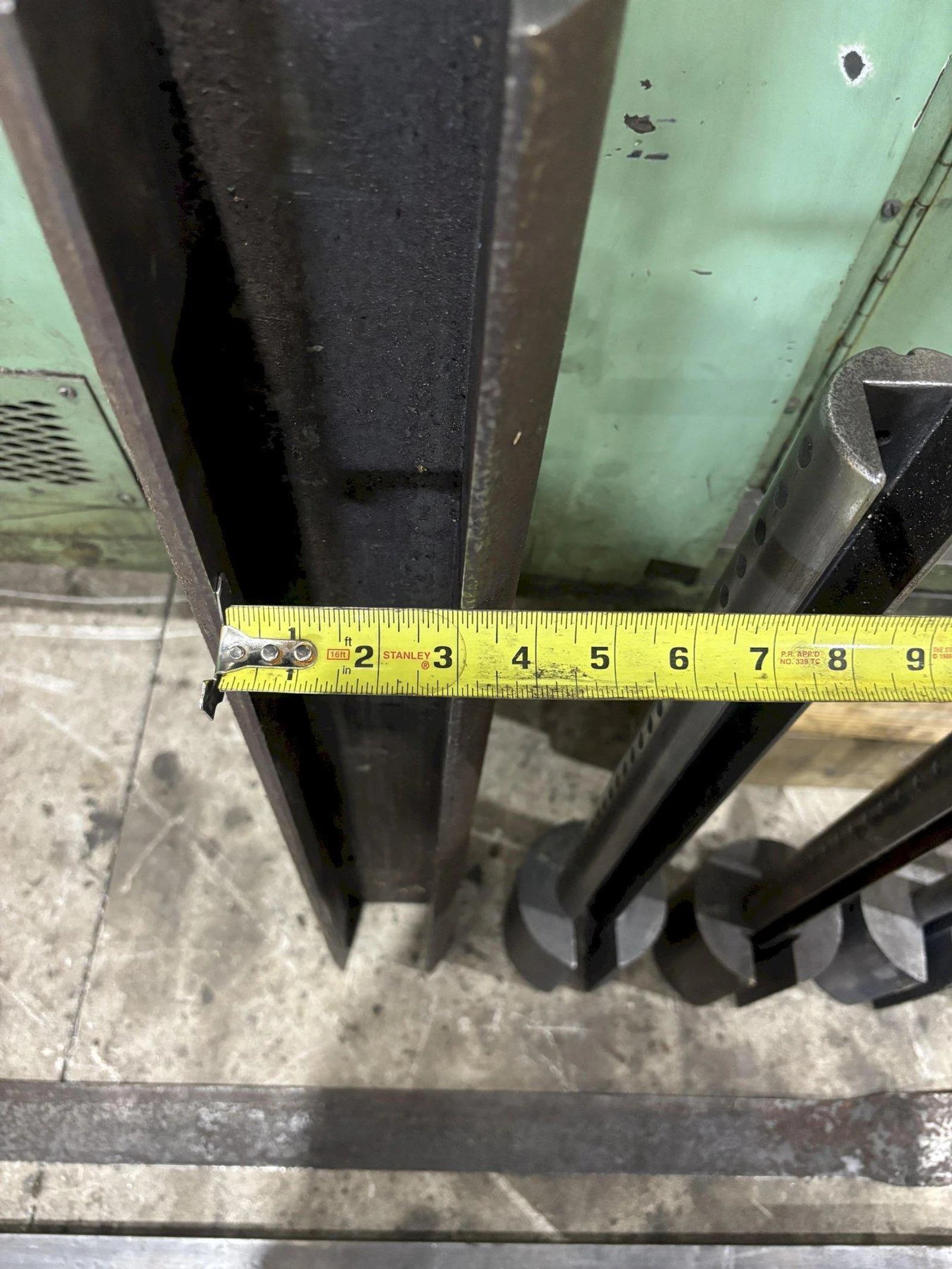

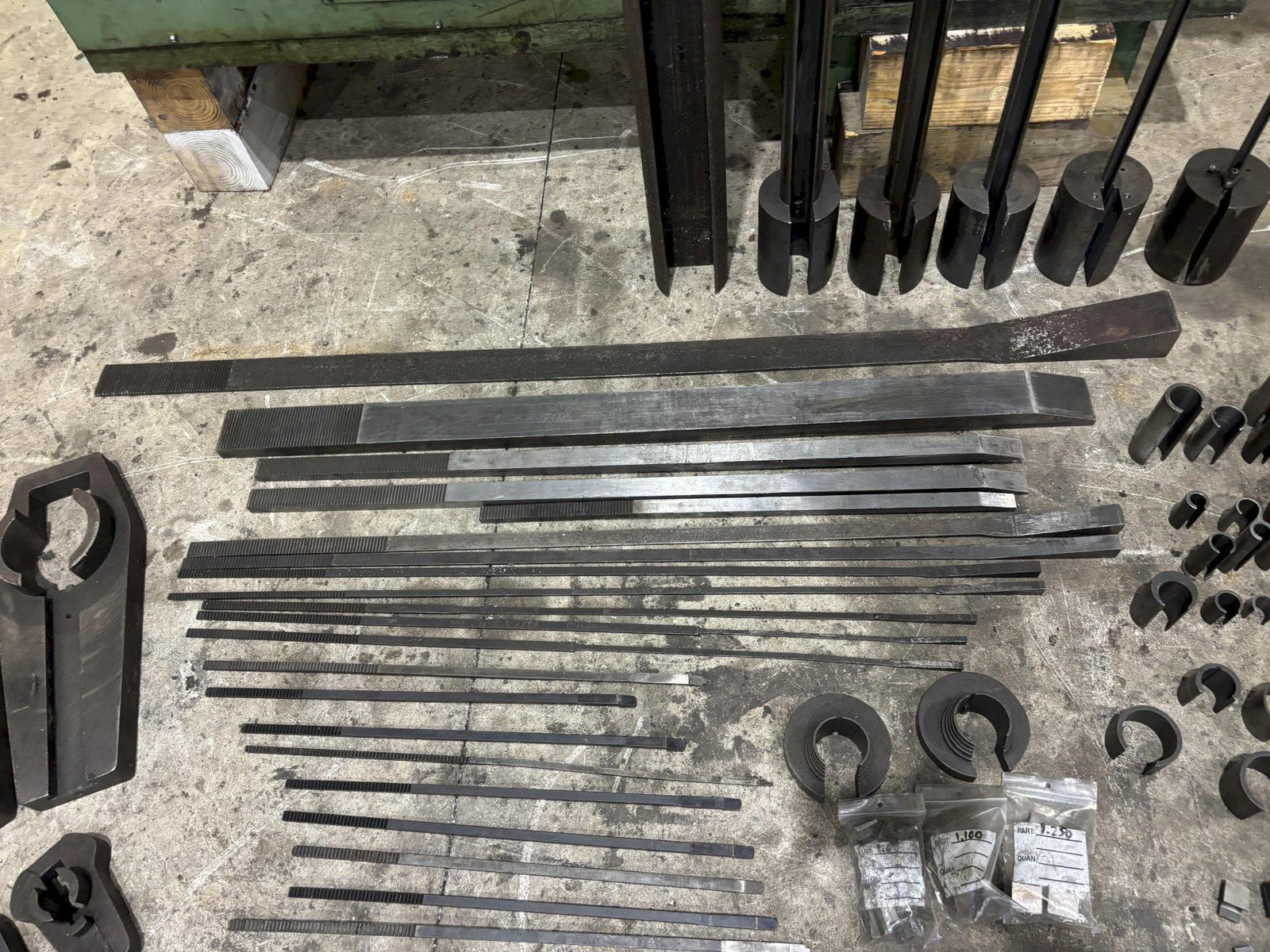

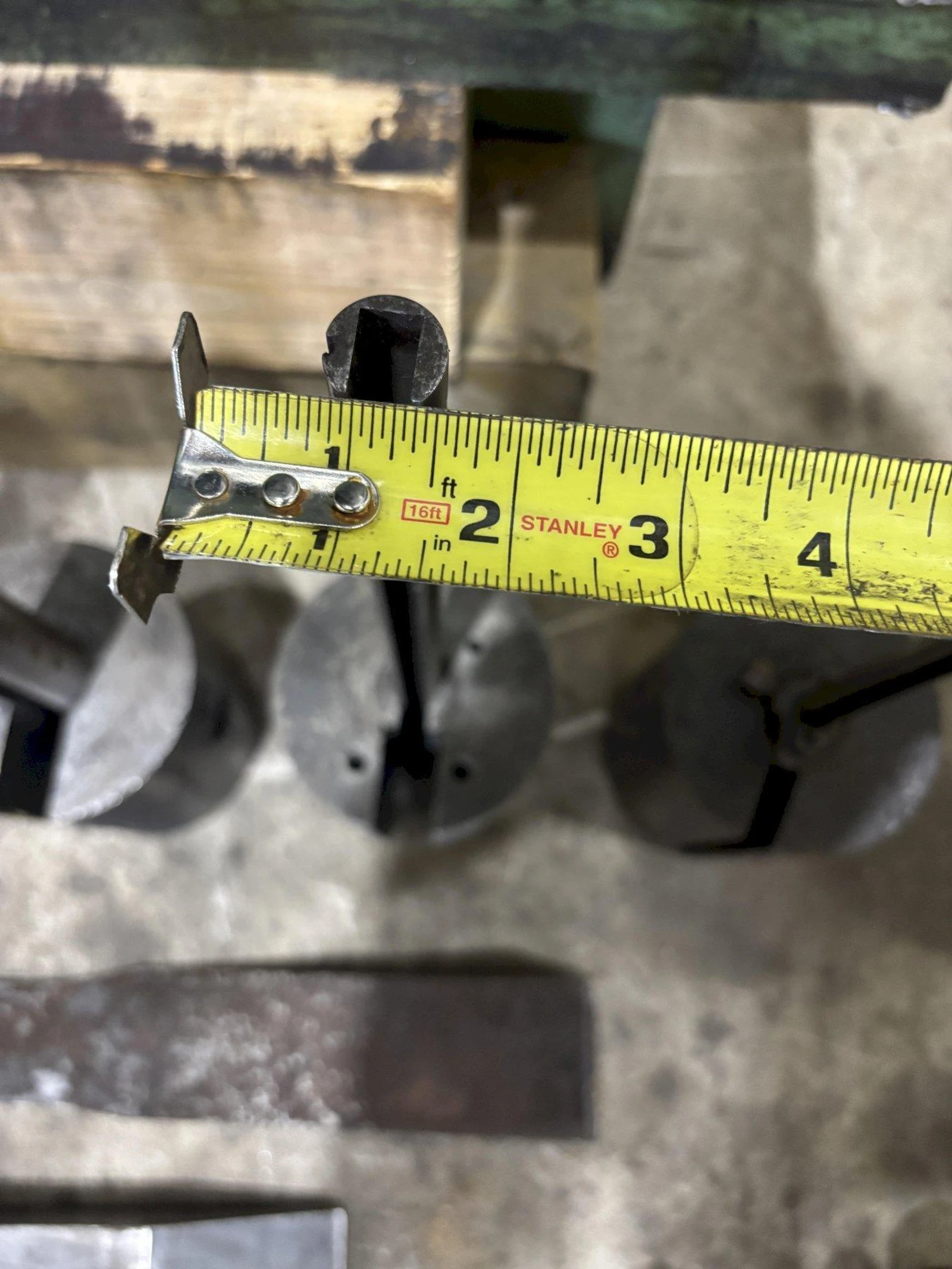

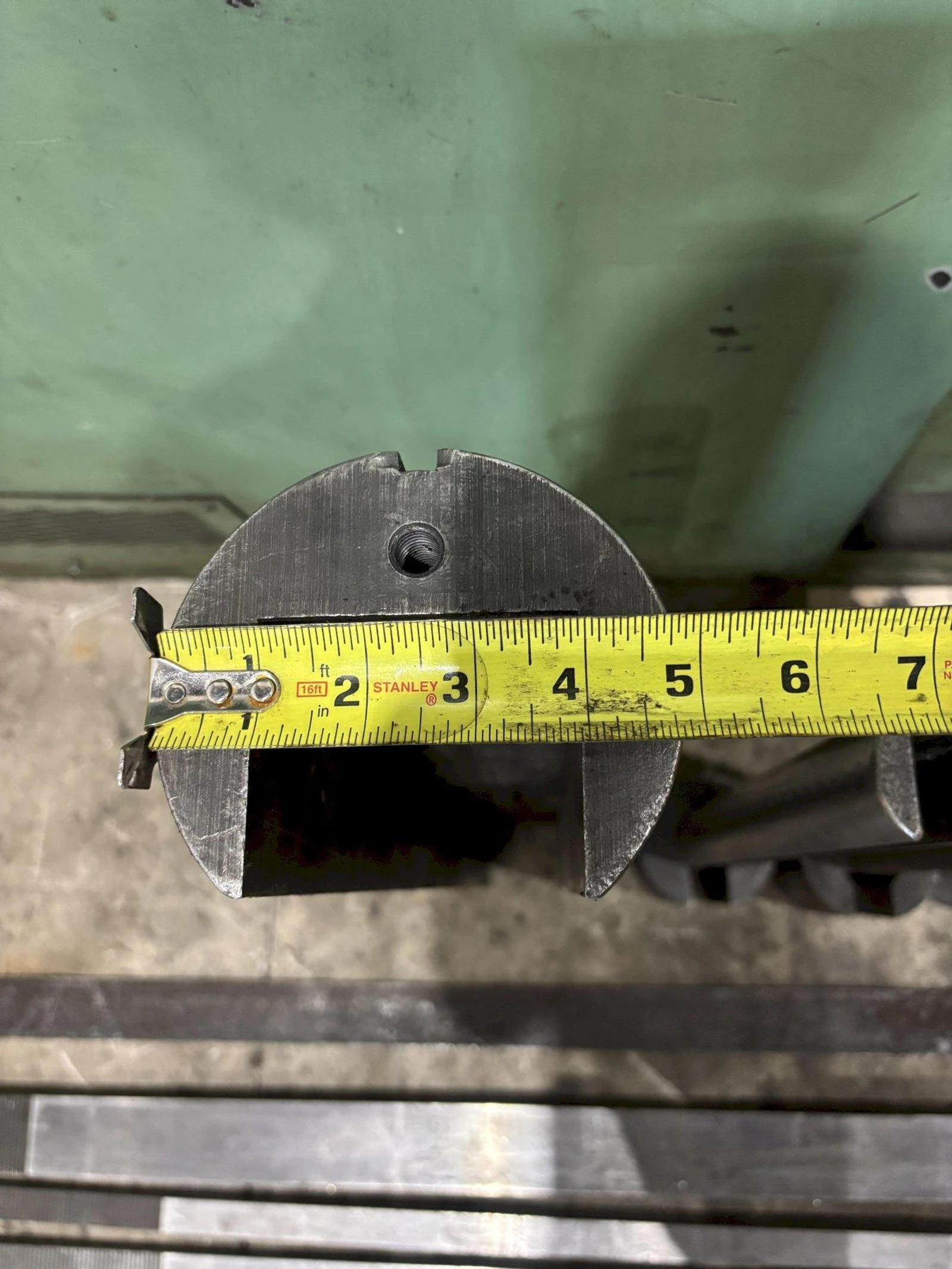

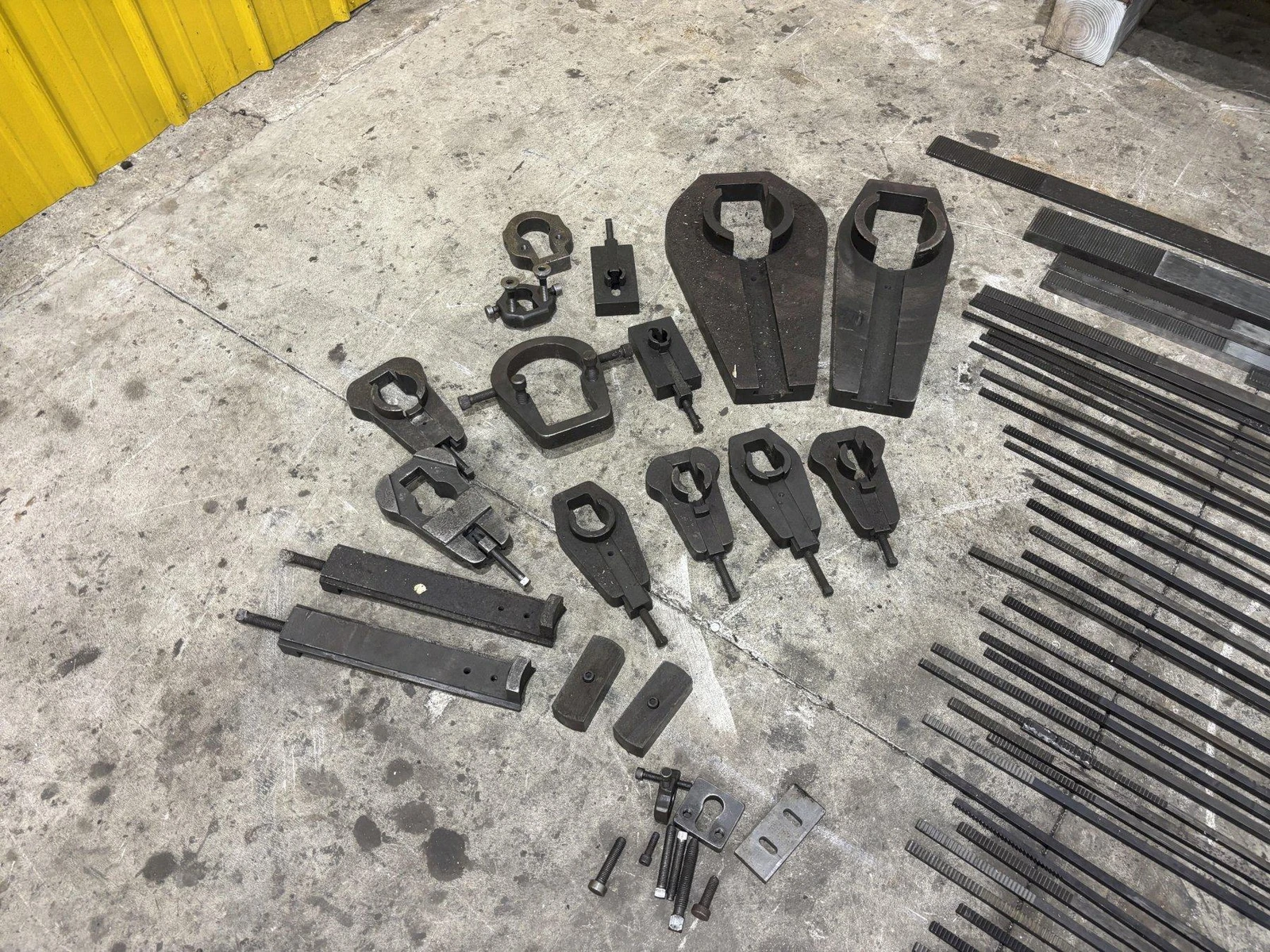

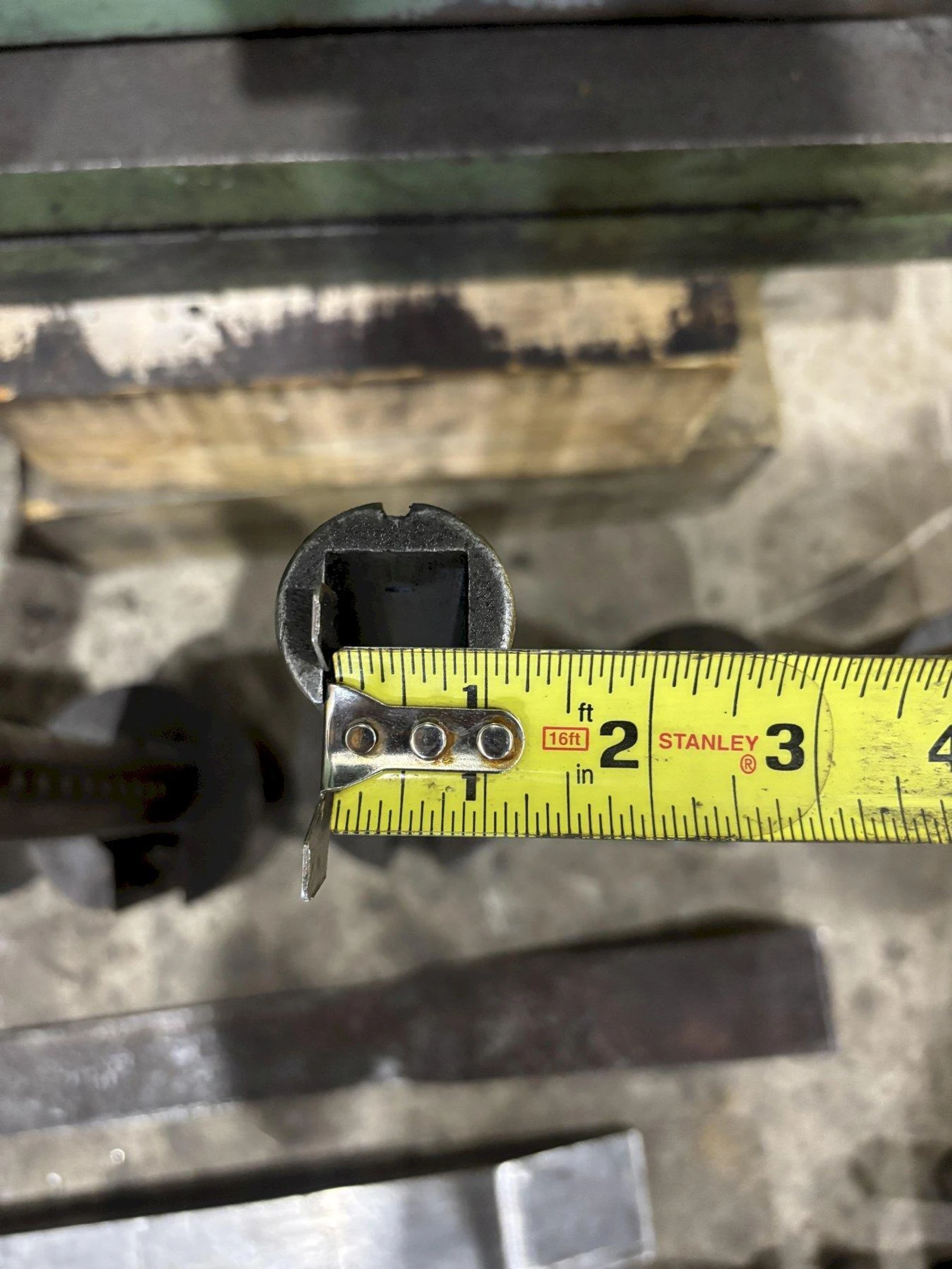

ASSORTED TOOLING .......................... YES POSTS ..................................... 3", 1.5", 1", .75" X2, .5", .25"

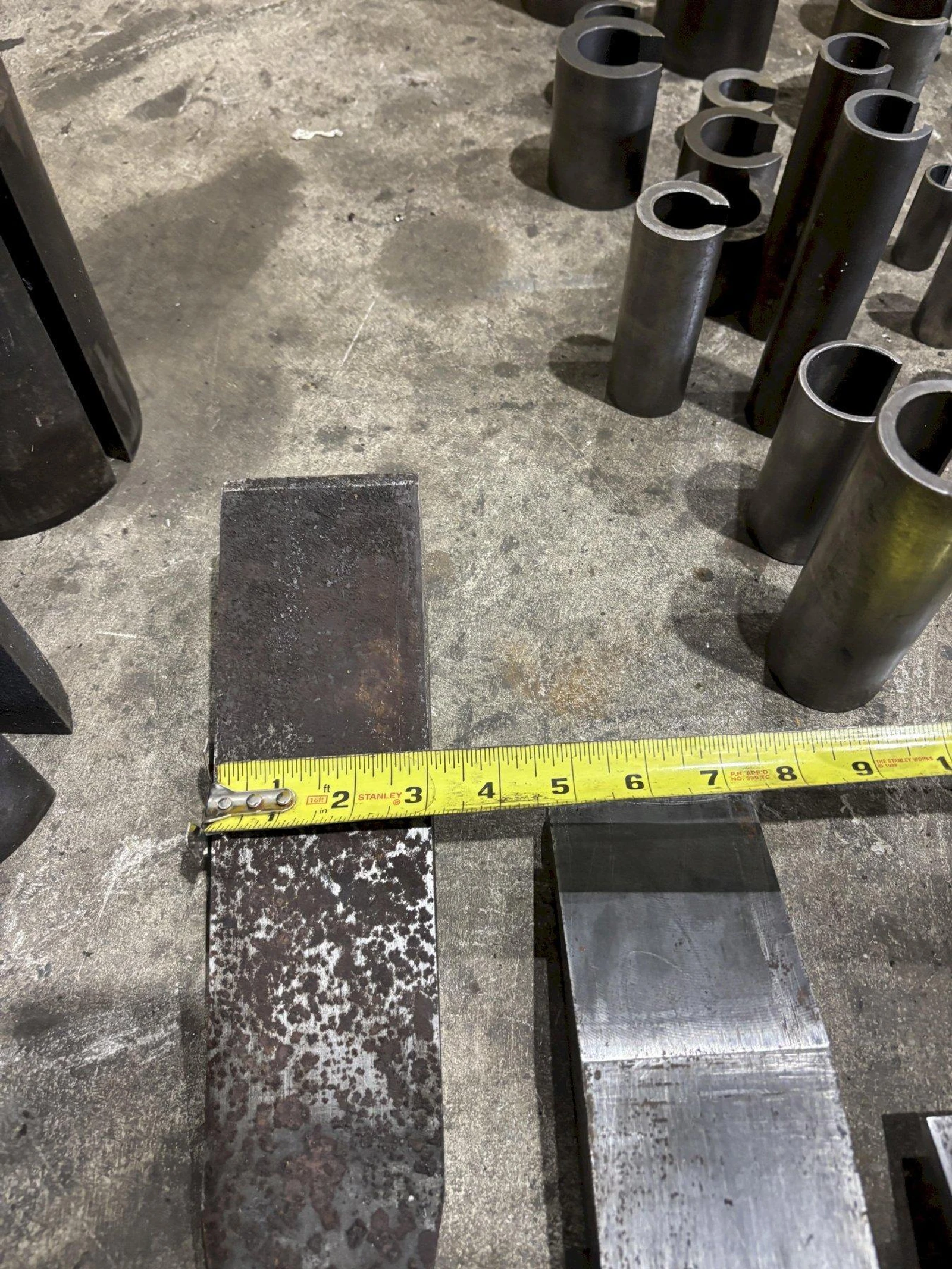

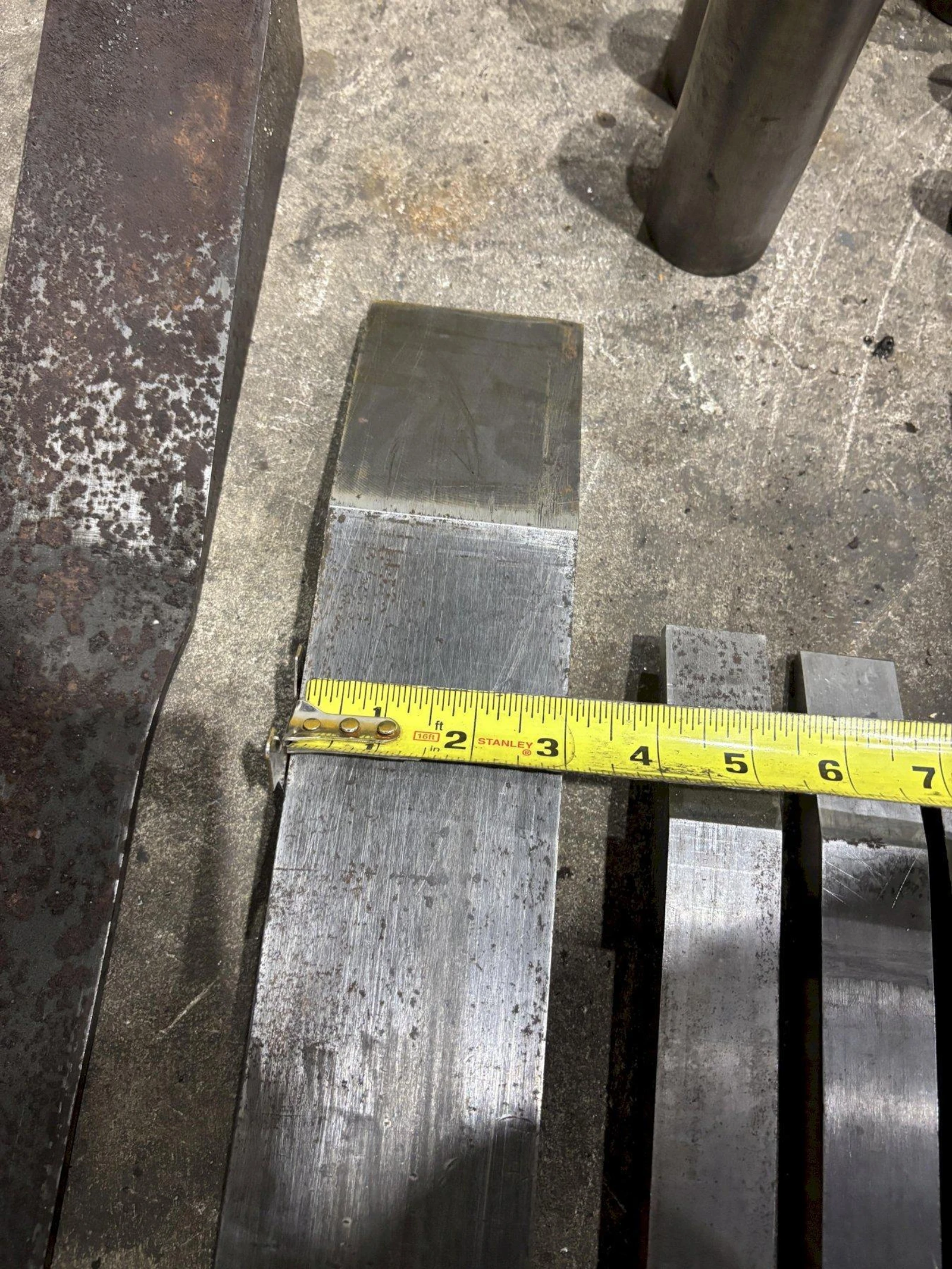

BAR TYPE .................................. 3" TO .25"
FEED EDGE ................................. 3" TO .25"

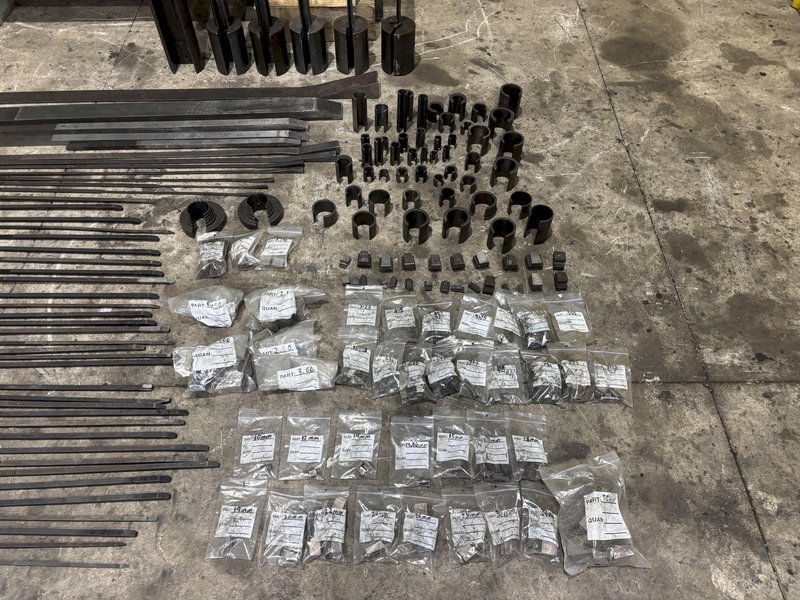

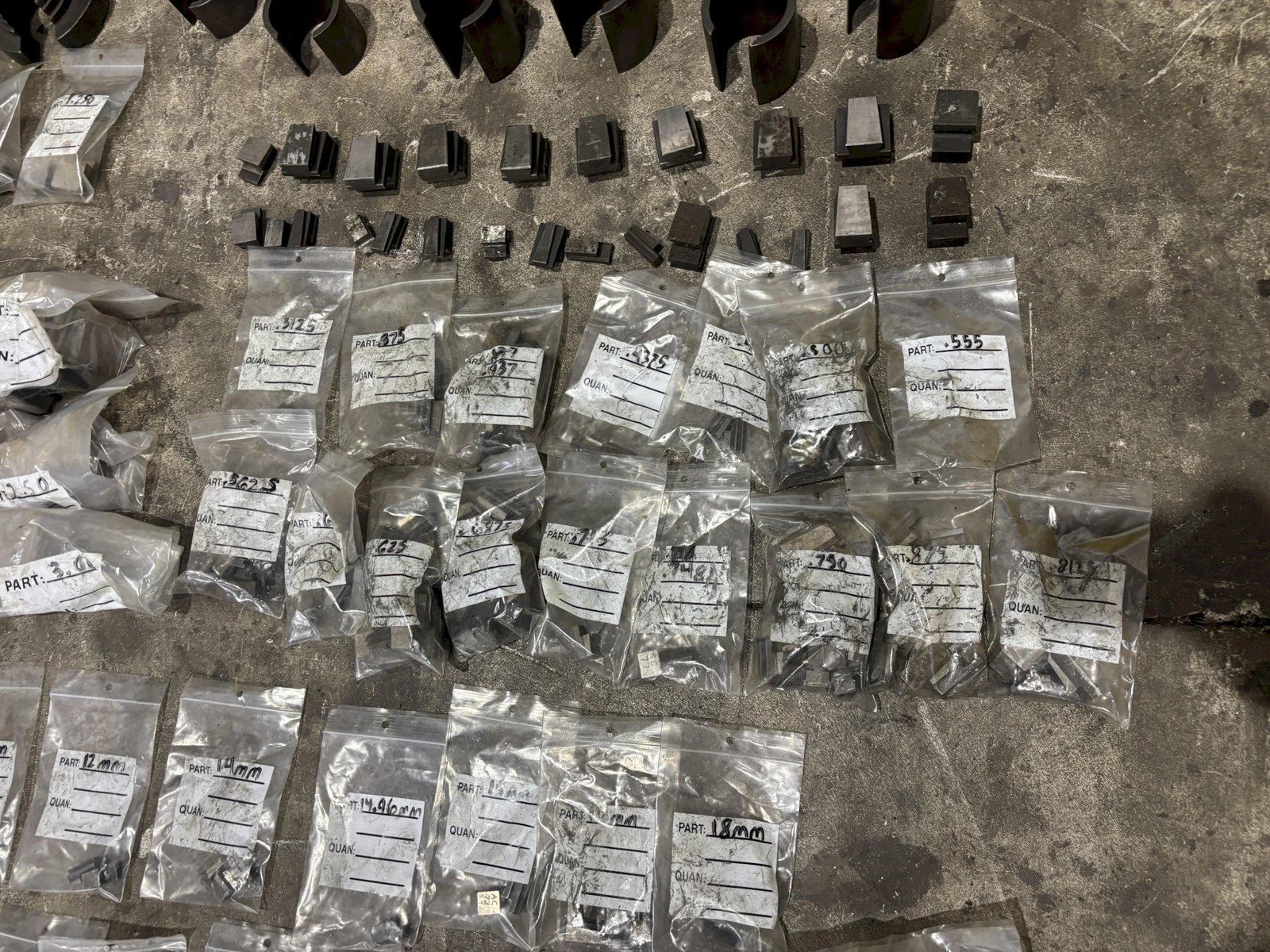

DOVETAIL CUTTERS .......................... .3125",.375", .437", .4375", .4385", .555", .5625", .625", .686", .682", .713", .748",.750", .8125", .875", 1.00", 1.100", 1.250", 1.5", 1.750", 2.00", 2.50", 3.00"
10MM, 12MM, 14MM,14.96MM,15MM, 16MM, 18MM, 19MM, 20MM, 22MM, 24MM, 25MM, 28MM, 30MM, 32MM, 50MM.

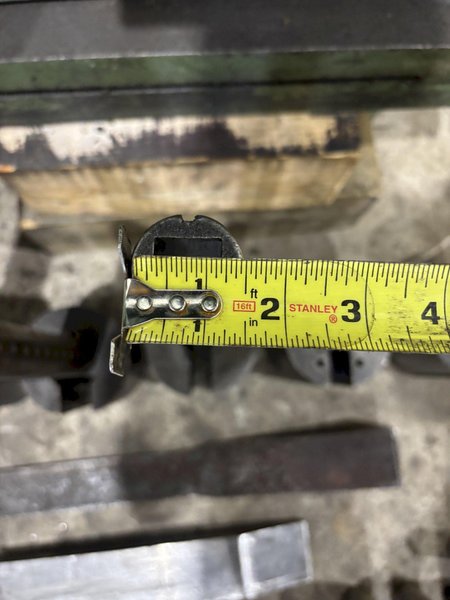

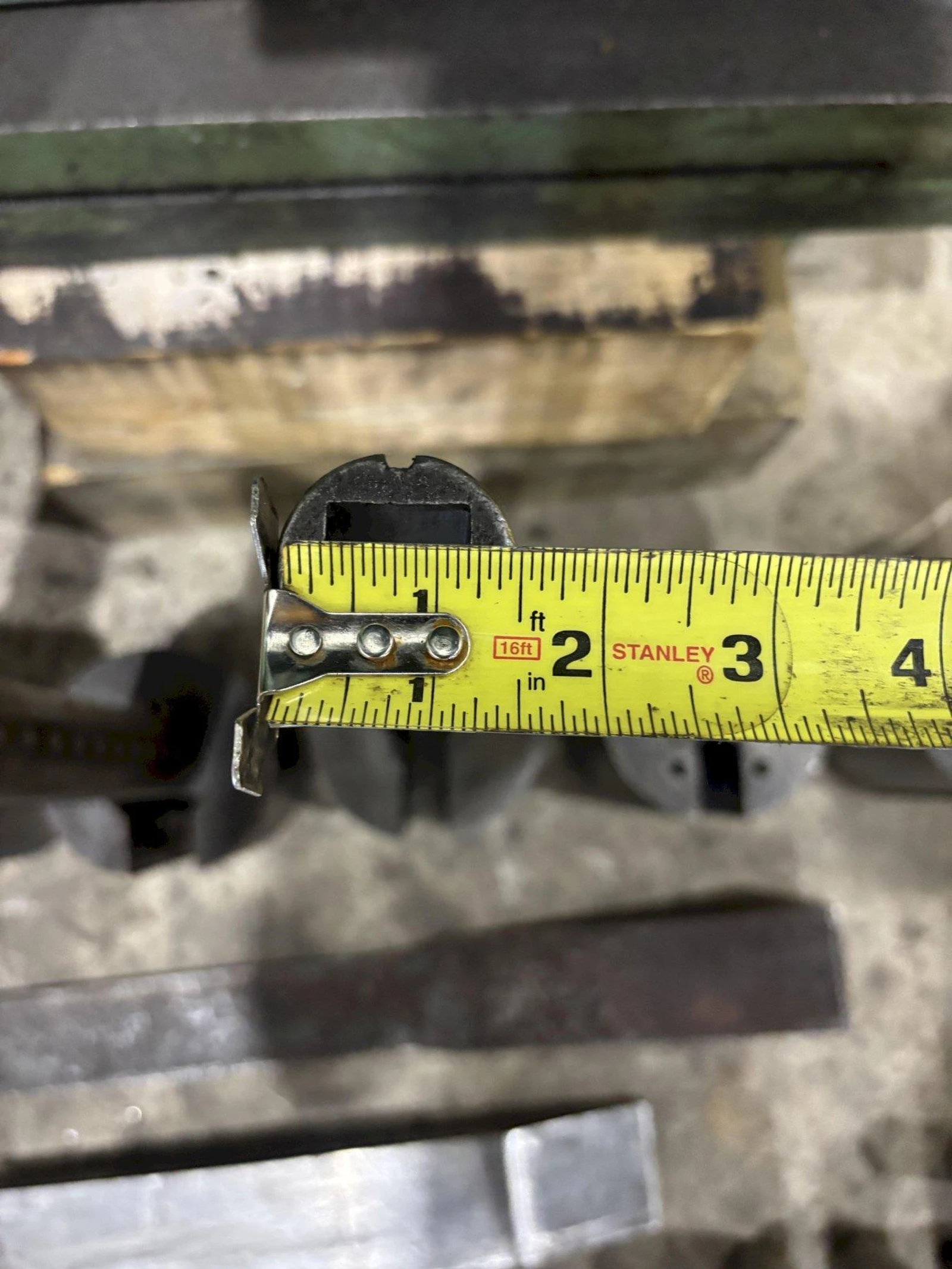

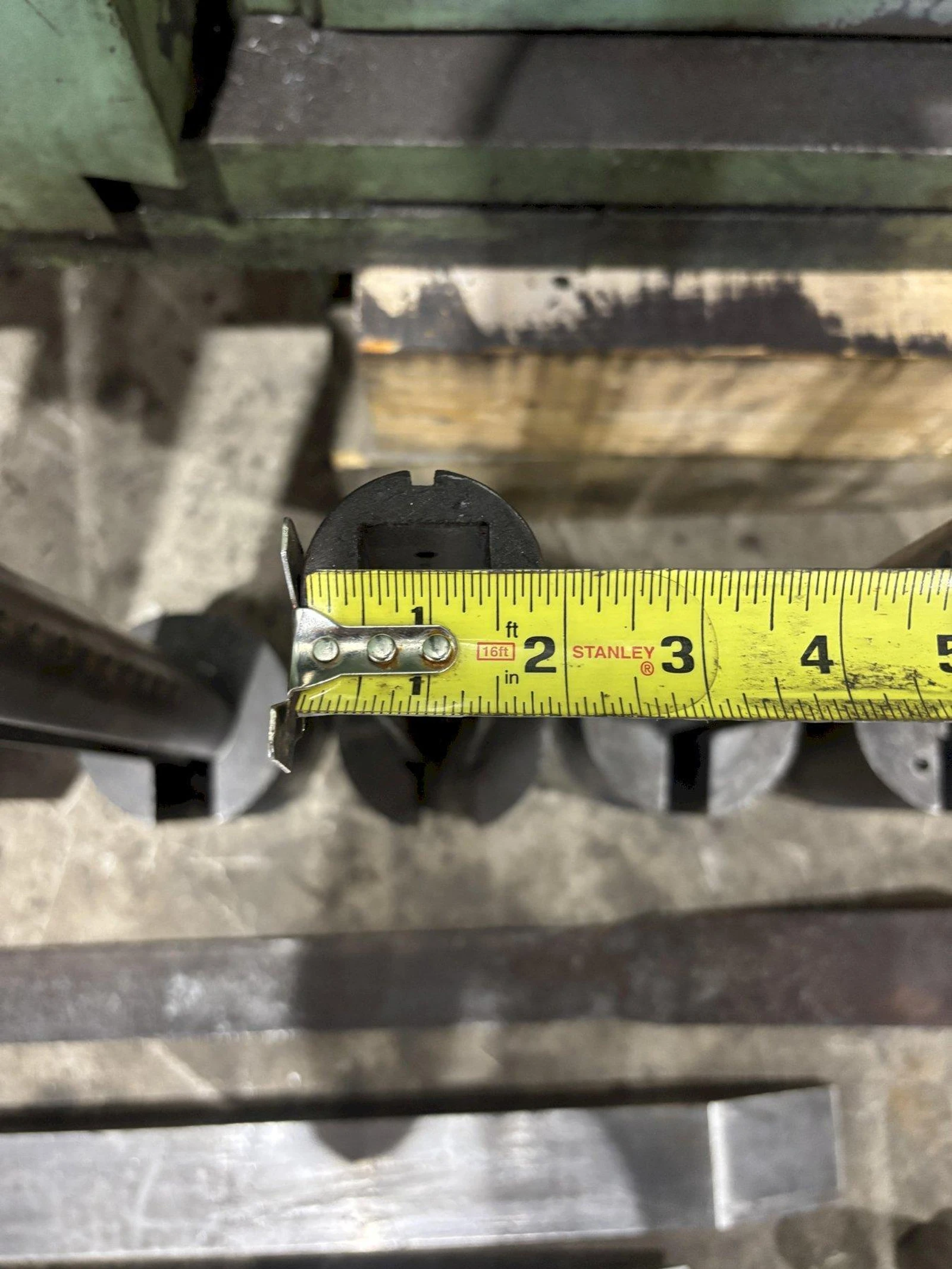

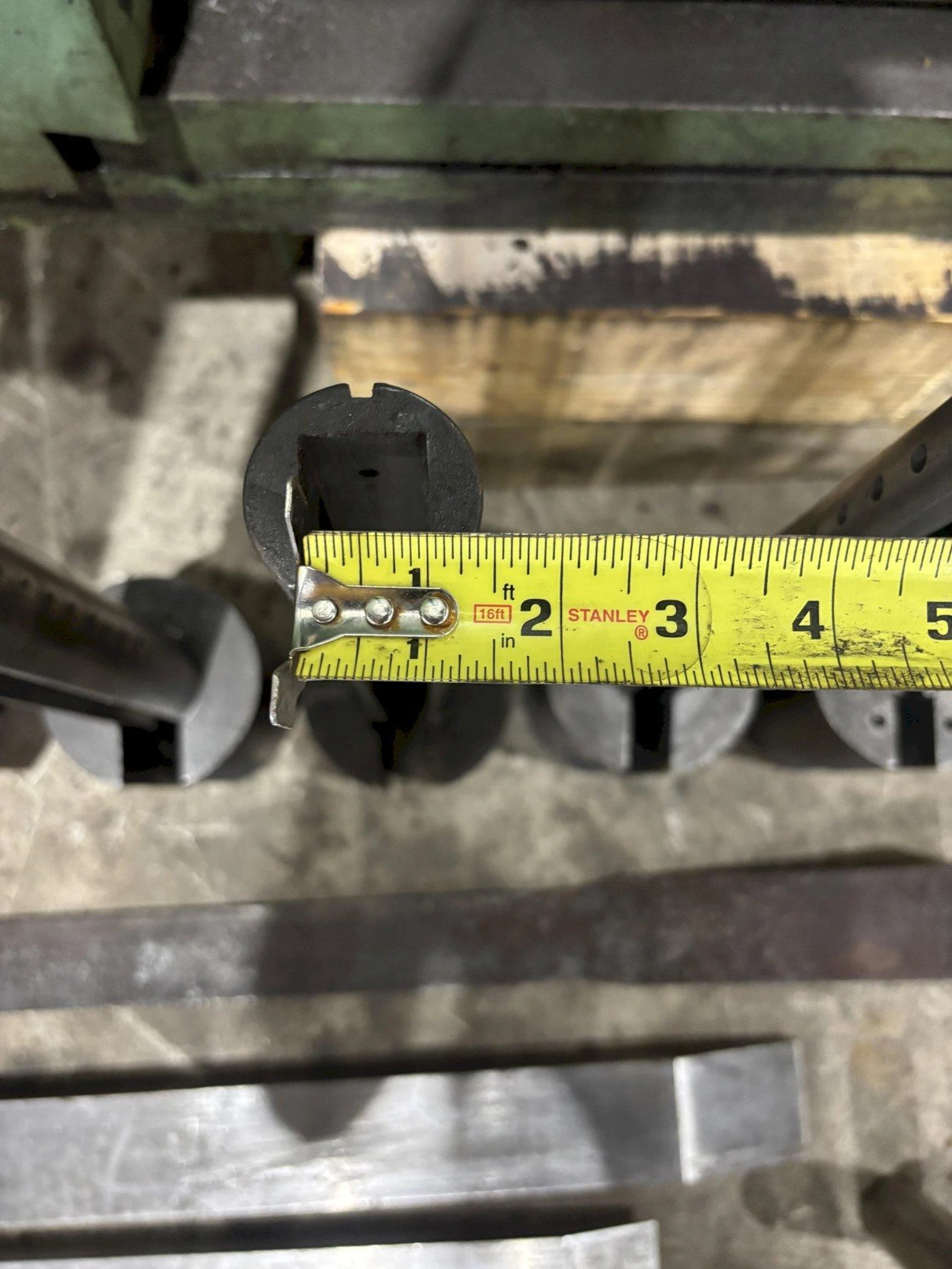

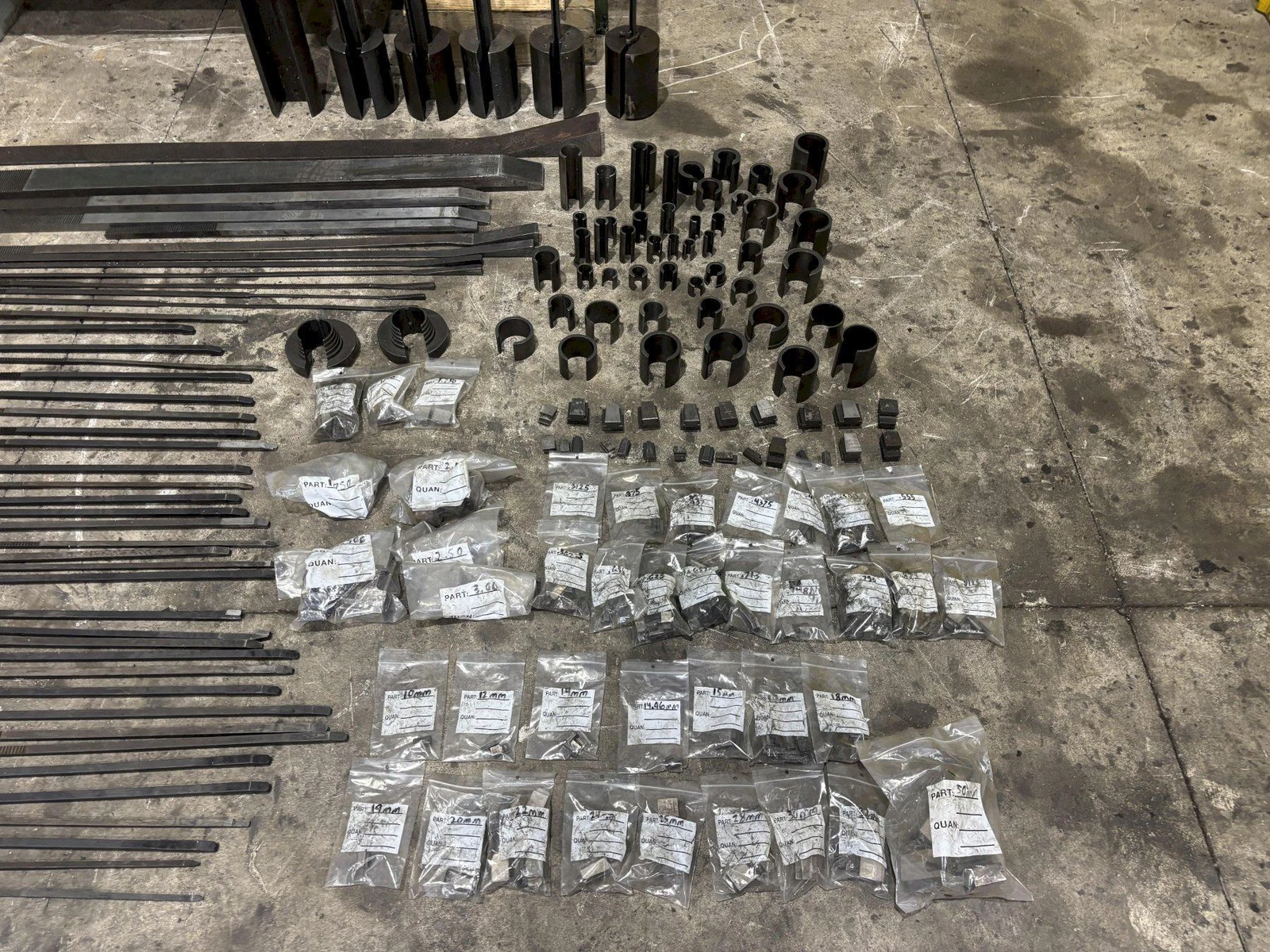

STEP BUSHINGS ............................. 2 EXPANSION BUSHINGS ........................ 11

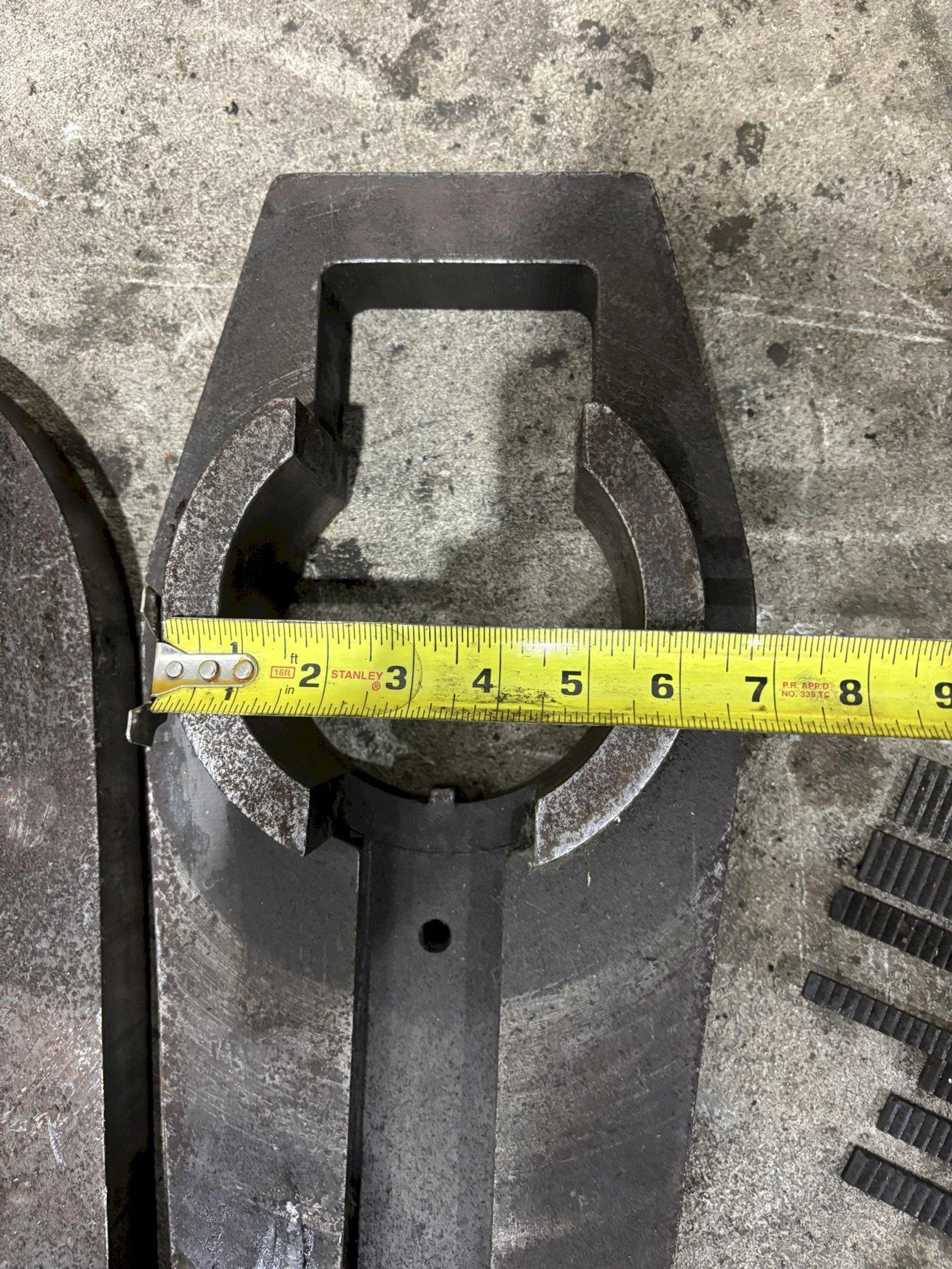

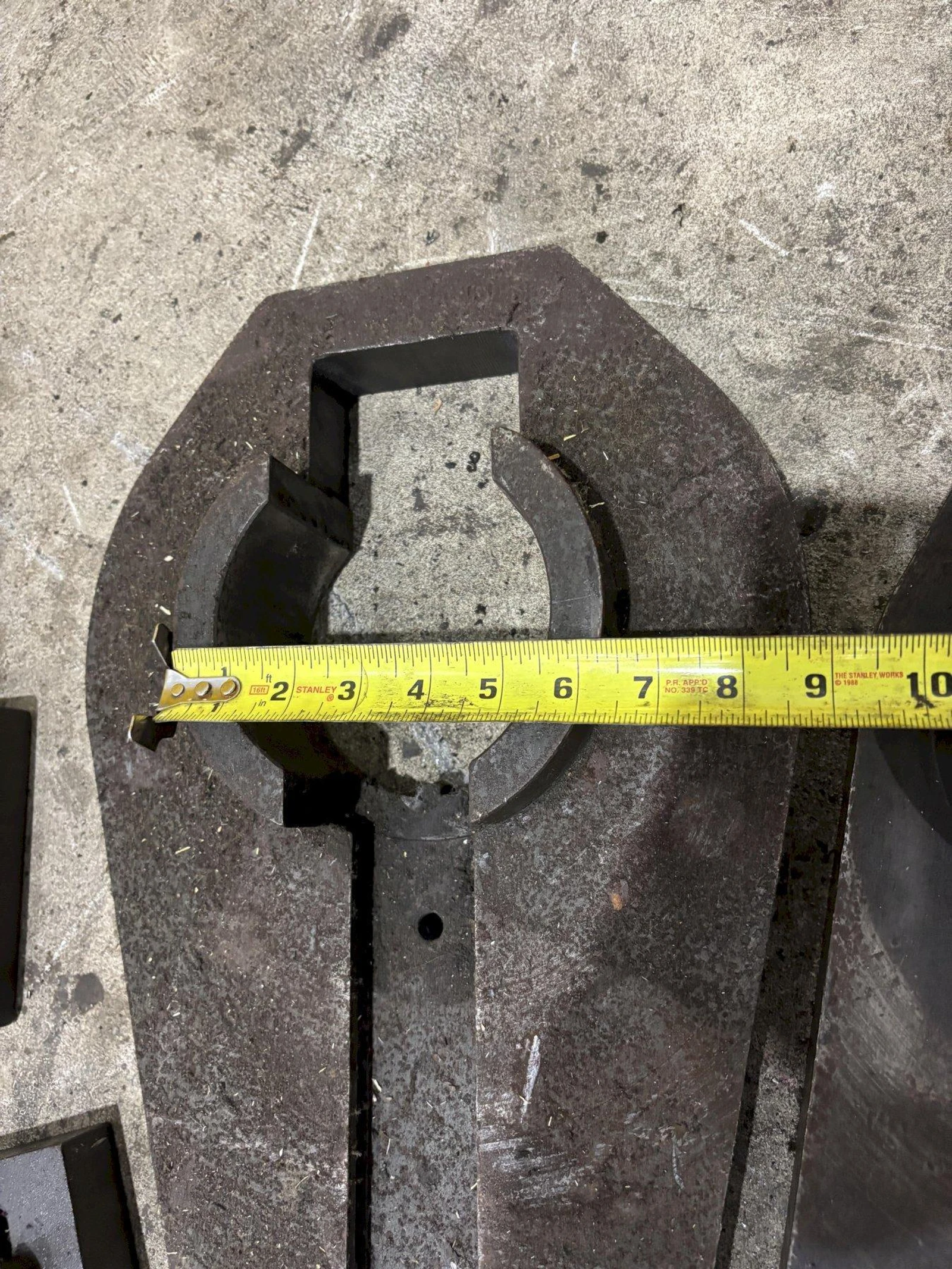

TOP CLAMP ................................. 3
EXTRA DOVETAILS, POST ADPATERS, TOOL BARS, AND TOP CLAMPS INCLUDED. |
|
