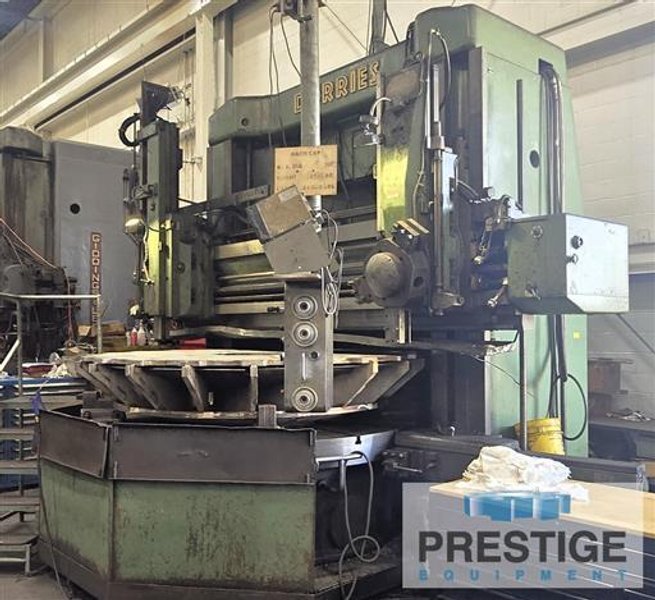

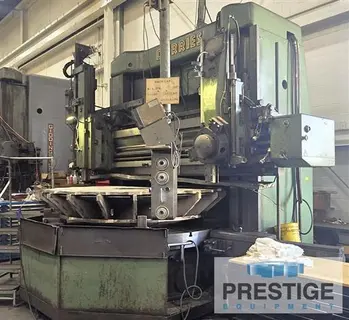

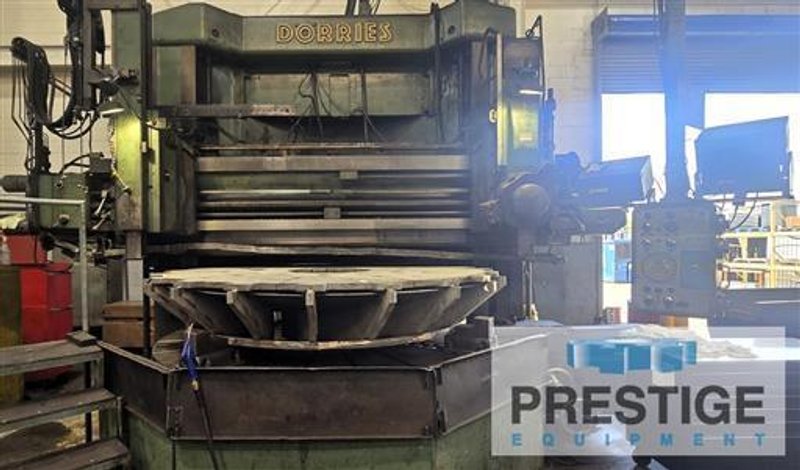

98" Dorries SD 250 Manual Vertical Boring Mill

Brand
DORRIES
Category
Boring Mills
Type
Boring Mills, Vertical
Model
SD 250
Stock #
44261
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING
SPECIFICATION:
Table Diameter 98.42"
Maximum Part Swing 110.23"
Max. Swing w/ Side Head 100.39"
Max Height Under Rail 64.96"
Cross Rail Vertical 47.24"
Ram Stroke 39.37"
Turret Vertical 29.52"
Horizontal Travel of Side Head 29.52"
Table Speeds (24) 2.1 - 112 RPM
Table Weight Capacity 25,000 Lbs
Table Motor 75 HP



Equipped With:
98.42" Face-Plate Type Chuck w/ 3 Jaws

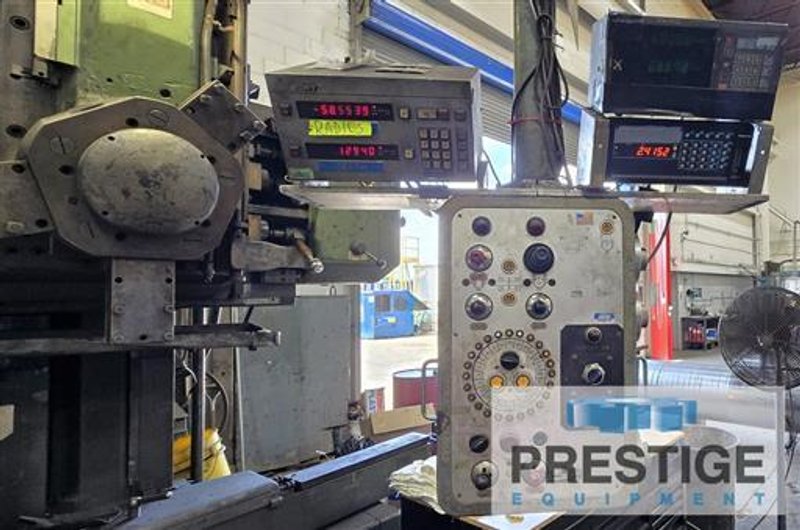

Sony Digital Readouts
5-Position Turret Head
Ram Head
Side Head
Operator Pendant Control
Power Elevating Rail


NOTE: Inspect in Plant Under Power
