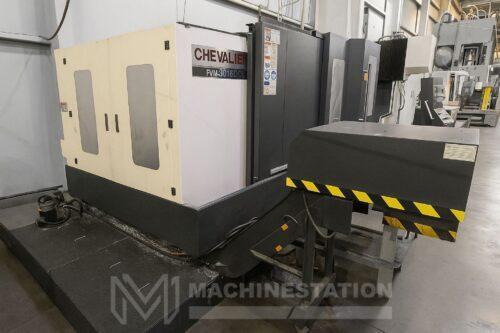

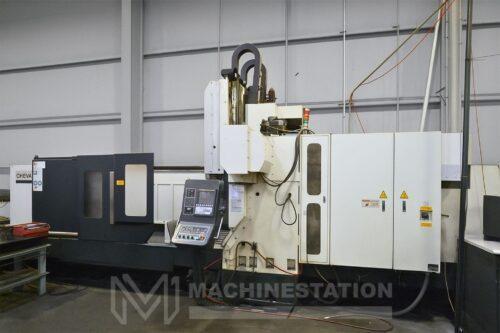

Chevalier FVM-3016DCL CNC Bridge Mill – 2015

Chevalier FVM-3016DCL CNC Bridge Mill – 2015

Name: Used CHEVALIER FVM-3016DCL For Sale 112838
Brand: CHEVALIER
SKU: 112838

Brand

CHEVALIER

Location

California

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Chevalier
Model:	FVM-3016DCL
Year:	2015 (Installed in 2018)
Condition:	Used – Good

Equipped With:

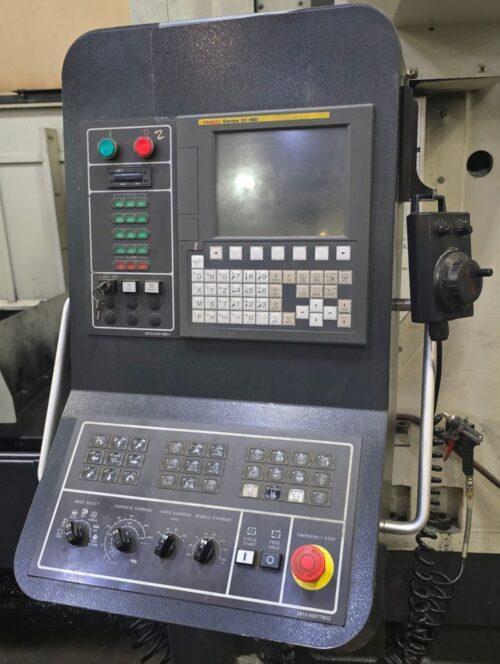

Fanuc Oi-MD CNC Control
122″ X 57″ Table

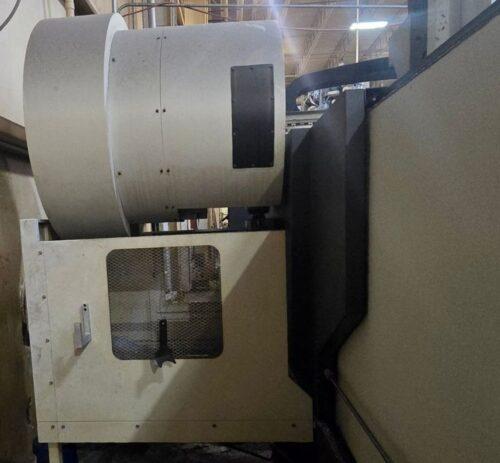

32 Station Side Mount Tool Changer

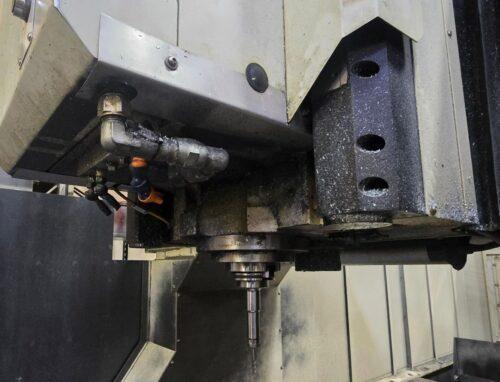

50 Taper Gear Head 6000 RPM Spindle
Powerful 30 HP high torque spindle motor
Through Spindle Coolant – Ready (Pump Needed)
PCMCIA Card Slot
Rigid Tapping
Remote Jog Control
Coolant System
Base Flush Chip Disposal with Dual Auger
Chip Conveyor

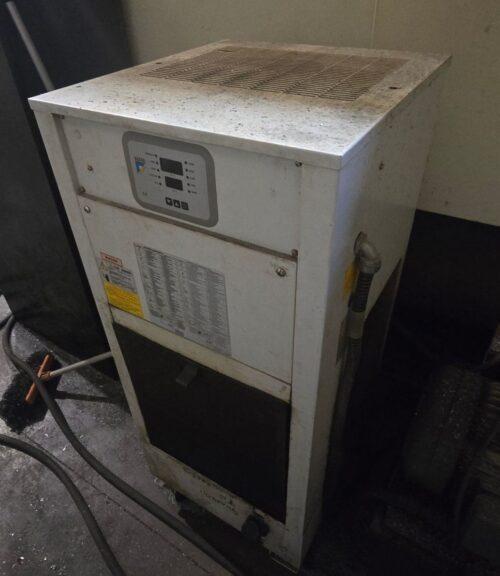

Chiller Unit

Travels:
X-Axis: 122″
Y-Axis: 59″
Z-Axis: 30.7″
Distance Between Columns: 67″
Spindle Nose to Table (Min.- Max.): 7.87″- 34.64″
Rapid Feedrate X, Y & Z Axis: 591 IPM
Cutting Feedrate: 276 IPM

Table:
Length: 122″
Width: 57″
T-Slot(Size X Number X Pitch): 0.86″ X 7 X 7.08″
Max Weight on Table: 14,330 lbs

Spindle:
Taper Size: CAT-50
Speed Range: 6000 RPM
Spindle Power: 30 HP

Automatic Tool Changer:
CAT-50 Taper
Capacity: 32 Tools
Max Tool Weight: 33 lbs
Max Tool Length: 11.81″
Max Tool Dia.: 4.9 – 9.05″

General:
Air Required: 100 psi 4 scfm
Power: 230v / 60 Hz / 3-Phase / 50 Kva
Overall Machine Dimensions: 391″ x 178″ x 160″ High
Weight: 59,400 lbs.
