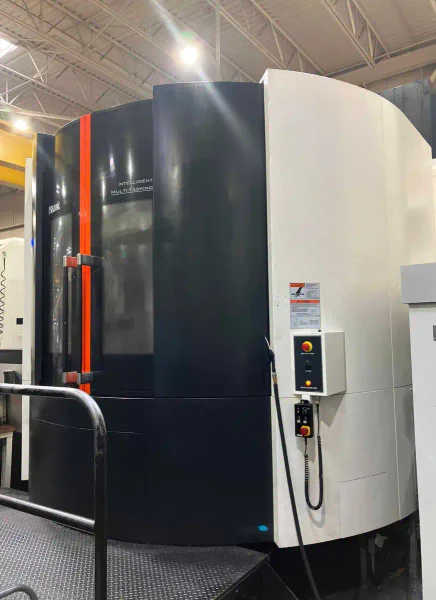

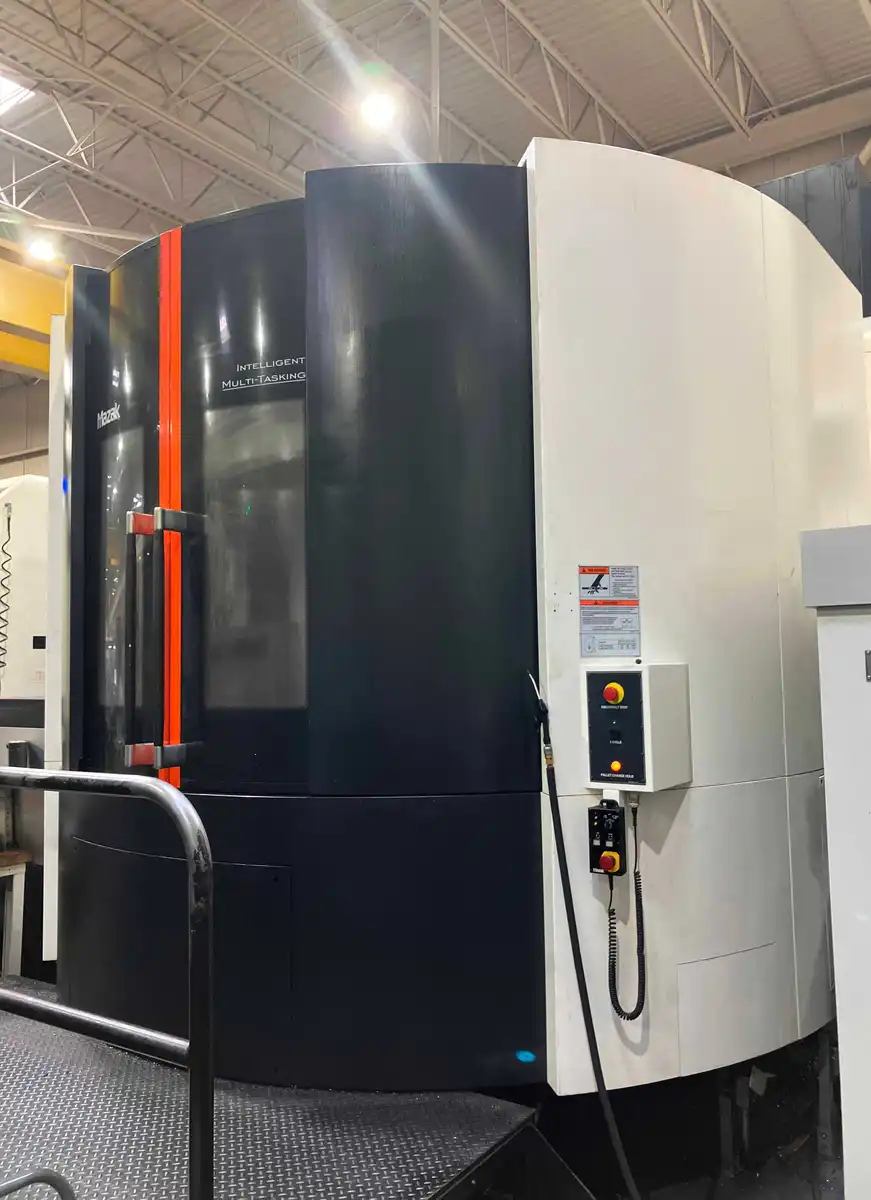

2014 MAZAK Vortex e1060-V/8 | Machining Centers, Multitasking

Mazak Vortex e1680-V/8 CNC Multi-Axis Turning/Machining Center
New: March 2014

Specifications:
Travels:
X-Axis: 73.82"
Y-Axis: 41.73"
Z-Axis: 52.95"
B-Axis: Full contouring 150 Degree (-30 Deg. to 120 Deg.)
C-Axis: 360 Degree (.0001 Deg. Increment)

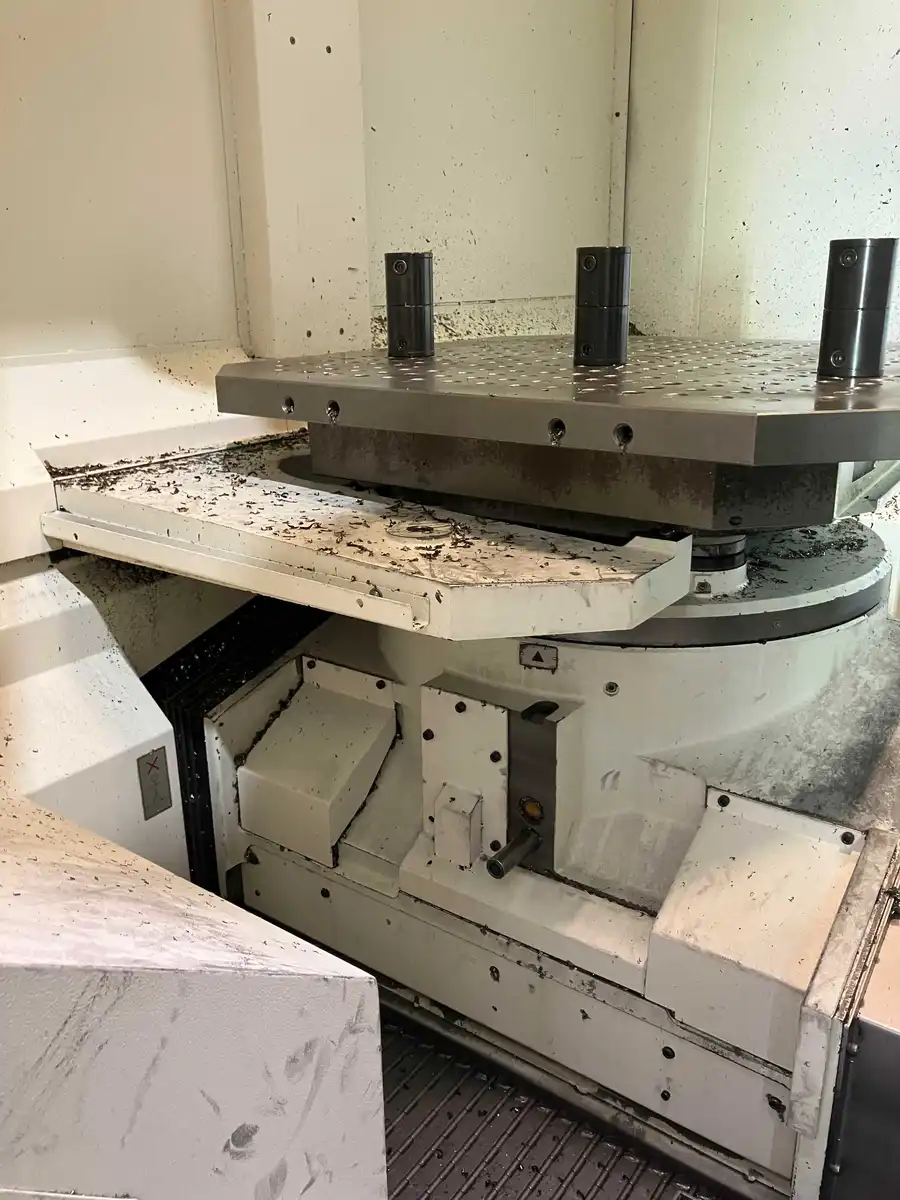

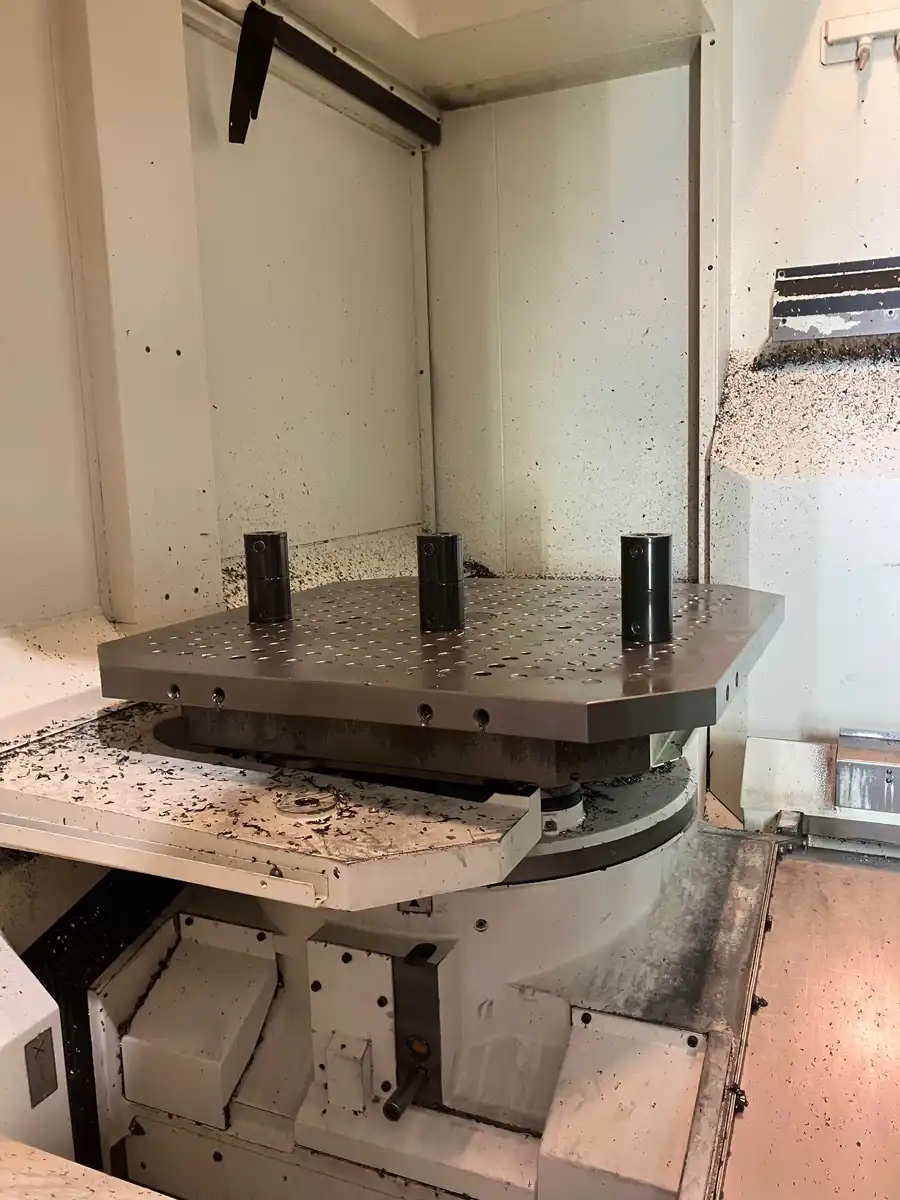

Pallets (2): 39.4" x 39.4"
Workpiece Dimensions: 49.21" X 49.21"
Weight Capacity: 4784 pounds

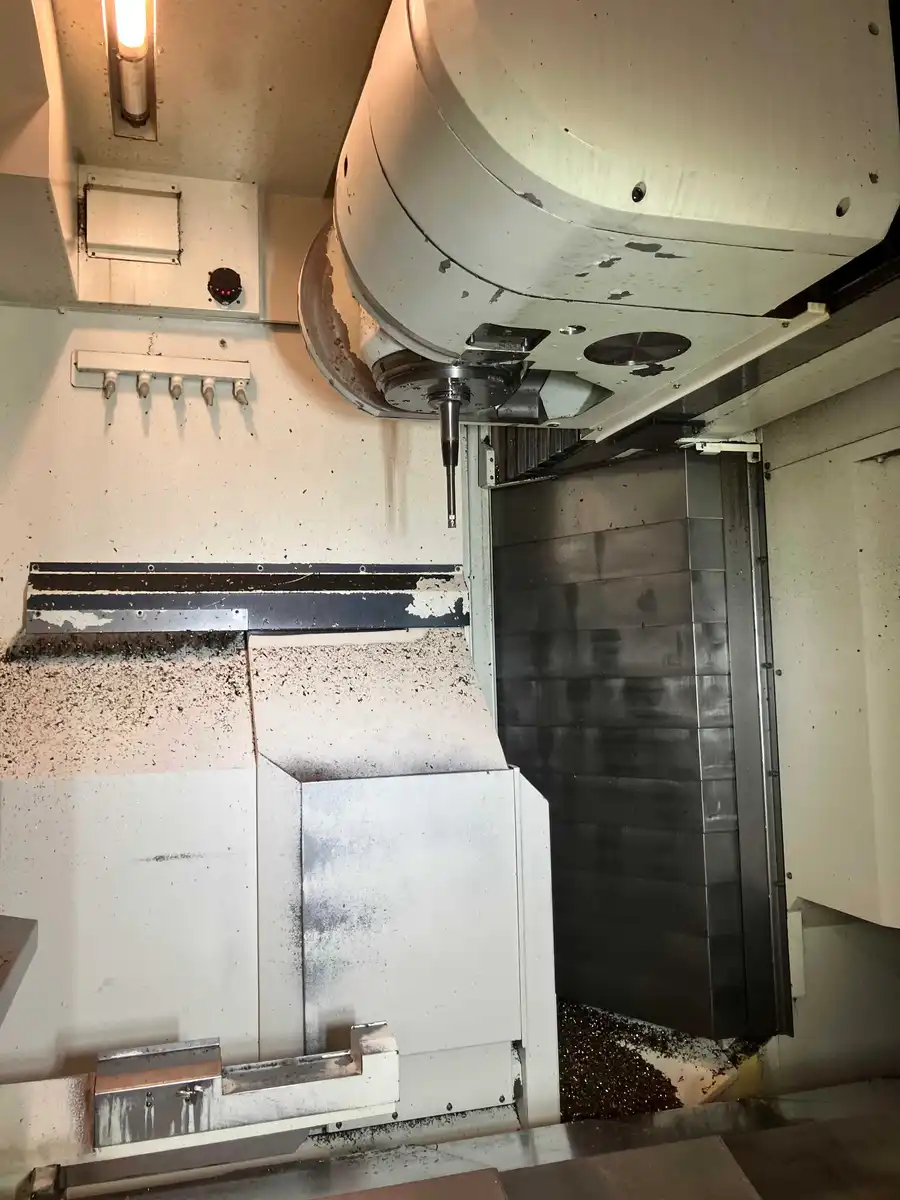

Milling Spindle Speed: 10,000 RPM / 2 Windings
Spindle Taper: CAT 50
Horsepower: 50 Int. / 40 Cont.
Turning spindle Speed: 500 RPM
Horsepower: 50 Int. / 40 Cont.

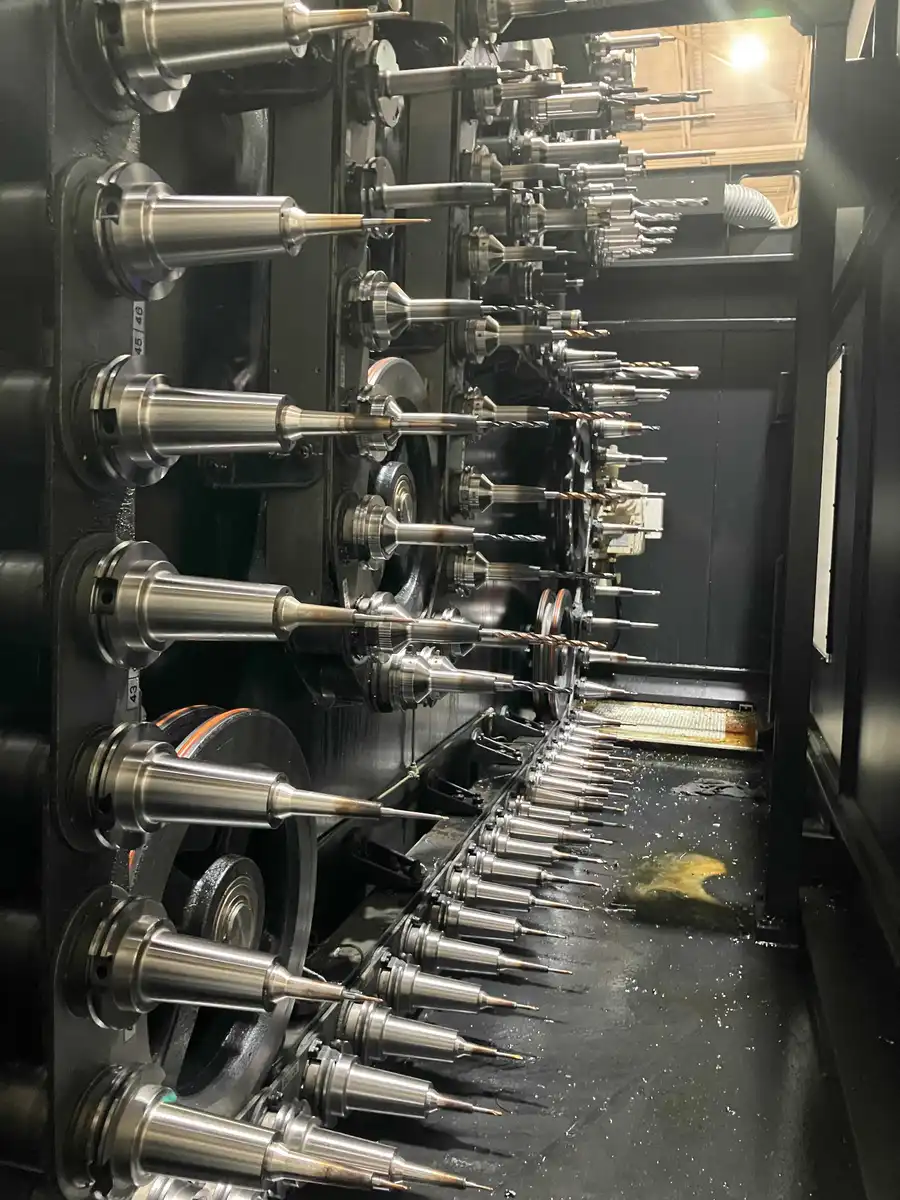

Tool Changer Capacity: 120 ATC
Tool Diameter: 5.31" / 10.24"
Tool length: 19.69"
Tool Weight: 66 Pounds
Rapid Traverse: X, Y, Z Axis 1653 IPM
B-Axis: 30 RPM
C-Axis: 18 RPM
Machine Weight: 85,800 pounds

Equipped with:

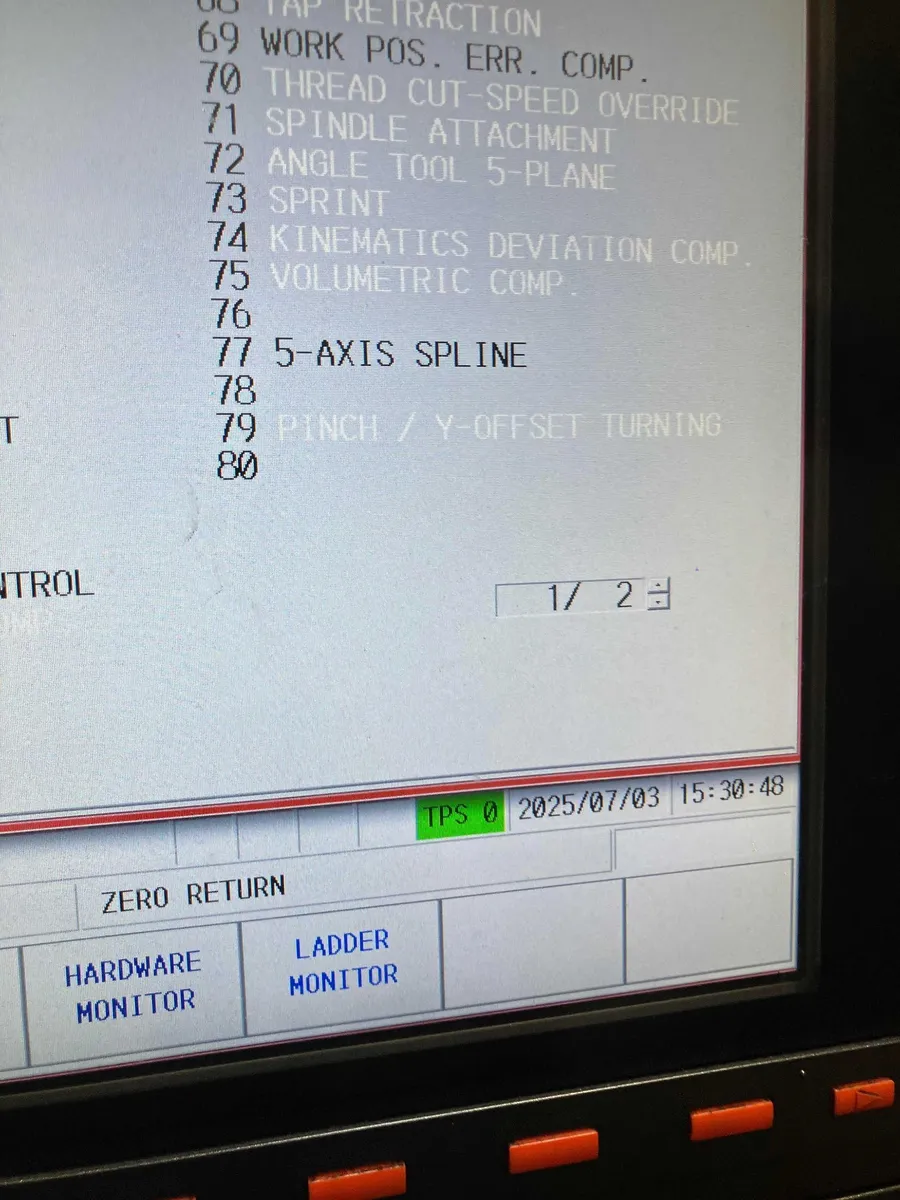

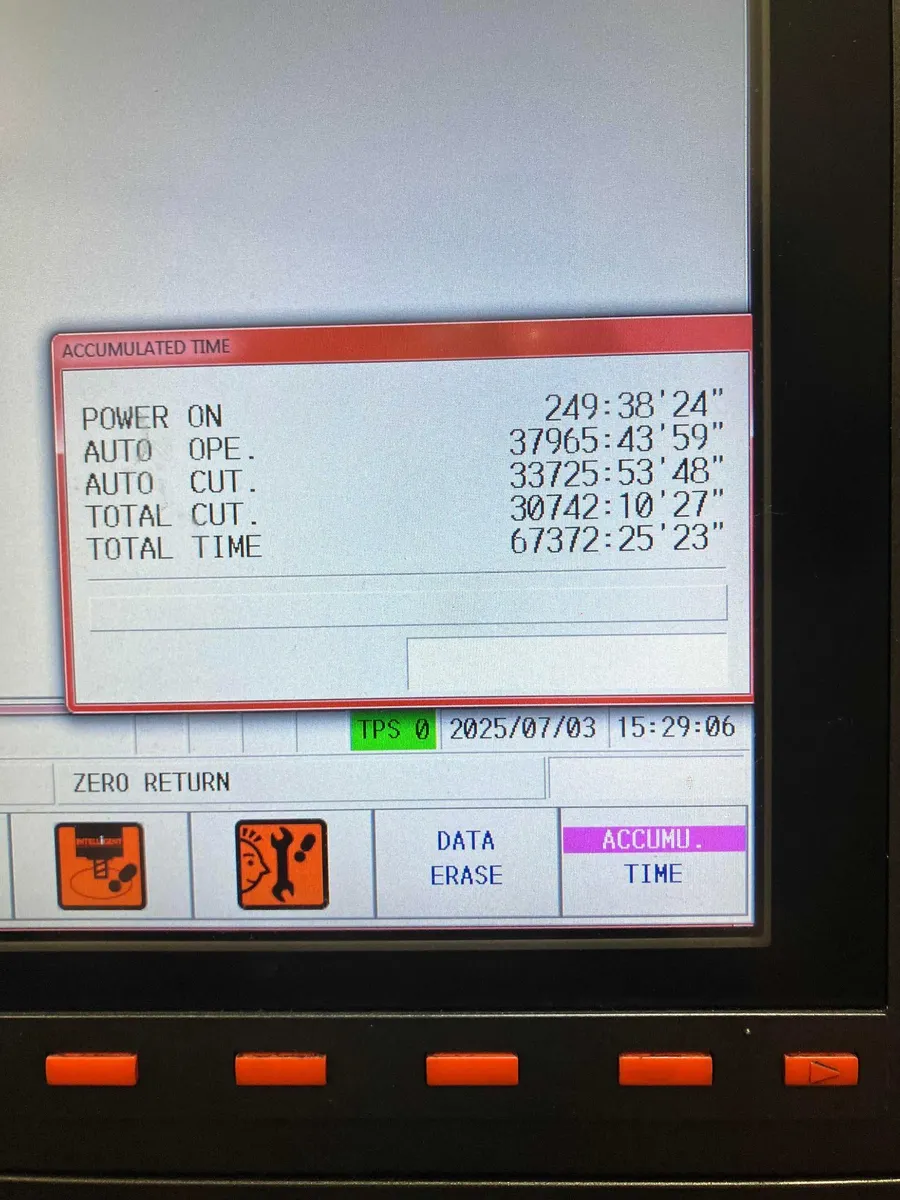

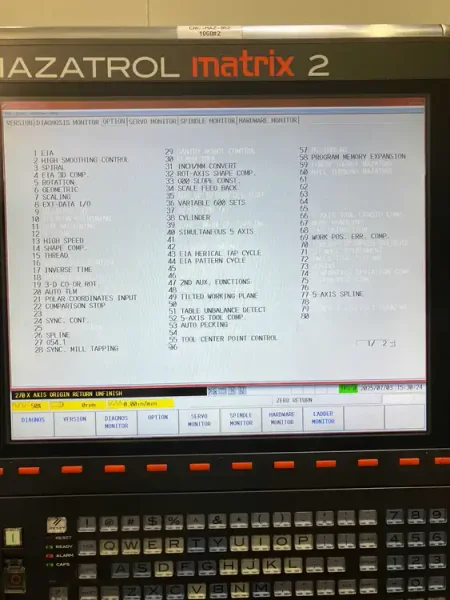

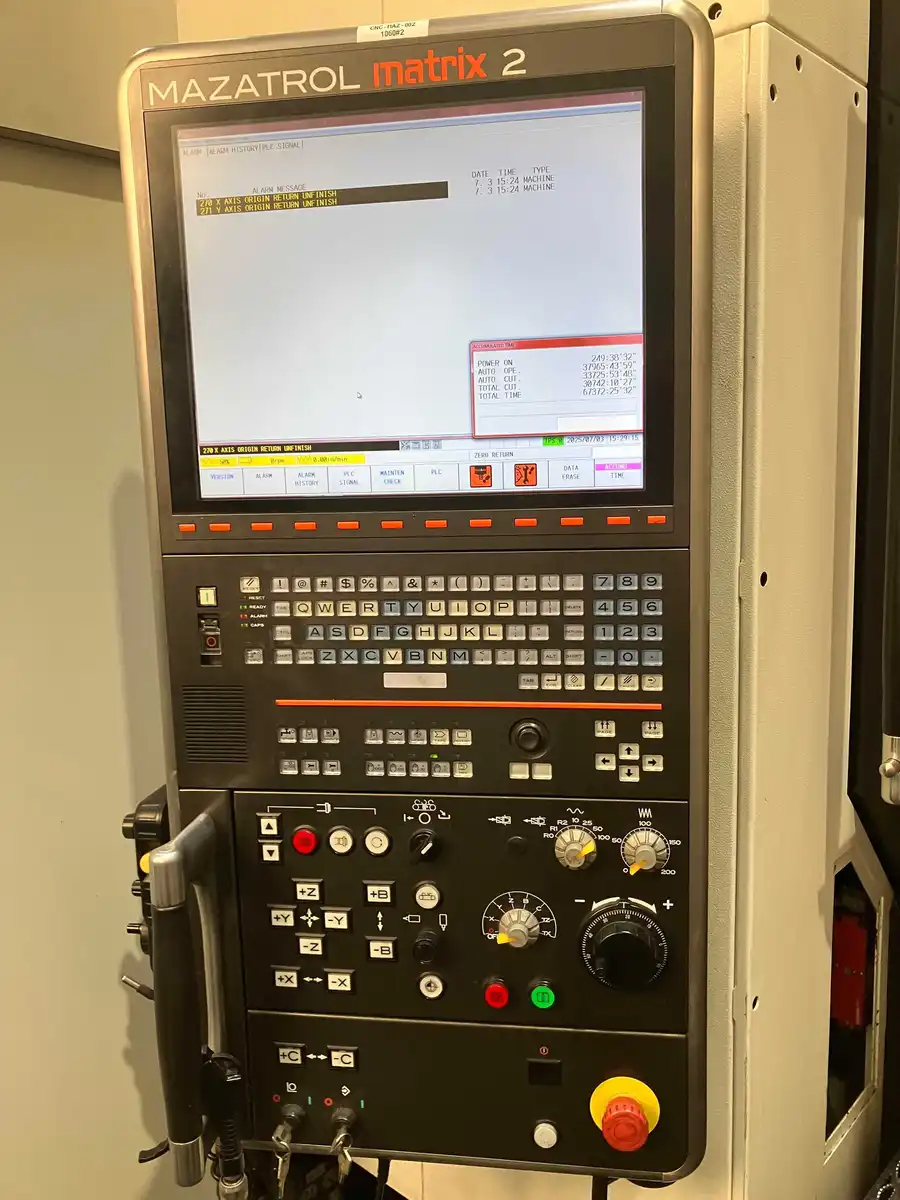

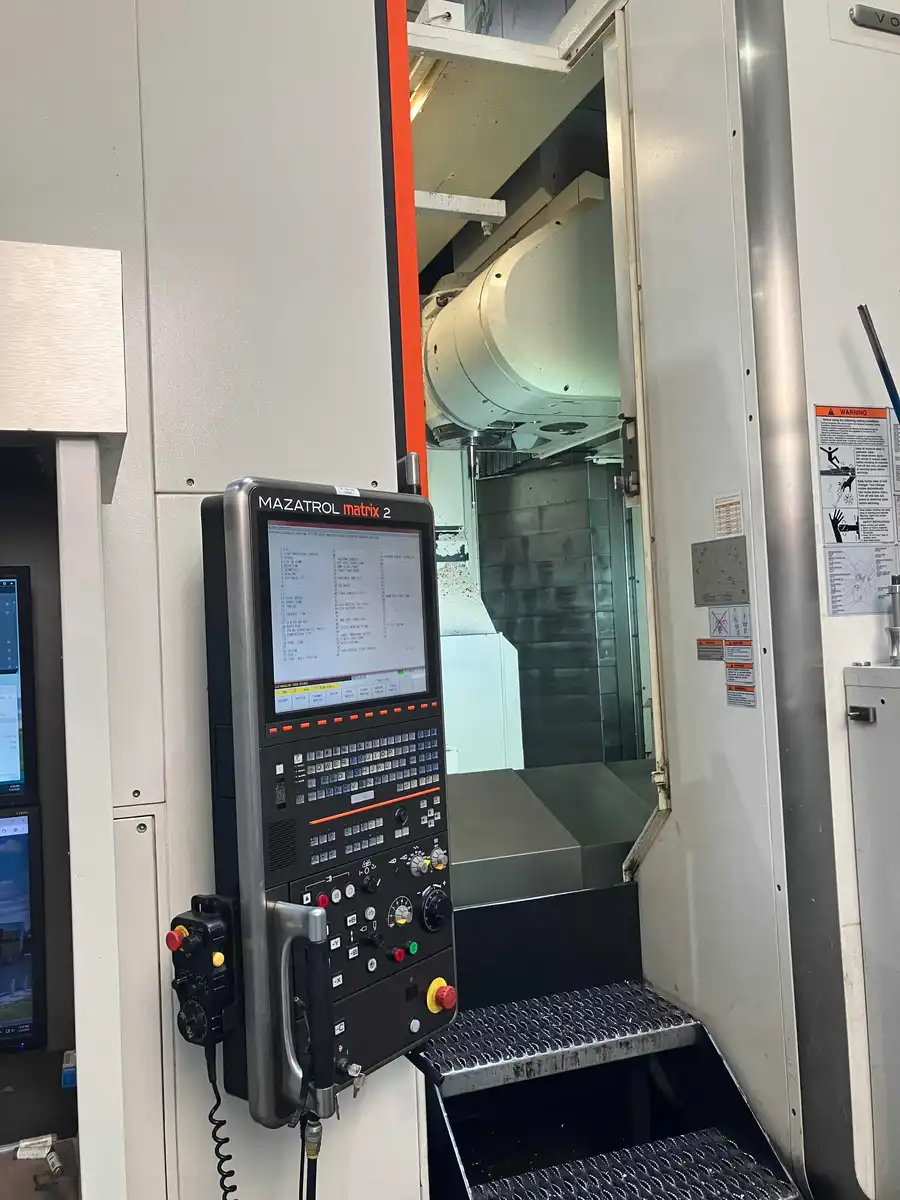

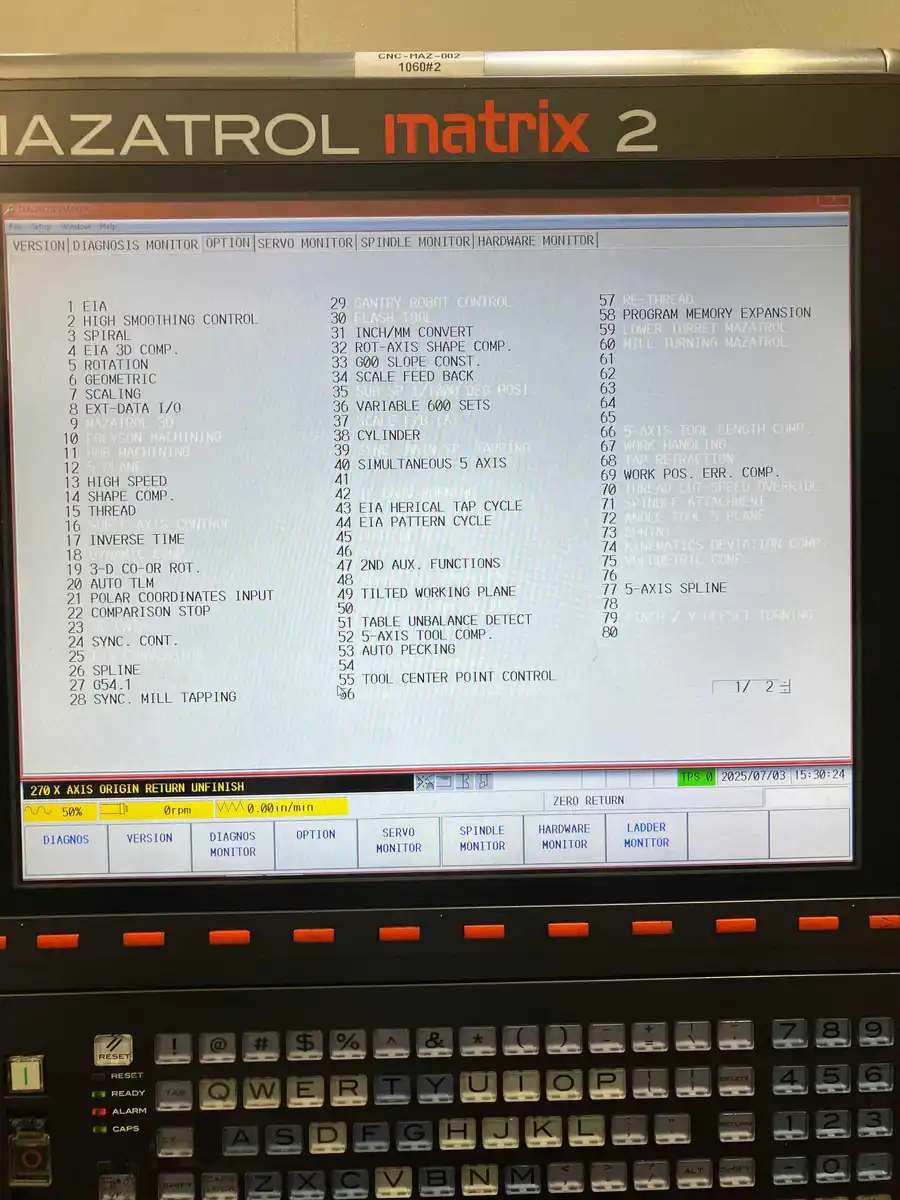

Mazatrol Matrix 2 CNC conversational control w / 15" display

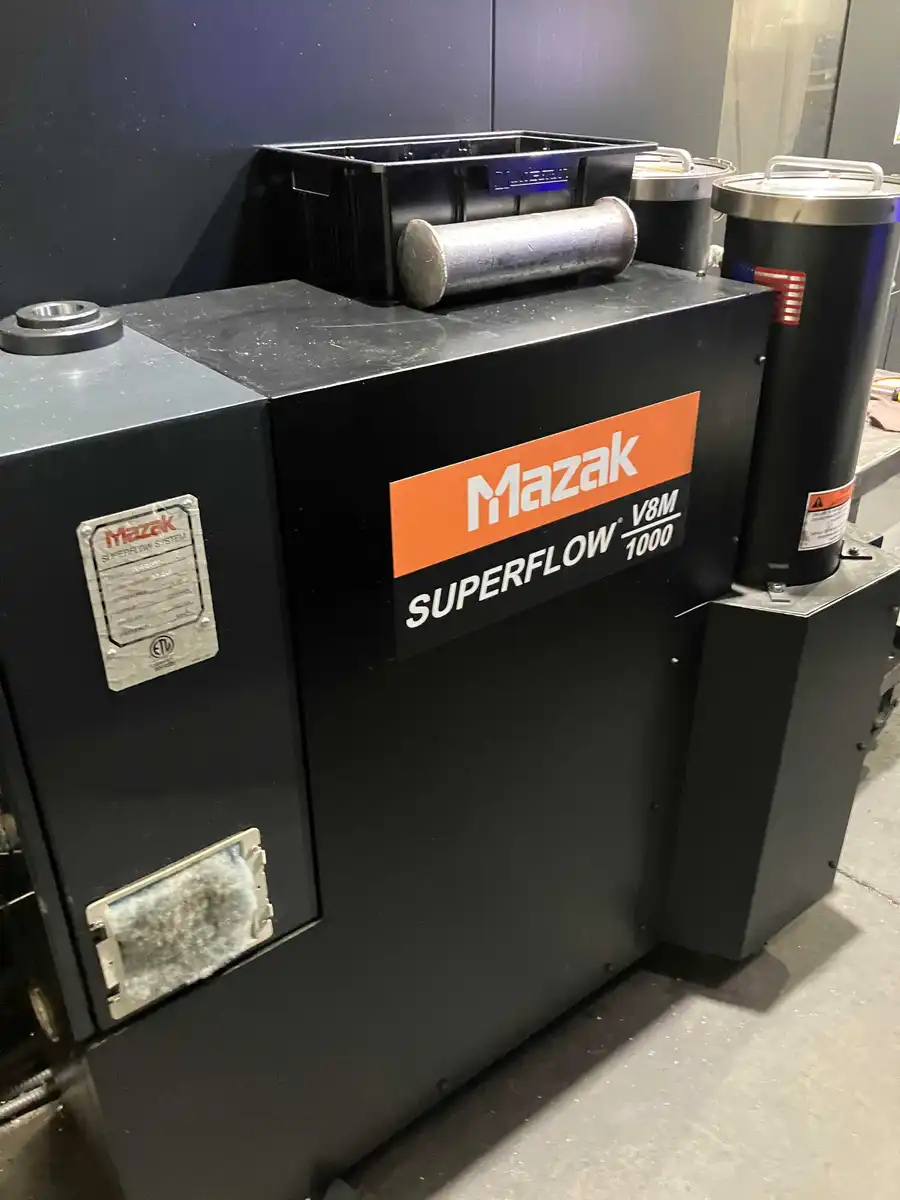

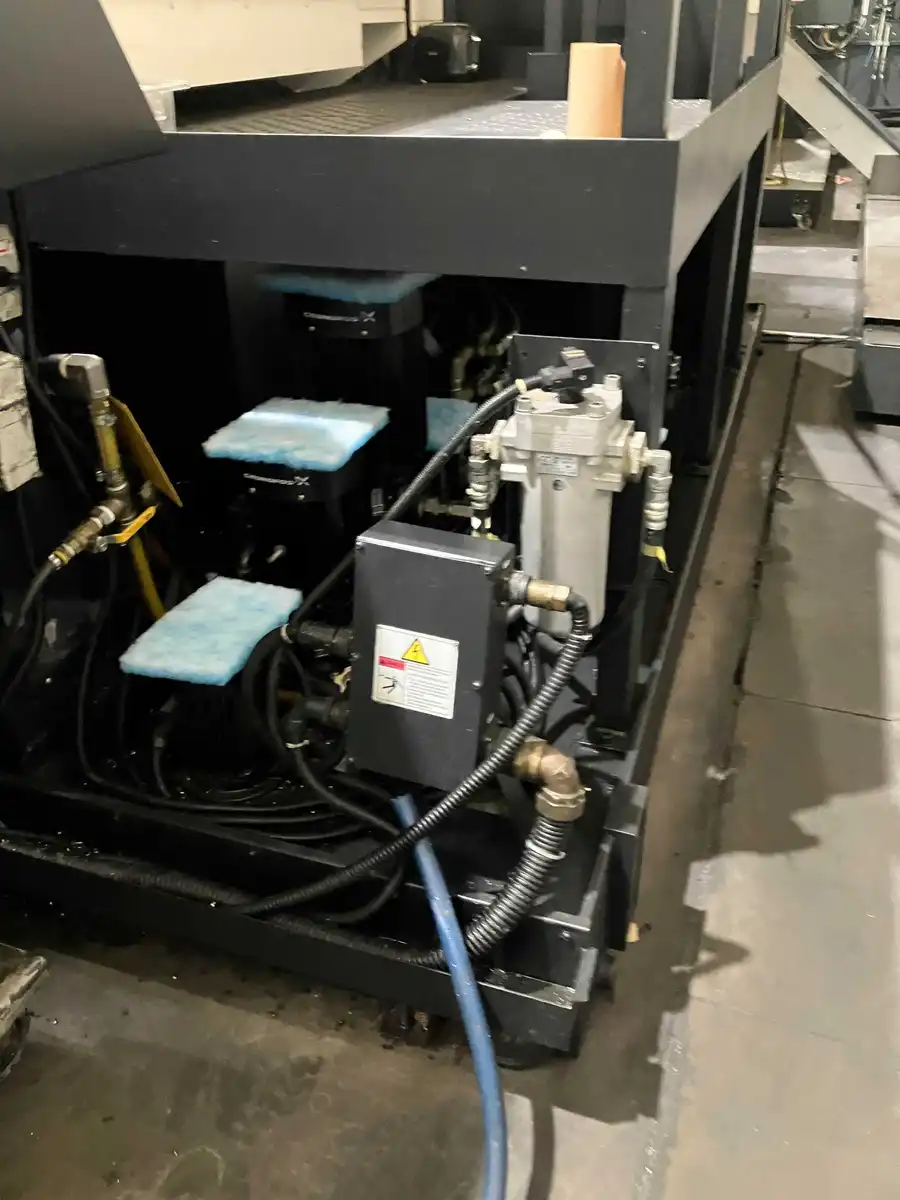

1000 PSI high pressure coolant through spindle w / Mazak Superflow V8M
Manual pulse generator (Detachable)
Two pallet changer
Tool eye automatic
ConSep chip conveyor system
Coolant washdown at operator and pallet load stations
Heidenhein linear scales X, Y, Z
Spindle air blow
Power indexing at work load station
Renishaw NC4 laser tool measurement
Renishaw H/V OMP60 probe
Hydraulic pressure interlock
Auto power on/off/warm-up
8MB program storage
Prep for LAN and Modem
Mill spindle synchronous tapping
Background tool path check
Tool breakage detection
Adaptive feedrate control
Tool life monitoring
Renishaw advanced probe macros / Inspection plus
3D coordinate rotation G68.2
EIA simultaneous 5-axis
Tool tip point control 5-axis
Simultaneous 5-axis tool radius comp.
G00 slope constant
2D software shape continuous
Shape continuous rotary axis
Inch / Metric conversion
Cylindrical G07
Polar coordinate G12
Mazacc-3D high speed software package
High smoothing control
Additional EIA / ISO function
All available manuals
